XB-IMG-147746

Xenbase Image ID: 147746

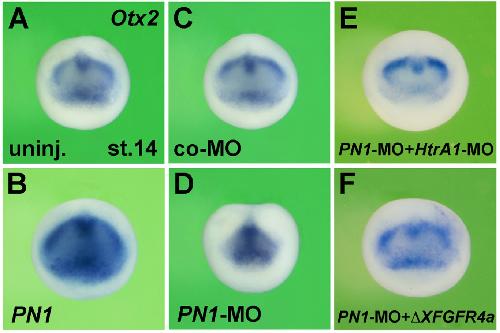

Figure S7. PN1 promotes anterior development via inhibition of HtrA1-, FGF- and Wnt signals Embryos were animally injected with MOs at the 2-cell stage and mRNAs at the 4-cell stage. (A) Anterior view of early neurula embryos after whole-mount in situ hybridization with Otx2, demarcating the prospective cement gland, forebrain and midbrain. (B) PN1 mRNA (4 ng) causes expansion of Otx2 expression. (C,D) PN1-MO (60 ng) reduces the Otx2 marker, while an equivalent amount of control-MO has no effect. (E,F) HtrA1-MO (20 ng) or 80 pg δXFGFR-4a mRNA restore normal Otx2 expression in PN1 morphant embryos. Indicated phenotypes were observed in B, 12/13; C, 59/62; D, 63/73; E, 22/24; F, 23/29.

Image published in: Acosta H et al. (2015)

Copyright © 2015. Image reproduced with permission of the publisher and the copyright holder. This is an Open Access article distributed under the terms of the Creative Commons Attribution License.

GeneSynonymsSpeciesStage(s)Tissue
otx2.SXotx2, otx-2, Xotx-2, otxA, otx2-a, otx2-bX.laevisThroughout NF stage 14optic field
pre-chordal neural plate

Image source: Published
