XB-IMG-154546

Xenbase Image ID: 154546

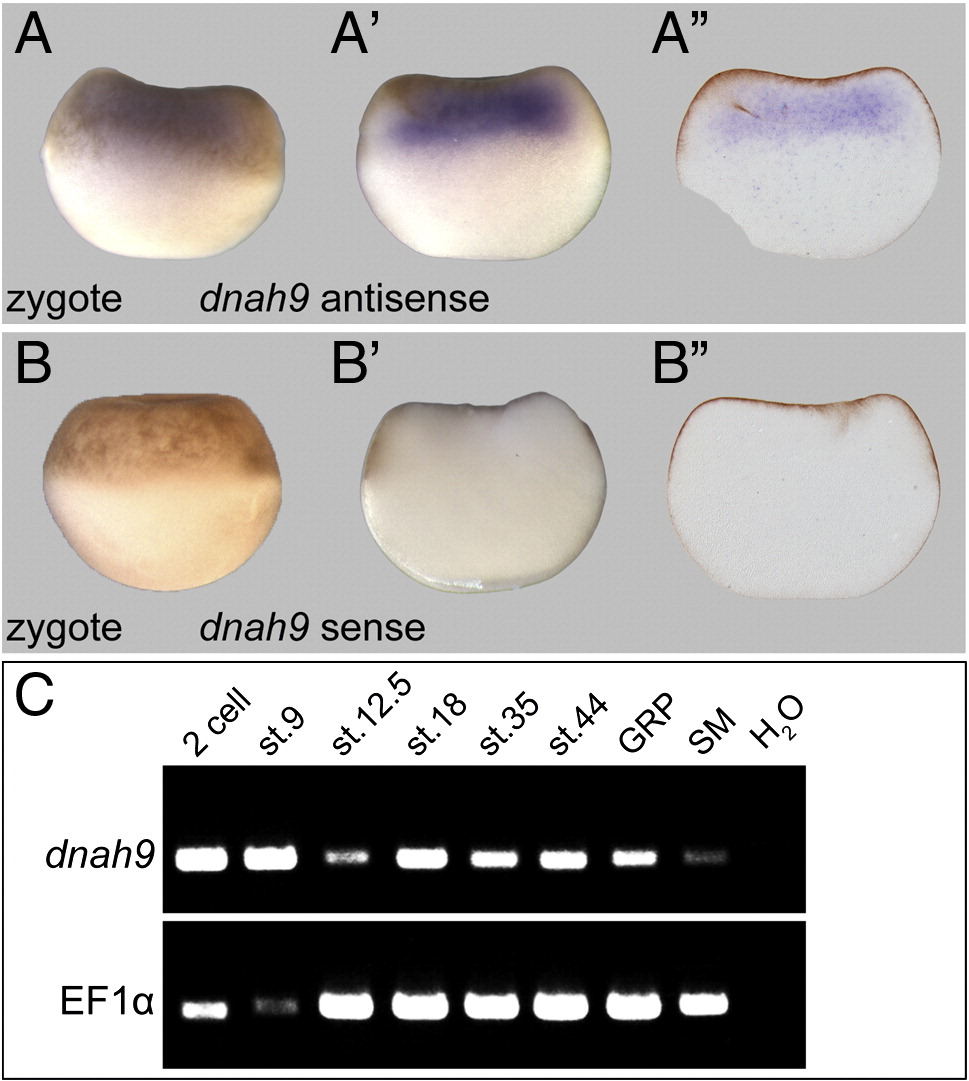

Suppl. Fig. 3. Specificity of early maternal expression patterns of dnah9. (A, B) Whole-mount in situ hybridization of zygotes using antisense (A) and sense (B) probes, shown in whole-mounts (A, B), hemi-sections (A’, B’) and 30 μm vibratome sections (A”’’, B”’’). (C) Semi-quantitative RT-PCR from 2-cell to tadpole stages, and of isolated GRP and SM tissue (top). Elongation factor 1 alpha (bottom) served as control. GRP, gastrocoel roof plate; SM, superficial mesoderm. Note the strong maternal expression of dnah9.

Image published in: Vick P et al. (2009)

Copyright © 2009. Image reproduced on Xenbase with permission of the Publisher, Elsevier B. V.

GeneCloneSynonymsSpeciesStage(s)Tissue
dnah9.L dnah9-A, L-R Dynein, LRD, Left-Right DyneinX.laevisThroughout NF stage 1animal hemisphere

Image source: Published
