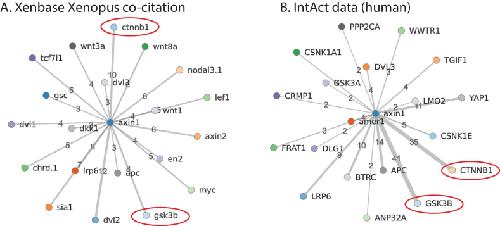

Figure 3. Comparison of Xenopus literature gene co-citation to human protein interaction data from IntAct. A. Genes co-cited with axin1 in Xenbase. Two key interactants, ctnnb1 (beta-catenin, 10 co-citations) and gsk3b (glycogen synthase kinase 3 beta, 8 co-citations) are circled in red. B. IntAct data on human proteins interacting with AXIN1. CTNNB1 has 35 results and GSK3B has 41 results, ranging from co-immunoprecipitation and yeast two-hybrid interactions, to fluorescence polarization spectroscopy and protein kinase assays (click on interactions hyperlink on Xenbase to view evidence). Image published in: Karimi K et al. (2018) © The Author(s) 2017. This image is reproduced with permission of the journal and the copyright holder. This is an open-access article distributed under the terms of the Creative Commons Attribution-NonCommercial license Larger Image Printer Friendly View |
