XB-IMG-42635

Xenbase Image ID: 42635

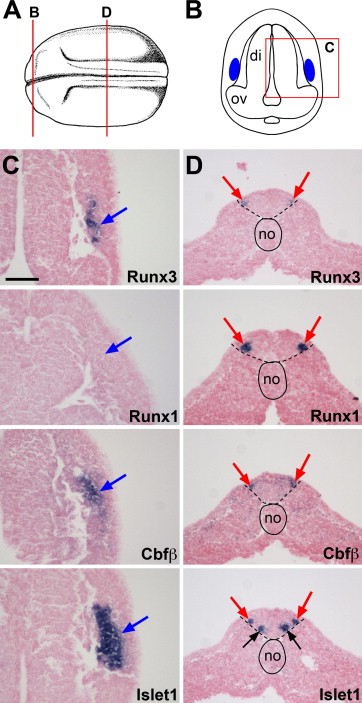

Fig. 5. Comparative analysis of Runx3, Runx1, Cbfβ and Islet1 expression in the profundal-trigeminal placode and Rohon-Beard sensory neurons at stage 20. (A) Schematic representation of a stage 20 embryo view from the dorsal side, anterior to the left. Modified from Nieuwkoop and Faber (1967). (B) Schematic representation of a transverse section at the level of the diencephalon, corresponding to the line labeled “B” in panel (A). Dorsal to top. The blue areas indicate the position of the developing profundal-trigeminal placode. The boxed area labeled “C” is the region of the section shown in subsequent panels (C). (C) Runx3, Cbfβ and Islet1 are co-expressed in the profundal-trigeminal placode (blue arrows), while Runx1 is not detected in this tissue. (D) Transverse sections in the trunk region corresponding to the line labeled “D” in panel (A). All four genes are co-expressed in Rohon-Beard sensory neurons (red arrows). Islet1 is also expressed in the population of ventral interneurons (black arrows). The notochord is outlined with a solid line, while the position of the neural tube is underlined with dashed lines. The probes are indicated in the lower right corner of each panel. di, diencephalon; no, notochord; ov, optic vesicle. The scale bar in panel C represents 100 μm.

Image published in: Park BY and Saint-Jeannet JP (2010)

Copyright © 2010. Image reproduced with permission of the Publisher, Elsevier B. V.

GeneSynonymsSpeciesStage(s)Tissue
runx3.Laml2, cbfa3, pebp2acX.laevisThroughout NF stage 20trigeminal placode
Rohon-Beard neuron
profundal placode
neuroectoderm
neural plate
neural tube
runx1.LXaml, aml1 oncogene, aml-1, Runx-1, aml1, aml, cbfa2, evi-1, amlcr1, pebp2ab, aml1-evi-1, Xaml1X.laevisThroughout NF stage 20Rohon-Beard neuron
neuroectoderm
neural tube
neuron
cbfb.Spebp2b, cbf-beta, pea2-beta, pebp2-beta, cbfbetaX.laevisThroughout NF stage 20trigeminal placode
Rohon-Beard neuron
neural plate
profundal placode
neuroectoderm
neural tube
neuron
isl1.Sislet-1, Xisl-1, Xislet-1, islet1X.laevisThroughout NF stage 20trigeminal placode
Rohon-Beard neuron
neuron
neural tube
profundal placode
neural plate
neuroectoderm

Image source: Published
