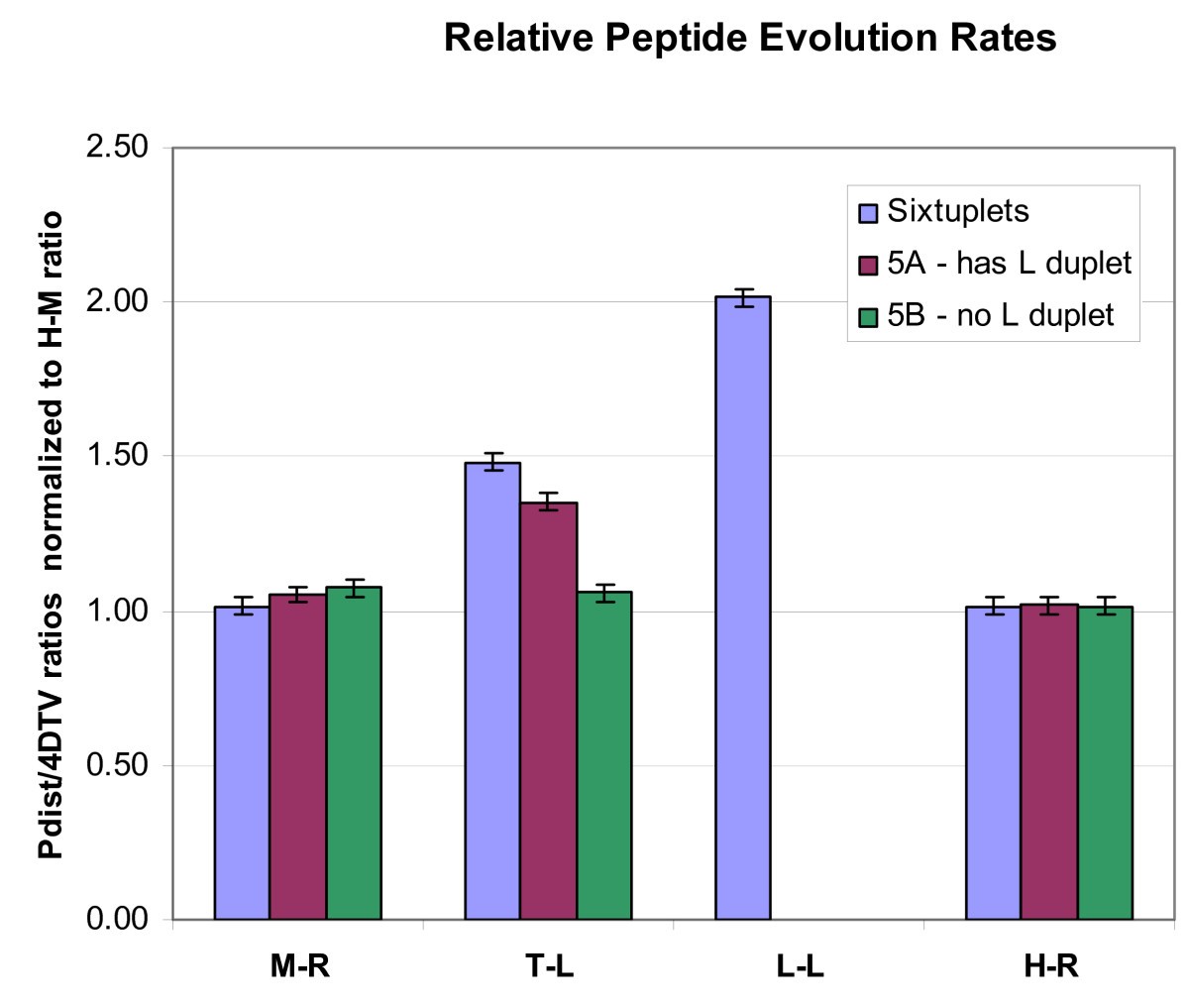

Figure 3. Normalized peptide to nucleotide evolutionary rates show an accelerated divergence of duplicated X. laevis peptides. The chart shows the ratio of peptide evolution (P-distance) to synonymous transversion rates (4 DTv), normalized by the human-mouse P-distance/4 DTV value of 0.242 � 0.004, for three sets of multiple alignments corresponding to genes found in single copy in each of human, mouse, rat, and X. tropicalis, and two copies in X. laevis (sextuplets); pentuplets obtained by randomly selecting one X. laevis paralog from each sextuplet (5 A), and pentuplets in which only a single X. laevis sequence is known (5B). Image published in: Hellsten U et al. (2007) Copyright © 2007 Hellsten et al; licensee BioMed Central Ltd. This image is reproduced with permission of the journal and the copyright holder. This is an open-access article distributed under the terms of the Creative Commons Attribution license Larger Image Printer Friendly View
