Quinn LM , Herr A , McGarry TJ , Richardson H .

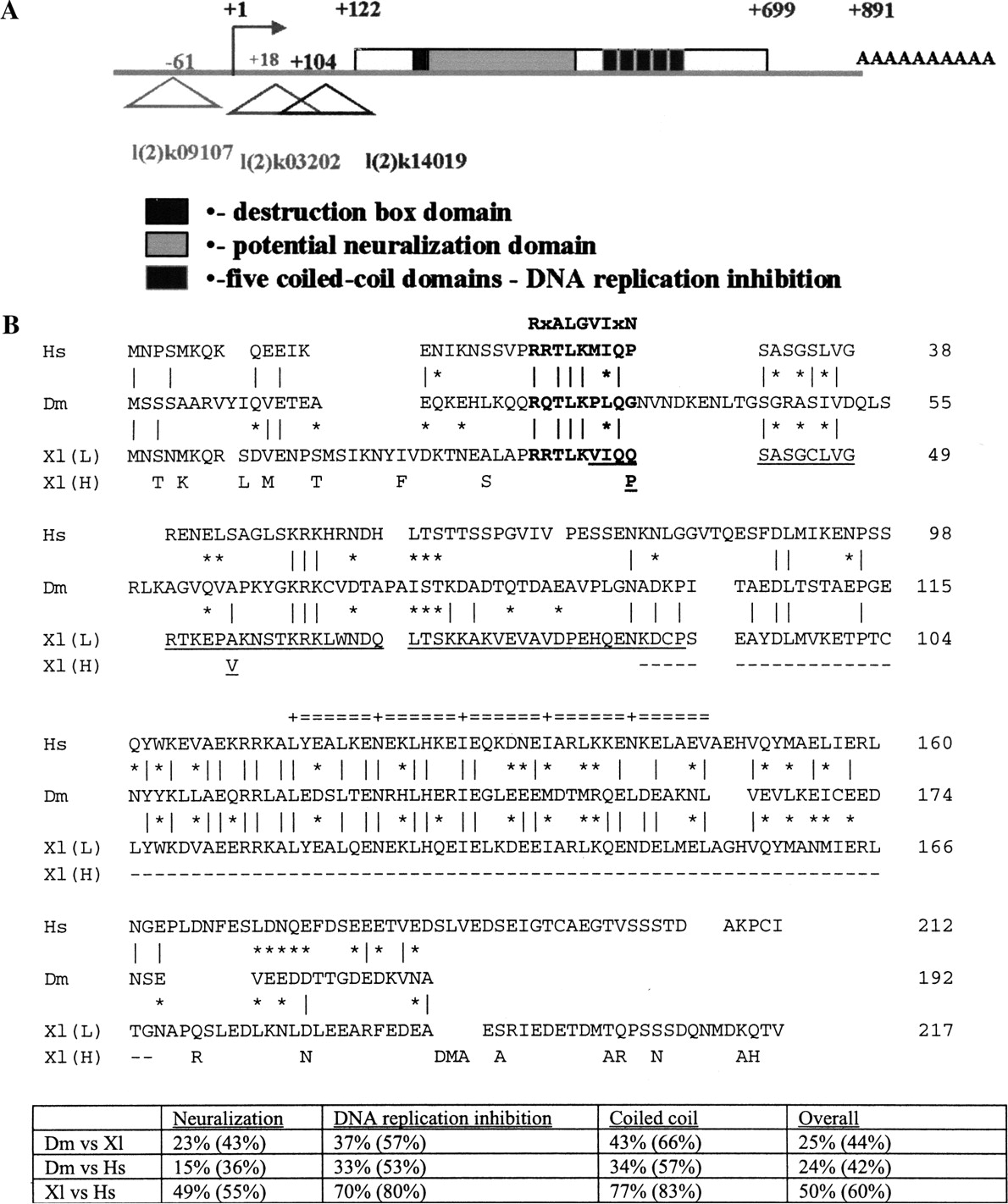

Figure 1. Drosophila Geminin and comparison withXenopus and human Geminin. (A) Drosophila(Dm) geminin gene structure showing location ofP-element alleles relative to the transcriptional unit. (B) Sequence comparison with Xenopus (Xl) and human (Hs) Geminin. The sequences were aligned using the GCG Gap program. Identical amino acids are marked with a vertical line and conservative changes are indicated (*). Differences between Xl H and L forms are indicated. The putative destruction box is in boldface type. The neuralization domain is underlined and the DNA replication inhibition domain is indicated by the broken underline. The double line above the sequence alignment shows the coiled-coil region. The degree of identity and similarity (in parentheses) between Xl Geminin L, Hs and Dm Geminin sequences is indicated for each domain.

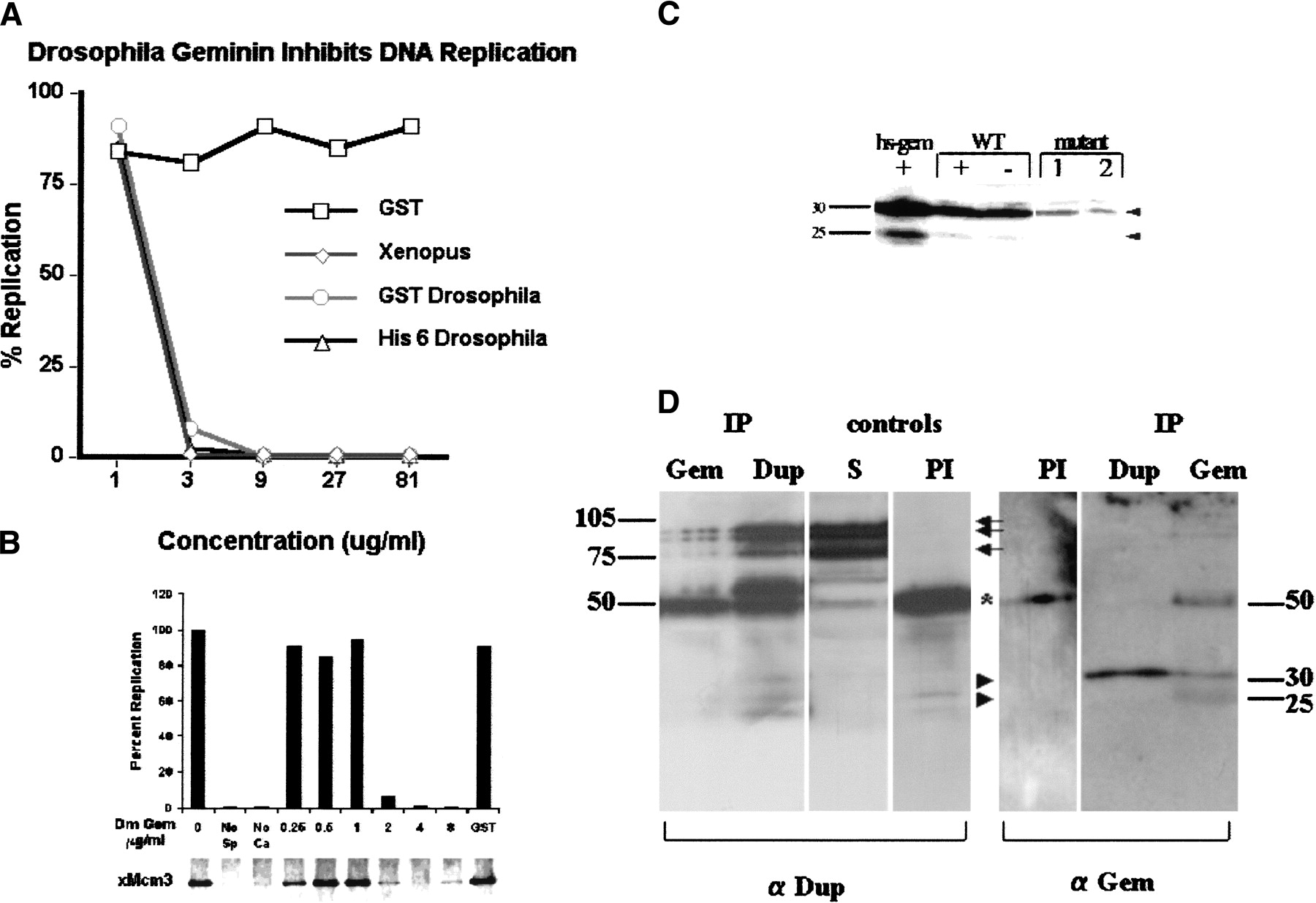

Figure 2. Drosophila Geminin inhibits DNA replication in Xenopus extracts by preventing Mcm loading and interacts with Drosophila Cdt1(Dup) in vivo. (A)Drosophila (Dm) Geminin inhibits DNA replication inXenopus extracts. Purified Xl Geminin (⋄), GST-Dm Geminin (○), His-6 Dm Geminin (▵), or GST (□) were added at the concentrations shown to a Xenopus DNA replication in vitro assay system. Replication assays were carried out as described previously (McGarry and Kirschner 1998). (B) Dm Geminin inhibits Mcm loading. The indicated amounts of Dm Geminin were added to the Xenopus in vitro assay system and DNA replication measured (top) or the chromatin binding of xMcm3 determined (bottom). Concentrations of Dm Geminin that inhibit DNA replication (top) strongly inhibited xMcm3 chromatin binding. The GST control added at a concentration of 8 μg/mL had no effect on DNA replication or xMcm3 binding. In the control tracks (no sperm DNA or no calcium), DNA replication and xMcm3 binding were not observed. (C) Anti-Dm Geminin Western analysis. Dm Geminin bands are indicated (arrowheads). The faint band above 30 kD is a background band caused by the secondary antibody (data not shown). No Dm Geminin antibody reacting bands were detected elsewhere on the gel (data not shown). (WT) Wild type; (Hs-Gem) heat shocked hsp70–GAL4 UAS–Dm geminin embryos; (mutant 1) l(2)k14019/CyO; and (mutant 2)l(2)k03202/CyO. (+) Heat shocked. Equal amounts of protein were loaded per track. (D) Dm Dup(Cdt1) and Dm Geminin form a complex in Drosophila embryos. Dup or Dm Geminin were immunoprecipitated from embryonic extracts and the precipitate analyzed by immunoblotting with the Dup antibody (left) or Dm Geminin antibody (right). (Left) Dup bands (arrows); Dm Geminin bands (arrowheads); and IgG heavy chain (*) are indicated. Controls, (S) Supernatant; (PI) preimmune sera.

Bhat, Chromatid segregation at anaphase requires the barren product, a novel chromosome-associated protein that interacts with Topoisomerase II. 1996, Pubmed

Bhat, Chromatid segregation at anaphase requires the barren product, a novel chromosome-associated protein that interacts with Topoisomerase II. 1996, Pubmed
Biggins, Sister chromatid cohesion in mitosis. 1998, Pubmed , Xenbase
Blow, A role for the nuclear envelope in controlling DNA replication within the cell cycle. 1988, Pubmed , Xenbase
Blow, Saying a firm 'no' to DNA re-replication. 1999, Pubmed
Calvi, Cell cycle control of chorion gene amplification. 1998, Pubmed
Clarke, Checkpoints controlling mitosis. 2000, Pubmed
Edgar, Endoreplication cell cycles: more for less. 2001, Pubmed
Edgar, Developmental control of cell cycle regulators: a fly's perspective. 1996, Pubmed
Ekholm, Regulation of G(1) cyclin-dependent kinases in the mammalian cell cycle. 2000, Pubmed
Girdham, Chromosome tangling and breakage at anaphase result from mutations in lodestar, a Drosophila gene encoding a putative nucleoside triphosphate-binding protein. 1991, Pubmed
Glotzer, Cyclin is degraded by the ubiquitin pathway. 1991, Pubmed , Xenbase
Inoue, Orbit, a novel microtubule-associated protein essential for mitosis in Drosophila melanogaster. 2000, Pubmed
King, How proteolysis drives the cell cycle. 1996, Pubmed
Kroll, Geminin, a neuralizing molecule that demarcates the future neural plate at the onset of gastrulation. 1998, Pubmed , Xenbase
Lehner, The roles of Drosophila cyclins A and B in mitotic control. 1990, Pubmed
Lei, Initiating DNA synthesis: from recruiting to activating the MCM complex. 2001, Pubmed
Mahbubani, Cell cycle regulation of the replication licensing system: involvement of a Cdk-dependent inhibitor. 1997, Pubmed , Xenbase
Maiorano, XCDT1 is required for the assembly of pre-replicative complexes in Xenopus laevis. 2000, Pubmed , Xenbase
McGarry, Geminin, an inhibitor of DNA replication, is degraded during mitosis. 1998, Pubmed , Xenbase
Michael, Activation of the DNA replication checkpoint through RNA synthesis by primase. 2000, Pubmed , Xenbase
Nishitani, The Cdt1 protein is required to license DNA for replication in fission yeast. 2000, Pubmed
Ohnuma, p27Xic1, a Cdk inhibitor, promotes the determination of glial cells in Xenopus retina. 1999, Pubmed , Xenbase
Quinn, An essential role for the caspase dronc in developmentally programmed cell death in Drosophila. 2000, Pubmed
Richardson, Ectopic cyclin E expression induces premature entry into S phase and disrupts pattern formation in the Drosophila eye imaginal disc. 1995, Pubmed
Ritzi, Initiation of genome replication: assembly and disassembly of replication-competent chromatin. 2000, Pubmed
Roch, Screening of larval/pupal P-element induced lethals on the second chromosome in Drosophila melanogaster: clonal analysis and morphology of imaginal discs. 1998, Pubmed
Rubin, Comparative genomics of the eukaryotes. 2000, Pubmed
Saka, Spatial and temporal patterns of cell division during early Xenopus embryogenesis. 2001, Pubmed , Xenbase
Secombe, Analysis of a Drosophila cyclin E hypomorphic mutation suggests a novel role for cyclin E in cell proliferation control during eye imaginal disc development. 1998, Pubmed
Su, The cell cycle program in germ cells of the Drosophila embryo. 1998, Pubmed
Su, Exit from mitosis in Drosophila syncytial embryos requires proteolysis and cyclin degradation, and is associated with localized dephosphorylation. 1998, Pubmed
Sun, The replication capacity of intact mammalian nuclei in Xenopus egg extracts declines with quiescence, but the residual DNA synthesis is independent of Xenopus MCM proteins. 2000, Pubmed , Xenbase
Tada, Repression of origin assembly in metaphase depends on inhibition of RLF-B/Cdt1 by geminin. 2001, Pubmed , Xenbase
Thömmes, The RLF-M component of the replication licensing system forms complexes containing all six MCM/P1 polypeptides. 1997, Pubmed , Xenbase
Whittaker, Drosophila double parked: a conserved, essential replication protein that colocalizes with the origin recognition complex and links DNA replication with mitosis and the down-regulation of S phase transcripts. 2000, Pubmed
Wohlschlegel, Inhibition of eukaryotic DNA replication by geminin binding to Cdt1. 2000, Pubmed , Xenbase
Wolff, The beginning of pattern formation in the Drosophila compound eye: the morphogenetic furrow and the second mitotic wave. 1991, Pubmed
Zhang, Essential functions of DNA topoisomerase I in Drosophila melanogaster. 2000, Pubmed
Zhu, Coordinating cell proliferation and differentiation. 2001, Pubmed
de Nooij, Uncoupling cell fate determination from patterned cell division in the Drosophila eye. 1995, Pubmed
