XB-IMG-173161

Xenbase Image ID: 173161

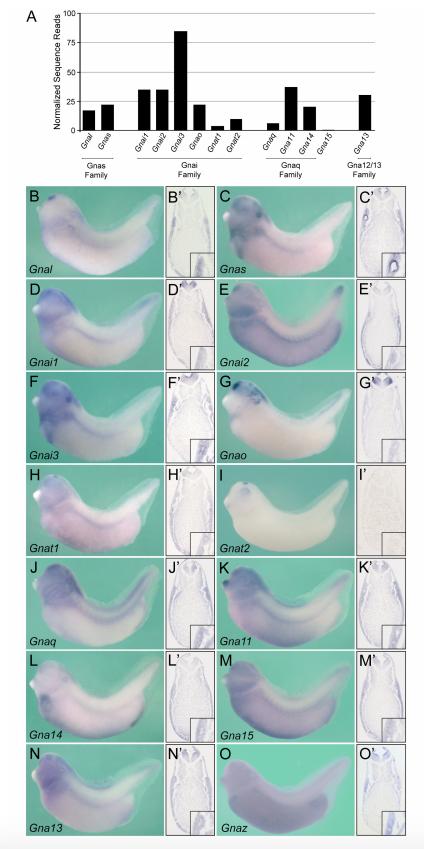

Figure S3: Expression of GProtein Alpha Subunits in Xenopus Embryos. (A) Quantification of the expression levels of G-protein alpha subunits of stage 39 Xenopus tropicalis embryos using RNAseq. (B-O’) Whole mount in situ hybridization of Xenopus laevis embryos and paraplast sections thereof demonstrating the expression of Gprotein alpha subunits in stage 35 embryos. Insets show close-ups of the pronephric kidney. Note that only Gnao (G,G’) and Gnat2 (I,I’) are not expressed in the pronephric kidney.

Image published in: Zhang B et al. (2018)

Copyright © 2018. Image reproduced with permission of the publisher and the copyright holder. This is an Open Access article distributed under the terms of the Creative Commons Attribution License.

GeneSynonymsSpeciesStage(s)Tissue
gna11.SX. laevisThroughout NF stage 35 and 36brain
pronephric kidney
head
pharyngeal region
gnai2.Sgip, gnai2b, Gi2, G alpha iX. laevisThroughout NF stage 35 and 36pronephric kidney
forebrain
pharyngeal region
tail bud
head
gna14.Sgna14-a, gna14-bX. laevisThroughout NF stage 35 and 36heart
pronephric kidney
gna13.SG alpha 13X. laevisThroughout NF stage 35 and 36brain
pronephric kidney
head
pharyngeal region
otic vesicle
eye
hindbrain
gnao1.LXGalpha01, gao, ga0, g0alpha, g0a, GoX. laevisThroughout NF stage 35 and 36forebrain
hindbrain
brain
head
gnaq.Lgaq, g-alpha-q, gnaq-a, gnaq-b, G alpha q, G(q)X. laevisThroughout NF stage 35 and 36pronephric kidney
forebrain
midbrain
hindbrain
pharyngeal region
eye
gnal.Smgc69295, g(olf), Galpha(olf), g(alpha)sx2X. laevisThroughout NF stage 35 and 36pronephric kidney
forebrain
gna15.LX. laevisThroughout NF stage 35 and 36pronephric kidney
head
pharyngeal region
gnai1.Sgnai1-a, gnai1-bX. laevisThroughout NF stage 35 and 36pronephric kidney
head
pharyngeal region
brain
gnai3.SX. laevisThroughout NF stage 35 and 36heart
pronephric kidney
otic vesicle
forebrain
midbrain
hindbrain
head
pharyngeal region
gnas.Sgalphas, g alpha s, gasX. laevisThroughout NF stage 35 and 36pronephric kidney
brain
pharyngeal region
otic vesicle
head
gnat1.Lgbt1, gnatr, csnbad3, transducin, alpha transducin, alpha-transducin, G alpha T1X. laevisThroughout NF stage 35 and 36pronephric kidney
pineal gland
head
gnat2.Lachm4, gnatcX. laevisThroughout NF stage 35 and 36eye
pineal gland
gnaz.Ltransducin alphaX. laevisThroughout NF stage 35 and 36pronephric kidney

Image source: Published
