ER membrane-bending proteins are necessary for de novo nuclear pore formation.
Nucleocytoplasmic transport occurs exclusively through nuclear pore complexes (NPCs) embedded in pores formed by inner and outer nuclear membrane fusion. The mechanism for de novo pore and NPC biogenesis remains unclear. Reticulons (RTNs) and Yop1/DP1 are conserved membrane protein families required to form and maintain the tubular endoplasmic reticulum (ER) and the postmitotic nuclear envelope. In this study, we report that members of the RTN and Yop1/DP1 families are required for nuclear pore formation. Analysis of Saccharomyces cerevisiae prp20-G282S and nup133 Delta NPC assembly mutants revealed perturbations in Rtn1-green fluorescent protein (GFP) and Yop1-GFP ER distribution and colocalization to NPC clusters. Combined deletion of RTN1 and YOP1 resulted in NPC clustering, nuclear import defects, and synthetic lethality with the additional absence of Pom34, Pom152, and Nup84 subcomplex members. We tested for a direct role in NPC biogenesis using Xenopus laevis in vitro assays and found that anti-Rtn4a antibodies specifically inhibited de novo nuclear pore formation. We hypothesize that these ER membrane-bending proteins mediate early NPC assembly steps.
PubMed ID: 19273614
PMC ID: PMC2686408
Article link: J Cell Biol
Species referenced: Xenopus laevis
Genes referenced: dnai1 kdelr1 ndc1 nfyc nop2 nup133 nup153 nup214 nup62 pgk1 ranbp2 rtn1 rtn2 rtn4 tbx2 tfdp1
Antibodies: Ranbp2 Ab1
Article Images: [+] show captions

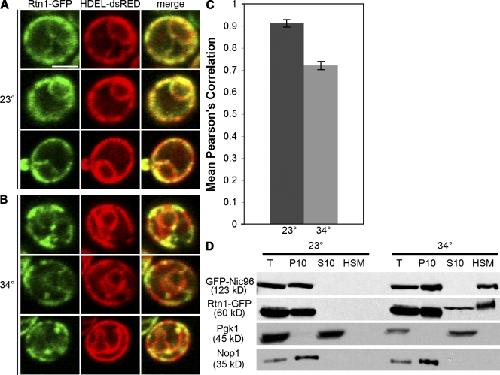

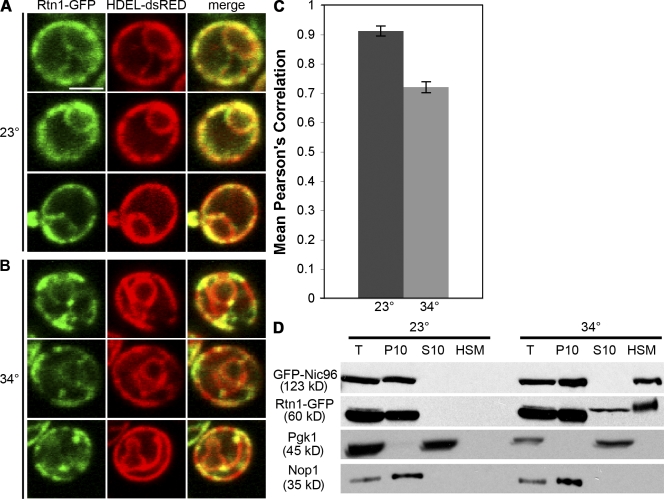

|Figure 1. Rtn1-GFP mislocalizes and is associated with an HSM fraction in the prp20-G282S assembly mutant. (A and B) Rtn1-GFP and dsRed-HDEL localization in the prp20-G282S mutant background was visualized by direct laser-scanning confocal microscopy. The prp20-G282S mutant (SWY3747) was grown to early log phase (23°C; A) and shifted to 34°C for 5 h (B). Single-channel fluorescence is shown from three representative cells at each temperature, and merged images are shown (right). (C) Quantitative analysis of relative Rtn1-GFP and dsRed-HDEL distribution in prp20-G282S cells at 23 and 34°C. n = 12 cells for each respective Pearson's coefficient of correlation (+1.0 = complete coincidence; −1.0 = no coincidence). Error bars represent standard deviation. (D) Biochemical fractionation was performed with rtn1-GFP GFP-nic96 prp20-G282S cells (SWY3748) grown to early log phase (23°C) and shifted to 34°C for 5 h. After lysis, subcellular fractionation was performed by differential centrifugation. Cellular equivalent fractions of the total lysate (T), pellet (P; 10,000 g), and supernatant (S; 10,000 g) fractions and 10 times the cellular equivalent of the HSM fraction (135,000-g pellet from the supernatant fraction) were separated by SDS-PAGE, transferred to nitrocellulose, and analyzed by immunoblotting with an anti-GFP. Distributions of cytoplasmic Pgk1 and nucleolar Nop1 were analyzed as controls. Bar, 2.5 µm.|

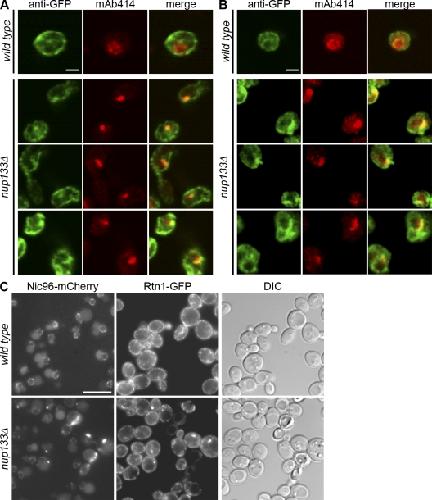

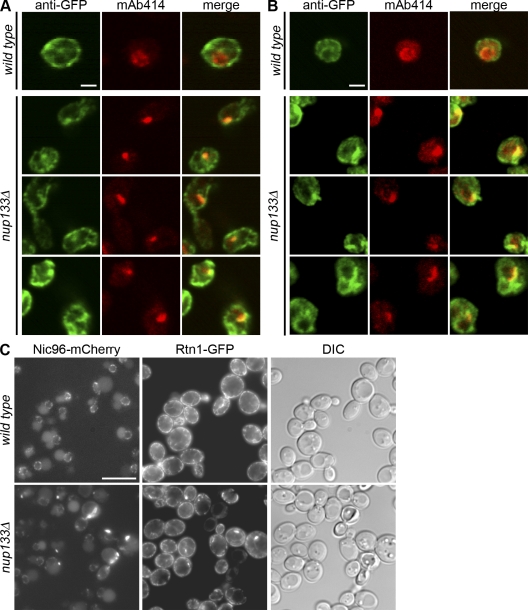

|Figure 2. Rtn1-GFP and Yop1-GFP are associated with NPC clusters in the nup133Δ mutant. (A and B) Indirect immunofluorescence microscopy was conducted with parental rtn1-GFP cells (A, top), nup133Δ rtn1-GFP cells (SWY4007; A), parental yop1-GFP cells (B, top), or nup133Δ yop1-GFP cells (SWY4045; B) grown to early log phase at 23°C using rabbit anti-GFP and mouse anti–FG Nup mAb414 antibodies. Direct laser-scanning confocal microscopy was used with single-channel fluorescence for the GFP and mAb414 staining shown from three representative fields. Merged images are shown (right). (C) Live cell direct fluorescence microscopy was conducted with rtn1-GFP nic96-mCherry (SWY4125) and rtn1-GFP nic96-mCherry nup133Δ cells (SWY2117) grown to early log phase at 23°C. DIC, differential interference contrast. Bars: (A and B) 2.5 µm; (C) 10 µm.|

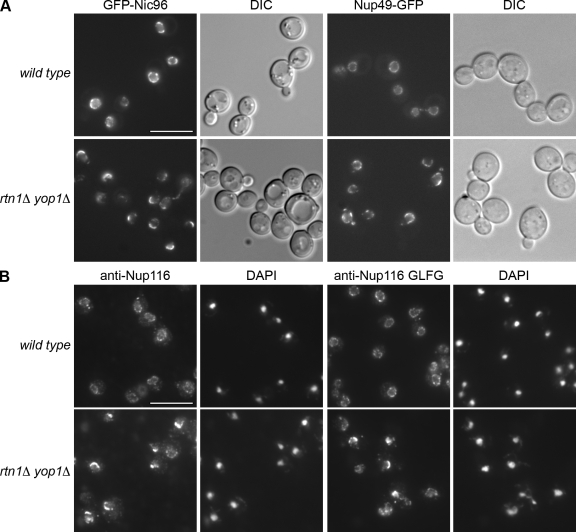

|Figure 3. Nups mislocalize in the rtn1Δ yop1Δ mutant. (A) Parental cells (SWY1695 or SWY809) or rtn1Δ yop1Δ cells expressing either GFP-Nic96 or Nup49-GFP (SWY3931 or SWY3880) were grown to early log phase at 23°C and were visualized by direct fluorescence microscopy. (B) Parental cells (BY4742) or rtn1Δ yop1Δ cells (SWY3811) were grown to early log phase at 23°C and processed for indirect immunofluorescence microscopy with anti-Nup116C or anti–Nup116-GLFG antibodies. Nuclei were detected with the DNA dye DAPI. DIC, differential interference contrast. Bars, 10 µm.|

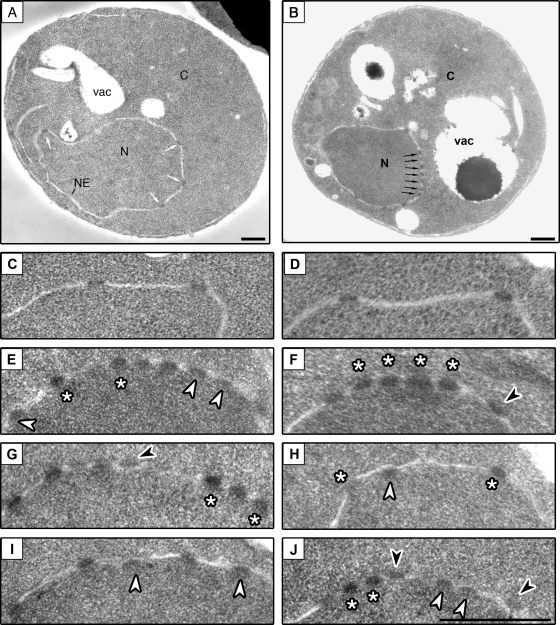

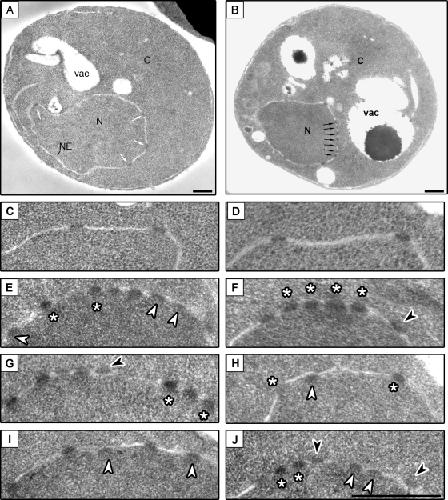

|Figure 4. NPCs are clustered and morphologically abnormal in rtn1Δ yop1Δ cells. (A–J) Parental cells (BY4742; A, C, and D) or rtn1Δ yop1Δ cells (SWY3811; B and E–J) were grown to early log phase at 23°C and processed for thin-section EM. Black and white arrows point to the NPC, black arrowheads point to NPC-like structures at the ONM, white arrowheads point to NPC-like structures at the INM, and the asterisks denote other aberrant NPC-like structures at the NE. N, nucleus; C, cytoplasm; vac, vacuole. Bars, 0.5 µm.|

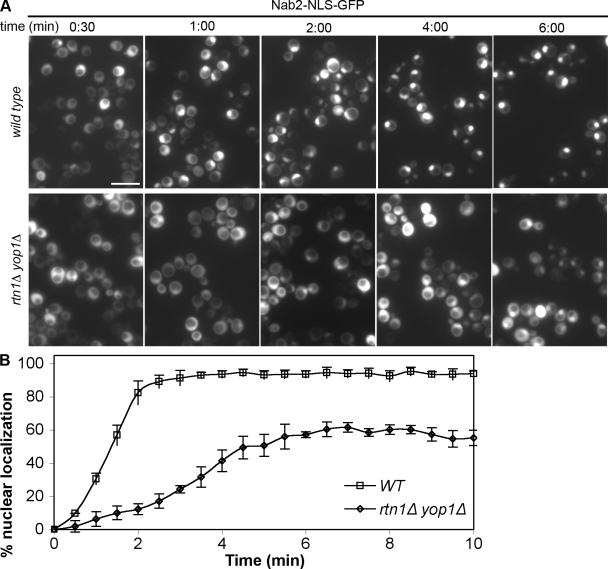

|Figure 5. The rtn1Δ yop1Δ mutant has Nab2NLS-GFP nuclear import defects. Parental (BY4742) and rtn1Δ yop1Δ (SWY3811) cells with a plasmid expressing Nab2NLS-GFP (pNS167; Shulga et al., 2000) were grown to early log phase at 23°C. Import kinetics were determined after shifting energy-depleted cells with cytoplasmic Nab2NLS-GFP to glucose-containing media. (A) Localization of Nab2NLS-GFP by direct fluorescence microscopy at time points (minutes) after reinitiating import. (B) Kinetic data for three independent trials. Error bars represent standard deviation. Bar, 10 µm.|

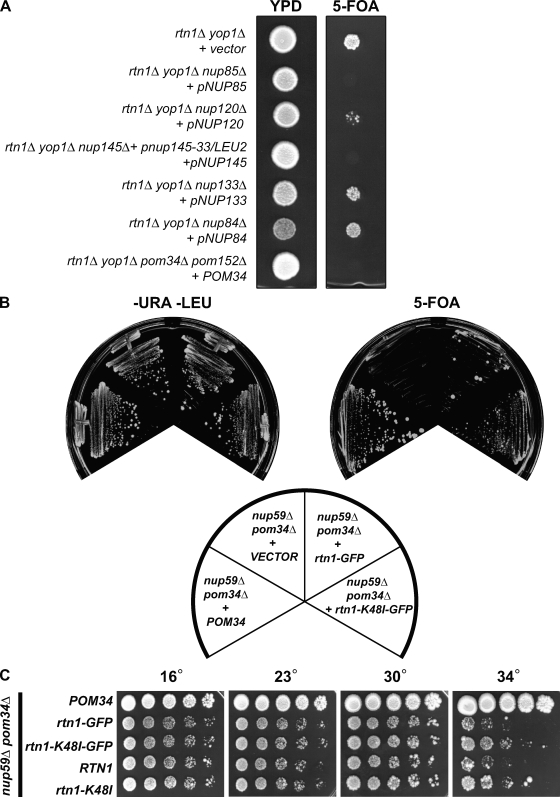

|Figure 6. Genetic interactions for the rtn1Δ yop1Δ mutant with mutants in genes encoding Nups, Poms, and ER/NE proteins. (A) Analysis of rtn1Δ yop1Δ nup/pom mutants. Haploid strains with the designated chromosomal deletions and wild-type RTN1, POM, or NUP URA3/CEN plasmid were tested for growth on 5-FOA media (SWY3811 + pRS316, SWY3876 + pSW3354, SWY3877 + pSW1079, SWY3878 + pSW1516, SWY4050 + pSW351, SWY4099 + pSW610, and SWY4106 + pSW3459). (B) Rescue of pom34Δ nup59Δ cells (SWY3139) by exogenous expression of RTN1-GFP or rtn1-K48I–GFP. The pom34Δ nup59Δ parental strain harboring a POM34/URA3 plasmid and LEU2 plasmids for POM34, RTN1-GFP, or rtn1-K48I–GFP were assayed for growth on 5-FOA media (23°C for 6 d). (C) Growth of 5-FOA–resistant pom34Δ nup59Δ isolates expressing POM34, rtn1-GFP, rtn1-K48I–GFP, RTN1, or rtn1-K48I was assessed after serial dilution on YPD.|

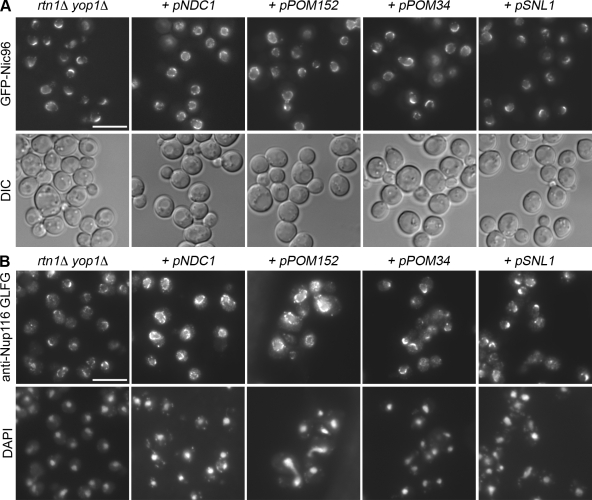

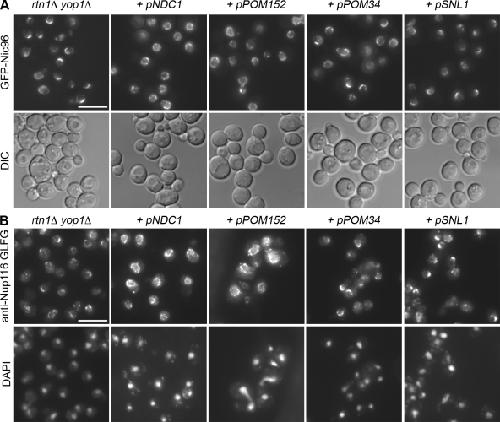

|Figure 7. Exogenous expression of Ndc1 and Pom152 rescues the rtn1Δ yop1Δ Nup mislocalization phenotype. (A and B) The rtn1Δ yop1Δ GFP-nic96 (SWY3931; A) and the rtn1Δ yop1Δ (SWY3811; B) strains were transformed with plasmids expressing NDC1 (pRS315.NDC1; Chial et al., 1998), POM152 (pSW229), POM34 (pSW1517; Miao et al., 2006), or SNL1 (pSW575; Ho et al., 1998). Direct fluorescence microscopy (A) or indirect immunofluorescence microscopy with anti–Nup116-GLFG antibodies (B) was conducted to evaluate NPC clusters. DIC, differential interference contrast. Bars, 10 µm.|

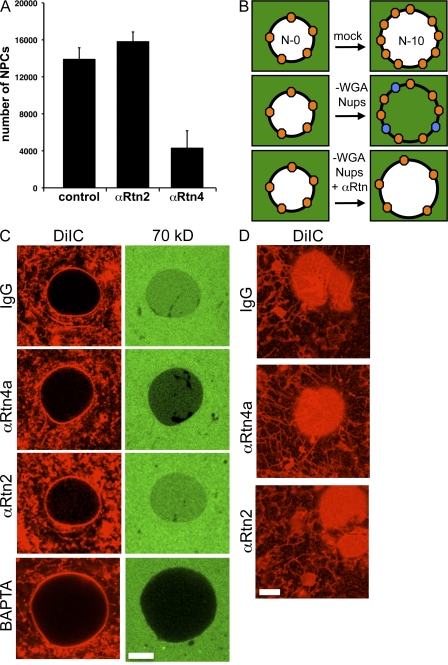

|Figure 8. Xenopus Rtn4a is required for de novo NPC formation in vitro. (A) Inhibition of NPC insertion by anti–(α)-Rtn4a but not anti–(α)-Rtn2 antibodies. Preassembled nuclei were incubated with fresh cytosol in the presence of 10 µM of antibodies for 30 min, and pores were visualized by fluorescently labeled WGA. The NPC number of 50 nuclei is plotted. Error bars represent standard deviation. (B) Schematic illustration of dextran influx assay. When preassembled nuclei (N-0) are incubated with mock-depleted cytosol, intact new pores are inserted (orange circles). In contrast, when N-0 nuclei are incubated with WGA-depleted cytosol, new pores form that cannot exclude dextran (blue circles). If RTNs are required for an early step of NPC assembly, pore/hole formation should be blocked and 70-kD dextran should be excluded. (C) Nuclei were assembled with DiIC16(3)-labeled membranes (red) and incubated with WGA-depleted cytosol in the absence (IgG and α-Rtn2) or presence of inhibitory antibodies (α-Rtn4a) or the calcium chelator BAPTA. After a 10-min incubation, fluorescently labeled 70-kD dextran was added (green), and nuclei were immediately imaged using confocal microscopy (n ≥ 20). (D) In the same reactions as C, surface images were taken from unfixed nuclei that did not exclude (IgG and α-Rtn2) or did exclude (α-Rtn4a) 70-kD dextran. Under all conditions, the NEs were visible as flat membrane patches connected to intact ER tubules. Bars, 10 µm.|
