Coordination of BMP-3b and cerberus is required for head formation of Xenopus embryos.
Bone morphogenetic proteins (BMPs) and their antagonists are involved in the axial patterning of vertebrate embryos. We report that both BMP-3b and BMP-3 dorsalize Xenopus embryos, but act as dissimilar antagonists within the BMP family. BMP-3b injected into Xenopus embryos triggered secondary head formation in an autonomous manner, whereas BMP-3 induced aberrant tail formation. At the molecular level, BMP-3b antagonized nodal-like proteins and ventralizing BMPs, whereas BMP-3 antagonized only the latter. These differences are due to divergence of their pro-domains. Less BMP-3b than BMP-3 precursor is proteolytically processed in embryos. BMP-3b protein associated with a monomeric form of Xnrl, a nodal-like protein, whereas BMP-3 did not. These molecular features are consistent with their expression profiles during Xenopus development. XBMP-3b is expressed in the prechordal plate, while xBMP-3 is expressed in the notochord. Using antisense morpholino oligonucleotides, we found that the depletion of both xBMP-3b and cerberus, a head inducer, caused headless Xenopus embryos, whereas the depletion of both xBMP-3 and cerberus affected the size of the somite. These results revealed that xBMP-3b and cerberus are essential for head formation regulated by the Spemann organizer, and that xBMP-3b and perhaps xBMP-3 are involved in the axial patterning of Xenopus embryos.
PubMed ID: 12885561
Article link: Dev Biol
Species referenced: Xenopus
Genes referenced: actl6a admp ag1 bmp3 cdx2 cer1 crybb1 gdf10 gdf3 hoxb9 hoxc9-like ncam1 nodal nodal1 nos1 nos3 otx2 tbx2 tbxt wnt8a
Morpholinos: bmp3 MO1 cer1 MO4 gdf10 MO1
Article Images: [+] show captions

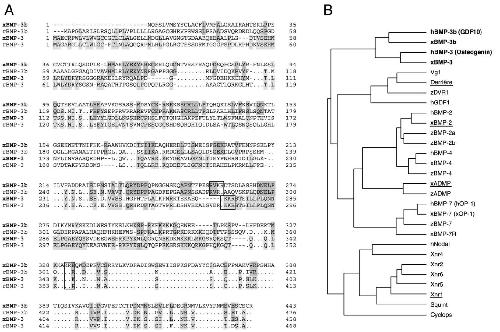

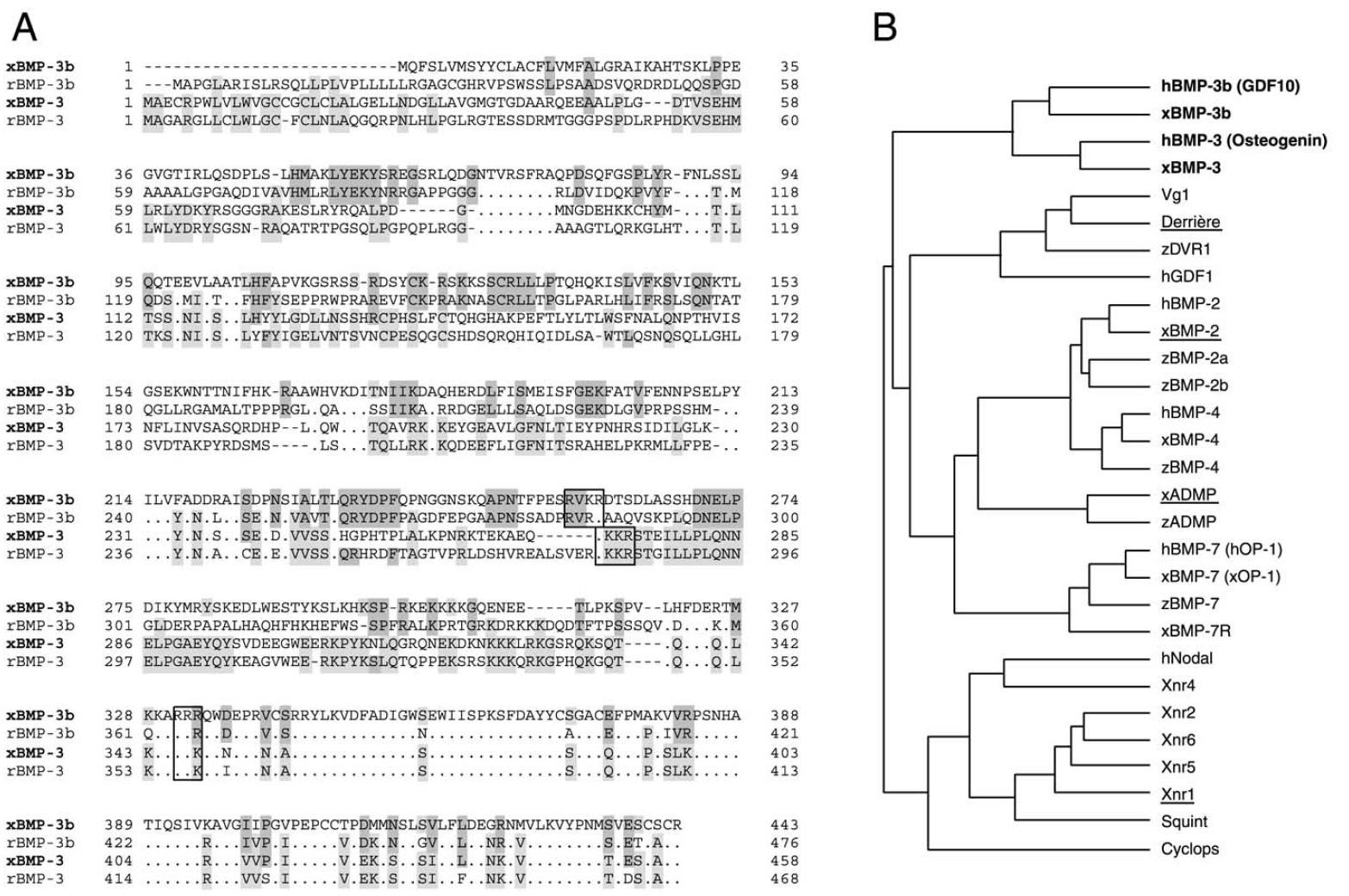

|Fig. 1. Isolation of Xenopus BMP-3b and BMP-3 cDNAs. (A) Protein sequence comparison of Xenopus BMP-3b and BMP-3 with rat orthologues. Conserved amino acid residues in all four proteins are dotted and same amino acids within BMP-3b or BMP-3 are shaded. Dashes indicate spaces introduced to optimize alignment. Boxes represent cleavage sites; one is tetrabasic and the other is an alternative site determined by protein purification and N-terminal sequence analysis. GenBank Accession nos. for xBMP-3b and xBMP-3 are AB059564 and AB059563, respectively. (B) Phylogenetic relationships among complete precursors of human, zebrafish, and Xenopus BMP proteins. Dendrogram was generated by using the UPGMA method (GENETYX program, SDC Ltd, Japan). We used the underlined proteins (Figs. 5 and 6). Although ADMP is considered to be a BMP-3-like protein, it is more closely related to BMP-2 and BMP-4. XBMP-7 (Nishimatsu et al., 1992) has been renamed xBMP-7R, since a Xenopus orthologue of mammalian BMP-7 (OP-1) has been identified (Wang et al., 1997).|

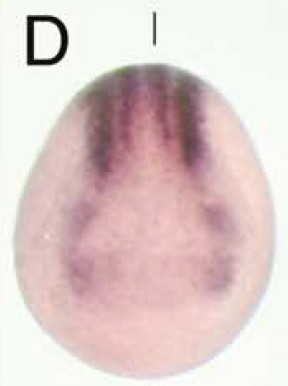

|Fig. 2. Xenopus BMP-3b and BMP-3 are expressed in dorsal ectodermal and mesodermal tissues. (A) Temporal expression analyzed by RT-PCR. BMP-3b and BMP-3 are expressed at quite low levels. After whole-mount in situ hybridization, embryos were stained for 6 days to detect xBMP-3b (B–O) and overnight for xBMP-3 (P–X). (B) Dorsal view of stage 11 embryo. Anterior region faces top. BMP-3b expression appears on dorsolateral ectoderm before neural plate is visible. Expression extends to entire neural plate until stage 12.5 (C), and localizes upon four stripes at neural plate midline and edge. (D) Expression in anterior neural plate at stage 14. Solid line indicates level of section. (E) Sagittal section of embryo. Anterior faces left. BMP-3b expression is intense in ectoderm and faint in mesoderm and endoderm. Arrows highlight BMP-3b expression in prechordal plate. (F) Lateral view of stage 24 embryo. BMP-3b is expressed in hindbrain and dorsal side of otic vesicle and neural tube. (G) BMP-3b is expressed in lips of somites and transiently in the heart. (H) Close-up view of (G). (I) Dorsal view of (H). (J) Ventral view of (H) highlights BMP-3b expression in ventricular chamber. (K) Transverse section through trunk of embryo in (H). BMP-3b is expressed in both epaxial and hypaxial dermamyotome, and dorsal half of neural tube. (L) At stage 41, expression in dermamyotome is restricted to tail. (M) Close-up of head shown in (L). BMP-3b is expressed in dorsal side of otic vesicles, optic cup, nasal pit, stomodeum, and ventral visceral pouches. (N) Dorsal view of embryo shown in (M). (O) Transverse section of embryo shown in (L). BMP-3b is expressed in head mesoderm around notochord and neural tube. (P) Vegetal view of stage 10.5 embryo. Dorsal faces top. BMP-3 is expressed in ectoderm and mesoderm. (Q) Sagittal section of embryo shown in (P). Dorsal side is to right. (R) Sagittal section of stage 15 embryo. Anterior faces left. BMP-3 is expressed in prechordal plate and chordamesoderm. (S) BMP-3 expression appears around otic vesicle at stage 24. (T) At stage 30, BMP-3 is expressed in cranial neural crest derivatives and cement gland. (U) Close up view of head shown in (T). (V) Dorsal view of (U). (W) Transverse section through head in (T). BMP-3 is localized in anterior neurocranium and dorsomedial wall of otic vesicle. (X) Transverse section through trunk. BMP-3 expression is restricted to notochord.|

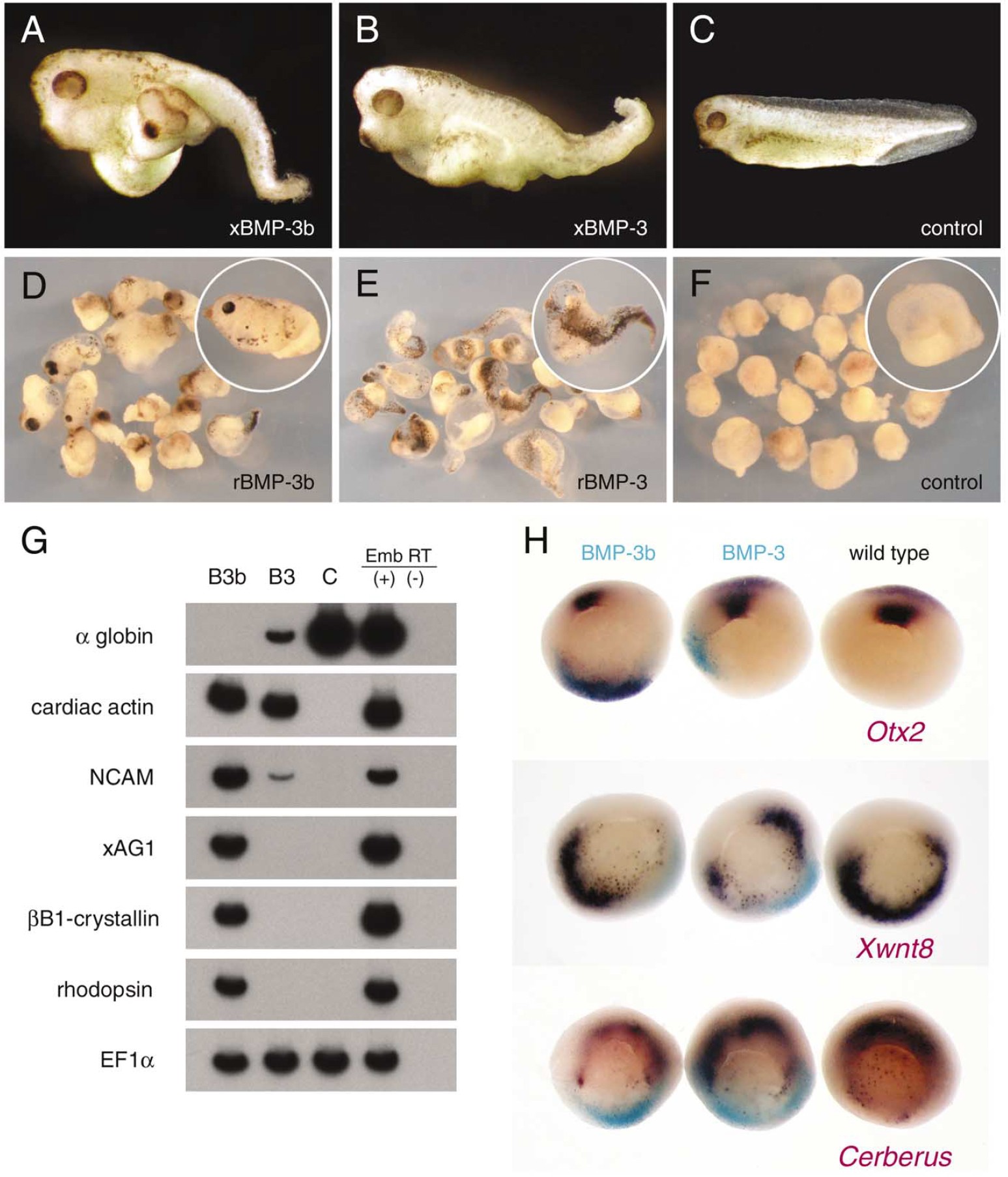

|Fig. 3. BMP-3b and BMP-3 have apparently different dorsalizing activities in Xenopus embryos. (A–C) Xenopus embryos injected with BMP-3b or BMP-3 mRNA. Overexpression of BMP-3b led to ectopic head formation, whereas BMP-3 generated aberrant tail formation. Synthetic mRNAs (1 ng each) encoding xBMP-3b (A), xBMP-3 (B), or -galactosidase ( -gal; C) were injected into marginal zone of two ventral blastomeres at the four cell stage. (D–G) Differentiation of ventral marginal zone explants (VMZs) injected with BMP-3b or BMP-3. Typical explants are shown in circles. (D) VMZs injected with rBMP-3b RNA generated head-like structures, consisting of an eye and cement glands (68%, n 15). (E) VMZs injected with rBMP-3 elongated and formed melanocytes (93%, n 15). (F) Control VMZs developed cylindrical structures. (G) These VMZs were harvested at stage 41 and scored by RT-PCR. Injection of BMP-3b and BMP-3 caused expression of dorsal markers (cardiac actin and NCAM), and repression of a ventral marker ( globin). BMP-3b also elevated anterior tissue markers such as cement gland (xAG1), lens ( B1-crystallin), and retina (rhodopsin). EF1 is an internal loading control. Emb RT and RT are controls for cDNA synthesis and for genomic DNA contamination, respectively. (H) Analysis of early markers in embryos coinjected with -gal (100 pg), and either BMP-3b or BMP-3 (1 ng). Light blue staining represents area injected with BMP-3b (left) or BMP-3 (center). Brown staining represents expression of Otx2 (top panel), and Xwnt-8 (middle panel), and cerberus (bottom panel). All panels are vegetal views of embryos with dorsal aspect top. Injection of BMP-3b mRNA triggered ectopic Otx2 expression (top left), whereas injection of BMP-3b and BMP-3 reduced endogenous Xwnt8 expression (middle). BMP-3b did not induce cerberus expression, indicating that BMP-3b is involved in head formation independently of, or downstream from, cerberus.|

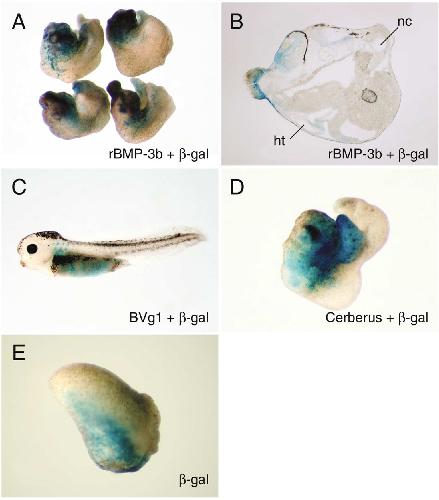

|Fig. 4. BMP-3b triggers head formation in an intrinsic developmental pathway. To examine head formation by BMP-3b, we performed lineage tracing and rescue of embryos exposed to UV. (A) Injection of rBMP-3b mRNA (1 ng) rescued anterior structure of UV-ventralized embryos. Cells expressing BMP-3b were localized in head region (60%, n 15). (B) Section of an embryo shown in (A). Cells were labeled in notochord (nt), heart (ht), optic cup, and adjacent to cement gland, suggesting that cells expressing BMP-3b differentiated into “head-forming cells” and organized head structures. (C) Cells expressing BVg1 (50 pg), an organizer inducer, were localized in endoderm, suggesting that they induced head-forming cells (50%, n 14; Thomsen and Melton, 1993). (D) Injection of cerberus (1 ng) led to formation of smaller head than that with BMP-3b (60%, n 25; Bouwmeester et al., 1996). (I) Control embryo.|

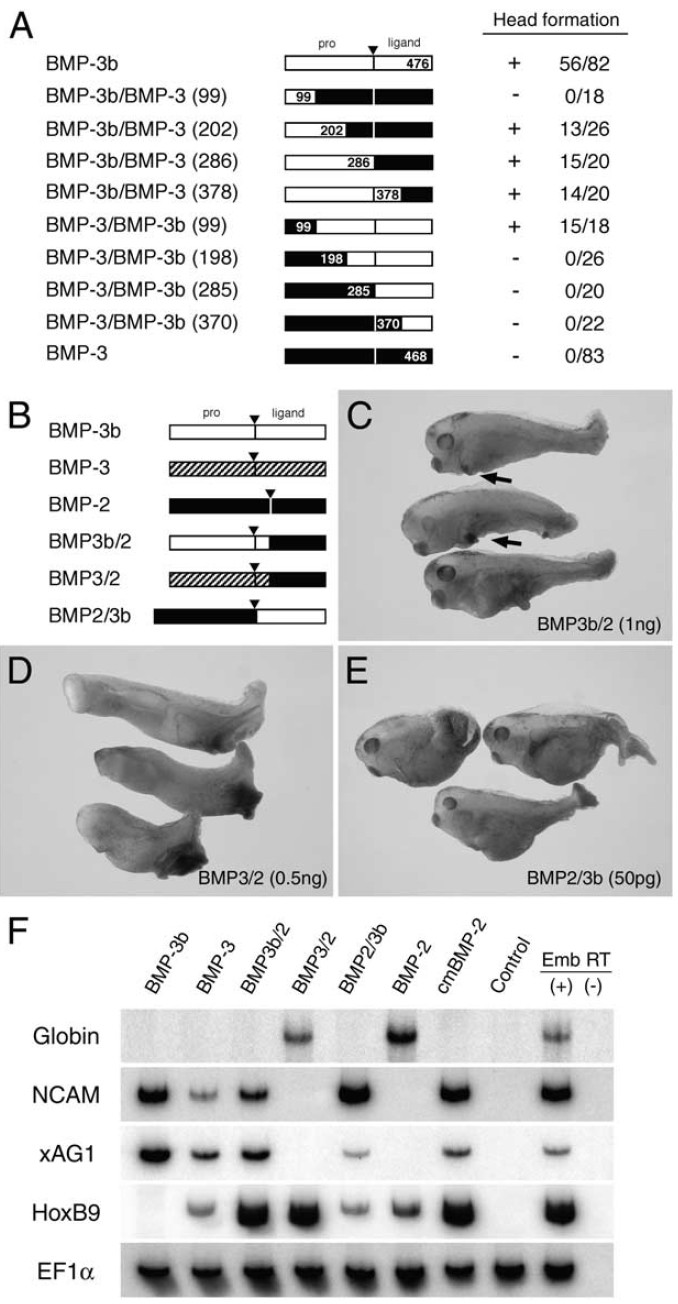

|Fig. 5. Distinct activities of BMP-3b and BMP-3 are caused by differences in their pro-domains. (A) Chimera analysis of BMP-3b and BMP-3 for localizing BMP-3b head-forming activity. Pro-domain of BMP-3b protein is required for head formation. Activity and score of head formation are tabulated on the right. Numbers represent positions of recombination. (B) Schematic representation of chimeras between either BMP-3b or BMP-3, and BMP-2. Pro-domains of BMP-3b and BMP-3 were fused to ligand domain of BMP-2, and ligand domain of BMP-3b was combined with BMP-2 pro-domain. Synthetic mRNAs encoding these chimeras were injected into marginal zones of two ventral blastomeres at the four cell stage. (C) Injecting BMP3b/2 chimera mRNA (1 ng) perturbed tail formation and induced cement gland (arrows) (96%, n 25). (D) Overexpression of BMP3/2 mRNA (500 pg) ventralized embryos (100%, n 25). (E) BMP2/3b chimera (50 pg) generated same phenotype as BMP-3 (100%, n 24). (F) Animal cap assay of chimera functions. Caps injected with mRNAs (200 pg each) were isolated at stage 8.5, and harvested at stage 23 to score by RT-PCR. BMP-3b induced NCAM and xAG1, whereas BMP-3 induced these markers and HoxB9. BMP3b/2 and BMP2/3b chimeras induced NCAM and xAG1, whereas BMP3/2 induced globin, suggesting that pro-domain of BMP-3, but not of BMP-3b allows cleavage of ligand domain. Moreover, ligand domains of BMP-3 and BMP-3b have activity antagonistic to that of BMP-2. We also found that BMP-2 and its cleavage site mutant (cmBMP-2) induced HoxB9, a posterior neural marker. This observation may relate to a previous finding that HoxB9 is expressed weakly in lateral plate mesoderm as well as in the spinal chord (Wright et al., 1990; see also Fig. 9J).|

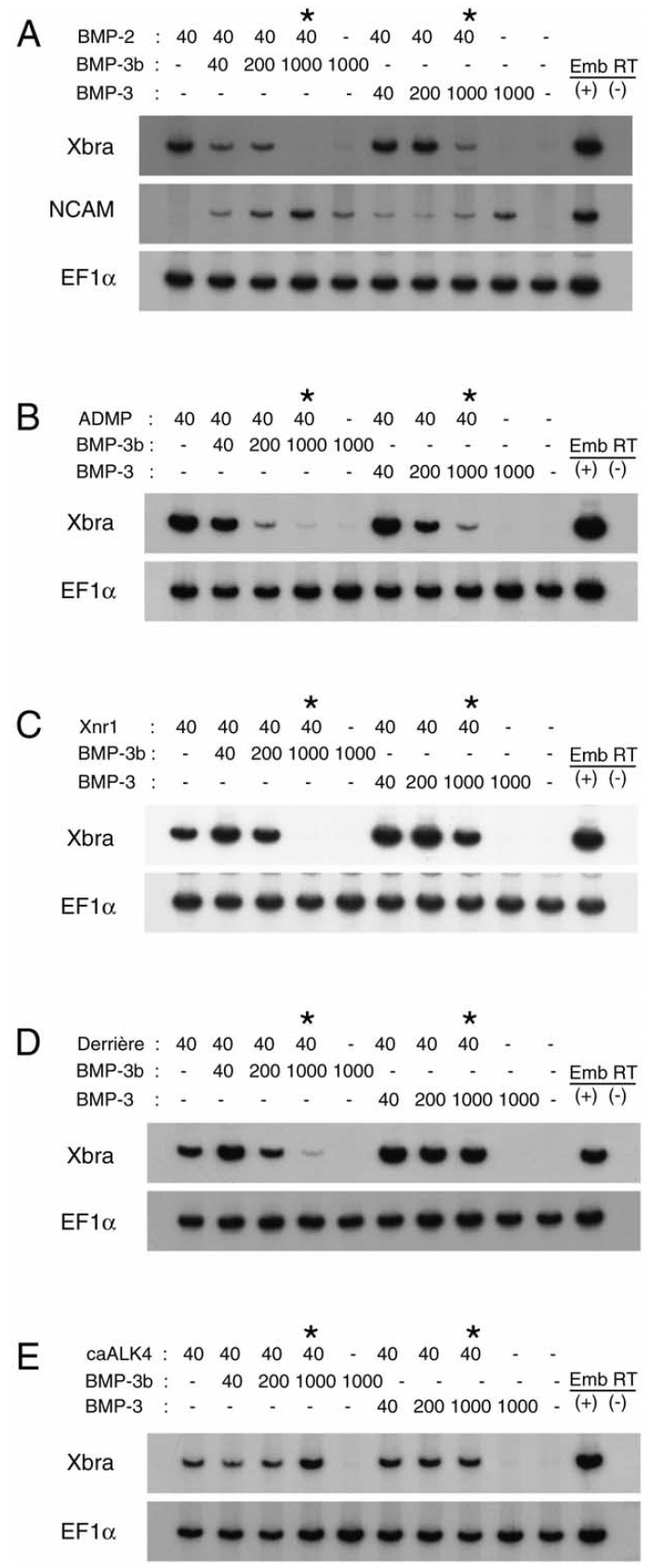

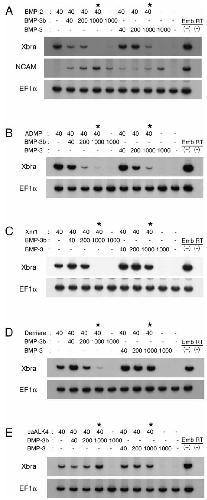

|Fig. 6. BMP-3b and BMP-3 differentially interact with TGF- family members. Synthetic mRNAs for BMP-2 (A), ADMP (B), Xnr1 (C), derrie`re (D), and caALK4 receptor (E) were injected into animal caps and their mesoderminducing activities were challenged by increasing doses of BMP-3b or BMP-3. Combinations and doses (pg) of each mRNA sample are indicated above lanes. Animal caps were harvested at stage 12 for scoring by RT-PCR. Brachyury (XBra) and NCAM served as pan-mesodermal and pan-neural markers, respectively. A 25-fold excess of BMP-3b (*) interfered with Xbra expression by all ligands, whereas BMP-3 reduced expression induced by BMP-2 and ADMP. Both of BMP-3b and BMP-3 alone induced NCAM expression in animal caps (A), indicating that they are neural inducers.|

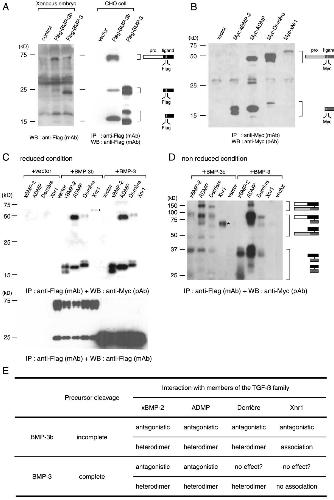

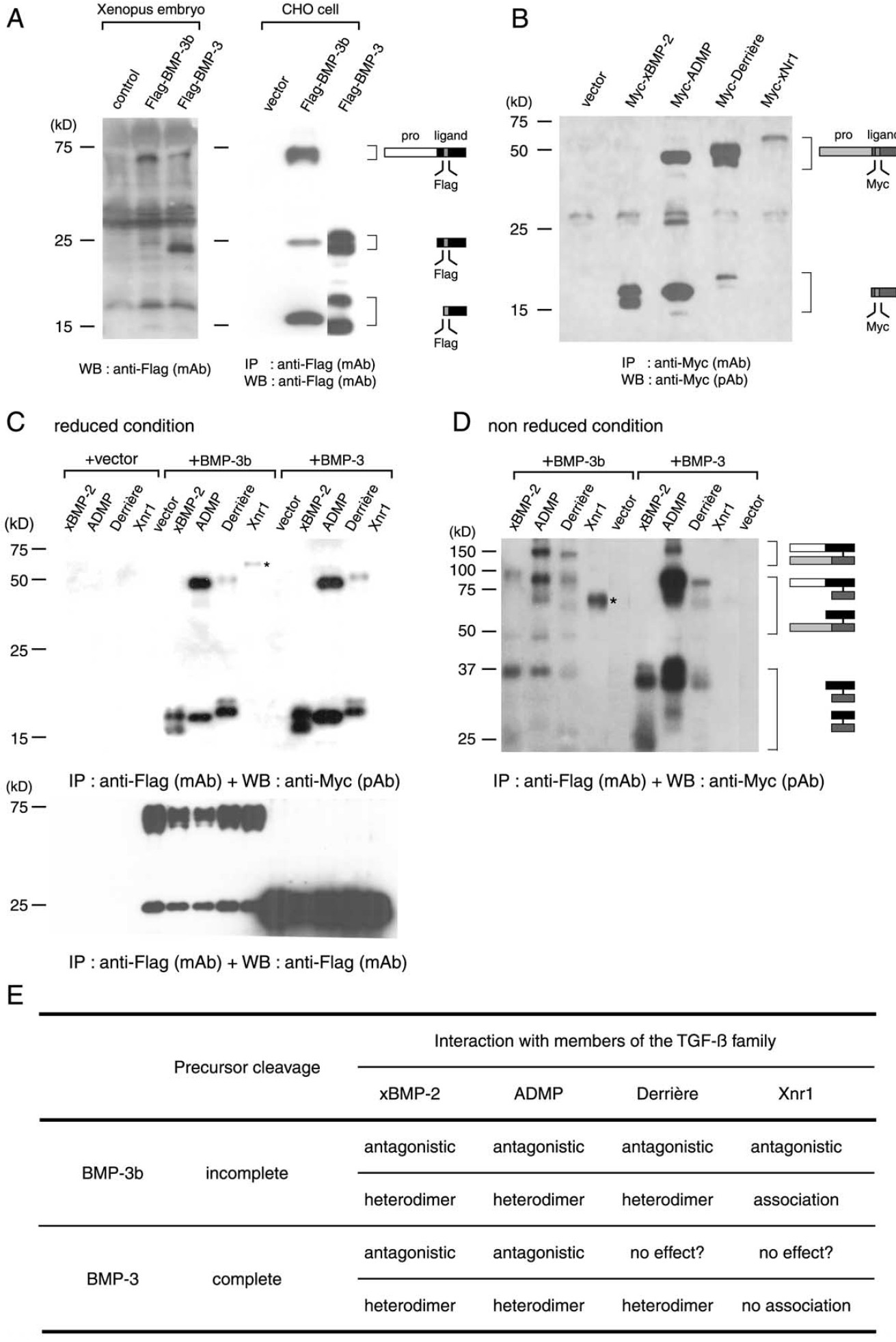

|Fig. 7. Divergence of proteolytic processing and heterodimer formation of BMP-3b and BMP-3. (A) Less BMP-3b than BMP-3 precursor was cleaved in Xenopus embryos and in CHO cells. Extracts of embryos injected with Flag-tagged BMP mRNAs (left panel) and conditioned media of CHO cells transfected with the plasmid DNAs (right panel) were Western blotted. Controls were from wild type embryos and from CHO cells that had been transfected with vector DNA, respectively. All samples were resolved under reducing conditions. Molecular mass (kDa) of proteins (left), deduced structures, and Flag epitope (right) are shown. Two bands generated by N-glycosylation were grouped at about 25 and 16 kDa, respectively (lane: BMP-3 expressed in CHO cells). (B) Myc-tagged proteins of the TGF- family were constructed and expressed in CHO cells to test interactions with BMP-3b and BMP-3. Although we transfected cells with equal amounts of each plasmid, Xnr1 precursor was not effectively processed and secreted from CHO cells. (C, D) Immunoprecipitation and Western blotting revealed that BMP-3b directly interacted with all TGF- members, whereas BMP-3 interacted with all except Xnr1, in CHO cells. Coprecipitated BMP-3b and BMP-3 are shown at 75 and 25 kDa in (C). Apparent molecular weight of Xnr1 (*) under reducing and nonreducing conditions did not change, suggesting that BMP-3b forms noncovalent complexes with Xnr1. (E) Summary of molecular characteristics of BMP-3b and BMP-3 including results of Figs. 5 and 6. Both BMP-3b and BMP-3 oppose BMP-2 and ADMP. BMP-3b also blocks derrie`re and Xnr1. Types of BMP-3b antagonism are instructed by the pro-domain, which controls cleavage and assembly of the ligand domain. Incomplete processing of BMP-3b might reduce mesoderminducing activity of derrie`re and complex formation between BMP-3b and Xnr1 might result in altered Xnr1 function.|

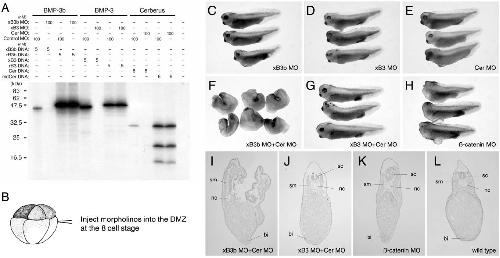

|Fig. 8. Inhibition of both xBMP-3b and cerberus causes headless embryos. (A) Specificity of morpholino antisense oligonucleotides (MO) of xBMP-3b, xBMP-3 and cerberus. Translation of mRNAs encoding Xenopus proteins is inhibited, but neither rat BMP-3b/3 nor mdCerberus are affected by MOs. Target sequences for cerberus MO are altered in mdCerberus mutant, but not the amino acid sequences. Messenger RNAs and proteins were prepared from plasmid DNAs as described in Materials and methods. (B) Schematic diagram of embryonic stage and injection point of MOs. (C–E) Independent injections of xBMP-3b, xBMP-3, and cerberus MOs (10 ng) did not perturb Xenopus embryos. (F, G) Simultaneous injection of xBMP-3b and cerberus MOs (5 ng each) led to headlessness (54%, n 22), whereas that of xBMP-3 and cerberus MOs did not (0%, n 21). (H) Injection of -catenin MO (10 ng) caused headless embryos (92%, n 25). (I–L) Histological sections of embryos injected with xBMP-3b and cerberus MOs (F), xBMP-3 and cerberus MOs (G), -catenin MO (H), and wild type. sm, somite; nc, notochord; sc, spinal cord; bi, blood island.|

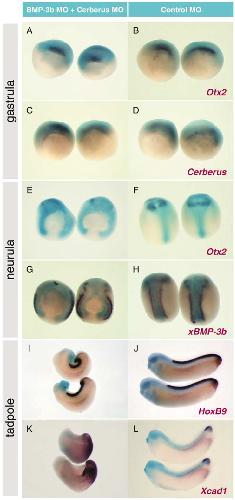

|Fig. 9. Repression of xBMP-3b and cerberus leads to impaired gastrulation movements. Lineage of cells targeted by MOs and expression of marker genes were monitored at gastrula, neurula and tadpole stages. (Left) Embryos injected with MOs for both xBMP-3b and cerberus. (Right) Control embryos injected with globin MO. Light blue staining represents cells targeted by MOs. Brown staining represents expression of markers as indicated on right corner. Dorsal side faces top in panels of gastrula and tadpole, and anterior side faces top in panels of neurula. Injection of MOs for xBMP-3b and cerberus did not affect dorsal lip formation and expression of organizer genes at beginning of gastrulation, but led to delayed blastopore closure and downregulation of Otx2 expression by neurula stage. Consequently, suppressing xBMP-3b and cerberus functions elevated expression of a ventral–posterior marker, Xcad1.|
|Fig. 10. Rescue of embryos injected with MOs for xBMP-3b and cerberus. Headless embryos were recovered by coinjecting plasmids encoding rBMP-3b and mdCerberus. See Table 3 for summary of results, and Fig. 8 legend for mdCerberus. (A, B) Injection of rBMP-3b DNA (100 pg) with MOs (5 ng each) completely rescued embryos, whereas that of mdCerberus (100 pg) restored head structure. (C) Simultaneous injection of rBMP-3b and mdCerberus DNAs (50 pg each) recovered head, but not tail structure. (D) Control embryos injected with MOs for xBMP-3b and cerberus.|
|bmp3 (bone morphogenetic protein 3) gene expression in Xenopus laevis embryo, assayed via in situ hybridization, NF stage 24, lateral view, anterior left, dorsal up.|
|bmp3 (bone morphogenetic protein 3) gene expression in Xenopus laevis embryo, assayed via in situ hybridization, NF stage 30, lateral view, anterior left, dorsal up.|
|gdf10 (growth differentiation factor 10) gene expression in Xenopus laevis embryo, assayed via in situ hybridization, NF stage 14, anterior view, dorsal up.|
|gdf10 (growth differentiation factor 10) gene expression in Xenopus laevis embryo, assayed via in situ hybridization, NF stage 36, lateral view, anterior left, dorsal up.|
