Tong JJ , Minogue PJ , Kobeszko M , Beyer EC , Berthoud VM , Ebihara L .

R01 EY010589 NEI NIH HHS , R01 EY08368 NEI NIH HHS , R01 EY10589 NEI NIH HHS , R01 EY008368 NEI NIH HHS

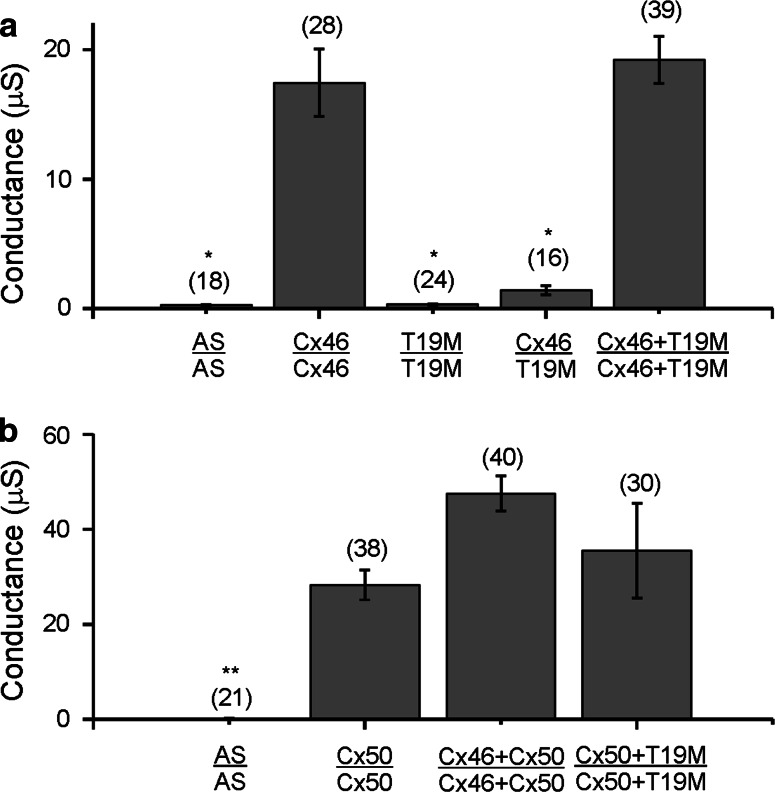

	Fig. 1. T19M does not induce gap junctional coupling when expressed by itself, and it acts as a loss-of-function mutation without dominant-negative inhibition when co-expressed with wild-type lens connexins. Bar graphs show mean gap junctional conductances in pairs of oocytes expressing different combinations of wild-type and mutant lens connexins as determined using the double two-electrode voltage clamp technique. a Rat Cx46 or T19M were expressed alone or in combination with each other. b Mouse Cx50 was expressed alone or in combination with either rat Cx46 or T19M. AS indicates oocytes that were injected with no cRNA (i.e., Xenopus Cx38 antisense oligonucleotide alone). The number of pairs tested is indicated within parentheses. *p < 0.001 (Student’s t test compared with Cx46-injected oocyte pairs); **p < 0.001 (Student’s t test compared with Cx50-injected oocyte pairs)
	Fig. 2. T19M is inefficient at forming gap junction plaques. Photomicrographs show the distribution of wild-type rat Cx46 (a) and T19M (b–d) at the indicated times following transient transfection of HeLa cells. Bar 30 μM

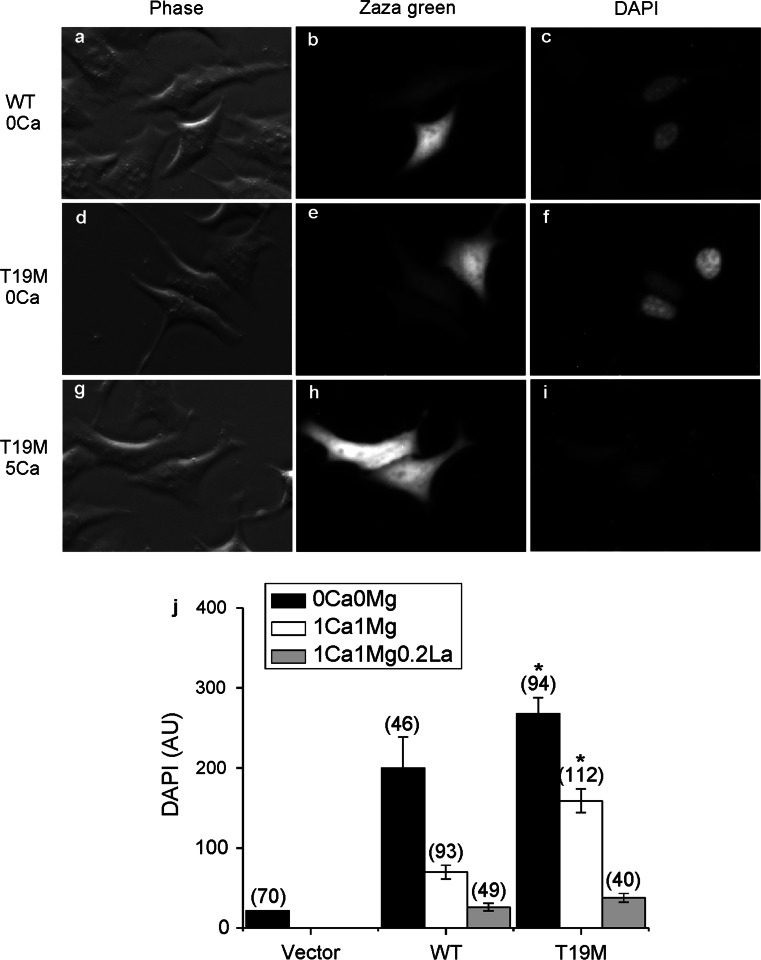

	Fig. 3. T19M causes increased uptake of connexon-permeant dyes. Photomicrographs show examples of HeLa cells that were transfected with wild-type rat Cx46 (a–c) or T19M (d–i) (using the vector PBI-CMV3 which also drives expression of Zaza green) and incubated a day later with DAPI in Na gluconate Ringer’s solution containing 0 mM Ca2+ (a–f) or 5 mM Ca+2 (g–i) for 20 min. Phase contrast images (a, d, g). Zaza-green fluorescence (b, e, h). DAPI fluorescence (c, f, i). After a 20-min incubation in control solution containing 0 mM Ca2+, cells expressing T19M showed DAPI uptake (e, f) that was mostly inhibited by 5 mM Ca2+ (h, i). Bar graph summarizes the quantification of the DAPI uptake data (j). Data are graphed as mean ± SEM. The number of cells tested is indicated within parentheses. *p < 0.001 (Mann–Whitney rank sum test compared with wild-type rat Cx46-transfected cells)
	Fig. 4. The rate of DAPI uptake is increased by lowering divalent cations and inhibited by La3+. Average time course of DAPI uptake by transfected HeLa cells in control solution (1 mM Ca2+, 1 mM Mg2+), in external solutions with no added divalent cations and in control solution plus 200 µM La3+. a Wild-type rat Cx46 (closed circles); T19M (open triangles). To measure changes in the rate of dye uptake over time, the mean DAPI fluorescence intensity per pixel from ROI’s located in the nuclei of Zaza-green positive cells were normalized to mean DAPI fluorescence intensity of the ROI’s at 60 min, averaged and plotted as a function of time. The cells were initially bathed in control solution (containing 1 mM Ca2+, 1 mM Mg2+). Then, the cells were exposed to a solution containing no added divalent cations followed by reperfusion with control solution containing 200 μM La3+. All the solutions contained 4 μM DAPI. b Bar graph shows the rates of DAPI uptake in cells expressing wild-type Cx46, T19M, or vector alone in the presence of 1 mM Ca2+, 1 mM Mg2+ (gray bar); or 1 mM Ca2+, 1 mM Mg2+, 0.2 mM La3+ (black bar). Data are presented as the mean ± SEM. *p < 0.002 (Mann–Whitney rank sum test compared with T19M-transfected cells); + p < 0.001 (Mann–Whitney rank sum test compared with vector-transfected cells). The number of cells analyzed is indicated within parentheses

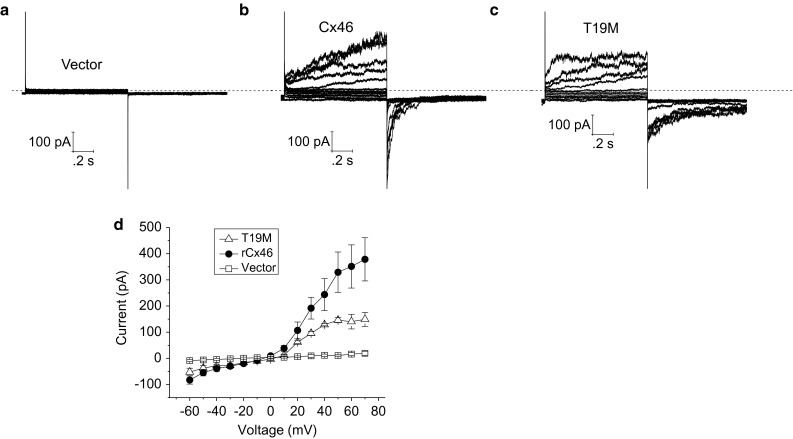

	Fig. 5. Representative families of current traces recorded from single HeLa cells transfected with vector alone (a), wild-type rat Cx46 (b), or T19M (c). Families of current traces were recorded in response to a series of voltage clamp steps between −60 and 50 mV in increments of 10 mV from a holding potential of −60 mV. Dashed line indicates zero current level. d Average steady-state I–V relationships for vector alone (open squares, n = 5), wild-type (solid circles, n = 4), and T19M (open triangles, n = 3)

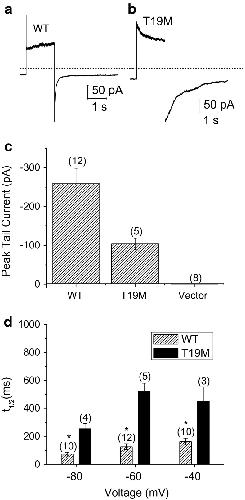

	Fig. 6. T19M hemi-channels show alterations in voltage gating. Ensemble averaged current traces recorded from cells expressing wild-type rat Cx46 (a) or T19M (b) in response to a 2-s voltage clamp step to 80 mV followed by a hyperpolarizing step to −60 mV. The holding potential was −60 mV. Dashed line indicates zero current level. c Averaged peak tail currents at −60 mV. The number of cells tested is indicated within parentheses. d Bar graph summarizes the t 1/2’s of deactivation of peak tail currents for wild-type rat Cx46 (hatched bars) and T19M (black bars) at −80, −60, and −40 mV. Data are graphed as mean ± SEM. *p < 0.01 (Student’s t test or Mann–Whitney rank sum test compared with T19M-transfected cells). The number of cells analyzed is indicated within parentheses
	Fig. 7. Effect of lanthanum ions. Currents before (a) and after the application of La3+ (b; 200 µM) recorded from a HeLa cell expressing T19M. Families of current traces were recorded in response to a series of voltage clamp steps between −60 and 70 mV in increments of 10 mV from a holding potential of −60 mV. Dashed line indicates zero current level. c I–V relations obtained from the data shown in (a, b). The current was measured at the end of the 1-s pulse and plotted as a function of voltage. The concentrations of divalent cations in the bath solution were reduced to zero added Ca2+ and 0.5 mM Mg2+ to augment the size of the hemi-channel currents. d Bar graph summarizes the input conductance measured at −60 mV in HeLa cells expressing wild-type Cx46, T19M, or vector (alone) when exposed to extracellular solutions containing 0 mM Ca2+, 0.5 mM Mg2+ (black bars) or 0 mM Ca2+, 0.5 mM Mg2+, 0.2 mM La3+ (gray bars). The number of cells analyzed is indicated within parentheses

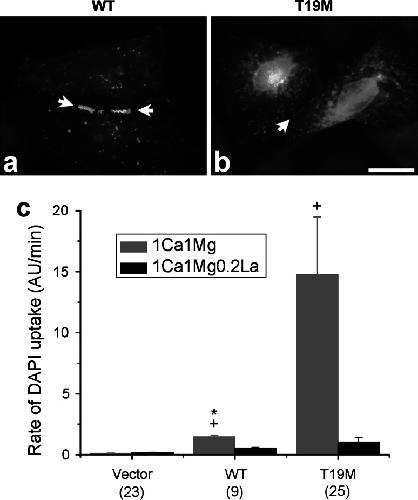

	Fig. 8. Effects of T19M mutation on human Cx46. Photomicrographs showing the distribution of human wild-type Cx46 (a) and T19M (b) in transfected HeLa cells. Bar 30 µm. c Bar graph summarizes the DAPI uptake data for vector alone, human wild-type Cx46 and T19M obtained in transfected HeLa cells when exposed to extracellular solutions containing 1 mM Ca2+, 1 mM Mg2+ (gray bars) or 1 mM Ca2+, 1 mM Mg2+, 0.2 mM La3+ (black bars). Data are graphed as mean ± SEM. *p < 0.004 (Mann–Whitney rank sum test compared with T19M-transfected cells in the same external solution); + p < 0.001 (Mann–Whitney rank sum test compared with vector-transfected cells). The number of cells analyzed is indicated within parentheses

Arora, A novel GJA8 mutation is associated with autosomal dominant lamellar pulverulent cataract: further evidence for gap junction dysfunction in human cataract. 2006, Pubmed, Xenbase

Arora, A novel GJA8 mutation is associated with autosomal dominant lamellar pulverulent cataract: further evidence for gap junction dysfunction in human cataract. 2006, Pubmed , Xenbase
Arora, A novel connexin50 mutation associated with congenital nuclear pulverulent cataracts. 2008, Pubmed , Xenbase
Berthoud, Loss of function and impaired degradation of a cataract-associated mutant connexin50. 2003, Pubmed
Beyer, Connexin mutants and cataracts. 2013, Pubmed
Bukauskas, Biophysical properties of gap junction channels formed by mouse connexin40 in induced pairs of transfected human HeLa cells. 1995, Pubmed
Contreras, Metabolic inhibition induces opening of unapposed connexin 43 gap junction hemichannels and reduces gap junctional communication in cortical astrocytes in culture. 2002, Pubmed
Di, Defective trafficking and cell death is characteristic of skin disease-associated connexin 31 mutations. 2002, Pubmed
Dobrowolski, Some oculodentodigital dysplasia-associated Cx43 mutations cause increased hemichannel activity in addition to deficient gap junction channels. 2007, Pubmed
Dong, Role of the N-terminus in permeability of chicken connexin45.6 gap junctional channels. 2006, Pubmed
Ebihara, New roles for connexons. 2003, Pubmed
Ebihara, Properties of connexin 46 hemichannels in dissociated lens fiber cells. 2011, Pubmed , Xenbase
Ebihara, Expression of gap junctional proteins in Xenopus oocyte pairs. 1992, Pubmed , Xenbase
Ebihara, Xenopus connexin38 forms hemi-gap-junctional channels in the nonjunctional plasma membrane of Xenopus oocytes. 1996, Pubmed , Xenbase
Gong, Disruption of alpha3 connexin gene leads to proteolysis and cataractogenesis in mice. 1997, Pubmed
John, Connexin-43 hemichannels opened by metabolic inhibition. 1999, Pubmed
Kalantan, Posterior polar cataract: A review. 2012, Pubmed
Kronengold, Single-channel SCAM identifies pore-lining residues in the first extracellular loop and first transmembrane domains of Cx46 hemichannels. 2003, Pubmed , Xenbase
Maeda, Structure of the connexin 26 gap junction channel at 3.5 A resolution. 2009, Pubmed
Marziano, Mutations in the gene for connexin 26 (GJB2) that cause hearing loss have a dominant negative effect on connexin 30. 2003, Pubmed
Mathias, Lens gap junctions in growth, differentiation, and homeostasis. 2010, Pubmed
Mhaske, The human Cx26-D50A and Cx26-A88V mutations causing keratitis-ichthyosis-deafness syndrome display increased hemichannel activity. 2013, Pubmed , Xenbase
Minogue, An aberrant sequence in a connexin46 mutant underlies congenital cataracts. 2005, Pubmed , Xenbase
Minogue, A mutant connexin50 with enhanced hemichannel function leads to cell death. 2009, Pubmed , Xenbase
Oh, Stoichiometry of transjunctional voltage-gating polarity reversal by a negative charge substitution in the amino terminus of a connexin32 chimera. 2000, Pubmed , Xenbase
Oh, Charges dispersed over the permeation pathway determine the charge selectivity and conductance of a Cx32 chimeric hemichannel. 2008, Pubmed , Xenbase
Pal, Connexin46 mutations linked to congenital cataract show loss of gap junction channel function. 2000, Pubmed , Xenbase
Pal, Molecular mechanism underlying a Cx50-linked congenital cataract. 1999, Pubmed , Xenbase
Purnick, Structure of the amino terminus of a gap junction protein. 2000, Pubmed , Xenbase
Ren, Cataract-causing mutation of human connexin 46 impairs gap junction, but increases hemichannel function and cell death. 2013, Pubmed
Rong, Disruption of Gja8 (alpha8 connexin) in mice leads to microphthalmia associated with retardation of lens growth and lens fiber maturation. 2002, Pubmed
Sáez, Cell membrane permeabilization via connexin hemichannels in living and dying cells. 2010, Pubmed
Santhiya, Molecular analysis of cataract families in India: new mutations in the CRYBB2 and GJA3 genes and rare polymorphisms. 2010, Pubmed
Thomas, Cataracts are caused by alterations of a critical N-terminal positive charge in connexin50. 2008, Pubmed
Tong, Properties of two cataract-associated mutations located in the NH2 terminus of connexin 46. 2013, Pubmed , Xenbase
Tong, Structural determinants for the differences in voltage gating of chicken Cx56 and Cx45.6 gap-junctional hemichannels. 2006, Pubmed , Xenbase
Tong, Exchange of gating properties between rat cx46 and chicken cx45.6. 2004, Pubmed , Xenbase
Trexler, The first extracellular loop domain is a major determinant of charge selectivity in connexin46 channels. 2000, Pubmed , Xenbase
VanSlyke, Intracellular transport, assembly, and degradation of wild-type and disease-linked mutant gap junction proteins. 2000, Pubmed
Verselis, Opposite voltage gating polarities of two closely related connexins. 1994, Pubmed , Xenbase
White, Targeted ablation of connexin50 in mice results in microphthalmia and zonular pulverulent cataracts. 1998, Pubmed
Xu, Characterization of a mouse Cx50 mutation associated with the No2 mouse cataract. 1999, Pubmed , Xenbase
