Maity S , Mazzolini M , Arcangeletti M , Valbuena A , Fabris P , Lazzarino M , Torre V .

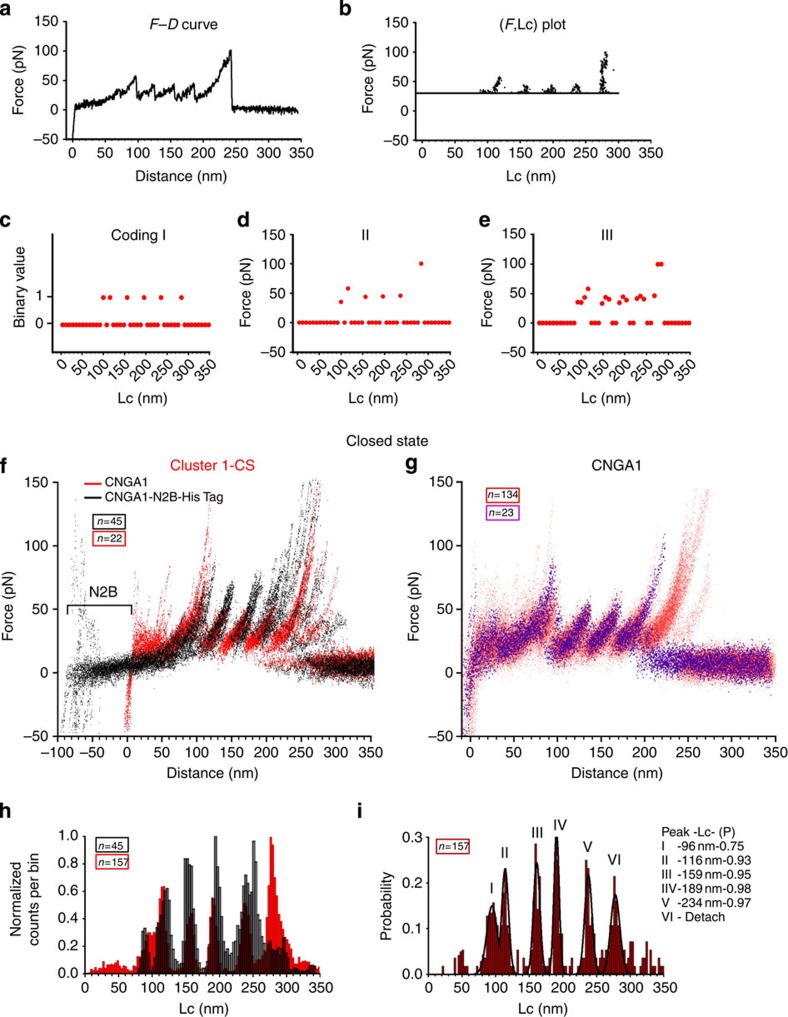

	Figure 1. F–D curves from CNGA1 and CNGA1-N2B-HisTag in the closed state.(a) An example of an F–D curve. (b) Transformation of the F–D curve in a into an (F,Lc) plot; if the F–D curve fits well in a piecewise manner using the WLC model, the resulting (F,Lc) plot is composed of a series of almost vertical segments located at the corresponding value of Lc and the upper value of each of these segments corresponds to the value of the force peak F. (c–e) Three different coding schemes of increasing complexity that are all based on the processing of the (F,Lc) plot in b; coding scheme I (c) considers only the location of the force peak (the corresponding value of Lc) and is a binary coding; coding II (d) considers the location and the amplitude of the force peak and is not a binary coding; coding III (e) fits all sample values of F above 30 pN. Red dots represent the final coding of the F–D curves. (f) 22 F–D curves from Cluster 1-CS of CNGA1 (red) detected using bioinformatics analysis and 45 F–D curves from the construct CNGA1-N2B-HisTag (black) in the closed state. The construct with N2B has an initial flat region of 85 nm, followed by force peaks matching the unfolding events observed with the CNGA1 construct. (g) Superimposition of 157 F–D curves obtained from injected oocytes showing the peak force location of CNGA1. The 23F–D curves (violet) end with a force peak with an Lc of ∼234 nm; 134 F–D curves (red) have an additional force peak with an Lc of ∼276 nm. (h) Superimposition of histograms of normalized counts/bin against Lc from the 157 F–D curves of b (now all in red) and 45 F–D curves from the CNGA1-N2B-HisTag construct (black). (i) Histogram of Lc values of force peak (with Gaussian fit for the different peaks) from the F–D curves in g with five peaks located at 96±3 (mean±s.d., n=117), 116±3 (mean±s.d., n=146), 159±3 (mean±s.d., n=157), 189±5 (mean±s.d., n=157), 234±6 (mean±s.d., n=157) nm and the detachment with the probability (P) of 0.75, 0.93, 0.95, 0.98 and 0.97, respectively.

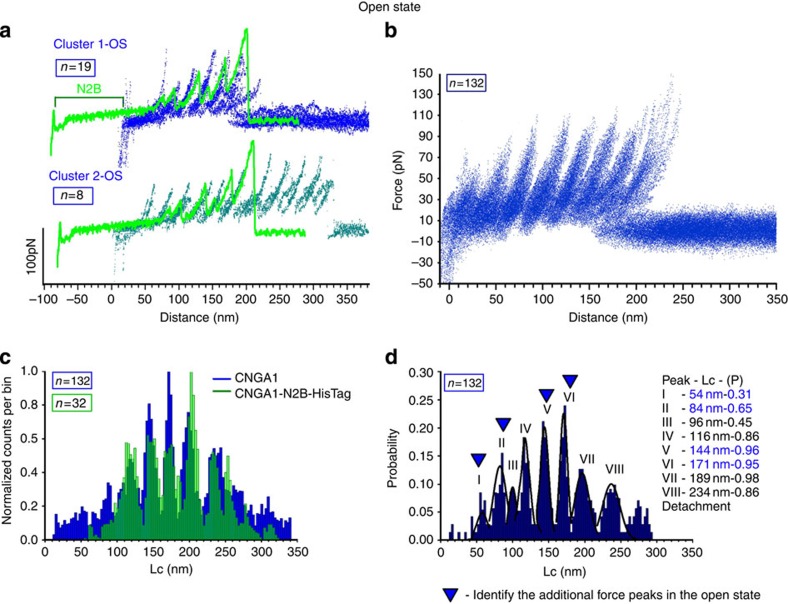

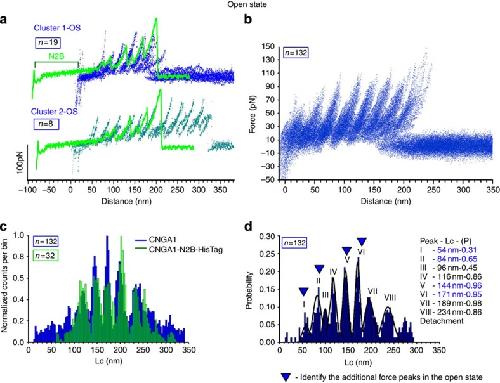

	Figure 2. Unfolding of CNGA1 and CNGA1-N2B-HisTag in the open state.(a) Example of F–D curves obtained from the unfolding of single CNGA1 (blue and cyan) and CNGA1-N2B-HisTag (green) constructs in the open state (19 curves for cluster 1-OS, 8 curves for cluster 2-OS and 1 curve for CNGA1-N2B-HisTag). The construct with N2B has an initial flat region of 85 nm, followed by peaks that correspond to the unfolding events that were observed in the CNGA1 construct. (b) Superimposition of 132 F–D curves that were obtained from injected oocytes in the open state using the curves of Cluster 1-OS as a template. (c) Superimposition of the histograms of normalized counts/bin against Lc from the F–D curves of b (blue) and 32 F–D curves from the CNGA1-N2B-HisTag (green) constructs in the open state. (d) Histogram of Lc values of force peak (with Gaussian fit for the different peaks) from the F–D curves in d with eight peaks located at 54±3 (mean±s.d., n=41), 84±3 (mean±s.d., n=86), 96±3 (mean±s.d., n=59), 116±3 (mean±s.d., n=114), 144±3 (mean±s.d., n=132), 171±3 (mean±s.d., n=132), 189±5 (mean±s.d., n=132), 234±6 (mean±s.d., n=132) nm and the detachment; the probabilities of the unfolding are 0.31, 0.65, 0.45, 0.86, 0.96, 0.95, 0.98 and 0.86, respectively.

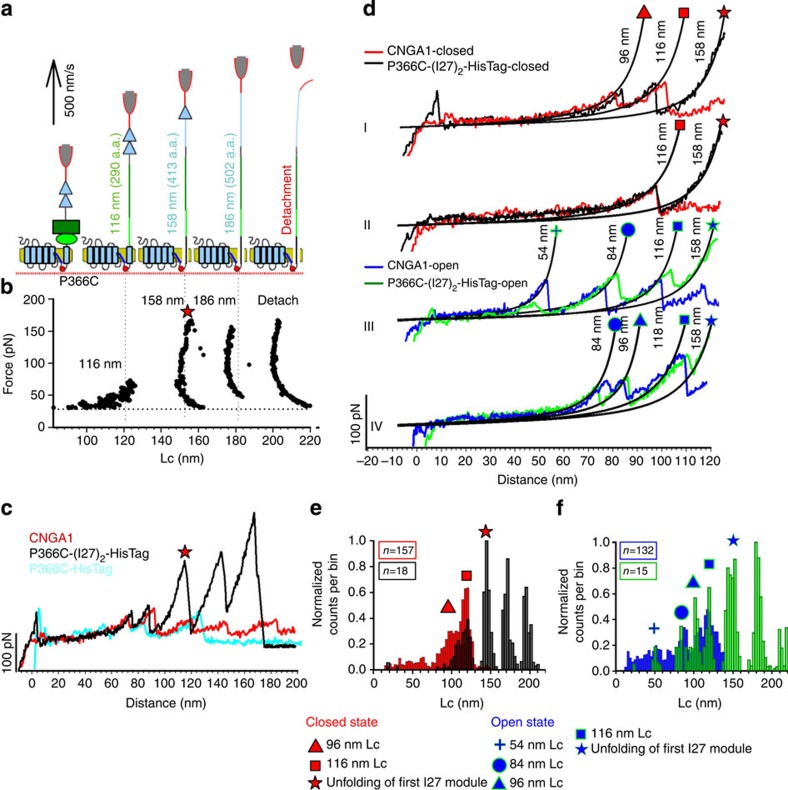

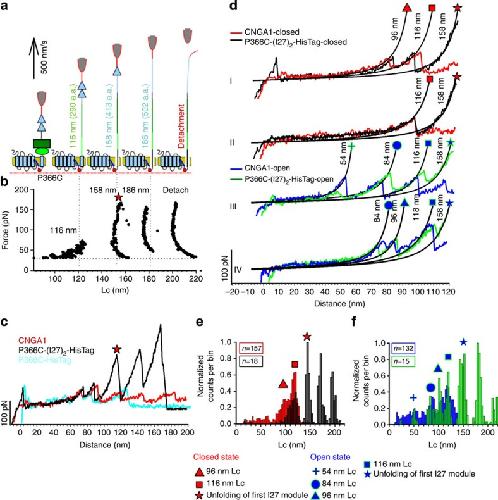

	Figure 3. Unfolding of CNB domain.(a) Schematic representation of the unfolding sequence, with the expected Lc values and the relative a.a. length in parenthesis and single module of I27 (cyan triangle), CNB domain (green rectangle), C-linker (green oval), transmembrane domains (cyan rectangles) and mutation P366C (red dots). (b) (F,Lc) plot from a typical curve of P366C-(I27)2-HisTag. The finger print is composed by two force peaks of ∼200 pN separated by ∼28 nm with the detachment peak, with a value of Lc corresponding to unfolding of the cytoplasmic domain from D690 to P366 and the two I27 modules (that is, (D690−P366)·0.4 nm+2·28 nm))=186 nm. (c) Superimposition of the F–D curves of CNGA1 (red), P366C-HisTag (cyan) and P366C-(I27)2-HisTag (black). The F–D curves from the construct P366C-HisTag are shorter than those from CNGA1 and have a detachment event at 120–140 nm. Force peaks with Lc values at 96 and 116 nm are present in the F–D curves from the CNGA1, P366C-HisTag and P366C-(I27)2-HisTag constructs. (d) Different unfolding pathways in the open and closed states; I and II: superposition of the F–D curves from CNGA1 channels (red) and from the construct P366C-(I27)2-HisTag (black) in the closed state. In I, there are two force peaks with Lc values of 96 and 116 nm, but there is only one force peak in II; III and IV: superposition of the F–D curves from CNGA1 channels (blue) and from the constructs P366C-(I27)2-HisTag (green) in the open state. In III there are three force peaks with Lc values of 54, 84 and 116 nm, and in IV there are three force peaks with Lc values of 84, 96 and 118 nm. The force peak with an Lc of 158 is only present in the construct P366C-(I27)2-HisTag. (e) Superimposition of histograms of normalized counts/bin against Lc from the F–D curves obtained from P366C-(I27)2-HisTag (black) and from CNGA1 channels (red) in the closed state (f) same as in e for P366C-(I27)2-HisTag (green) and from CNGA1 channels (blue) in the open state. The data in e,f are from CNGA1 channels as described in Figs 1 and 2.

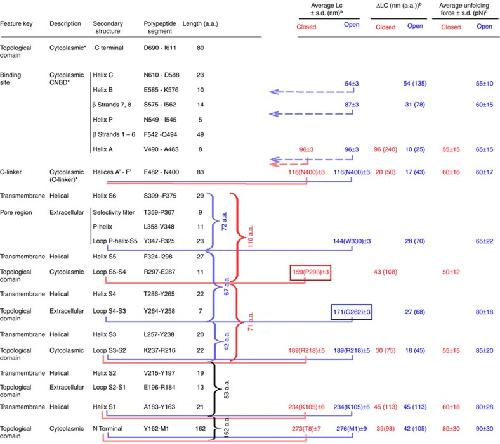

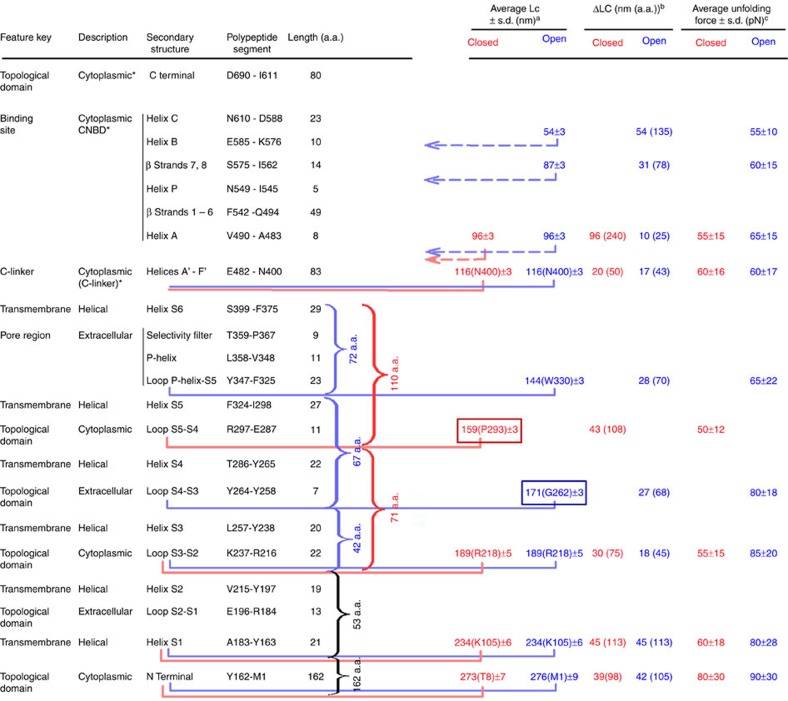

	Figure 4. Assignment of secondary structure and different domains of CNGA1 channels to the observed force peaks in the closed and open states.The first and second columns show the key features of the functional domains identified in CNGA1 channels according to the available literature2324252627282930; the third column reports the presumed secondary structure1731; the fourth and fifth columns contain the corresponding polypeptide segments and the associated a.a. number; the remaining columns indicate the Lc, ΔLc and force values of the corresponding force peaks in the closed and open states. The length and the polypeptide segments are obtained from the results of Figs 1 and 2. The number of a.a. for the transmembrane domains has been calculated by considering the membrane thickness (∼5 nm or ∼13 a.a.)344. The initial and final a.a. of each polypeptide segment are only indicative (a) average Lc values of the force peaks with s.d. in nanometres, with the number inside the brackets representing the average position of the force peaks in the a.a. sequence. (b) Average ΔLc in nanometres and the corresponding number of a.a. (in brackets). (c) Average value of the unfolding force with the corresponding s.d. in pN. *The unfolding of the cytoplasmic segments in the C-terminal cannot be exactly determined.

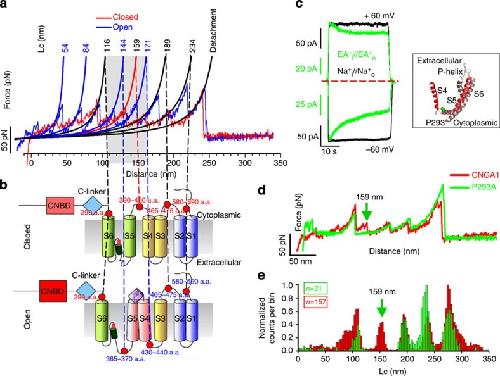

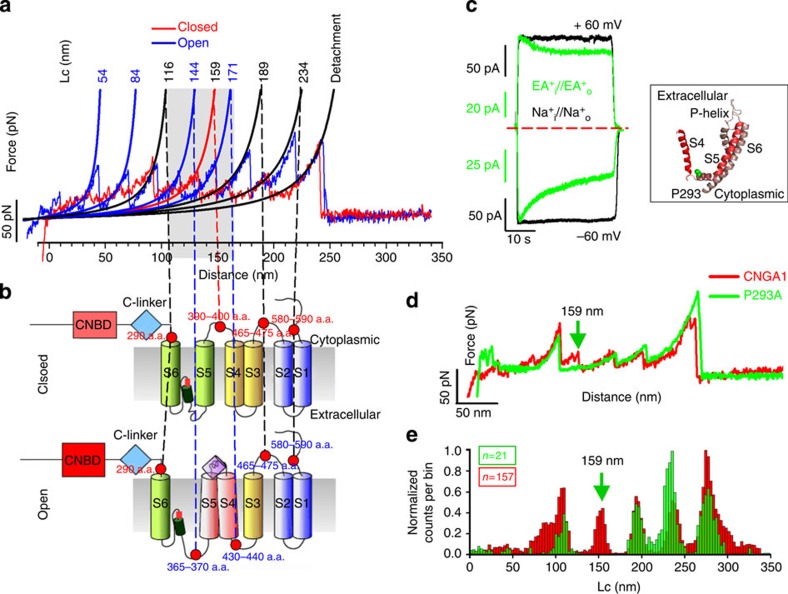

	Figure 5. Conformational changes in the transmembrane domain during the gating of CNGA1 channels.(a) Superposition of two representative F–D curves of CNGA1 channels in the closed (red) and open (blue) states. Continuous black lines obtained from the fitting with WLC model. Numbers indicate the corresponding values of Lc. (b) Schematic representation of hypothesized interactions between the transmembrane helices in the closed and open states. Red dots indicate the approximate location of the force peaks and the numbers of the corresponding a.a. (c) Electrophysiological recordings from mutant channel P293A in the presence of Na+ (black) and ethylammonium (EA+) (green) at ±60 mV. In the black box, the homology model of the S4 and S6 transmembrane domains of the CNGA1 channel based on the molecular structure of the Kv1.2 channel; the conserved P293 is indicated in green. (d) Superposition of two representative F–D curves for the CNGA1 channel (red) and for the P293A (green), both in the closed state. The green arrow, corresponding to the value of Lc=159 nm, indicates the differences between the two constructs. (e) Superimposition of histograms of normalized counts/bin against Lc from the 157 F–D curves of CNGA1 (red, the same as in Fig. 1h) and 21 F–D curves from mutant channel P293A in the closed state (green), both in the closed state. Arrow as in d.

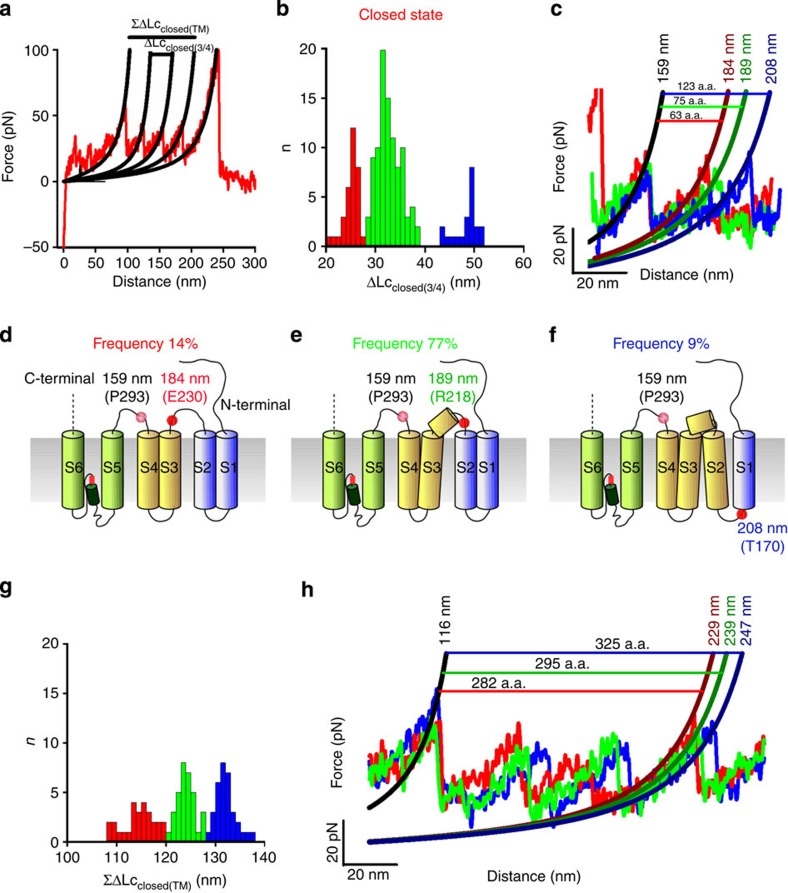

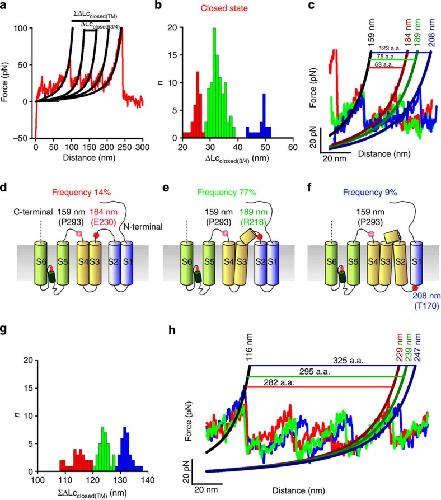

	Figure 6. Variability of the unfolding of the transmembrane segments in the closed state.(a) A representative F–D curve in the closed state (the same as in Fig. 5a). Continuous black lines obtained from the fitting with WLC model. Horizontal lines indicate the corresponding values of ΔLc and ΣΔLc. (b) Histogram of ΔLcclosed(3/4) (bin 2 nm) in the closed state between the force peaks with Lc values around 159 to 189 nm. Colours correspond to different clusters of F–D curves with values of ΔLcclosed(3/4) around 26, 34 and 50 nm. (c) Superposition of representative F–D curves of the three clusters of b and the relative number of stretched a.a. (d–f) Schematic representation of the corresponding unfolding pathways. Small red dots or circles indicate the position of the force peaks, and the number is the corresponding value of Lc. The a.a. that presumably corresponds to the force peak is also indicated. (g) ΣΔLcclosed(TM) histogram (bin 1 nm) in the closed state for the force peaks as in a with values around 113, 123 and 131 nm. (h) Superposition of representative F–D curves of the three clusters of g and the relative number of stretched a.a.

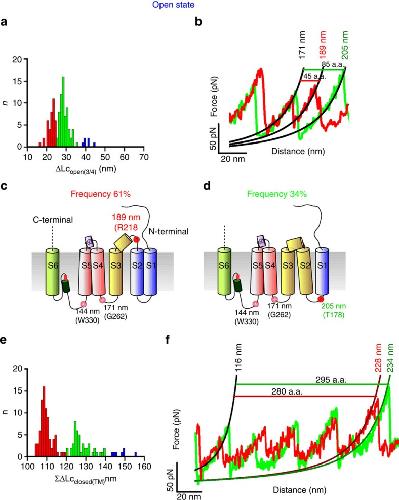

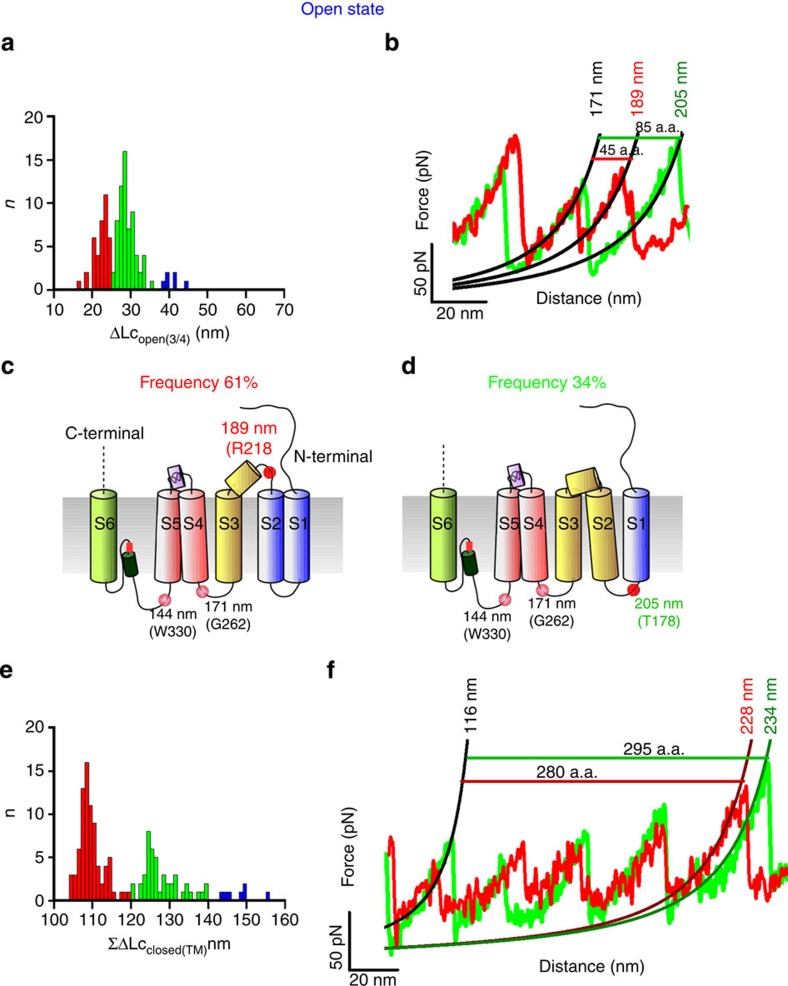

	Figure 7. Variability of the unfolding of the transmembrane segments in the open state.(a) Histogram of ΔLcopen(3/4) (bin 2 nm) in the open state. (b) Superposition of representative F–D curves of the two clusters of a and the related number of stretched a.a. (c,d) Schematic representation of the corresponding unfolding pathways. Small red dots or circles indicate the position of the force peaks and the number is the corresponding value of Lc. The a.a. that presumably corresponds to the force peak is also indicated. (e) ΣΔLcopen(TM) histogram (bin 1 nm) in the open state. (f) Superposition of representative F–D curves of the two clusters of e and the related number of stretched a.a.
