K 2P 2.1 (TREK-1)-activator complexes reveal a cryptic selectivity filter binding site.
Lolicato M
,
Arrigoni C
,
Mori T
,
Sekioka Y
,
Bryant C
,
Clark KA
,
Minor DL
.
???displayArticle.abstract???
Polymodal thermo- and mechanosensitive two-pore domain potassium (K 2P ) channels of the TREK subfamily generate 'leak' currents that regulate neuronal excitability, respond to lipids, temperature and mechanical stretch, and influence pain, temperature perception and anaesthetic responses. These dimeric voltage-gated ion channel (VGIC) superfamily members have a unique topology comprising two pore-forming regions per subunit. In contrast to other potassium channels, K 2P channels use a selectivity filter 'C-type' gate as the principal gating site. Despite recent advances, poor pharmacological profiles of K 2P channels limit mechanistic and biological studies. Here we describe a class of small-molecule TREK activators that directly stimulate the C-type gate by acting as molecular wedges that restrict interdomain interface movement behind the selectivity filter. Structures of K 2P 2.1 (also known as TREK-1) alone and with two selective K 2P 2.1 (TREK-1) and K 2P 10.1 (TREK-2) activators-an N-aryl-sulfonamide, ML335, and a thiophene-carboxamide, ML402-define a cryptic binding pocket unlike other ion channel small-molecule binding sites and, together with functional studies, identify a cation-π interaction that controls selectivity. Together, our data reveal a druggable K 2P site that stabilizes the C-type gate 'leak mode' and provide direct evidence for K 2P selectivity filter gating.
???displayArticle.pubmedLink??? 28693035
???displayArticle.pmcLink??? PMC5778891
???displayArticle.link??? Nature
???displayArticle.grants??? [+]
R01 MH093603 NIMH NIH HHS
???attribute.lit??? ???displayArticles.show???
|
|
|
|
|
|
|
|
|
|
|
|

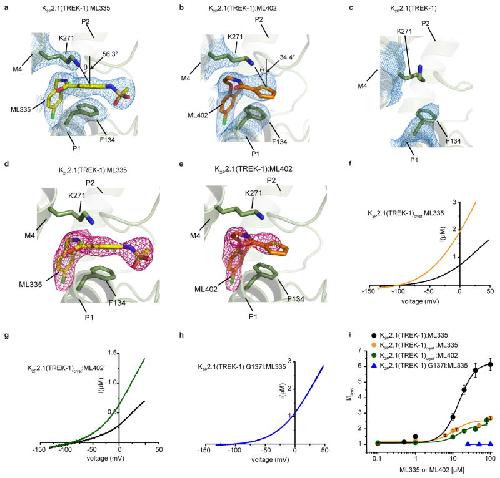

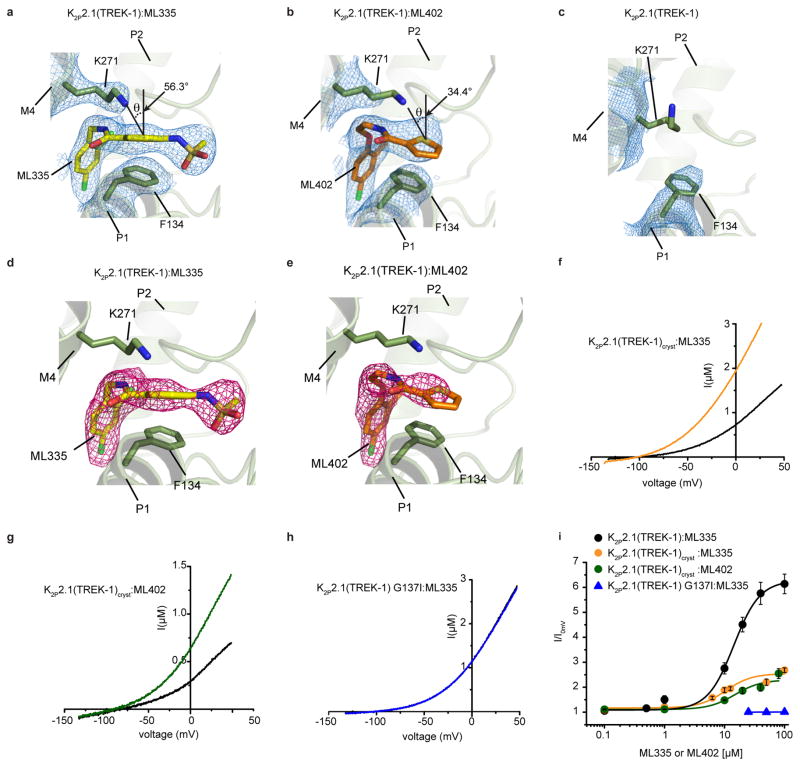

Extended Data Figure 2. K2P2.1(TREK-1)cryst modulator binding pocket densities and K2P2.1(TREK-1)cryst functional propertiesa–e, Exemplar electron densities for the modulator binding pockets. a–c, 2Fo-Fc densities (blue) for a, K2P2.1(TREK-1):ML335 (1.5 σ), b, K2P2.1(TREK-1):ML402 (1.0 σ), and c, K2P 2.1(TREK-1) (1.0 σ). Offset angle for the cation-π interactions for Lys271:ML335 and Lys271:ML402 is shown and adopts an oblique geometry common to cation-π interactions35,36. d, and e, Fo-Fc densities (hotpink, 3.0 σ) for d, K2P2.1(TREK-1):ML335 and e, K2P2.1(TREK-1):ML402. Final models are shown in all panels and select residues are shown and labeled. f–h, Exemplar current traces for f, K2P2.1 (TREK-1)cryst (black) with 40 μM ML335 (yellow orange), g, K2P2.1 (TREK-1)cryst (black) with 80 μM ML402 (green), and h, K2P2.1 (TREK-1) G137I (black) with 80 μM ML335 (blue). i, Dose response curves for K2P2.1(TREK-1):ML335 (black), EC50=14.3 ± 2.7 μM (n≥5); K2P2.1 (TREK-1)cryst:ML335, EC50 = 10.5 ± 2.7 μM (n≥3) (yellow orange) K2P2.1 (TREK-1)cryst:ML402, EC50 = 14.9 ± 1.6 μM (n≥3); and K2P2.1(TREK-1) G137I:ML335 (blue ). |
|

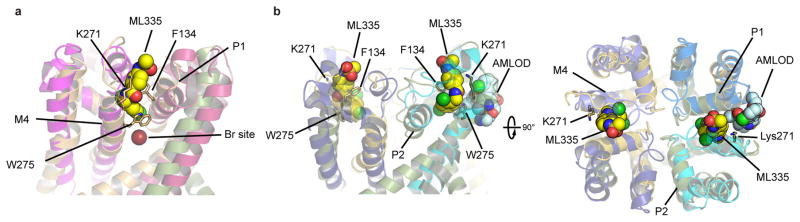

Extended Data Figure 3. Comparison of K2P modulator and VGIC antagonist sitesa, Superposition of the K2P2.1(TREK-1):ML335 complex (smudge and light orange) with the BacNaV ‘pore-only’ NaVMs structure18 (magenta and warm pink). Bromine site (Br) from labeled sodium channel antagonists is shown as a firebrick sphere. b, Superposition of the pore domains of the K2P2.1(TREK-1):ML335 complex (smudge and light orange) with the pore domain of the BacNaV CaVAb (5KMD) bound to the inhibitor amlodipine (AMLOD)19, a site normally occupied by lipid19,37. Select residues of the K2P modulator pocket are shown as sticks and are labeled. CaVAb subunits are colored cyan, marine, slate, and dark blue. ML335 (yellow) and amlodipine (cyan) are shown in space filling representation. |
|

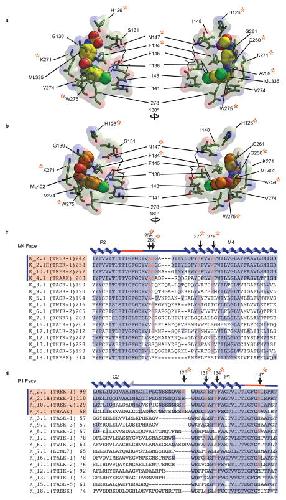

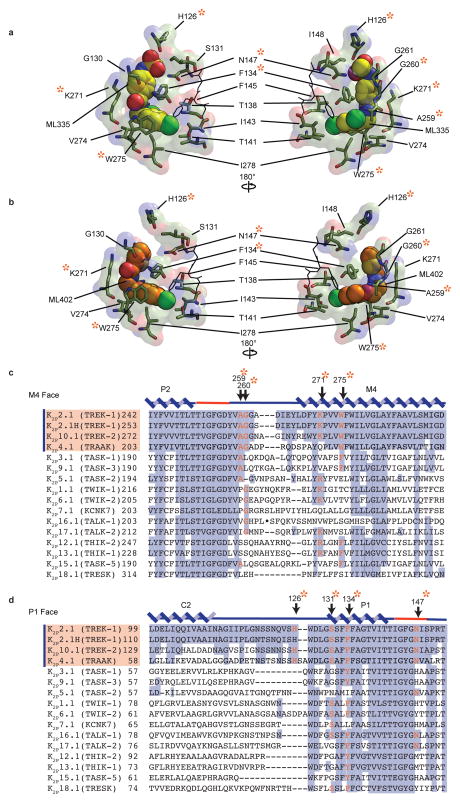

Extended Data Figure 4. K2P modulator pocket structure and conservationDetails of a, ML335, and b, ML402 interactions with K2P2.1(TREK-1). c and d, Representative K2P channel sequence comparisons for the c, M4 face and d, P1 face. Purple bar and orange shading on sequence identifiers denotes the thermo- and mechanosensitive K2P2.1(TREK-1) subfamily. Protein secondary structure is marked above the sequences. Selectivity filter region is in red. Residues involved in direct interactions with ML335 and ML402 are orange and marked with an orange asterisk. Conserved positions are highlighted. K2P2.1(TREK-1) is the mouse protein used for this study. K2P2.1H(TREK-1) is the human homolog. All other K2P sequences are human origin. Sequences and identifiers are as follows: K2P2.1(TREK-1) NP_034737.2; K2P2.1H(TREK-1), NP_001017424.1; K2P10.1(TREK-2), NP_612190.1; K2P4.1(TRAAK), NP_001304019.1; K2P3.1(TASK-1), NP_002237.1; K2P9.1(TASK-3), NP_001269463.1; K2P5.1(TASK-2), NP_003731.1; K2P1.1(TWIK-1), NP_002236.103812.2; K2P6.1(TWIK-2), NP_004823.1; K2P7.1(KCNK7), AAI03812.2; K2P16.1(TALK-1), NP_001128577.1; K2P17.1(TALK-2), NP_113648.2; K2P12.1(THIK-2), NP_071338.1; K2P12.1(THIK-1), NP_071337.2; K2P15.1(TASK-5), NP_071753.2; and K2P18.1(TRESK), NP_862823.1. ‘●’ in K2P16.1(TALK-1) sequence in ‘c’ denotes the following, non-conserved sequence that was removed to avoid a long alignment gap: NFITPSGLLPSQEPFQTPHGKPESQQIP. |
|

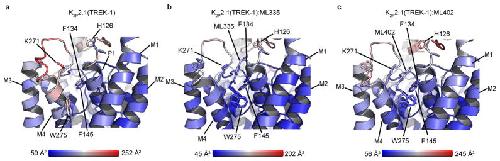

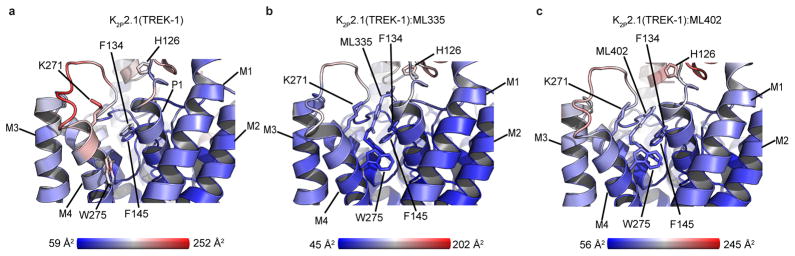

Extended Data Figure 5. K2P structure comparisonsK2P modulator pocket views colored by B-factor for a, K2P2.1(TREK-1), b, K2P2.1(TREK-1):ML335, and c, K2P2.1(TREK-1):ML402. Bars show B-factor scale. |
|

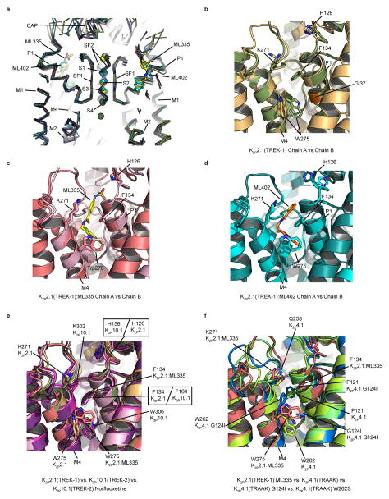

Extended Data Figure 6. K2P structure comparisonsa, Backbone atom superposition of K2P2.1(TREK-1) (smudge, up), K2P2.1(TREK-1):ML335 (yellow, up), K2P2.1(TREK-1):ML402 (cyan, up), K2P10.1(TREK-2) (4BW5) (pink, up)6, K2P10.1(TREK-2) (4XDJ) (magenta, down)6, K2P10.1(TREK-2):Norfluoxetine (4XDK)(violet purple, down)6, K2P4.1(TRAAK) (4I9W) (limon, up)13, K2P4.1(TRAAK) G124I (4RUE) (marine, down)15, and K2P4.1(TRAAK) W262S (4RUF) (lime, down)15. ‘up’ or ‘down’ denotes M4 conformation. Selectivity filter ions for K2P2.1(TREK-1) (smudge), K2P2.1(TREK-1):ML335 (yellow), and K2P2.1(TREK-1):ML402 (cyan) are shown as spheres. ML335 and ML402 are shown in sticks. Select channel elements are labeled. b–e, Superposition showing b, K2P2.1(TREK-1) chain A (smudge) and chain B (light orange). Sites of GOF mutations, G137I (orange)7, and Trp2758, are indicated. c, K2P2.1(TREK-1):ML335 chain A (pink) and chain B (deep salmon), d, K2P2.1(TREK-1):ML402 chain A (cyan) and chain B (deep teal). e, K2P2.1(TREK-1) chain A (smudge) and chain B (light orange), K2P10.1(TREK-2) (4BW5) (pink)6, K2P10.1(TREK-2) (4XDJ) (magenta)6, K2P10.1(TREK-2):Norfluoxetine (4XDK)(violet purple)6. f, K2P2.1(TREK-1):ML335 (deep salmon), K2P4.1(TRAAK) (4I9W) (limon)13, K2P4.1(TRAAK) G124I (4RUE) (marine)15, K2P4.1(TRAAK) W262S (4RUF) (lime)15. G124I from K2P4.1(TRAAK) G124I15 is shown in sticks. In b–f, Phe134, His126, Lys271, Trp275, their equivalents in K2P10.1(TREK-2), K2P4.1(TRAAK), and K2P4.1(TRAAK) G124I, are shown in sticks. ML335, ‘c’, and ML402, ‘d’, are shown as sticks. |
|

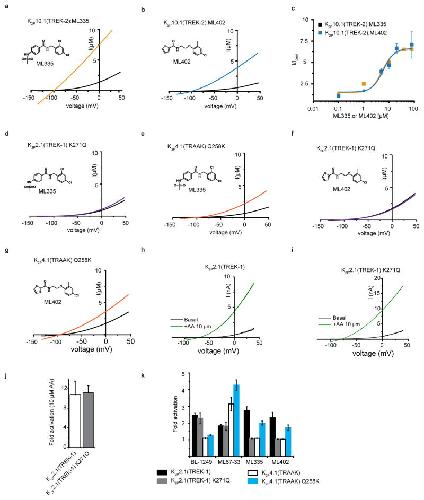

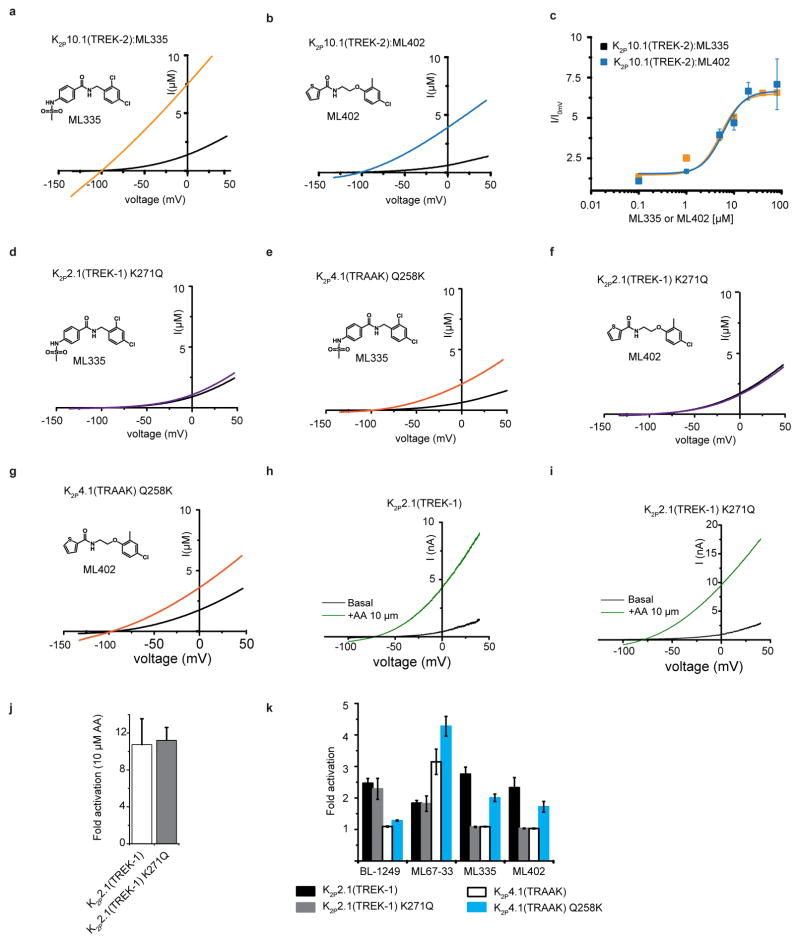

Extended Data Figure 7. K2P activator responsesExemplar current traces for a, K2P10.1(TREK-2) (black) with 20 μM ML335 (yellow orange) and b, K2P10.1(TREK-2) (black) with 20 μM ML402 (cyan). c, Dose response curves for K2P10.1(TREK-2) with ML335 (EC50 = 5.2 ± 0.5 μM (n>3)) (yellow orange) and ML402 (EC50 = 5.9 ± 1.6 μM (n≥4)(cyan). Exemplar current traces for d, K2P2.1(TREK-1) K271Q (black) and with 20 μM ML335 (purple). e, K2P4.1(TREK-1) Q258K (black) and with 50 μM ML335 (orange). f, K2P2.1(TREK-1) K271Q (black) and with 50 μM ML402 (purple). g, K2P4.1(TREK-1) Q258K (black) and with 50 μM ML402 (orange). Currents were evoked from Xenopus oocytes expressing the indicated channels from a −80 mV holding potential followed by a 500 ms ramp from −150 mV to +50 mV. Compound structures are shown. h, and i, Exemplar current traces for HEK293 cell inside-out patches expressing h, K2P2.1(TREK-1) and i, K2P2.1(TREK-1) K271Q to stimulation by 10 μM arachidonic acid (AA) (green). j, Current potentiation measured in HEK cells at 0 mV in response to 10μM AA for K2P2.1(TREK-1) (n=5) and K2P2.1(TREK-1) K271Q (n=4). k, Current potentiation measured in Xenopus oocytes at 0 mV for K2P4.1(TRAAK) (white), K2P2.1(TREK-1) (black), K2P4.1(TRAAK) Q258K (cyan) and K2P2.1(TREK-1) K271Q (gray) in response to 10 μM BL-1249, 30 μM ML67-33, and 20 μM ML335. For all experiments (n≥4). Data are mean ± SEM. |
|

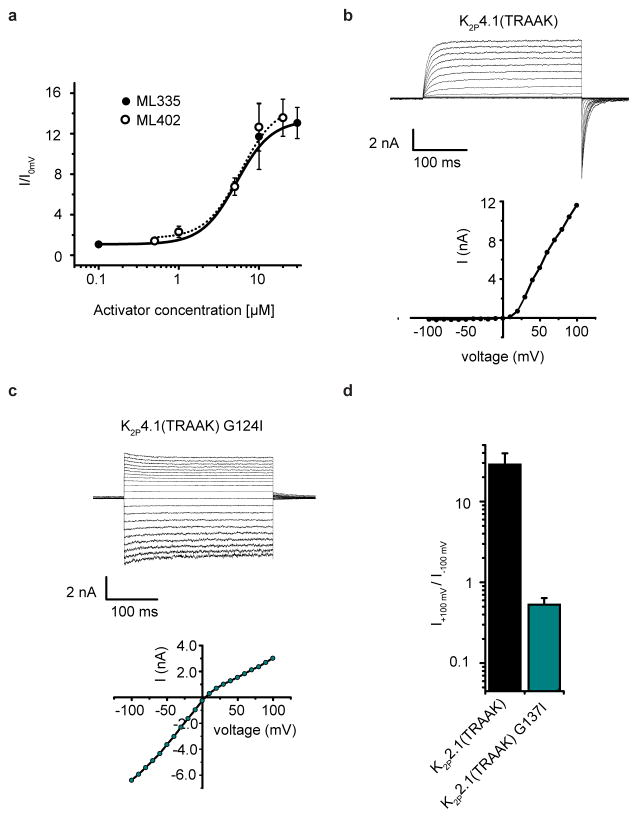

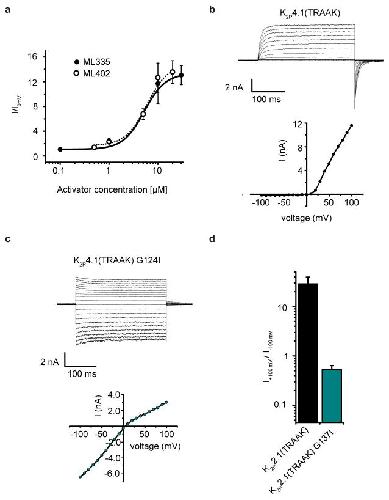

Extended Data Figure 8. K2P channel patch clamp recordingsa, Dose response for K2P2.1(TREK-1) to ML335 (black circles) and ML402 (open circles) measured in HEK293 cells by whole cell patch clamp. EC50 values are 5.2 ± 0.8 μM and 5.9 ± 1.6 μM for ML335 and ML402, respectively (n≥3). b, and c, Representative current traces and voltage-current relationship from HEK293 inside-out patches for expressing b, K2P4.1(TRAAK) and c, K2P4.1(TRAAK) G124I elicited by a 350 ms-voltage step protocol from −100 mV to +100 mV in 150 mM K+[out]/150 mM Rb+[in]. d, Rectification coefficients (I+100mV/I-100mV) calculated from n≥3 current recordings obtained from the same conditions in ‘b’ and ‘c’. |
|

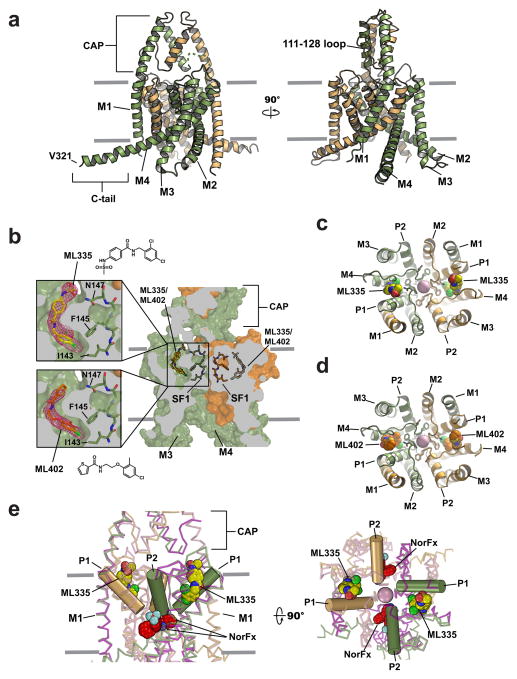

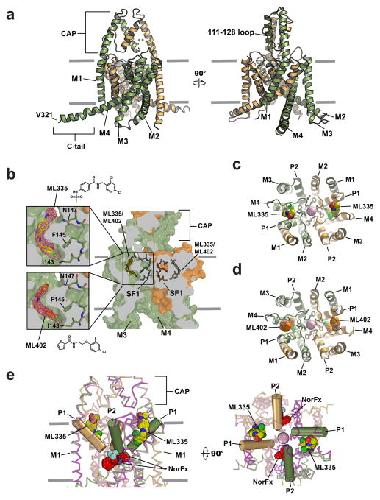

Figure 1. K2P2.1(TREK-1) structuresa, K2P2.1(TREK-1)cryst cartoon (smudge and light orange) smudge subunit extracellular cap domain (CAP), M1–M4 transmembrane helices, C-tail, and V321 are labeled. b, K2P modulator pocket cutaway. Cutouts display ML335 and ML402 Fo-Fc densities (3.0σ). ML335, ML402, and Selectivity Filter 1 (SF1) are sticks. c, and d, Extracellular views excluding the CAP domain of c, ML335 and d, ML402 binding sites. ML335 and ML402 are space filling. Selectivity filter sidechains are sticks. e, Wire representation comparing K2P2.1(TREK-1):ML335 (smudge and light orange) and K2P10.1(TREK-2):norfluoxetine6 (light pink and magenta) binding sites. K2P2.1(TREK-1) P1 and P2 are cylinders. ML335 (yellow) and norfluoxetine (NorFx) (red) are space filling. In all panels select residues and channel elements are indicated, and where present, grey lines indicate the membrane. |
|

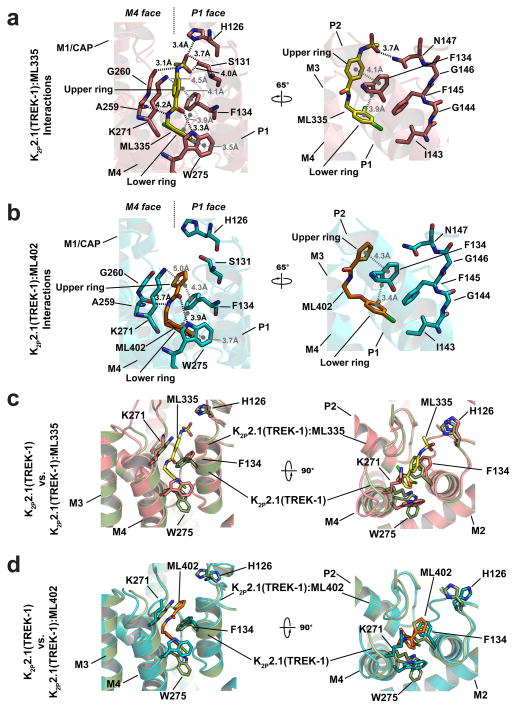

Figure 2. K2P2.1(TREK-1) activator interactionsCartoon diagram of a, K2P2.1(TREK-1):ML335 and b, K2P2.1(TREK-1):ML402 interactions. Electrostatic and hydrogen bond interactions are black. Cation-π and π-π interactions are grey. c, and d, comparison of K2P2.1(TREK-1) (smudge) with c, K2P2.1(TREK-1):ML335 (deep salmon) and d, K2P2.1(TREK-1):ML402 (cyan). |
|

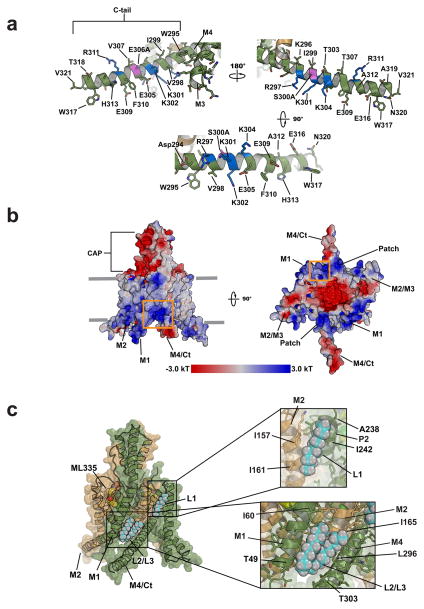

Figure 3. K2P2.1(TREK-1) C-tail and lipid binding sitesa, K2P2.1(TREK-1) C-tail. Positively charged residues are blue. S300A and E306A, a site having slight distortion from helical geometry, are magenta. b, K2P2.1(TREK-1) Electrostatic surface potential. Orange box highlights M1/M2/M4 junction. Cytoplasmic view (left) indicates C-tail positively charged patch. c, Lipids L1, L2, and L3 (cyan and white) shown as space filling. ML335 (yellow) is indicated. Insets show lipid binding pocket details. |
|

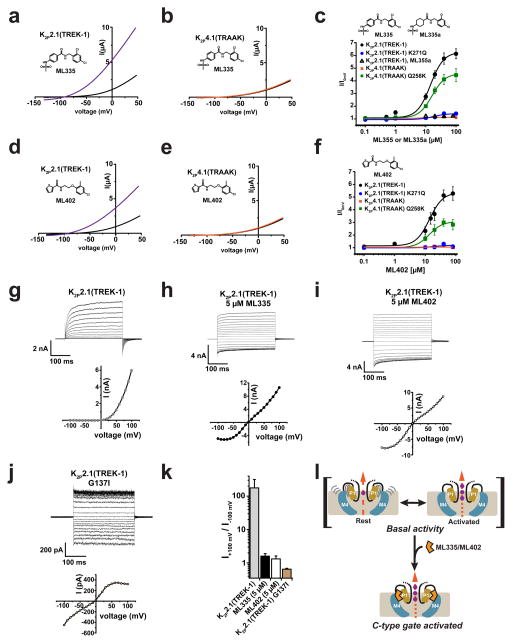

Figure 4. K2P2.1(TREK-1) activator functionExemplar current traces for a, K2P2.1(TREK-1) (black) with 20 μM ML335 (purple). b, K2P4.1(TRAAK) (black) with 50 μM ML335 (orange). c, ML335 dose response curves for K2P2.1(TREK-1) (black), EC50=14.3 ± 2.7 μM (n≥5); K2P2.1(TREK-1) K271Q (blue filled circles); K2P4.1(TRAAK) (orange); K2P4.1(TRAAK) Q258K (green) EC50=16.2 ± 3.0 μM (n≥4); and ML335a: K2P2.1(TREK-1) (black open triangles). Exemplar current traces for d, K2P2.1(TREK-1) (black) with 20 μM ML402 (purple). e, K2P4.1(TRAAK) (black) with 50 μM ML335 (orange). f, ML402 dose response curves for K2P2.1(TREK-1) (black), EC50=13.7 ± 7.0 μM (n≥3); K2P2.1(TREK-1) K271Q (blue); K2P2.1(TREK-1) (blue); K2P4.1(TRAAK) (orange); K2P4.1(TRAAK) Q258K (green) EC50=13.6 ± 1.5 μM (n≥3). g–j, Exemplar current traces and voltage-current relationships for indicated K2Ps in HEK293 inside-out patches in 150 mM K+[out]/150 mM Rb+[in] for g, K2P2.1(TREK-1), h, K2P2.1(TREK-1) with 5 μM ML335, I, K2P2.1(TREK-1) with 5 μM ML402, and j, K2P2.1(TREK-1) G137I. k, Rectification coefficients (I+100mV/I–100mV) from recordings (n≥3) made in ‘g–j’. l, TREK activation model. Grey lines indicate mobile P1 (tan) and M4 (blue). C-type activators (orange), stabilize the selectivity filter and channel ‘leak mode’. Potassium ions are purple. Gap in arrows indicates current flow intensity. Membrane is grey. |
