PLoS One
2013 Jan 01;811:e78654. doi: 10.1371/journal.pone.0078654.
Show Gene links
Show Anatomy links
The neuroplastin adhesion molecules are accessory proteins that chaperone the monocarboxylate transporter MCT2 to the neuronal cell surface.
Wilson MC
,
Kraus M
,
Marzban H
,
Sarna JR
,
Wang Y
,
Hawkes R
,
Halestrap AP
,
Beesley PW
.
???displayArticle.abstract???
BACKGROUND: The neuroplastins np65 and np55 are two synapse-enriched immunoglobulin (Ig) superfamily adhesion molecules that contain 3 and 2 Ig domains respectively. Np65 is implicated in long term, activity dependent synaptic plasticity, including LTP. Np65 regulates the surface expression of GluR1 receptor subunits and the localisation of GABA(A) receptor subtypes in hippocampal neurones. The brain is dependent not only on glucose but on monocarboxylates as sources of energy. The. monocarboxylate transporters (MCTs) 1-4 are responsible for the rapid proton-linked translocation of monocarboxylates including pyruvate and lactate across the plasma membrane and require association with either embigin or basigin, proteins closely related to neuroplastin, for plasma membrane expression and activity. MCT2 plays a key role in providing lactate as an energy source to neurons.
METHODOLOGY/FINDINGS: Here we use co-transfection of neuroplastins and monocarboxylate transporters into COS-7 cells to demonstrate that neuroplastins can act as ancillary proteins for MCT2. We also show that Xenopus laevis oocytes contain endogenous neuroplastin and its knockdown with antisense RNA reduces the surface expression of MCT2 and associated lactate transport. Immunocytochemical studies show that MCT2 and the neuroplastins are co-localised in rat cerebellum. Strikingly neuroplastin and MCT2 are enriched in the same parasagittal zebrin II-negative stripes.
CONCLUSIONS: These data strongly suggest that neuroplastins act as key ancillary proteins for MCT2 cell surface localisation and activity in some neuronal populations, thus playing an important role in facilitating the uptake of lactate for use as a respiratory fuel.
???displayArticle.pubmedLink???
24260123
???displayArticle.pmcLink???PMC3832594 ???displayArticle.link???PLoS One ???displayArticle.grants???[+]
Figure 1. Co-transfection with np55 or np65 enables expression of MCT2 at the plasma membrane. Cos-7 cells were transiently transfected with MCT2 tagged at its N-terminus with CFP and/or np55 or np65 C-terminally labelled with YFP. The expression of np55 or np65 and MCT2 was detected by confocal microscopy. A: In single transfected cells MCT2 remains in the perinuclear region while neuroplastin is located at the plasma membrane and in the soma. B and C: In contrast, when MCT2 is transfected together with np55 or np65 both proteins are expressed at the cell surface. Cells were imaged using the Leica confocal imaging spectrophotometer system (TCS-SP2) attached to a Leica DMIRBE inverted epifluorescence microscope.
doi:10.1371/journal.pone.0078654.g001

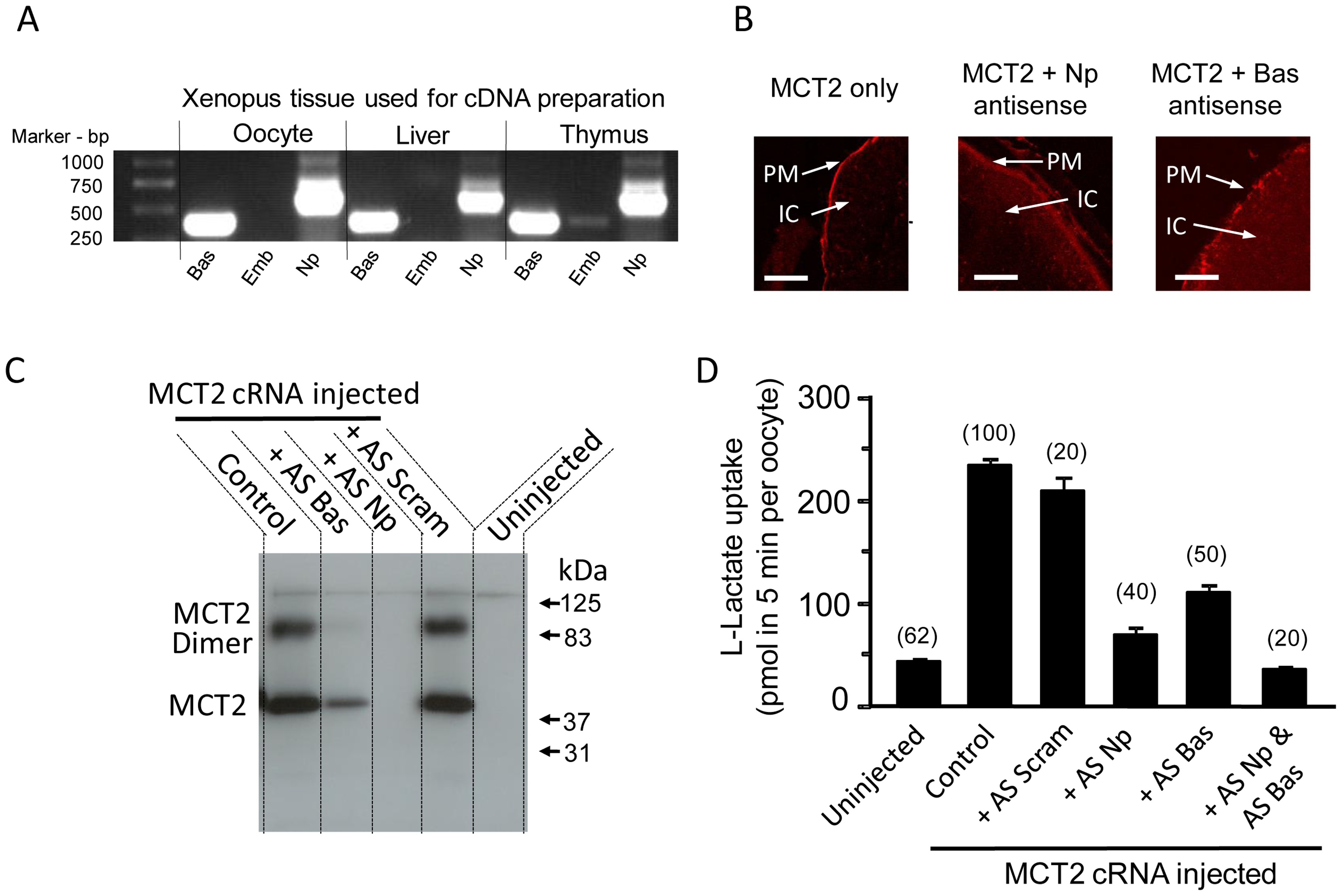

Figure 3. Xenopus oocytes express neuroplastin that facilitates MCT2 expression at the plasma membrane. A: shows the results of RT- PCR performed on mRNA extracted from Xenopus laevis oocytes, liver and thymus as described in the Experimental section. Primers for basigin (Bas), embigin (Emb) and neuroplastin (Np) were used as indicated. B: shows the expression of MCT2 in oocytes with or without antisense mRNA for basigin or neuroplastin detected by immunofluorescence microscopy. Antisense treatment reduces expression at the plasma membrane (PM) but increases intracellular expression (IC). The scale bar is 50 mm. C: shows parallel data for MCT2 expression in a crude membrane fraction derived from the oocyte and detected by SDS-PAGE and Western blotting. Here, scrambled (Scram) antisense RNA is used as an additional control. D: presents parallel data for the transport of [14C]-L-lactate into oocytes determined over 5 min. Error bars represent the S.E.M. of the number of oocytes indicated.
doi:10.1371/journal.pone.0078654.g003
Figure 4. MCT2 immunoreactivity in 40 mm sagittal sections through the adult rat cerebellar cortex reveal Purkinje cell immunoreactivity. A: MCT2 immunoreactivity visualised by peroxi- dase reaction product is deposited in the Purkinje cell dendrites in the molecular layer (ml), Purkinje cell somata in the Purkinje cell layer (pcl), and weakly in the granular layer (gl). B: Anti-MCT2 immunofluorescence staining is prominent in the granular layer (gl). C: Anti-MCT2 immunofluorescence staining outlines Purkinje cell somata in the Purkinje cell layer (pcl) and their proximal dendrites in the molecular layer (ml): the distal dendritic arbour is either weakly stained or unreactive. Scale bar = 50 mm.
doi:10.1371/journal.pone.0078654.g004
Figure 5. MCT2 is selectively expressed by Purkinje cell subsets. A: Levels of MCT2 immunoreactivity vary between Purkinje cell somata of the Purkinje cell layer (pcl) from strong (white arrowhead), to weak (black arrow), to none (black arrowhead). No boundaries are seen in the granular layer (gl). B: Clear boundaries are seen in the molecular layer (ml) between regions that express high levels of MCT2 immunoreactivity and others that are either weakly reactive or unreactive (arrows). C: A transverse section through lobule VIa of the adult rat cerebellar cortex double immunofluorescence labelled for zebrin II/aldolase C (green) and MCT2 (red), showing an array of alternating Purkinje cell stripes. The stripes of MCT2 immunoreactivity alternate with those of zebrin II/aldolase C. Scale bars: A and C=50 mm, B=100 mm. doi:10.1371/journal.pone.0078654.g005

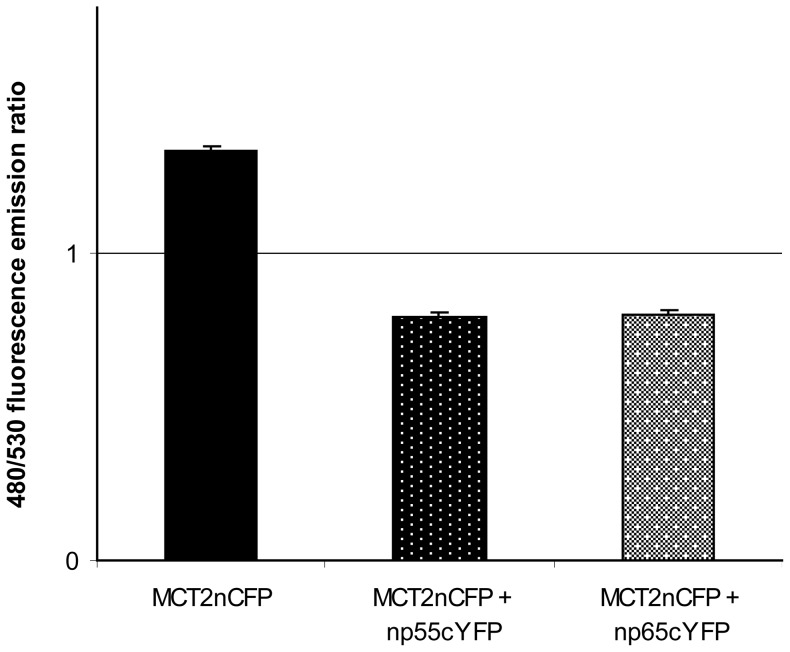

Figure 2. FRET measurements demonstrate a close association between MCT2 and np55 and np65.COS-7 cells were transiently co-transfected with the MCT2nCFP, np55cYFP and npc65-YFP constructs indicated (where n and c refer to the N- or C- terminal location of the CFP/YFP tag. Live cell imaging with determination of FRET was performed as described under âMethodsâ. Data are presented as means ± S.E.M. for 26, 22 and 26 separate cells respectively.
Ahn,
The cloning of zebrin II reveals its identity with aldolase C.
1994, Pubmed
Ahn,
The cloning of zebrin II reveals its identity with aldolase C.
1994,
Pubmed
Apps,
Cerebellar cortical organization: a one-map hypothesis.
2009,
Pubmed
Armstrong,
Pattern formation in the cerebellar cortex.
2000,
Pubmed
Barmack,
Regional and cellular distribution of protein kinase C in rat cerebellar Purkinje cells.
2000,
Pubmed
Bergersen,
Immunogold cytochemistry identifies specialized membrane domains for monocarboxylate transport in the central nervous system.
2002,
Pubmed
Bergersen,
Is lactate food for neurons? Comparison of monocarboxylate transporter subtypes in brain and muscle.
2007,
Pubmed
Bergersen,
A novel postsynaptic density protein: the monocarboxylate transporter MCT2 is co-localized with delta-glutamate receptors in postsynaptic densities of parallel fiber-Purkinje cell synapses.
2001,
Pubmed
Bergersen,
Selective postsynaptic co-localization of MCT2 with AMPA receptor GluR2/3 subunits at excitatory synapses exhibiting AMPA receptor trafficking.
2005,
Pubmed
Brochu,
Zebrin II: a polypeptide antigen expressed selectively by Purkinje cells reveals compartments in rat and fish cerebellum.
1990,
Pubmed
Bröer,
Characterization of the high-affinity monocarboxylate transporter MCT2 in Xenopus laevis oocytes.
1999,
Pubmed
,
Xenbase
Debernardi,
Cell-specific expression pattern of monocarboxylate transporters in astrocytes and neurons observed in different mouse brain cortical cell cultures.
2003,
Pubmed
Dehnes,
The glutamate transporter EAAT4 in rat cerebellar Purkinje cells: a glutamate-gated chloride channel concentrated near the synapse in parts of the dendritic membrane facing astroglia.
1998,
Pubmed
Eisenman,
Antigenic compartmentation in the mouse cerebellar cortex: zebrin and HNK-1 reveal a complex, overlapping molecular topography.
1993,
Pubmed
Empson,
The cell adhesion molecule neuroplastin-65 inhibits hippocampal long-term potentiation via a mitogen-activated protein kinase p38-dependent reduction in surface expression of GluR1-containing glutamate receptors.
2006,
Pubmed
Fan,
Expression of basigin, a member of the immunoglobulin superfamily, in the mouse central nervous system.
1998,
Pubmed
Furutama,
Expression of the IP3R1 promoter-driven nls-lacZ transgene in Purkinje cell parasagittal arrays of developing mouse cerebellum.
2010,
Pubmed
Gerhart,
Distribution of monocarboxylate transporters MCT1 and MCT2 in rat retina.
1999,
Pubmed
Gerhart,
Expression of the monocarboxylate transporter MCT2 by rat brain glia.
1998,
Pubmed
Halestrap,
The monocarboxylate transporter family--role and regulation.
2012,
Pubmed
Halestrap,
The SLC16 gene family-from monocarboxylate transporters (MCTs) to aromatic amino acid transporters and beyond.
2004,
Pubmed
Hill,
Characterization of novel glycoprotein components of synaptic membranes and postsynaptic densities, gp65 and gp55, with a monoclonal antibody.
1988,
Pubmed
Huang,
Embigin, a member of the immunoglobulin superfamily expressed in embryonic cells, enhances cell-substratum adhesion.
1993,
Pubmed
Ito,
The molecular organization of cerebellar long-term depression.
2002,
Pubmed
Kirk,
CD147 is tightly associated with lactate transporters MCT1 and MCT4 and facilitates their cell surface expression.
2000,
Pubmed
Koehler-Stec,
Monocarboxylate transporter expression in mouse brain.
1998,
Pubmed
Langnaese,
Immunoglobulin superfamily members gp65 and gp55: tissue distribution of glycoforms.
1998,
Pubmed
Langnaese,
Synaptic membrane glycoproteins gp65 and gp55 are new members of the immunoglobulin superfamily.
1997,
Pubmed
Manoharan,
The role of charged residues in the transmembrane helices of monocarboxylate transporter 1 and its ancillary protein basigin in determining plasma membrane expression and catalytic activity.
2006,
Pubmed
,
Xenbase
Marzban,
Expression of the immunoglobulin superfamily neuroplastin adhesion molecules in adult and developing mouse cerebellum and their localisation to parasagittal stripes.
2003,
Pubmed
Muramatsu,
Basigin (CD147): a multifunctional transmembrane protein involved in reproduction, neural function, inflammation and tumor invasion.
2003,
Pubmed
Ochrietor,
5A11/Basigin gene products are necessary for proper maturation and function of the retina.
2004,
Pubmed
Ovens,
The inhibition of monocarboxylate transporter 2 (MCT2) by AR-C155858 is modulated by the associated ancillary protein.
2010,
Pubmed
,
Xenbase
Owczarek,
Neuroplastin: cell adhesion molecule and signaling receptor.
2012,
Pubmed
Owczarek,
Neuroplastin-55 binds to and signals through the fibroblast growth factor receptor.
2010,
Pubmed
Owczarek,
Neuroplastin-65 and a mimetic peptide derived from its homophilic binding site modulate neuritogenesis and neuronal plasticity.
2011,
Pubmed
Ozol,
Transverse zones in the vermis of the mouse cerebellum.
1999,
Pubmed
Pellerin,
Cellular and subcellular distribution of monocarboxylate transporters in cultured brain cells and in the adult brain.
,
Pubmed
Philp,
Loss of MCT1, MCT3, and MCT4 expression in the retinal pigment epithelium and neural retina of the 5A11/basigin-null mouse.
2003,
Pubmed
Pierre,
MCT2 is a major neuronal monocarboxylate transporter in the adult mouse brain.
2002,
Pubmed
Pierre,
Monocarboxylate transporters in the central nervous system: distribution, regulation and function.
2005,
Pubmed
Pierre,
Noradrenaline enhances monocarboxylate transporter 2 expression in cultured mouse cortical neurons via a translational regulation.
2003,
Pubmed
Poole,
Interaction of the erythrocyte lactate transporter (monocarboxylate transporter 1) with an integral 70-kDa membrane glycoprotein of the immunoglobulin superfamily.
1997,
Pubmed
Rafiki,
Highly differential expression of the monocarboxylate transporters MCT2 and MCT4 in the developing rat brain.
2003,
Pubmed
Sarna,
Complementary stripes of phospholipase Cbeta3 and Cbeta4 expression by Purkinje cell subsets in the mouse cerebellum.
2006,
Pubmed
Sarto-Jackson,
The cell adhesion molecule neuroplastin-65 is a novel interaction partner of γ-aminobutyric acid type A receptors.
2012,
Pubmed
Smalla,
The synaptic glycoprotein neuroplastin is involved in long-term potentiation at hippocampal CA1 synapses.
2000,
Pubmed
Suzuki,
Astrocyte-neuron lactate transport is required for long-term memory formation.
2011,
Pubmed
Wadiche,
Patterned expression of Purkinje cell glutamate transporters controls synaptic plasticity.
2005,
Pubmed
Willmott,
Molecular characterisation and structural relationship of the synapse-enriched glycoproteins gp65 and gp55.
1992,
Pubmed
Wilson,
Fluorescence resonance energy transfer studies on the interaction between the lactate transporter MCT1 and CD147 provide information on the topology and stoichiometry of the complex in situ.
2002,
Pubmed
Wilson,
Basigin (CD147) is the target for organomercurial inhibition of monocarboxylate transporter isoforms 1 and 4: the ancillary protein for the insensitive MCT2 is EMBIGIN (gp70).
2005,
Pubmed
,
Xenbase
