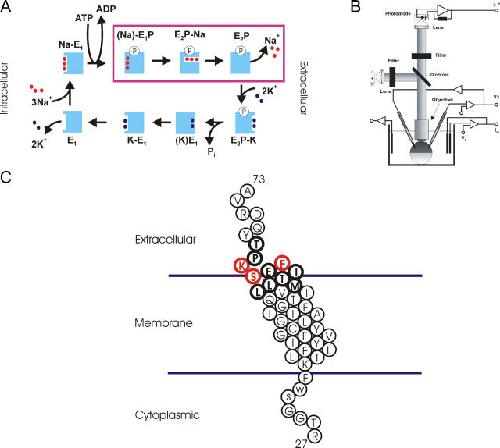

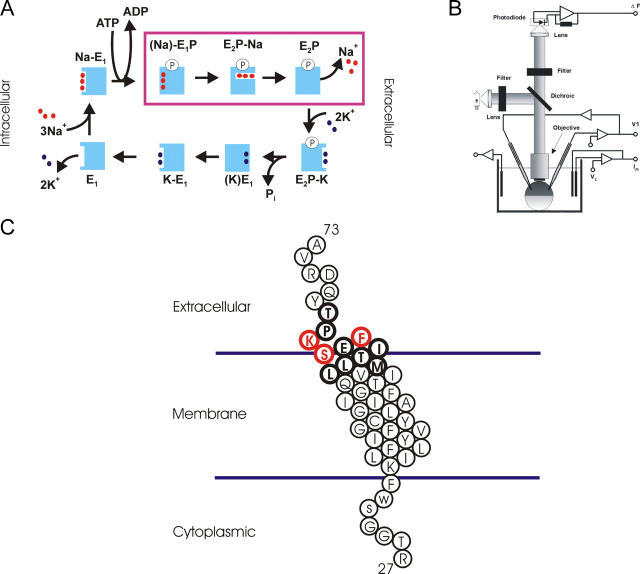

Figure 1. . (A) Albers-Post scheme for the Na+/K+ ATPase reaction cycle. (B) Scheme of the experimental setup used for voltage-clamp fluorometry. (C) Schematic diagram of the transmembrane domain and adjacent residues of the sheep β1 subunit of the Na+/K+-ATPase. The diagram depicts residues Arg-27 to Ala-73; in bold are shown the 11 residues Met-57 to Tyr-67, which were individually replaced by cysteines for the purpose of site-directed fluorescence labeling. Three residues that demonstrate significant fluorescence changes in response to voltage pulses are colored red.
|
|

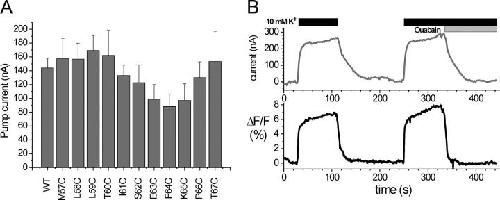

Figure 2. . Stationary current and fluorescence measurements of Na+/K+-ATPase α/β complexes containing different β subunit constructs upon expression in Xenopus oocytes. (A) Stationary pump currents of the Na+/K+-ATPase expressed with wild-type and single cysteine mutants of the β subunit at 0 mV holding potential in response to 10 mM K+. Data originated from 5â11 oocytes; values are means ± SEM. (B) Parallel recording of pump current (top) and fluorescence change (bottom) from an oocyte coinjected with Na+/K+-ATPase sNaKα1, ÃCys and sβ1 -F64C cRNA in response to 10 mM K+ and 10 mM ouabain at 0 mV holding potential.
|
|

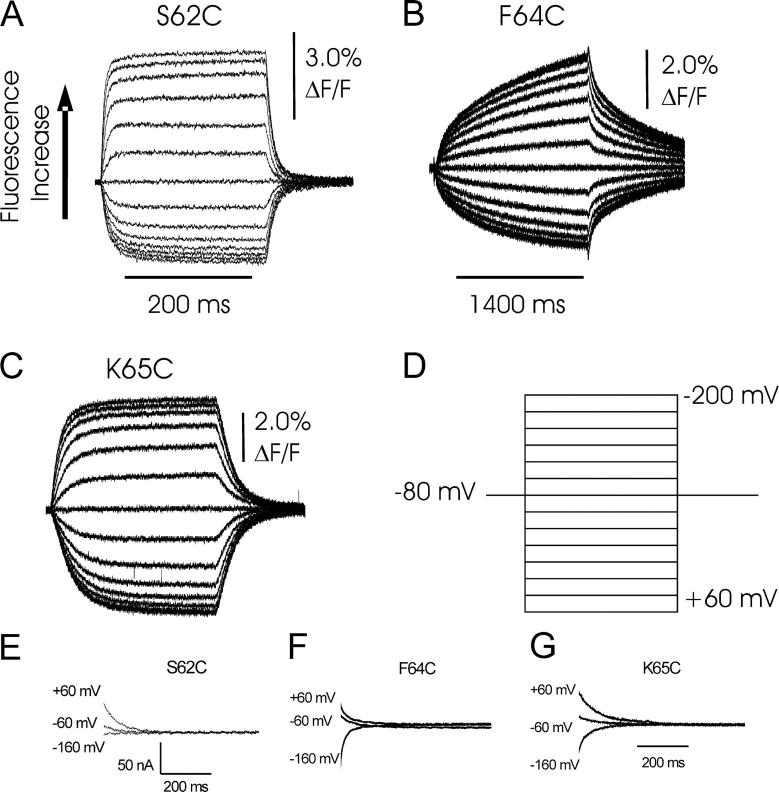

Figure 3. . Voltage pulseâinduced fluorescence responses of the Na+/K+-ATPase with different single cysteine mutants of the β subunit under K+-free (Na+/Na+ exchange) conditions. Recordings originated from oocytes coexpressing the α subunit construct sNaKα1, ÃCys together with sβ1-S62C (A), sβ1-F64C (B), sβ1-K65C (C). D shows the applied voltage protocol. Voltage jumps were performed from a holding potential of â80 mV to values between +60 mV and â200 mV in 20-mV steps. Since hyperpolarizing potentials result in an increase in fluorescence, negative potentials are shown at the top and positive potentials at the bottom of the voltage protocol. Note the expanded time scale for the recording in B. Voltage jumpâinduced transient currents, obtained as ouabain-sensitive difference currents (see materials and methods) recorded in parallel to fluorescence change signals for S62C (E), F64C (F), and K65C (G).
|
|

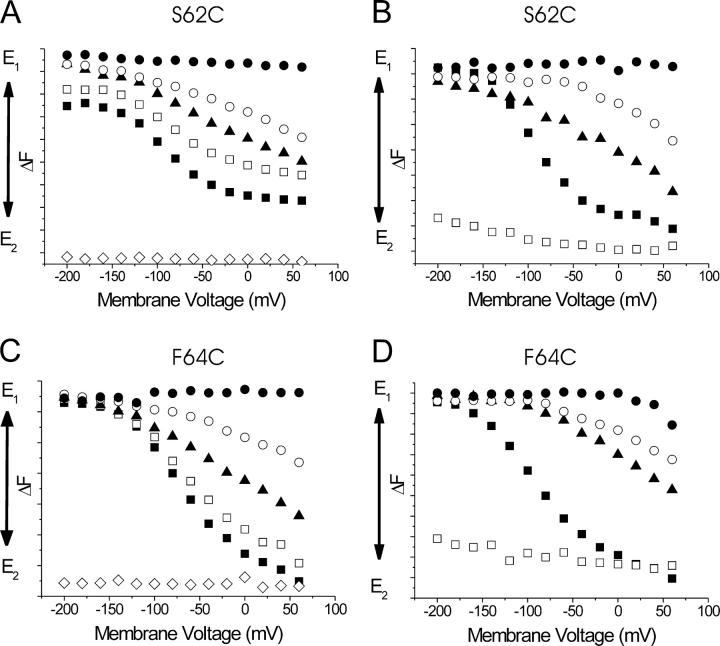

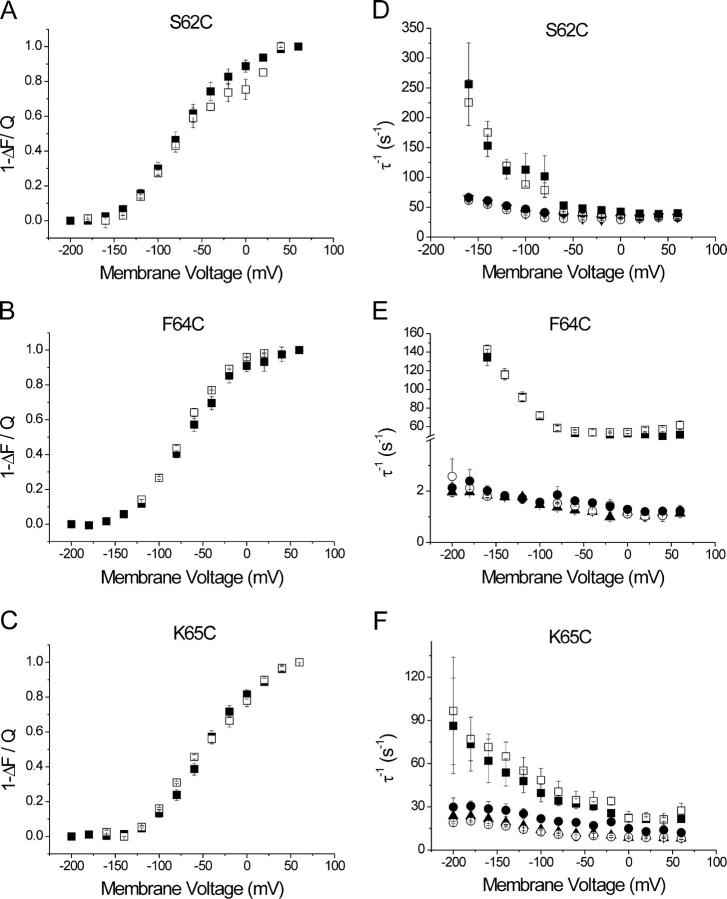

Figure 4. . Voltage dependence and kinetics of voltage jumpâinduced fluorescence changes and comparison with properties of the corresponding transient charge movements under K+-free (Na+/Na+ exchange) conditions. Data originated from oocytes coexpressing the α subunit construct sNaKα1, ÃCys together with sβ1-S62C (A and D), sβ1-F64C (B and E), sβ1-K65C (C and F). Left panels show the voltage dependences of normalized fluorescence saturation values (âª) obtained from mono- (A and C) and biexponential fits (B) to the data, and the corresponding normalized values for the translocated charge (â¡) obtained from integration of the transient currents recorded in parallel. Curve parameters are summarized in Table I. Right panels show the voltage dependence of reciprocal time constants obtained from monoexponential fits of the transient current traces before (âª) and after (â¡) labeling of oocytes with TMRM, together with reciprocal time constants from fits of fluorescence signals under K+-free conditions (â´) or in presence of K+ (99.9 mM Na+/0.1 mM K+, â; 99.5 mM Na+/0.5 mM K+, â¢). Data are means ± SEM from six oocytes.
|
|

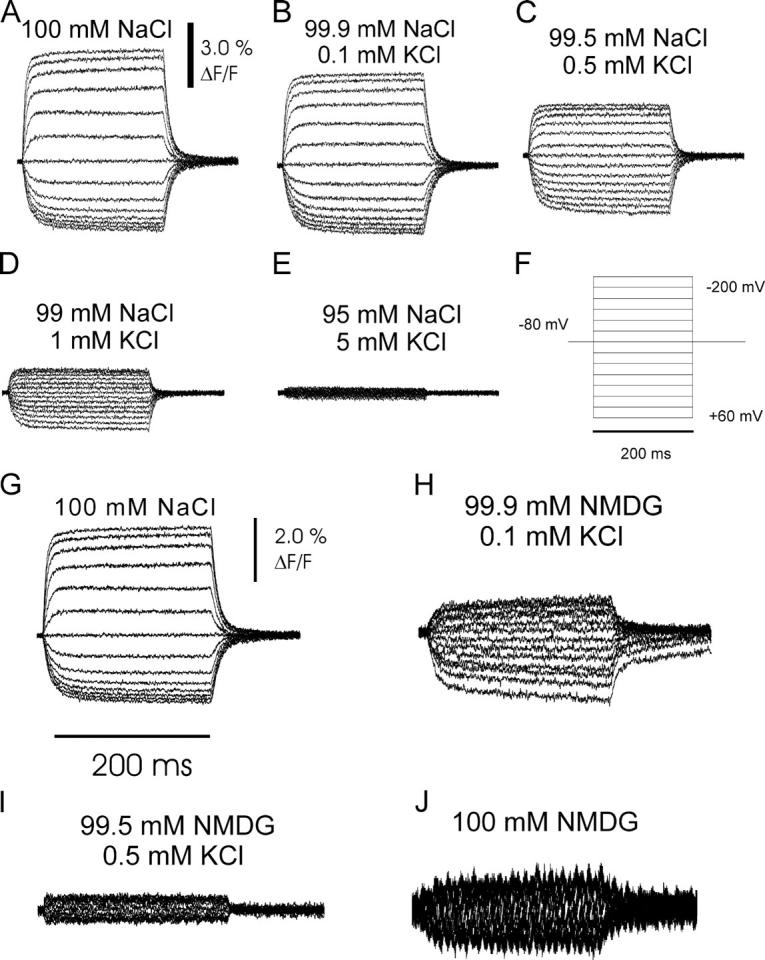

Figure 5. . Voltage pulseâinduced fluorescence responses at different extracellular Na+ and K+ concentrations from oocytes coexpressing the α subunit construct sNaKα1, ÃCys together with sβ1-S62C. (AâE) K+ titration in presence of Na+. Data were consecutively recorded from a single oocyte after changes to perfusion buffers with the following Na+/K+ contents: (A) 100 mM Na+ (no K+), (B) 99.9 mM Na+ and 0.1 mM K+, (C) 99.5 mM Na+ and 0.5 mM K+, (D) 99 mM Na+ and 1 mM K+, and (E) 95 mM Na+ and 5 mM K+. F shows the applied voltage protocol for all data traces shown in this figure. (GâJ) K+ titration in presence of NMDG. Voltage pulseâinduced fluorescence responses from a single oocyte experiment at different Na+/NMDG/K+ concentrations: (G) 100 mM Na+ (no K+, for control), (H) 99.9 mM NMDG and 0.1 mM K+, (I) 99.5 mM NMDG and 0.5 mM K+, and (J) 100 mM NMDG.
|
|

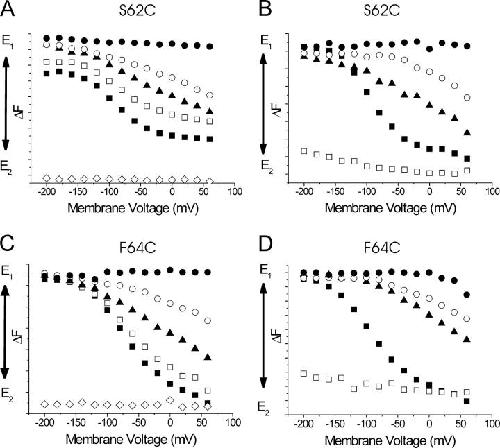

Figure 6. . Voltage dependence values for fluorescence saturation amplitudes during K+ titrations, obtained from monoexponential fits to data traces from experiments as exemplified in Fig. 5. Top panels correspond to β subunit construct sβ1-S62C in (A) Na+-based and (B) NMDG-based solutions, bottom panels to β subunit construct sβ1-F64C, in (C) Na+-based and (D) NMDG-based solutions. Buffer compositions were as follows. (A and C) âª, 100 mM Na+; â¡, 99.9 mM Na+ and 0.1 mM K+; â´, 99.5 mM Na+ and 0.5 mM K+; â, 99 mM Na+ and 1 mM K+; â¢, 95 mM Na+ and 5 mM K+; and â, 100 mM Na+ and 10 mM ouabain. (B and D) âª, 100 mM Na+; â¡, 100 mM NMDG; â´, 99.9 mM NMDG and 0.1 mM K+; â, 99.5 mM NMDG and 0.5 mM K+; and â¢, 99 mM NMDG and 1 mM K+.
|
|

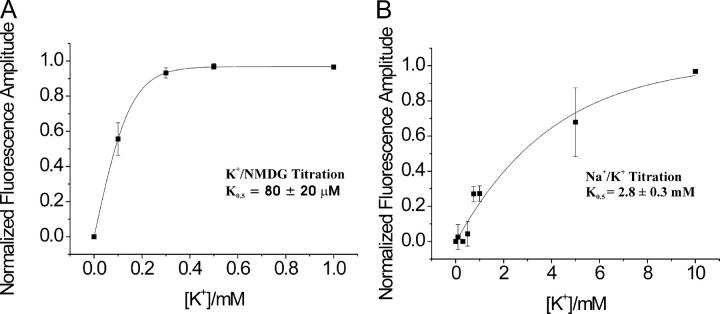

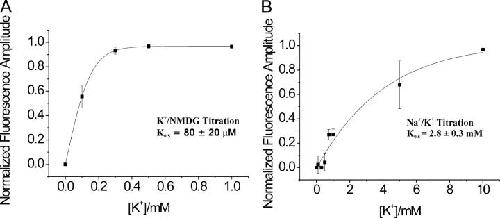

Figure 7. . Determination of the apparent K0.5 for the shift of the steady-state distribution between E1 and E2 states by external K+ at +60 mV. Data were derived from fluorescence changes for the Na+/K+-ATPase containing the β subunit construct sβ1-S62C in the presence of NMDG-based (A) or Na+-based (B) buffers. Solid lines represent fits of a Hill equation to the data (where nH = 1), with K0.5 values as stated. Each dataset was obtained from three oocytes (means ± SEM).
|
|

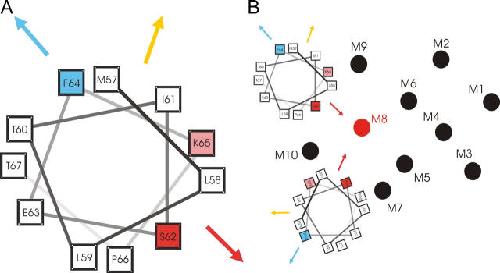

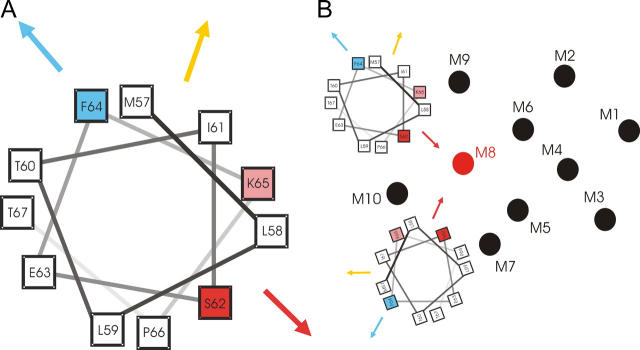

Figure 8. . Model of the analyzed region of the Na+/K+-ATPase β1 subunit and possible orientation of residues with respect to the α subunit. (A) The analyzed region of the sheep Na+/K+-ATPase β1 subunit adjacent to the extracellular plasma membrane interface is represented as a helical wheel assuming an α-helical structure. The last residue of the transmembrane domain, M57, aligns with a putative tri-glycine helixâhelix interaction motif (see text), which points in the direction of the yellow arrow. The red arrow aligns with a cysteine residue (C45, not shown) within the transmembrane region of the β1 subunit that was shown to cross-link with helix M8 of the α subunit (Or et al., 1999; Ivanov et al., 2000). The blue arrow indicates the orientation of the F64 sidechain. (B) Putative orientation of the Na+/K+-ATPase β1 subunit's transmembrane helix with respect to the transmembrane domain of P2-ATPases. Views of the 10 transmembrane helices (M1 to M10) of the Na+/K+-ATPase α subunit perpendicular to the membrane plane from the cytoplasmic side are depicted as deduced from the SERCA crystal structure (Toyoshima et al., 2000). The Na+/K+-ATPase β1 subunit's transmembrane helix was oriented with C45 pointing towards M8 (in red) of the α subunit as suggested by cross-linking studies (Or et al., 1999; Ivanov et al., 2000), which allows positioning in two possible orientations according to Hasler et al. (2001). Arrows indicate the same directions as in A.
|
