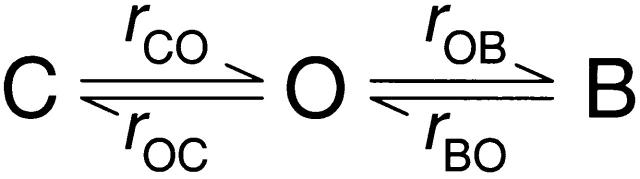

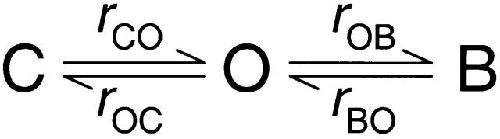

Scheme S1.
|
|

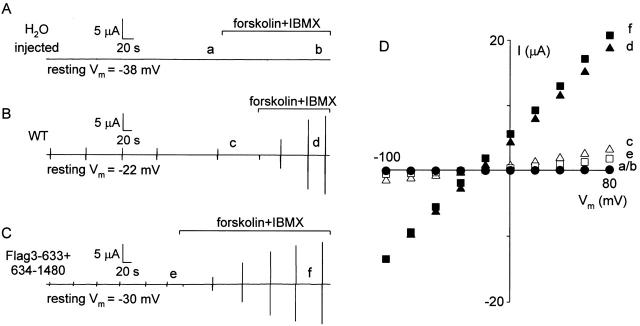

Figure 1. (AâC) Representative current recordings from oocytes held at their initial resting membrane potential in Ca2+-free oocyte Ringer's solution. Oocytes were injected with (A) water, (B) 6 ng of WT CFTR RNA, or (C) 2.5 ng of Flag3-633 RNA plus 2.5 ng 634-1480 RNA. Horizontal bars mark periods of exposure to 50 μM forskolin plus 1 mM IBMX. Basal and activated conductances were monitored by applying ±60-mV voltage steps â¤1-s long. Magnitudes of basal and activated conductances and rates of activation were similar in oocytes injected with 2.5 or 6 ng of WT CFTR RNA. (D) I-V relationships obtained at times a-f in AâC; empty symbols, resting (basal); filled symbols, activated. Steady current levels averaged over â¼200 ms near the end of 1-s voltage steps from â100 to +80 mV, in 20-mV increments, are plotted against voltage.
|
|

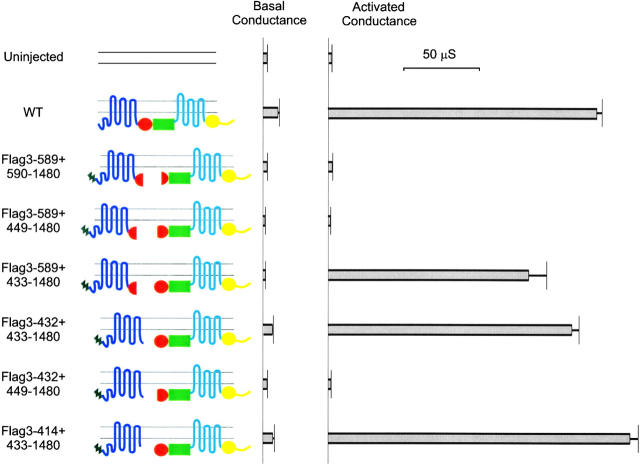

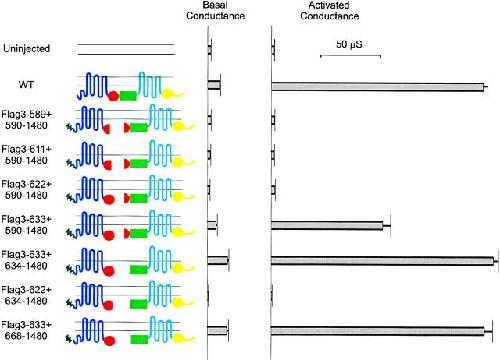

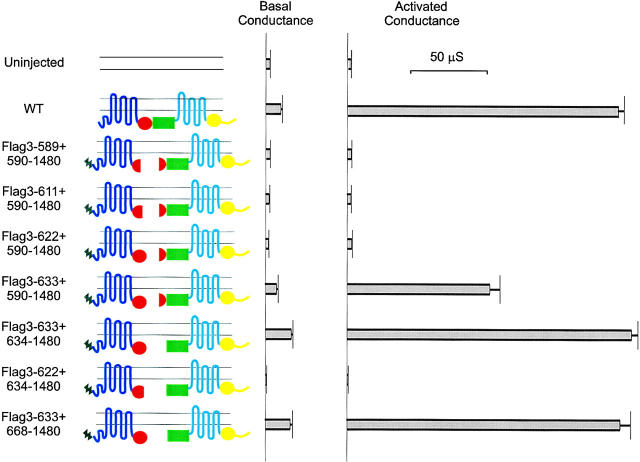

Figure 2. Defining the COOH-terminal boundary of NBD1 by coexpressing severed CFTR segments. Bars show mean (±SEM) basal and activated conductances (by 50 μM forskolin plus 1 mM IBMX) of oocytes injected with cRNAs (2.5 ng per construct) of various CFTR segments cartooned at left: NH2-terminal Flag epitope (black zigzag); transmembrane domains (blue, cyan); NBD1 (red); R domain (green); NBD2 (yellow). Conductances were calculated from linear fits to steady state I-V data between â60 and â20 mV; average values are from five or more oocytes. The COOH terminus lies between residues 622 and 634.
|
|

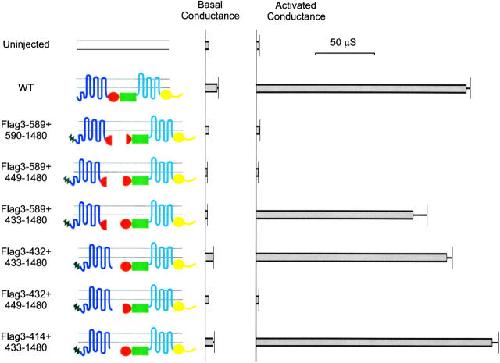

Figure 3. Defining the NH2-terminal boundary of NBD1 by coexpressing severed CFTR channel segments. Methods and symbols are as in Fig. 2. The NH2 terminus was found to lie between residues 432 and 449.
|
|

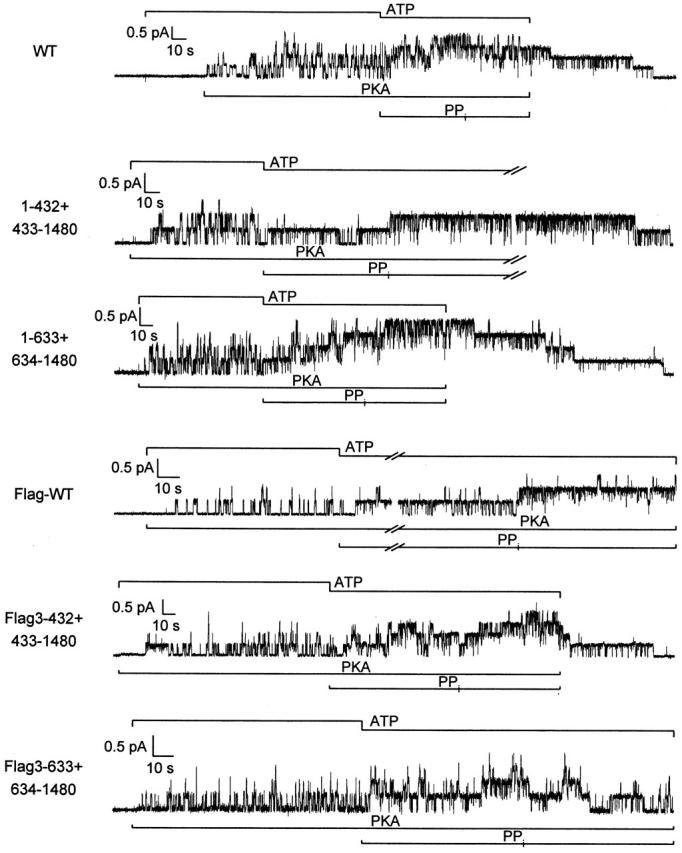

Figure 8. Representative excised-patch current recordings showing WT, 1-432+433-1480, 1-633+634-1480, Flag-WT, Flag3-432+433-1480, and Flag3-633+634-1480 CFTR channels. All constructs displayed hallmark characteristics of WT CFTR including requirement for phosphorylation by PKA (here 300 nM) and exposure to MgATP (here 1 mM for WT, 2 mM for others) for channel activity, slow burst kinetics, and locking in the open state by a mixture of ATP (0.1 mM) and PPi (2 mM).
|
|

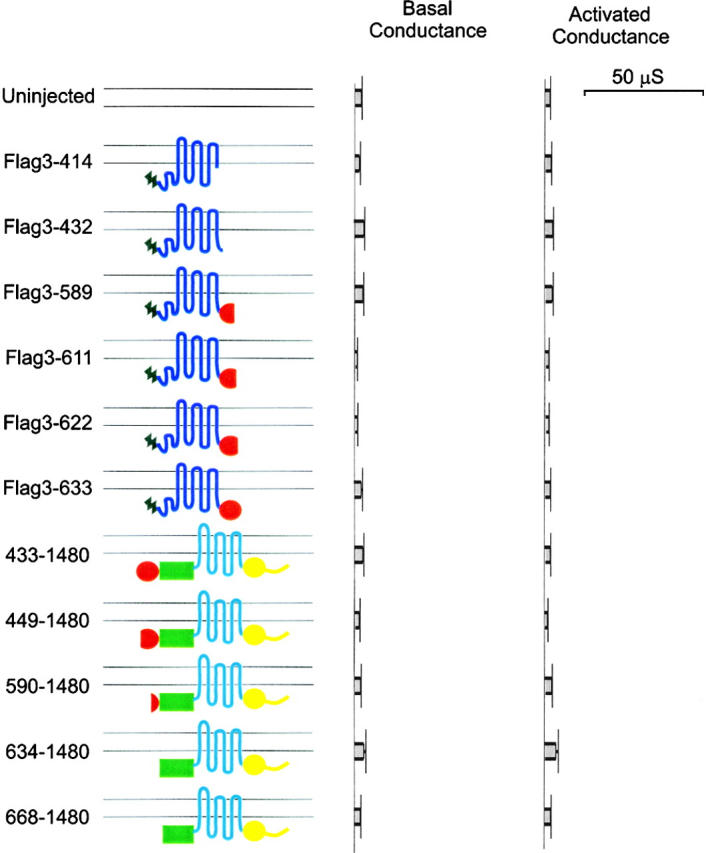

Figure 4. Negligible basal and activated conductances of oocytes injected with 2.5 ng cRNA encoding the indicated single truncated CFTR channel segments. Methods and symbols are as in Fig. 2.
|
|

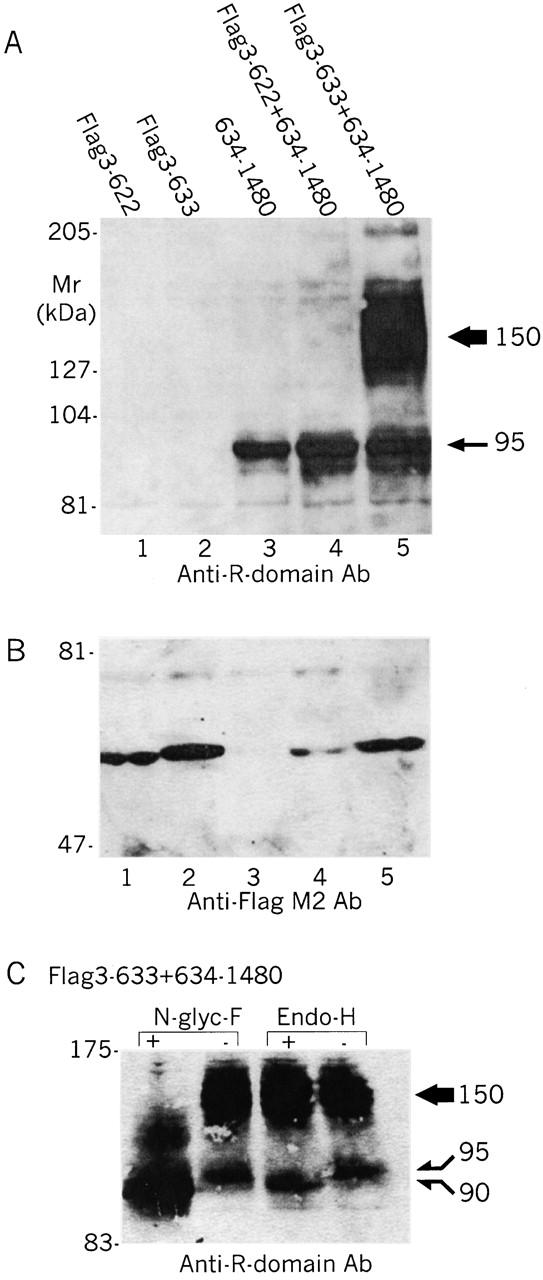

Figure 5. Protein expression of CFTR constructs severed near the COOH terminus of NBD1. (A and B) Immunoblots of membrane proteins from oocytes expressing individual CFTR segments or pairs of segments, as indicated, resolved by SDS-PAGE, transferred, and blotted with antiâR-domain antibody (A) or with antiâFlag M2 antibody (B). (C) Coexpressed constructs Flag3-633 plus 634-1480 were digested with N-glycosidase-F (left) or endoglycosidase-H (right), and the products were identified with antiâR-domain antibody. Arrows in A and C mark fully glycosylated (â¼150 kD, fat arrow), core glycosylated (â¼95 kD, thin arrow), and deglycosylated (â¼90 kD, thin arrow) forms of the 634-1480 protein.
|
|

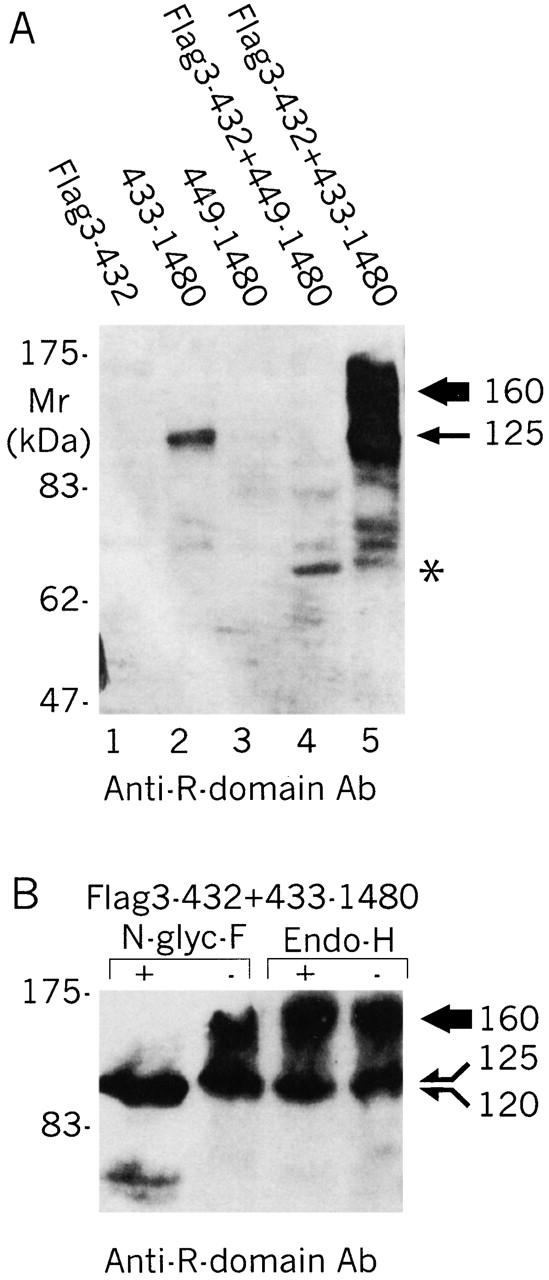

Figure 6. Protein expression of CFTR constructs severed near the NH2 terminus of NBD1. (A) Immunoblot of membrane proteins from oocytes expressing individual CFTR segments or pairs of segments, as indicated, blotted with antiâR-domain antibody. (B) Coexpressed constructs Flag3-432+433-1480 were digested with N-glycosidase-F (left) and endoglycosidase-H (right), and the products were identified with antiâR-domain antibody. Arrows in A and B mark fully glycosylated (â¼160 kD, fat arrow), core glycosylated (â¼125 kD, thin arrow), and deglycosylated (â¼120 kD, thin arrow) forms of 433-1480 protein. *Partially degraded form (â¼70 kD).
|
|

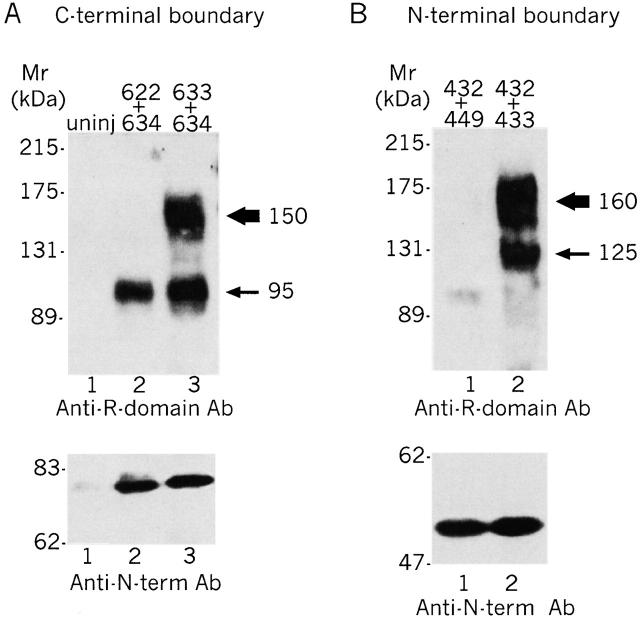

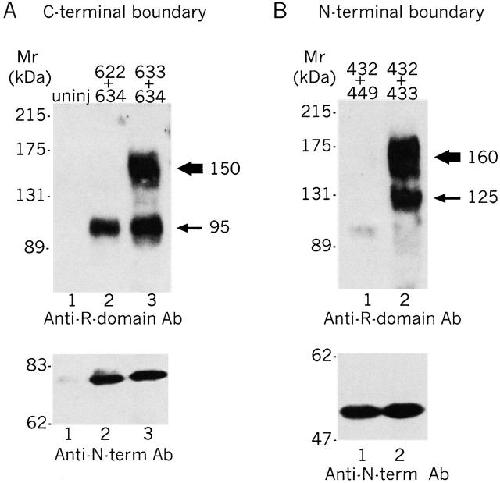

Figure 7. Coimmunoprecipitation of severed CFTR constructs. Digitonin-solubilized membrane proteins were immunoprecipitated with antiâFlag M2 affinity beads, eluted, resolved with SDS-PAGE on 7.5â10% gradient gels, and blotted with antiâR-domain antibody (top) or antiâNH2-terminus antibody (bottom). (A) Constructs severed near the COOH terminus of NBD1: uninjected (lane 1), Flag3-622+634-1480 (lane 2), Flag3-633+634-1480 (lane 3); arrows are as in Fig. 5 A. (B) Constructs severed near the NH2-terminus of NBD1: Flag3-432+449-1480 (lane 1), Flag3-432+433-1480 (lane 2); arrows are as in Fig. 6 A.
|
|

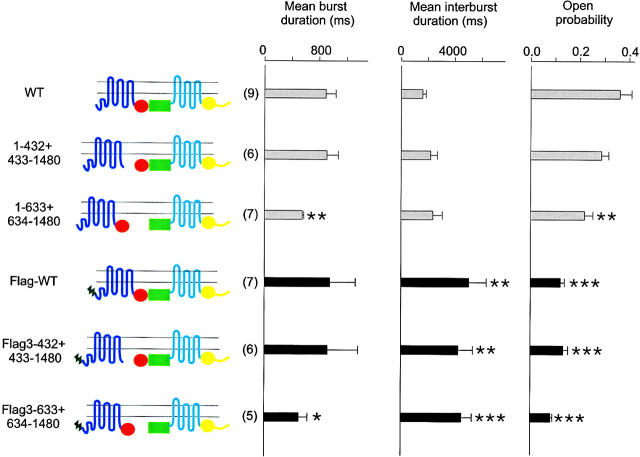

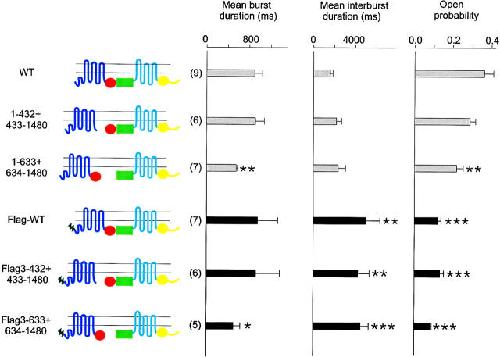

Figure 9. Kinetic analysis of WT, 1-432+433-1480, 1-633+634-1480, Flag-WT, Flag3-432+433-1480, and Flag3-633+634-1480 channels. Kinetic parameters were extracted from records (filtered at 100 Hz, sampled at 1 kHz) of patches containing one to seven channels, exposed to 2 mM MgATP and 300 nM PKA. Mean burst durations of constructs severed between NBD1 and the R domain (1-633+634-1480 and Flag3-633+634-1480) were significantly shorter than those of WT or Flag-WT. All constructs containing the Flag epitope (Flag-WT, Flag3-432+ 433-1480, and Flag3-633+634-1480) showed significantly prolonged interburst durations and, hence, significantly reduced Po compared with WT. Significance levels: *P < 0.1, **P < 0.05, and ***P < 0.01.
|
|

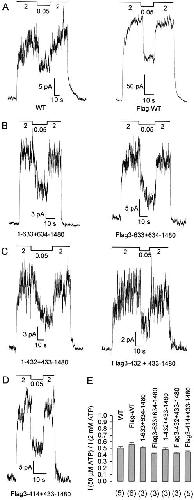

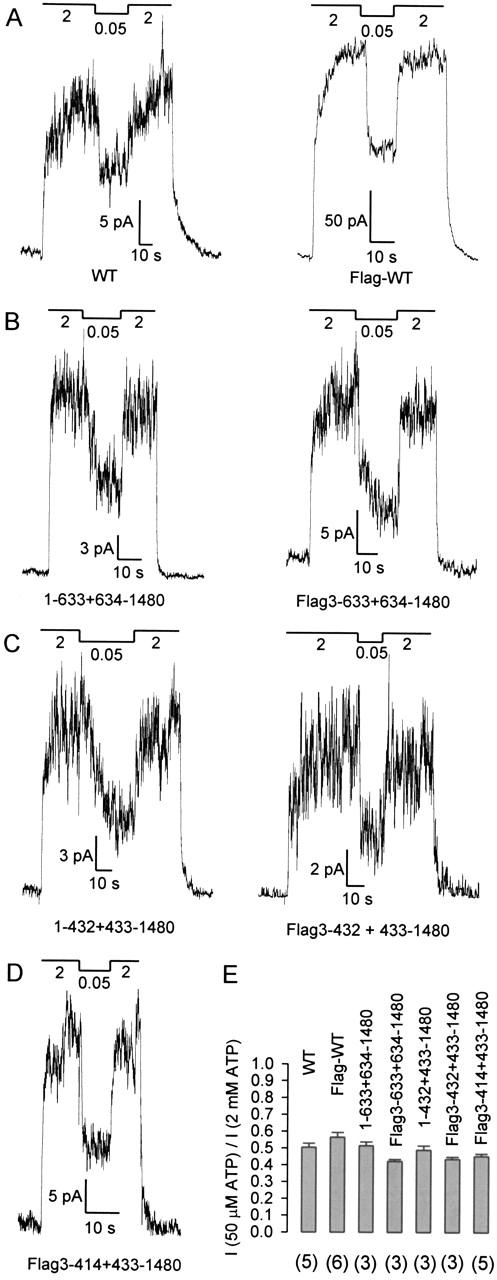

Figure 11. Apparent affinities for activation of channel Po by MgATP. Representative macropatch currents are shown for WT and Flag-WT (A), 1-633+634-1480 and Flag3-633+634-1480 (B), 1-432+433-1480 and Flag3-432+433-1480 (C), and Flag3-414+433-1480 (D) channels. After prephosphorylation by PKA, and removal of both PKA and ATP, once all channels had closed, 50 μM ATP was applied for 10â30 s, bracketed between exposures to 2 mM ATP. (E) The ratios of the mean steady currents, I50μM/I2mM, were 0.50 ± 0.02 (WT), 0.56 ± 0.03 (Flag-WT), 0.51 ± 0.02 (1-633+634-1480), 0.42 ± 0.01 (Flag3-633+634-1480), 0.49 ± 0.02 (1-432+433-1480), 0.44 ± 0.01 (Flag3-432+433-1480), and 0.45 ± 0.01 (Flag3-414+433-1480). None of the constructs differed significantly from WT at P < 0.05.
|
|

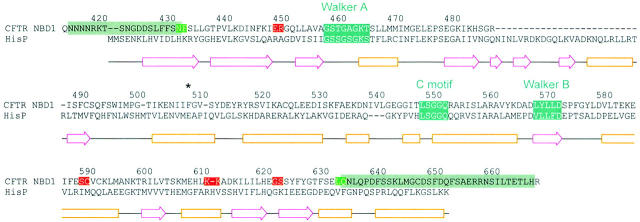

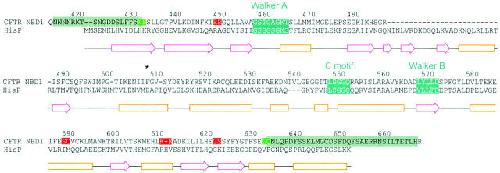

Figure 12. Alignment of CFTR's NBD1 with HisP. PSI-Blast aligned CFTR residues 422â637 with corresponding residues in HisP. Secondary structure elements shown below (β-strands, magenta arrows; α-helices, orange boxes) correspond to those of the solved crystal structure of HisP (Hung et al. 1998). CFTR residue numbers are centered above the corresponding letters. Teal boxes identify the three consensus sequences conserved in most ABC proteins. Red boxes in the CFTR sequence identify nontolerated, green boxes tolerated, cut sites. (Cuts occurred between the two highlighted residues in each case.) Gray boxes identify sections flanking the NBD1 sequence that could be omitted without destroying channel function. *Residue F508.
|
|

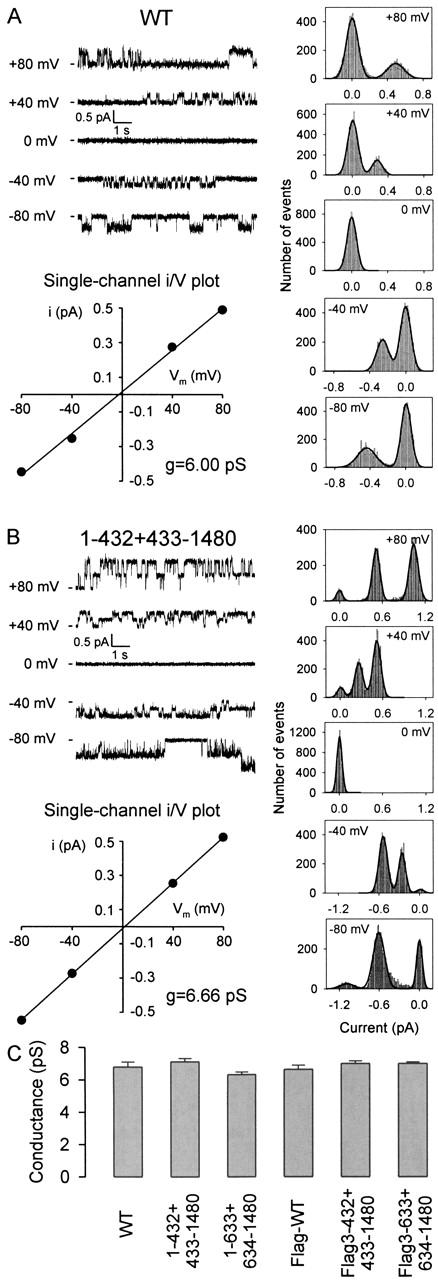

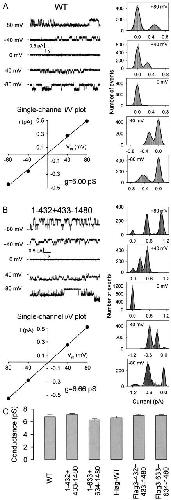

Figure 10. Single-channel conductances of WT, 1-432+433-1480, 1-633+634-1480, FlagWT, Flag3-432+433-1480, and Flag3-633+634-1480 channels in symmetrical 140 mM Clâ. (A and B) Segments of representative CFTR channel current records, illustrated for WT and 1-432+433-1480, at holding potentials of â80, â40, 0, +40, and +80 mV, were used to create amplitude histograms, fitted by sums of Gaussians (right). The distances between adjacent peaks, plotted against potential gave linear I-V plots. (C) Fitted slopes gave conductances of 6.8 ± 0.3 (WT), 7.1 ± 0.2 (1-432+433-1480), 6.3 ± 0.2 (1-633+634-1480), 6.6 ± 0.3 (Flag-WT), 7.0 ± 0.2 (Flag3-432+433-1480), and 7.0 ± 0.1 (Flag3-633+634-1480), none of which differed significantly from WT at P < 0.1.
|
