Am J Hum Genet
2000 May 01;665:1531-9. doi: 10.1086/302909.
Show Gene links
Show Anatomy links
Coding and noncoding variation of the human calcium-channel beta4-subunit gene CACNB4 in patients with idiopathic generalized epilepsy and episodic ataxia.
Escayg A
,
De Waard M
,
Lee DD
,
Bichet D
,
Wolf P
,
Mayer T
,
Johnston J
,
Baloh R
,
Sander T
,
Meisler MH
.
???displayArticle.abstract???
Inactivation of the beta4 subunit of the calcium channel in the mouse neurological mutant lethargic results in a complex neurological disorder that includes absence epilepsy and ataxia. To determine the role of the calcium-channel beta4-subunit gene CACNB4 on chromosome 2q22-23 in related human disorders, we screened for mutations in small pedigrees with familial epilepsy and ataxia. The premature-termination mutation R482X was identified in a patient with juvenile myoclonic epilepsy. The R482X protein lacks the 38 C-terminal amino acids containing part of an interaction domain for the alpha1 subunit. The missense mutation C104F was identified both in a German family with generalized epilepsy and praxis-induced seizures and in a French Canadian family with episodic ataxia. These coding mutations were not detected in 255 unaffected control individuals (510 chromosomes), and they may be considered candidate disease mutations. The results of functional tests of the truncated protein R482X in Xenopus laevis oocytes demonstrated a small decrease in the fast time constant for inactivation of the cotransfected alpha1 subunit. Further studies will be required to evaluate the in vivo consequences of these mutations. We also describe eight noncoding single-nucleotide substitutions, two of which are present at polymorphic frequency, and a previously unrecognized first intron of CACNB4 that interrupts exon 1 at codon 21.

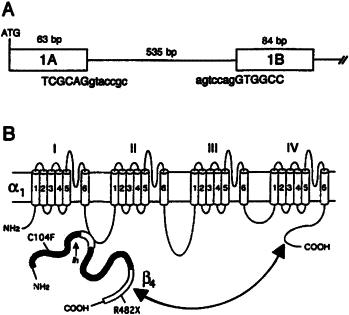

Figure 1 Structure and interactions of CACNB4. A, Intron/exon junctions for exons 1A and 1B. The indicated 5′ end of exon 1A corresponds to the translation-initiation site. The intron sequence is from GenBank (accession number AF216867). B, Locations of mutations in CACNB4. Two domains of CACNB4 that interact with the α1 subunit of the voltage-gated calcium channel are indicated. In the mouse lethargic mutant (designated as “lh”), the protein is truncated upstream of the major binding site. In human mutation R482X, the protein is truncated in the middle of a domain that interacts with the C-terminus of the α1A subunit.
Figure 2 R482X mutation in a family with JME. A, Affected individuals (blackened symbols) are shown, with the arrow pointing to the proband. B, Results of CSGE of exon 13. A unique band seen in the proband (lane 1, arrow) is not observed in three unrelated controls (lanes 2–4). C, The sequence of exon 13 demonstrates that the proband is heterozygous for a C→T transition that generates the premature-termination codon R482X. D, Results of a restriction-site assay for R482X. A 388-bp fragment obtained by digestion of wild-type exon 13 with AluI is shown (lanes 2–4). The internal AluI site produced by R482X results in two fragments (209 bp and 179 bp; see lane 1).
Figure 3 C104F mutation cosegregating with neurological disease in two unrelated pedigrees. A, Pedigree B, which is of German origin and exhibits idiopathic generalized epilepsy. B, Pedigree C, which is of French Canadian origin and exhibits episodic ataxia. C, CSGE analysis of exon 3 from pedigree B (left) and from pedigree C (right). The variant conformer is indicated (arrow). Numbers above the lanes correspond to individuals in the pedigrees. D, Sequence of exon 3 that demonstrates a G→T transversion that changes the wild-type cysteine 104 codon to phenylalanine. CACNB4 genotypes are indicated below the symbols. G = allele 1; T = allele 2.

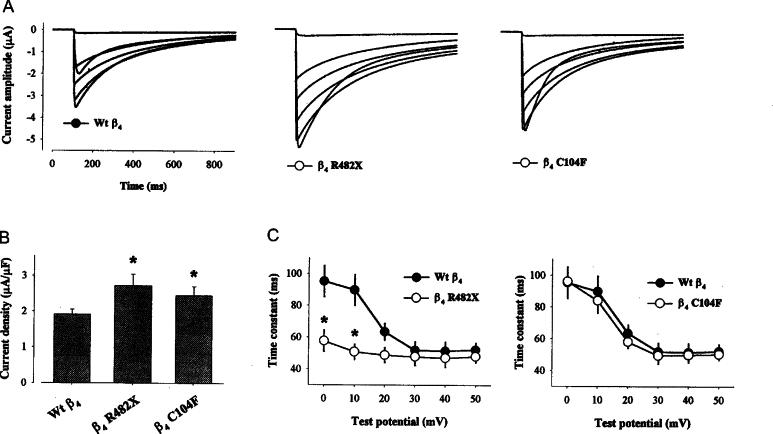

Figure 4 Electrophysiological analysis of mutant β4 subunits. Xenopus oocytes were injected with mRNA from either the wild-type or mutant β4 subunit, in combination with the CACNA1A α1 subunit. A, Sets of current traces at test potentials of −20, −10, 0, 10, 20, and 30 mV. The potential of half-activation was not significantly modified by the mutations, with V1/2=−12.2±0.9 mV (β4-subunit R482X, n=8), −11.3±0.6 mV (β4-subunit C104F; n=8), and -10±0.1 mV (wild-type β4 subunit; n=8). There was a small shift in the voltage dependence of inactivation of the α1A β4-subunit R482X, with half-inactivation potentials of V1/2=-41.1±0.4 mV (β4-subunit R482X; n=7) and V1/2=-37.4±0.5 (wild-type β4 subunit; n=6,). B, Average current density generated by wild-type and mutant channels at a membrane depolarization of 0 mV (peak current amplitude for each subunit combination). The average current density of the α1A wild-type β4 subunit (1.90±0.15 μA/μF; n=8) at 0 mV was increased 1.4- and 1.3-fold, to 2.72±0.25 (n=8) and 2.45±0.24 (n=8), with β4-subunit R482X and β4-subunit C104F, respectively. Asterisks (*) denote statistical significance (t test; P≤.1). C, Average time constants for the fast component of inactivation. At a membrane depolarization of 10 mV, the wild-type current inactivates along three components, a fast-inactivating component (F) with an average time constant of 89.6±5.3 ms (n=7), which constitutes 19.9±3.4% of the total current, a slower inactivating component (S) with an average time constant of 323±37.4 ms (73.9±3.1%), and a noninactivating (NI) component (6.2±0.9%). With β4-subunit R482X, there was no change in the proportion of each component, but the F component demonstrated a faster rate of decrease (50.7±4.7 ms; n=6). The time constants for β4-subunit R482X at 0 and 10 mV are statistically significantly different from those for wild type (P<.01). Values are mean ± SEM.
Baulac,
A second locus for familial generalized epilepsy with febrile seizures plus maps to chromosome 2q21-q33.
1999, Pubmed
Baulac,
A second locus for familial generalized epilepsy with febrile seizures plus maps to chromosome 2q21-q33.
1999,
Pubmed
Biervert,
A potassium channel mutation in neonatal human epilepsy.
1998,
Pubmed
,
Xenbase
Burgess,
beta subunit reshuffling modifies N- and P/Q-type Ca2+ channel subunit compositions in lethargic mouse brain.
1999,
Pubmed
Burgess,
Mutation of the Ca2+ channel beta subunit gene Cchb4 is associated with ataxia and seizures in the lethargic (lh) mouse.
1997,
Pubmed
Burgess,
Voltage-dependent calcium channel mutations in neurological disease.
1999,
Pubmed
Caddick,
Excitatory but not inhibitory synaptic transmission is reduced in lethargic (Cacnb4(lh)) and tottering (Cacna1atg) mouse thalami.
1999,
Pubmed
Cens,
Regulation of Ca-sensitive inactivation of a 1-type Ca2+ channel by specific domains of beta subunits.
1999,
Pubmed
,
Xenbase
Charlier,
A pore mutation in a novel KQT-like potassium channel gene in an idiopathic epilepsy family.
1998,
Pubmed
Chien,
Post-translational modifications of beta subunits of voltage-dependent calcium channels.
1998,
Pubmed
Cooper,
Ion channel genes and human neurological disease: recent progress, prospects, and challenges.
1999,
Pubmed
de Leon,
Essential Ca(2+)-binding motif for Ca(2+)-sensitive inactivation of L-type Ca2+ channels.
1995,
Pubmed
De Waard,
Subunit regulation of the neuronal alpha 1A Ca2+ channel expressed in Xenopus oocytes.
1995,
Pubmed
,
Xenbase
Escayg,
Calcium channel beta 4 (CACNB4): human ortholog of the mouse epilepsy gene lethargic.
1998,
Pubmed
Escayg,
Mutations of SCN1A, encoding a neuronal sodium channel, in two families with GEFS+2.
2000,
Pubmed
Gerster,
Current modulation and membrane targeting of the calcium channel alpha1C subunit are independent functions of the beta subunit.
1999,
Pubmed
Hanlon,
Modelling of a voltage-dependent Ca2+ channel beta subunit as a basis for understanding its functional properties.
1999,
Pubmed
Hartmann,
Selective localization of cardiac SCN5A sodium channels in limbic regions of rat brain.
1999,
Pubmed
Hell,
N-methyl-D-aspartate receptor-induced proteolytic conversion of postsynaptic class C L-type calcium channels in hippocampal neurons.
1996,
Pubmed
Hosford,
Studies of the lethargic (lh/lh) mouse model of absence seizures: regulatory mechanisms and identification of the lh gene.
1999,
Pubmed
Hosford,
The role of GABAB receptor activation in absence seizures of lethargic (lh/lh) mice.
1992,
Pubmed
Lopes-Cendes,
A new locus for generalized epilepsy with febrile seizures plus maps to chromosome 2.
2000,
Pubmed
McEnery,
Altered expression and assembly of N-type calcium channel alpha1B and beta subunits in epileptic lethargic (lh/lh) mouse.
1998,
Pubmed
McNamara,
Emerging insights into the genesis of epilepsy.
1999,
Pubmed
Meisler,
Ion channel mutations in mouse models of inherited neurological disease.
1997,
Pubmed
Moulard,
Identification of a new locus for generalized epilepsy with febrile seizures plus (GEFS+) on chromosome 2q24-q33.
1999,
Pubmed
Peiffer,
A locus for febrile seizures (FEB3) maps to chromosome 2q23-24.
1999,
Pubmed
Plummer,
Evolution and diversity of mammalian sodium channel genes.
1999,
Pubmed
Raman,
Altered subthreshold sodium currents and disrupted firing patterns in Purkinje neurons of Scn8a mutant mice.
1997,
Pubmed
Ritaccio,
Reflex seizures.
1994,
Pubmed
Sander,
Association analysis of exonic variants of the gene encoding the GABAB receptor and idiopathic generalized epilepsy.
1999,
Pubmed
Singh,
A novel potassium channel gene, KCNQ2, is mutated in an inherited epilepsy of newborns.
1998,
Pubmed
Sprunger,
Dystonia associated with mutation of the neuronal sodium channel Scn8a and identification of the modifier locus Scnm1 on mouse chromosome 3.
1999,
Pubmed
Steinlein,
A missense mutation in the neuronal nicotinic acetylcholine receptor alpha 4 subunit is associated with autosomal dominant nocturnal frontal lobe epilepsy.
1995,
Pubmed
Tareilus,
A Xenopus oocyte beta subunit: evidence for a role in the assembly/expression of voltage-gated calcium channels that is separate from its role as a regulatory subunit.
1997,
Pubmed
,
Xenbase
Walker,
Subunit interaction sites in voltage-dependent Ca2+ channels: role in channel function.
1998,
Pubmed
Walker,
A beta 4 isoform-specific interaction site in the carboxyl-terminal region of the voltage-dependent Ca2+ channel alpha 1A subunit.
1998,
Pubmed
Walker,
A new beta subtype-specific interaction in alpha1A subunit controls P/Q-type Ca2+ channel activation.
1999,
Pubmed
,
Xenbase
Wallace,
Febrile seizures and generalized epilepsy associated with a mutation in the Na+-channel beta1 subunit gene SCN1B.
1998,
Pubmed
,
Xenbase
Wei,
Modification of Ca2+ channel activity by deletions at the carboxyl terminus of the cardiac alpha 1 subunit.
1994,
Pubmed
,
Xenbase
Yamaguchi,
Multiple modulation pathways of calcium channel activity by a beta subunit. Direct evidence of beta subunit participation in membrane trafficking of the alpha1C subunit.
1998,
Pubmed
,
Xenbase
Zuberi,
A novel mutation in the human voltage-gated potassium channel gene (Kv1.1) associates with episodic ataxia type 1 and sometimes with partial epilepsy.
1999,
Pubmed
