The muscle chloride channel ClC-1 has a double-barreled appearance that is differentially affected in dominant and recessive myotonia.
Saviane C
,
Conti F
,
Pusch M
.
???displayArticle.abstract???
Single-channel recordings of the currents mediated by the muscle Cl- channel, ClC-1, expressed in Xenopus oocytes, provide the first direct evidence that this channel has two equidistant open conductance levels like the Torpedo ClC-0 prototype. As for the case of ClC-0, the probabilities and dwell times of the closed and conducting states are consistent with the presence of two independently gated pathways with approximately 1.2 pS conductance enabled in parallel via a common gate. However, the voltage dependence of the common gate is different and the kinetics are much faster than for ClC-0. Estimates of single-channel parameters from the analysis of macroscopic current fluctuations agree with those from single-channel recordings. Fluctuation analysis was used to characterize changes in the apparent double-gate behavior of the ClC-1 mutations I290M and I556N causing, respectively, a dominant and a recessive form of myotonia. We find that both mutations reduce about equally the open probability of single protopores and that mutation I290M yields a stronger reduction of the common gate open probability than mutation I556N. Our results suggest that the mammalian ClC-homologues have the same structure and mechanism proposed for the Torpedo channel ClC-0. Differential effects on the two gates that appear to modulate the activation of ClC-1 channels may be important determinants for the different patterns of inheritance of dominant and recessive ClC-1 mutations.

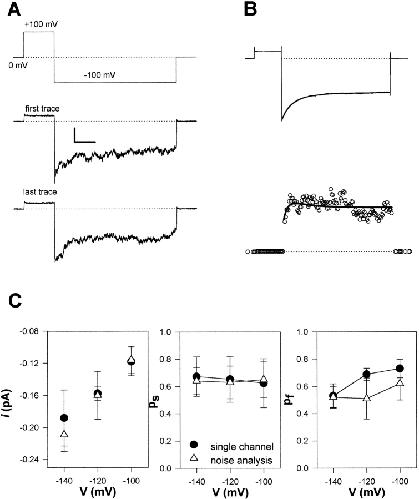

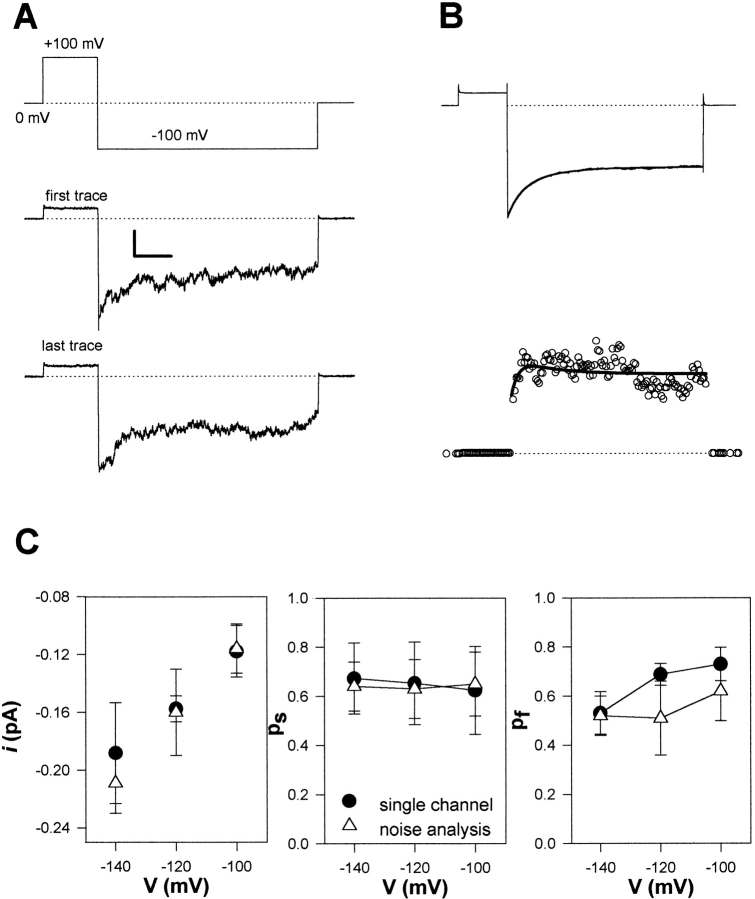

Figure 5. Determination of single channel parameters using macroscopic fluctuation analysis. (A) The voltage protocol (top) was applied repeatedly (at least 100 times). Representative individual registrations are shown below (pHi 6.5; scale bars: 0.1 s and 4 pA). (B) Mean current response for the step to â100 mV (top) and corresponding variance (see methods; scale bar: 0.3 pA2). Thick solid lines represent kinetic fits assuming independent single-exponential gating relaxations for the two gates as described in methods. For clarity, averages of 10 data points are shown as circles for the experimental variance. For the fit, no averaging was performed. (C) Comparison of mean values for the single channel current, i, and the stationary open probabilities, Ps and Pf, obtained by the fluctuation analysis (âµ: â140 mV, n = 8; â120 mV, n = 11; â100 mV, n = 9) with the values obtained from the amplitude histograms of single-channel recordings (â¢: â140 mV, n = 4; â120 mV, n = 7; â100 mV, n = 4).

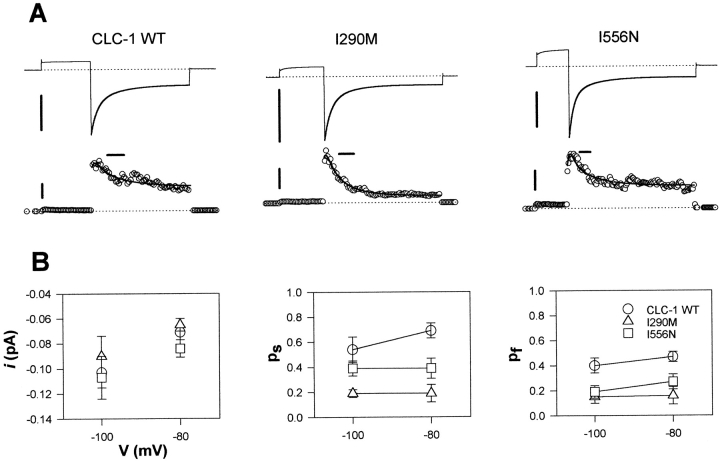

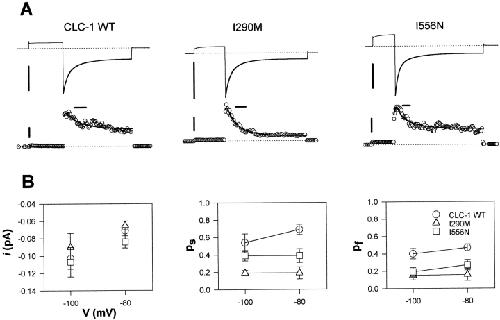

Figure 6. Fluctuation analysis for WT ClC-1 and the myotonic mutations I290M and I556N. (A) Representative fluctuation analysis for the three channel types. Mean current (top) and variance (bottom) are shown together with the kinetic fits (thick lines; see Fig. 5). (Registrations are at â100 mV, pHi 7.3; horizontal scale bars, 50 ms; vertical scale bars, 200 pA [top] and 5 pA2 [bottom].) (B) Comparison of single channel parameters obtained for WT ClC-1 and mutants I290M and I556N at pHi 7.3.

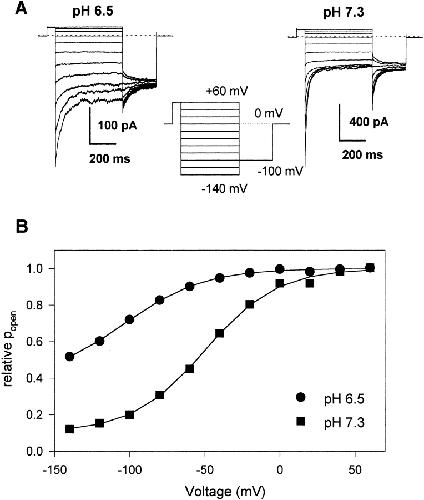

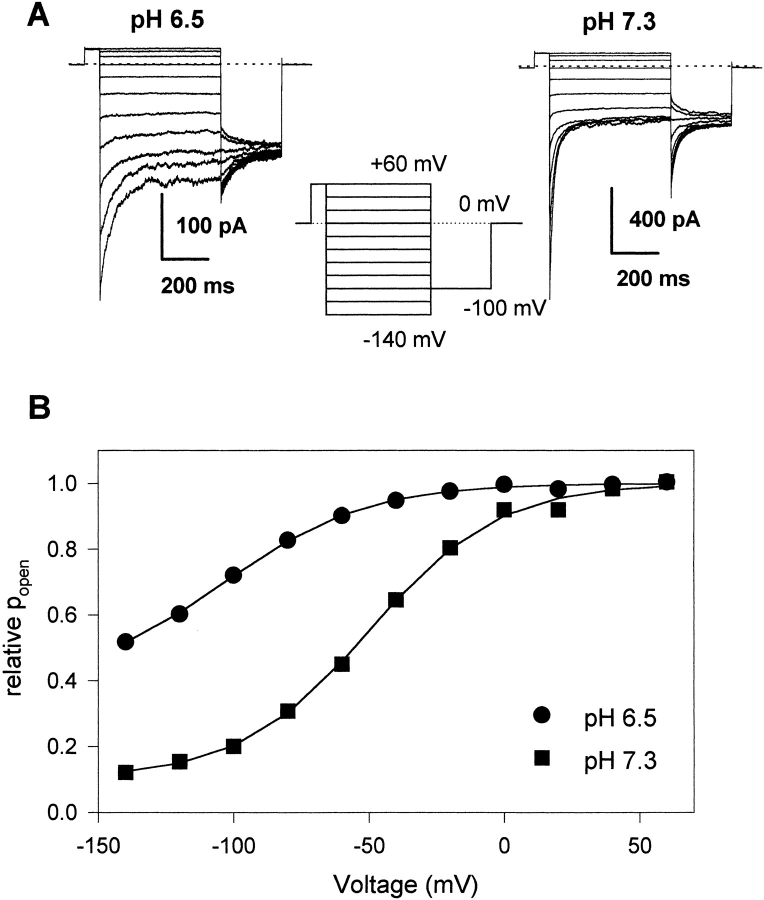

Figure 1. Effect of low intracellular pH on macroscopic gating of ClC-1. (A) Families of voltage-clamp traces measured from different inside-out patches in solutions with the indicated pHi using the stimulation protocol shown in the inset. (B) Plot of the apparent steady state open probability at the end of the third segment of stimulation at different voltages measured as the initial tail current for the constant step to â100 mV normalized to the tail current after the prepulse to +60 mV.

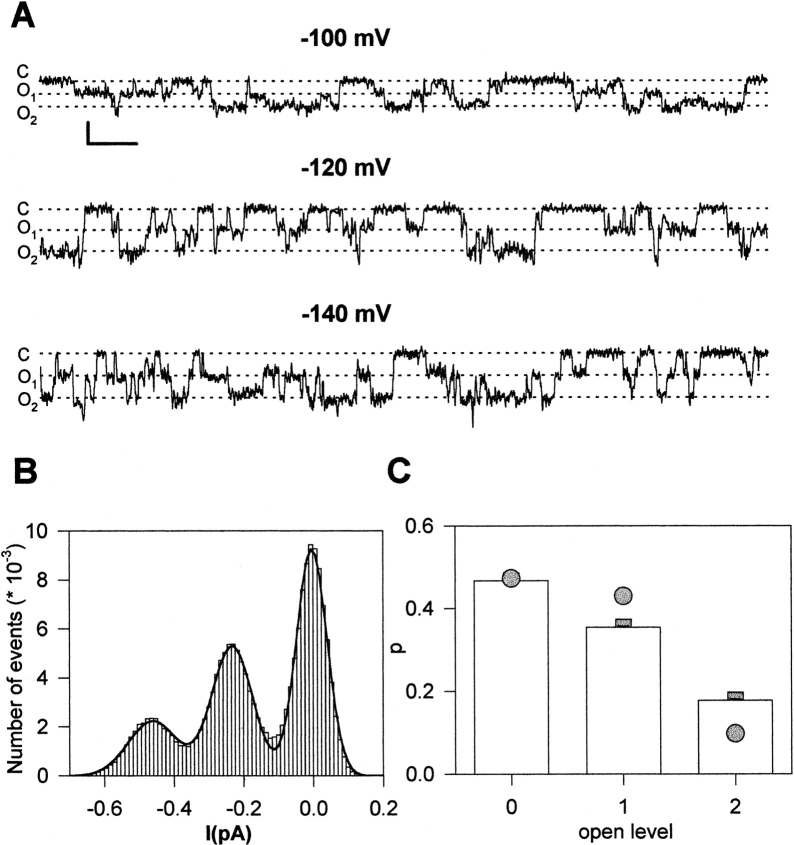

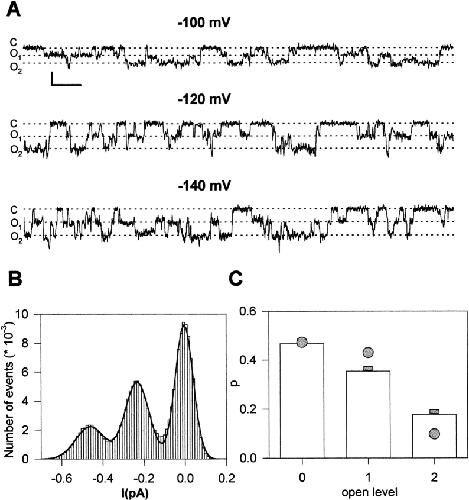

Figure 2. Single ClC-1 channels. (A) Single channel traces at different membrane potentials measured at pHi 6.5. Only short segments of longer registrations are shown. Filtered at 100 Hz for display. For the analysis, data were filtered at 200 Hz (scale bars: 0.2 pA and 0.2 s). (B) Amplitude histogram of a registration at â140 mV and fit with the sum of three equidistant gaussian distributions. (C) Stationary probabilities for the three conductance levels obtained from the gaussian fit (boxes). Circles indicate the best fit assuming two independent channels each with open probability P = 0.31. The ârawâ open probability, Praw, obtained by integrating the baseline-subtracted raw current trace [Praw = <Iâ>/(2i)] was Praw = 0.36 for the same data and yielded an even worse fit of the amplitude histogram (not shown). Squares represent the predictions assuming Fig. 3 B for a double-barreled channel with open probabilities Ps = 0.71 and Pf = 0.50, respectively, for the common gate and for the single protopore gate.

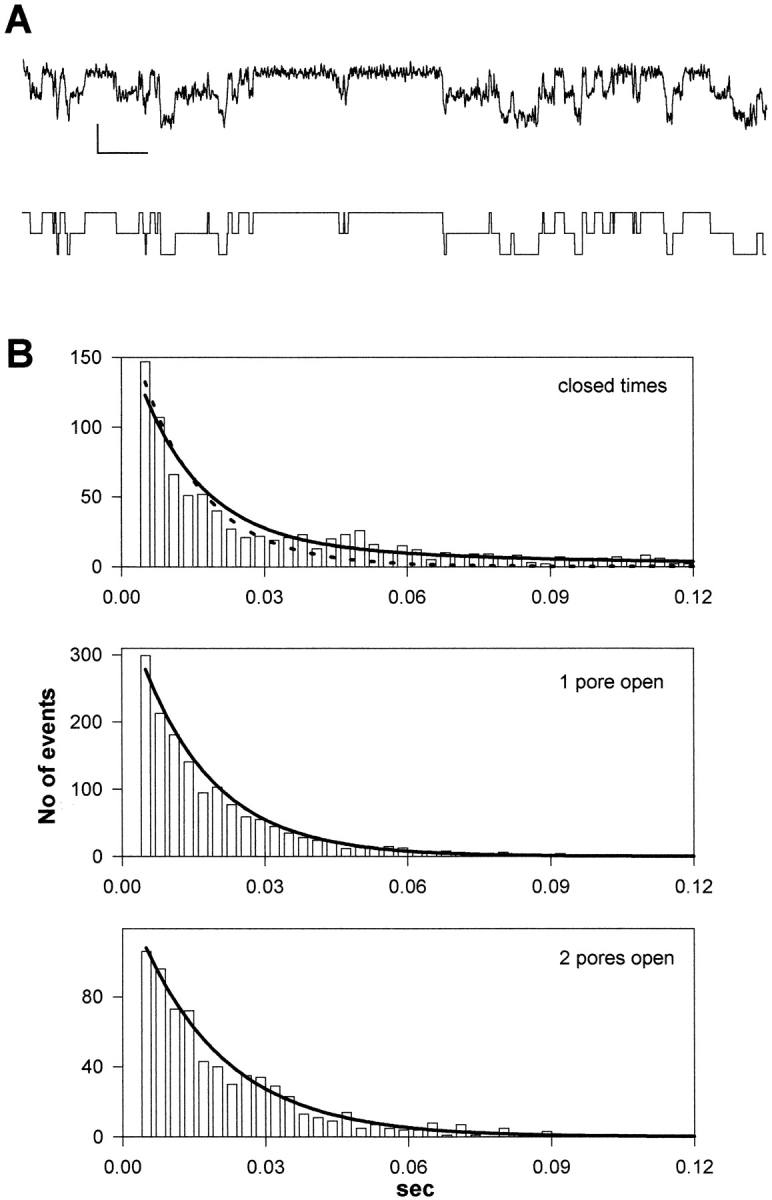

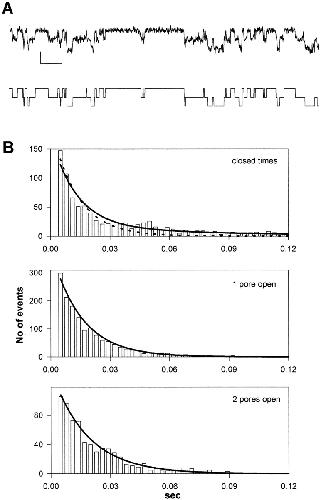

Figure 4. Kinetic analysis of a particularly clean recording. (A) Short segment of the original registration filtered at 200 Hz (top) and the corresponding idealized trace (bottom; scale bars: 0.3 pA and 0.1 s). (B) Dwell time histograms for the three conductance levels (boxes). The dashed line in the top panel is a single exponential fit to the closed-time histogram. Solid lines represent a combined fit of the model shown in Fig. 3 B to the histograms using the maximum-likelihood criterion. Values for the rate constants obtained from the fit are (sâ1): α, 34; β, 22; λ, 13; μ, 6. From these, the stationary probabilities Pf = α/(α + β) = 0.59 and Ps = λ/(λ + μ) = 0.68, and the relaxation times Ïf = 1/ (α + β) = 17 ms and Ïs = 1/(λ + μ) = 51 ms can be calculated with a ratio Ïs/Ïf < 3. The stationary probabilities obtained from the amplitude histogram of the same patch are Pf = 0.48, Ps = 0.74.
Chen,
Nonequilibrium gating and voltage dependence of the ClC-0 Cl- channel.
1996, Pubmed
Chen,
Nonequilibrium gating and voltage dependence of the ClC-0 Cl- channel.
1996,
Pubmed
Fahlke,
Pore stoichiometry of a voltage-gated chloride channel.
1998,
Pubmed
Fahlke,
An aspartic acid residue important for voltage-dependent gating of human muscle chloride channels.
1995,
Pubmed
,
Xenbase
Fahlke,
Mechanism of voltage-dependent gating in skeletal muscle chloride channels.
1996,
Pubmed
Foskett,
ClC and CFTR chloride channel gating.
1998,
Pubmed
George,
Molecular basis of Thomsen's disease (autosomal dominant myotonia congenita).
1993,
Pubmed
Hamill,
Improved patch-clamp techniques for high-resolution current recording from cells and cell-free membrane patches.
1981,
Pubmed
Jentsch,
Primary structure of Torpedo marmorata chloride channel isolated by expression cloning in Xenopus oocytes.
1990,
Pubmed
,
Xenbase
Jentsch,
Chloride channels: an emerging molecular picture.
1997,
Pubmed
Koch,
The skeletal muscle chloride channel in dominant and recessive human myotonia.
1992,
Pubmed
Kubisch,
ClC-1 chloride channel mutations in myotonia congenita: variable penetrance of mutations shifting the voltage dependence.
1998,
Pubmed
,
Xenbase
Kwieciński,
Drug-induced myotonia in human intercostal muscle.
1988,
Pubmed
Lloyd,
A common molecular basis for three inherited kidney stone diseases.
1996,
Pubmed
,
Xenbase
Ludewig,
Two physically distinct pores in the dimeric ClC-0 chloride channel.
1996,
Pubmed
,
Xenbase
Ludewig,
Independent gating of single pores in CLC-0 chloride channels.
1997,
Pubmed
Middleton,
Homodimeric architecture of a ClC-type chloride ion channel.
1996,
Pubmed
Miller,
Open-state substructure of single chloride channels from Torpedo electroplax.
1982,
Pubmed
Plassart-Schiess,
Novel muscle chloride channel (CLCN1) mutations in myotonia congenita with various modes of inheritance including incomplete dominance and penetrance.
1998,
Pubmed
Pusch,
Low single channel conductance of the major skeletal muscle chloride channel, ClC-1.
1994,
Pubmed
,
Xenbase
Pusch,
Temperature dependence of fast and slow gating relaxations of ClC-0 chloride channels.
1997,
Pubmed
,
Xenbase
Pusch,
Molecular physiology of voltage-gated chloride channels.
1994,
Pubmed
Pusch,
Gating of the voltage-dependent chloride channel CIC-0 by the permeant anion.
1995,
Pubmed
,
Xenbase
Pusch,
Mutations in dominant human myotonia congenita drastically alter the voltage dependence of the CIC-1 chloride channel.
1995,
Pubmed
Root,
Two identical noninteracting sites in an ion channel revealed by proton transfer.
1994,
Pubmed
,
Xenbase
Rychkov,
Concentration and pH dependence of skeletal muscle chloride channel ClC-1.
1996,
Pubmed
,
Xenbase
Rychkov,
Permeation and block of the skeletal muscle chloride channel, ClC-1, by foreign anions.
1998,
Pubmed
,
Xenbase
Simon,
Mutations in the chloride channel gene, CLCNKB, cause Bartter's syndrome type III.
1997,
Pubmed
Steinmeyer,
Primary structure and functional expression of a developmentally regulated skeletal muscle chloride channel.
1991,
Pubmed
,
Xenbase
Steinmeyer,
Multimeric structure of ClC-1 chloride channel revealed by mutations in dominant myotonia congenita (Thomsen).
1994,
Pubmed
Steinmeyer,
Inactivation of muscle chloride channel by transposon insertion in myotonic mice.
1991,
Pubmed
Wollnik,
Identification of functionally important regions of the muscular chloride channel CIC-1 by analysis of recessive and dominant myotonic mutations.
1997,
Pubmed
,
Xenbase
Yang,
Probing the outer vestibule of a sodium channel voltage sensor.
1997,
Pubmed
