J Gen Physiol
1998 Nov 01;1125:611-21. doi: 10.1085/jgp.112.5.611.
Show Gene links
Show Anatomy links
Delimiting the binding site for quaternary ammonium lidocaine derivatives in the acetylcholine receptor channel.
Pascual JM
,
Karlin A
.
???displayArticle.abstract???
The triethylammonium QX-314 and the trimethylammonium QX-222 are lidocaine derivatives that act as open-channel blockers of the acetylcholine (ACh) receptor. When bound, these blockers should occlude some of the residues lining the channel. Eight residues in the second membrane-spanning segment (M2) of the mouse-muscle alpha subunit were mutated one at a time to cysteine and expressed together with wild-type beta, gamma, and delta subunits in Xenopus oocytes. The rate constant for the reaction of each substituted cysteine with 2-aminoethyl methanethiosulfonate (MTSEA) was determined from the time course of the irreversible effect of MTSEA on the ACh-induced current. The reactions were carried out in the presence and absence of ACh and in the presence and absence of QX-314 and QX-222. These blockers had no effect on the reactions in the absence of ACh. In the presence of ACh, both blockers retarded the reaction of extracellularly applied MTSEA with cysteine substituted for residues from alphaVal255, one third of the distance in from the extracellular end of M2, to alphaGlu241, flanking the intracellular end of M2, but not with cysteine substituted for alphaLeu258 or alphaGlu262, at the extracellular end of M2. The reactions of MTSEA with cysteines substituted for alphaLeu258 and alphaGlu262 were considerably faster in the presence of ACh than in its absence. That QX-314 and QX-222 did not protect alphaL258C and alphaE262C against reaction with MTSEA in the presence of ACh implies that protection of the other residues was due to occlusion of the channel and not to the promotion of a less reactive state from a remote site. Given the 12-A overall length of the blockers and the alpha-helical conformation of M2 in the open state, the binding site for both blockers extends from alphaVal255 down to alphaSer248.
???displayArticle.pubmedLink???
9806969
???displayArticle.pmcLink???PMC2229442 ???displayArticle.link???J Gen Physiol ???displayArticle.grants???[+]

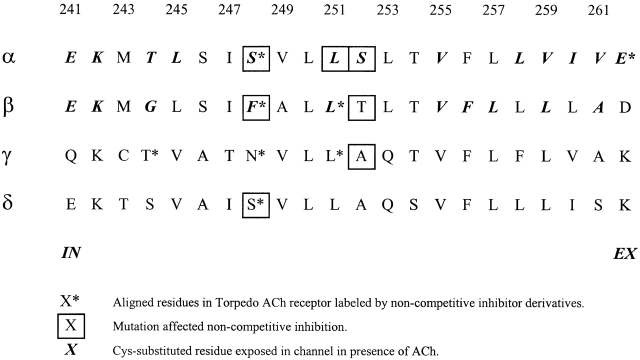

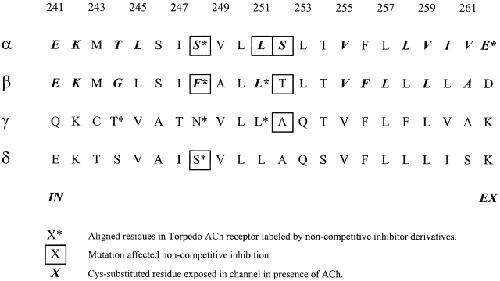

Figure 2. Aligned sequences of the M2 segments of mouse-muscle ACh receptor subunits. The numbering is that of the α subunit. The predicted membrane-spanning segments correspond to αM243 to αV261. The intracellular (IN) and extracellular (EX) ends are indicated. *Residues are aligned with residues in the ACh receptor from Torpedo electric tissue that were labeled by noncompetitive inhibitor derivatives. Mutations of the boxed-in residues affected channel block by QX-222. Cysteines substituted for the residues in bold italics are exposed in the channel in the presence of ACh (tested only in α and β). See text for references.

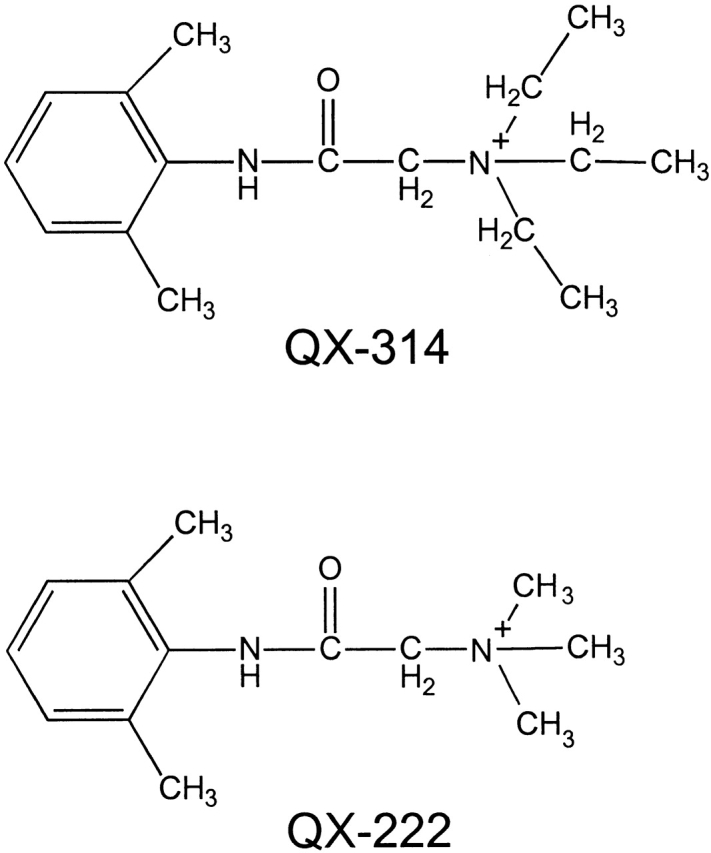

Figure 3. Structures of QX-314 and QX-222.

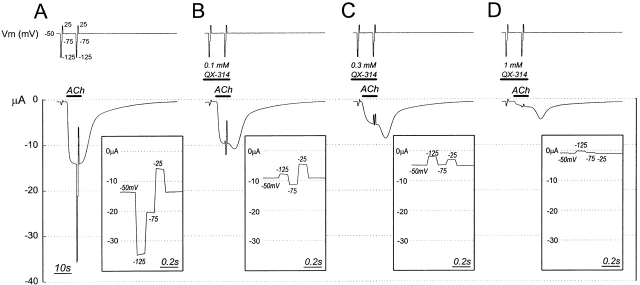

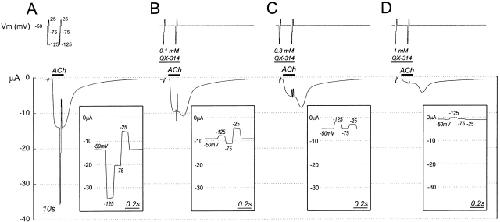

Figure 4. Inhibition of ACh-induced current in αL251C by QX-314 at different holding potentials. The top trace shows the holding potential. Both before and â¼3 s after the application of 25 μM ACh, the holding potential was stepped from â50 mV to â125, â75, â25, and back to â50 mV. The bottom trace shows the current. (inset) The peak ACh-induced current during the voltage steps minus the current during the voltage steps before ACh was added, with an expanded time axis. (A) No QX-314, (B) 0.1 mM QX-314, (C) 0.3 mM QX-314, (D) 1 mM QX-314. The four sections are part of a single experiment. Between the sections shown, the oocyte was washed and QX-314 at the indicated concentration was applied for 45 s before, and in addition to, the time indicated in the traces.

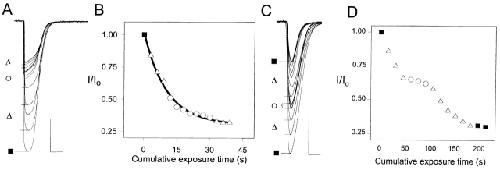

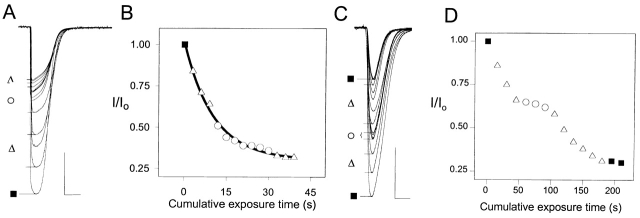

Figure 5. The effect of QX-314 on the irreversible inhibition of the ACh-induced current in two mutants. (A and B) αL258C. (C and D) αS248C. A and C show the test responses to ACh between applications of MTSEA in the presence of ACh and in the presence or absence of QX-314. B and D show the test currents as a function of cumulative exposure time to MTSEA. (âª) Initial responses and, in C and D, also extra final responses without any further application of MTSEA. (âµ) MTSEA in the presence of ACh. (â) MTSEA in the presence of both ACh and QX-314. ACh was applied at 25 μM to αL258C and at 100 μM to αS248C. 1 mM MTSEA was applied in 3-s pulses to αL258C, and 1.5 mM MTSEA was applied in 15-s pulses to αS248C. QX-314 was applied at 1 mM to αL258C and at 0.2 mM to αS248C. The calibration bars are 3 s and 5 μA.

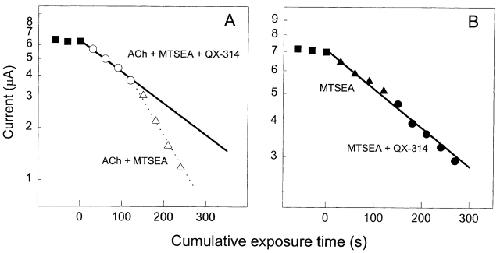

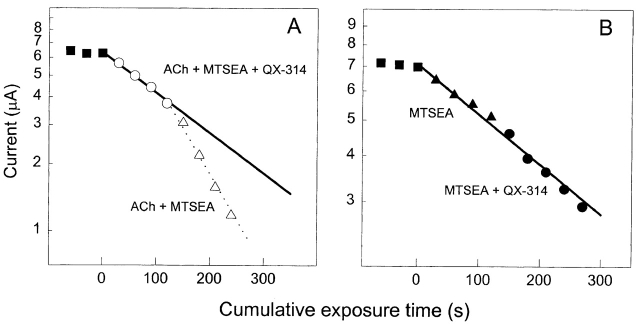

Figure 6. The dependence on ACh of the protection by QX-314 against the irreversible inhibition by MTSEA. The mutant was αT244C. The log of the ACh-induced current is plotted against the cumulative time of application of MTSEA. (A) QX-314 added in the presence of ACh. (B) QX-314 added in the absence of ACh. (âª) Responses to 60 μM ACh before MTSEA was added. (â) Responses to ACh after 25-s applications of 2.5 μM MTSEA plus 60 μM ACh plus 0.1 mM QX-314. (âµ) Responses to ACh after 25-s applications of 2.5 μM MTSEA plus 60 μM ACh. (â´) Responses to ACh after 25-s applications of 250 μM MTSEA. (â¢) Responses to ACh after 25-s applications of 250 μM MTSEA plus 1 mM QX-314.

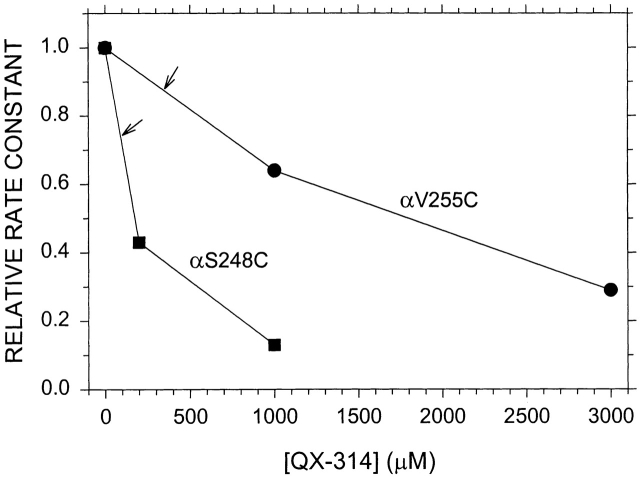

Figure 7. The dependence of protection on blocker concentration. The rate constant for the reaction of MTSEA in the presence of ACh at 10à EC50 and of the indicated concentration of QX-314 is divided by the rate constant in the presence of ACh but absence of QX-314. The mutants are αV255C (â¢) and αS248C (âª). The arrows mark the interpolated values of the relative rate constants at the IC50s for QX-314 inhibition of the ACh-induced current (Table I).

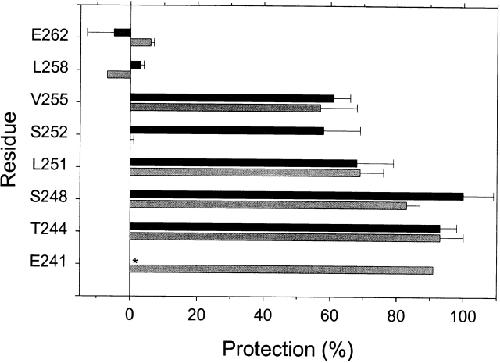

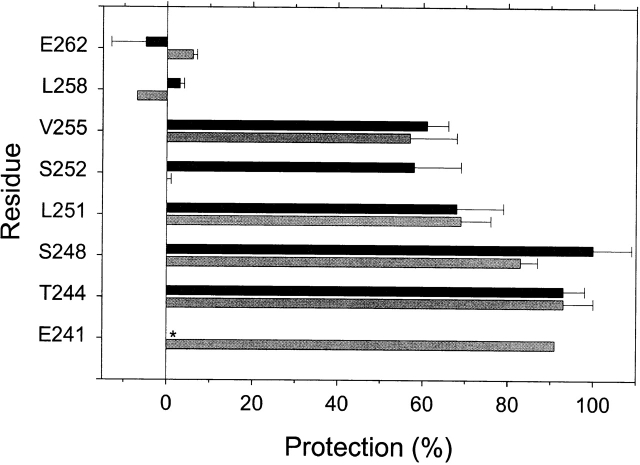

Figure 8. The protection by QX-314 and QX-222 of Cys-substituted residues in M2 against reaction with MTSEA. For each mutant, the rate constant of the reaction in the presence of channel blocker and ACh (kblocked) and the rate constant of the reaction in the presence of ACh alone (kopen) were determined as described in methods. The extent of protection is taken as 1 â (kblocked/kopen). The means of two to four determinations and average errors or SEM are plotted. The lighter bars represent the protection by QX-314, and the darker bars represent the protection by QX-222. *ND.

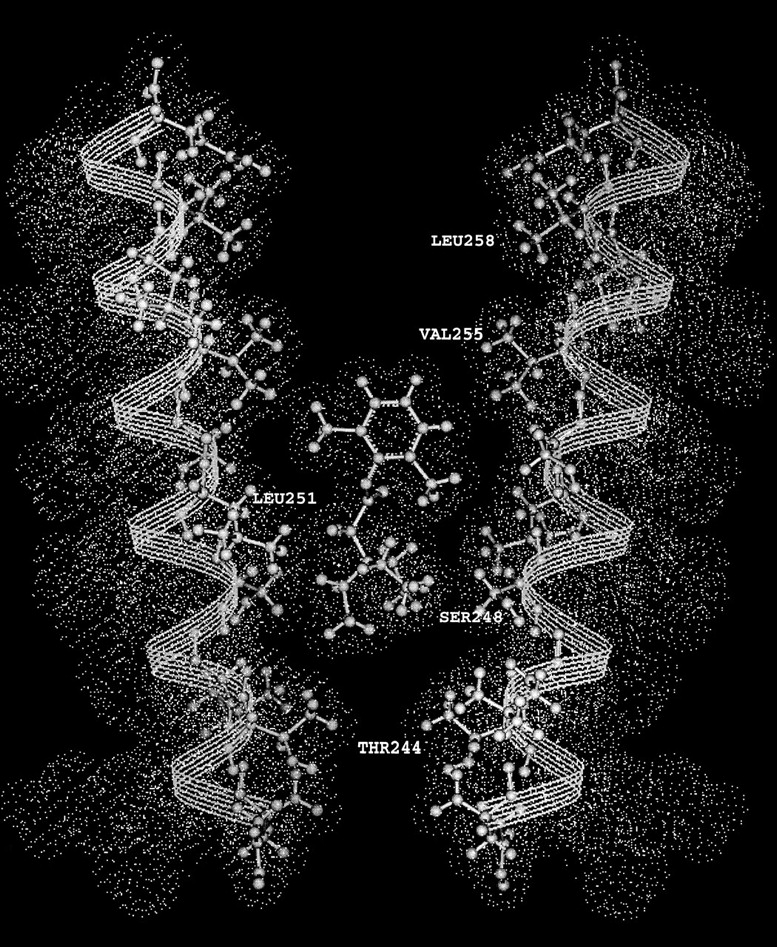

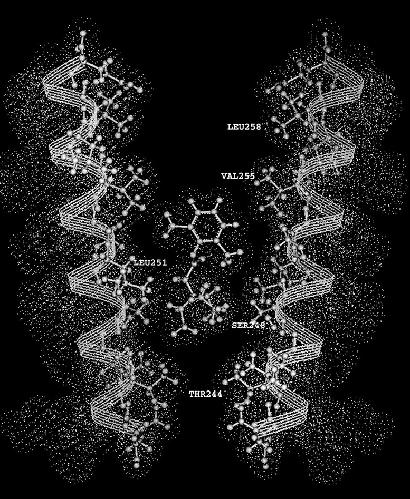

Figure 9. A model of QX-314 binding in the channel between two αM2 segments. The M2 segments are drawn as α helices. The dots represent the van der Waals surfaces. The drawing was made on a Silicon Graphics workstation running Insight II.
