Moritz M et al. (1998), Recruitment of the gamma-tubulin ring complex t...

XB-ART-14461

J Cell Biol 1998 Aug 10;1423:775-86. doi: 10.1083/jcb.142.3.775.

Show Gene links Show Anatomy links

Recruitment of the gamma-tubulin ring complex to Drosophila salt-stripped centrosome scaffolds.

Moritz M , Zheng Y , Alberts BM , Oegema K .

???displayArticle.abstract???
Extracting isolated Drosophila centrosomes with 2 M KI generates salt-resistant scaffolds that lack the centrosomal proteins CP190, CP60, centrosomin, and gamma-tubulin. To clarify the role of these proteins in microtubule nucleation by centrosomes and to identify additional centrosome components required for nucleation, we have developed an in vitro complementation assay for centrosome function. Centrosome aster formation is reconstituted when these inactive, salt-stripped centrosome scaffolds are supplemented with a soluble fraction of a Drosophila embryo extract. The CP60 and CP190 can be removed from this extract without effect, whereas removing the gamma-tubulin destroys the complementing activity. Consistent with these results, we find no evidence that these three proteins form a complex together. Instead, gamma-tubulin is found in two distinct protein complexes of 240,000 and approximately 3,000,000 D. The larger complex, which is analogous to the Xenopus gamma-tubulin ring complex (gammaTuRC) (Zheng, Y., M.L. Wong, B. Alberts, and T. Mitchison. 1995. Nature. 378:578-583), is necessary but not sufficient for complementation. An additional factor found in the extract is required. These results provide the first evidence that the gammaTuRC is required for microtubule nucleation at the centrosome.

???displayArticle.pubmedLink??? 9700165
???displayArticle.pmcLink??? PMC2148159
???displayArticle.link??? J Cell Biol
???displayArticle.grants??? [+]

Species referenced: Xenopus
Genes referenced: cat tubg1

???attribute.lit??? ???displayArticles.show???

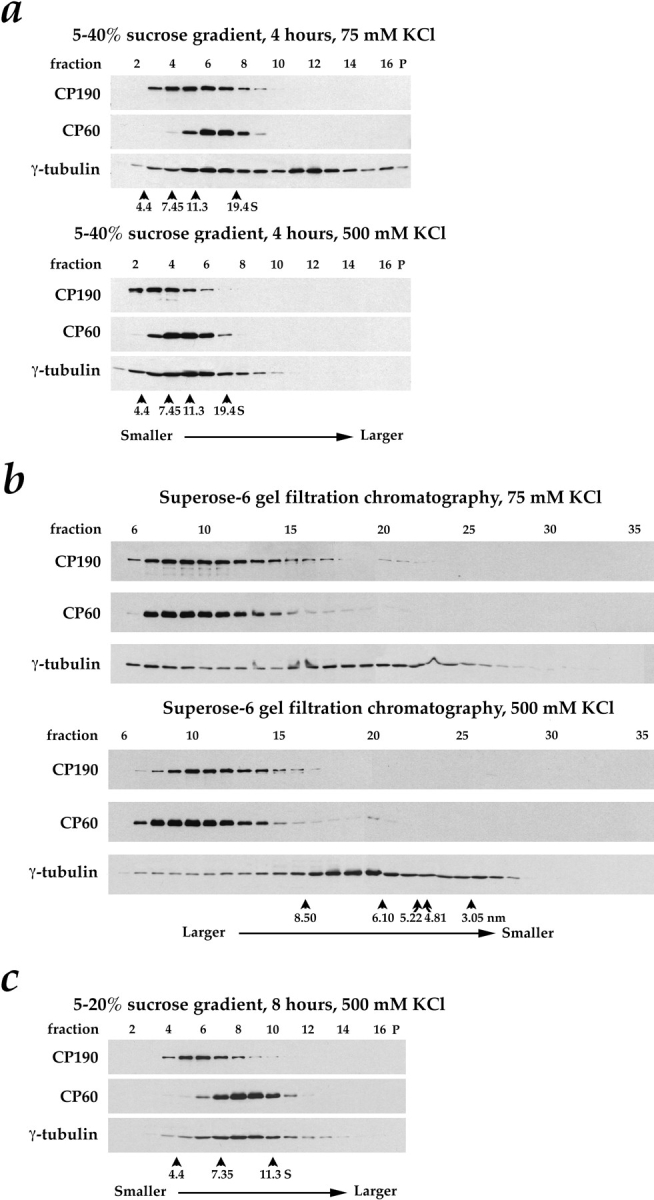

	Figure 5. Behavior of CP60, CP190, and Î³-tubulin during sucrose gradient sedimentation and Superose-6 gel filtration of concentrated Drosophila embryo extracts. Each fraction was immunoblotted for CP190, CP60, and Î³-tubulin after separation by SDS-PAGE on an 11% gel. A single extract was first buffer exchanged using spin columns into column buffer containing either 75 mM or 500 mM KCl. An aliquot was then sedimented through 5â40% sucrose gradients for 4 h (a)or fractionated by Superose-6 gel filtration chromatography (b)in buffers containing 75 mM or 500 mM KCl. In c, a separate extract was sedimented on a 5â20% sucrose gradient for 8 h in 500 mM KCl to increase the separation between the smaller complexes present in the high salt. Sucrose gradient fractions were collected from the top of the gradient; gradient pellets are also shown (P). Standards were run in parallel with the extract over identical sucrose gradients. The location of the peak for each standard is indicated with an arrowhead above its S value (see Materials and Methods for determination of peak fractions). The sucrose gradient standards used were BSA (4.4 S), rabbit muscle aldolase (7.35 S), bovine liver catalase (11.3 S), and porcine thyroglobulin (19.4 S). The Superose-6 column was calibrated with bovine thyroglobulin (Stokes radius = 8.5 nm), horse spleen ferritin (6.1 nm), bovine liver catalase (5.22 nm), rabbit muscle aldolase (4.81 nm), and hen egg ovalbumin (30.5 nm). The location of the peak for each standard is indicated with an arrowhead above its Stokes radius in b.

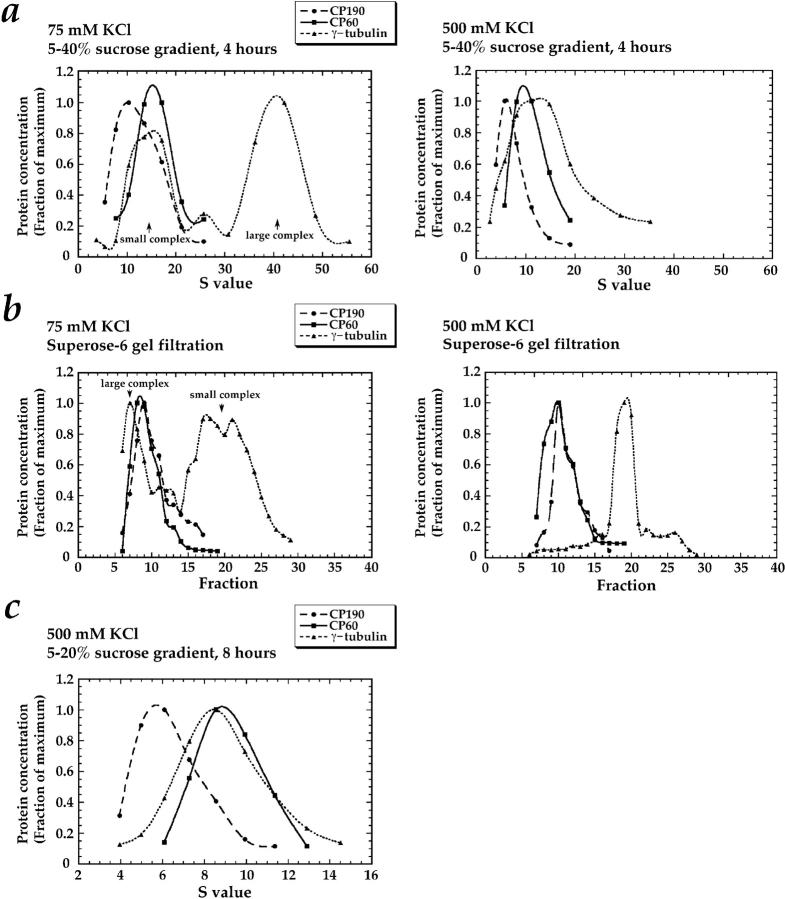

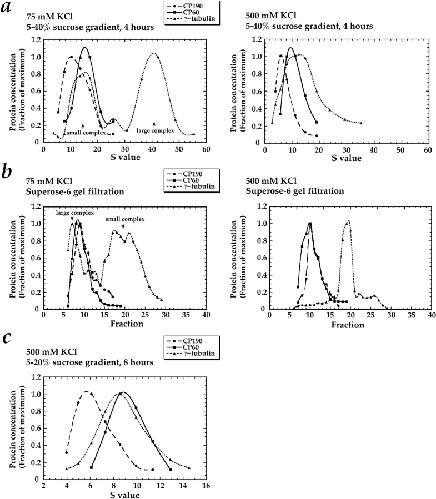

	Figure 6. A graphical representation of the sucrose gradient (a)and gel filtration data (b and c) in Fig. 5. The Î³-tubulin is present in two distinct complexes; CP190 and CP60 are not components of either complex. For each fraction, standard curves were used to determine the corresponding S value and the relative concentrations of CP190, CP60, and Î³-tubulin (see Materials and Methods).

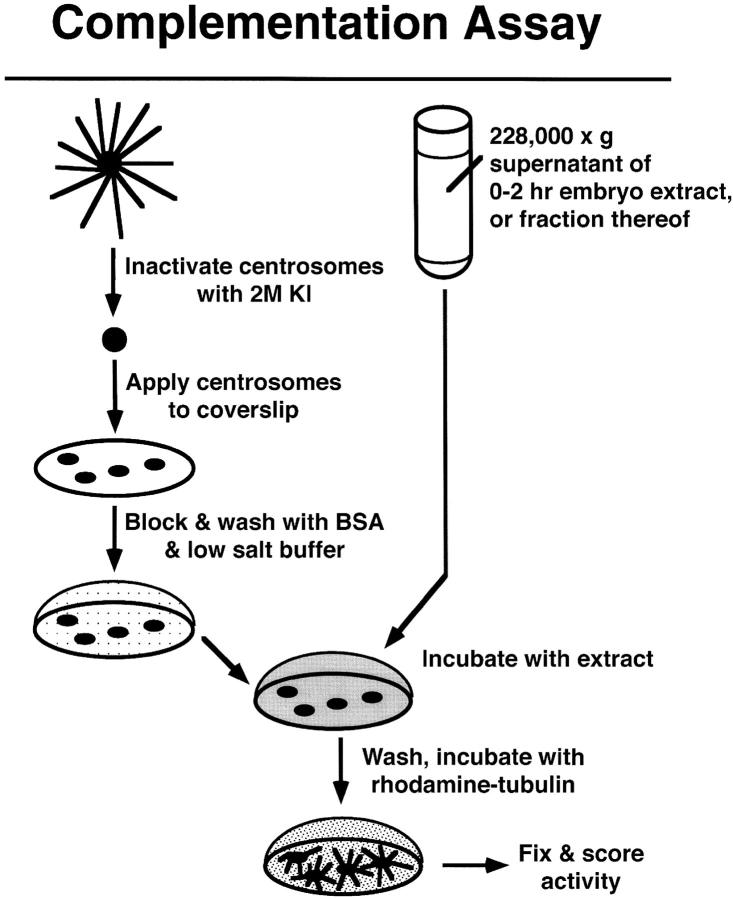

	Figure 1. Complementation assay. Centrosomes isolated from Drosophila embryos are inactivated by incubation with 2 M KI. The KI-treated centrosomes are allowed to bind to a glass coverslip. The coverslip is washed and blocked with a low-salt, BSA-containing buffer, and then incubated with the extract or fraction to be tested. The extract/fraction is washed away and the coverslip is incubated with rhodamine-labeled tubulin. Any resulting asters are fixed sequentially with glutaraldehyde and methanol. The number of asters per 50 microscope fields (100Ã objective) is determined by counting samples while viewing through a fluorescence microscope. See Materials and Methods for details.

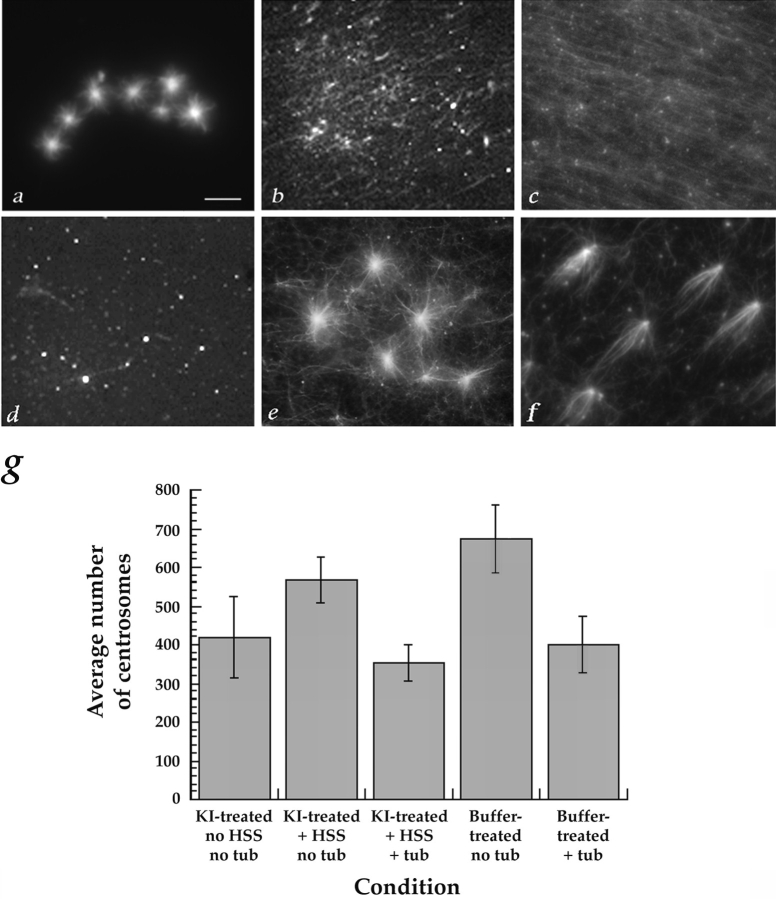

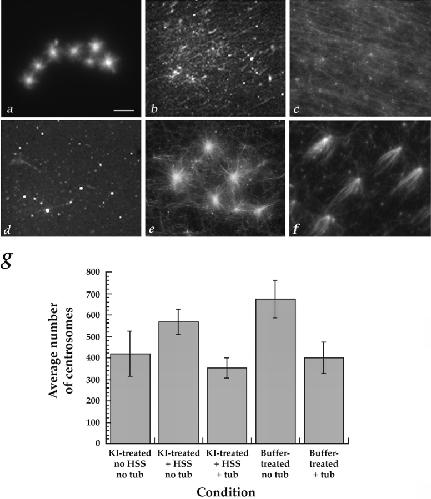

	Figure 2. Examples of complementation of KI-treated centrosomes. The complementation assay was carried out as outlined in Fig. 1 and Materials and Methods. (a) Microtubule asters regrew on buffer-treated centrosomes that were incubated with rhodamine-labeled tubulin at 30Â°C. (b and c) Microtubules, but no asters, formed when a 228,000 g supernatant from a 0â2 h embryo extract was incubated at 30Â°C (b) or 0Â°C (c) on coverslips in the absence of centrosomes, followed by a 30Â°C incubation with rhodamine-tubulin. (d) When KI-treated centrosomes were incubated with buffer instead of extract, followed by rhodamine-tubulin, few microtubules and no asters formed. (e and f) Asters formed when KI-treated centrosomes were first incubated with extract at 30Â°C (e) or 0Â°C (f) and then with rhodamine-tubulin at 30Â°C. (g) KI- and buffer-treated centrosomes bind consistently to coverslips. The number of centrosomes bound to coverslips under the typical experimental conditions used throughout this study was determined by counting structures that were stained with antibodies against Î±- and/or Î³-tubulin. The average number counted in 50 and 100Ã microscope fields is shown. Three to five separate experiments were counted for each condition. Bar, 10 Î¼m.

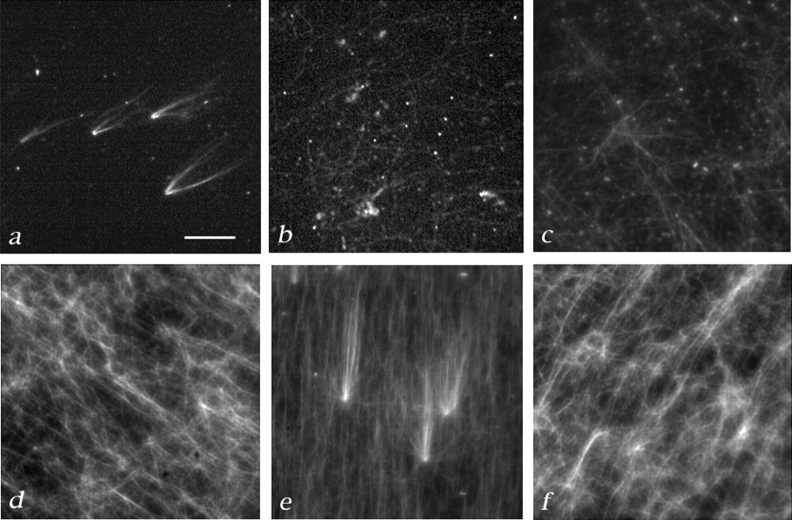

	Figure 8. The Î³TuRC is necessary, but not sufficient for complementation of salt-stripped centrosomes. Complementation tests were carried out as described in Fig. 1 and Materials and Methods. (a) Asters formed when KI-treated centrosomes were incubated with the partially purified large Î³-tubulin complex from a Superose-6 column followed by rhodamine-tubulin. (b) Some free microtubules, but no asters formed when the same fraction was incubated without KI-treated centrosomes. (c) KI-treated centrosomes were not complemented by Î³-tubulinâdepleted extract. (4 asters were counted in 50 100Ã microscope fields). (d)KI-treated centrosomes were not complemented by immunoaffinity-purified Î³TuRC, although microtubules could form (6 asters/50 microscope fields). (e) Asters formed after incubation of KI-treated centrosomes with a 1:1 mixture of immunoaffinity-purified Î³TuRC and Î³-tubulinâdepleted extract (151 asters/50 fields). (Other ratios of extract to Î³TuRC were tested; although some activity is still detectable at a 20:1 ratio of extract to Î³TuRC (data not shown). (f) Microtubules, but no asters formed when a 1:1 mixture of immunoaffinity-purified Î³TuRC and Î³-tubulinâdepleted extract were incubated in the absence of centrosomes. Bar, 10 Î¼m.

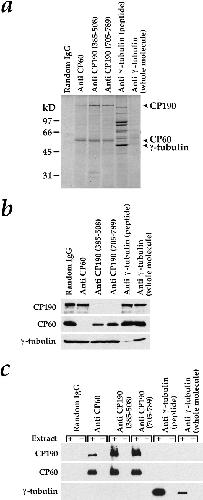

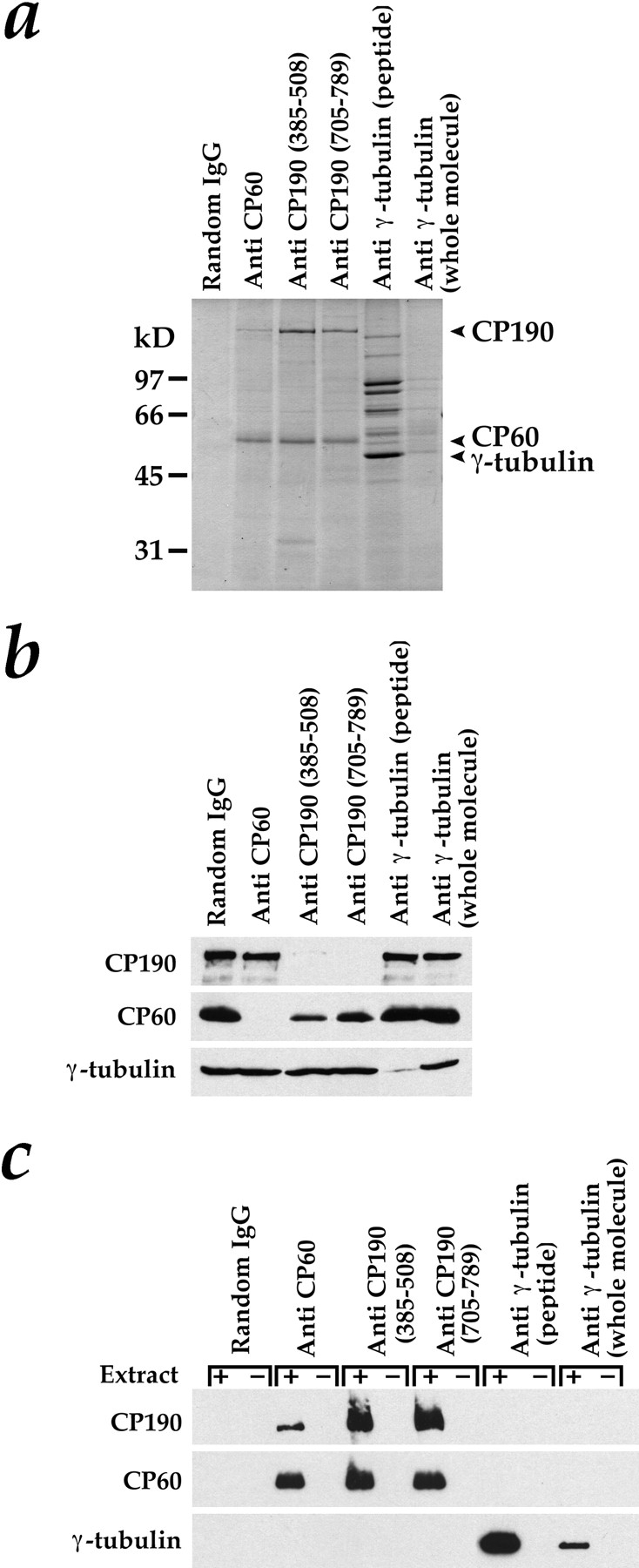

	Figure 4. Tests for complex formation by immunoprecipitation. Since Drosophila Î³-tubulin is the same size as IgG heavy chain, the immunoprecipitations in aâc were carried out with special care to avoid any IgG contamination in the pellets (see Materials and Methods). (a) Immunoprecipitation pellets after separation by SDS-PAGE on an 11% gel and staining with Coomassie blue. Anti-CP60 immunoprecipitated CP60 and a small fraction of the CP190. Both anti-CP190 antibodies immunoprecipitated CP190 and a large percentage of the CP60. Antibodies to Î³-tubulin immunoprecipitated Î³-tubulin and a group of Î³-tubulinâassociated proteins that are components of the Drosophila Î³TuRC. The anti-Î³âtubulin COOH-terminal peptide antibody was much more effective in immunoprecipitations than the antibody made to the whole Î³-tubulin molecule. (b and c) Western blots to detect CP190, CP60, and Î³-tubulin in immunoprecipitation supernatants (b) and pellets (c). In c, beads were incubated in the presence (+) or absence (â) of extract to control for antibody contamination in the pellets.

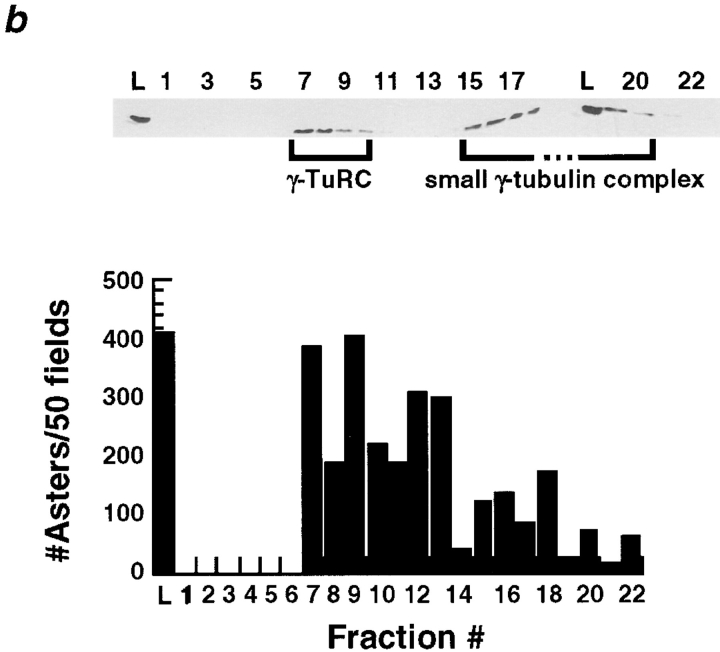

	Figure 7. (a) The Î³TuRC partially purified on a 5â40% sucrose gradient complements KI-treated centrosomes. The small Î³-tubulin complex does not. 100 Î¼l of the extract that complements KI-treated centrosomes was loaded on a 5-ml 5â40% gradient made in column buffer + 100 mM KCl. See Materials and Methods for details on running and fractionating gradients. Top, immunoblot showing that two Î³-tubulinâcontaining complexes can be separated on a 5â40% sucrose gradient. Bottom, sucrose gradient fractions were tested (Fig. 1) for their ability to complement KI-treated centrosomes and the number of asters that formed in 50 microscope fields was counted. Fractions 11â14, which contain the Î³TuRC were able to complement KI-treated centrosomes. (b) The Î³TuRC partially purified by FPLC on a Superose-6 gel-filtration column run in Column buffer + 100 mM KCl complements KI-treated centrosomes. Top, immunoblot showing that two Î³-tubulinâcontaining complexes can be separated by gel filtration. The Î³TuRC elutes just after the void volume. 50 Î¼l of the extract that complements KI-treated centrosomes was loaded on a 24 ml Superose-6 column. 0.5-ml fractions were collected. The column load (L) and fractions 1â22 are shown. Bottom, column fractions were tested for their ability to complement KI-treated centrosomes (Fig. 1). Fractions containing the Î³TuRC were able to complement.
