???displayArticle.abstract???
Innervation of the skeletal muscle involves local signaling, leading to acetylcholine receptor (AChR) clustering, and global signaling, manifested by the dispersal of preexisting AChR clusters (hot spots). Receptor tyrosine kinase (RTK) activation has been shown to mediate AChR clustering. In this study, the role of tyrosine phosphatase (PTPase) in the dispersal of hot spots was examined. Hot spot dispersal in cultured Xenopus muscle cells was initiated immediately upon the presentation of growth factor-coated beads that induce both AChR cluster formation and dispersal. Whereas the density of AChRs decreased with time, the fine structure of the hot spot remained relatively constant. Although AChR, rapsyn, and phosphotyrosine disappeared, a large part of the original hot spot-associated cytoskeleton remained. This suggests that the dispersal involves the removal of a key linkage between the receptor and its cytoskeletal infrastructure. The rate of hot spot dispersal is inversely related to its distance from the site of synaptic stimulation, implicating the diffusible nature of the signal. PTPase inhibitors, such as pervanadate or phenylarsine oxide, inhibited hot spot dispersal. In addition, they also affected the formation of new clusters in such a way that AChR microclusters extended beyond the boundary set by the clustering stimuli. Furthermore, by introducing a constitutively active PTPase into cultured muscle cells, hot spots were dispersed in a stimulus- independent fashion. This effect of exogenous PTPase was also blocked by pervanadate. These results implicate a role of PTPase in AChR cluster dispersal and formation. In addition to RTK activation, synaptic stimulation may also activate PTPase which acts globally to destabilize preexisting AChR hot spots and locally to facilitate AChR clustering in a spatially discrete manner by countering the action of RTKs.

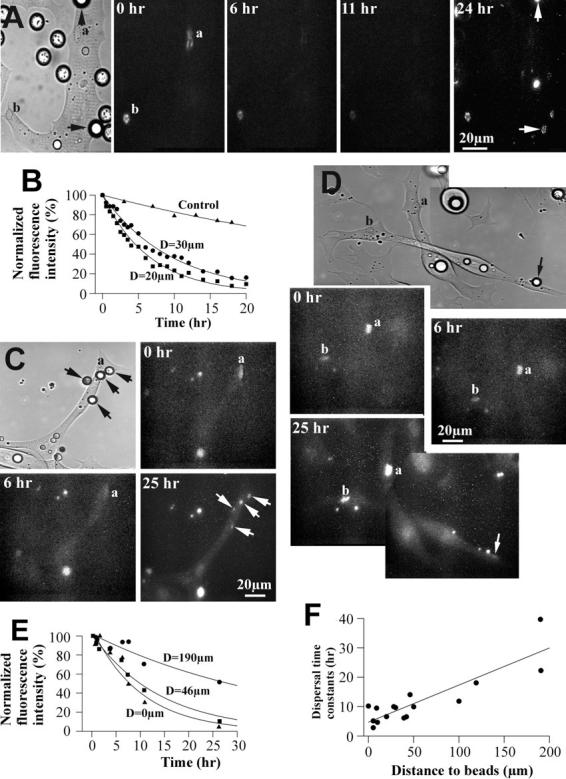

Figure 2. Dispersal of AChR hot spots as a function of distance to its nearest bead-induced new cluster. (A) Two hot spots at positions a and b underwent dispersal in response to bead-induced new cluster formation. The arrows point to two bead-induced clusters which were nearest to these two spots. Hot spot a is closer to a developing bead-induced cluster (top arrow) than hot spot b (bottom arrow). As the time sequence shows, a is dispersed at a much faster rate than b. The image at 24 h was contrast-enhanced to illustrate the bead-induced cluster (arrows). The same is true of the last time point in C and D. (B) Quantification of hot spot dispersal. Two hot spots on the same cell, one at a distance of 20 μm (squares) and the other at 30 μm (circles) away from its nearest bead-induced cluster, were recorded throughout the dispersal process. Triangles were measurements of a hot spot from a control cell not treated with beads. Points of each dispersal process can be well fitted with a simple exponential decay curve: I(t) = I0eât/Ï, where I(t) and I0 are intensities at time t and 0, respectively, and Ï is the time constant. This allows the calculation of the dispersal time constant. (C) A hot spot (a) immediately underneath a bead. It underwent dispersal quickly while new clusters formed under beads (arrows). (D) A hot spot (b) at a long distance (190 μm) from the closest bead. It showed very slow decrease in R-BTX fluorescence. Its intensity at 25 h was not much different from a control cluster (a). (E) Rate of dispersal of the two hot spots depicted in C (D = 0 mm) and D (D = 190 mm). The intermediate hot spot is from another cell. (F) Time constants of hot spot dispersal as a function of distance to nearest bead-induced AChR cluster. Each dot represents a single hot spot. Data were collected from 12 cells. A linear regression line is drawn through the data points. The correlation is highly significant with a correlation coefficient of 0.87 (P < 0.0001, Pearson product moment correlation test).

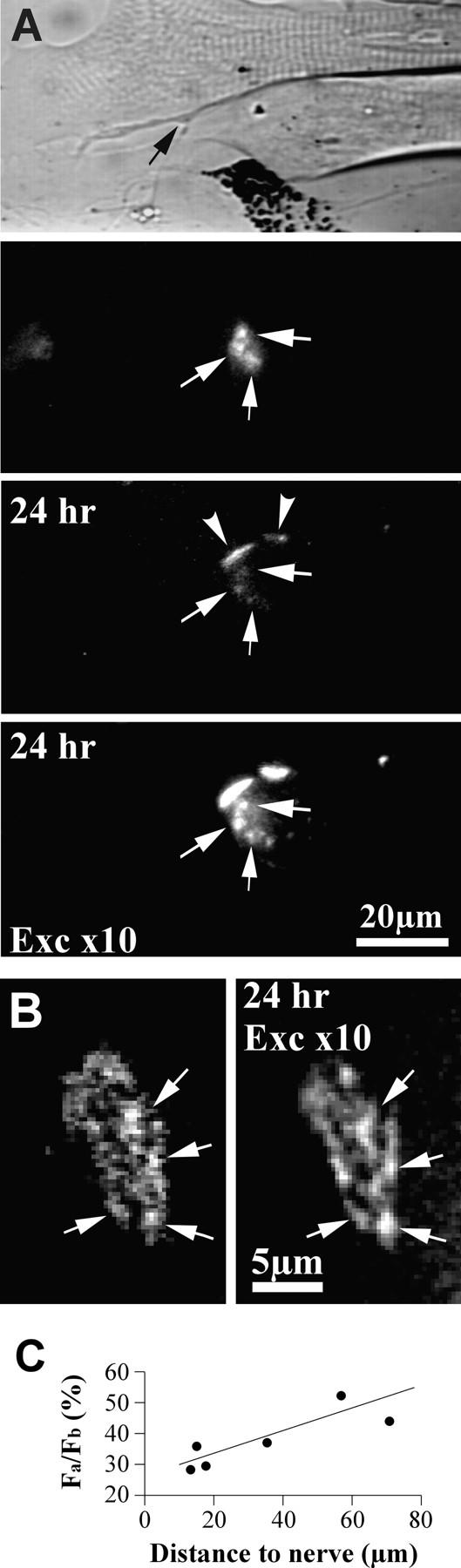

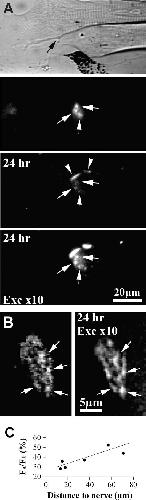

Figure 3. Innervation-induced hot spot dispersal. (A) Top panel: phase contrast; second panel: time zero of observation period (after overnight nerveâmuscle coculture); third panel: 24 h after observation started; fourth panel: the same 24-h image visualized with a 10-fold increase in excitation light intensity. On this innervated muscle cell (bottom cell in the top panel), the motor nerve (arrow) induced the formation of an AChR cluster at nerveâmuscle contact (arrowheads in the third panel, 24 h) and a preexisting hot spot (arrows in 2nd to 4th panels) was undergoing dispersal. After 24 h, features of the dispersing hot spot were still conserved as pointed out by arrows. (B) Fine structure of a hot spot undergoing nerve-induced dispersal. Well-preserved structural features are pointed out by arrows. The 24 h image was taken with 10Ã excitation. (C) Change in hot spot intensity as a function of its distance to nerveâmuscle contact. Fa and Fb, fluorescence intensity of hot spots (after background subtraction) at 0 and 24 h of observation period. A linear regression line is drawn through the data points. The correlation is significant with a correlation coefficient of 0.84 (P < 0.05, Pearson product moment correlation test).

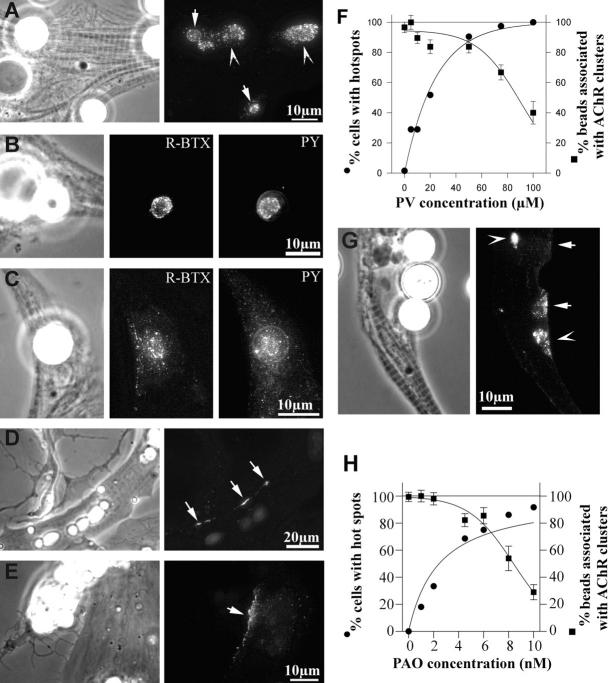

Figure 4. Effect of PTPase inhibitors on AChR cluster dispersal and formation. (A) PV at 50 μM prevented the dispersal of hot spots (two-tailed arrowheads) on a bead-stimulated muscle cell. This image was taken 24 h after bead treatment. Both bead-induced clusters (arrows) and hot spots coexisted. (B and C) Effect of PV on the formation of bead-induced clusters. AChRs, as well as phosphotyrosine labeling, were discretely concentrated at the site of bead stimulation in the control (B). PV (50 μM) caused AChR and phosphotyrosine cluster to assume a more scattered appearance (C). Small punctate aggregates were seen over a broad area around the bead. (D and E) PV effect on NMJ formation. AChR clusters form discretely at nerveâmuscle contacts in the control (D). Clusters appeared more scattered in the presence of PV at 50 μM (E). Nerveâmuscle contacts are shown in phase contrast on the left of each example. (F) Dose dependence of the PV effect on bead-induced cluster formation and dispersal. At 50 μM, PV nearly abolished the dispersal without significantly affecting the cluster formation. At higher concentrations, discrete clusters failed to form in the presence of pervanadate. The equation for fitting the hot spot data is described in the text. The data on bead-induced clustering were fitted with the equation: N = Nmax/(1 + exp[0.06{[PV] â 90}]), where Nmax and N are the percentage of beads with AChR clusters at 0 and a given PV concentration, respectively, and [PV] is the PV concentration. The curves are normalized to the control. (G) Effect of PAO (10 nM) on preserving hot spots. Both new clusters induced by beads (arrows) and preexisting hot spots (two-tailed arrowheads) coexist. Bead-induced clusters also assume a diffuse appearance under PAO treatment. (H) Dose-response of PAO effects on AChR formation and dispersal. The equation for fitting the hot spot data is the same as that for PV (F). The data on bead-induced clustering were fitted with the equation: N = Nmax/(1 + exp[0.56{[PAO] â 8.395}]).

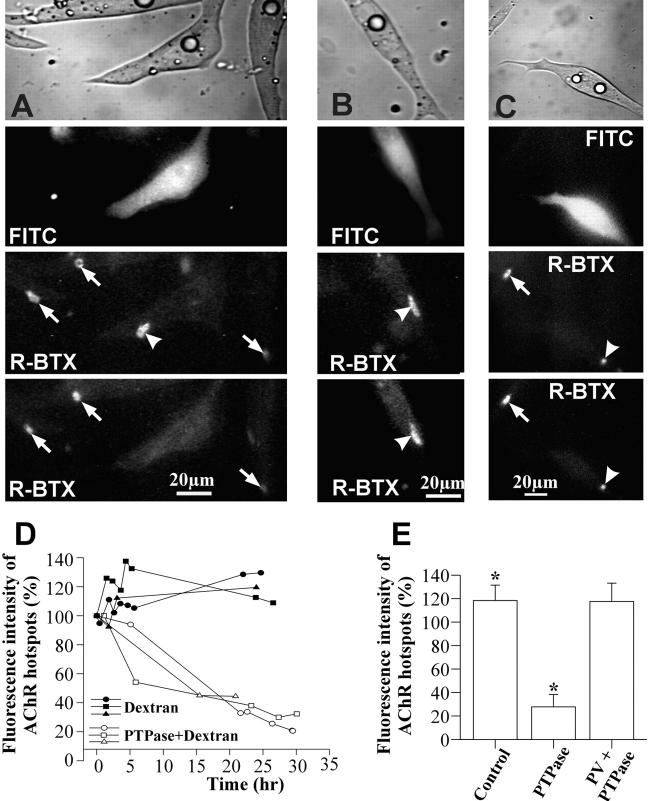

Figure 5. Effect of PTPase injection on cluster dispersal. (A) PTPase and FITC-dextran injection. The cell in the middle was injected with Yersinia PTPase together with FITC-dextran. Before injection, all cells in the field had AChR hot spots (arrows and two-tailed arrowhead in the top R-BTX panel). 24 h after PTPase injection (bottom R-BTX panel), the hot spot disappeared on the PTPase- injected cell, while they persisted on uninjected cells (arrows). (B) Control FITC-dextran injection. The hot spot on dextran-injected cell was unaffected 24 h after injection. (C) PTPase and FITC-dextran injection in the presence of PV (75 μM). The hot spot on the injected cell remained intact (two-tailed arrowheads). (D) Time course of hot spot dispersal resulting from direct PTPase injection compared with control cells. (E) Ratio of mean fluorescence intensity of AChR hot spots at 24 h after injection over its original state. Control (FITC-dextran), n (number of cells) = 11; PTPase, n = 11; PV+PTPase, n = 3. The difference between control and PTPase is highly statistically significant (P < 0.001).

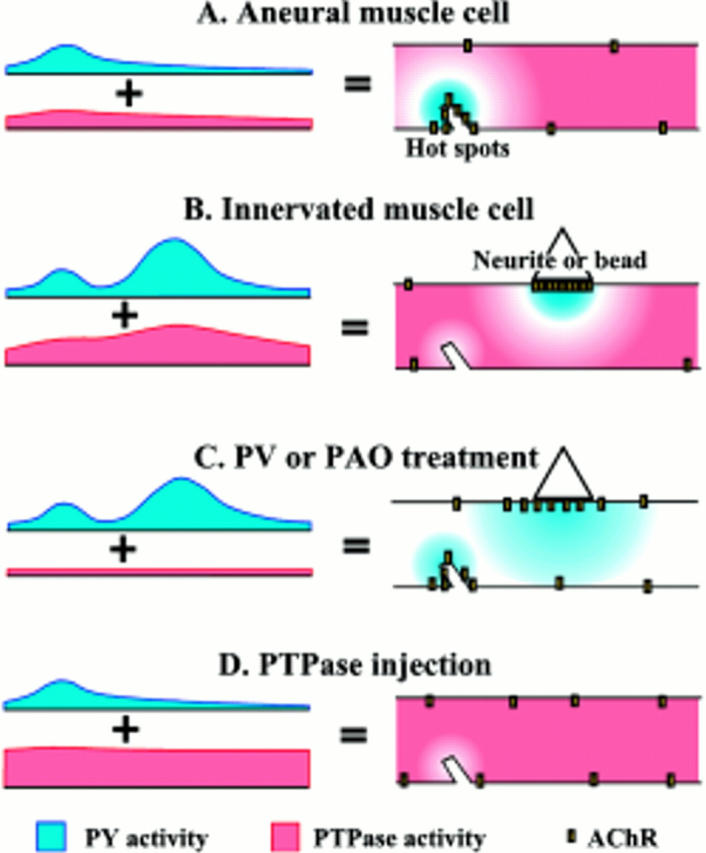

Figure 6. A model for PTPase in AChR cluster formation and dispersal. (A) In the absence of innervation, AChRs form clusters spontaneously. These sites are usually associated with phosphotyrosine concentration. The left side shows the level of either kinase activity (blue) or PTPase activity (red). The right side shows a lateral profile of the muscle cell. (B) Innervation or growth factorâcoated bead locally activates receptor tyrosine kinases at the site of stimulation and also raises the PTPase activity in a diffuse manner. This results in AChR clustering discretely at the site of stimulation and the dispersal of AChR hot spots distally. (C) Inhibition of PTPase activity by pervanadate causes the diffusion of the kinase signal, resulting in more diffuse clustering process at the site of stimulation, and the retention of AChR hot spots. (D) Injection of exogenous PTPase raises the activity of this enzyme throughout the muscle cell and causes hot spot dispersal in the absence of synaptogenic stimulus.
Ahmad,
A widely expressed human protein-tyrosine phosphatase containing src homology 2 domains.
1993, Pubmed
Ahmad,
A widely expressed human protein-tyrosine phosphatase containing src homology 2 domains.
1993,
Pubmed
Anderson,
Nerve-induced and spontaneous redistribution of acetylcholine receptors on cultured muscle cells.
1977,
Pubmed
,
Xenbase
Apel,
Rapsyn is required for MuSK signaling and recruits synaptic components to a MuSK-containing scaffold.
1997,
Pubmed
Baker,
Concentration of pp125 focal adhesion kinase (FAK) at the myotendinous junction.
1994,
Pubmed
,
Xenbase
Baker,
Tyrosine phosphorylation and acetylcholine receptor cluster formation in cultured Xenopus muscle cells.
1993,
Pubmed
,
Xenbase
Balice-Gordon,
Long-term synapse loss induced by focal blockade of postsynaptic receptors.
1994,
Pubmed
Bloch,
Molecular events in synaptogenesis: nerve-muscle adhesion and postsynaptic differentiation.
1988,
Pubmed
Chen,
A protein homologous to the Torpedo postsynaptic 58K protein is present at the myotendinous junction.
1990,
Pubmed
,
Xenbase
Colman,
Alterations in synaptic strength preceding axon withdrawal.
1997,
Pubmed
Colman,
Interactions between nerve and muscle: synapse elimination at the developing neuromuscular junction.
1993,
Pubmed
Craig,
Selective clustering of glutamate and gamma-aminobutyric acid receptors opposite terminals releasing the corresponding neurotransmitters.
1994,
Pubmed
Creazzo,
Neural control of embryonic acetylcholine receptor and skeletal muscle.
1983,
Pubmed
Daggett,
Full-length agrin isoform activities and binding site distributions on cultured Xenopus muscle cells.
1996,
Pubmed
,
Xenbase
DeChiara,
The receptor tyrosine kinase MuSK is required for neuromuscular junction formation in vivo.
1996,
Pubmed
Farb,
Differential localization of NMDA and AMPA receptor subunits in the lateral and basal nuclei of the amygdala: a light and electron microscopic study.
1995,
Pubmed
Fischbach,
The distribution of acetylcholine sensitivity over uninnervated and innervated muscle fibers grown in cell culture.
1973,
Pubmed
Froehner,
The submembrane machinery for nicotinic acetylcholine receptor clustering.
1991,
Pubmed
Froehner,
A postsynaptic Mr 58,000 (58K) protein concentrated at acetylcholine receptor-rich sites in Torpedo electroplaques and skeletal muscle.
1987,
Pubmed
,
Xenbase
Froehner,
Regulation of ion channel distribution at synapses.
1993,
Pubmed
Ganju,
Cloning and developmental expression of Nsk2, a novel receptor tyrosine kinase implicated in skeletal myogenesis.
1995,
Pubmed
Garcia-Morales,
Tyrosine phosphorylation in T cells is regulated by phosphatase activity: studies with phenylarsine oxide.
1990,
Pubmed
Gautam,
Defective neuromuscular synaptogenesis in agrin-deficient mutant mice.
1996,
Pubmed
Gautam,
Failure of postsynaptic specialization to develop at neuromuscular junctions of rapsyn-deficient mice.
1995,
Pubmed
Glass,
Agrin acts via a MuSK receptor complex.
1996,
Pubmed
Hall,
Synaptic structure and development: the neuromuscular junction.
1993,
Pubmed
Hamill,
Improved patch-clamp techniques for high-resolution current recording from cells and cell-free membrane patches.
1981,
Pubmed
Heffetz,
The insulinomimetic agents H2O2 and vanadate stimulate protein tyrosine phosphorylation in intact cells.
1990,
Pubmed
Jennings,
Developmental neurobiology. Death of a synapse.
1994,
Pubmed
Jones,
Induction by agrin of ectopic and functional postsynaptic-like membrane in innervated muscle.
1997,
Pubmed
Kidokoro,
Redistribution of acetylcholine receptors during neuromuscular junction formation in Xenopus cultures.
1985,
Pubmed
,
Xenbase
Kirsch,
The postsynaptic localization of the glycine receptor-associated protein gephyrin is regulated by the cytoskeleton.
1995,
Pubmed
Ko,
Denervated skeletal muscle fibers develop discrete patches of high acetylcholine receptor density.
1977,
Pubmed
Kuromi,
Nerve disperses preexisting acetylcholine receptor clusters prior to induction of receptor accumulation in Xenopus muscle cultures.
1984,
Pubmed
,
Xenbase
Mei,
RNA splicing regulates the activity of a SH2 domain-containing protein tyrosine phosphatase.
1994,
Pubmed
Mei,
Tyrosine phosphorylation and synapse formation at the neuromuscular junction.
1995,
Pubmed
Meier,
Immobilization of nicotinic acetylcholine receptors in mouse C2 myotubes by agrin-induced protein tyrosine phosphorylation.
1995,
Pubmed
Meier,
Neural agrin induces ectopic postsynaptic specializations in innervated muscle fibers.
1997,
Pubmed
Moody-Corbett,
Influence of nerve on the formation and survival of acetylcholine receptor and cholinesterase patches on embryonic Xenopus muscle cells in culture.
1982,
Pubmed
,
Xenbase
Neel,
Protein tyrosine phosphatases in signal transduction.
1997,
Pubmed
Peng,
Tissue culture of Xenopus neurons and muscle cells as a model for studying synaptic induction.
1991,
Pubmed
,
Xenbase
Peng,
The role of heparin-binding growth-associated molecule (HB-GAM) in the postsynaptic induction in cultured muscle cells.
1995,
Pubmed
,
Xenbase
Peng,
Induction of synaptic development in cultured muscle cells by basic fibroblast growth factor.
1991,
Pubmed
,
Xenbase
Peng,
Induction of dystrophin localization in cultured Xenopus muscle cells by latex beads.
1992,
Pubmed
,
Xenbase
Peng,
Association of cortactin with developing neuromuscular specializations.
1997,
Pubmed
,
Xenbase
Peng,
A role of tyrosine phosphorylation in the formation of acetylcholine receptor clusters induced by electric fields in cultured Xenopus muscle cells.
1993,
Pubmed
,
Xenbase
Peng,
Early cytoplasmic specialization at the presumptive acetylcholine receptor cluster: a meshwork of thin filaments.
1984,
Pubmed
,
Xenbase
Peng,
Association of the postsynaptic 43K protein with newly formed acetylcholine receptor clusters in cultured muscle cells.
1985,
Pubmed
,
Xenbase
Peng,
Elimination of preexistent acetylcholine receptor clusters induced by the formation of new clusters in the absence of nerve.
1986,
Pubmed
,
Xenbase
Pumiglia,
Activation of signal transduction in platelets by the tyrosine phosphatase inhibitor pervanadate (vanadyl hydroperoxide).
1992,
Pubmed
Sheng,
Excitatory synapses. Glutamate receptors put in their place.
1997,
Pubmed
Sohal,
Development of postsynaptic-like specializations of the neuromuscular synapse in the absence of motor nerve.
1988,
Pubmed
Swope,
Molecular cloning of two abundant protein tyrosine kinases in Torpedo electric organ that associate with the acetylcholine receptor.
1993,
Pubmed
Swope,
Phosphorylation of ligand-gated ion channels: a possible mode of synaptic plasticity.
1992,
Pubmed
Sytkowski,
Development of acetylcholine receptor clusters on cultured muscle cells.
1973,
Pubmed
Valenzuela,
Receptor tyrosine kinase specific for the skeletal muscle lineage: expression in embryonic muscle, at the neuromuscular junction, and after injury.
1995,
Pubmed
Wallace,
Agrin induces phosphorylation of the nicotinic acetylcholine receptor.
1991,
Pubmed
Wallace,
Regulation of the interaction of nicotinic acetylcholine receptors with the cytoskeleton by agrin-activated protein tyrosine kinase.
1995,
Pubmed
Weldon,
Ultrastructure of sites of cholinesterase activity on amphibian embryonic muscle cells cultured without nerve.
1981,
Pubmed
,
Xenbase
Zhang,
Expression, purification, and physicochemical characterization of a recombinant Yersinia protein tyrosine phosphatase.
1992,
Pubmed
Zhao,
Activation of mitogen-activated protein (MAP) kinase pathway by pervanadate, a potent inhibitor of tyrosine phosphatases.
1996,
Pubmed
