BMC Biochem
2006 May 01;7:21. doi: 10.1186/1471-2091-7-21.
Show Gene links
Show Anatomy links
The DNA polymerase activity of Pol epsilon holoenzyme is required for rapid and efficient chromosomal DNA replication in Xenopus egg extracts.
Shikata K
,
Sasa-Masuda T
,
Okuno Y
,
Waga S
,
Sugino A
.
???displayArticle.abstract???
DNA polymerase epsilon (Pol epsilon) is involved in DNA replication, repair, and cell-cycle checkpoint control in eukaryotic cells. Although the roles of replicative Pol alpha and Pol delta in chromosomal DNA replication are relatively well understood and well documented, the precise role of Pol epsilon in chromosomal DNA replication is not well understood. This study uses a Xenopus egg extract DNA replication system to further elucidate the replicative role(s) played by Pol epsilon. Previous studies show that the initiation timing and elongation of chromosomal DNA replication are markedly impaired in Pol epsilon-depleted Xenopus egg extracts, with reduced accumulation of replicative intermediates and products. This study shows that normal replication is restored by addition of Pol epsilon holoenzyme to Pol epsilon-depleted extracts, but not by addition of polymerase-deficient forms of Pol epsilon, including polymerase point or deletion mutants or incomplete enzyme complexes. Evidence is also provided that Pol epsilon holoenzyme interacts directly with GINS, Cdc45p and Cut5p, each of which plays an important role in initiation of chromosomal DNA replication in eukaryotic cells. These results indicate that the DNA polymerase activity of Pol epsilon holoenzyme plays an essential role in normal chromosomal DNA replication in Xenopus egg extracts. These are the first biochemical data to show the DNA polymerase activity of Pol epsilon holoenzyme is essential for chromosomal DNA replication in higher eukaryotes, unlike in yeasts.

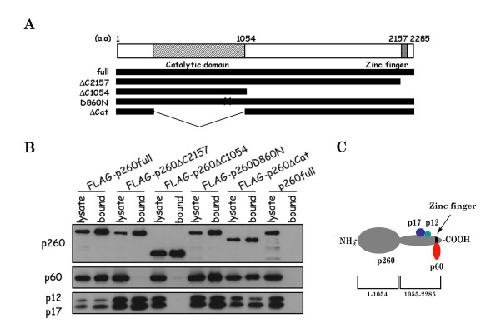

Figure 1. p12, p17 and p60 of Xenopus Pol ε interact with the C-terminal region of p260. (A) Schematic representation of wild type (full)- and mutant (ÎC2157, ÎC1054, Î860N, and ÎCat) forms of xPol ε p260. The conserved catalytic DNA polymerase domain and putative zinc finger domain of Pol ε are indicated. (B) FLAG-tagged p260 was co-expressed with p60, p17 and p12 in insect cells. Cell lysates were prepared and immunoprecipitated with anti-FLAG antibody and the precipitates were subjected to SDS-PAGE followed by immunoblotting with antibodies for each subunit. "Lysates" and "bound" indicate total protein and immunoprecipitated proteins, respectively. (C) Schematic representation of Xenopus Pol ε holoenzyme.

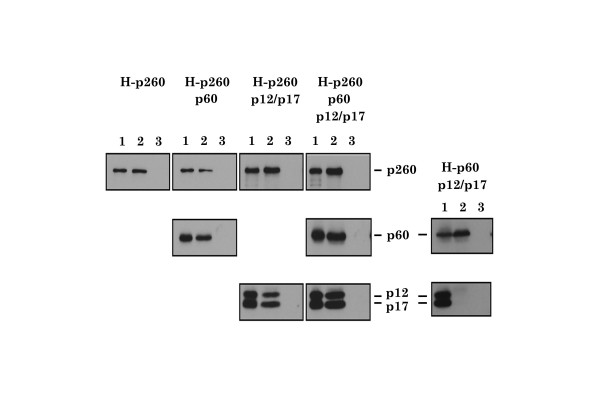

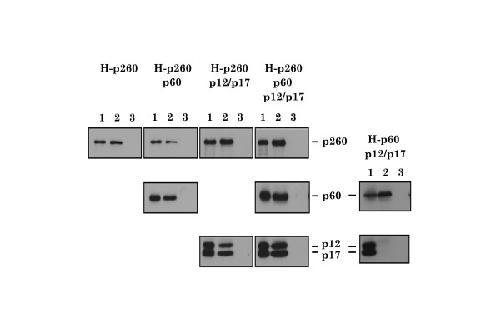

Figure 3. Interactions between histidine-tagged p260 (H-p260) or p60 (H-p60) and other subunits of Pol ε. Interactions between histidine-tagged p260 (H-p260) or p60 (H-p60) and other subunits of Pol ε were investigated using a pull down assay with Ni2+ -chelating beads and crude extracts prepared from insect cells expressing the indicated subunits of xPol ε. Cell lysates containing H-p260 or H-p60 (lane 1) and bound proteins (lane 2) were subjected to SDS-PAGE, followed by immunoblotting with the indicated antibodies. Beads without Ni2+ were also used as a control (lane 3).

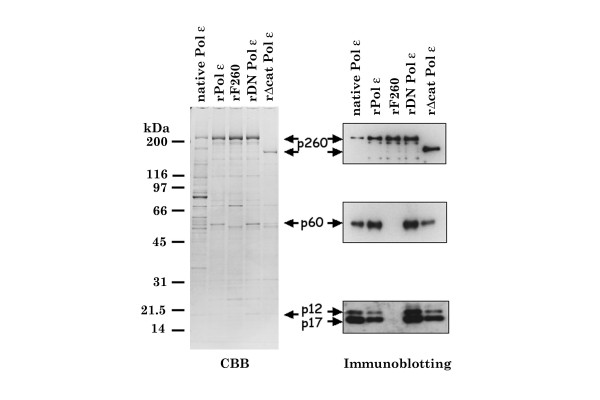

Figure 2. Purified xPol ε holoenzyme from insect cells. Wild type and mutant FLAG-tagged p260 was co-expressed with p60, p17 and p12 in insect cells and Pol ε complexes were purified by DEAE Sepharose and anti-FLAG antibody chromatography. Fractions were eluted from the antibody affinity column, pooled and subjected to SDS-PAGE followed by CBB staining (Left) and immunoblotting (Right). Native Xenopus Pol ε (native) holoenzyme was purified from Xenopus egg extracts as described previously [22]. Fractions shown are rPol ε, rDN Pol ε, rÎcat Pol ε, and rF260 (see text). rF260 is FLAG-tagged p260.

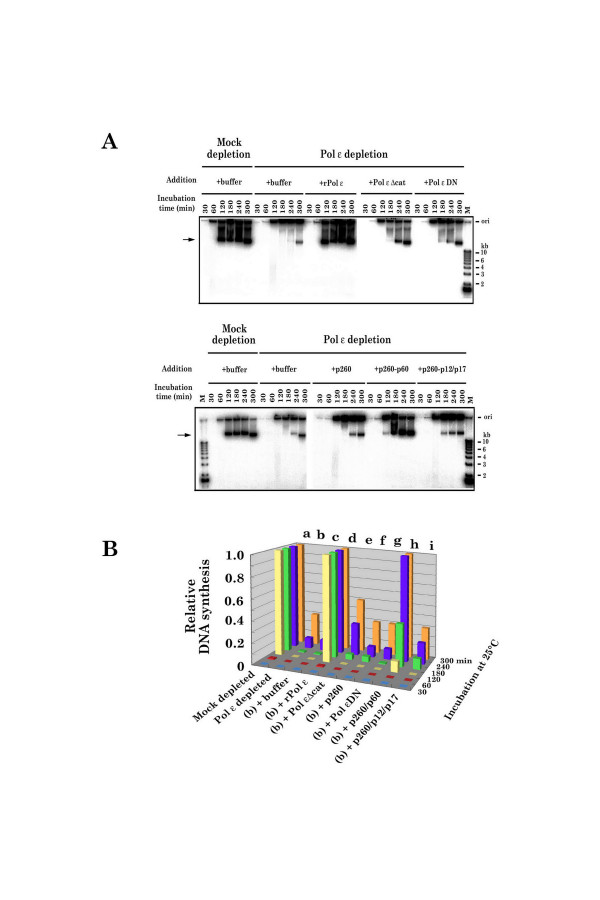

Figure 4. DNA replication activity in Pol ε-depleted Xenopus egg extracts. (A) The same number of wild type-, mutant or partial r-xPol ε complex molecule, which has been estimated based on the result of Fig. 2, was added to xPol ε-depleted egg extracts as indicated (see text for detailed description of mutants and partial complexes). DNA replication was initiated by the addition of sperm chromatin and the rate and extent of DNA synthesis was measured by neutral agarose gel electrophoresis followed by autoradiography [22]. The origin (well) is and DNA size markers are indicated on the right. (B) Radioactive material, which migrated slower than the 23-kb marker DNA (shown by an arrow in (A)), was considered to be fully replicated product and quantified by a scintillation counter.

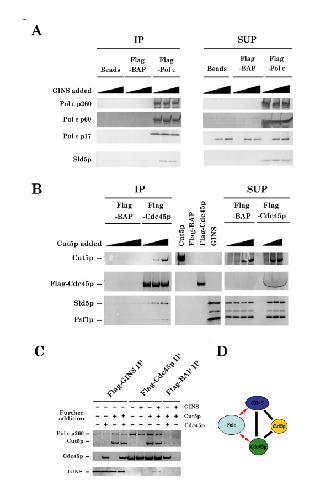

Figure 5. Xenopus Pol ε holoenzyme interacts directly with xGINS, xCdc45p, and xCut5p in vitro. (A) Flag-tagged r-xPol ε holoenzyme was incubated with xGINS [29] for 1 h at 4°C and immunoprecipitated with anti-Flag antibody. The immunoprecipitates were analyzed by SDS-PAGE followed by Western blotting. IP; immunoprecipitates, SUP; supernatant. (B) Increasing concentrations of xCut5p were incubated with xGINS and Flag-tagged xCdc45 [30] or Flag-tagged BAP for 1 h at 4°C and immunoprecipitated as in (A). (C) r-xPol ε holoenzyme was pre-incubated with either Flag-tagged xGINS or Flag-tagged xCdc45p prior to addition of the indicated protein(s). Reactions were analyzed as in (A). (D) A model for the interaction between r-xPol ε and replication accessory proteins (xGINS, xCdc45, and xCut5).

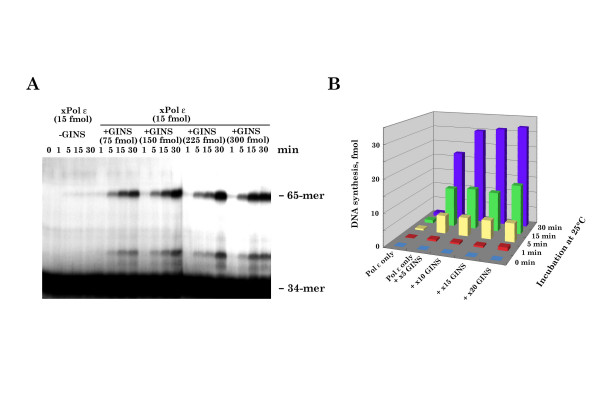

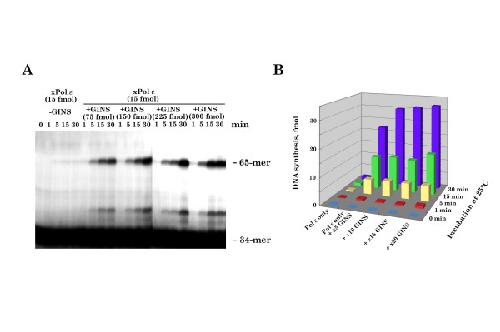

Figure 6. xGINS stimulates DNA synthesis by xPol ε holoenzyme. (A) DNA synthesis reactions (10 μl) contained 200 fmol 32P-labeled 34-mer primer/65-mer template replication substrate [32], 15 fmol r-xPol ε holoenzyme and 45 fmol (Ã5), 150 fmol (Ã10), or 300 fmol (Ã20) xGINS as indicated. Reactions were incubated at 25°C for the indicated amount of time, terminated by addition of stop solution (5 μl), and analyzed by sequencing gel and autoradiography [32]. The 32P-labeled 65-mer is the reaction product and the 32P-labeled 34-mer is the primer.(B) The amount of the reaction products in (A) (65-mer) was quantified by Image analyzer (Fiji).
Aparicio,
Components and dynamics of DNA replication complexes in S. cerevisiae: redistribution of MCM proteins and Cdc45p during S phase.
1997, Pubmed
Aparicio,
Components and dynamics of DNA replication complexes in S. cerevisiae: redistribution of MCM proteins and Cdc45p during S phase.
1997,
Pubmed
Araki,
DNA polymerase II, the probable homolog of mammalian DNA polymerase epsilon, replicates chromosomal DNA in the yeast Saccharomyces cerevisiae.
1992,
Pubmed
Bell,
DNA replication in eukaryotic cells.
2002,
Pubmed
Budd,
DNA polymerases delta and epsilon are required for chromosomal replication in Saccharomyces cerevisiae.
1993,
Pubmed
Dua,
Analysis of the essential functions of the C-terminal protein/protein interaction domain of Saccharomyces cerevisiae pol epsilon and its unexpected ability to support growth in the absence of the DNA polymerase domain.
1999,
Pubmed
Feng,
Schizosaccharomyces pombe cells lacking the amino-terminal catalytic domains of DNA polymerase epsilon are viable but require the DNA damage checkpoint control.
2001,
Pubmed
Fukui,
Distinct roles of DNA polymerases delta and epsilon at the replication fork in Xenopus egg extracts.
2004,
Pubmed
,
Xenbase
Gambus,
GINS maintains association of Cdc45 with MCM in replisome progression complexes at eukaryotic DNA replication forks.
2006,
Pubmed
Garg,
DNA polymerases that propagate the eukaryotic DNA replication fork.
2005,
Pubmed
Hamatake,
Purification and characterization of DNA polymerase II from the yeast Saccharomyces cerevisiae. Identification of the catalytic core and a possible holoenzyme form of the enzyme.
1990,
Pubmed
Hashimoto,
Xenopus Cut5 is essential for a CDK-dependent process in the initiation of DNA replication.
2003,
Pubmed
,
Xenbase
Hiraga,
DNA polymerases alpha, delta, and epsilon localize and function together at replication forks in Saccharomyces cerevisiae.
2005,
Pubmed
Johnson,
Cellular DNA replicases: components and dynamics at the replication fork.
2005,
Pubmed
Karthikeyan,
Evidence from mutational specificity studies that yeast DNA polymerases delta and epsilon replicate different DNA strands at an intracellular replication fork.
2000,
Pubmed
Kesti,
Molecular cloning of the cDNA for the catalytic subunit of human DNA polymerase epsilon.
1993,
Pubmed
Kesti,
DNA polymerase epsilon catalytic domains are dispensable for DNA replication, DNA repair, and cell viability.
1999,
Pubmed
Kubota,
A novel ring-like complex of Xenopus proteins essential for the initiation of DNA replication.
2003,
Pubmed
,
Xenbase
Mimura,
Central role for cdc45 in establishing an initiation complex of DNA replication in Xenopus egg extracts.
2000,
Pubmed
,
Xenbase
Morrison,
A third essential DNA polymerase in S. cerevisiae.
1990,
Pubmed
Morrison,
The 3'-->5' exonucleases of both DNA polymerases delta and epsilon participate in correcting errors of DNA replication in Saccharomyces cerevisiae.
1994,
Pubmed
Moyer,
Isolation of the Cdc45/Mcm2-7/GINS (CMG) complex, a candidate for the eukaryotic DNA replication fork helicase.
2006,
Pubmed
Ohya,
The DNA polymerase domain of pol(epsilon) is required for rapid, efficient, and highly accurate chromosomal DNA replication, telomere length maintenance, and normal cell senescence in Saccharomyces cerevisiae.
2002,
Pubmed
Pacek,
Localization of MCM2-7, Cdc45, and GINS to the site of DNA unwinding during eukaryotic DNA replication.
2006,
Pubmed
,
Xenbase
Pospiech,
A neutralizing antibody against human DNA polymerase epsilon inhibits cellular but not SV40 DNA replication.
1999,
Pubmed
Pospiech,
DNA polymerase epsilon - more than a polymerase.
2003,
Pubmed
Rytkönen,
Distinctive activities of DNA polymerases during human DNA replication.
2006,
Pubmed
Seki,
GINS is a DNA polymerase epsilon accessory factor during chromosomal DNA replication in budding yeast.
2006,
Pubmed
,
Xenbase
Shcherbakova,
3'-->5' exonucleases of DNA polymerases epsilon and delta correct base analog induced DNA replication errors on opposite DNA strands in Saccharomyces cerevisiae.
1996,
Pubmed
Su,
Cloning and expression of a Xenopus gene that prevents mitotic catastrophe in fission yeast.
1995,
Pubmed
,
Xenbase
Sugino,
DNA polymerase epsilon encoded by cdc20+ is required for chromosomal DNA replication in the fission yeast Schizosaccharomyces pombe.
1998,
Pubmed
Sugino,
Yeast DNA polymerases and their role at the replication fork.
1995,
Pubmed
Takayama,
GINS, a novel multiprotein complex required for chromosomal DNA replication in budding yeast.
2003,
Pubmed
Tran,
Hypermutability of homonucleotide runs in mismatch repair and DNA polymerase proofreading yeast mutants.
1997,
Pubmed
Tsubota,
Double-stranded DNA binding properties of Saccharomyces cerevisiae DNA polymerase epsilon and of the Dpb3p-Dpb4p subassembly.
2003,
Pubmed
Vlatkovic,
MDM2 interacts with the C-terminus of the catalytic subunit of DNA polymerase epsilon.
2000,
Pubmed
Waga,
DNA polymerase epsilon is required for coordinated and efficient chromosomal DNA replication in Xenopus egg extracts.
2001,
Pubmed
,
Xenbase
Zlotkin,
DNA polymerase epsilon may be dispensable for SV40- but not cellular-DNA replication.
1996,
Pubmed
