J Gen Physiol
2006 Jun 01;1276:639-58. doi: 10.1085/jgp.200609520.
Show Gene links
Show Anatomy links
Electrogenic Na/HCO3 cotransporter (NBCe1) variants expressed in Xenopus oocytes: functional comparison and roles of the amino and carboxy termini.
McAlear SD
,
Liu X
,
Williams JB
,
McNicholas-Bevensee CM
,
Bevensee MO
.
???displayArticle.abstract???
Using pH- and voltage-sensitive microelectrodes, as well as the two-electrode voltage-clamp and macropatch techniques, we compared the functional properties of the three NBCe1 variants (NBCe1-A, -B, and -C) with different amino and/or carboxy termini expressed in Xenopus laevis oocytes. Oocytes expressing rat brainNBCe1-B and exposed to a CO(2)/HCO(3)(-) solution displayed all the hallmarks of an electrogenic Na(+)/HCO(3)(-) cotransporter: (a) a DIDS-sensitive pH(i) recovery following the initial CO(2)-induced acidification, (b) an instantaneous hyperpolarization, and (c) an instantaneous Na(+)-dependent outward current under voltage-clamp conditions (-60 mV). All three variants had similar external HCO(3)(-) dependencies (apparent K(M) of 4-6 mM) and external Na(+) dependencies (apparent K(M) of 21-36 mM), as well as similar voltage dependencies. However, voltage-clamped oocytes (-60 mV) expressing NBCe1-A exhibited peak HCO(3)(-)-stimulated NBC currents that were 4.3-fold larger than the currents seen in oocytes expressing the most dissimilar C variant. Larger NBCe1-A currents were also observed in current-voltage relationships. Plasma membrane expression levels as assessed by single oocyte chemiluminescence with hemagglutinin-tagged NBCs were similar for the three variants. In whole-cell experiments (V(m) = -60 mV), removing the unique amino terminus of NBCe1-A reduced the mean HCO(3)(-)-induced NBC current 55%, whereas removing the different amino terminus of NBCe1-C increased the mean NBC current 2.7-fold. A similar pattern was observed in macropatch experiments. Thus, the unique amino terminus of NBCe1-A stimulates transporter activity, whereas the different amino terminus of the B and C variants inhibits activity. One or more cytosolic factors may also contribute to NBCe1 activity based on discrepancies between macropatch and whole-cell currents. While the amino termini influence transporter function, the carboxy termini influence plasma membrane expression. Removing the entire cytosolic carboxy terminus of NBCe1-C, or the different carboxy terminus of the A/B variants, causes a loss of NBC activity due to low expression at the plasma membrane.
???displayArticle.pubmedLink???
16735752
???displayArticle.pmcLink???PMC2151535 ???displayArticle.link???J Gen Physiol ???displayArticle.grants???[+]

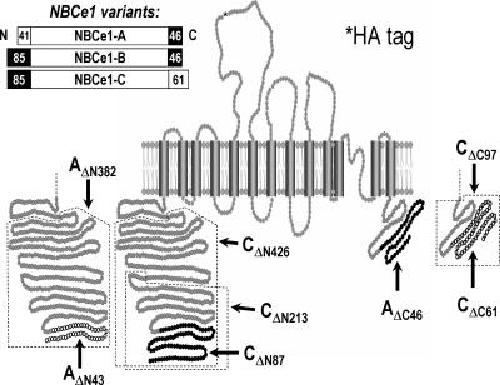

Figure 1. Wild-type and truncated rat NBCe1 variants. NBCe1-A, -B, and -C differ at the amino and/or carboxy termini. The putative membrane topology of NBCe1 is based on mapping of AE1 by Taylor et al. (2001). Truncations examined in this study include hemagglutinin (HA)-tagged NBCe1s with stretches of the cytoplasmic amino or carboxy terminus removed. (Inset, top left) At the amino terminus, NBCe1-A has 41 unique amino acids that differ from 85 amino acids in the B and C variants. At the carboxy terminus, NBCe1-C has 61 unique amino acids that differ from 46 amino acids in the A and B variants.

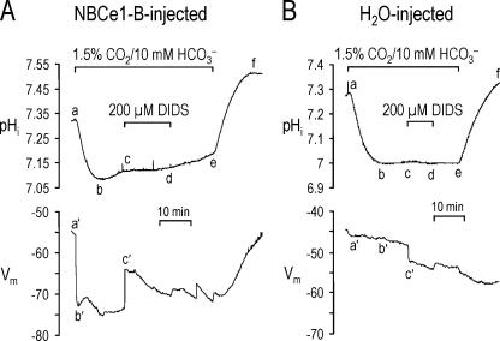

Figure 2. Activity of rat brain NBCe1-B expressed in an oocyte. (A) pHi (top trace) and voltage (bottom trace) were measured simultaneously in an NBCe1-Bâinjected oocyte that was initially bathed in a nominally HCO3â-free, HEPES-buffered solution. The oocyte was exposed to a solution containing 1.5% CO2/10 mM HCO3â during segment ae. Electrogenic NBC activity was evident from the instantaneous hyperpolarization (b'), and the pHi recovery (bc) following the initial CO2-induced acidification (ab). DIDS blocked the pHi recovery (cd), and partially reversed the hyperpolarization (c'). (B) The same experimental protocol in panel A was performed on an H2O-injected oocyte. Exposing the oocyte to CO2/HCO3â had no effect on Vm (a'b'), and elicited no pHi recovery (bc) following the initial decrease in pHi (ab). 200 μM DIDS generated only a small hyperpolarization (c').

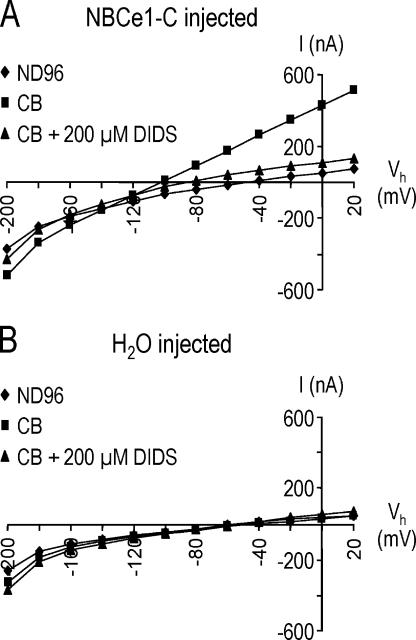

Figure 3. Currentâvoltage (I-V) relationship of NBCe1-C expressed in oocytes. (A) I-V plots were obtained from an NBCe1-Câexpressing oocyte initially bathed in ND96 (diamonds), followed by 10 min in 5% CO2/33 mM HCO3â (CB) (squares), and then after 2 min in the CO2/HCO3â solution containing 200 μM DIDS (triangles). (B) The same experimental protocol in A was performed on an H2O-injected oocyte.

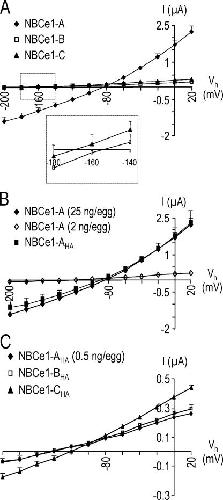

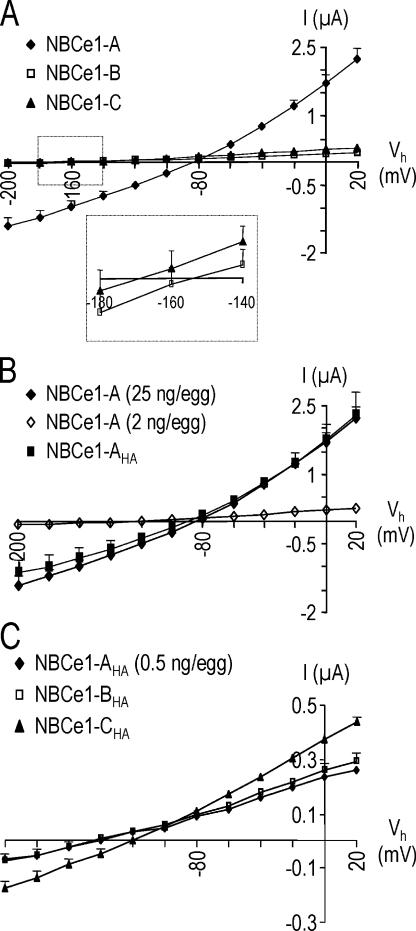

Figure 4. I-V relationships of the three NBCe1 variants. (A) HCO3â-dependent I-V plots were obtained from oocytes expressing NBCe1-A (closed diamonds), NBCe1-B (open squares), and NBCe1-C (closed triangles). For each data point, n ⥠11. (Inset) The I-V plots are magnified near the reversal potentials (IM = 0) for NBCe1-B and C. (B) HCO3â-dependent I-V plots from oocytes injected with 25 ng of NBCe1-A cRNA (closed diamonds, redrawn from A), 2 ng of NBCe1-A cRNA (open diamonds, n = 3), or 25 ng of HA-tagged NBCe1-AHA cRNA (closed squares, n = 6). (C) HCO3â-dependent I-V plots from oocytes injected with 0.5 ng of NBCe1-AHA cRNA (closed diamonds, n = 3), 25 ng of NBCe1-BHA cRNA (open squares, n = 4), or 25 ng of NBCe1-CHA cRNA (closed triangles, n = 4). Error bars smaller than symbols are not shown.

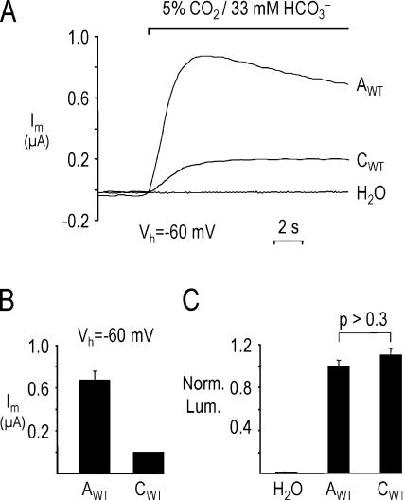

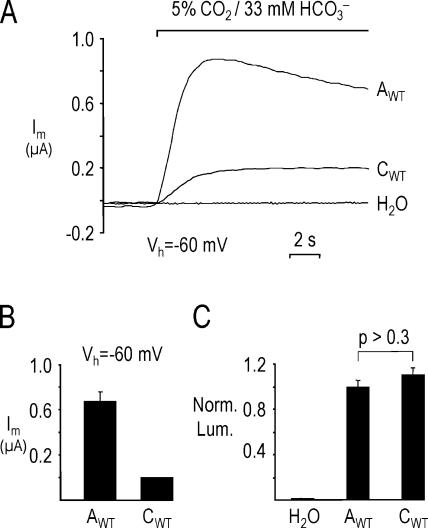

Figure 5. Larger HCO3â-induced currents in oocytes expressing NBCe1-A than NBCe1-C. (A) A 5% CO2/33 mM HCO3â solution elicited an outward current in the NBCe1-Aâexpressing oocyte (AWT) that was 4.5-fold higher than the current in the NBCe1-C-expressing oocyte (CWT). An H2O-injected oocyte displayed no HCO3â-induced outward current. (B) Summary of H2O-subtracted, HCO3â-induced currents from experiments similar to those shown in A. n ⥠7 from two batches of oocytes. (C) The mean normalized luminescence (Norm. Lum.) was similar for the A and C variants. n ⥠12 from two batches of oocytes.

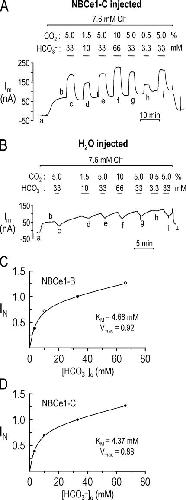

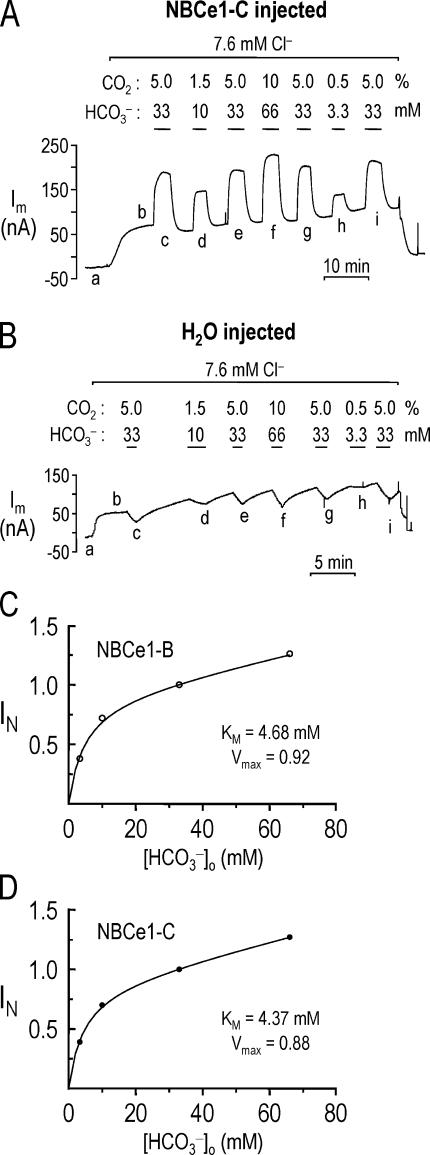

Figure 6. External HCO3â-dependencies of NBCe1-B and -C. (A) A voltage-clamped oocyte (Vh = â60 mV) expressing NBCe1-C was exposed to different HCO3â-containing solutions at a constant [Clâ] of 7.6 mM. (B) The experimental protocol used in A was performed on an H2O-injected oocyte. (C) Normalized HCO3â-induced currents as a function of external [HCO3â] for oocytes expressing NBCe1-B (r2 = 0.99). HCO3â-induced outward currents in experiments similar to that in A were normalized to the mean currents elicited by the flanking exposures to the standard 5% CO2/33 mM HCO3â solution. (D) Normalized HCO3â-induced currents as a function of external [HCO3â] for oocytes expressing NBCe1-C (r2 = 0.99).

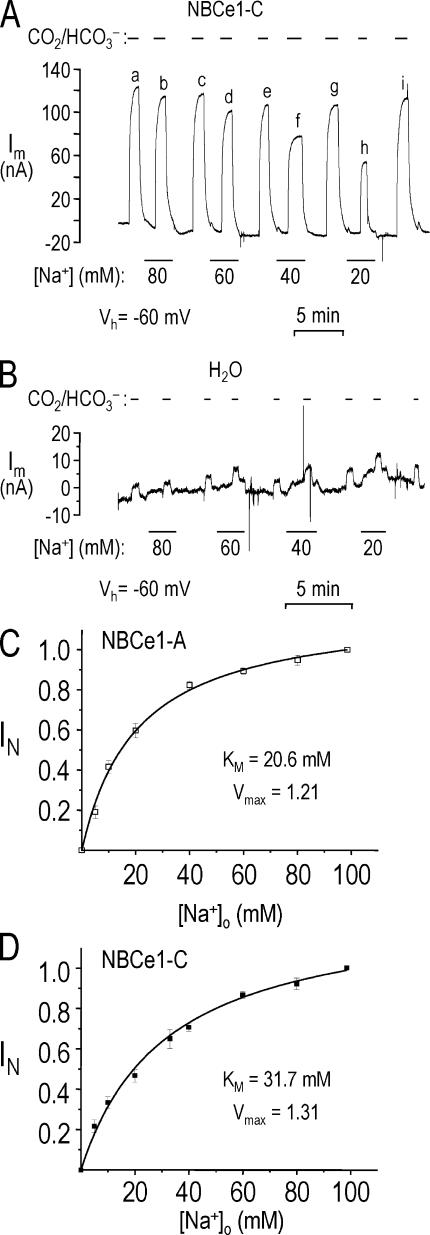

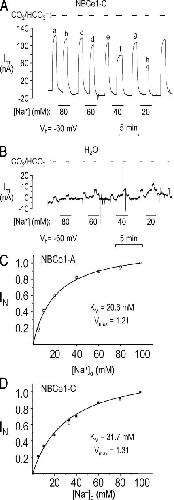

Figure 7. External Na+ dependencies of NBCe1-A and -C. (A) A voltage-clamped oocyte (Vh = â60 mV) expressing NBCe1-C was exposed to 5% CO2/33 mM HCO3â solutions containing different [Na+]s. (B) The experimental protocol used in A was performed on an H2O-injected oocyte. (C) Normalized HCO3â-induced currents as a function of external [Na+] for oocytes expressing NBCe1-A (r2 = 0.98). HCO3â-induced outward currents at different Na+ concentrations were normalized to the mean currents elicited by the flanking exposures to the 33 mM HCO3â solution containing âfullâ 98.5 mM Na+. (D) Normalized HCO3â-induced currents as a function of external [Na+] for oocytes expressing NBCe1-C (r2 = 0.97).

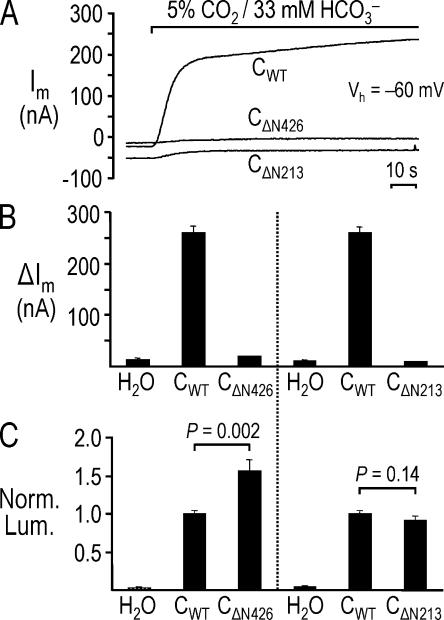

Figure 8. Inhibited NBCe1 activity elicited by removing regions of the cytosolic amino terminus. (A) Exposing oocytes to a solution containing 5% CO2/33 mM HCO3â elicited an outward current in the oocyte expressing wild-type NBCe1-C (CWT), but little/no current in the oocyte expressing either CÎN426 or CÎN213. (B) Summary of HCO3â-induced outward currents from experiments similar to those shown in A. For each bar, n ⥠3 from two batches of oocytes. SEM values for the CÎN426 or CÎN213 data are small. (C) Compared to the mean normalized luminescence (Norm. Lum.) for CWT, mean Norm. Lum. was 1.5-fold greater for CÎN426, and similar for CÎN213 in oocytes from the same two batches in B. n ⥠10 for each bar.

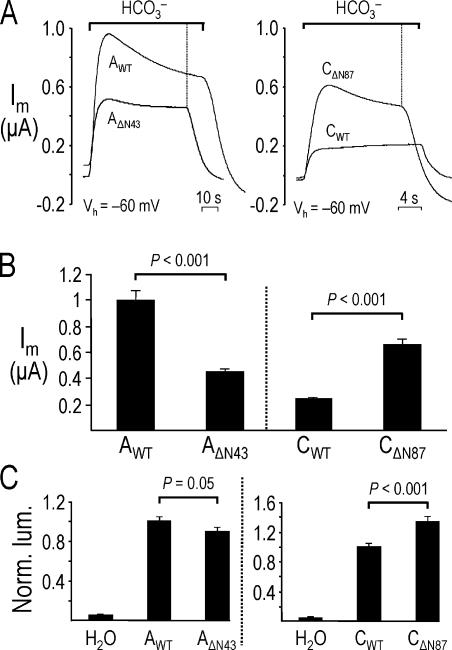

Figure 9. Changes in NBCe1 activity elicited by removing the different amino termini. (A, left) An oocyte expressing mutant AÎN43 displayed a peak HCO3â-induced outward current that was â¼50% smaller than seen in the oocyte expressing AWT. (A, right) An oocyte expressing mutant CÎN87 displayed a peak HCO3â-induced outward current that was approximately threefold larger than seen in the oocyte expressing CWT. (B) Summary of HCO3â-induced outward currents from experiments similar to those shown in A. n ⥠15 for each bar. (C, left) The mean normalized luminescence (Norm. Lum.) was 10% lower for AÎN43 compared with AWT. n ⥠19 for each bar. (C, right) The mean Norm. Lum. was 33% higher for CÎN87 compared with CWT. n ⥠23 for each bar.

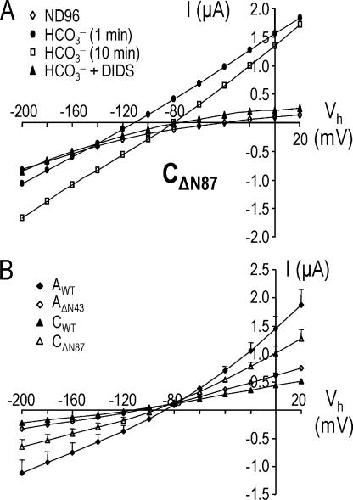

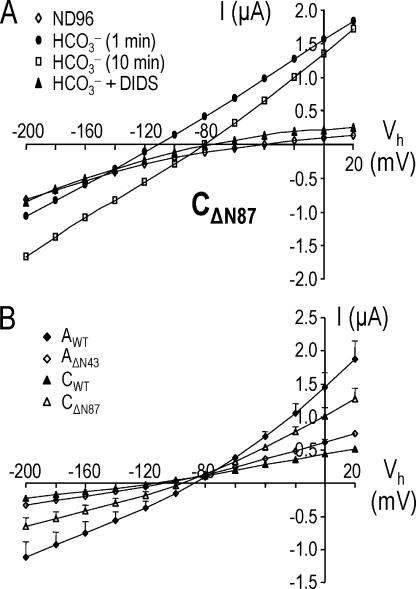

Figure 10. Currentâvoltage (I-V) relationships from oocytes expressing wild-type and amino-terminal truncations of NBCe1 variants. (A) Representative experiment on an oocyte expressing CÎN87 in which I-V plots were obtained with the oocyte initially bathed in ND96 (diamonds), followed by 1 min in 5% CO2/33 mM HCO3â (circles) and then 10 min in the physiological buffer (squares), and finally in the HCO3â solution containing 200 μM DIDS (triangles). (B) HCO3â-dependent I-V plots for NBCe1-A (closed diamonds), AÎN43 (open diamonds), NBCe1-C (closed triangles), and CÎN87 (open triangles). Data were obtained from experiments similar to that shown in A. n = 3 for each data point from a single batch of oocytes. SEM bars smaller than symbol sizes are not shown. Similar results were obtained from a second batch of oocytes.

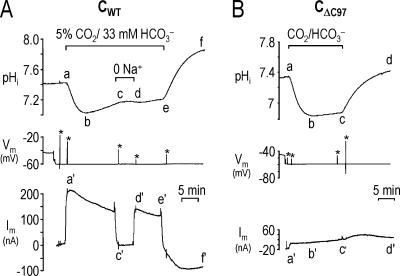

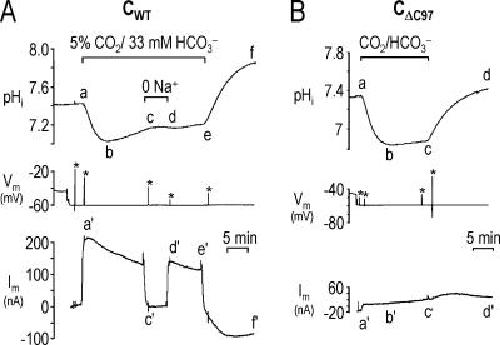

Figure 11. Lost activity of CÎC97 expressed in oocytes. (A) pHi (top trace), voltage (middle trace), and current (bottom trace) were measured simultaneously in an NBCe1-Câinjected oocyte that was initially bathed in ND96. The oocyte was then voltage clamped and exposed to a solution containing 5% CO2/33 mM HCO3â during segment ae. Electrogenic NBC activity was evident from the instantaneous outward current (a'), and the pHi recovery (bc) following the initial CO2-induced acidification (ab). Removing Na+ blocked the pHi recovery (cd), and reversed the hyperpolarization (c'). (B) The same experimental protocol in A was performed on a CÎC97-injected oocyte. Exposing the oocyte to CO2/HCO3â elicited only a small outward current (a'), and minimal pHi recovery (bc) following the initial decrease in pHi (ab).

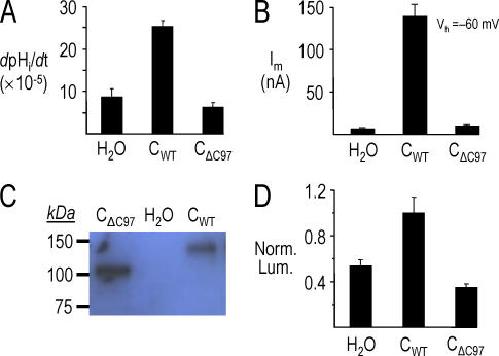

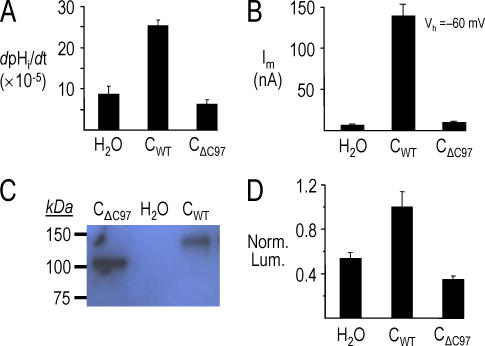

Figure 12. Lost activity of CÎC97 expressed in oocytes due to poor expression at the plasma membrane. (A) Summary data of the segment-bc pHi recovery rates from experiments similar to those shown in Fig. 11, top traces. n ⥠4 for each bar. (B) Summary of H2O-subtraced, HCO3â-induced currents from experiments similar to those shown in Fig. 11, bottom traces. For each bar, n ⥠6 from two batches. (C) Immunoblot analysis of total microsomal protein from single oocytes injected with H2O, CÎC97 cRNA, and CWT cRNA. An NBCe1 antibody labeled bands of the expected sizes: â¼130 kD for CWT and â¼118 kD for CÎC97. No labeling was observed in protein from an H2O-injected oocyte. (D) The mean normalized luminescence (Norm. Lum.) for oocytes injected with CÎC97 and H2O are similar. n ⥠10 from two batches of oocyte.

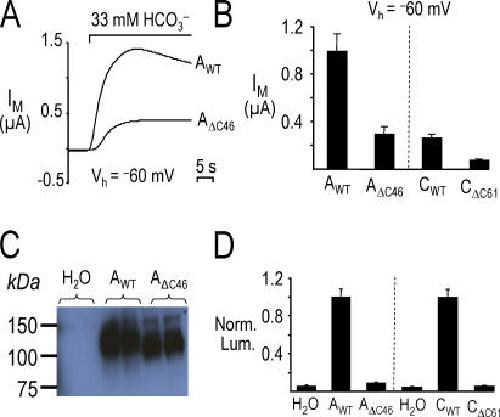

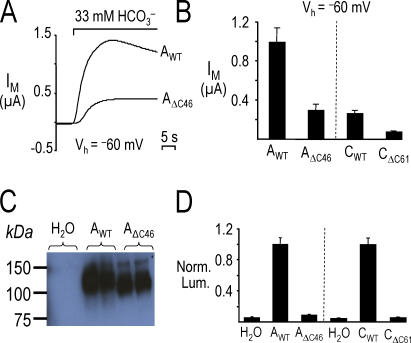

Figure 13. Reduced activity and low surface expression of AÎC46 and CÎC61 expressed in oocytes. (A) 5% CO2/33 mM HCO3â elicited an outward current in an oocyte expressing NBCe1-A (AWT) that was markedly larger than the current in the oocyte expressing AÎC46. (B) Summary of H2O-subtracted, HCO3â-induced currents from experiments similar to those shown in A. n ⥠6 for each bar from two batches of oocytes. (C) Immunoblot analysis of total microsomal protein from single oocytes injected with H2O, AWT cRNA, or AÎC46 cRNA. An NBCe1 antibody labeled bands of the expected sizes: â¼130 kD for AWT and â¼120 kD for AÎC46. (D) The mean normalized luminescence (Norm. Lum.) for oocytes expressing the truncated NBCs were markedly less than the Norm. Lum. for oocytes expressing the corresponding wild-type NBCs. n ⥠11 for each bar from two batches of oocytes.

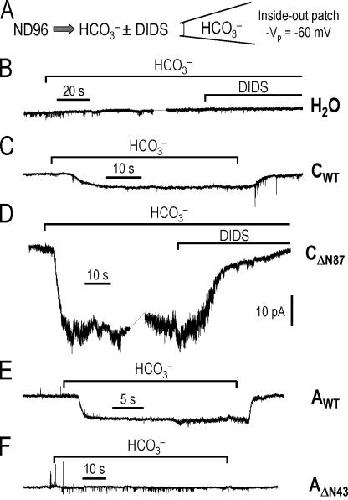

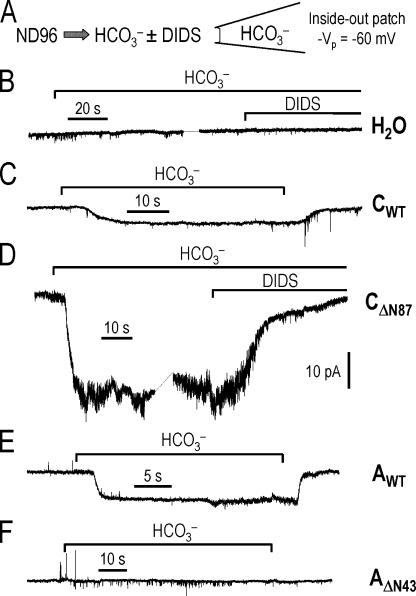

Figure 14. NBCe1 activity from inside-out macropatches excised from oocytes. (A) NBC-mediated inward currents were elicited by exposing patches to a low-Clâ, 5% CO2/33 mM HCO3â solution ± 200 μM DIDS with the patch pipette (âVp = â60 mV) containing the same low-Clâ, 33 mM HCO3â solution. (B) H2O-injected oocyte. The HCO3â solution without or with DIDS did not elicit any change in current. (C) CWT-injected oocyte. The HCO3â solution elicited a small inward current that was reversible when the patch was returned to ND96. (D) CÎN87-injected oocyte. The inward current elicited by the HCO3â solution was larger than the current seen in C, and completely inhibited by DIDS. (E) AWT-injected oocyte. The HCO3â solution elicited a small, reversible inward current. (F) AÎN43-injected oocyte. No change in current was observed when the patch was exposed to HCO3â.

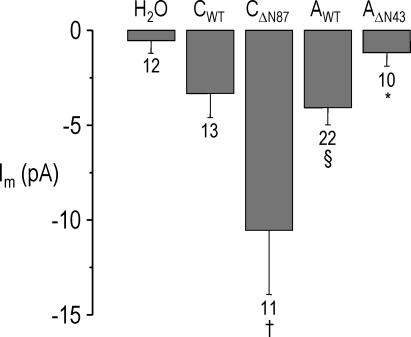

Figure 15. Summary macropatch data from experiments similar to those shown in Fig. 14 on oocytes injected with H2O, CWT, CÎN87, AWT, and AÎN43. The mean HCO3â-induced macropatch current for CÎN87 is 3.2-fold larger than the mean current for CWT (â , P = 0.03). The mean HCO3â-induced currents for AWT and CWT are similar (§, P = 0.32), and both are larger than the mean current seen in H2O-injected oocytes (P < 0.05). The mean current for AÎN43 is 71% smaller than that of AWT (*, P < 0.01). n values are shown under bars.
