Schulte R , Talamas J , Doucet C , Hetzer MW .

R01 GM073994 NIGMS NIH HHS , R01 GM073994-04 NIGMS NIH HHS

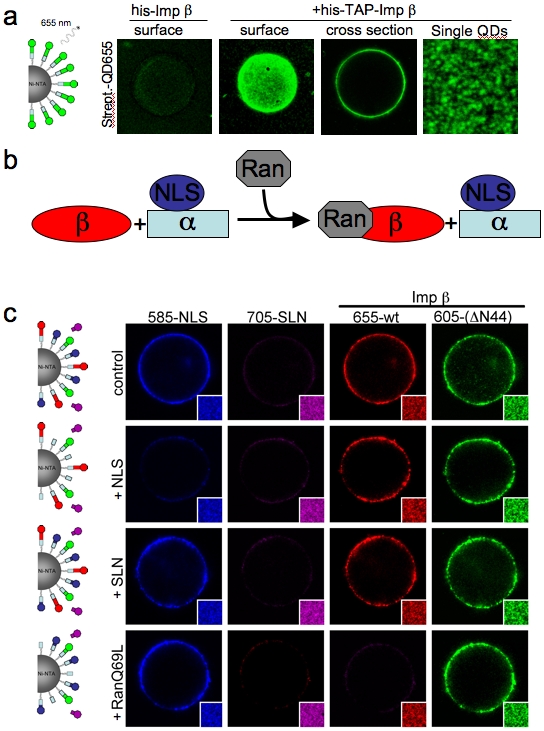

	Figure 1. Monitoring protein interactions on a single affinity chromatography bead.(A) 1 µM recombinant his-TAP-tagged Importin β(wt) was immobilized on 5 ul magnetic Ni-NTA beads for 20 min. After the addition of 5 nM CdSe-ZnS core shell QD655 beads were washed and isolated with a magnet. Beads were recovered in 2 ul PBS, mounted on a glass slide and the bead surface was imaged by confocal microscopy. (B) Schematic illustration of the RanGTP (gray) dissociation of Importin β (red) from Importin α (light blue). (c) QD585 cross-linked to NLS peptide (blue), QD705 cross-linked to reverse NLS (SLN) (magenta), streptavidin-coated QD655-TAP-Importin β(wt) (red) and streptavidin-coated QD605-TAP-Importin β(ΔN44) (green) were incubated with his-Importin α coated Ni-NTA beads in the presence of buffer (control), 20 mM NLS or SLN peptides or 10 mM RanQ69L.

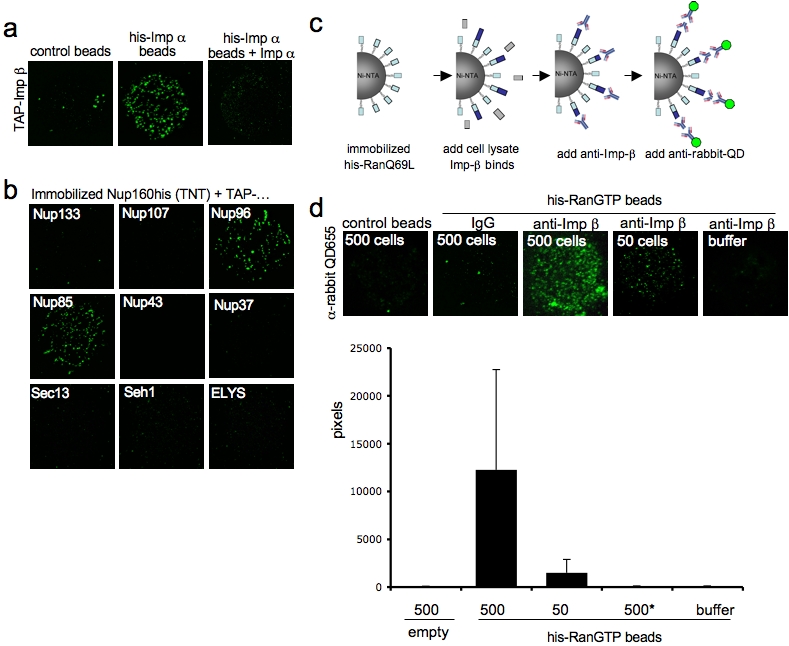

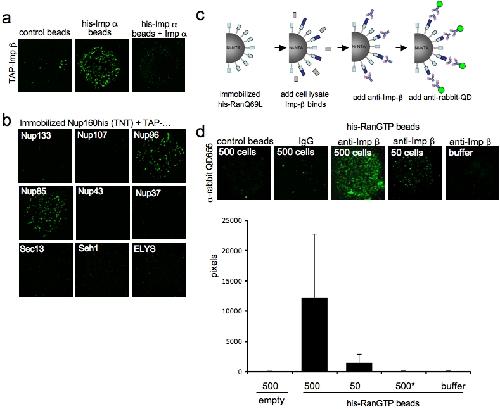

	Figure 2. Using SINBAD as pull-down method with increased sensitivity.(A) Approx. 10 Ni-NTA beads were incubated with reticulocyte lysates containing his-Importin α or his- Importin α together with in vitro translated TAP-Importin β(wt) in the presence or absence of excess Importin α. QD655 were added, beads were isolated and imaged. (B) his-Nup160 was translated in reticulocyte lysates and incubated with equal volume (2 ul) of in vitro translated Nup133-TAP, Nup107-TAP, Nup96-TAP, Nup85-TAP, Nup43-TAP, Nup37-TAP, Seh1-TAP, Sec13-TAP and ELYS-TAP for 30 min. Approx. 5 Ni-NTA beads were added together with streptavidin-coated QDs655 and imaged by confocal microscopy on the bead surface. (C) Schematic illustration of SINBAD for the pull-down of endogenous proteins. (D) Hypotonic cell lysates corresponding to 500 or 50 cells were incubated with Ni-NTA beads coated with his-RanQ69L. Bound endogenous Importin β was visualized as described in (C). (E) Random 10 µm2 areas were imaged and fluorescence intensity at 655 nm was plotted. n = 20.

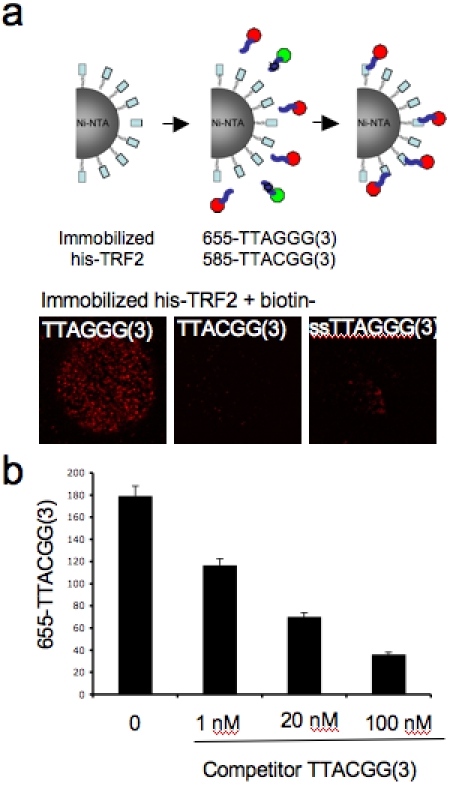

	Figure 3. SINBAD for the detection of protein-DNA interactions.(A) his-TRF2 was immobilized on Ni-NTA beads and incubated with hybridized 5′-biotinylated DNA oligos containing three repeats of TTAGGG (red), a mutant TTACGG or ssTTAGG as indicated. Bound DNA was visualized with streptavidin-coated QDs655. (B) <10 his-TRF2 Ni-NTA beads bound to wild-type telomere sequence were incubated with increasing concentrations of competitor DNA oligos. Fluorescence intensity of QD655 was determined from confocal images and plotted.

Anderson, Nuclear envelope formation by chromatin-mediated reorganization of the endoplasmic reticulum. 2007, Pubmed, Xenbase

Anderson, Nuclear envelope formation by chromatin-mediated reorganization of the endoplasmic reticulum. 2007, Pubmed , Xenbase
Bischoff, RanBP1 is crucial for the release of RanGTP from importin beta-related nuclear transport factors. 1997, Pubmed
Burbulis, Quantifying small numbers of antibodies with a 'near-universal' protein-DNA chimera. 2007, Pubmed
D'Angelo, Nuclear pores form de novo from both sides of the nuclear envelope. 2006, Pubmed , Xenbase
Franz, MEL-28/ELYS is required for the recruitment of nucleoporins to chromatin and postmitotic nuclear pore complex assembly. 2007, Pubmed , Xenbase
Georganopoulou, Nanoparticle-based detection in cerebral spinal fluid of a soluble pathogenic biomarker for Alzheimer's disease. 2005, Pubmed
Görlich, Transport between the cell nucleus and the cytoplasm. 1999, Pubmed
Görlich, Identification of different roles for RanGDP and RanGTP in nuclear protein import. 1996, Pubmed , Xenbase
Görlich, Nuclear protein import. 1997, Pubmed
Hetzer, Pushing the envelope: structure, function, and dynamics of the nuclear periphery. 2005, Pubmed
Lutzmann, Modular self-assembly of a Y-shaped multiprotein complex from seven nucleoporins. 2002, Pubmed
Michalet, Quantum dots for live cells, in vivo imaging, and diagnostics. 2005, Pubmed
Oh, A fluorophore-based bio-barcode amplification assay for proteins. 2006, Pubmed
Patel, Discovering novel interactions at the nuclear pore complex using bead halo: a rapid method for detecting molecular interactions of high and low affinity at equilibrium. 2008, Pubmed
Patolsky, Nanowire-based biosensors. 2006, Pubmed
Stansel, T-loop assembly in vitro involves binding of TRF2 near the 3' telomeric overhang. 2001, Pubmed
Walther, The conserved Nup107-160 complex is critical for nuclear pore complex assembly. 2003, Pubmed , Xenbase
Weis, Regulating access to the genome: nucleocytoplasmic transport throughout the cell cycle. 2003, Pubmed
Wente, Gatekeepers of the nucleus. 2000, Pubmed
Zhang, Homogenous rapid detection of nucleic acids using two-color quantum dots. 2006, Pubmed
