Nat Cell Biol
2009 May 01;115:652-8. doi: 10.1038/ncb1872.
Show Gene links
Show Anatomy links
Arginine methylation of Piwi proteins catalysed by dPRMT5 is required for Ago3 and Aub stability.
Kirino Y
,
Kim N
,
de Planell-Saguer M
,
Khandros E
,
Chiorean S
,
Klein PS
,
Rigoutsos I
,
Jongens TA
,
Mourelatos Z
.
???displayArticle.abstract??? Piwi family proteins are essential for germline development and bind piwi-interacting RNAs (piRNAs). The grandchildless gene aub of Drosophila melanogaster encodes the piRNA-binding protein Aubergine (Aub), which is essential for formation of primordial germ cells (PGCs). Here we report that Piwi family proteins of mouse, Xenopus laevis and Drosophila contain symmetrical dimethylarginines (sDMAs). We found that Piwi proteins are expressed in Xenopus oocytes and we identified numerous Xenopus piRNAs. We report that the Drosophila homologue of protein methyltransferase 5 (dPRMT5, csul/dart5), which is also the product of a grandchildless gene, is required for arginine methylation of Drosophila Piwi, Ago3 and Aub proteins in vivo. Loss of dPRMT5 activity led to a reduction in the levels of piRNAs, Ago3 and Aub proteins, and accumulation of retrotransposons in the Drosophila ovary. Our studies explain the relationship between aub and dPRMT5 (csul/dart5) genes by demonstrating that dPRMT5 is the enzyme that methylates Aub. Our findings underscore the significance of sDMA modification of Piwi proteins in the germline and suggest an interacting pathway of genes that are required for piRNA function and PGC specification.

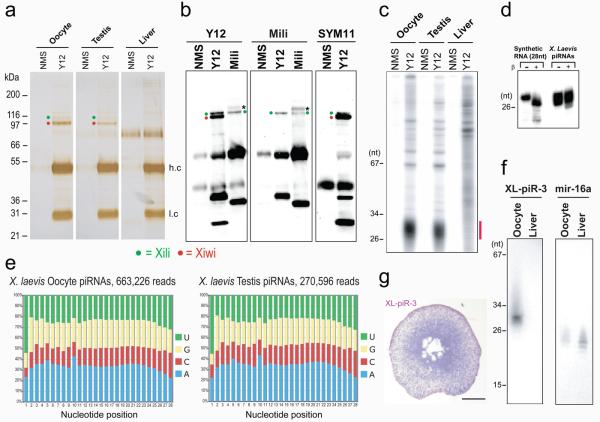

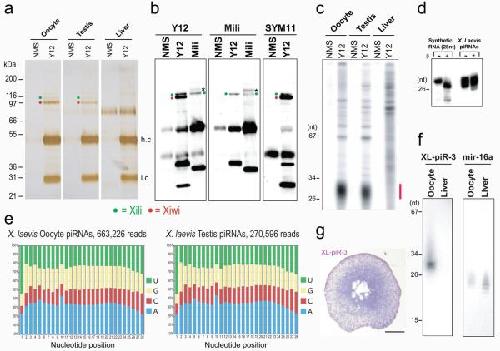

Figure 2. Xenopus laevis Piwi proteins with bound piRNAs are immunoprecipitated by Y12 and contain sDMAs(a) Protein immunoprecipitates from indicated X. laevis tissues; Xili and Xiwi were identified by mass spectrometry (Supplementary Table 3).(b) Immunoprecipitates from X. laevis oocytes were probed on Western blots with indicated antibodies. Band with asterisk is bovine IgG from tissue culture supernatant of anti-Mili hybridoma.(c) RNA-immunoprecipitations from X. laevis.(d) Periodate oxidation and β-elimination of X. laevis piRNAs isolated from Y12 immunoprecipitates.(e) Nucleotide composition of X. laevis piRNAs.(f) Northern blot for XL-piR-3(g) In situ hybridization for XL-piR-3 in X. laevis oocyte; bar = 100μm

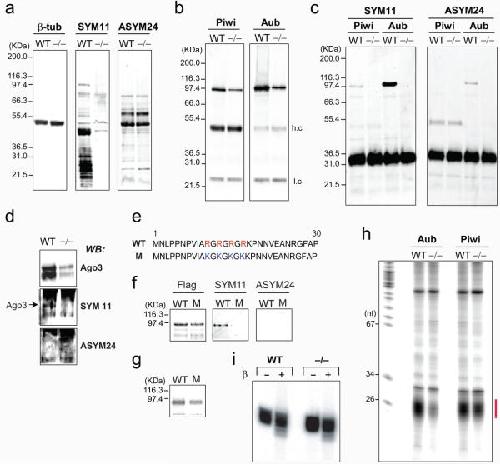

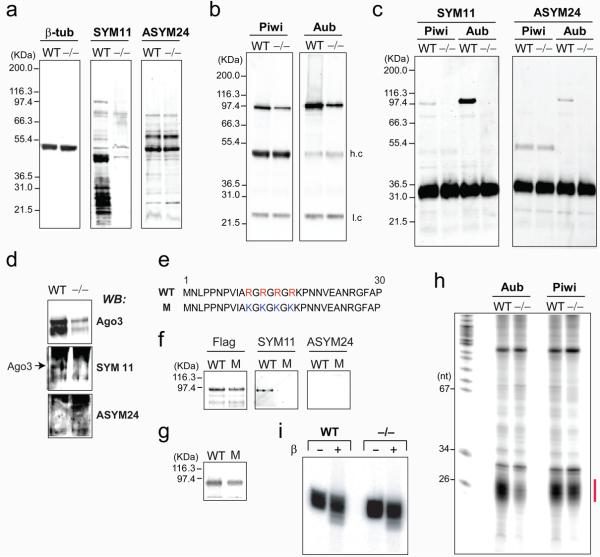

Figure 3. Drosophila PRMT5 (csul, dart5) is required for arginine methylation of Aub, Piwi and Ago3 proteins in ovaries(a) Western blots from wild-type (WT) or csul (dPRMT5) mutant (â/â) ovary. Piwi or Aub immunoprecipitates from ovary lysates were probed on western blots with anti-Piwi and anti-Aub antibody(b); or SYM11 and ASYM24 (c).(d) Ago3 immunoprecipitates from WT or csul mutant (â/â) ovary lysates were probed on Western blots (WB) with indicated antibodies.(e) Sequences of wild-type (WT) and mutant (M) Aub, where the four arginines that are substrates for methylation were substituted with lysines.(f) Anti-Flag immunoprecipitates of S2 cells stably transfected with WT or M Flag-Aub were probed on western blots with indicated antibodies.(g) Crosslinking of synthetic, radiolabeled piRNA to immunopurified WT or M Flag-Aub.(h) RNA immunoprecipitation.(i) Periodate oxidation and β-elimination of Drosophila piRNAs isolated from Piwi immunoprecipitates from wt or csul (â/â) mutant ovaries.

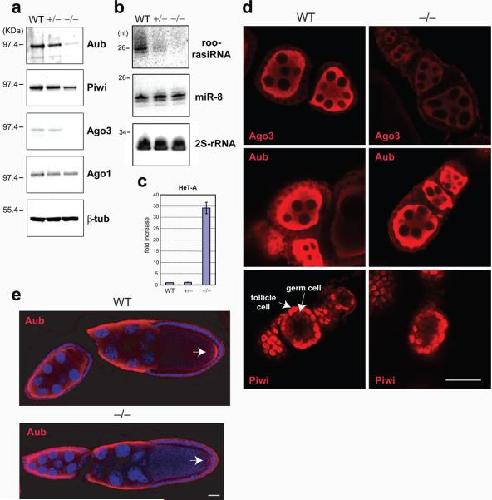

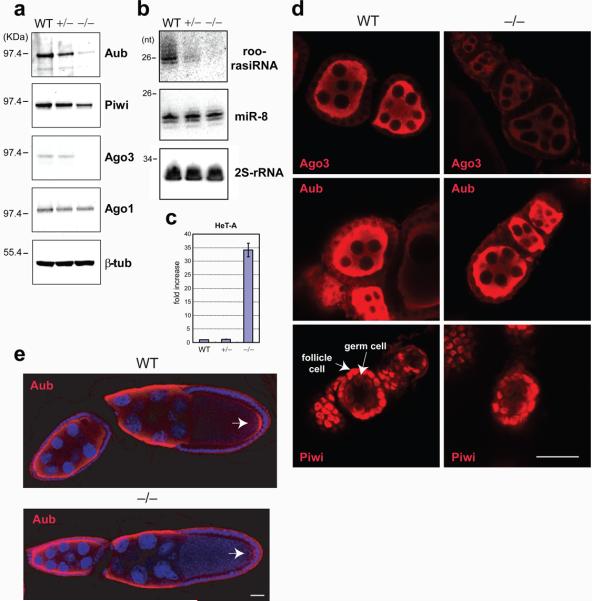

Figure 4. Reduction of Piwi proteins and piRNAs with accumulation of HeT-A retrotransposons and marked reduction of the Aub protein that localizes in the pole plasm, in the absence of dPRMT5 (csul) activity(a) Western blots of Drosophila ovary lysates from wild-type (wt), heterozygous (+/â) or homozygous (â/â) csul.(b) Northern blots of total RNA from indicated ovary lysates.(c) Fold changes of HeT-A retrotransposon transcripts in indicated ovaries assessed with qRT-PCR; n=3 and s.d. shown.(d) Ago 3, Aub and Piwi localization in indicated early stage egg chambers; bar = 15μm(e) Aub localization in indicated csul oocytes. Arrow indicates pole (germ) plasm; bar = 15μm

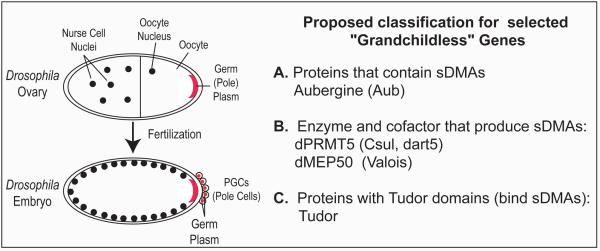

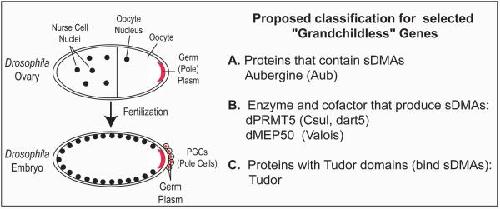

Figure 5. Proposed classification for selected Drosophila melanogaster grandchildless genes
Anne,
Valois, a component of the nuage and pole plasm, is involved in assembly of these structures, and binds to Tudor and the methyltransferase Capsuléen.
2005, Pubmed
Anne,
Valois, a component of the nuage and pole plasm, is involved in assembly of these structures, and binds to Tudor and the methyltransferase Capsuléen.
2005,
Pubmed
Anne,
Arginine methyltransferase Capsuleen is essential for methylation of spliceosomal Sm proteins and germ cell formation in Drosophila.
2007,
Pubmed
Aravin,
Developmentally regulated piRNA clusters implicate MILI in transposon control.
2007,
Pubmed
Aravin,
The small RNA profile during Drosophila melanogaster development.
2003,
Pubmed
Arkov,
The role of Tudor domains in germline development and polar granule architecture.
2006,
Pubmed
Bedford,
Arginine methylation an emerging regulator of protein function.
2005,
Pubmed
Boisvert,
A proteomic analysis of arginine-methylated protein complexes.
2003,
Pubmed
Boswell,
tudor, a gene required for assembly of the germ plasm in Drosophila melanogaster.
1985,
Pubmed
Bowes,
Xenbase: a Xenopus biology and genomics resource.
2008,
Pubmed
,
Xenbase
Brahms,
The C-terminal RG dipeptide repeats of the spliceosomal Sm proteins D1 and D3 contain symmetrical dimethylarginines, which form a major B-cell epitope for anti-Sm autoantibodies.
2000,
Pubmed
Brennecke,
Discrete small RNA-generating loci as master regulators of transposon activity in Drosophila.
2007,
Pubmed
Chuma,
Tdrd1/Mtr-1, a tudor-related gene, is essential for male germ-cell differentiation and nuage/germinal granule formation in mice.
2006,
Pubmed
Côté,
Tudor domains bind symmetrical dimethylated arginines.
2005,
Pubmed
Cox,
piwi encodes a nucleoplasmic factor whose activity modulates the number and division rate of germline stem cells.
2000,
Pubmed
Cox,
A novel class of evolutionarily conserved genes defined by piwi are essential for stem cell self-renewal.
1998,
Pubmed
Friesen,
The methylosome, a 20S complex containing JBP1 and pICln, produces dimethylarginine-modified Sm proteins.
2001,
Pubmed
Girard,
Conserved themes in small-RNA-mediated transposon control.
2008,
Pubmed
Gonsalvez,
Two distinct arginine methyltransferases are required for biogenesis of Sm-class ribonucleoproteins.
2007,
Pubmed
Gonsalvez,
Sm protein methylation is dispensable for snRNP assembly in Drosophila melanogaster.
2008,
Pubmed
Gonsalvez,
The Sm-protein methyltransferase, dart5, is essential for germ-cell specification and maintenance.
2006,
Pubmed
Gunawardane,
A slicer-mediated mechanism for repeat-associated siRNA 5' end formation in Drosophila.
2007,
Pubmed
Harris,
Aubergine encodes a Drosophila polar granule component required for pole cell formation and related to eIF2C.
2001,
Pubmed
Hartig,
piRNAs--the ancient hunters of genome invaders.
2007,
Pubmed
Horwich,
The Drosophila RNA methyltransferase, DmHen1, modifies germline piRNAs and single-stranded siRNAs in RISC.
2007,
Pubmed
Houwing,
A role for Piwi and piRNAs in germ cell maintenance and transposon silencing in Zebrafish.
2007,
Pubmed
Kim,
Small RNAs just got bigger: Piwi-interacting RNAs (piRNAs) in mammalian testes.
2006,
Pubmed
Kirino,
Mouse Piwi-interacting RNAs are 2'-O-methylated at their 3' termini.
2007,
Pubmed
Krause,
Protein arginine methyltransferases: evolution and assessment of their pharmacological and therapeutic potential.
2007,
Pubmed
Lerner,
Monoclonal antibodies to nucleic acid-containing cellular constituents: probes for molecular biology and autoimmune disease.
1981,
Pubmed
,
Xenbase
Lim,
Unique germ-line organelle, nuage, functions to repress selfish genetic elements in Drosophila melanogaster.
2007,
Pubmed
Meister,
Methylation of Sm proteins by a complex containing PRMT5 and the putative U snRNP assembly factor pICln.
2001,
Pubmed
,
Xenbase
O'Donnell,
Mighty Piwis defend the germline against genome intruders.
2007,
Pubmed
Ohara,
The 3' termini of mouse Piwi-interacting RNAs are 2'-O-methylated.
2007,
Pubmed
Saito,
Pimet, the Drosophila homolog of HEN1, mediates 2'-O-methylation of Piwi- interacting RNAs at their 3' ends.
2007,
Pubmed
Sarot,
Evidence for a piwi-dependent RNA silencing of the gypsy endogenous retrovirus by the Drosophila melanogaster flamenco gene.
2004,
Pubmed
Savitsky,
Telomere elongation is under the control of the RNAi-based mechanism in the Drosophila germline.
2006,
Pubmed
Selenko,
SMN tudor domain structure and its interaction with the Sm proteins.
2001,
Pubmed
Siomi,
How selfish retrotransposons are silenced in Drosophila germline and somatic cells.
2008,
Pubmed
Strome,
Germ versus soma decisions: lessons from flies and worms.
2007,
Pubmed
Vagin,
A distinct small RNA pathway silences selfish genetic elements in the germline.
2006,
Pubmed
