Tan YP , Li S , Jiang XJ , Loh W , Foo YK , Loh CB , Xu Q , Yuen WH , Jones M , Fu J , Venkatesh B , Yu WP .

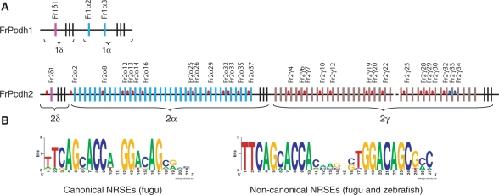

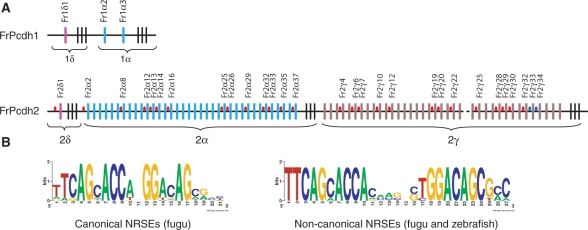

	Figure 1. NRSEs in fugu protocadherin clusters. (A) Fugu protocadherin clusters. Colored vertical bars represent individual variable exons, whereas the black vertical bars at the 3′-end of each subcluster represent the constant exons. Red and blue ovals in the intergenic regions represent canonical and non-canonical NRSEs, respectively. The dotted line in the fugu Pcdh2 cluster indicates an undetermined sequence gap. Fr: Fugu rubripes. (B) WebLogo display of the consensus sequence of canonical (left panel) and non-canonical (right panel) NRSEs. Note: the non-canonical NRSE consensus is a combination of both fugu and zebrafish elements.

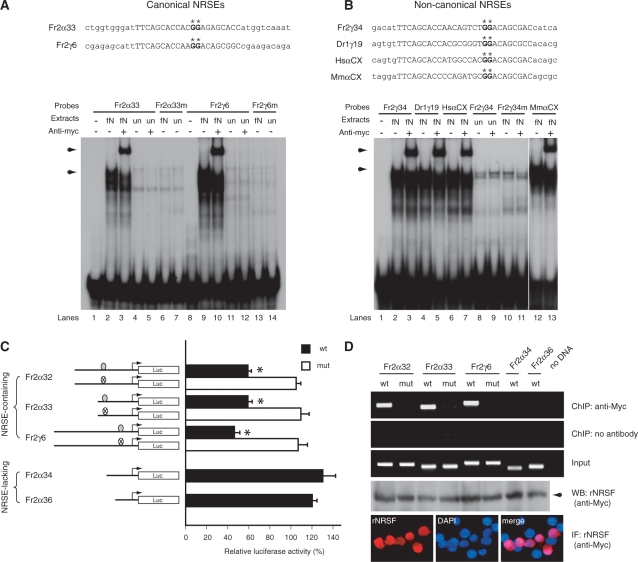

	Figure 2. Functional assay of NRSEs in the fugu protocadherin cluster. EMSA for canonical (A) and non-canonical (B) NRSEs. The NRSE sequences are indicated by upper-case letters whereas the flanking sequences are indicated by lower-case letters. The asterisks indicate the critical guanine dinucleotide that was mutated to adenine nucleotides in NRSE mutants. Arrows in the autoradiography indicate the protein–oligonucleotide complex of the full-length fugu NRSF/REST (A: lanes 2 and 9; B: lanes 2, 4, 6 and 12), or the super-shifted complex in the presence of the anti-Myc antibodies (A: lanes 3 and 10; B: lanes 3, 5, 7 and 13). fN: nuclear extracts from pCMVmyc-fNRSF-transfected HEK293 cells; un: nuclear extracts from mock (pCMVmyc) transfected HEK293 cells. Fr2α33m, Fr2γ6m and Fr2γ34m represent the corresponding mutant NRSE oligonucleotides of Fr2α33, Fr2γ6 and Fr2γ34, respectively. HsαCX and MmαCX represent the NRSEs located in the constant regions of the human and mouse protocadherin α clusters. (C) Relative luciferase activity of Neuro2A stable cell lines harboring individual fugu protocadherin promoter-luciferase reporter cassettes. The solid bars represent the wild-type fugu protocadherin promoters, whereas the open boxes represent the mutant forms. The relative luciferase activity was calculated by the activity of the pCMVmyc-rNRSF-transfected cells over the mock plasmid transfected cells after normalization for the protein concentration. (D) ChIP assay showing that the ectopically-expressed NRSF/REST binds to the wild-type NRSE-containing promoters (Fr2α32, Fr2α33 and Fr2γ6), but not the mutant (Fr2α32mut, Fr2α33mut and Fr2γ6mut) or NRSE-lacking (Fr2α34 and Fr2α36) promoters. The expression of rat NRSF/REST was confirmed by western blot and immunostaining with anti-Myc antibody.

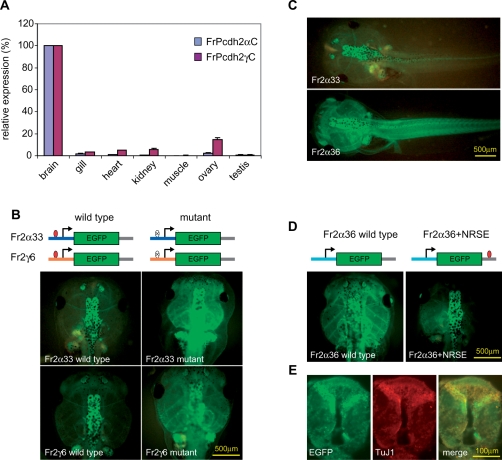

	Figure 3. NRSEs are responsible for the neuronal specificity of fugu protocadherin promoters. (A) The expression profile of fugu Pcdh2α and Pcdh2γ subcluster genes determined by real-time RT-PCR. The relative protocadherin expression level in each tissue is displayed as a percentage of the expression level in the brain after normalization by actin expression. (B) NRSE-containing protocadherin promoters: red ovals represent the wild-type NRSE, whereas blank ovals with a cross represent the mutant NRSEs. Images of transgenic tadpoles (9–10 days post-fertilization) harboring the wild-type (left panels) and mutant (right panels) protocadherin promoter-EGFP constructs. Upper panels: Fr2α33-EGFP; lower panels: Fr2γ6-EGFP. (C) Comparison of the NRSE-containing and NRSE-lacking protocadherin promoters: the whole body images of transgenic tadpoles (9–10 days post-fertilization) harboring a fugu NRSE-containing (Fr2α33, upper panel) or an NRSE-lacking (Fr2α36, lower panel) protocadherin promoter-EGFP showing that the NRSE-containing promoter directs EGFP expression specifically to the nervous system, whereas the NRSE-lacking promoter directs the transgene expression to both neuronal and non-neuronal tissues. (D) NRSE-lacking protocadherin promoters: images of transgenic tadpoles harboring NRSE-lacking Fr2α36-EGFP transgene in the absence (left panel) and presence (right panel) of an NRSE inserted at the 3′-end of EGFP coding sequence. (E) The transverse section of the brain/spinal cord region of transgenic tadpole harboring the Fr2α33-EGFP showing that the EGFP expression is predominantly neuronal. Left panel: EGFP florescence image; Middle panel: anti-neuron-specific tubulin βIII (TuJ1); Right panel: merged.

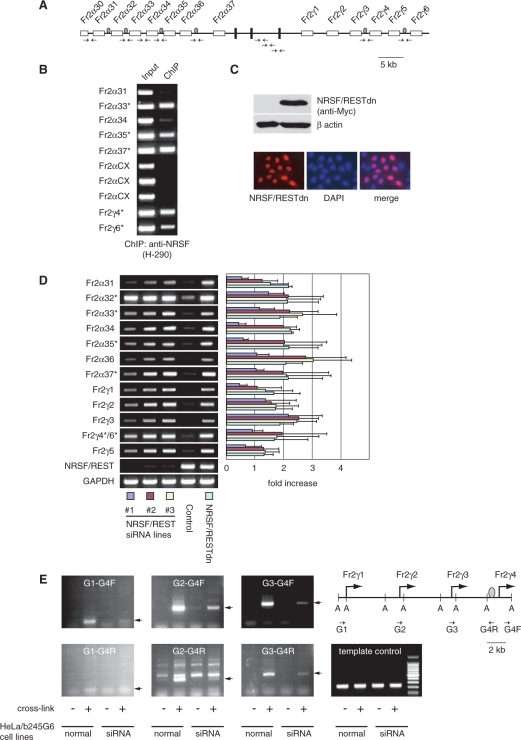

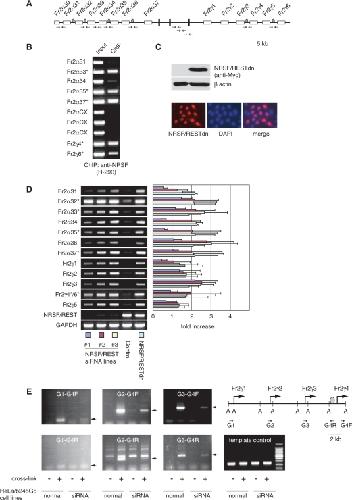

	Figure 4. NRSE regulates protocadherin promoter activity in the multi-gene cluster context. (A) Genomic organization of fugu BAC clone b245G6. Shaded ovals indicate the NRSEs, whereas open boxes and solid vertical bars indicate the variable and constant exons, respectively. The position of PCR primer pairs is shown by arrows. (B) ChIP assay of NRSE occupancy in b245G6-stably-transfected HeLa cells showing that NRSF/REST binds to NRSEs in fugu protocadherin cluster in vivo. Asterisks indicate NRSE-containing protocadherin genes. Input: genomic DNA of the b245G6-stably-transfected HeLa cells. (C) Characterization of the dominant-negative isoform of NRSF/REST (NRSF/RESTdn) in HeLa cells, showing that similar to the full-length NRSF/REST, the NRSF/RESTdn is predominantly expressed in nucleus. (D) Relative expression levels of fugu protocadherin genes in the NRSF/REST knock-down and NRSF/RESTdn-transfected cells. The data shown here (right panel) is average of three independent experiments. Asterisks indicate NRSE-containing protocadherin genes. Primers used for the ChIP assay and the RT-PCR analysis are listed in Supplementary Table S3. (E) Chromosomal spatial organization analysis by 3C assay showing that the promoter regions of Fr2γ1-3 are in proximity to the NRSE of Fr2γ4 in b245G6-stably-transfected HeLa cells. The AseI sites flanking the promoter region are indicated by ‘A’. DNA fragments corresponding to specific PCR products resulting from ligation of the sequence flanking the NRSE and the respective promoter sequences are indicated by arrows (panels 1–6). A fragment of the intergenic region of Fr2γ4 flanking the NRSE site (within the AseI fragment) was amplified by PCR with the Fr2γ4 primers (Supplementary Table S3) to confirm that equal amounts of DNA were used as template (last panel).

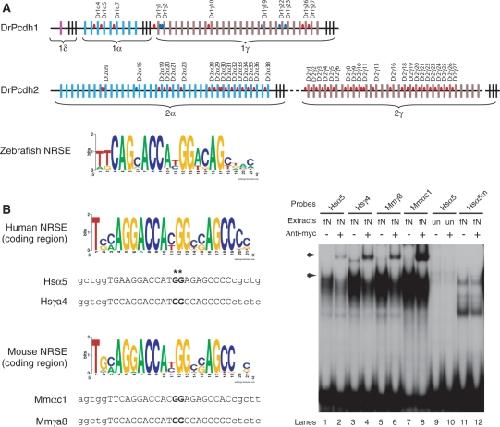

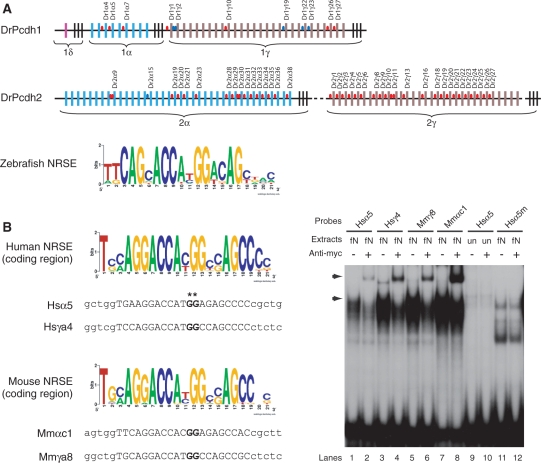

	Figure 5. NRSEs in the protocadherin clusters of zebrafish, human and mouse. (A) Zebrafish protocadherin clusters. The color vertical bars represent individual variable exons, whereas the black vertical bars at the 3′ end of each subcluster represent the constant exons. Red and blue ovals in the intergenic regions of the zebrafish clusters represent the canonical and non-canonical NRSEs, respectively. The dotted lines in the Pcdh2 cluster indicate undetermined sequence gaps. The consensus sequence of zebrafish canonical NRSEs is displayed as a WebLogo plot. Dr: Danio rerio. (B) EMSA for NRSEs located in the protein-coding sequence of human and mouse protocadherin clusters. The consensus sequences are displayed as WebLogo plots. Upper-case letters represent the NRSE sequence, and the lower-case letters represent the flanking sequences. The asterisks indicate the guanine dinucleotide which was mutated to adenine dinucleotide in NRSE mutants. Hsα5m represents the mutant NRSE in the protein-coding sequence of the Hsα5. Hs: Homo sapiens, Mm: Mus muscus. Autoradiography of EMSA: arrows indicate the protein–oligonucleotide complex of the full-length fugu NRSF/REST (lanes 1, 3, 5 and 7) or the super-shifted complex in the presence of the anti-Myc antibodies (lanes 2, 4, 6 and 8). fN: nuclear extracts from pCMVmyc-fNRSF-transfected HEK293 cells; un: nuclear extracts from mock (pCMVmyc) transfected HEK293 cells.

Andrés, CoREST: a functional corepressor required for regulation of neural-specific gene expression. 1999, Pubmed

Andrés, CoREST: a functional corepressor required for regulation of neural-specific gene expression. 1999, Pubmed
Aparicio, Whole-genome shotgun assembly and analysis of the genome of Fugu rubripes. 2002, Pubmed
Bailey, Fitting a mixture model by expectation maximization to discover motifs in biopolymers. 1994, Pubmed
Blank, Alpha-protocadherins are presynaptic and axonal in nicotinic pathways. 2004, Pubmed
Bruce, Genome-wide analysis of repressor element 1 silencing transcription factor/neuron-restrictive silencing factor (REST/NRSF) target genes. 2004, Pubmed
Chong, REST: a mammalian silencer protein that restricts sodium channel gene expression to neurons. 1995, Pubmed
De Gois, Is RE1/NRSE a common cis-regulatory sequence for ChAT and VAChT genes? 2000, Pubmed
Dekker, Capturing chromosome conformation. 2002, Pubmed
Esumi, Monoallelic yet combinatorial expression of variable exons of the protocadherin-alpha gene cluster in single neurons. 2005, Pubmed
Frank, Differential expression of individual gamma-protocadherins during mouse brain development. 2005, Pubmed
Halbleib, Cadherins in development: cell adhesion, sorting, and tissue morphogenesis. 2006, Pubmed
Hasegawa, The protocadherin-alpha family is involved in axonal coalescence of olfactory sensory neurons into glomeruli of the olfactory bulb in mouse. 2008, Pubmed
Huang, Transcriptional repression by REST: recruitment of Sin3A and histone deacetylase to neuronal genes. 1999, Pubmed
Jiang, Identification and comparative analysis of the protocadherin cluster in a reptile, the green anole lizard. 2009, Pubmed
Johnson, Genome-wide mapping of in vivo protein-DNA interactions. 2007, Pubmed
Kallunki, Tissue-specific expression of the L1 cell adhesion molecule is modulated by the neural restrictive silencer element. 1997, Pubmed
Kaneko, Allelic gene regulation of Pcdh-alpha and Pcdh-gamma clusters involving both monoallelic and biallelic expression in single Purkinje cells. 2006, Pubmed
Katori, Protocadherin-alpha family is required for serotonergic projections to appropriately innervate target brain areas. 2009, Pubmed
Kemp, NRSF/REST confers transcriptional repression of the GPR10 gene via a putative NRSE/RE-1 located in the 5' promoter region. 2002, Pubmed
Kemp, Regulation of Pax4 paired homeodomain gene by neuron-restrictive silencer factor. 2003, Pubmed
Kohmura, Diversity revealed by a novel family of cadherins expressed in neurons at a synaptic complex. 1998, Pubmed
Kraner, Silencing the type II sodium channel gene: a model for neural-specific gene regulation. 1992, Pubmed
Mahajan, Control of beta globin genes. 2007, Pubmed
Mori, A common silencer element in the SCG10 and type II Na+ channel genes binds a factor present in nonneuronal cells but not in neuronal cells. 1992, Pubmed
Morishita, CNR/Pcdhalpha family in subplate neurons, and developing cortical connectivity. 2004, Pubmed
Mortazavi, Comparative genomics modeling of the NRSF/REST repressor network: from single conserved sites to genome-wide repertoire. 2006, Pubmed
Mu, Transcriptional regulation of GABAA receptor gamma2 subunit gene. 1999, Pubmed
Muyrers, Rapid modification of bacterial artificial chromosomes by ET-recombination. 1999, Pubmed
Naruse, Neural restrictive silencer factor recruits mSin3 and histone deacetylase complex to repress neuron-specific target genes. 1999, Pubmed
Nguyen, Prominent roles for odorant receptor coding sequences in allelic exclusion. 2007, Pubmed
Noonan, Coelacanth genome sequence reveals the evolutionary history of vertebrate genes. 2004, Pubmed
Noonan, Gene conversion and the evolution of protocadherin gene cluster diversity. 2004, Pubmed
Otto, A new binding motif for the transcriptional repressor REST uncovers large gene networks devoted to neuronal functions. 2007, Pubmed
Patel, Regulation of tryptophan hydroxylase-2 gene expression by a bipartite RE-1 silencer of transcription/neuron restrictive silencing factor (REST/NRSF) binding motif. 2007, Pubmed
Phillips, Gamma-protocadherins are targeted to subsets of synapses and intracellular organelles in neurons. 2003, Pubmed
Ribich, Identification of long-range regulatory elements in the protocadherin-alpha gene cluster. 2006, Pubmed
Roopra, Transcriptional repression by neuron-restrictive silencer factor is mediated via the Sin3-histone deacetylase complex. 2000, Pubmed
Schoenherr, The neuron-restrictive silencer factor (NRSF): a coordinate repressor of multiple neuron-specific genes. 1995, Pubmed
Schug, Using TESS to predict transcription factor binding sites in DNA sequence. 2008, Pubmed
Shapiro, The diversity of cadherins and implications for a synaptic adhesive code in the CNS. 1999, Pubmed
Simonis, An evaluation of 3C-based methods to capture DNA interactions. 2007, Pubmed
Smith, Xenopus laevis transgenesis by sperm nuclear injection. 2006, Pubmed , Xenbase
Sparrow, A simplified method of generating transgenic Xenopus. 2000, Pubmed , Xenbase
Spitz, A global control region defines a chromosomal regulatory landscape containing the HoxD cluster. 2003, Pubmed
Splinter, 3C technology: analyzing the spatial organization of genomic loci in vivo. 2004, Pubmed
Stapleton, Compact intergenic regions of the pufferfish genome facilitate isolation of gene promoters: characterization of Fugu 3'-phosphoadenosine 5'-phosphosulfate synthase 2 (fPapss2) gene promoter function in transgenic Xenopus. 2004, Pubmed , Xenbase
Sugino, Genomic organization of the family of CNR cadherin genes in mice and humans. 2000, Pubmed
Tada, Genomic organization and transcripts of the zebrafish Protocadherin genes. 2004, Pubmed
Takeichi, The cadherin superfamily in neuronal connections and interactions. 2007, Pubmed
Tasic, Promoter choice determines splice site selection in protocadherin alpha and gamma pre-mRNA splicing. 2002, Pubmed
Uvarov, Neuronal K+/Cl- co-transporter (KCC2) transgenes lacking neurone restrictive silencer element recapitulate CNS neurone-specific expression and developmental up-regulation of endogenous KCC2 gene. 2005, Pubmed
Vanhalst, The human and murine protocadherin-beta one-exon gene families show high evolutionary conservation, despite the difference in gene number. 2001, Pubmed
Wang, Molecular mechanisms governing Pcdh-gamma gene expression: evidence for a multiple promoter and cis-alternative splicing model. 2002, Pubmed
Wang, Gamma protocadherins are required for survival of spinal interneurons. 2002, Pubmed
Weiner, Gamma protocadherins are required for synaptic development in the spinal cord. 2005, Pubmed
Wu, A striking organization of a large family of human neural cadherin-like cell adhesion genes. 1999, Pubmed
Wu, Comparative genomics and diversifying selection of the clustered vertebrate protocadherin genes. 2005, Pubmed
Wu, Comparative DNA sequence analysis of mouse and human protocadherin gene clusters. 2001, Pubmed
Yagi, Cadherin superfamily genes: functions, genomic organization, and neurologic diversity. 2000, Pubmed
Yu, Sequencing and comparative analysis of fugu protocadherin clusters reveal diversity of protocadherin genes among teleosts. 2007, Pubmed
Yu, Elephant shark sequence reveals unique insights into the evolutionary history of vertebrate genes: A comparative analysis of the protocadherin cluster. 2008, Pubmed , Xenbase
Zhang, The regulation of retina specific expression of rhodopsin gene in vertebrates. 2003, Pubmed , Xenbase
Zou, Sequence analysis and expression mapping of the rat clustered protocadherin gene repertoires. 2007, Pubmed
