Jansen EJ , van Bakel NH , Olde Loohuis NF , Hafmans TG , Arentsen T , Coenen AJ , Scheenen WJ , Martens GJ .

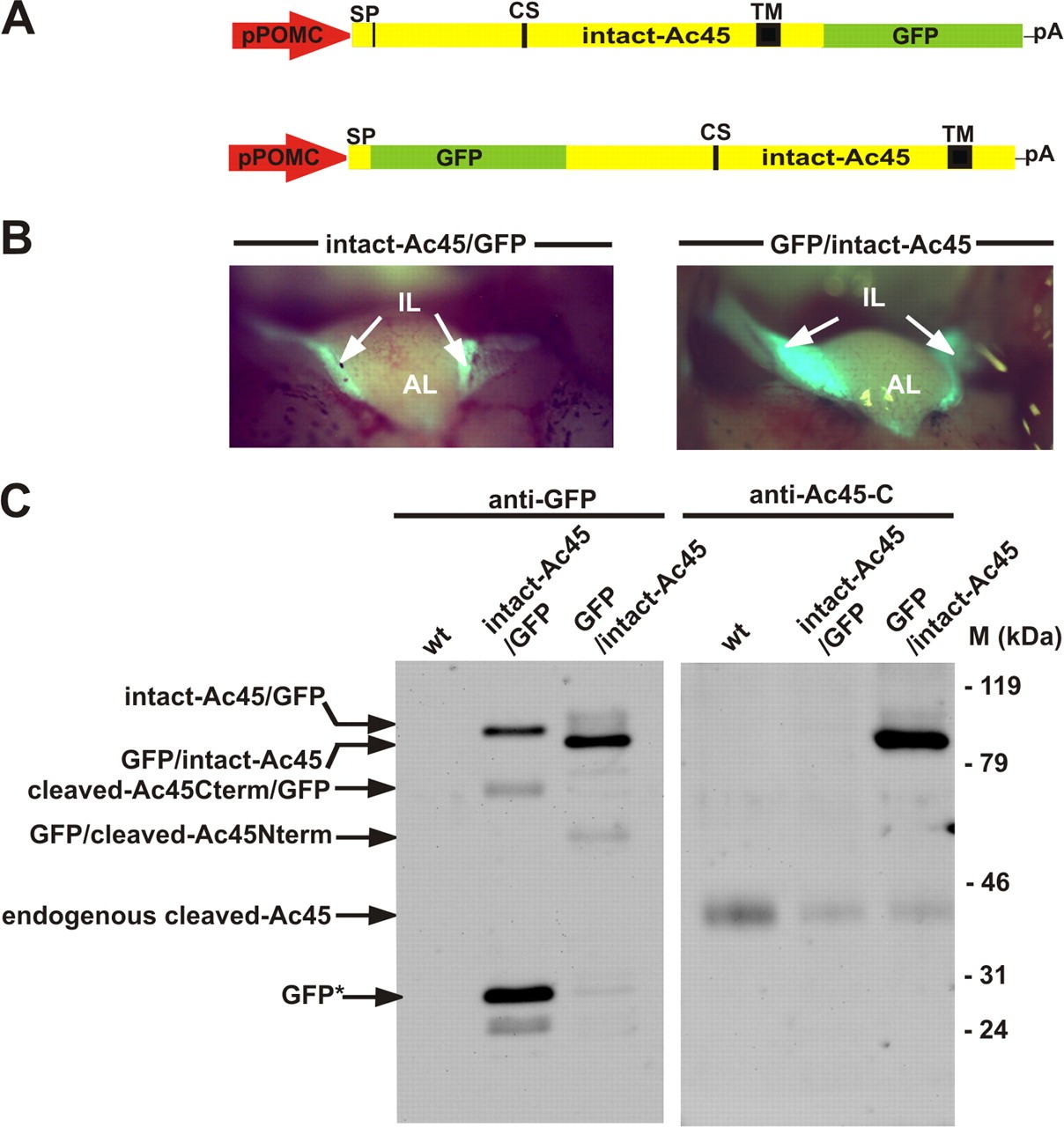

	FIGURE 1. C-terminal fusion of GFP to Ac45 interferes with C-terminal antibody recognition. A, transgenes used to generate transgenic Xenopus with expression of intact-Ac45 C- or N-terminally fused to GFP specifically in the intermediate pituitary melanotrope cells. B, direct GFP fluorescence was observed only in the IL and not in the AL of the pituitary. C, intact-Ac45/GFP fusion protein was recognized by the anti-GFP antibody but not by the anti-Ac45-C antibody. The GFP/intact-Ac45 fusion protein was recognized by both antibodies. SP, signal peptide; CS, cleavage site; TM, transmembrane domain; pA, SV40 polyadenylation site.

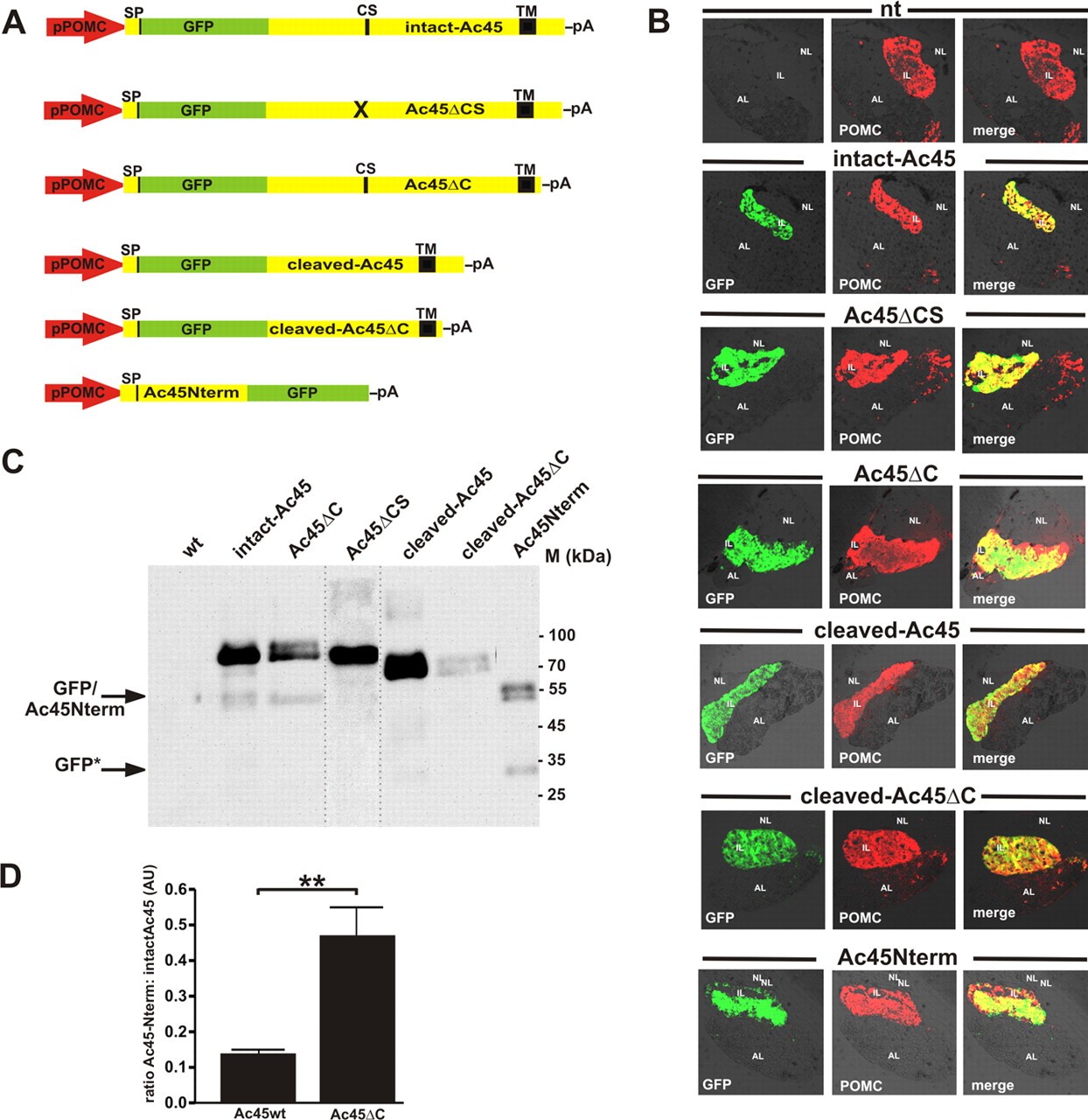

	FIGURE 2. Transgene expression of GFP-Ac45 mutant proteins specifically in the Xenopus melanotrope cells. A, overview of transgenes used to express Ac45 mutant proteins fused to GFP in the Xenopus melanotrope cells. B, sagital cryosections of transgenic Xenopus pituitaries. Transgenic Ac45 mutant/GFP expression was directly viewed under a fluorescence microscope (green). Sections were stained with an anti-POMC antibody (red) showing coexpression of GFP and POMC in the intermediate pituitary melanotrope cells. C, Western blot analysis of NIL lysates with an anti-GFP showing the expression levels of the respective transgene products. Ten percent of a total NIL lysate was analyzed. The lane with the Ac45ΔCS NIL lysate was taken from a separate Western blot. GFP*, stable GFP moiety, probably resulting from Ac45Nterm mutant fusion protein breakdown. D, endoproteolytic processing efficiencies of the Ac45wt and Ac45ΔC proteins are presented as the ratio of the amount of Ac45N-term relative to the amount of intact-Ac45 and the ratio of the amount of Ac45N-term relative to the amount of Ac45ΔC, respectively. Shown are the means � S.E. (n = 4). Significant difference is indicated by ** (p < 0.01).
	FIGURE 3. Subcellular localization of GFP-Ac45mutant proteins in transgenic Xenopus melanotrope cells. A, Xenopus melanotrope cells were isolated from the transgenic pituitaries, cultured and examined with live imaging for GFP fluorescence. Note that in the active melanotrope cells the ER is situated near the plasma membrane (53). B, melanotrope cells were fixed and stained with the marker antibodies anti-NaK-ATPase (plasma membrane), anti-calnexin (for the ER) and anti-POMC (for secretory vesicles).
	FIGURE 4. Ac45 mutant proteins differentially affect endogenous V-ATPase localization. A�D, immunogold labeling of ultra-thin pituitary cryosections with anti-GFP antibody confirmed the expression of the GFP/Ac45 mutant transgene products at the plasma membrane of the transgenic Xenopus melanotrope cells. No labeling was found in wild-type cells. E�H, immunogold labeling with an anti-V1A antibody showed that in the cleaved-Ac45 and Ac45 ΔC transgenic melanotrope cells the endogenous V-ATPase is recruited to the plasma membrane but not in wild-type cells nor in transgenic cells expressing cleaved-Ac45ΔC. White arrow, smooth plasma membrane; black arrow, microvillar plasma membrane; N, nucleus; ER, endoplasmic reticulum.

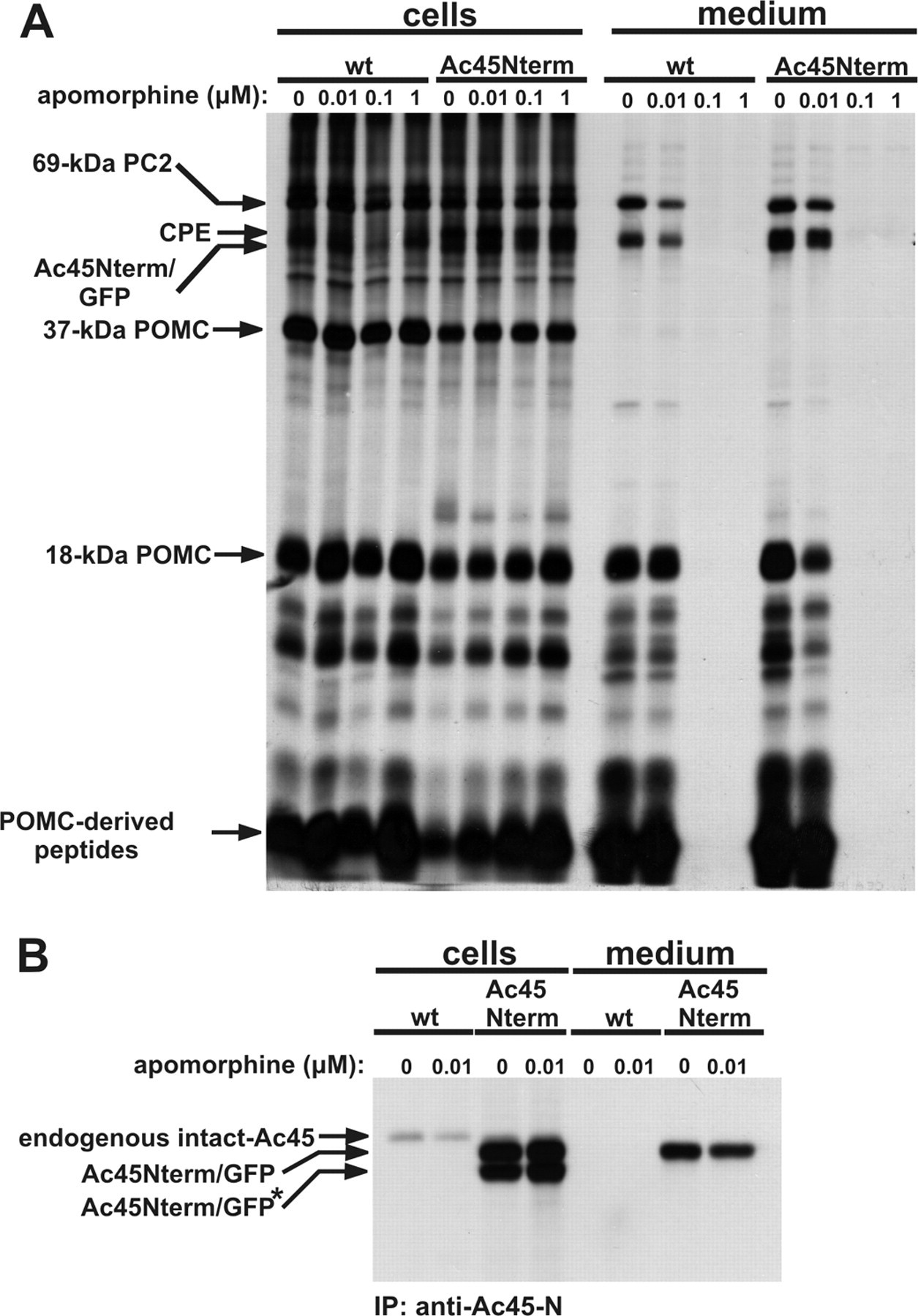

	FIGURE 5. Ac45Nterm is secreted via the regulated secretory pathway. Wild-type (wt) and Ac45Nterm-transgenic NILs were pulse labeled for 30 min and chased for 180 min in the presence of various concentrations of apomorphine, as indicated. A, five percent of the total labeled NIL lysates and 20% of the incubation media were directly resolved by SDS-PAGE. B, NIL lysates and incubation media were incubated with an anti-Ac45-N antibody, and the immune complexes were immunoprecipititated using protein A-Sepharose and resolved by SDS-PAGE. Radioactive signals were visualized by autoradiography.

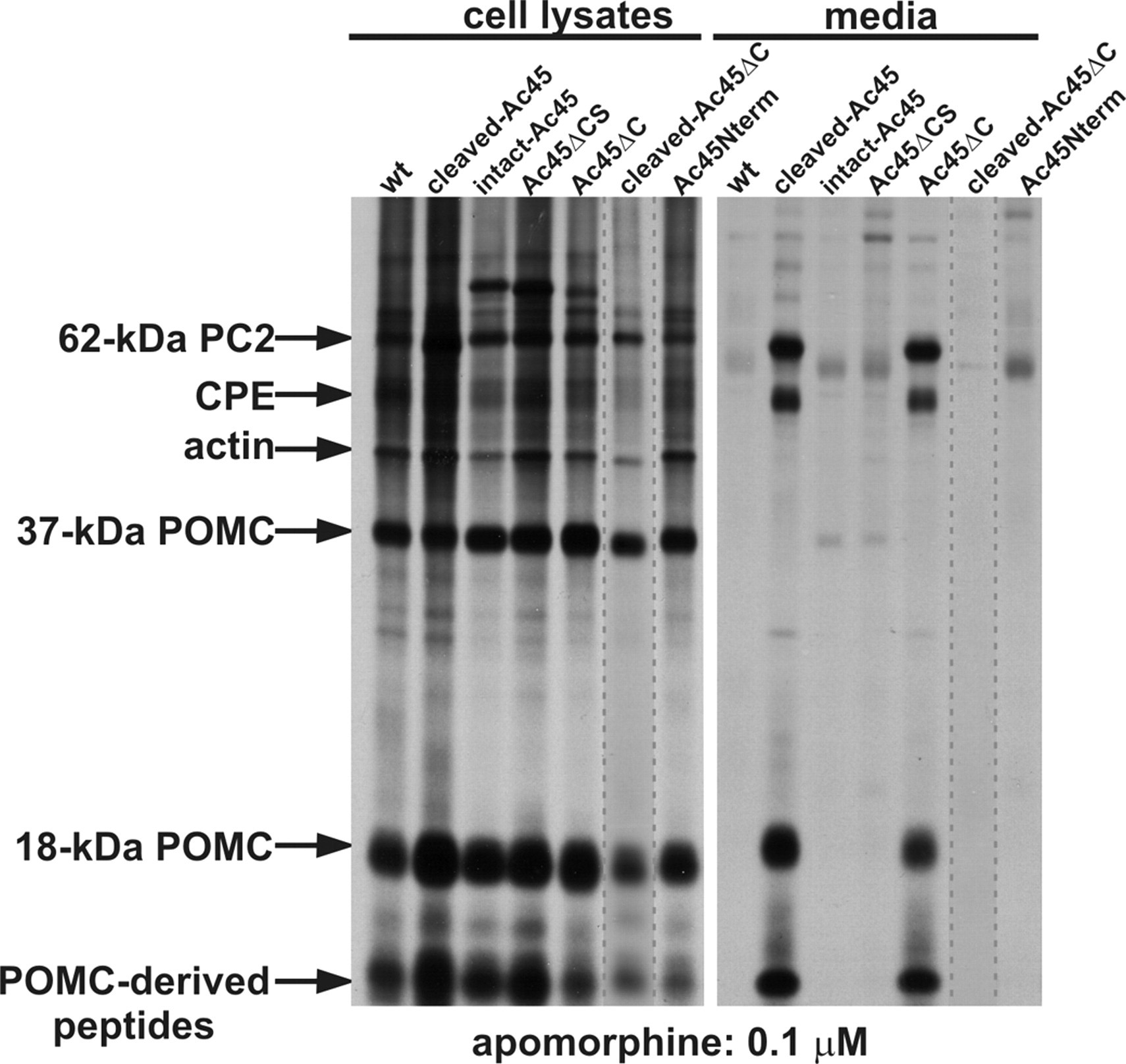

	FIGURE 6. Dopaminergic inhibition of peptide release is affected in cleaved-Ac45- and Ac45 ΔC-transgenic Xenopus melanotrope cells. Wild-type (wt) and transgenic NILs were pulse-labeled for 30 min and chased for 180 min in the presence of 0.1 μm apomorphine. NILs were lysed and 5% of the total lysates and 20% of the incubation media was directly analyzed by SDS-PAGE. The lane with the cleaved-Ac45 ΔC NIL lysate was taken from a separate gel. Radioactive signals were visualized by autoradiography.

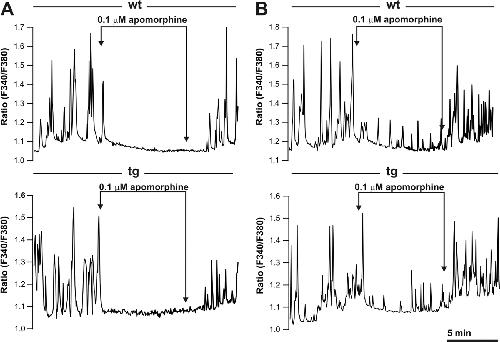

	FIGURE 7. Excess of cleaved-Ac45 does not affect the inhibition of the spontaneous Ca2+-oscillations in cleaved-Ac45-transgenic Xenopus melanotrope cells. A, Ca2+-oscillations in wild-type (wt) and cleaved-Ac45-transgenic (tg) cells loaded with fura-2 are inhibited in the presence of 0.1 μm apomorphine and reappear after removal of the drug. B, in the presence of 0.1 μm apomorphine low-frequency Ca2+-oscillations occur in ∼25% of the wt and tg cells.

Adams, Early, H+-V-ATPase-dependent proton flux is necessary for consistent left-right patterning of non-mammalian vertebrates. 2006, Pubmed, Xenbase

Adams, Early, H+-V-ATPase-dependent proton flux is necessary for consistent left-right patterning of non-mammalian vertebrates. 2006, Pubmed , Xenbase
Alam, Novel proteins that interact with the COOH-terminal cytosolic routing determinants of an integral membrane peptide-processing enzyme. 1996, Pubmed
Bass, Furin-mediated processing in the early secretory pathway: sequential cleavage and degradation of misfolded insulin receptors. 2000, Pubmed
Beggah, Alpha and beta subunits of Na,K-ATPase interact with BiP and calnexin. 1997, Pubmed , Xenbase
Berghs, The secretory granule and pro-opiomelanocortin processing in Xenopus melanotrope cells during background adaptation. 1997, Pubmed , Xenbase
Beyenbach, The V-type H+ ATPase: molecular structure and function, physiological roles and regulation. 2006, Pubmed
Braks, 7B2 is a neuroendocrine chaperone that transiently interacts with prohormone convertase PC2 in the secretory pathway. 1994, Pubmed , Xenbase
Burgos, Sorting of the Alzheimer's disease amyloid precursor protein mediated by the AP-4 complex. 2010, Pubmed
Camacho, Intragranular pH rapidly modulates exocytosis in adrenal chromaffin cells. 2006, Pubmed
Collin, The coding sequence of amyloid-beta precursor protein APP contains a neural-specific promoter element. 2006, Pubmed , Xenbase
Cruciat, Requirement of prorenin receptor and vacuolar H+-ATPase-mediated acidification for Wnt signaling. 2010, Pubmed , Xenbase
Cuppen, A FERM domain governs apical confinement of PTP-BL in epithelial cells. 1999, Pubmed
Di Giovanni, V-ATPase membrane sector associates with synaptobrevin to modulate neurotransmitter release. 2010, Pubmed
Feng, Cytoplasmic terminus of vacuolar type proton pump accessory subunit Ac45 is required for proper interaction with V(0) domain subunits and efficient osteoclastic bone resorption. 2008, Pubmed
Getlawi, Chromaffin granule membrane glycoprotein IV is identical with Ac45, a membrane-integral subunit of the granule's H(+)-ATPase. 1996, Pubmed
Hiesinger, The v-ATPase V0 subunit a1 is required for a late step in synaptic vesicle exocytosis in Drosophila. 2005, Pubmed
Holthuis, Biosynthesis of the vacuolar H+-ATPase accessory subunit Ac45 in Xenopus pituitary. 1999, Pubmed , Xenbase
Holthuis, Molecular probing of the secretory pathway in peptide hormone-producing cells. 1995, Pubmed , Xenbase
Jansen, Novel insights into V-ATPase functioning: distinct roles for its accessory subunits ATP6AP1/Ac45 and ATP6AP2/(pro) renin receptor. 2012, Pubmed
Jansen, V-ATPase-mediated granular acidification is regulated by the V-ATPase accessory subunit Ac45 in POMC-producing cells. 2010, Pubmed , Xenbase
Jansen, Accessory subunit Ac45 controls the V-ATPase in the regulated secretory pathway. 2008, Pubmed , Xenbase
Jansen, Intracellular trafficking of the vacuolar H+-ATPase accessory subunit Ac45. 1998, Pubmed , Xenbase
Jansen, Transgene-driven protein expression specific to the intermediate pituitary melanotrope cells of Xenopus laevis. 2002, Pubmed , Xenbase
Jenks, Ca2+ oscillations in melanotropes of Xenopus laevis: their generation, propagation, and function. 2003, Pubmed , Xenbase
Kroll, Transgenic Xenopus embryos from sperm nuclear transplantations reveal FGF signaling requirements during gastrulation. 1996, Pubmed , Xenbase
Kuan, PAT1a modulates intracellular transport and processing of amyloid precursor protein (APP), APLP1, and APLP2. 2006, Pubmed
Liégeois, The V0-ATPase mediates apical secretion of exosomes containing Hedgehog-related proteins in Caenorhabditis elegans. 2006, Pubmed
Lieste, Action currents generate stepwise intracellular Ca2+ patterns in a neuroendocrine cell. 1998, Pubmed , Xenbase
Louagie, Role of furin in granular acidification in the endocrine pancreas: identification of the V-ATPase subunit Ac45 as a candidate substrate. 2008, Pubmed
Mains, Kalirin, a multifunctional PAM COOH-terminal domain interactor protein, affects cytoskeletal organization and ACTH secretion from AtT-20 cells. 1999, Pubmed
Martens, Expression of two proopiomelanocortin genes in the pituitary gland of Xenopus laevis: complete structures of the two preprohormones. 1986, Pubmed , Xenbase
Nishi, The vacuolar (H+)-ATPases--nature's most versatile proton pumps. 2002, Pubmed
Paroutis, The pH of the secretory pathway: measurement, determinants, and regulation. 2004, Pubmed
Peters, Trans-complex formation by proteolipid channels in the terminal phase of membrane fusion. 2001, Pubmed
Qin, Versatile roles of V-ATPases accessory subunit Ac45 in osteoclast formation and function. 2011, Pubmed
Roth, Protein N-glycosylation along the secretory pathway: relationship to organelle topography and function, protein quality control, and cell interactions. 2002, Pubmed
Roubos, Background adaptation by Xenopus laevis: a model for studying neuronal information processing in the pituitary pars intermedia. 1997, Pubmed , Xenbase
Scheenen, Spontaneous calcium oscillations in Xenopus laevis melanotrope cells are mediated by omega-conotoxin sensitive calcium channels. 1994, Pubmed , Xenbase
Schoonderwoert, The fate of newly synthesized V-ATPase accessory subunit Ac45 in the secretory pathway. 2002, Pubmed , Xenbase
Schoonderwoert, Inhibition of the vacuolar H+-ATPase perturbs the transport, sorting, processing and release of regulated secretory proteins. 2000, Pubmed , Xenbase
Shibuya, Spontaneous cytosolic calcium pulsing detected in Xenopus melanotrophs: modulation by secreto-inhibitory and stimulant ligands. 1993, Pubmed , Xenbase
Sobota, Inhibitors of the V0 subunit of the vacuolar H+-ATPase prevent segregation of lysosomal- and secretory-pathway proteins. 2009, Pubmed
Sun-Wada, The a3 isoform of V-ATPase regulates insulin secretion from pancreatic beta-cells. 2006, Pubmed
Supek, A novel accessory subunit for vacuolar H(+)-ATPase from chromaffin granules. 1994, Pubmed
Tanaka, Proteolytic processing of pro-opiomelanocortin occurs in acidifying secretory granules of AtT-20 cells. 1997, Pubmed
Thomas, Furin at the cutting edge: from protein traffic to embryogenesis and disease. 2002, Pubmed
Ungermann, Vacuole acidification is required for trans-SNARE pairing, LMA1 release, and homotypic fusion. 1999, Pubmed
Van Herp, A fast method to study the secretory activity of neuroendocrine cells at the ultrastructural level. 2005, Pubmed , Xenbase
Wagner, Renal vacuolar H+-ATPase. 2004, Pubmed
Xu, Structure and function of V-ATPases in osteoclasts: potential therapeutic targets for the treatment of osteolysis. 2007, Pubmed
Zhang, V-ATPase V0 sector subunit a1 in neurons is a target of calmodulin. 2008, Pubmed
Zhang, Melanotrope cells of Xenopus laevis express multiple types of high-voltage-activated Ca2+ channels. 2005, Pubmed , Xenbase
Zhang, Dopamine D2-receptor activation differentially inhibits N- and R-type Ca2+ channels in Xenopus melanotrope cells. 2004, Pubmed , Xenbase
