Li PP , Zhou JJ , Meng M , Madhavan R , Peng HB .

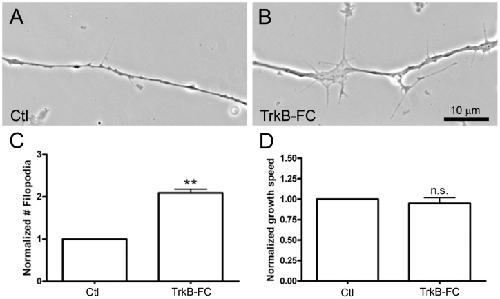

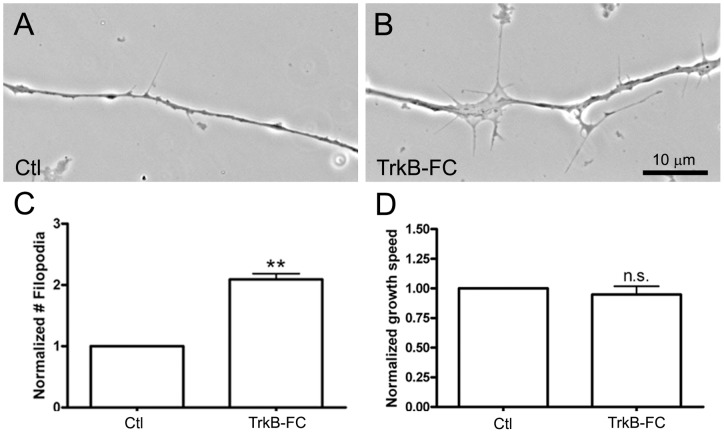

	Figure 2. Influence of BDNF-depletion on the formation of axonal filopodia.Spinal neurons were incubated in (A) control medium or (B) medium containing 1 µg/ml TrkB-FC. Axonal filopodial formation was examined 18 h after plating the neurons. Bath application of TrkB-FC enhanced the formation of axonal filopodia, which is quantified in terms of filopodial densities (C). The density of filopodia (#filopodia/10 µm axon) in TrkB-FC-treated neurons was normalized against that in control neurons. In the presence of TrkB-FC, no significant difference in the speed of axonal outgrowth was observed (D). Mean and SEM shown; t test: **p<0.01, compared with untreated Ctl.

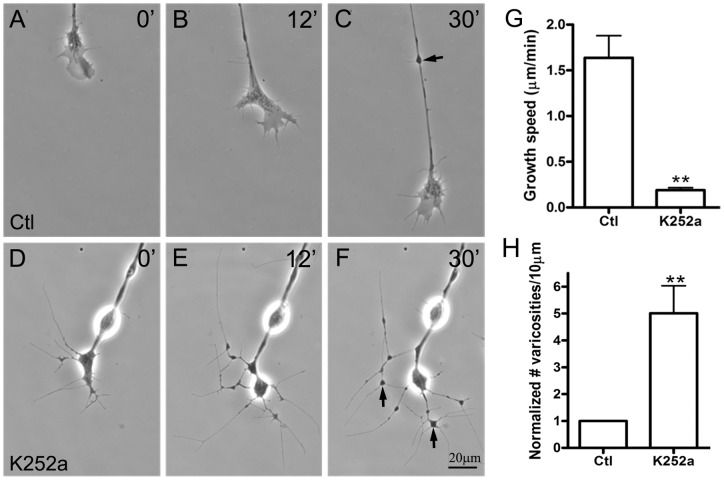

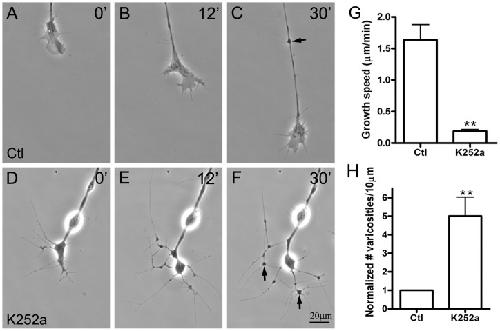

	Figure 3. Effect of Trk inhibition on axonal growth.Spinal neurons were incubated in control medium (A–C) or medium containing 500 nM K252a (D–F). The growth speeds of axons were measured from images taken during time-lapse recordings. Treatment with K252a led to a significant reduction in axonal growth speed (G) and also to the elaboration of the distal end of the axon into a web of interconnecting neurites and varicosities within 30 min. Although varicosities were also observed along control axons and were often associated with filopodia (arrow in C), they were much more numerous within the distal neuritic web generated after K252a treatment (arrows in F and quantified in H). Mean and SEM shown; t test: **p<0.01, compared with untreated Ctl.

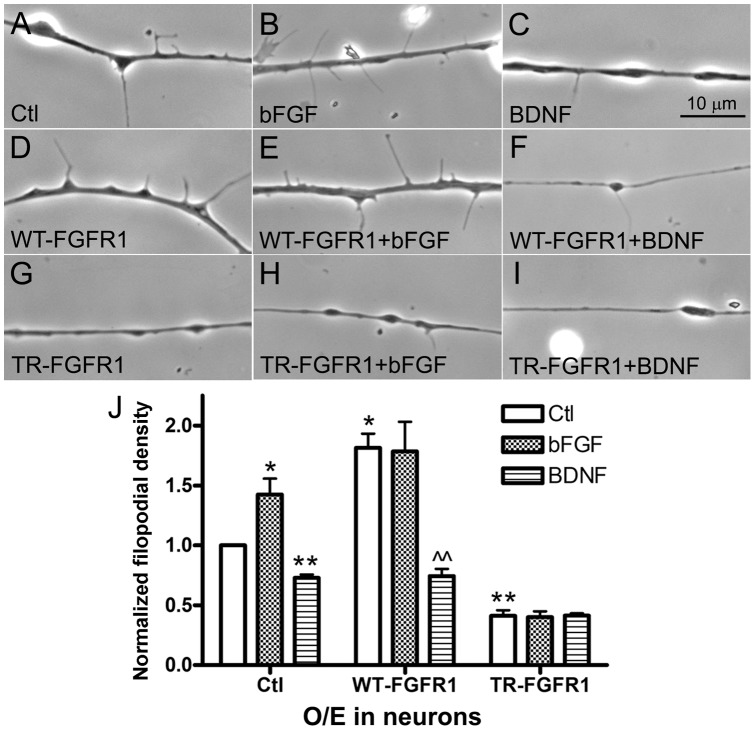

	Figure 4. Opposite effects of bFGF and BDNF signaling on filopodial formation in spinal neurons.Spinal neurons were incubated in control medium (A) or medium containing (B) bFGF or (C) BDNF. Filopodial assembly was enhanced and suppressed by bFGF and BDNF respectively (J). Neurons expressing WT-FGFR1 or TR-FGFR1 were also maintained in control medium (D, G) or medium containing bFGF (E, H) or BDNF (F, I). WT-FGFR1 expression elevated the basal filopodial density in neurons, and this was not increased by bFGF-addition but was suppressed by BDNF-treatment (J). TR-FGFR1 expression blocked both basal and bFGF-induced formation of filopodia in neurons, and BDNF did not further reduce filopodial growth (J). The density of filopodia in control neurons (A) was used for normalizing all other filopodial density values. Mean and SEM shown; t test: *p<0.05 and **p<0.01, compared with untreated Ctl; ??p<0.01, compared to untreated WT-FGFR1-neurons.

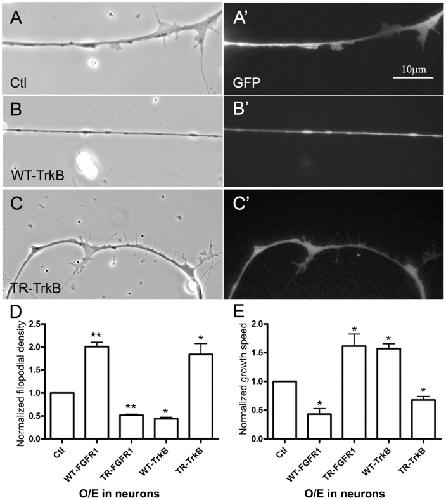

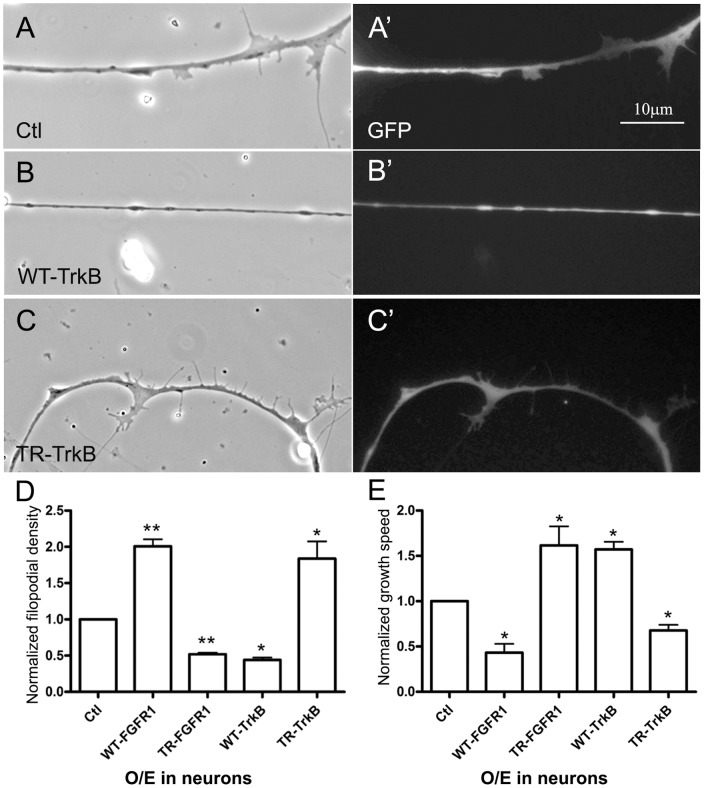

	Figure 5. Differential control of filopodial assembly and axonal growth by neuronal FGFR1 and TrkB signaling.Compared to control (GFP) neurons (A and A'), WT-TrkB-neurons grew fewer filopodia (B and B') and TR-TrkB-neurons grew more filopodia (C and C'); panels A–C and A'–C' show corresponding phase-contrast and GFP images. In panel D the filopodial densities calculated for these neurons are normalized relative to the density in GFP-neurons and are compared to those obtained for neurons expressing active and inactive FGFR1 proteins (Figure 4). E. Axonal growth speeds of neurons expressing FGFR1 or TrkB proteins were measured by time-lapse imaging and normalized relative to the growth of GFP-neurons. Overexpression of WT-FGFR1 or TR-TrkB slowed axonal growth, whereas expression of TR-FGFR1 or WT-TrkB sped it up. Mean and SEM shown; t test: *p<0.05, compared with Ctl.

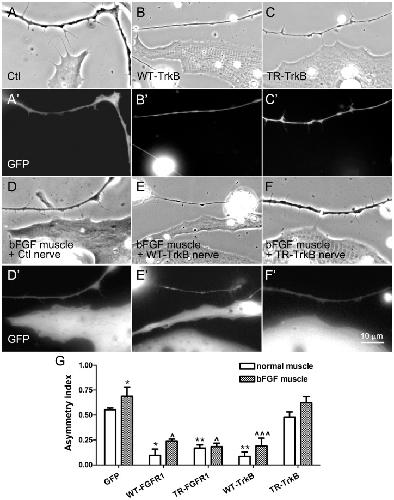

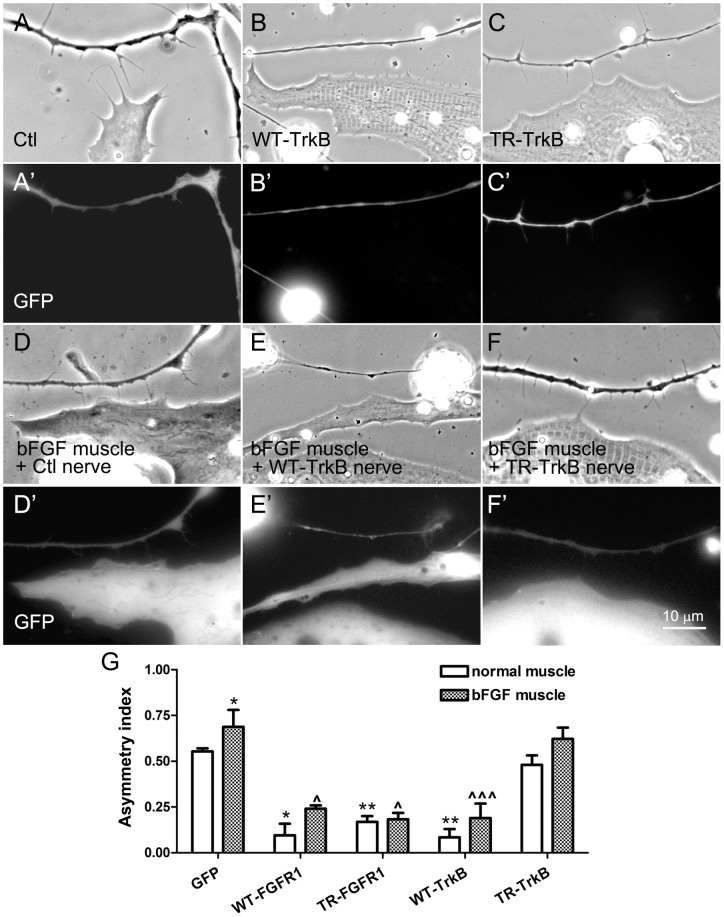

	Figure 6. The influence of TrkB signaling on filopodial extension by neurons towards muscle.Nerve-muscle cocultures were prepared using neurons expressing GFP (A and A'), WT-TrkB (B and B') or TR-TrkB (C and C'). WT-TrkB-neurons, unlike control neurons, displayed little bias in the extension of filopodia towards muscle, but the TR-TrkB-neurons, which grew more filopodia than GFP-neurons, were able to send out filopodia preferentially in the direction of muscle. (D–F') On muscle cells expressing GFP plus bFGF, neurons expressing GFP (D and D') or TrkB proteins (E–F') were seeded. GFP-neurons extended even more filopodia towards muscle cells overexpressing bFGF (D and D') than towards normal muscle cells (A and A'). WT-TrkB-neurons once again grew fewer filopodia than GFP-neurons, but the bFGF-overexpressing muscle cells induced more filopodia in WT-TrkB-neurons (E and E') than control muscle cells (above). TR-TrkB-neurons also extended more filopodia towards bFGF-expressing muscle cells (F and F') than towards control cells. (G) Calculation of AI values for these cocultures as well as for those cultures in which neurons expressed FGFR1 proteins (pictures not shown). Asymmetric distribution of filopodia was slightly improved in neurons expressing WT-TrkB, TR-TrkB and WT-FGFR1, but not TR-FGFR1. Mean and SEM shown; t test: *p<0.05 and **p<0.01, compared to cocultures between Ctl neurons and normal muscle cells; ?p<0.05 and ???p<0.001, compared to cocultures made between Ctl neurons and bFGF-overexpressing muscle cells.

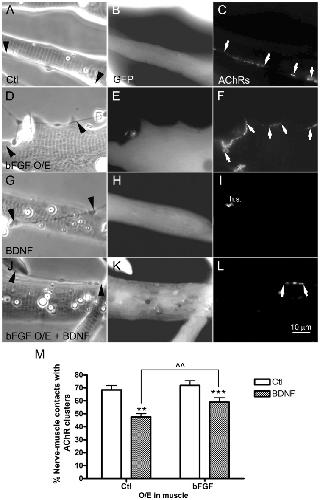

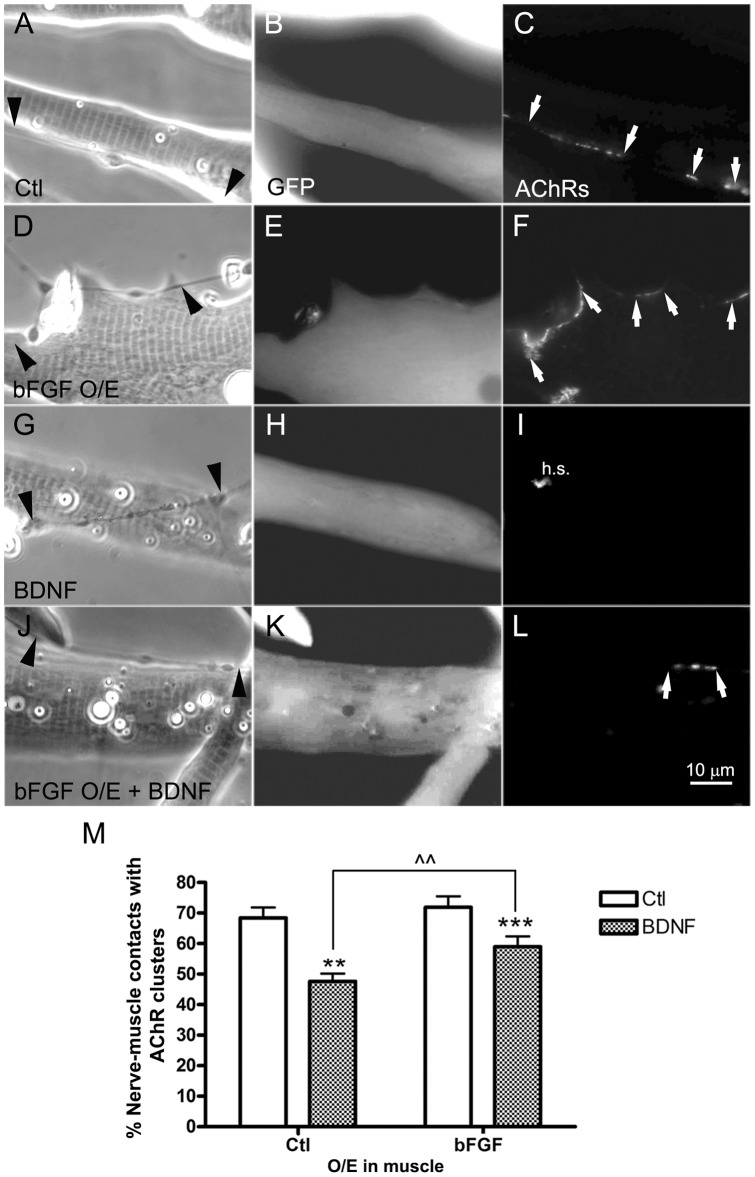

	Figure 7. Reciprocal regulation of NMJ formation by bFGF/NT-signaling.Normal spinal neurons were cocultured with muscle cells expressing GFP (A–C and G–I) or GFP plus bFGF (bFGF O/E; D–F and J–L) and maintained in control medium (A–F) or medium with added BDNF (G–L). Neurons induced AChR clusters equally well in GFP- and bFGF-muscle cells (C, F), and BDNF-treatment inhibited synaptic AChR clustering in both cases (I, L). The inhibitory effect of BDNF, however, was weaker when muscle cells expressed excess bFGF, and in these cases nerve-muscle contacts with AChR were more readily found (L). Muscle cells in which nerves induced new AChR clusters lacked spontaneously occurring AChR aggregates (also called hot-spots); when AChR aggregation at innervation sites was compromised, AChR hot-spots were retained (h.s. in panel I). Synaptogenesis was quantified in terms of the percentages of nerve-muscle contacts with AChR clusters (M). Mean and SEM shown; t test: **p<0.01 and ***p<0.001, compared to cocultures with normal muscle cells; ??p<0.01, compared with BDNF-treated cocultures using bFGF-overexpressing muscle cells. Arrowheads point to nerve tracks, arrows to nerve-induced AChR clusters.

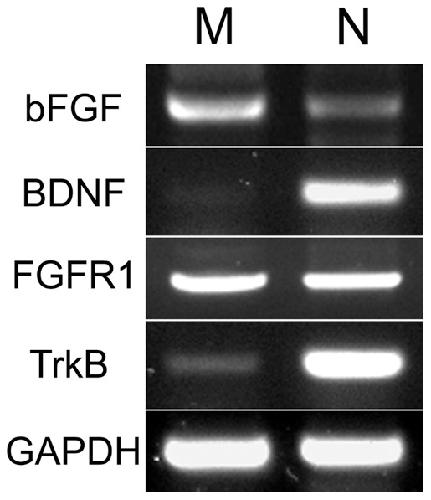

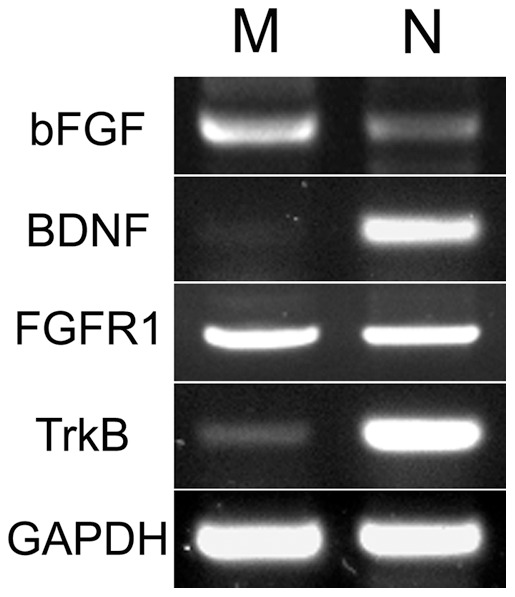

	Figure 1. Expression of bFGF/FGFR1 and BDNF/TrkB in Xenopus nerve and muscle.These agarose gel photographs show RT-PCR-generated fragments from mRNAs of bFGF, BDNF, FGFR1, TrkB and GAPDH in neural tubes (N) and myotomes (M) isolated from Xenopus embryos. GAPDH was used as an amplification and loading control.

Alsina, Visualizing synapse formation in arborizing optic axons in vivo: dynamics and modulation by BDNF. 2001, Pubmed, Xenbase

Alsina, Visualizing synapse formation in arborizing optic axons in vivo: dynamics and modulation by BDNF. 2001, Pubmed , Xenbase
Anderson, Aggregates of acetylcholine receptors are associated with plaques of a basal lamina heparan sulfate proteoglycan on the surface of skeletal muscle fibers. 1983, Pubmed , Xenbase
Anderson, Acetylcholine receptor aggregation parallels the deposition of a basal lamina proteoglycan during development of the neuromuscular junction. 1984, Pubmed , Xenbase
Araki, Shp-2 specifically regulates several tyrosine-phosphorylated proteins in brain-derived neurotrophic factor signaling in cultured cerebral cortical neurons. 2000, Pubmed
Atwal, The TrkB-Shc site signals neuronal survival and local axon growth via MEK and P13-kinase. 2000, Pubmed
Campbell, Chemotropic responses of retinal growth cones mediated by rapid local protein synthesis and degradation. 2001, Pubmed , Xenbase
Chen, The function of p120 catenin in filopodial growth and synaptic vesicle clustering in neurons. 2012, Pubmed , Xenbase
Cohen-Cory, Effects of brain-derived neurotrophic factor on optic axon branching and remodelling in vivo. 1995, Pubmed , Xenbase
Coulson, p75 neurotrophin receptor mediates neuronal cell death by activating GIRK channels through phosphatidylinositol 4,5-bisphosphate. 2008, Pubmed
Dai, Presynaptic differentiation induced in cultured neurons by local application of basic fibroblast growth factor. 1995, Pubmed , Xenbase
Davenport, A sensory role for neuronal growth cone filopodia. 1993, Pubmed
Fagan, TrkA, but not TrkC, receptors are essential for survival of sympathetic neurons in vivo. 1996, Pubmed
Faix, The making of filopodia. 2006, Pubmed
Fertuck, Quantitation of junctional and extrajunctional acetylcholine receptors by electron microscope autoradiography after 125I-alpha-bungarotoxin binding at mouse neuromuscular junctions. 1976, Pubmed
Fiala, Synaptogenesis via dendritic filopodia in developing hippocampal area CA1. 1998, Pubmed
Frade, Induction of cell death by endogenous nerve growth factor through its p75 receptor. 1996, Pubmed
Fryer, Truncated trkB receptors on nonneuronal cells inhibit BDNF-induced neurite outgrowth in vitro. 1997, Pubmed
Gallo, Localized sources of neurotrophins initiate axon collateral sprouting. 1998, Pubmed
Hartmann, Truncated TrkB receptor-induced outgrowth of dendritic filopodia involves the p75 neurotrophin receptor. 2004, Pubmed
Henderson, Neurotrophins promote motor neuron survival and are present in embryonic limb bud. 1993, Pubmed
Henríquez, The Wnt and BMP families of signaling morphogens at the vertebrate neuromuscular junction. 2011, Pubmed
Huang, Neurotrophins: roles in neuronal development and function. 2001, Pubmed
Hughes, Members of several gene families influence survival of rat motoneurons in vitro and in vivo. 1993, Pubmed
Kalil, Common mechanisms underlying growth cone guidance and axon branching. 2000, Pubmed
Ketschek, Nerve growth factor induces axonal filopodia through localized microdomains of phosphoinositide 3-kinase activity that drive the formation of cytoskeletal precursors to filopodia. 2010, Pubmed
Lee, The function of mitochondria in presynaptic development at the neuromuscular junction. 2008, Pubmed , Xenbase
Li, Axonal filopodial asymmetry induced by synaptic target. 2011, Pubmed , Xenbase
Lin, Functions of heparan sulfate proteoglycans in cell signaling during development. 2004, Pubmed
Madhavan, HGF induction of postsynaptic specializations at the neuromuscular junction. 2006, Pubmed , Xenbase
Madhavan, Involvement of p120 catenin in myopodial assembly and nerve-muscle synapse formation. 2006, Pubmed , Xenbase
Majdan, TrkA mediates developmental sympathetic neuron survival in vivo by silencing an ongoing p75NTR-mediated death signal. 2001, Pubmed
Marshak, Cell-autonomous TrkB signaling in presynaptic retinal ganglion cells mediates axon arbor growth and synapse maturation during the establishment of retinotectal synaptic connectivity. 2007, Pubmed , Xenbase
McFarlane, Inhibition of FGF receptor activity in retinal ganglion cell axons causes errors in target recognition. 1996, Pubmed , Xenbase
Meakin, The signaling adapter FRS-2 competes with Shc for binding to the nerve growth factor receptor TrkA. A model for discriminating proliferation and differentiation. 1999, Pubmed
Neel, The 'Shp'ing news: SH2 domain-containing tyrosine phosphatases in cell signaling. 2003, Pubmed
Ong, FRS2 proteins recruit intracellular signaling pathways by binding to diverse targets on fibroblast growth factor and nerve growth factor receptors. 2000, Pubmed
O'Reilly, Activated mutants of SHP-2 preferentially induce elongation of Xenopus animal caps. 2000, Pubmed , Xenbase
Peng, Differential effects of neurotrophins and schwann cell-derived signals on neuronal survival/growth and synaptogenesis. 2003, Pubmed , Xenbase
Peng, The role of heparin-binding growth-associated molecule (HB-GAM) in the postsynaptic induction in cultured muscle cells. 1995, Pubmed , Xenbase
Peng, Tissue culture of Xenopus neurons and muscle cells as a model for studying synaptic induction. 1991, Pubmed , Xenbase
Peng, Induction of synaptic development in cultured muscle cells by basic fibroblast growth factor. 1991, Pubmed , Xenbase
Rimer, Neuregulins at the neuromuscular synapse: past, present, and future. 2007, Pubmed
Ritzenthaler, Postsynaptic filopodia in muscle cells interact with innervating motoneuron axons. 2000, Pubmed
Sanes, Development of the vertebrate neuromuscular junction. 1999, Pubmed
Sanes, Induction, assembly, maturation and maintenance of a postsynaptic apparatus. 2001, Pubmed
Seebach, Effects of BDNF and NT-3 on development of Ia/motoneuron functional connectivity in neonatal rats. 1999, Pubmed
Strochlic, Wnt4 participates in the formation of vertebrate neuromuscular junction. 2012, Pubmed
Szebenyi, Fibroblast growth factor-2 promotes axon branching of cortical neurons by influencing morphology and behavior of the primary growth cone. 2001, Pubmed
Tang, The SH2-containing protein-tyrosine phosphatase SH-PTP2 is required upstream of MAP kinase for early Xenopus development. 1995, Pubmed , Xenbase
Tapley, K252a is a selective inhibitor of the tyrosine protein kinase activity of the trk family of oncogenes and neurotrophin receptors. 1992, Pubmed
Tumova, Heparan sulfate proteoglycans on the cell surface: versatile coordinators of cellular functions. 2000, Pubmed
Uhm, Synapse-forming axons and recombinant agrin induce microprocess formation on myotubes. 2001, Pubmed
Vecino, Rat retinal ganglion cells co-express brain derived neurotrophic factor (BDNF) and its receptor TrkB. 2002, Pubmed
Wang, Functional analysis of SIRPalpha in the growth cone. 2006, Pubmed
Wen, Directional guidance of nerve growth cones. 2006, Pubmed
Wong, The neurotrophins BDNF, NT-3 and NT-4/5, but not NGF, up-regulate the cholinergic phenotype of developing motor neurons. 1993, Pubmed
Woo, Rac1 and RhoA promote neurite outgrowth through formation and stabilization of growth cone point contacts. 2006, Pubmed , Xenbase
Yang, Coordination of membrane and actin cytoskeleton dynamics during filopodia protrusion. 2009, Pubmed
Yuen, Early BDNF, NT-3, and NT-4 signaling events. 1999, Pubmed
Zhang, Cell surface Trk receptors mediate NGF-induced survival while internalized receptors regulate NGF-induced differentiation. 2000, Pubmed
Zhang, Wnt proteins regulate acetylcholine receptor clustering in muscle cells. 2012, Pubmed
Zhou, A role of midkine in the development of the neuromuscular junction. 1997, Pubmed , Xenbase
Ziv, Evidence for a role of dendritic filopodia in synaptogenesis and spine formation. 1996, Pubmed
