Histone H1 compacts DNA under force and during chromatin assembly.

Xiao B , Freedman BS , Miller KE , Heald R , Marko JF .

???displayArticle.abstract???
Histone H1 binds to linker DNA between nucleosomes, but the dynamics and biological ramifications of this interaction remain poorly understood. We performed single-molecule experiments using magnetic tweezers to determine the effects of H1 on naked DNA in buffer or during chromatin assembly in Xenopus egg extracts. In buffer, nanomolar concentrations of H1 induce bending and looping of naked DNA at stretching forces below 0.6 pN, effects that can be reversed with 2.7-pN force or in 200 mM monovalent salt concentrations. Consecutive tens-of-nanometer bending events suggest that H1 binds to naked DNA in buffer at high stoichiometries. In egg extracts, single DNA molecules assemble into nucleosomes and undergo rapid compaction. Histone H1 at endogenous physiological concentrations increases the DNA compaction rate during chromatin assembly under 2-pN force and decreases it during disassembly under 5-pN force. In egg cytoplasm, histone H1 protects sperm nuclei undergoing genome-wide decondensation and chromatin assembly from becoming abnormally stretched or fragmented due to astral microtubule pulling forces. These results reveal functional ramifications of H1 binding to DNA at the single-molecule level and suggest an important physiological role for H1 in compacting DNA under force and during chromatin assembly.

???displayArticle.pubmedLink??? 23097493
???displayArticle.pmcLink??? PMC3521692
???displayArticle.link??? Mol Biol Cell
???displayArticle.grants??? [+]

???attribute.lit??? ???displayArticles.show???

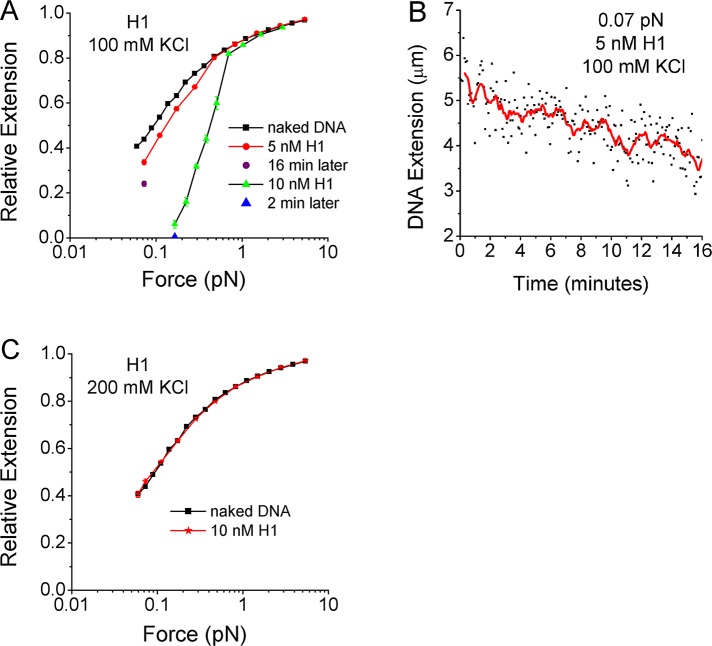

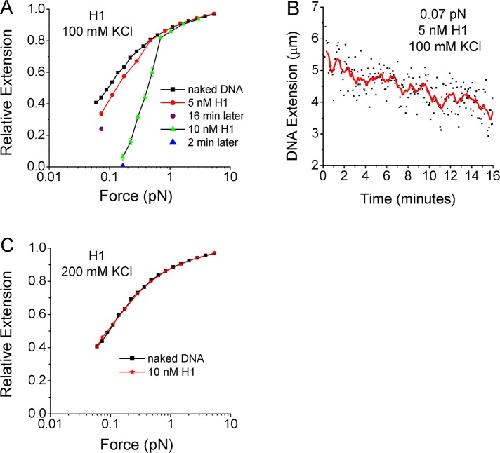

	FIGURE 1:. Dependence of DNA condensation on force, H1, and salt conditions. (A) DNA extension measured as the force decreased in 100 mM KCl (XB buffer). In 5 nM H1 solution, the DNA extensions for forces of >0.6 pN were the same as in the buffer (naked DNA). The extension decreased as the holding force was reduced step by step from 0.6 to 0.07 pN. Each step lasted about 2 min, during which the extensions were measured. In separate samples, 10 nM H1 was added, and the DNA extension was measured as the force decreased from 5 to 0.2 pN. Between 0.2 and 1 pN, the DNA compaction ratios in 10 nM H1 were higher than in 5 nM H1. Each experimental data point, presented as the mean value, was obtained from 15 measurements. (B) DNA extension decreased with time in 5 nM H1 solution with a holding force of 0.07 pN. The extension decreased from 5.6 to 3.7 Î¼m in 16 min (A, 16 min later) and to â¼0.1 Î¼m in 1 h. (C) In contrast to A, no compaction was observed for 10 nM H1 in 200 mM KCl buffer (XB + KCl) with a holding force of >0.1 pN.

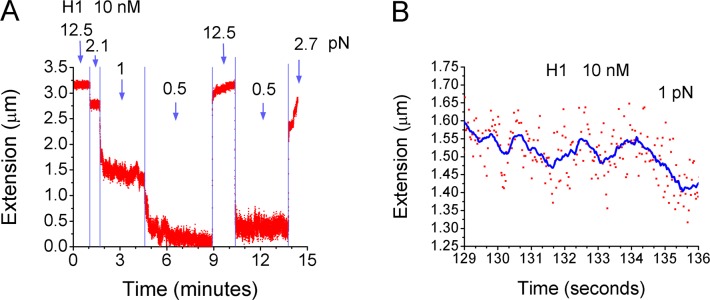

	FIGURE 2:. DNA bending and looping by H1. (A) The extension remained stable with 12.5- and 2.1-pN holding forces in 10 nM H1. The thermal fluctuations are â¼150 nm around a fixed extension at 2.1 pN. After the force dropped to 1 pN, the extension decreased rapidly at the beginning and slowed down in â¼4 min. The force was further decreased to 0.5 pN. The extension decreased to 0 in â¼8 min. At 10 nM H1, a relatively low concentration, continuous nanometer-scale decreases are suggestive of compaction by bending. Larger, hundreds-of-nanometer drops strongly suggest loop formation. When force was subsequently increased to 12.5 pN the extension jumped to approximately the length of naked DNA. On switching from 12.5 to 0.5 pN, the extension dropped again. Finally, a force increase to 2.7 pN increased the DNA extension. (B) Expanded view of compaction at 1 pN described in A. The thermal fluctuations at 1 pN are â¼200 nm. The DNA was observed to undergo compaction by 20- to 100-nm decreases (smoothed data). Results similar to those shown in A and B were observed in five separate experiments.

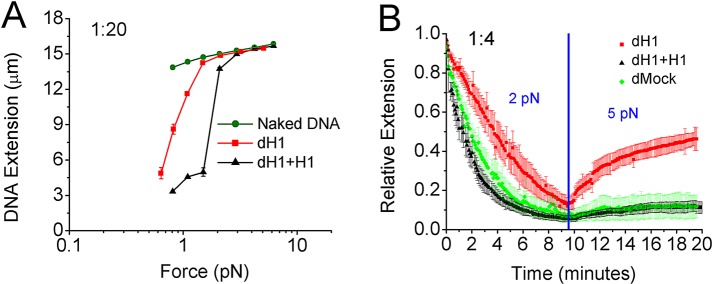

	FIGURE 3:. DNA compaction in dH1, dMock, and dH1+H1. A. Averages of DNA extension decreased as the holding force was reduced progressively from 5 to â¼0.6 pN. The depleted extract (dH1, red square) and dH1 extract plus H1 (dH1+H1, black triangle) were both diluted 20 times (1:20). Each force step took 1 min. At each force, the compaction ratio for dH1 extract was smaller than for dH1+H1 extract. Each experimental data point, presented as the mean value, was obtained from â¼15 measurements. (B) Smoothed time series of DNA compaction in dH1, dMock, and dH1+H1 extracts diluted four times (1:4). The force was initially held at 5 pN for 5 min and then reduced to 2 pN to allow chromatin assembly. The dH1 had slower assembly rates and longer end length than the dMock and dH1+H1. After 10 min, the force was increased to 5 pN. The extension of dH1 increased faster than for dMock and dH1+H1. Each data point is presented as an average and standard error obtained from three or four separate experiments.
	FIGURE 4:. H1 stabilizes DNA during sperm nuclear remodeling. (A) Squash-fixed samples of IgG-depleted (dMock), H1-depleted (dH1), or H1-reconstituted (dH1+H1) egg extract reactions 10 and 30 min after the addition of sperm nuclei to interphase (int.) extracts. Red, rhodamine-labeled tubulin; aquamarine, DNA. Scale bar, 10 Î¼m. (B) Measurement of sperm nuclear lengths from tail to tip in extract 10 min after addition of sperm nuclei. Mean sperm lengths were determined in separate experiments (âˆ¼25 nuclei per experiment, n â‰¥ 3 experiments per condition) and averaged. Error bars, SE. (C) Squash-fixed samples at 10 min showing multiple fragmented nuclei in the dH1 reaction. A close-up of the boxed region is shown at right. Scale bar, 50 Î¼m. (D) Quantification of normal, stretched, and fragmented nuclei as a percentage of the total population 10 min after sperm addition (Â±SE; >250 nuclei were counted per condition).
