Mayr F , Schütz A , Döge N , Heinemann U .

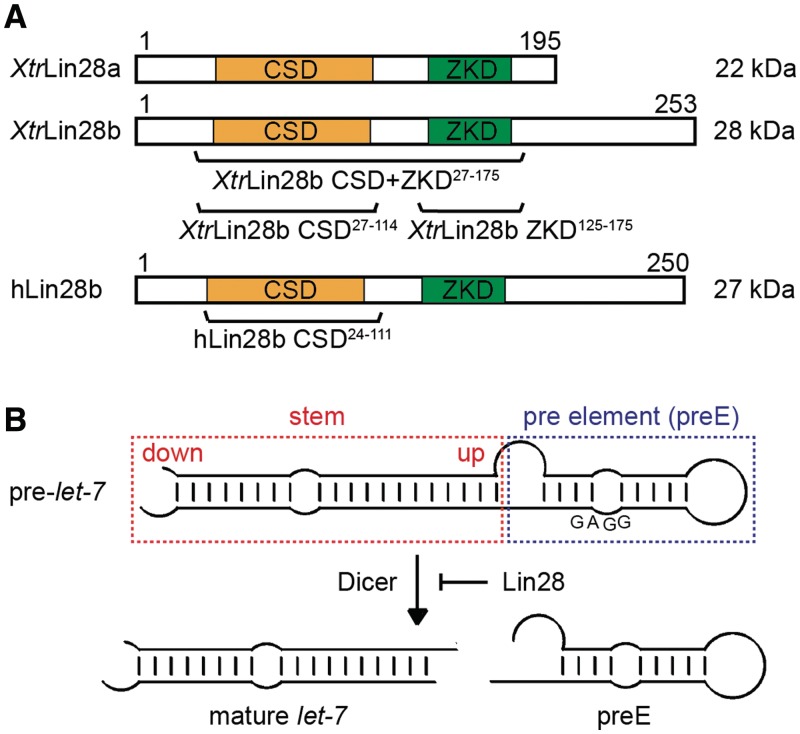

	Figure 1. Schematic representation of the domain structure of Lin28b and the processing of pre-let-7 by Dicer. (A) Domain structure of XtrLin28a and b and human (h) Lin28b with the molecular weight and amino acid positions indicated. The truncated Lin28 variants used in this study are shown below the corresponding domain representation. (B) Lin28 inhibits the Dicer-mediated pre-let-7 processing by binding to the pre-element (preE).

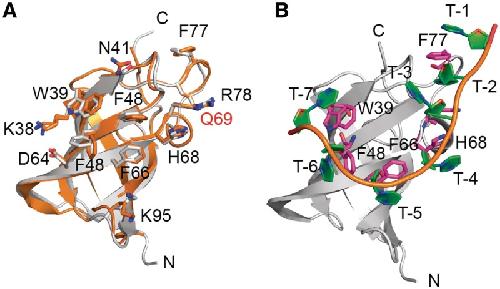

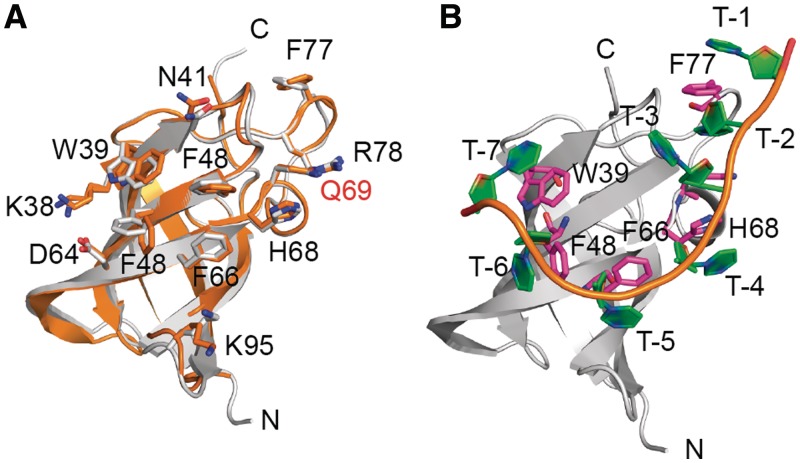

	Figure 2. Comparison between apo Lin28 CSDs and oligonucleotide-bound Lin28 CSD. (A) Superimposition of apo XtrLin28b CSD (gray) and hLin28b CSD (orange). Highly conserved residues that are involved in nucleic acid binding are indicated in stick representation and marked according to their position within the XtrLin28b CSD. Gln69, which corresponds to a highly conserved Phe in bacterial CSPs, is indicated in red. (B) Cartoon representation of dT7 bound to XtrLin28b CSD. The aromatic side chains that are involved in direct stacking interactions with the dT7 bases are shown in stick representation.

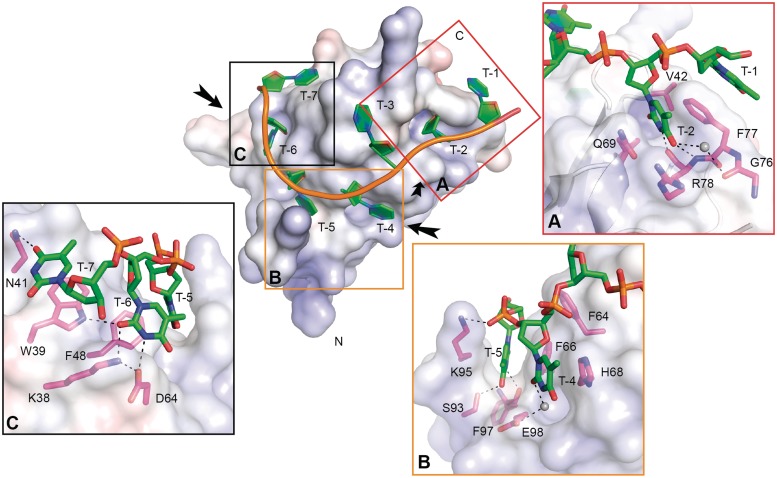

	Figure 3. Molecular interactions that promote binding of dT7 to XtrLin28b CSD. The electrostatic surface potential of XtrLin28b CSD upon binding to dT7 was calculated with APBS for pH 7 with a range from −10 (red) to +10 kT (blue). The bound oligonucleotide is shown in cartoon representation. Water molecules are shown as gray spheres. (A) Detailed view of T-2 bound to the hydrophobic pocket at binding subsite 2. Besides hydrophobic contacts including a three-membered stack with Phe77 and T-1, T/U-specific contacts are mediated via the backbone atoms of Arg78 and Phe77. (B) Detailed view of T-5 bound in the hydrophobic cleft created by Lys95 and Phe66. Ser93 and Phe97 form hydrogen bonds with O4 and HN3 of T-5. Binding of T-4 is only mediated via stacking interactions with His68 and a water molecule-mediated hydrogen bond. (C) Detailed view of binding subsites 6 and 7. T-6 and T-7 are mainly bound via stacking interactions with Phe48 and Trp39, respectively.

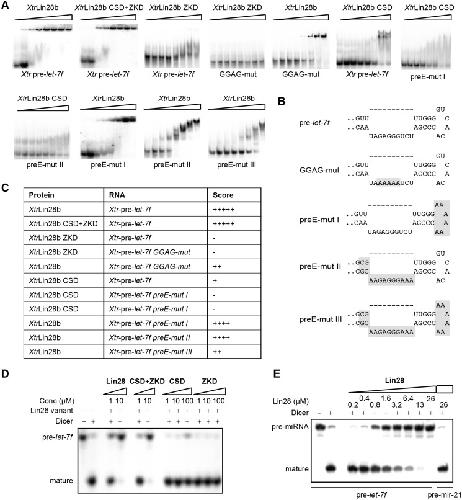

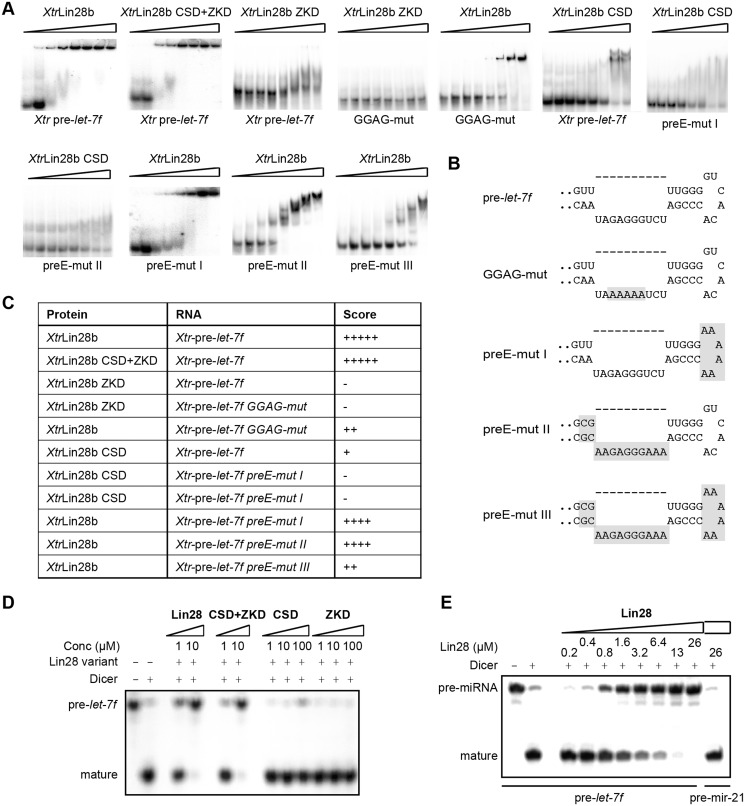

	Figure 4. Determinants of Lin28:pre-let-7f interactions. (A) EMSAs with Xtr-pre-let-7f as a probe, mixed with increasing concentrations of protein (for XtrLin28b and XtrLin28b CSD+ZKD: 0, 0.4, 0.8, 1.6, 3.2, 6.4, 13, 26 µM; for XtrLin28b CSD and ZKD: 0, 0.8, 1.6, 3.2, 6.4, 13, 26, 51 µM). All EMSAs were performed using 1 nM α-32P-ATP-labeled RNA. (B) The terminal loop sequence and secondary structure of the Xtr-pre-let-7f mutants as predicted by Mfold (49). Regions that were mutated are shaded. (C) Results from EMSA experiments shown in (A). The binding affinity was scored according to the following dissociation constant ranges: +++++, 0.8–1.6 µM; ++++, 1.6–3.2 µM; +++, 3.2–6.4 µM; ++, 6.4–12.8 µM; +, 12.8–25.6 µM; −, >25.6 µM. (D and E) In vitro pre-miRNA processing reaction on 32P 5′-end-labeled Xtr-pre-let-7f. The indicated concentrations (in micromolar) of XtrLin28b, XtrLin28b RBDs, XtrLin28b CSD and XtrLin28b ZKD were added to 1 nM Xtr-pre-let-7f in the presence or absence of human Dicer. The samples were resolved on a 10% (w/v) denaturing PAGE and visualized by autoradiography.

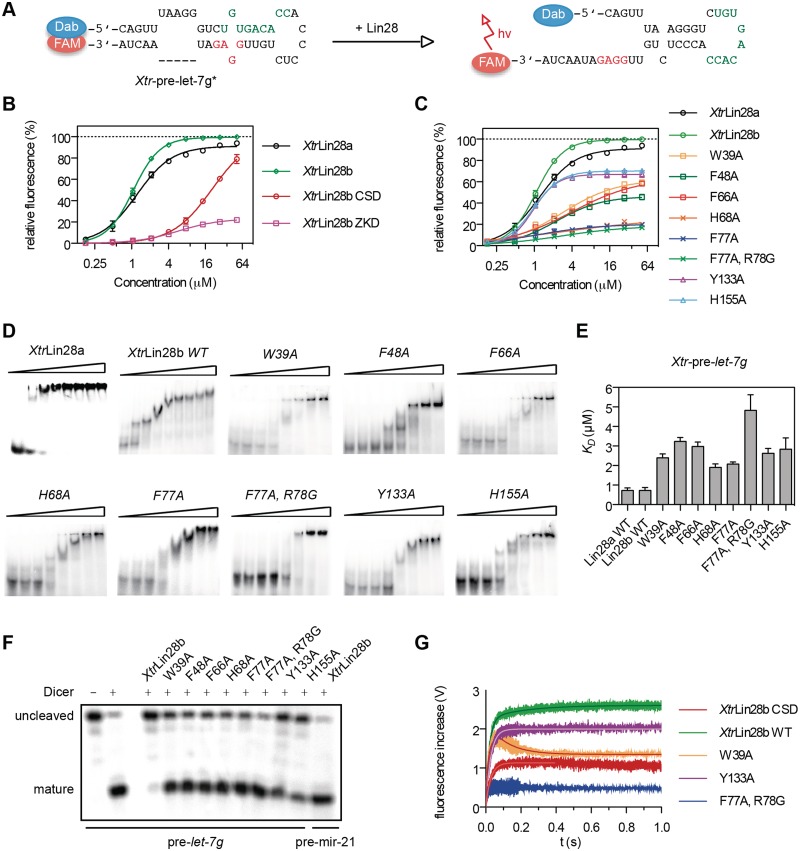

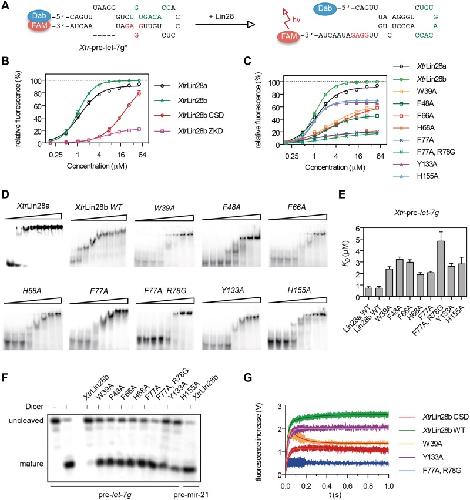

	Figure 5. The Lin28 CSD remodels the terminal loop of pre-let-7 and facilitates a subsequent binding of the ZKD to the conserved GGAG motif. (A–C) RNA remodeling assay. A truncated Xtr-pre-let-7g that contains only the preE sequence and 5 bp of the upper stem region (Xtr-pre-let-7g*) was incubated with increasing concentrations of the corresponding Lin28 protein. The 5′-end of the RNA was modified with the quencher dabcyl (Dab), and the adjacent 3′-end harbored a fluorescein (FAM) label. The sequence and secondary structure of the RNA are indicated and the known ZKD- and CSD-binding sites are marked in red and green, respectively. The increase of fluorescence was plotted as a function of titrated Lin28 protein. All experiments were performed using a Cary-Eclipse fluorescence spectrometer at 293 K in 20 mM Tris (pH 7.5), 60 mM KCl, 10 mM MgCl2 and 1 mM DTT. (D) EMSAs with Xtr-pre-let-7g as a probe, mixed with increasing concentrations of XtrLin28a and the indicated XtrLin28b variants (0, 0.4, 0.8, 1.6, 3.2, 6.4, 13, 26 µM). All EMSAs were performed using 1 nM α-32P-ATP-labeled RNA. (E) Apparent dissociation constants from EMSAs shown in (D). Band intensities were quantitated from three independent experiments and used to generate the binding data. (F) In vitro pre-miRNA processing reaction on Xtr-pre-let-7g. 10 µM of the indicated XtrLin28b variant was added to 1 nM 32P 5′-end-labeled Xtr-pre-let-7g in the presence or absence of human Dicer. The samples were resolved on a 10% (w/v) denaturing PAGE and visualized by autoradiography. (G) Pre-steady-state kinetics of Lin28-mediated binding and remodeling of Xtr-pre-let-7g*. After rapid mixing of Xtr-pre-let-7g* with 15 µM (final concentration) of the indicated XtrLin28b variant, the change of FAM fluorescence was monitored for 1 s using a Chirascan stopped-flow instrument. Traces of at least eight replicates were fitted to a mono- (Y133A) or biexponential curve (Xtrlin28b), respectively (solid lines). For W39A, the time courses of the first 80 ms were fitted to a single exponential association curve, while traces from 90 ms to 1 s were fitted to a one-phase decay curve (see Supplementary Figure S11).

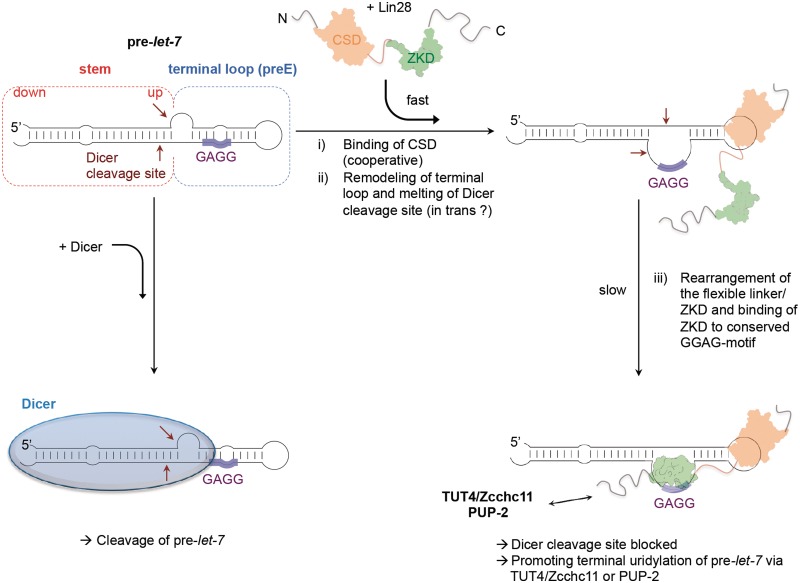

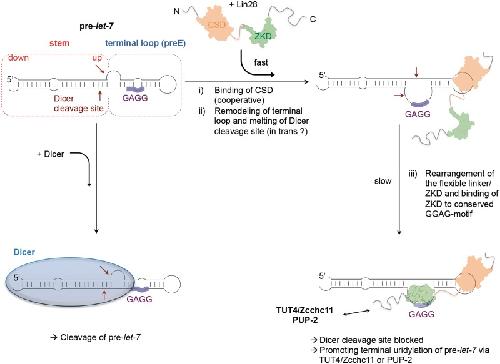

	Figure 6. Schematic model of Lin28-mediated binding and inhibition of pre-let-7 maturation. In the absence of Lin28, the PAZ domain of Dicer recognizes the 2 nt 3′-overhang of pre-let-7 and cleaves the substrate about 22 nt from the end (Dicer cleavage site, indicated by dark red arrows). In the presence of Lin28, the CSD first binds with its preformed nucleic acid-binding platform to pyrimidine-containing single-stranded parts in the terminal loop (preE) of pre-let-7. In a fast reaction, the CSD then remodels the preE region and melts a part of the upper stem region including the Dicer cleavage site. As the binding of Lin28 to pre-let-7 is highly cooperative, the remodeling of pre-let-7 may be facilitated in trans by another Lin28 molecule. Once the conserved GGAG is freely accessible, the Lin28 ZKD mediates a specific binding to this motif and anchors Lin28 in this position. This second reaction is rather slow, as both the ZKD and the flexible basic linker between the domains have to perform larger conformational changes as judged from apo and nucleotide-bound structures. As a consequence, the Dicer cleavage site remains constantly open, and Lin28 inhibits the cleavage by Dicer. The sequence-specific interaction via the ZKD thus ensures a directional positioning of Lin28 to pre-let-7, which may allow promoting the terminal uridylation of pre-let-7 by TUT4/Zcchc11 or PUP-2.

Amarasinghe, NMR structure of the HIV-1 nucleocapsid protein bound to stem-loop SL2 of the psi-RNA packaging signal. Implications for genome recognition. 2000, Pubmed

Amarasinghe, NMR structure of the HIV-1 nucleocapsid protein bound to stem-loop SL2 of the psi-RNA packaging signal. Implications for genome recognition. 2000, Pubmed
Ambros, Heterochronic mutants of the nematode Caenorhabditis elegans. 1984, Pubmed
Balzer, LIN28 alters cell fate succession and acts independently of the let-7 microRNA during neurogliogenesis in vitro. 2010, Pubmed
Bienert, Single-stranded DNA bound to bacterial cold-shock proteins: preliminary crystallographic and Raman analysis. 2004, Pubmed
Bohnsack, Exportin 5 is a RanGTP-dependent dsRNA-binding protein that mediates nuclear export of pre-miRNAs. 2004, Pubmed , Xenbase
Büssing, let-7 microRNAs in development, stem cells and cancer. 2008, Pubmed
Chaikam, Comparison of structure, function and regulation of plant cold shock domain proteins to bacterial and animal cold shock domain proteins. 2010, Pubmed
De Guzman, Structure of the HIV-1 nucleocapsid protein bound to the SL3 psi-RNA recognition element. 1998, Pubmed
Desjardins, Importance of the NCp7-like domain in the recognition of pre-let-7g by the pluripotency factor Lin28. 2012, Pubmed
Eftink, Fluorescence methods for studying equilibrium macromolecule-ligand interactions. 1997, Pubmed
Emsley, Coot: model-building tools for molecular graphics. 2004, Pubmed
Grosshans, The temporal patterning microRNA let-7 regulates several transcription factors at the larval to adult transition in C. elegans. 2005, Pubmed
Hagan, Lin28 recruits the TUTase Zcchc11 to inhibit let-7 maturation in mouse embryonic stem cells. 2009, Pubmed
Heinemann, Facilities and methods for the high-throughput crystal structural analysis of human proteins. 2003, Pubmed
Heo, TUT4 in concert with Lin28 suppresses microRNA biogenesis through pre-microRNA uridylation. 2009, Pubmed
Heo, Lin28 mediates the terminal uridylation of let-7 precursor MicroRNA. 2008, Pubmed
Horn, Structure and function of bacterial cold shock proteins. 2007, Pubmed
Hutvágner, A cellular function for the RNA-interference enzyme Dicer in the maturation of the let-7 small temporal RNA. 2001, Pubmed
Johnson, RAS is regulated by the let-7 microRNA family. 2005, Pubmed
Kabsch, XDS. 2010, Pubmed
Ketting, Dicer functions in RNA interference and in synthesis of small RNA involved in developmental timing in C. elegans. 2001, Pubmed
Knight, A role for the RNase III enzyme DCR-1 in RNA interference and germ line development in Caenorhabditis elegans. 2001, Pubmed
Landthaler, The human DiGeorge syndrome critical region gene 8 and Its D. melanogaster homolog are required for miRNA biogenesis. 2004, Pubmed
Langer, Automated macromolecular model building for X-ray crystallography using ARP/wARP version 7. 2008, Pubmed
Lee, The nuclear RNase III Drosha initiates microRNA processing. 2003, Pubmed
Lehrbach, LIN-28 and the poly(U) polymerase PUP-2 regulate let-7 microRNA processing in Caenorhabditis elegans. 2009, Pubmed
Lightfoot, A LIN28-dependent structural change in pre-let-7g directly inhibits dicer processing. 2011, Pubmed
Lohman, Thermodynamic methods for model-independent determination of equilibrium binding isotherms for protein-DNA interactions: spectroscopic approaches to monitor binding. 1991, Pubmed
Lopez, Major cold shock proteins, CspA from Escherichia coli and CspB from Bacillus subtilis, interact differently with single-stranded DNA templates. 2000, Pubmed
Lopez, Interactions of the cold shock protein CspB from Bacillus subtilis with single-stranded DNA. Importance of the T base content and position within the template. 2001, Pubmed
Loughlin, Structural basis of pre-let-7 miRNA recognition by the zinc knuckles of pluripotency factor Lin28. 2011, Pubmed
Max, T-rich DNA single strands bind to a preformed site on the bacterial cold shock protein Bs-CspB. 2006, Pubmed
Max, Common mode of DNA binding to cold shock domains. Crystal structure of hexathymidine bound to the domain-swapped form of a major cold shock protein from Bacillus caldolyticus. 2007, Pubmed
Max, Optimized variants of the cold shock protein from in vitro selection: structural basis of their high thermostability. 2007, Pubmed
Mayr, Disrupting the pairing between let-7 and Hmga2 enhances oncogenic transformation. 2007, Pubmed
Mihailovich, Eukaryotic cold shock domain proteins: highly versatile regulators of gene expression. 2010, Pubmed
Moss, The cold shock domain protein LIN-28 controls developmental timing in C. elegans and is regulated by the lin-4 RNA. 1997, Pubmed
Murshudov, Refinement of macromolecular structures by the maximum-likelihood method. 1997, Pubmed
Nam, Molecular basis for interaction of let-7 microRNAs with Lin28. 2011, Pubmed
Newman, Lin-28 interaction with the Let-7 precursor loop mediates regulated microRNA processing. 2008, Pubmed
Otwinowski, Processing of X-ray diffraction data collected in oscillation mode. 1997, Pubmed
Pasquinelli, Conservation of the sequence and temporal expression of let-7 heterochronic regulatory RNA. 2000, Pubmed
Peng, Genome-wide studies reveal that Lin28 enhances the translation of genes important for growth and survival of human embryonic stem cells. 2011, Pubmed
Pettersen, UCSF Chimera--a visualization system for exploratory research and analysis. 2004, Pubmed
Phadtare, Nucleic acid melting by Escherichia coli CspE. 2005, Pubmed
Phadtare, The mechanism of nucleic acid melting by a CspA family protein. 2004, Pubmed
Phadtare, Unwinding activity of cold shock proteins and RNA metabolism. 2011, Pubmed
Piskounova, Determinants of microRNA processing inhibition by the developmentally regulated RNA-binding protein Lin28. 2008, Pubmed
Qiu, Lin28-mediated post-transcriptional regulation of Oct4 expression in human embryonic stem cells. 2010, Pubmed
Rajkowitsch, RNA chaperones, RNA annealers and RNA helicases. 2007, Pubmed
Reinhart, The 21-nucleotide let-7 RNA regulates developmental timing in Caenorhabditis elegans. 2000, Pubmed
Richards, The transcriptome profile of human embryonic stem cells as defined by SAGE. 2004, Pubmed
Rybak, A feedback loop comprising lin-28 and let-7 controls pre-let-7 maturation during neural stem-cell commitment. 2008, Pubmed
Scheich, Vectors for co-expression of an unrestricted number of proteins. 2007, Pubmed
Schindelin, Crystal structure of CspA, the major cold shock protein of Escherichia coli. 1994, Pubmed
Seggerson, Two genetic circuits repress the Caenorhabditis elegans heterochronic gene lin-28 after translation initiation. 2002, Pubmed
Viswanathan, Lin28 promotes transformation and is associated with advanced human malignancies. 2009, Pubmed
Viswanathan, Selective blockade of microRNA processing by Lin28. 2008, Pubmed
Wulczyn, Post-transcriptional regulation of the let-7 microRNA during neural cell specification. 2007, Pubmed
Xu, Histone H2a mRNA interacts with Lin28 and contains a Lin28-dependent posttranscriptional regulatory element. 2009, Pubmed
Xu, Lin28 modulates cell growth and associates with a subset of cell cycle regulator mRNAs in mouse embryonic stem cells. 2009, Pubmed
Yang, Double-negative feedback loop between reprogramming factor LIN28 and microRNA let-7 regulates aldehyde dehydrogenase 1-positive cancer stem cells. 2010, Pubmed
Yang, Temporally regulated expression of Lin-28 in diverse tissues of the developing mouse. 2003, Pubmed
Yi, Exportin-5 mediates the nuclear export of pre-microRNAs and short hairpin RNAs. 2003, Pubmed
Yu, Induced pluripotent stem cell lines derived from human somatic cells. 2007, Pubmed
Zeeb, Single-stranded DNA binding of the cold-shock protein CspB from Bacillus subtilis: NMR mapping and mutational characterization. 2003, Pubmed
Zeeb, Recognition of T-rich single-stranded DNA by the cold shock protein Bs-CspB in solution. 2006, Pubmed
Zuker, Mfold web server for nucleic acid folding and hybridization prediction. 2003, Pubmed
