Jarecki BW , Makino S , Beebe ET , Fox BG , Chanda B .

5T32HL007936-09 NHLBI NIH HHS , GM084140 NIGMS NIH HHS , U54 GM094584-01 NIGMS NIH HHS , T32 HL007936 NHLBI NIH HHS , R01 NS081293 NINDS NIH HHS , R01 GM084140 NIGMS NIH HHS , U54 GM094584 NIGMS NIH HHS

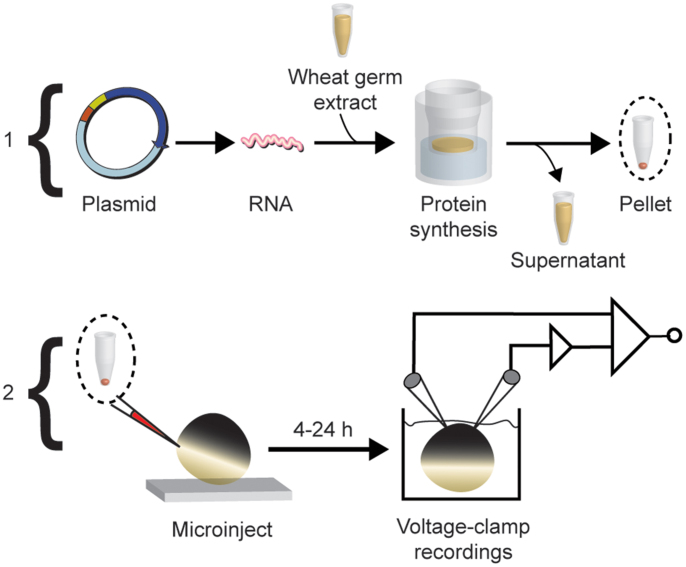

	Figure 1. Cartoon workflow diagram of cell-free protein production and expression in Xenopus laevis oocytes illustrated in two phases.Phase 1: Unique 5′ and 3′ restriction sites appended onto a target gene open-reading frame are used to digest and subclone into a specialized plasmid (pEU-HSBC) for cell-free synthesis. The plasmid DNA is used as a template for in vitro transcription of RNA. Transcribed messenger RNA directs protein translation in wheat-germ cell-free extract supplemented with liposomes to make proteoliposomes. Since the Shaker channels can be recovered from the pellet fraction, the supernatant is discarded and the proteoliposomes are collected after centrifugation. Phase 2: Samples are reconstituted to specified concentrations in a salt buffer and injected into single Xenopus laevis oocytes at the vegetal equator. Currents are measured under voltage-clamp within 24†h.

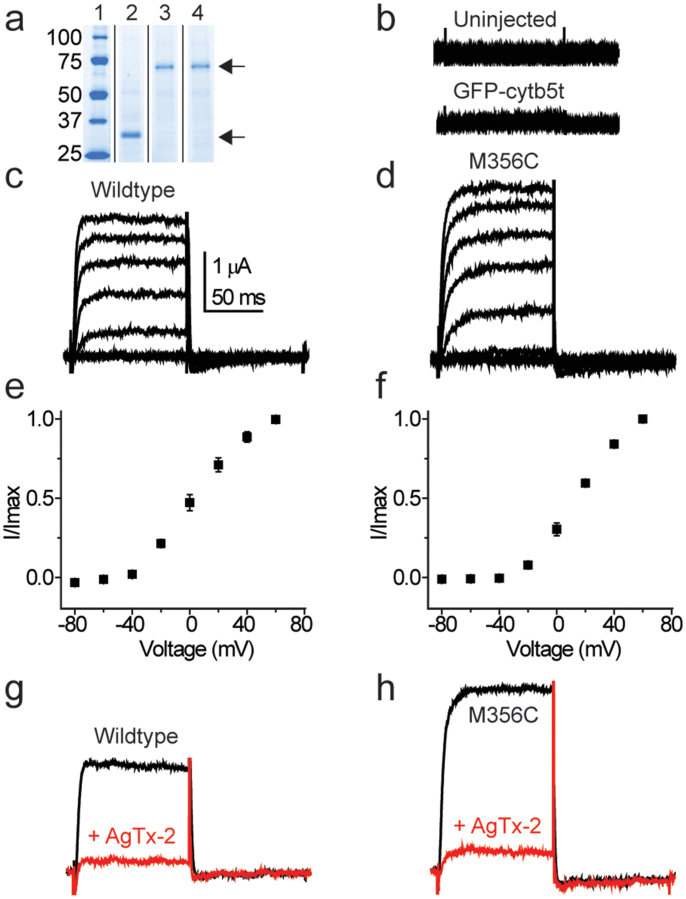

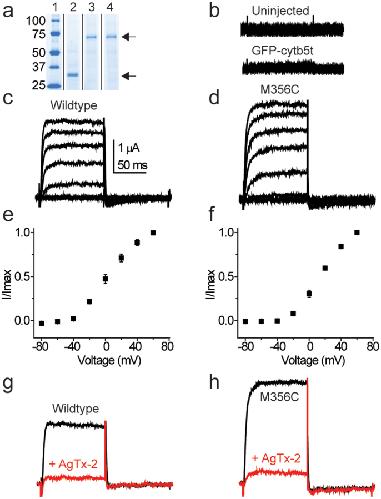

	Figure 2. Voltage-dependent response and pharmacology of injected samples produced from cell-free translation.(a) SDS-PAGE analysis of proteins produced by wheat-germ cell-free translation. Lanes 1 to 4, representative gel slices from different experiments displaying, from left to right, the molecular weight marker (in kDa), GFP-cytb5t (32†kDa), wildtype and M356C zh4IR channel monomers (71†kDa). The protein samples shown in the gel correspond to those used in other experiments shown in this figure. The family of current traces elicited in response to depolarizing voltage steps (−80 to +60†mV, Δ20†mV) for uninjected oocytes and oocytes injected with GFP-cytb5t (at 0.86 pmol) (b) were negligible compared to the wildtype channel (c) and the M356C channel (d) injected at 0.19 pmol. Current-voltage (I–V) relationship for wildtype (e) and mutant (f) Shaker channels. Inhibition of wildtype (g) and mutant (h) channels in the absence (black) and presence (red) of 10†nM of the pore blocking compound AgTx-2.

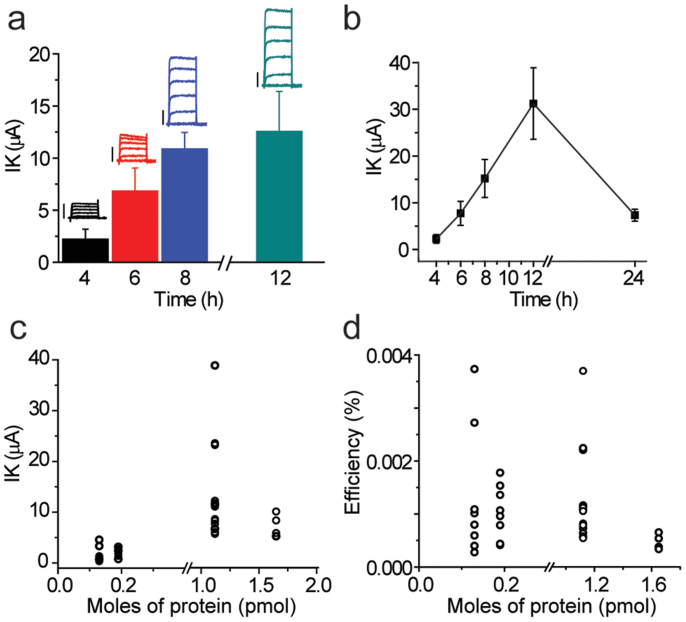

	Figure 3. Timecourse and concentration-dependence of the appearance of zh4IR current in protein-injected samples.(a) Maximal K+ current elicited at +60†mV averaged at varying times post-injection for wildtype (Δ4Cys) proteins. Representative families of currents (color-coded relative to the recording time) are displayed above the bars, with a 2†μA scale bar. (b) Average timecourse of expression followed for the same oocyte over a period of 24†h post-injection (n = 4) with data points line-connected for trend comparison. (c) Comparison of maximal current elicited at +60†mV as a function of moles of tetrameric protein injected for four different injection sets. (d) Estimated incorporation efficiency (see Methods) for injection sets displayed in (c). Individual data points are shown in (c–d) to highlight the variability.

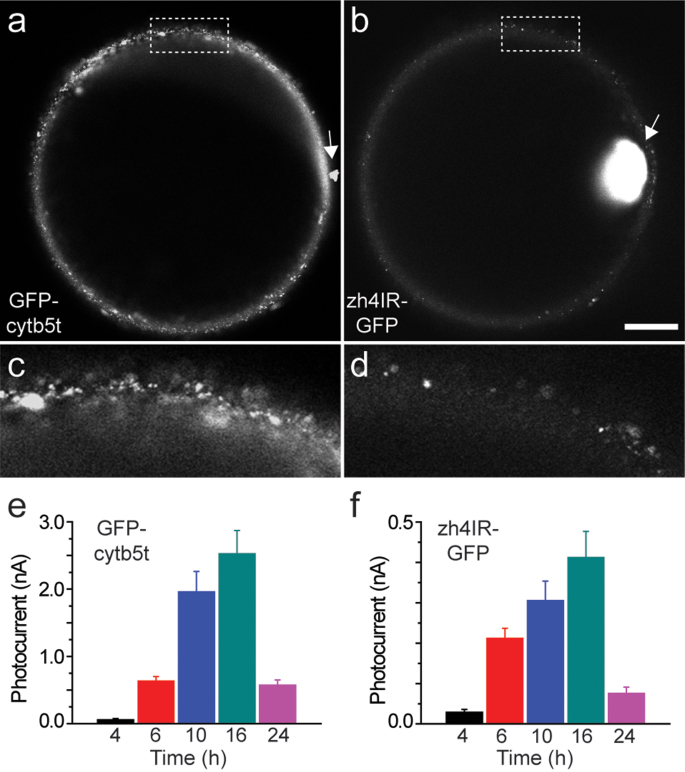

	Figure 4. Membrane localization of GFP fused proteins injected into Xenopus laevis oocytes.Grayscale confocal images of (a) GFP-cytb5t (at 2.77 pmol) and (b) zh4IR-GFP (at 0.58 pmol) protein localization within the oocyte membrane at 12†h after proteoliposome injections. Image intensity of the zh4IR-injected oocytes is increased 2-fold for ease of visualization. Arrows indicate the site of injection. Magnified membrane sections taken from the region within the dotted rectangle are displayed below. Scale bar = 200†μm (a, b) and 50†μm (magnified regions, c, d). Corresponding membrane photocurrents (nA) were measured from GFP-cytb5t (e) and zh4IR-GFP (f) at multiple times post-injection.

Barnard, Translation of exogenous messenger RNA coding for nicotinic acetylcholine receptors produces functional receptors in Xenopus oocytes. 1982, Pubmed, Xenbase

Barnard, Translation of exogenous messenger RNA coding for nicotinic acetylcholine receptors produces functional receptors in Xenopus oocytes. 1982, Pubmed , Xenbase
Boland, Cysteines in the Shaker K+ channel are not essential for channel activity or zinc modulation. 1994, Pubmed , Xenbase
Falk, Cell-free synthesis and assembly of connexins into functional gap junction membrane channels. 1997, Pubmed
Fernández-Carvajal, Structural and functional changes induced in the nicotinic acetylcholine receptor by membrane phospholipids. 2006, Pubmed
Gal, Functional incorporation of exogenous proteins into the Xenopus oocyte membrane does not depend on intracellular calcium increase. 2000, Pubmed , Xenbase
Goren, Wheat germ cell-free translation, purification, and assembly of a functional human stearoyl-CoA desaturase complex. 2008, Pubmed
Goren, Cell-free translation of integral membrane proteins into unilamelar liposomes. 2009, Pubmed
Hanlon, In vitro membrane-inserted conformation of the cytochrome b(5) tail. 2000, Pubmed
Holmgren, N-type inactivation and the S4-S5 region of the Shaker K+ channel. 1996, Pubmed
Ivorra, Protein orientation affects the efficiency of functional protein transplantation into the xenopus oocyte membrane. 2002, Pubmed , Xenbase
Jacobson, Lateral diffusion of proteins in membranes. 1987, Pubmed
Junge, Large-scale production of functional membrane proteins. 2008, Pubmed
Laemmli, Cleavage of structural proteins during the assembly of the head of bacteriophage T4. 1970, Pubmed
Le Cahérec, Incorporation of proteins into (Xenopus) oocytes by proteoliposome microinjection: functional characterization of a novel aquaporin. 1996, Pubmed , Xenbase
Mannuzzu, Direct physical measure of conformational rearrangement underlying potassium channel gating. 1996, Pubmed , Xenbase
Marsal, Incorporation of acetylcholine receptors and Cl- channels in Xenopus oocytes injected with Torpedo electroplaque membranes. 1995, Pubmed , Xenbase
Miledi, Expression of functional neurotransmitter receptors in Xenopus oocytes after injection of human brain membranes. 2002, Pubmed , Xenbase
Morales, Incorporation of reconstituted acetylcholine receptors from Torpedo into the Xenopus oocyte membrane. 1995, Pubmed , Xenbase
Nozawa, A cell-free translation and proteoliposome reconstitution system for functional analysis of plant solute transporters. 2007, Pubmed
Ozols, Structure of cytochrome b5 and its topology in the microsomal membrane. 1989, Pubmed
Palma, Microtransplantation of membranes from cultured cells to Xenopus oocytes: a method to study neurotransmitter receptors embedded in native lipids. 2003, Pubmed , Xenbase
Palma, Physiological characterization of human muscle acetylcholine receptors from ALS patients. 2011, Pubmed , Xenbase
Rosenberg, Cell-free expression of functional Shaker potassium channels. 1992, Pubmed , Xenbase
Santacruz-Toloza, Glycosylation of shaker potassium channel protein in insect cell culture and in Xenopus oocytes. 1994, Pubmed , Xenbase
Schmidt, Phospholipids and the origin of cationic gating charges in voltage sensors. 2006, Pubmed
Schmidt, Voltage-dependent K+ channel gating and voltage sensor toxin sensitivity depend on the mechanical state of the lipid membrane. 2008, Pubmed , Xenbase
Selenko, Quantitative NMR analysis of the protein G B1 domain in Xenopus laevis egg extracts and intact oocytes. 2006, Pubmed , Xenbase
Sevova, Cell-free synthesis and functional characterization of sphingolipid synthases from parasitic trypanosomatid protozoa. 2010, Pubmed
Sonar, Cell-free synthesis, functional refolding, and spectroscopic characterization of bacteriorhodopsin, an integral membrane protein. 1993, Pubmed
Syeda, Tetrameric assembly of KvLm K+ channels with defined numbers of voltage sensors. 2012, Pubmed
Tapper, Heterologous expression of ion channels. 2003, Pubmed , Xenbase
Yellen, Mutations affecting internal TEA blockade identify the probable pore-forming region of a K+ channel. 1991, Pubmed
