Sci Rep
2013 Jan 01;3:1279. doi: 10.1038/srep01279.
Show Gene links
Show Anatomy links
Agr genes, missing in amniotes, are involved in the body appendages regeneration in frog tadpoles.
Ivanova AS
,
Tereshina MB
,
Ermakova GV
,
Belousov VV
,
Zaraisky AG
.
???displayArticle.abstract???
Previous studies have shown that Agr genes, which encode thioredoxin domain-containing secreted proteins, play a critical role in limb regeneration in salamanders. To determine the evolutionary conservation of Agr function, it is important to examine whether Agrs play a similar role in species with a different type of regeneration. Here, we refined the phylogeny of Agrs, revealing three subfamilies: Ag1, Agr2 and Agr3. Importantly, we established that Ag1 was lost in higher vertebrates, which correlates with their decreased regeneration ability. In Xenopus laevis tadpoles (anamniotes), which have all three Agr subfamilies and a high regenerating capacity, Agrs were activated in the stumps of tails and hindlimb buds that were amputated at stage 52. However, Agrs were not up-regulated when the hindlimb buds were amputated at stage 57, the stage at which their regeneration capacity is lost. Our findings indicate the general importance of Agrs for body appendages regeneration in amphibians.
Figure 4. Analysis of Agrs expression by whole-mount in situ hybridisation.(A) and (B), (F) and (G), (K) and (L). Intact hindlimb buds and hindlimb buds amputated at stage 52 and hybridised at 1 dpa with Xag2, Xagr2a and Xagr3a probes, respectively; distal to the top, ventral side to the right. (C), (H) and (M). Sagittal sections of amputated hindlimb buds shown on (B), (G) and L; ep – epidermis, bl – blastema. (D) and (E), (I) and (J), (N) and (O). Left side view and frontal sections (the level of section is indicated by dotted lines on (D), (I) and (N)) of tails amputated at stage 52 and hybridised at 1 dpa with Xag2 and Xagr2a probes; distal to the bottom, ventral side to the left. (P) and (Q). Stage 25 tailbudembryo hybridized with Xag3a antisense probe. Frontal and right side view respectively. Dorsal to the top. Anterior on B to the right. (R) and (S). Intact and amputated hindlimb buds operated at stage 52 and hybridized at 1 dpa with Xag2 sense (control) probe; distal to the top, ventral side to the right. (T). Sagittal sections of amputated hindlimb buds operated at stage 52 and hybridized at 1 dpa with Xag2 sense (control) probe. (U) and (V). Left side view and frontal sections (the level of section is indicated by dotted line on (U) of amputaited tail operated at stage 52 and hybridized at 1 dpa with Xag2 sense (control) probe; distal to the bottom, ventral side to the left. Bars – 250 microns.
Figure 5. Analysis of Xag2 expression by transgenic tadpoles.(A) and (A′), (B) and (B′). Amputated and intact hindlimb buds of the same transgenic embryo, 12 h post-amputation at stage 52; distal to the right, dorsal to the top. (C) and (C′). Amputated tail, 12 h post-amputation at stage 52; distal to the bottom, ventral to the right. (D) and (D′), (E) and (E′). Amputated and intact hindlimb buds of the same transgenic embryo, 1 dpa at stage 57; distal to the right, dorsal to the top. (F) and (F′). Amputated tail, 1 dpa at stage 57; distal to the right, ventral to the bottom. Arrows indicate cells expressing EGFP. Bars – 500 microns.

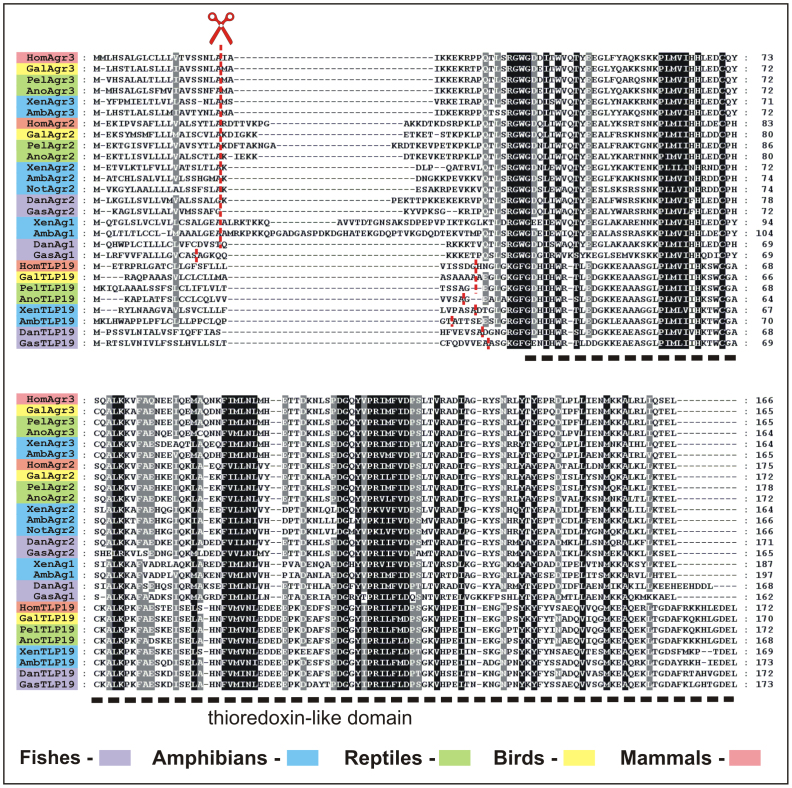

Figure 1. Clustal alignment of Agr genes.Putative cleavage sites for signalling peptides predicted by Signal-P program (http://www.cbs.dtu.dk/services/SignalP/) are indicated by a red dotted line. Highly conservative aa positions are marked by black, and less conservative aa positions are marked by grey shading. Different classes of vertebrates, whose proteins were aligned, are highlighted by different colours (see decoding of colours at bottom). Abbreviations: Amb – Ambistoma maculatum (salamander) (GeneBank accession numbers: Ag1 - KC253227, Agr2 - KC253228; Agr3 - KC253230; TLP19 - KC253229); Ano – Anolis carolinesis (lizard) (GeneBank accession numbers: Agr2 - JX854521; Agr3 - JX854522; TLP19 - JX854523); Dan –Danio rerio (fish) (GeneBank accession numbers: Ag1 - JX566722, Agr2 - AY796218; TLP19 – DQ28661); Gal – Gallus gallus (chick) (GeneBank accession numbers: Agr2 - XM418698, Agr3 - NM001199613, TLP19 – XM001235372); Gas –Casterosteus aculeatus (fish) (GeneBank accession numbers: Ag1 - JX854524, Agr2 - JX854525; TLP19 – JX854526); Hom – Homo sapiens (GeneBank accession numbers: Agr2 - BT007048, Agr3 - AY069977, TLP19 – BC008913; Not – Notophthalmus viridescens (newt) (GeneBank accession numbers: Agr2 - EF667357); Pel – Pelodiscus sinensis (turtle) (GeneBank accession numbers: Agr2 - JX854518, Agr3 - JX854519, TLP19 – JX854520); and Xen – Xenopus tropicalis (frog) (GeneBank accession numbers: Ag1 - NM213699, Agr2 - NM001016627; Agr3 - NM001006908; TLP19 - CT030507).

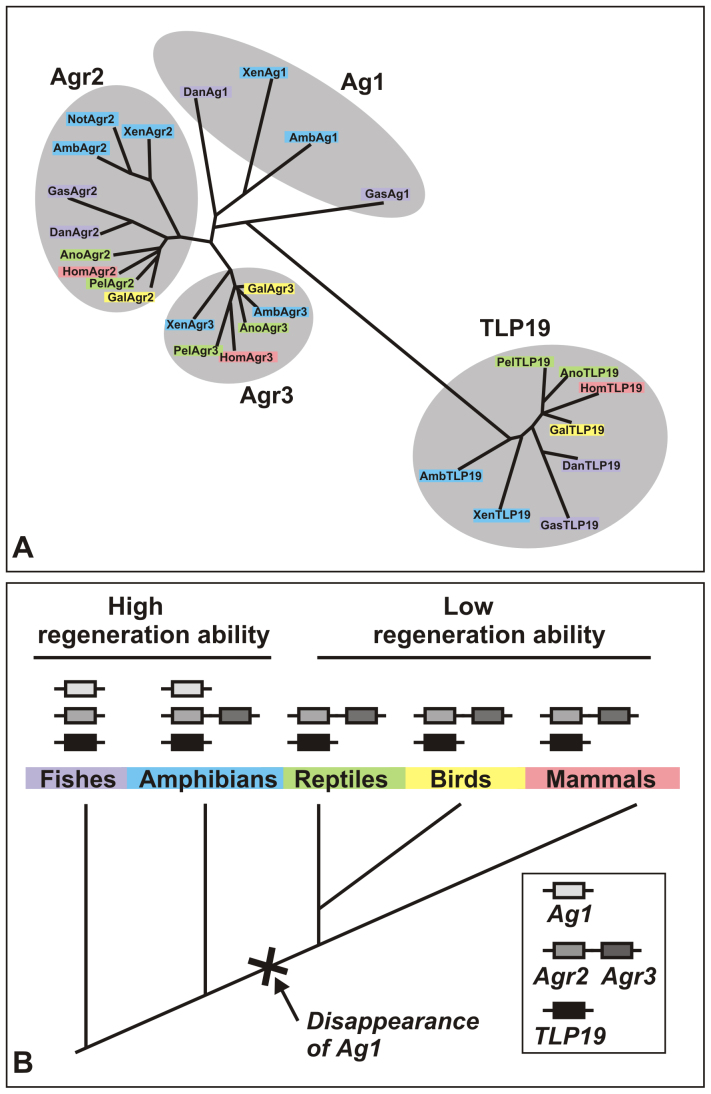

Figure 2. Phylogeny of Agr genes.(A). Phylogenetic unrooted tree with branch length for Ag1, Agr2, Agr3 and TLP19 proteins shown in Fig. 1. (B). Evolution of different subfamilies of Agrs in vertebrates.

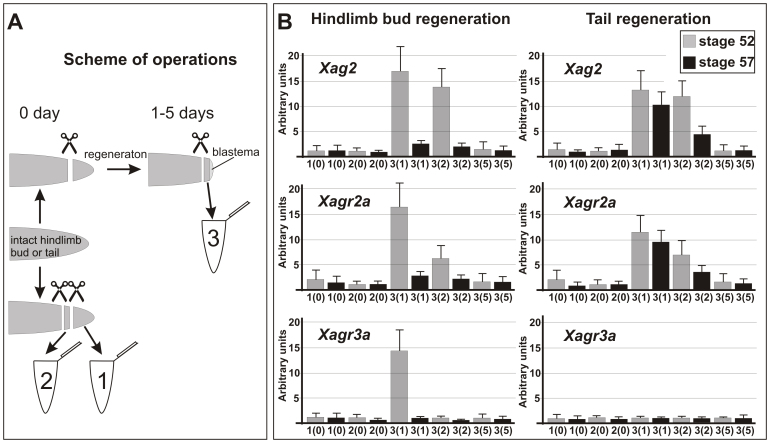

Figure 3. Analysis of Agrs expression by qRT-PCR.(A). Scheme of experiments. (B). QRT-PCR analysis of Xag2, Xagr2a and Xagr3a expression in tissue samples of 1st -3rd types as indicated in (A). Days after amputation are in brackets. All graphs represent means of triplicate experiments. Bars indicate standard deviations. The geometric mean of expression of ornithine decarboxylase (ODC)16 and elongation factor 1alpa (EF-1alpha)16 was used for normalisation of experimental values. The value of normalised PCR signal in sample 2(0) in each series was taken as an arbitrary unit.
Aberger,
Anterior specification of embryonic ectoderm: the role of the Xenopus cement gland-specific gene XAG-2.
1998, Pubmed,
Xenbase
Aberger,
Anterior specification of embryonic ectoderm: the role of the Xenopus cement gland-specific gene XAG-2.
1998,
Pubmed
,
Xenbase
Beck,
Beyond early development: Xenopus as an emerging model for the study of regenerative mechanisms.
2009,
Pubmed
,
Xenbase
Blassberg,
Functional convergence of signalling by GPI-anchored and anchorless forms of a salamander protein implicated in limb regeneration.
2011,
Pubmed
Bookout,
High-throughput real-time quantitative reverse transcription PCR.
2006,
Pubmed
Gray,
Anterior Gradient-3: a novel biomarker for ovarian cancer that mediates cisplatin resistance in xenograft models.
2012,
Pubmed
Harland,
In situ hybridization: an improved whole-mount method for Xenopus embryos.
1991,
Pubmed
,
Xenbase
Kumar,
Molecular basis for the nerve dependence of limb regeneration in an adult vertebrate.
2007,
Pubmed
Kumar,
The aneurogenic limb identifies developmental cell interactions underlying vertebrate limb regeneration.
2011,
Pubmed
Liu,
Human homologue of cement gland protein, a novel metastasis inducer associated with breast carcinomas.
2005,
Pubmed
,
Xenbase
Martynova,
Patterning the forebrain: FoxA4a/Pintallavis and Xvent2 determine the posterior limit of Xanf1 expression in the neural plate.
2004,
Pubmed
,
Xenbase
Novoselov,
Expression zones of three novel genes abut the developing anterior neural plate of Xenopus embryo.
2003,
Pubmed
,
Xenbase
Offield,
The development of Xenopus tropicalis transgenic lines and their use in studying lens developmental timing in living embryos.
2000,
Pubmed
,
Xenbase
Persson,
Diversity of the protein disulfide isomerase family: identification of breast tumor induced Hag2 and Hag3 as novel members of the protein family.
2005,
Pubmed
Serebrovskaya,
Light-induced blockage of cell division with a chromatin-targeted phototoxic fluorescent protein.
2011,
Pubmed
,
Xenbase
Sive,
Progressive determination during formation of the anteroposterior axis in Xenopus laevis.
1989,
Pubmed
,
Xenbase
Slack,
The Xenopus tadpole: a new model for regeneration research.
2008,
Pubmed
,
Xenbase
TSCHUMI,
The growth of the hindlimb bud of Xenopus laevis and its dependence upon the epidermis.
1957,
Pubmed
,
Xenbase
Xanthos,
The roles of three signaling pathways in the formation and function of the Spemann Organizer.
2002,
Pubmed
,
Xenbase
