Onuma Y et al. (2013), A lectin-based glycomic approach to identify ch...

XB-ART-46758

PLoS One 2013 Jan 01;82:e56581. doi: 10.1371/journal.pone.0056581.

Show Gene links Show Anatomy links

A lectin-based glycomic approach to identify characteristic features of Xenopus embryogenesis.

Onuma Y , Tateno H , Tsuji S , Hirabayashi J , Ito Y , Asashima M .

???displayArticle.abstract???
Cell surface glycans show dynamic changes during cell differentiation. Several glycans are useful biomarkers of tumors, stem cells, and embryogenesis. Glycomic studies have been performed using liquid chromatography and mass spectrometry, which are powerful tools for glycan structural analysis but are difficult to use for small sample sizes. Recently, a lectin microarray system was developed for profiling cell surface glycome changes to terminal carbohydrate chains and branch types, using sample sizes of a few micrograms. In this study, we used the lectin microarray system for the first time to investigate stage-specific glycomes in Xenopus laevis embryos. Unsupervised cluster analysis of lectin microarray data indicated that glycan profiles changed sequentially during development. Nine lectin probes showed significantly different signals between early and the late-stage embryos: 4 showed higher signals in the early stages, and 5 exhibited higher signals in the late stages. The gene expression profiles of relevant glycosyltransferase genes support the lectin microarray data. Therefore, we have shown that lectin microarray is an effective tool for high-throughput glycan analysis in Xenopus embryogenesis, allowing glycan profiling of early embryos and small biopsy specimens.

???displayArticle.pubmedLink??? 23457585
???displayArticle.pmcLink??? PMC3572943
???displayArticle.link??? PLoS One

Species referenced: Xenopus laevis
Genes referenced: abo fut1 galnt11 galnt3 galnt7 hpse mgat1 mogat1

???displayArticle.gses??? GSE40620: NCBI

???attribute.lit??? ???displayArticles.show???

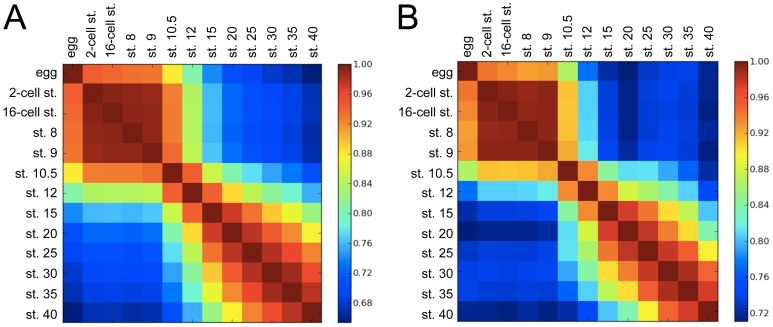

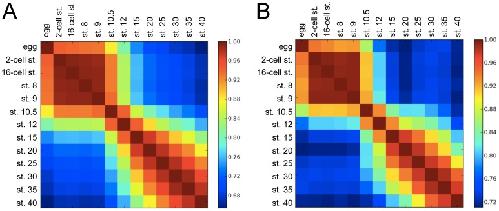

	Figure 2. Global comparisons of total and glycogene transcriptomes during Xenopus embryogenesis.Heat map of the correlation coefficient matrix. The color of each square indicates the difference at a specified developmental stage. By definition, diagonal squares have zero divergence. Color scales indicate the correlation coefficient. (A) Global genes; (B) âXenopus glycogenes.â Egg, unfertilized egg; st., stage.

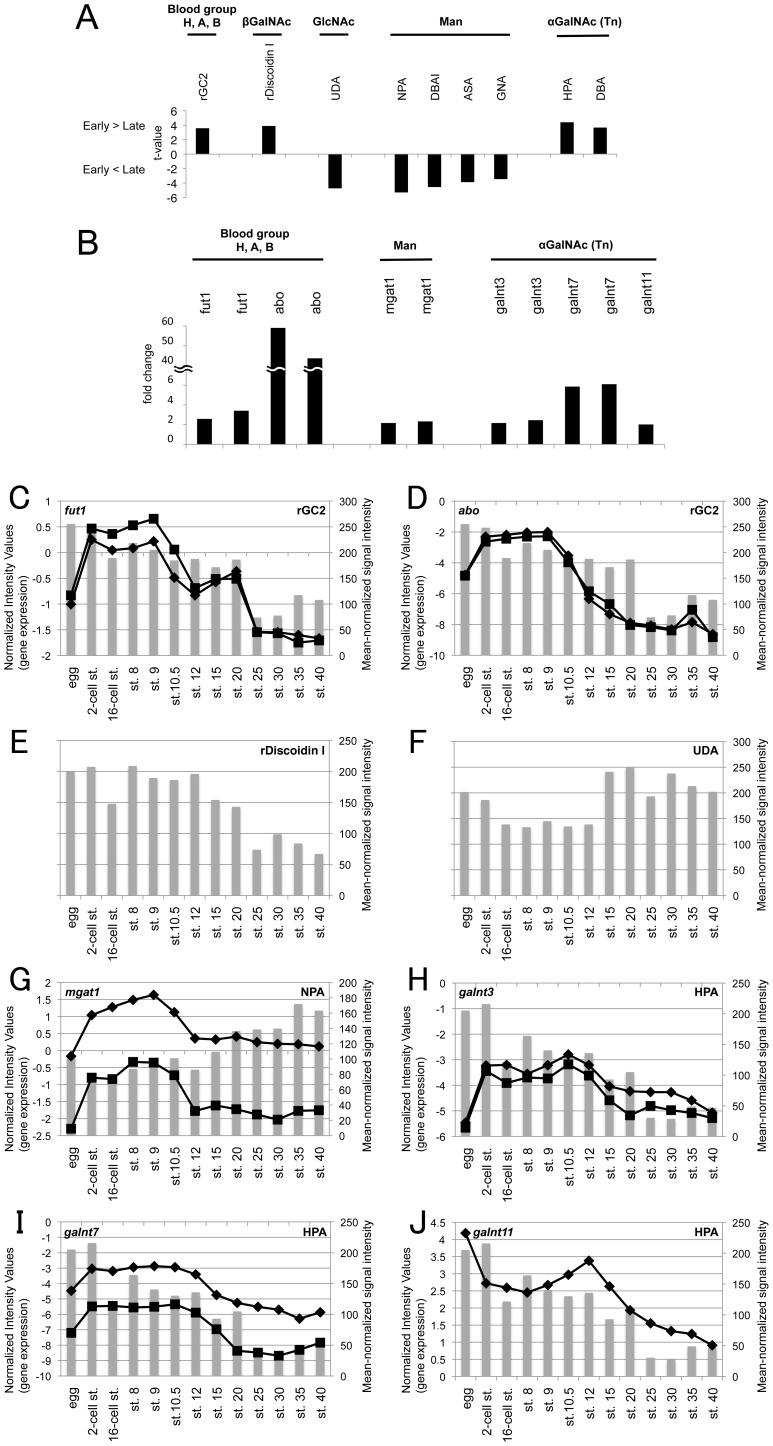

	Figure 3. Alterations to glycan and glycogene expression during embryogenesis.(A) Lectin microarray data were mean-normalized and analyzed by Student's t-test. Nine lectins with significantly different signals (p<0.01) between the early-stage group (2-cell stage, 16-cell stage, stage 8, and stage 9) and the late-stage group (stages 15â40) were categorized into 5 groups based on the glycan-binding specificities of lectins (indicated above). t-Values of lectins with higher signals in the early-stage group than in the late-stage group (indicated as Early>Late) are displayed as positive values, and t-values of lectins with lower signals in the early-stage group (indicated in Early<Late) are displayed as negative values. All lectin data are shown in Table S1. (B) Changes in the expression of glycogenes related to lectins with significantly different signals in early- and late-stage groups. Fold changes in 11 DNA microarray probes for glycogenes and glycans that may be regulated by these glycogenes are shown. All gene data are deposited in the GEO database as GSE40620. (CâJ) Temporal changes in lectin signals and glycogene expression during embryogenesis. Normalized intensity values of glycogene probes are represented as lines in the primary Y-axis (left side). Mean-normalized signal intensities of lectins are represented as bars in the secondary Y-axis (right side). All lectin data are shown in Table S3. (C) fut1 and rGC2, (D) abo and rGC2, (E) rDiscoidin I, (F) UDA, (G) mgat1 and NPA, (H) galnt3 and HPA, (I) galnt7 and HPA, (J) galnt11 and HPA.

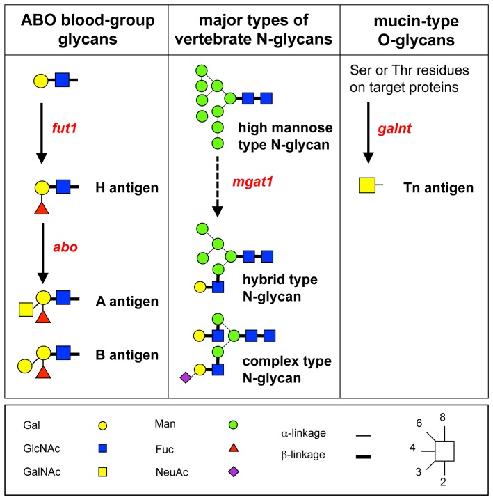

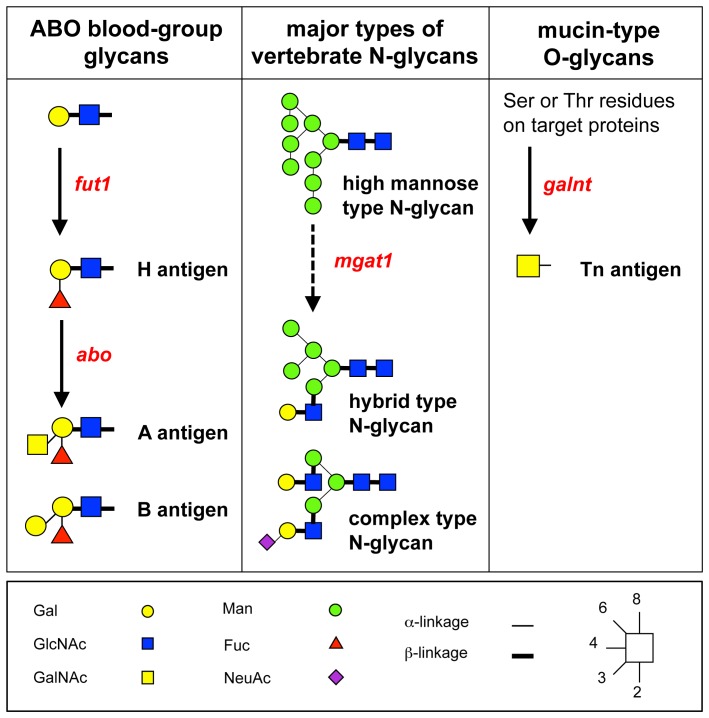

	Figure 4. Schematic relationships between the glycans and transferase genes, whose expressions differed significantly between early- and late-stage embryos in this study.Glycosyltransferase genes are indicated in red. The mgat1 gene does not directly produce hybrid type or complex type of N-glycans, but a high expression level of mgat1 reduces levels of high-mannose-type N-glycans and increases the production of hybrid and complex-type N-glycans.

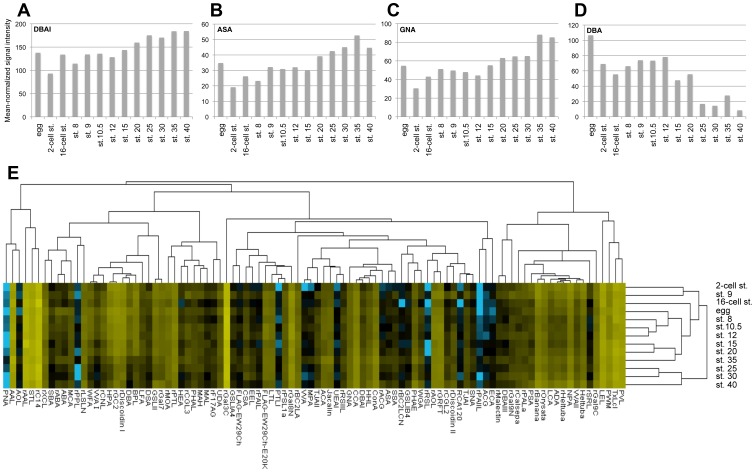

	Figure 1. Lectin microarray data of Xenopus embryogenesis.(Aâ€“D) Lectin microarray data for the 4 indicated lectins, DBAI (A), ASA (B), GNA (C), and DBA (D). Mean-normalized signal intensities of lectins are shown. All lectin data are shown in Table S3. (E) A summary of 96 lectin signals. Unsupervised hierarchical cluster was generated using mean-normalized and log-transformed signal intensities. Levels of lectin signaling are indicated by a color change from blue (low) to yellow (high). Egg, unfertilized egg; st., stage.

References [+] :

Bowes, Xenbase: a Xenopus biology and genomics resource. 2008, Pubmed, Xenbase
