Melo Z et al. (2013), N-terminal serine dephosphorylation is required...

XB-ART-47897

J Biol Chem 2013 Nov 01;28844:31468-76. doi: 10.1074/jbc.M113.475574.

Show Gene links Show Anatomy links

N-terminal serine dephosphorylation is required for KCC3 cotransporter full activation by cell swelling.

Melo Z , de los Heros P , Cruz-Rangel S , Vázquez N , Bobadilla NA , Pasantes-Morales H , Alessi DR , Mercado A , Gamba G .

???displayArticle.abstract???
The K(+):Cl(-) cotransporter (KCC) activity is modulated by phosphorylation/dephosphorylation processes. In isotonic conditions, KCCs are inactive and phosphorylated, whereas hypotonicity promotes their dephosphorylation and activation. Two phosphorylation sites (Thr-991 and Thr-1048) in KCC3 have been found to be critical for its regulation. However, here we show that the double mutant KCC3-T991A/T1048A could be further activated by hypotonicity, suggesting that additional phosphorylation site(s) are involved. We observed that in vitro activated STE20/SPS1-related proline/alanine-rich kinase (SPAK) complexed to its regulatory MO25 subunit phosphorylated KCC3 at Ser-96 and that in Xenopus laevis oocytes Ser-96 of human KCC3 is phosphorylated in isotonic conditions and becomes dephosphorylated during incubation in hypotonicity, leading to a dramatic increase in KCC3 function. Additionally, WNK3, which inhibits the activity of KCC3, promoted phosphorylation of Ser-96 as well as Thr-991 and Thr-1048. These observations were corroborated in HEK293 cells stably transfected with WNK3. Mutation of Ser-96 alone (KCC3-S96A) had no effect on the activity of the cotransporter when compared with wild type KCC3. However, when compared with the double mutant KCC3-T991A/T1048A, the triple mutant KCC3-S96A/T991A/T1048A activity in isotonic conditions was significantly higher, and it was not further increased by hypotonicity or inhibited by WNK3. We conclude that serine residue 96 of human KCC3 is a third site that has to be dephosphorylated for full activation of the cotransporter during hypotonicity.

???displayArticle.pubmedLink??? 24043619
???displayArticle.pmcLink??? PMC3814743
???displayArticle.link??? J Biol Chem
???displayArticle.grants??? [+]

Species referenced: Xenopus laevis
Genes referenced: actl6a prss1 slc12a1 slc12a6 stk39 wnk3

???attribute.lit??? ???displayArticles.show???

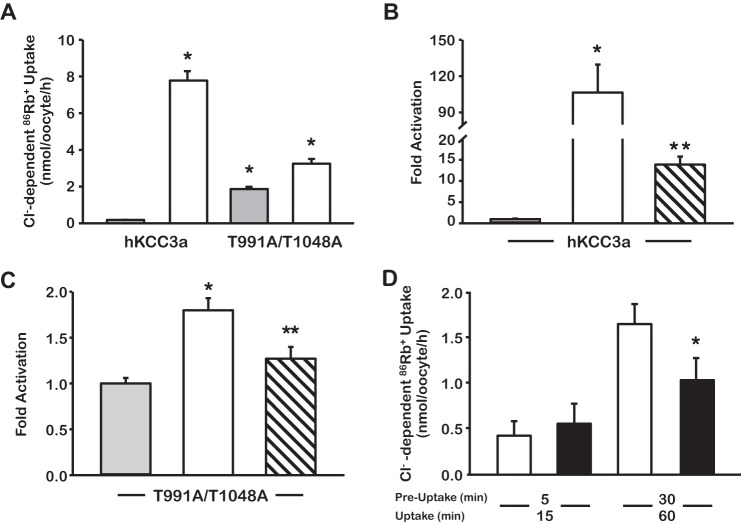

	FIGURE 1. Evidence for additional phosphorylation sites in KCC3. A, functional expression assay shows the activity of wild type (WT) KCC3 and KCC3-T991A/T1048A under isotonic (gray bars) and hypotonic (open bars) conditions. , p < 0.01 versus human KCC3a (hKCC3a) in isotonic condition. B and C, -fold activity of WT KCC3a (B) or KCC3a-T991A/T1048A (C) taking isotonic conditions as 100% (gray bars) and normalizing accordingly the effect of hypotonic conditions alone (open bars) or hypotonic conditions plus co-injection with WNK3 cRNA (hatched bars). , p < 0.01 versus isotonic control. *, p < 0.05 versus hypotonicity without WNK3. D, time dependence of WT KCC3a activity (open bars) when compared with KCC3a-T991A/T1048A (black bars) in hypotonic conditions was measured after 5 or 30 min of pre-uptake incubation. , p < 0.01 versus wild type.

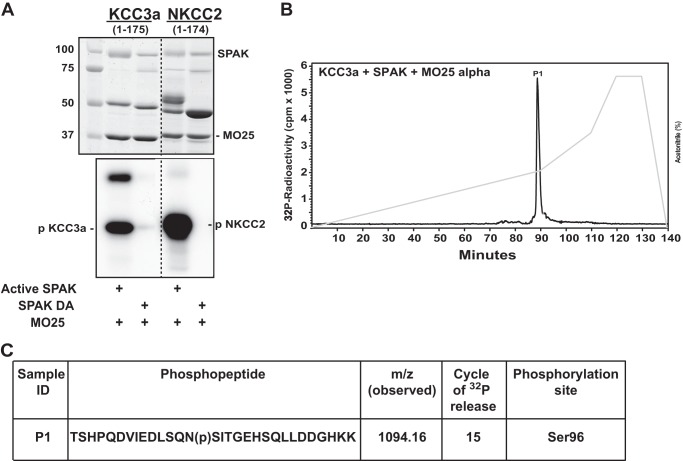

	FIGURE 2. In vitro identification of KCC3 phosphorylation sites by SPAK. A, GST-KCC3(1–175) and GST-NKCC2(1–174) were expressed in E. coli and phosphorylated with the active and kinase inactive (DA) forms of SPAK in the presence of 10 m MO25α. Dotted lines between autoradiographs and gels indicate that these were undertaken on separate gels. p, phosphorylated. B, phosphorylated GST-KCC3(1–175) was digested with trypsin and chromatographed on a C18 column. The peak fraction containing the major 32P-labeled peptides is labeled P1. C, summary of the mass spectrometry and solid-phase Edman sequencing data obtained after phospho-peptide analysis.

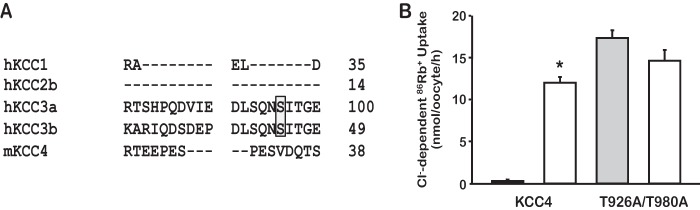

	FIGURE 3. Serine 96 is unique to KCC3. A, KCCs sequence alignment of the N-terminal domain fragment revealed that Ser-96 of KCC3a (Ser-45 in KCC3b as shown the gray shaded box) is not present in other KCCs and thus is unique to KCC3. h, human; m, mouse. B, KCC4 Rb+ uptake of WT KCC4 and KCC4-T926A/T980A under isotonic (gray bars) and hypotonic (open bars) conditions. n = 8–9 experiments, *, p < 0.0001 versus KCC4 in isotonicity.

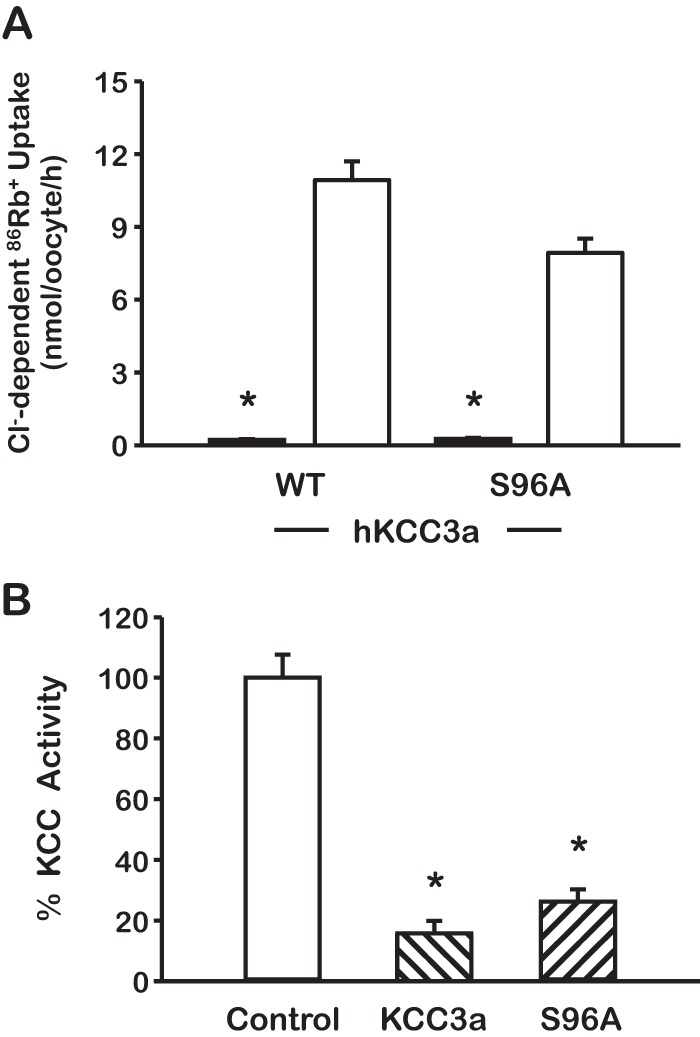

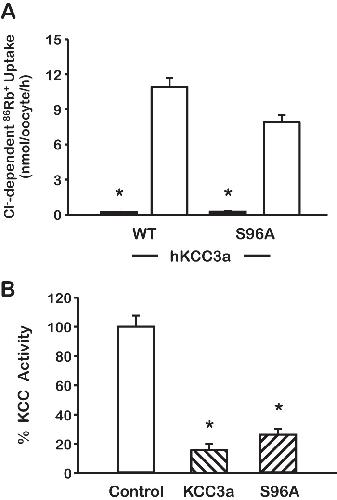

	FIGURE 4. Elimination of serine 96 by itself had no effect on the KCC3 behavior. A, functional expression assay of WT KCC3a and mutant KCC3a-S96A shows no difference in hypotonic activation (open bars), with no basal expression under isotonic conditions (gray bars). n = 4, p < 0.0001 versus hypotonicity. B, similarly to WT KCC3a, the activity of mutant KCC3a S96A in hypotonic conditions is inhibited by WNK3 (hatched bars). n = 4, *, p < 0.0001 versus control.

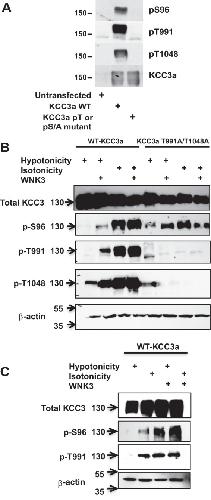

	FIGURE 5. Serine 96 becomes phosphorylated under isotonic conditions and in co-expression with WNK3. A, characterization of KCC3a phosphorylation sites using phospho-specific antibodies. HEK 293 cells were transfected with WT human KCC3a or the indicated mutant forms (pT or pS). At 36 h after transfection, cells were lysed, and total cell extracts were immunoblotted with KCC3a total and phospho-specific antibodies. Similar results were obtained in 2 separate experiments. B, representative immunoblotting of total protein extracted from oocytes injected with WT KCC3a or KCC3a-T991A/T1048A cRNA with or without WNK3 cRNA and under hypotonicity or isotonicity maneuvers, as stated. C, representative immunoblotting of total proteins extracted from HEK293 cells transfected as stated. Blots were performed using specific antibody against total KCC3 and phospho-antibodies directed to Ser-96, Thr-991, and/or Thr-1048 of KCC3a and β-actin as loading control.

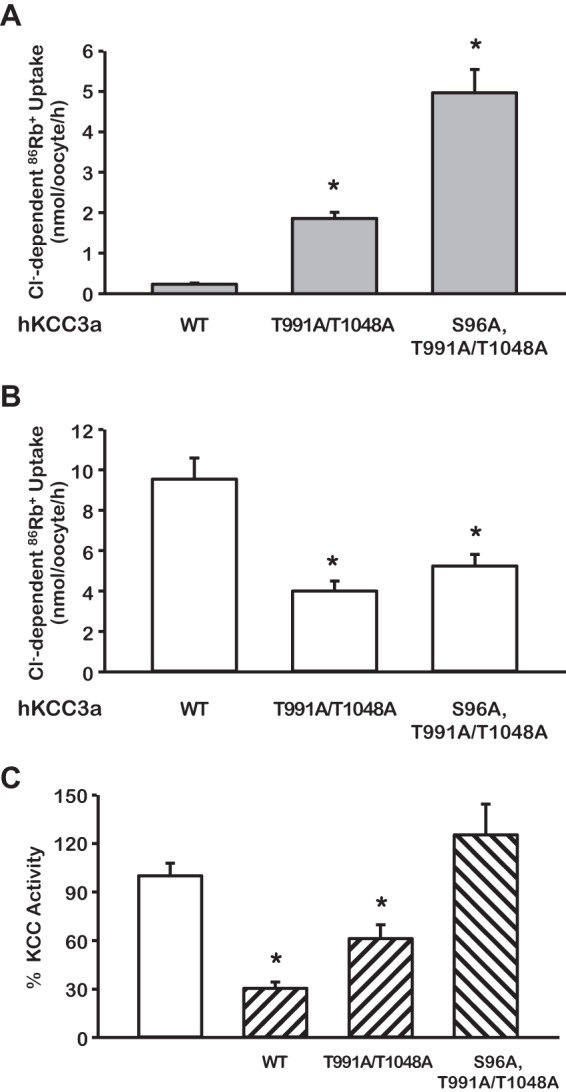

	FIGURE 6. Serine 96 is a third site involved in regulation of KCC3a activity. A and B, functional expression assay was assessed in isotonic (A) or hypotonic (B) conditions in oocytes injected with cRNA for WT KCC3, KCC3 double mutant (T991A/T1048A), or KCC3 triple mutant (S96A/T991A/T1048A) as stated. , p < 0.001 versus WT. C, the triple mutant KCC3a S96A/T991A/T1048A is no longer sensitive to WNK3 (hatched bars) inhibition. The open bar shows the control uptake for each clone taken as 100%. The hatched bars show the effect of WNK3 upon wild type or mutants KCC3, as stated. n = 3, , p < 0.001 versus white bar.

References [+] :

Adragna, Regulation of K-Cl cotransport: from function to genes. 2004, Pubmed

Adragna, Regulation of K-Cl cotransport: from function to genes. 2004, Pubmed
Bianchini, Effects of hyposmotic shock on ion fluxes in isolated trout hepatocytes. 1988, Pubmed
Campbell, Identification of protein phosphorylation sites by a combination of mass spectrometry and solid phase Edman sequencing. 2002, Pubmed
Chen, The emerging role of KCl cotransport in tumor biology. 2010, Pubmed
Cruz-Rangel, Similar effects of all WNK3 variants on SLC12 cotransporters. 2011, Pubmed , Xenbase
Cruz-Rangel, Influence of WNK3 on intracellular chloride concentration and volume regulation in HEK293 cells. 2012, Pubmed
Darman, A regulatory locus of phosphorylation in the N terminus of the Na-K-Cl cotransporter, NKCC1. 2002, Pubmed
de Los Heros, WNK3 bypasses the tonicity requirement for K-Cl cotransporter activation via a phosphatase-dependent pathway. 2006, Pubmed , Xenbase
Filippi, MO25 is a master regulator of SPAK/OSR1 and MST3/MST4/YSK1 protein kinases. 2011, Pubmed
Flatman, Regulation of Na-K-2Cl cotransport by phosphorylation and protein-protein interactions. 2002, Pubmed
Gamba, Molecular physiology and pathophysiology of electroneutral cation-chloride cotransporters. 2005, Pubmed
Gamba, Regulation of the renal Na+-Cl- cotransporter by phosphorylation and ubiquitylation. 2012, Pubmed
Giménez, Regulatory phosphorylation sites in the NH2 terminus of the renal Na-K-Cl cotransporter (NKCC2). 2005, Pubmed , Xenbase
Hossain Khan, Phosphorylation of Na-Cl cotransporter by OSR1 and SPAK kinases regulates its ubiquitination. 2012, Pubmed
Howard, The K-Cl cotransporter KCC3 is mutant in a severe peripheral neuropathy associated with agenesis of the corpus callosum. 2002, Pubmed , Xenbase
Lauf, Volume and anion dependency of ouabain-resistant K-Rb fluxes in sheep red blood cells. 1988, Pubmed
Lauf, K-Cl cotransport: properties and molecular mechanism. 2000, Pubmed , Xenbase
Mercado, NH2-terminal heterogeneity in the KCC3 K+-Cl- cotransporter. 2005, Pubmed , Xenbase
Mercado, Functional and molecular characterization of the K-Cl cotransporter of Xenopus laevis oocytes. 2001, Pubmed , Xenbase
Mercado, Functional comparison of the K+-Cl- cotransporters KCC1 and KCC4. 2000, Pubmed , Xenbase
Pacheco-Alvarez, WNK3-SPAK interaction is required for the modulation of NCC and other members of the SLC12 family. 2012, Pubmed , Xenbase
Pacheco-Alvarez, The Na+:Cl- cotransporter is activated and phosphorylated at the amino-terminal domain upon intracellular chloride depletion. 2006, Pubmed , Xenbase
Pedersen, Vasopressin induces phosphorylation of the thiazide-sensitive sodium chloride cotransporter in the distal convoluted tubule. 2010, Pubmed
Ponce-Coria, Regulation of NKCC2 by a chloride-sensing mechanism involving the WNK3 and SPAK kinases. 2008, Pubmed , Xenbase
Richardson, The regulation of salt transport and blood pressure by the WNK-SPAK/OSR1 signalling pathway. 2008, Pubmed
Richardson, Regulation of the NKCC2 ion cotransporter by SPAK-OSR1-dependent and -independent pathways. 2011, Pubmed
Richardson, Activation of the thiazide-sensitive Na+-Cl- cotransporter by the WNK-regulated kinases SPAK and OSR1. 2008, Pubmed
Rinehart, Sites of regulated phosphorylation that control K-Cl cotransporter activity. 2009, Pubmed
Rust, Neurogenic mechanisms contribute to hypertension in mice with disruption of the K-Cl cotransporter KCC3. 2006, Pubmed
Salin-Cantegrel, Transit defect of potassium-chloride Co-transporter 3 is a major pathogenic mechanism in hereditary motor and sensory neuropathy with agenesis of the corpus callosum. 2011, Pubmed , Xenbase
Uyanik, Novel truncating and missense mutations of the KCC3 gene associated with Andermann syndrome. 2006, Pubmed
Vitari, The WNK1 and WNK4 protein kinases that are mutated in Gordon's hypertension syndrome phosphorylate and activate SPAK and OSR1 protein kinases. 2005, Pubmed
Vitari, Functional interactions of the SPAK/OSR1 kinases with their upstream activator WNK1 and downstream substrate NKCC1. 2006, Pubmed
