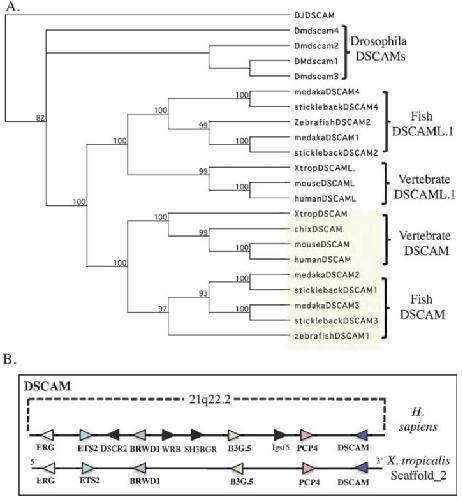

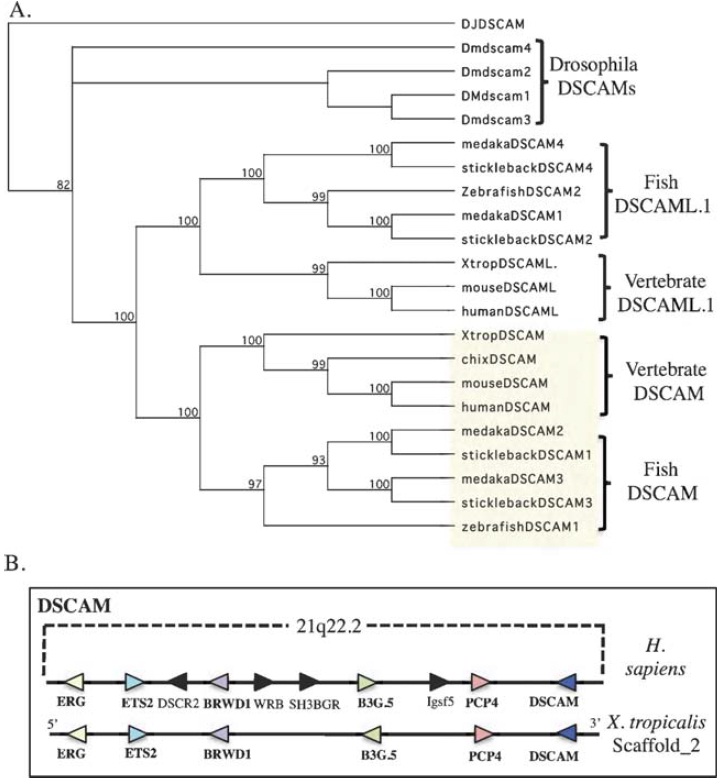

FIG. 1. XtDSCAM is phylogenetically conserved and maintains
synteny with the human genetic locus. A: A rooted Neighbor joining
phylogenetic analysis of full-length amino acid sequences of
DSCAM and DSCAML of vertebrates, Drosophila melanogaster
using planarian DSCAM as an outgroup. B: Genetic structure of
the genomic locus of human DSCAM (top) compared with corresponding
locus in Xenopus tropicalis (bottom). Each triangle represents
a gene and the direction of transcription. Colored triangles
represent genes found in Xenopus. The diagram displays position
but not relative distance of the genes.

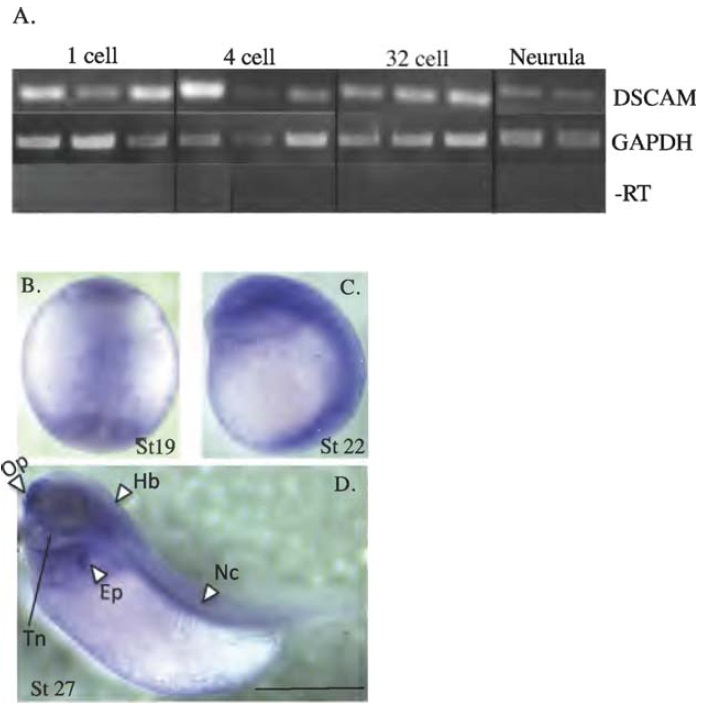

FIG. 2. XtDSCAM is expressed in the nervous system during
early development. A: RTPCR analysis of individual Xenopus
embryos at different stages in development using primers specific
for XtDSCAM and XtGAPDH. Results are shown for single embryos
in triplicate. BâD: In situ hybridization staining of neurula (B, Stage
19), early tailbud (C, Stage 22), and tadpole stage (D, Stage 27) X.
tropicalis embryos using an XtDSCAM-specific probe. Arrows
point to areas with significant DSCAM staining, Nc, notochord; Hb,
hindbrain; Op, olfactory placode; Tn, trigeminal nerve; Ep, epibranchial
placodes. Scalebar5100 mm.

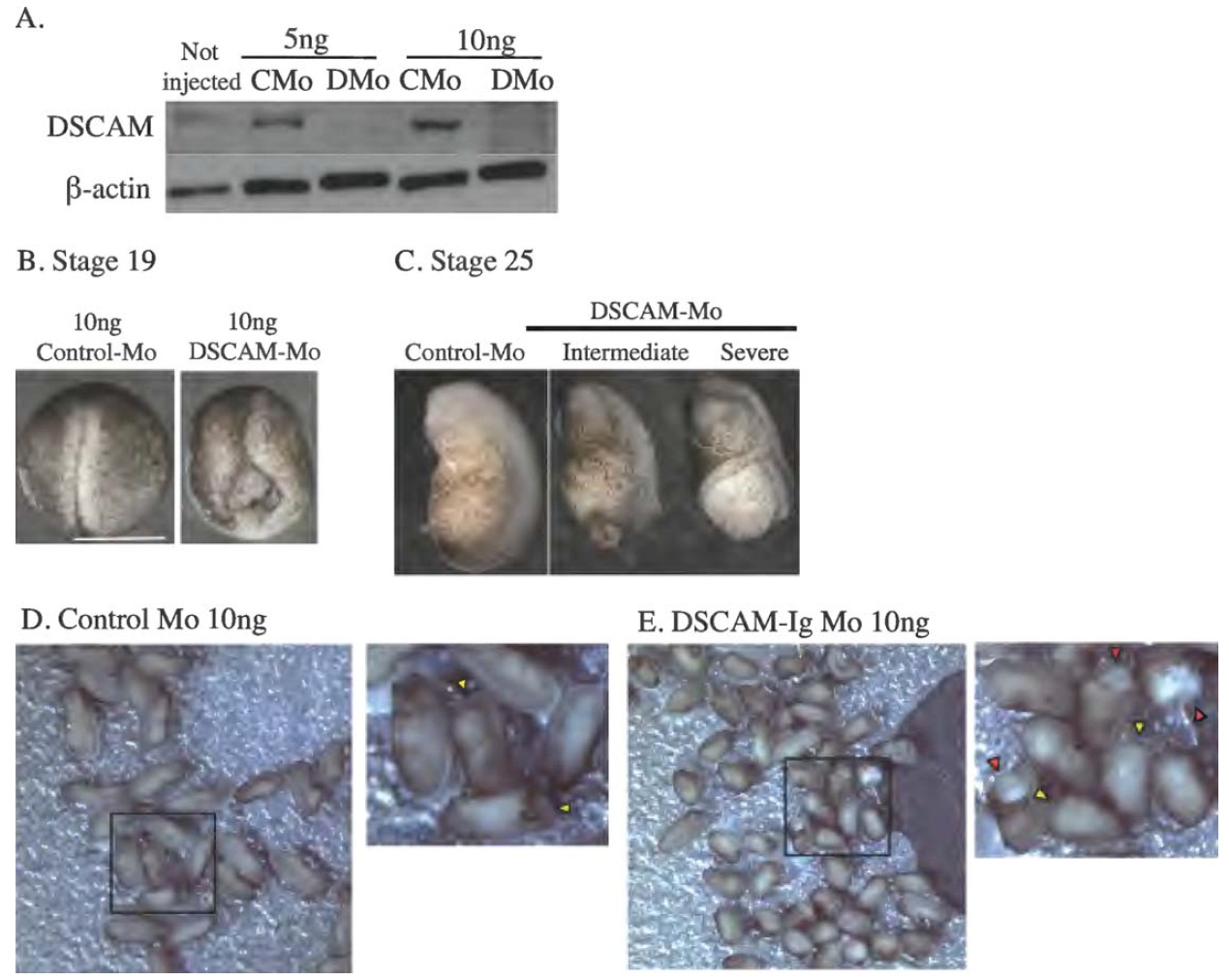

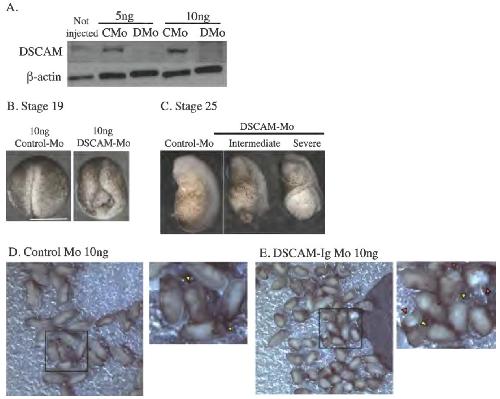

FIG. 3. XtDSCAM is important in early morphogenesis. A: A western blot analysis of a pool of stage 19 embryos that had been injected with 5 ng or 10 ng of control or DSCAM morpholinos at one cell stage. B: Gastrulation phenotypes observed at neurula stage (Stage 19) upon injection of 10 ng DSCAM morpholino (right) compared with control (left). C: Phenotypes of DSCAM-Mo injected embryos (right and center) at Stage 25 compared with control-Mo injected embryos (left). D, E: Representative experiment of cohorts at stage 26 injected with either (D) control Mo or (E) DSCAM Mo at 10 ng dose. The squares indicate the magnified insets, the yellow arrows indicate intermediate gastrulation phenotypes and the red arrows indicate severe gastrulation phenotypes. Note the difference in severity and overall morphology between Control Mo and DSCAM Mo embryos.
dscam (Down syndrome cell adhesion molecule) gene expression in Xenopus tropicalis embryo, assayed via in situ hybridization, NF stage 34, lateral view, anteriorleft, dorsal up.
