Eur J Histochem
2014 Dec 05;584:2453. doi: 10.4081/ejh.2014.2453.
Show Gene links
Show Anatomy links
Specific association of growth-associated protein 43 with calcium release units in skeletal muscles of lower vertebrates.
Caprara GA
,
Perni S
,
Morabito C
,
Mariggiò MA
,
Guarnieri S
.
???displayArticle.abstract???
Growth-associated protein 43 (GAP43), is a strictly conserved protein among vertebrates implicated in neuronal development and neurite branching. Since GAP43 structure contains a calmodulin-binding domain, this protein is able to bind calmodulin and gather it nearby membrane network, thus regulating cytosolic calcium and consequently calcium-dependent intracellular events. Even if for many years GAP43 has been considered a neuronal-specific protein, evidence from different laboratories described its presence in myoblasts, myotubes and adult skeletal muscle fibers. Data from our laboratory showed that GAP43 is localized between calcium release units (CRUs) and mitochondria in mammalian skeletal muscle suggesting that, also in skeletal muscle, this protein can be a key player in calcium/calmodulin homeostasis. However, the previous studies could not clearly distinguish between a mitochondrion- or a triad-related positioning of GAP43. To solve this question, the expression and localization of GAP43 was studied in skeletal muscle of Xenopus and Zebrafish known to have triads located at the level of the Z-lines and mitochondria not closely associated with them. Western blotting and immunostaining experiments revealed the expression of GAP43 also in skeletal muscle of lower vertebrates (like amphibians and fishes), and that the protein is localized closely to the triad junction. Once more, these results and GAP43 structural features, support an involvement of the protein in the dynamic intracellular Ca2+ homeostasis, a common conserved role among the different species.

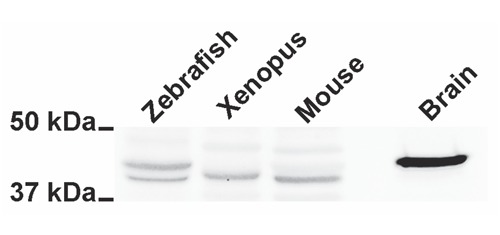

Figure 1. GAP43 is expressed in skeletal muscle of lower vertebrates. Western blot analysis of skeletal muscle samples deriving from Danio rerio (Zebrafish), Xenopus leavis (Xenopus), Mus musculus (Mouse) and a sample from mouse brain (Brain).
Figure 2. Localization of GAP43 in Zebrafish and Xenopus myotubes has a periodic sarcomeric spacing. Representative immunofluorescence images of muscle cell cultures deriving from Zebrafish (A) and Xenopus (B) samples. Confocal microscopy analysis shows a single striation cross-orientated as indicated by arrowheads (A and B). C) Measurements of distances between striations. Scale bars: A) 20 µm; B) 2 µm.
Figure 3. GAP43 is localized close to CRUs, in adult fibers. Representative immunofluorescence images of double-immunolabeled muscle fibers from Zebrafish (A-C) and Xenopus (D-F) samples. In adult Zebrafish and Xenopus muscle fibers, the staining of CRUs (marked with an anti-RyR antibody, B and E) forms dotted single rows along the Z-lines. Also GAP43 staining produces a single dotted cross-striation (A and D), which appears to co-localize with that of RyR (C and F, merged images). Scale bars: 5 µm.

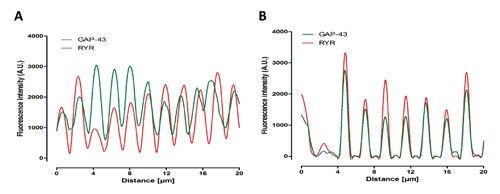

Figure 4. Fluorescence image profile. Graphs represent fluorescence intensity profiles calculated on images obtained from both Zebrafish (A) and Xenopus (B) muscle fiber samples co-immunostained for RyR and GAP43. The GAP43 fluorescence peak appears close to that of RyR.

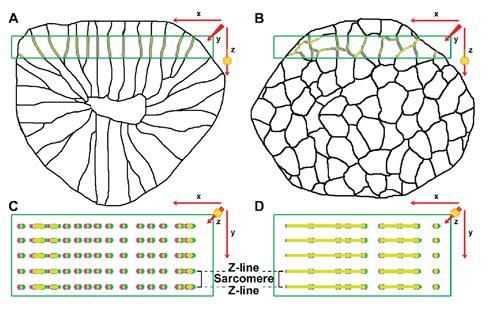

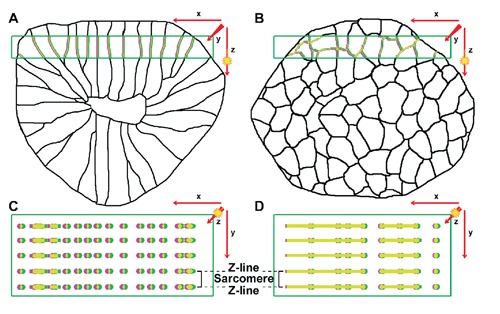

Figure 5. Schematic representation of a muscle fiber cross section from fish (A) and frog (B) cut at the Z-line level. At this level, the sarcoplasmic reticulum (black lines inside the fiber perimeter) is engaged in the formation of the triads together with the T-tubules. The images at the bottom C and D represent the projection of a longitudinal optical section of the same fibers (indicated by the green squares). The colored sarcoplasmic reticulum is the portion that is included into the optical section and actually visualized by the observer, the pink color represents RyR (centered in the triad) and the green color represents GAP43 (off-centered from the triad). The overlap between RyR and GAP43 signals is colored in yellow. The particular shape and disposition of the myofibrils in the fish (A) ensure that the sarcoplasmic reticulum delimiting the myofibrils mostly overlaps in the same direction of the laser beam (z).
Alexander,
Identification and characterization of the calmodulin-binding domain of neuromodulin, a neurospecific calmodulin-binding protein.
1988, Pubmed
Alexander,
Identification and characterization of the calmodulin-binding domain of neuromodulin, a neurospecific calmodulin-binding protein.
1988,
Pubmed
Biga,
Zebrafish and giant danio as models for muscle growth: determinate vs. indeterminate growth as determined by morphometric analysis.
2006,
Pubmed
Flucher,
Formation of junctions involved in excitation-contraction coupling in skeletal and cardiac muscle.
1996,
Pubmed
Franzini-Armstrong,
Studies of the triad. IV. Structure of the junction in frog slow fibers.
1973,
Pubmed
Franzini-Armstrong,
Shape, size, and distribution of Ca(2+) release units and couplons in skeletal and cardiac muscles.
1999,
Pubmed
Franzini-Armstrong,
The evolution of the mitochondria-to-calcium release units relationship in vertebrate skeletal muscles.
2011,
Pubmed
FRANZINI-ARMSTRONG,
SARCOLEMMAL INVAGINATIONS CONSTITUTING THE T SYSTEM IN FISH MUSCLE FIBERS.
1964,
Pubmed
Guarnieri,
Growth associated protein 43 is expressed in skeletal muscle fibers and is localized in proximity of mitochondria and calcium release units.
2013,
Pubmed
Heuss,
Light-microscopic study of phosphoprotein B-50 in myopathies.
1995,
Pubmed
Heuss,
Subcellular localization of phosphoprotein B-50 in regenerating muscle. An immuno-electron microscopic study.
1998,
Pubmed
Heuss,
Expression of growth associated protein 43 and neural cell adhesion molecule in congenital fibre type disproportion with interstitial myositis.
1994,
Pubmed
Jaillon,
Genome duplication in the teleost fish Tetraodon nigroviridis reveals the early vertebrate proto-karyotype.
2004,
Pubmed
LaBate,
Selective conservation of GAP-43 structure in vertebrate evolution.
1989,
Pubmed
Meyer,
Gene and genome duplications in vertebrates: the one-to-four (-to-eight in fish) rule and the evolution of novel gene functions.
1999,
Pubmed
Mosevitsky,
Nerve ending "signal" proteins GAP-43, MARCKS, and BASP1.
2005,
Pubmed
Pistocchi,
Conserved and divergent functions of Nfix in skeletal muscle development during vertebrate evolution.
2013,
Pubmed
PORTER,
Studies on the endoplasmic reticulum. III. Its form and distribution in striated muscle cells.
1957,
Pubmed
Rodney,
Calmodulin in adult mammalian skeletal muscle: localization and effect on sarcoplasmic reticulum Ca2+ release.
2008,
Pubmed
Skene,
Axonal growth-associated proteins.
1989,
Pubmed
Skene,
Posttranslational membrane attachment and dynamic fatty acylation of a neuronal growth cone protein, GAP-43.
1989,
Pubmed
Slemmon,
Small proteins that modulate calmodulin-dependent signal transduction: effects of PEP-19, neuromodulin, and neurogranin on enzyme activation and cellular homeostasis.
2000,
Pubmed
Stocker,
GAP-43 in non-neuronal cells of the embryonic chick limb: clues to function.
1992,
Pubmed
Stocker,
Transient expression of GAP-43 in nonneuronal cells of the embryonic chicken limb.
1992,
Pubmed
Stroffekova,
Ca2+/CaM-dependent inactivation of the skeletal muscle L-type Ca2+ channel (Cav1.1).
2008,
Pubmed
Yamane,
Differential muscle regulatory factor gene expression between larval and adult myogenesis in the frog Xenopus laevis: adult myogenic cell-specific myf5 upregulation and its relation to the notochord suppression of adult muscle differentiation.
2013,
Pubmed
,
Xenbase
Zinchuk,
Quantitative colocalization analysis of multicolor confocal immunofluorescence microscopy images: pushing pixels to explore biological phenomena.
2007,
Pubmed
