???displayArticle.abstract???
The ITAM-bearing transmembrane signaling subunits (TSS) are indispensable components of activating leukocyte receptor complexes. The TSS-encoding genes map to paralogous chromosomal regions, which are thought to arise from ancient genome tetraploidization(s). To assess a possible role of tetraploidization in the TSS evolution, we studied TSS and other functionally linked genes in the amphibian species Xenopus laevis whose genome was duplicated about 40 MYR ago. We found that X. laevis has retained a duplicated set of sixteen TSS genes, all except one being transcribed. Furthermore, duplicated TCRα loci and genes encoding TSS-coupling protein kinases have also been retained. No clear evidence for functional divergence of the TSS paralogs was obtained from gene expression and sequence analyses. We suggest that the main factor of maintenance of duplicated TSS genes in X. laevis was a protein dosage effect and that this effect might have facilitated the TSS set expansion in early vertebrates.

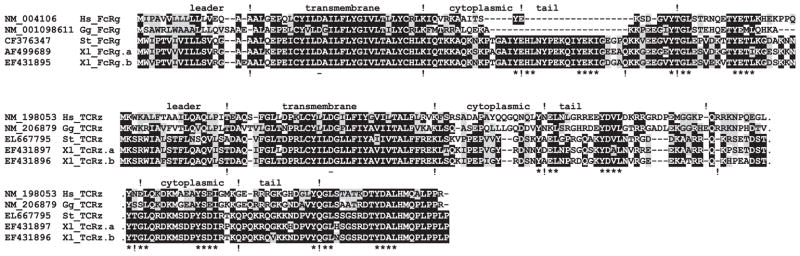

Fig. 2. Multiple alignment of the deduced amino acid sequences of Xenopus laevis (Xl), Silurana tropicalis (St), chicken (Gg) and human (Hs) FcRγ and TcRζ subunits. Identical amino acid residues are denoted by white letters on black background, conserved residues â by black letters on gray background. Dashes designate gaps introduced for sequence alignments. Exclamation marks indicate exon-intron boundaries in human (upper line) and X. laevis (bottom line) genes. Asterisks designate ITAMs. Minus designates conserved negatively charged amino acid residue in the TM region.

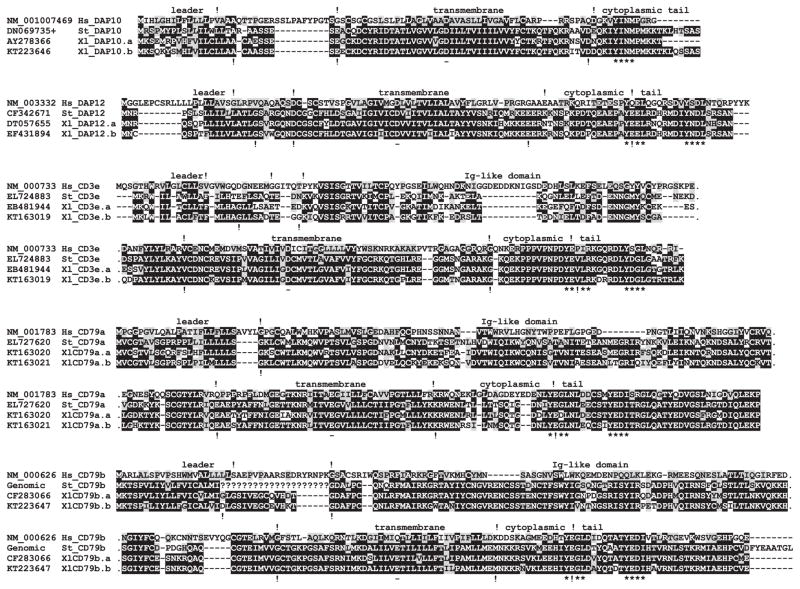

Fig. 3. Multiple alignment of the deduced amino acid sequences of Xenopus laevis (Xl), Silurana tropicalis (St), and human (Hs) DAP10, DAP12, CD3 and CD79 subunits. Identical amino acid residues are denoted by white letters on black background, conserved residues – by black letters on gray background. Dashes designate gaps introduced for sequence alignments. Exclamation marks indicate exon-intron boundaries in human (upper line) and X. laevis (bottom line) genes. Asterisks designate tyrosine-based motifs. Minus designates conserved negatively charged amino acid residue in the TM region. St_DAP10 sequence was deduced using S. tropicalis genomic sequence along with EST cDNA sequences DN069735 and EL728268.
Fig. 4. RT-PCR analysis of mRNA coding for X. laevis TSS. Individual spleens of 6-month old adults were used for the analysis. The cDNA samples were normalized according to GAPDH or β-actin expression.

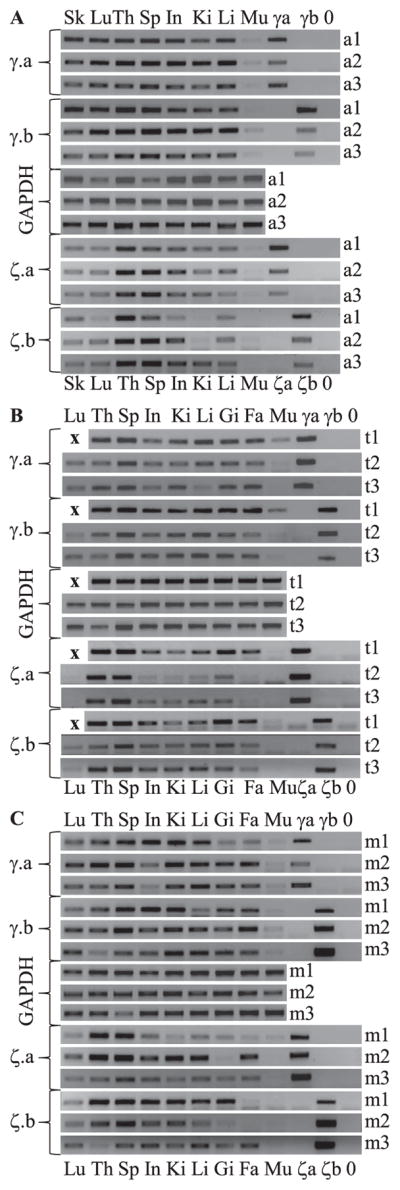

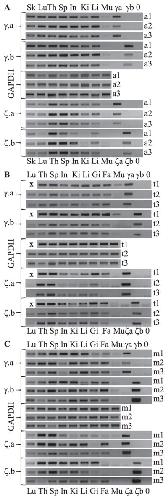

Fig. 5. RT-PCR analysis of FcRγ.a/b and TcRζ.a/b mRNA from X. laevis tissues of 6-month old adult (A), stage 56tadpole (B) and stage 61–64 metamorphic (C) animals. Three individuals at each stage (a/t/m1-3) were used. Tissues analyzed were: Skin, Lung, Thymus, Spleen, Intestine, Kidney, Liver, Gills, Fat body and Muscles. All cDNA samples were normalized according to GAPDH expression. Either 0.1 pg of plasmid with corresponding cDNA insert (γa, γb, ζa, ζb) or clear water (0) were used as controls. “x†denotes reactions that were not carried out.

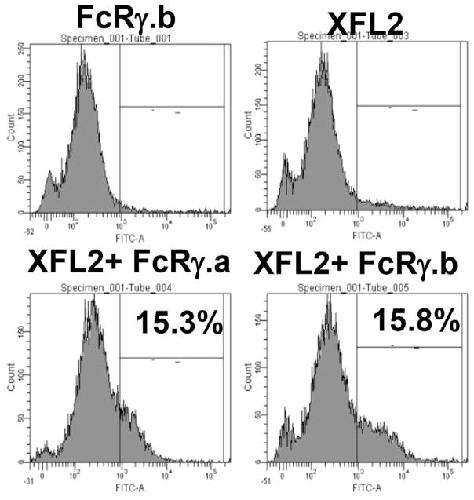

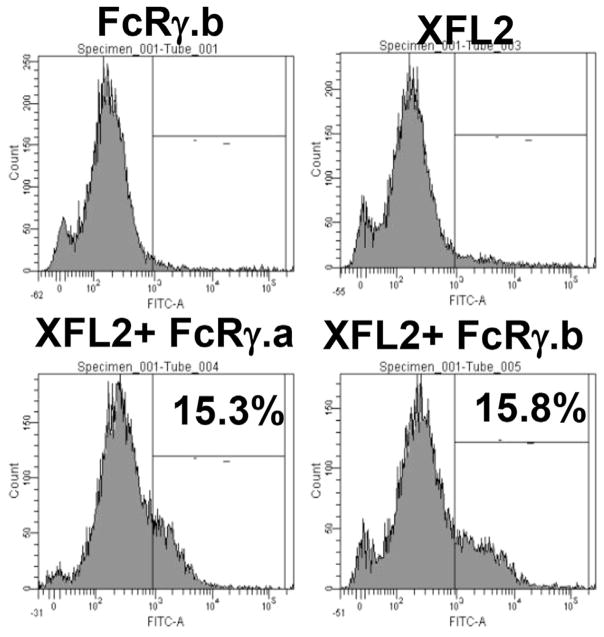

Fig. 6. Flow cytometry analysis of living 293T cells co-transfected with plasmids encoding HA-tagged X. laevis XFL2 receptor and c-myc-tagged X. laevis FcRγ.a/b transmembrane signaling subunits. The cells were stained with anti-HA antibodies and analyzed with a BD FACSCanto II cytometer and the BD FACSDiva software.

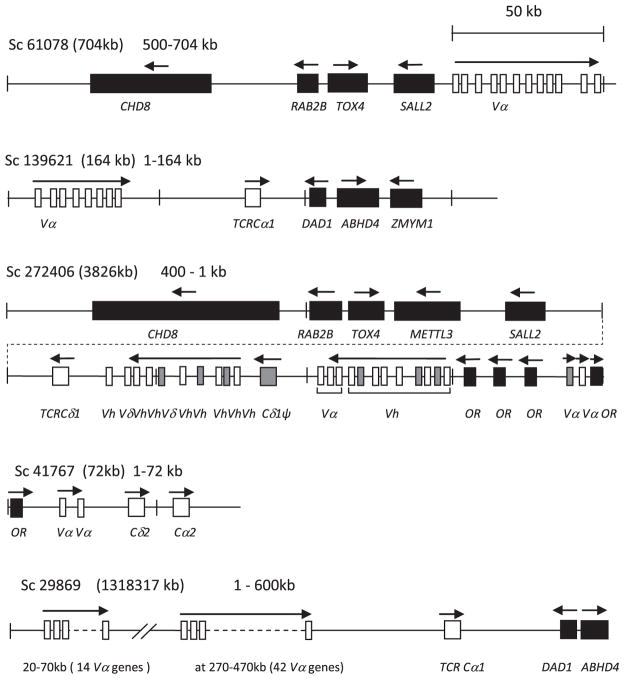

Fig. 7. Schematic representation of scaffolds fragments containing TCR genes. Headlines show the scaffold (Sc) number, the size of the scaffold (in parentheses) and the fragment coordinates on the scaffold. The bottom lines contain designations of the genes according to their counterparts in the human genome. The TCR genes and their neighbors are shown by open and filled rectangles, respectively. Pseudogenes are shown by gray rectangles. Arrows show transcription orientation. Double slash indicates a gap with a size shown in the corresponding bottom lines.
Alabyev,
CD3epsilon homologues in the chondrostean fish Acipenser ruthenus.
2000, Pubmed,
Xenbase
Alabyev,
CD3epsilon homologues in the chondrostean fish Acipenser ruthenus.
2000,
Pubmed
,
Xenbase
Aury,
Global trends of whole-genome duplications revealed by the ciliate Paramecium tetraurelia.
2006,
Pubmed
Barrow,
The extended human leukocyte receptor complex: diverse ways of modulating immune responses.
2008,
Pubmed
Call,
The structural basis for intramembrane assembly of an activating immunoreceptor complex.
2010,
Pubmed
Chain,
Multiple mechanisms promote the retained expression of gene duplicates in the tetraploid frog Xenopus laevis.
2006,
Pubmed
,
Xenbase
Chida,
Phylogenetic and developmental study of CD4, CD8 α and β T cell co-receptor homologs in two amphibian species, Xenopus tropicalis and Xenopus laevis.
2011,
Pubmed
,
Xenbase
Chretien,
The T cell receptor beta genes of Xenopus.
1997,
Pubmed
,
Xenbase
Colonna,
DAP12 signaling: from immune cells to bone modeling and brain myelination.
2003,
Pubmed
Courtet,
Major histocompatibility complex and immunoglobulin loci visualized by in situ hybridization on Xenopus chromosomes.
2001,
Pubmed
,
Xenbase
Du Pasquier,
Immunoglobulin superfamily receptors in protochordates: before RAG time.
2004,
Pubmed
,
Xenbase
Dzialo,
An amphibian CD3 homologue of the mammalian CD3 gamma and delta genes.
1997,
Pubmed
,
Xenbase
Evans,
Genome evolution and speciation genetics of clawed frogs (Xenopus and Silurana).
2008,
Pubmed
,
Xenbase
Fernández,
Subfunctionalization reduces the fitness cost of gene duplication in humans by buffering dosage imbalances.
2011,
Pubmed
Flajnik,
Origin and evolution of the adaptive immune system: genetic events and selective pressures.
2010,
Pubmed
Flajnik,
Evolution of the B7 family: co-evolution of B7H6 and NKp30, identification of a new B7 family member, B7H7, and of B7's historical relationship with the MHC.
2012,
Pubmed
,
Xenbase
Göbel,
Biochemical analysis of the Xenopus laevis TCR/CD3 complex supports the "stepwise evolution" model.
2000,
Pubmed
,
Xenbase
Guselnikov,
The Xenopus FcR family demonstrates continually high diversification of paired receptors in vertebrate evolution.
2008,
Pubmed
,
Xenbase
Guselnikov,
Signaling FcRgamma and TCRzeta subunit homologs in the amphibian Xenopus laevis.
2003,
Pubmed
,
Xenbase
Guselnikov,
Expansion and diversification of the signaling capabilities of the CD2/SLAM family in Xenopodinae amphibians.
2011,
Pubmed
,
Xenbase
Guselnikov,
Fugu rubripes possesses genes for the entire set of the ITAM-bearing transmembrane signal subunits.
2003,
Pubmed
Guselnikov,
The amphibians Xenopus laevis and Silurana tropicalis possess a family of activating KIR-related Immunoglobulin-like receptors.
2010,
Pubmed
,
Xenbase
Haire,
Structure and diversity of T-lymphocyte antigen receptors alpha and gamma in Xenopus.
2002,
Pubmed
,
Xenbase
Hamerman,
The expanding roles of ITAM adapters FcRgamma and DAP12 in myeloid cells.
2009,
Pubmed
Hellsten,
The genome of the Western clawed frog Xenopus tropicalis.
2010,
Pubmed
,
Xenbase
Huang,
Ordered and coordinated rearrangement of the TCR alpha locus: role of secondary rearrangement in thymic selection.
2001,
Pubmed
Hughes,
The evolution of functionally novel proteins after gene duplication.
1994,
Pubmed
,
Xenbase
Humphrey,
Role of ITAM-containing adapter proteins and their receptors in the immune system and bone.
2005,
Pubmed
Innan,
The evolution of gene duplications: classifying and distinguishing between models.
2010,
Pubmed
Ivashkiv,
Cross-regulation of signaling by ITAM-associated receptors.
2009,
Pubmed
James-Zorn,
Xenbase: expansion and updates of the Xenopus model organism database.
2013,
Pubmed
,
Xenbase
Kasahara,
Chromosomal duplication and the emergence of the adaptive immune system.
1997,
Pubmed
Kondrashov,
Selection in the evolution of gene duplications.
2002,
Pubmed
Kuhns,
Disruption of extracellular interactions impairs T cell receptor-CD3 complex stability and signaling.
2007,
Pubmed
Liu,
Characterization of the CD3zeta, CD3gammadelta and CD3epsilon subunits of the T cell receptor complex in Atlantic salmon.
2008,
Pubmed
Lynch,
The evolutionary fate and consequences of duplicate genes.
2000,
Pubmed
Malissen,
Function of the CD3 subunits of the pre-TCR and TCR complexes during T cell development.
1999,
Pubmed
Mewes,
Stimulatory catfish leukocyte immune-type receptors (IpLITRs) demonstrate a unique ability to associate with adaptor signaling proteins and participate in the formation of homo- and heterodimers.
2009,
Pubmed
Niiro,
Regulation of B-cell fate by antigen-receptor signals.
2002,
Pubmed
Ohta,
Ancestral organization of the MHC revealed in the amphibian Xenopus.
2006,
Pubmed
,
Xenbase
Parra,
The dynamic TCRδ: TCRδ chains in the amphibian Xenopus tropicalis utilize antibody-like V genes.
2010,
Pubmed
,
Xenbase
Pegueroles,
Accelerated evolution after gene duplication: a time-dependent process affecting just one copy.
2013,
Pubmed
Petrie,
Multiple rearrangements in T cell receptor alpha chain genes maximize the production of useful thymocytes.
1993,
Pubmed
Radaev,
Structural and functional studies of Igalphabeta and its assembly with the B cell antigen receptor.
2010,
Pubmed
Reth,
Antigen receptor tail clue.
1989,
Pubmed
Reth,
Pillars article: antigen receptor tail clue. Nature. 1989. 338: 383-384.
2014,
Pubmed
Robinson-Rechavi,
RRTree: relative-rate tests between groups of sequences on a phylogenetic tree.
2000,
Pubmed
Rogozin,
Complexity of gene expression evolution after duplication: protein dosage rebalancing.
2014,
Pubmed
Shores,
T cell development in mice lacking all T cell receptor zeta family members (Zeta, eta, and FcepsilonRIgamma).
1998,
Pubmed
Shum,
Isolation of a classical MHC class I cDNA from an amphibian. Evidence for only one class I locus in the Xenopus MHC.
1993,
Pubmed
,
Xenbase
Takai,
FcR gamma chain deletion results in pleiotrophic effector cell defects.
1994,
Pubmed
Tamura,
MEGA4: Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0.
2007,
Pubmed
Tuovinen,
Most human thymic and peripheral-blood CD4+ CD25+ regulatory T cells express 2 T-cell receptors.
2006,
Pubmed
Viertlboeck,
A novel activating chicken IgY FcR is related to leukocyte receptor complex (LRC) genes but is located on a chromosomal region distinct from the LRC and FcR gene clusters.
2009,
Pubmed
Yoder,
Structural characteristics of zebrafish orthologs of adaptor molecules that associate with transmembrane immune receptors.
2007,
Pubmed
Zhao,
Identification of IgF, a hinge-region-containing Ig class, and IgD in Xenopus tropicalis.
2006,
Pubmed
,
Xenbase
Zucchetti,
Origin and evolution of the vertebrate leukocyte receptors: the lesson from tunicates.
2009,
Pubmed
