Biochim Biophys Acta
2015 Nov 01;185011:2318-28. doi: 10.1016/j.bbagen.2015.08.002.
Show Gene links
Show Anatomy links
Fluorescent ratiometric pH indicator SypHer2: Applications in neuroscience and regenerative biology.
Matlashov ME
,
Bogdanova YA
,
Ermakova GV
,
Mishina NM
,
Ermakova YG
,
Nikitin ES
,
Balaban PM
,
Okabe S
,
Lukyanov S
,
Enikolopov G
,
Zaraisky AG
,
Belousov VV
.
???displayArticle.abstract???
SypHer is a genetically encoded fluorescent pH-indicator with a ratiometric readout, suitable for measuring fast intracellular pH shifts. However, the relatively low brightness of the indicator limits its use. Here we designed a new version of pH-sensor called SypHer-2, which has up to three times brighter fluorescence in cultured mammalian cells compared to the SypHer. Using the new indicator we registered activity-associated pH oscillations in neuronal cell culture. We observed prominent transient neuronal cytoplasm acidification that occurs in parallel with calcium entry. Furthermore, we monitored pH in presynaptic and postsynaptic termini by targeting SypHer-2 directly to these compartments and revealed marked differences in pH dynamics between synaptic boutons and dendritic spines. Finally, we were able to reveal for the first time the intracellular pH drop that occurs within an extended region of the amputated tail of the Xenopus laevis tadpole before it begins to regenerate. SypHer2 is suitable for quantitative monitoring of pH in biological systems of different scales, from small cellular subcompartments to animal tissues in vivo. The new pH-sensor will help to investigate pH-dependent processes in both in vitro and in vivo studies.

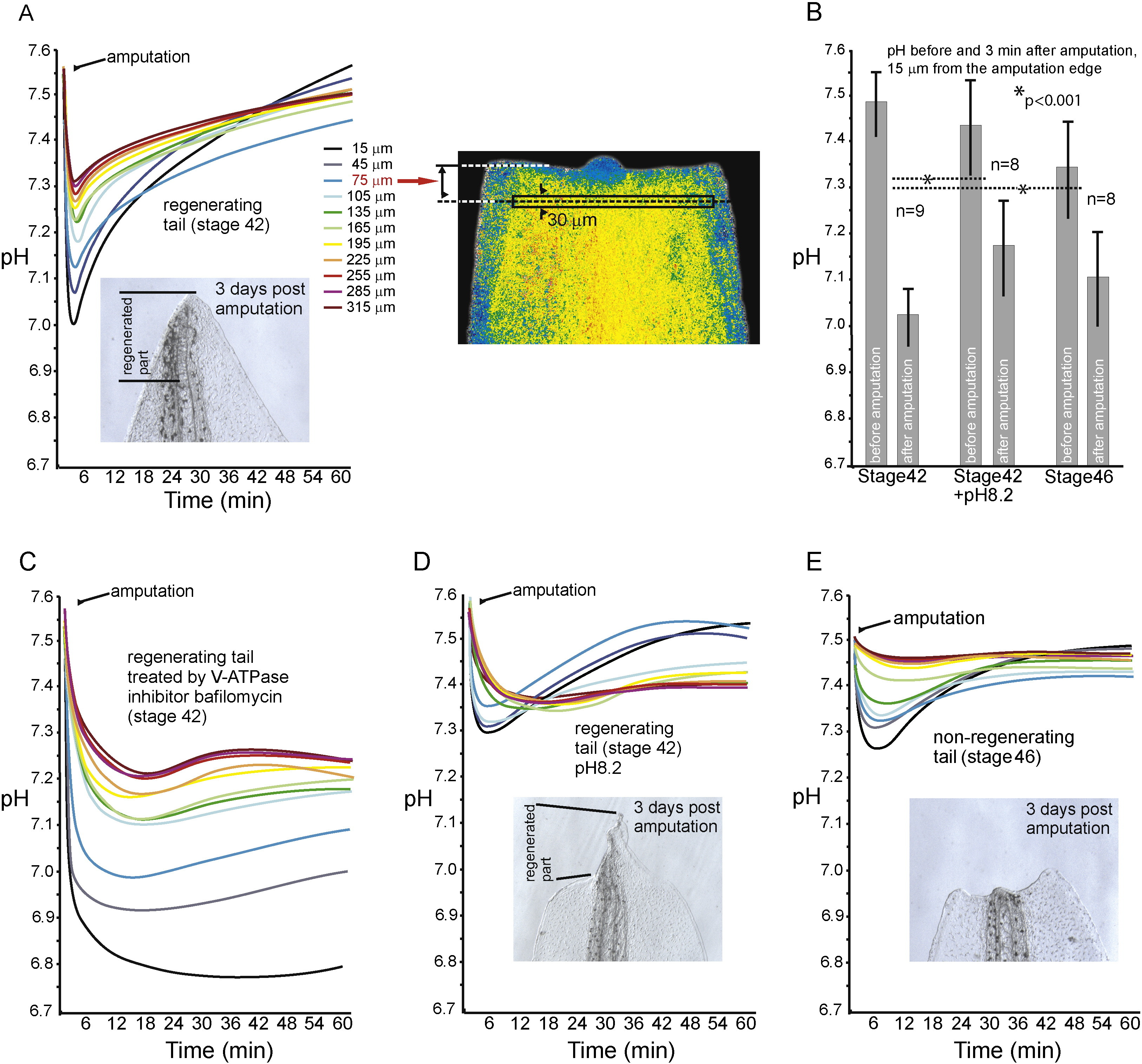

Fig. 4.
Intracellular pH drop in the tail of Xenopus laevis tadpole after amputation.
A) Typical dynamics of mean pH value changes as measured in ten transverse rectangular frames before amputation and during one hour after it (see the Materials and Methods section for details). Each of the dynamics curves is marked by a specific color, beginning with the black color, which is assigned to the frame nearest to the amputation edge. The position of each frame from the amputation edge to the middle of the frame is indicated in microns. Inset image shows the tip of the same regenerating tail 3 days following amputation. An example of the amputated tail in pseudocolors corresponding to SypHer-2 ratio, with one measuring frame located 75 μm from the amputation edge is shown on the right. Note that the blue color on the sides of the tail is a specific characteristic of this particular tail in which the injected SypHer-2 mRNA is absent in cells of the lateral sides of the tail. Due to a low auto-fluorescence of the tail tissues the ratio of fluorescence intensities in the lateral regions appears to be different from zero and appears as a constant blue pseudocolor. Notably, the auto-fluorescence intensity is more than 10-fold lower than the intensity of signal generated even by a low amount of SypHer-2. B) Mean value of pH near the amputation edge (measuring frame with the median at 15 μm from the edge) before amputation and in the minimum of pH dynamics curve of stage 42 tails (left pair of bars), stage 42 tails of tadpoles treated by pH 8.2 solution for 2 h before amputation (middle pair of bars) and stage 46 tails (right pair of bars). Standard deviation is indicated for each bar. The numbers show total number of tails in which pH was measured at the level of 15 μm from the amputation edge before and after amputation. C) representative dynamics of mean pH value measured as described in A, but in tails of stage 42 tadpoles treated with a V-ATPase inhibitor bafilomycin (200 nM for 1 h before amputation). D) Representative dynamics of mean pH value measured as described in A, but in tails of stage 42 tadpoles treated by pH 8.2 solution for 2 h before amputation. Inset image shows tip of the same tail after 3 days of amputation. E) Representative dynamics of mean pH value measured as described in A, but in tails of stage 46 tadpoles. Inset image shows tip of the same tail after 3 days of amputation.
