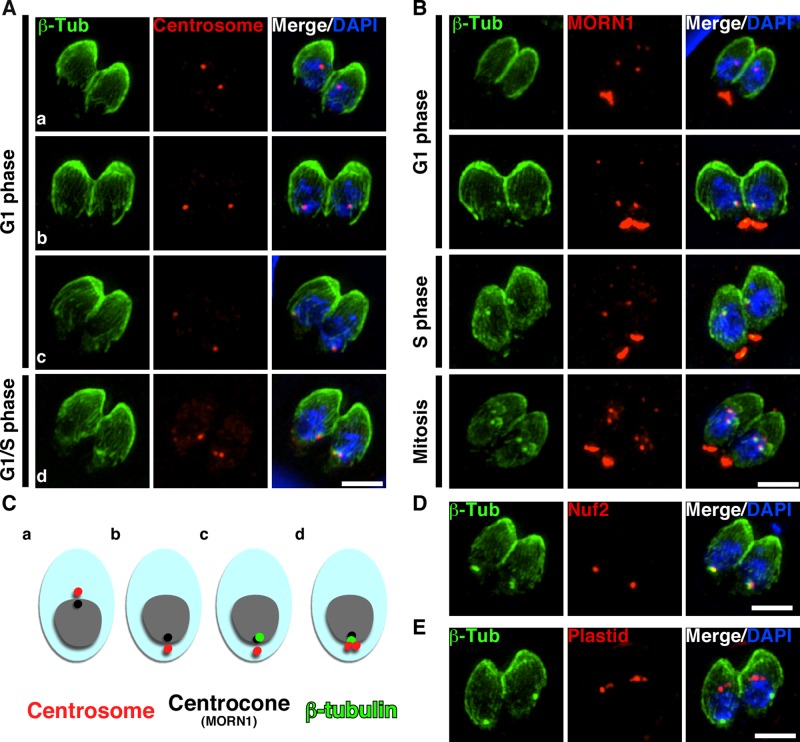

FIGURE 1:. Spindle MT assembly in space and time. (A) Spindle assembly initiates when the centrosome rotates to the basal side of the nucleus. Wild-type parasites expressing DDmyc-Centrin1 stabilized with Shield1 were costained with cMyc (marking the centrosome in red) and β-tubulin antisera. The cell division cycle progresses from top to bottom, and phases are as indicated on the left. (B) The centrocone rotates along with the spindle MT upon assembly at the basal end of nucleus. Parasites stably expressing myc2-MORN1 were costained with cMyc and β-tubulin antisera. The cell division cycle progresses from top to bottom, and phases are as indicated on the left. (C) Schematic representation of the results in A and B. The centrosome is marked in red, the centrocone (MORN1) in black, β-tubulin in green, and the nucleus in gray. The cell division cycle progresses from left to right (a to d). (D) The kinetochore complex corotates to the basal end of nucleus upon spindle assembly. Wild-type parasites were costained with β-tubulin and TgNuf2 antisera to highlight the assembled spindle and the kinetochore, respectively. (E) The plastid remains at the top of the nucleus, and the spindle assembles at the basal end of nucleus. Wild-type parasites were costained with β-tubulin antiserum and Alexa 594âconjugated streptavidin to mark the assembled spindle and the plastid, respectively. β-Tubulin staining is shown in green, and other markers are shown in red. Bar, 3 μm.
|
|

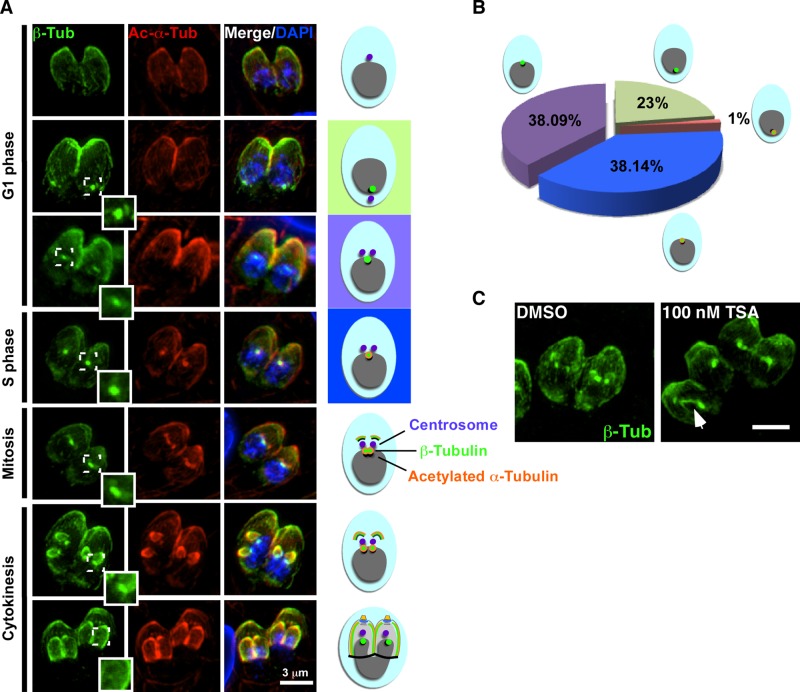

FIGURE 2:. Acetylation of α-tubulin stabilizes spindle MT. (A) Acetylation of α-tubulin increases when the spindle rotates back to the apical end of the nucleus and is reduced before spindle disassembly. Costaining of wild-type parasites with β-tubulin (in green) and Ac-α-tubulin antibodies (in red). The insets highlight the spindle assembly. The cell cycle progression is shown from top to bottom and summarized by the schematic, in which the centrosome is shown in purple, the centrocone (MORN1) in black, β-tubulin in green, Ac-α-tubulin in orange, and the nucleus in gray. The colored background of the premitotic cells of schematics at rows 2â4 corresponds to the stage of quantified tubulin positioning and modification in the pie chart to the right. (B) Determination of the timing of spindle acetylation in mitotic cells (defined by the presence of nuclear β-tubulin). Intracellular parasites are stained as described for A. The incidence at which parasites displayed β-tubulin and Ac-α-tubulin distribution were scored in the four categories illustrated with the cartoons. The schematic represents the centrosome in purple, β-tubulin in green, and acetylation of α-tubulin in orange. (C) Inhibition of deacetylation promotes formation of aberrant spindle bundle. Wild-type parasites were treated with 100 nM TSA and stained with β-tubulin antiserum. The white arrow marks the spindle bundle MT. Bar, 3 μm.
|
|

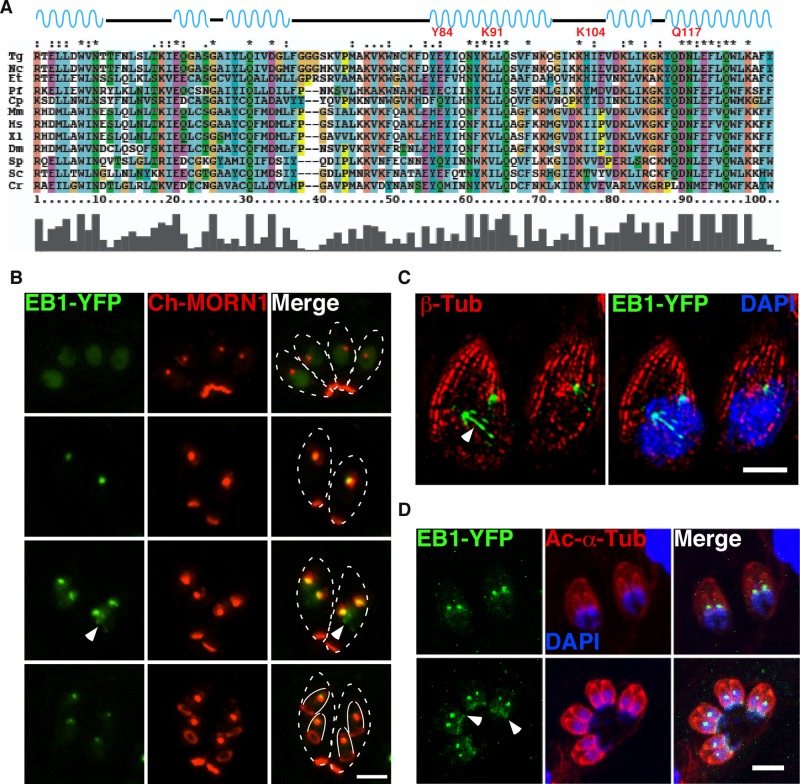

FIGURE 3:. Identification and characterization of TgEB1. (A) Sequence alignment of EB1 CH domain of selected orthologues (T. gondii TGGT1_227650; Neospora caninum NCLIV_045630; Plasmodium falciparum PF3D7_0307300; Eimeria tenella ETH_00010720; Homo sapiens AAC09471; Drosophila melanogaster AAM70826.1; Saccharomyces cerevisiae AAB64549.1; S. pombe SPAC18G6.15; Cryptosporidium parvum cgd7_2370; M. musculus 13589; Chlamydomonas reinhardtii AAO62368.1; X. laevis 398293). The secondary structure is indicated at the top (blue wave represents α-helices), and the four conserved MT-interacting residues are marked in red (number represents the Toxoplasma residue number). The dark gray bars below the sequence alignment represent the conservation of the consensus sequence. Complete sequence alignment is shown in Supplemental Figure S1A. Protein modeling of TgEB1 on the HsEB3 crystal structure is shown in Supplemental Figure S4. (B) Dynamic localization of endogenously tagged TgEB1-YFP at the nucleoplasm, spindle pole, and spindle MTs. TgEB1-YFPâexpressing parasites were stably cotransfected with an mCherryRFP-MORN1 construct as a developmental marker. Dashed white lines outline the mother parasite; solid white lines outline the daughter buds. The cell division cycle progresses from top to bottom. (C) TgEB1-YFP highlights the spindle MT protruding into the nucleoplasm (white arrowhead). Endogenously tagged TgEB1-YFP parasites were costained with β-tubulin antiserum and DAPI and analyzed by structured illumination microscopy. (D) TgEB1-YFP translocates to the growing end of daughter cells upon partitioning of divided nuclei into daughter cells. Endogenously tagged TgEB1-YFP parasites were costained with Ac-α-tubulin antibodies and DAPI. Arrowheads mark the YFP signal at the basal end of the daughter buds. TgEB1-YFP signals are shown in green and other markers in red. Bar, 3 μm.
|
|

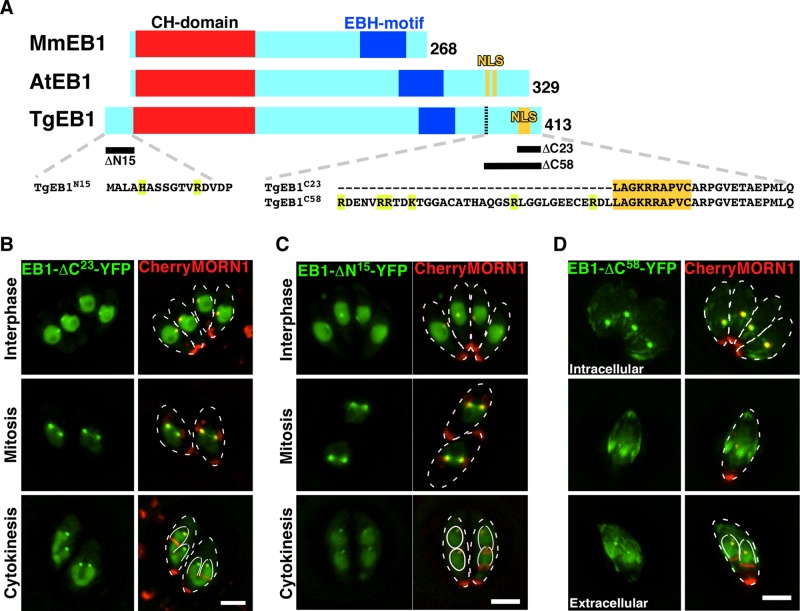

FIGURE 4:. Mapping the TgEB1 nuclear localization signal. (A) Comparative domain analysis of mouse (Mm), Arabidopsis thaliana (At), and T. gondii EB1. MT-interacting CH domain is marked in red, EB1-homology motif in blue, and predicted NLS in yellow (we used both SeqNLS [http://mleg.cse.sc.edu/seqNLS/;
Lin et al., 2012] and cNLSmapper [http://nls-mapper.iab.keio.ac.jp/cgi-bin/NLS_Mapper_form.cgi;
Kosugi et al., 2009]). Black bars indicate the deleted amino acid region of TgEB1 truncation mutants ÎN15, ÎC23, and ÎC58. The sequences of ÎN15 and ÎC58 are indicated. (BâD) Distinct localization patterns of TgEB1 truncation mutants. Parasites stably expressing mCherryRFP-MORN1 were transiently cotransfected with TgEB1-ÎC23-YFP (B), TgEB1-ÎN15-YFP (C), or TgEB1-ÎC58-YFP (D). Cell division cycle stages are indicated on the left (B, C). White dashed lines outline the parasite; solid white lines mark budding daughter cells. Bar, 3 μm.
|
|

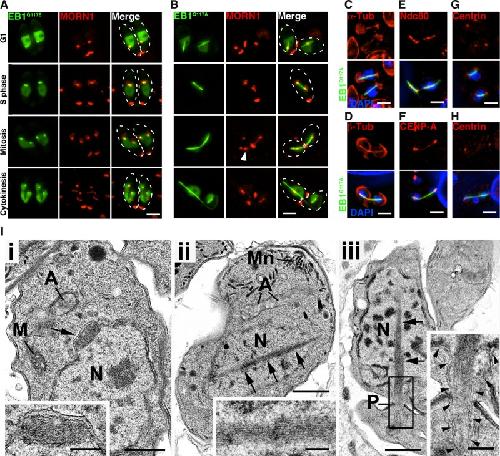

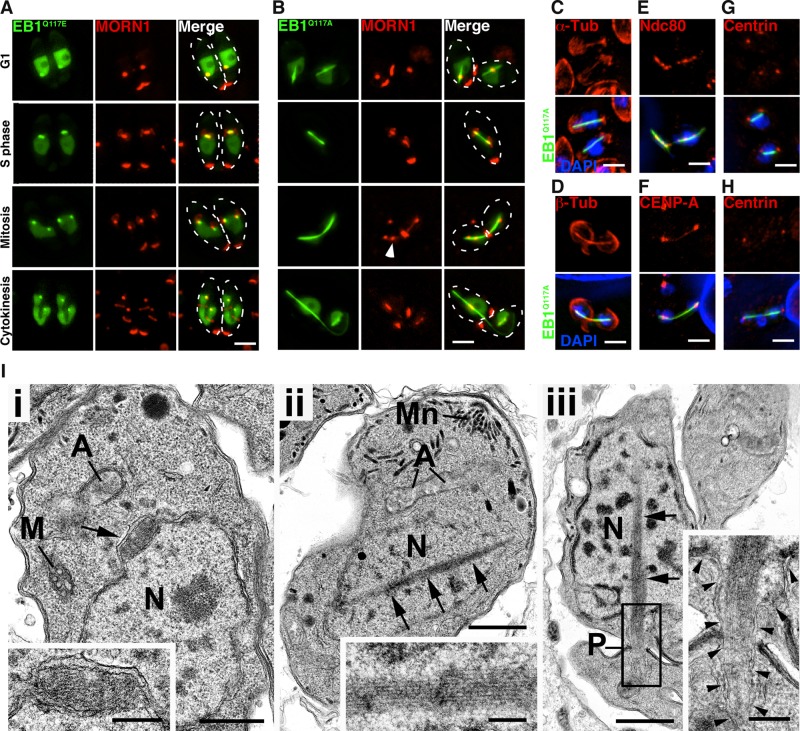

FIGURE 5:. EB1 mutants display distinct MT-interacting affinity. (A) TgEB1Q117E-YFP reduces affinity to the nuclear spindle MTs. Parasites stably expressing mCherryRFP-MORN1 were transiently cotransfected with a TgEB1Q117E-YFPâexpressing construct and imaged live 24 h posttransfection. Dashed white lines outline the parasites. The cell division cycle progresses from top to bottom, and phases are as indicated on the left (B) TgEB1Q117A-YFP promotes formation of an abnormal bar-like structure. Parasites stably expressing mCherryRFP-MORN1 were transiently cotransfected with a TgEB1Q117A-YFPâexpressing construct and imaged live 24 h posttransfection. White arrowhead indicates the ruptured centrocone. (CâH) Wild-type parasites were transiently transfected with a TgEB1Q117A-YFPâexpressing construct and fixed 24 h after transfection. Parasites are stained with antisera against α-tubulin (C), β-tubulin (D), Ndc80 (E), CENP-A (F), and centrin (G, H). (C, D) The aberrant bar is composed of microtubules. (E, F) The aberrant bar disrupts clustered kinetochore complex. (G, H) The aberrant bar is bundled in between centrosomes. Bars, 3 μm. (I) Transmission electron microscopy of wild-type (i) and TgEB1Q117A-YFPâexpressing parasites (ii, iii). Bars, 500 nm (main images), 100 nm (insets). (i) WT parasite, illustrating the nucleus (N) with the small eccentric spindle (arrow). Inset, enlargement of the nuclear spindle, showing that it is enclosed by the nuclear membranes. A, apicoplast; M, mitochondrion. (ii) TgEB1Q117A-YFP parasite exhibiting a rod-like structure (arrows) running through the nucleus (N). Inset, enlargement of the rod, showing the tightly packed microtubules lying naked in the nucleoplasm. A, apicoplast; Mn, micronemes. (iii) Mutant parasite showing the rod-like structure (arrows) running through the nucleus (N) and extending into the cytoplasm, passing through a posterior pore-like structure (P). Inset, enlargement of the enclosed area, showing the nuclear membranes extending over the protruding rod (arrowheads).
|
|

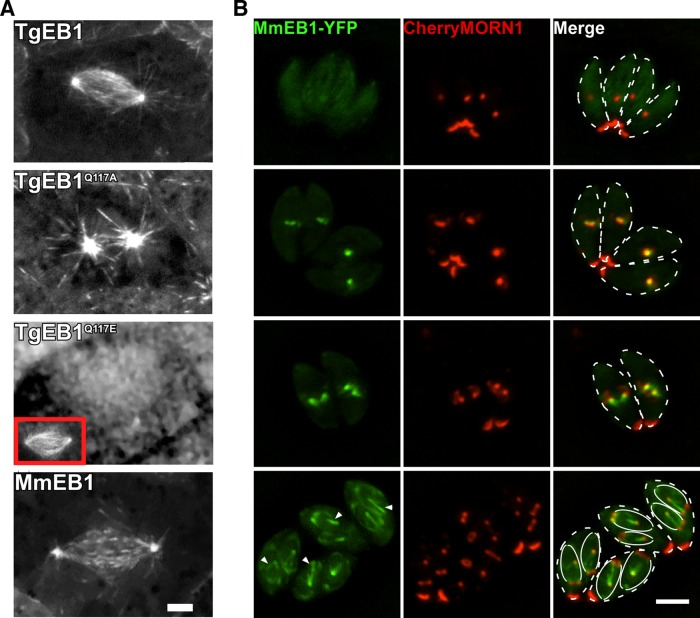

FIGURE 6:. Comparative behavior of vertebrate and Toxoplasma EB1 proteins by reciprocal expression in T. gondii tachyzoites and in Xenopus embryos. (A) Still images of Xenopus mitotic epidermal cells transiently expressing TgEB1-YFP, TgEB1Q117A-YFP, TgEB1Q117E-YFP, and mouse (M. musculus) MmEB1-YFP. The red box represents the mitotic spindle in the same cell labeled by MmEB1-mKate2 as a control for intact spindle assembly. The complete data set is given in Supplemental Figure S3; complete time-lapse movies are provided in Supplemental Movies S1âS3 (scale bar, 5 μm). (B) Dynamic localization of MmEB1-YFP in T. gondii. Transient expression of mouse MmEB1-YFP in T. gondii tachyzoites stably expressing mCherryRFP-MORN1. Note the general exclusion from the nucleus (scale bar, 3 μm). Dashed and solid white lines outline mother parasites and daughter buds, respectively. Arrowhead marks the spindle MTs emanating from the spindle pole.
|
|

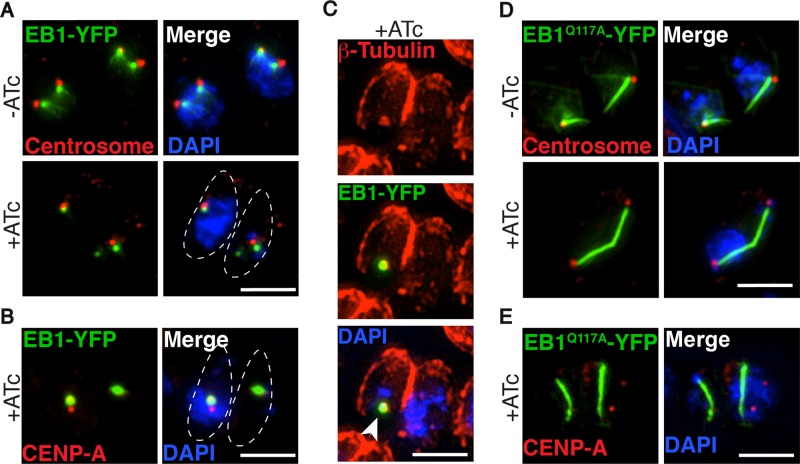

FIGURE 7:. Fate of the spindle in absence of the Ndc80 complex. TgEB1-YFP constructs were transiently transfected into the TgNuf2-cKD parasite line, seeded into HFF cells, and analyzed with and without ATc for 12 h. Dashed white lines outline the parasites (scale bar, 3 μm). (A, B) TgEB1WT-YFP remains associated with the centrosome in the absence of TgNuf2. TgEB1WT-YFP costained with either Centrin to mark the centrosome (A) or CENP-A antisera to mark the centromeres (B). (C) TgEB1WT-YFP associates with spindle MTs, indicated by costained β-tubulin antiserum. The white arrowhead marks the remnant of the centrocone (spindle pole) in an anucleate cell. (D, E) TgEB1Q117A-YFPâinduced MT bundles failed to rescue chromosome segregation defects in the absence of TgNuf2. TgEB1Q117A-YFP costained with either HsCentrin to mark the centrosome (D) or CENP-A antiserum to mark the centromeres (E). Bar, 3 μm.
|
|

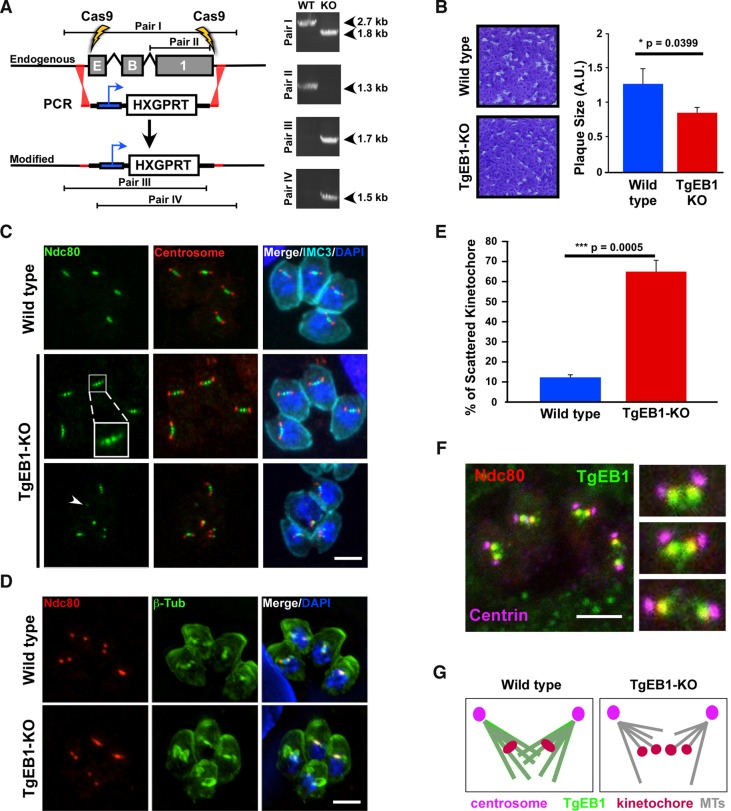

FIGURE 8:. Knockout of TgEB1. (A) Schematic representation of TgEB1-KO transgenic line construction by CRISPR/Cas9-mediated homologous recombination. The position of two double-strand breaks created by Cas9 nuclease is marked by yellow lightning bolts. The red bars represent the 35 base pairs of 5â² and 3â² homologous regions flanking the break sites. Diagnostic PCR primer pairs IâIII validating the replacement of the endogenous TgEB1 locus (marked by gray blocks) by the 1.5-kb PCR product containing the HXGPRT cassette are as indicated. Diagnostic PCRs of TgEB1-KO and its parental line using primer pairs IâIII confirm the expected genotype. (B) Plaque assay of TgEB1-KO shows a reduction in plaque size compared with wild type after 7 d of incubation before fixation. Plaque size was measured from 50 plaques/sample in three independent experiments with an arbitrary unit by ImageJ (National Institutes of Health, Bethesda, MD) and analyzed with p < 0.05 (unpaired t test); error bars indicate SD. (C) IFA of wild-type and TgEB1-KO cells using α-Ndc80, α-Centrin, and α-IMC3 as kinetochore, centrosome, and parasite cytoskeleton markers, respectively. The inset magnifies the scattered kinetochores in the corresponding square; the white arrowhead marks a drifted kinetochore in an unequally segregated nucleus. (D) IFA shows that the scattered kinetochores appear in cells that underwent mitosis, using β-tubulin antiserum as a spindle MT marker. (E) Quantification of cells with the scattered-kinetochore phenotype. Up to 100 vacuoles with mitotic cells were counted from three independent experiments (total cell number, 336â352). Mitotic spindle staining using β-tubulin was used as a marker determining mitosis. p < 0.01 (Studentâs unpaired t test); error bars indicate SD. (F) TgEB1-YFP (green)âexpressing parasites costained for the centrosome (in magenta) and kinetochore (in red) show that the kinetochore complex resides in close apposition to the TgEB1-YFPâhighlighted spindle poles. (G) Model of spindle association with the kinetochore in the wild-type and TgEB1-KO lines. Centrosomes are shown in magenta, TgEB1 in green, kinetochores in red, and MTs in gray. Bar, 3 μm.
|
