Vogt A , Guo Y , Tsunoda SP , Kateriya S , Elstner M , Hegemann P .

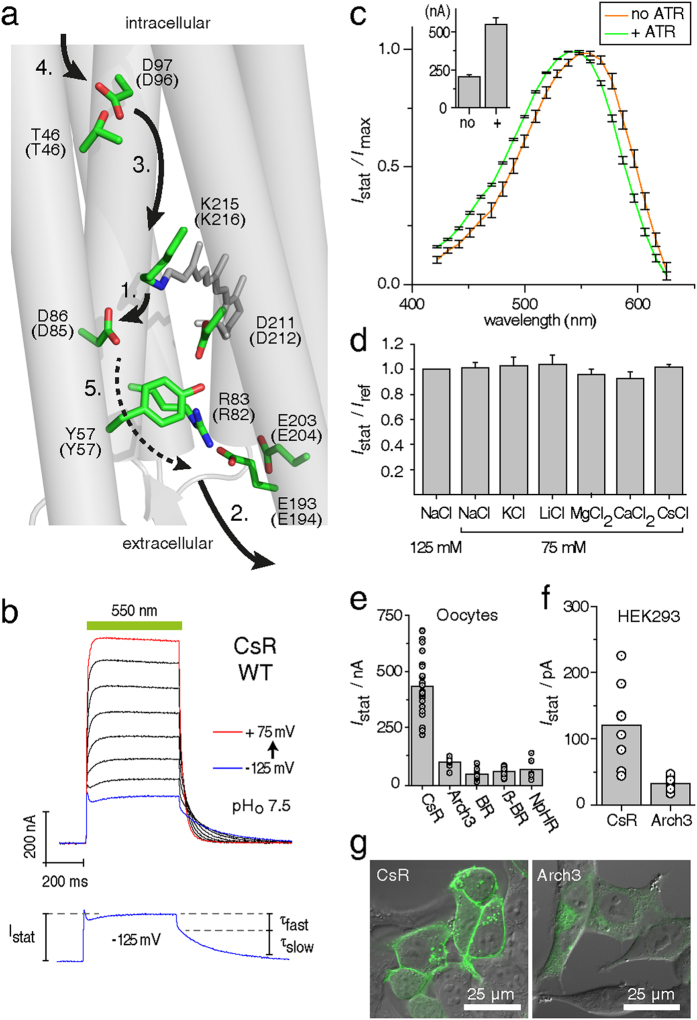

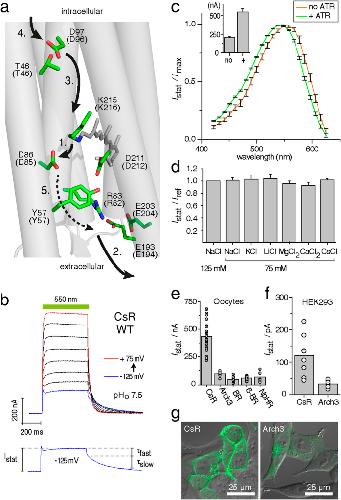

	Figure 1. Basic characterization of CsR in Xenopus laevis oocytes and HEK-293 cells.(a) Proposed structure of CsR-WT with mutated residues based on the BR crystal structure (PDB: 1M0L). Brackets indicate respective positions in BR and demonstrate the high conservation of key residues. Arrows highlight the proposed proton transport pathway of CsR-WT, which is similar to BR. A dotted arrow is used to indicate that whether R83 deprotonates itself during the photocycle remains to be determined. (b) Typical photocurrents of CsR-WT measured in oocytes at extracellular pHo 7.5 after illumination with 550 ± 25 nm. Holding potentials were increased from −125 mV in 25 mV steps up to +75 mV. Separated current trace illustrates the biexponential decay after light illumination. (c) Action spectra measured in oocytes at pH 7.2 with supplementation of 5 μM all-trans retinal (ATR, n = 7) and without ATR (n = 5). Currents were normalized to the maximal stationary currents. Inset shows absolute amplitudes at 0 mV (ATR, n = 16; without ATR, n = 21). (d) Ion selectivity measured in oocytes at pHo 7.2 and 0 mV (all n = 5 except CsCl, n = 3). (e) Absolute photocurrent amplitudes of diverse microbial pumps at pHo 7.5 as measured in oocytes (all at 0 mV, illumination with 550 ± 25 nm, CsR [n = 24], Arch3 [n = 8], BR [n = 19], βHK-BR [n = 17], NpHR [n = 6]). (f) Absolute photocurrent amplitudes of CsR-WT-EGFP (n = 8) and Arch3-WT-EGFP (n = 11) measured in HEK-293 cells (0 mV, 550 ± 7 nm, pHo 7.2, pHi 7.2 after 24–30 h, 1 μM ATR). (g) Confocal images of HEK-293 cells transfected with CsR-WT-EGFP or Arch3-WT-EGFP (after 24–30 h, 1 μM ATR). Scale bars represent 25 μm. Data represent the mean ± SE.

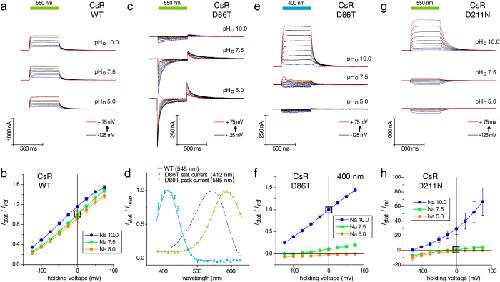

	Figure 2. Current traces and IStat(E) of CsR-WT, CsR-D86T, and CsR-D211N at different extracellular pH values.(a) Photocurrents of CsR-WT were less dependent on pH and always outward directed (550 ± 25 nm). (b) IStat(E) of stationary photocurrents of CsR-WT (550 ± 25 nm, normalized to pH 7.5 and 0 mV, pH 10 [n = 10], pH 7.5 [n = 25], pH 5 [n = 7]). (c) Photocurrents of CsR-D86T upon illumination with green light (550 ± 25 nm). Inward-directed peak currents were observed, especially at low pHo. These are followed by outward directed peaks immediately after illumination. (d) Action spectra show two separated protein populations of CsR-D86T. Both are shifted towards CsR-WT as shown by dotted lines. Spectrum of stationary currents was measured at pH 10 and 0 mV (n = 4). Spectrum of peak currents in green was measured at pH 7.5 and 0 mV (n = 4). (e) Stationary photocurrent traces of CsR-D86T upon illumination with blue light (400 ± 25 nm). Stationary currents disappear at low pH. (f) IStat(E) of stationary currents of CsR-D86T (400 ± 25 nm, normalized to pH 10 and 0 mV, pH 10 [n = 13], pH 7.5 [n = 8], pH 5 [n = 5]). (g) Photocurrents of CsR-D211N are directed outward and inward at high and low pHo, respectively (550 ± 25 nm). (h) IStat(E) of stationary photocurrents of CsR-D211N (550 ± 25 nm, normalized to pH 7.5 and 0 mV, pH 10 [n = 6], pH 7.5 [n = 7], pH 5 [n = 6]). Data were measured in oocytes and represent the mean ± SE.

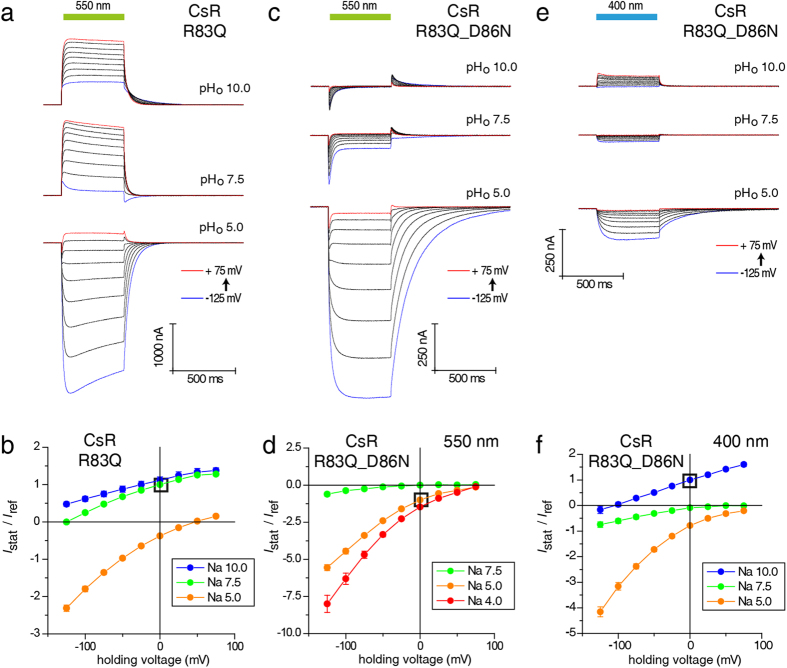

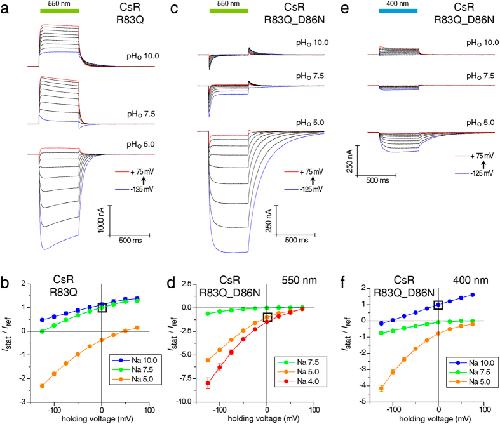

	Figure 3. Current traces and IStat(E) of CsR-R83Q and CsR-R83Q-D86N at different extracellular pH values.(a) Photocurrents of CsR-R83Q are characterized by strong inward-directed photocurrents at low pHo (550 ± 25 nm). (b) IStat(E) of stationary photocurrents of CsR-R83Q (550 ± 25 nm, normalized to pH 7.5 and 0 mV, pH 10 [n = 7], pH 7.5 [n = 10], pH 5 [n = 6]). (c) Photocurrents of CsR-R83Q-D86N (550 ± 25 nm). (d) IStat(E) of CsR-R83Q-D86N stationary photocurrents (550 ± 25 nm, normalized to pH 5 and 0 mV, pH 7.5 [n = 7], pH 5 [n = 9], pH 4 [n = 5]). Double mutant shows that inward-directed channel-like currents are independent of the primary proton donor D86. (e) Stationary photocurrent traces of CsR-R83Q-D86N upon illumination of blue light (400 ± 25 nm). Similar to D86N, low outward-directed stationary currents were observed at high pHo. (f) IStat(E) of CsR-R83Q-D86N stationary photocurrents (400 ± 25 nm, normalized to pH 10 and 0 mV, pH 10 [n = 5], pH 7.5 [n = 4], pH 5 [n = 5]). Data were measured in oocytes and represent the mean ± SE.

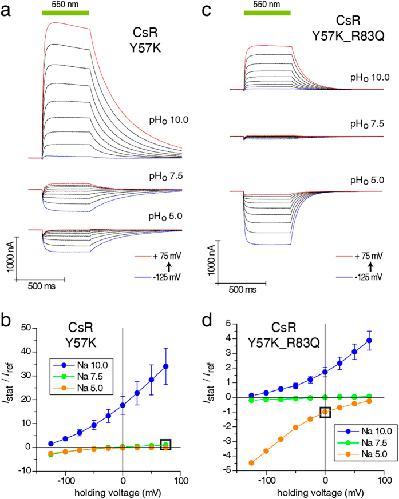

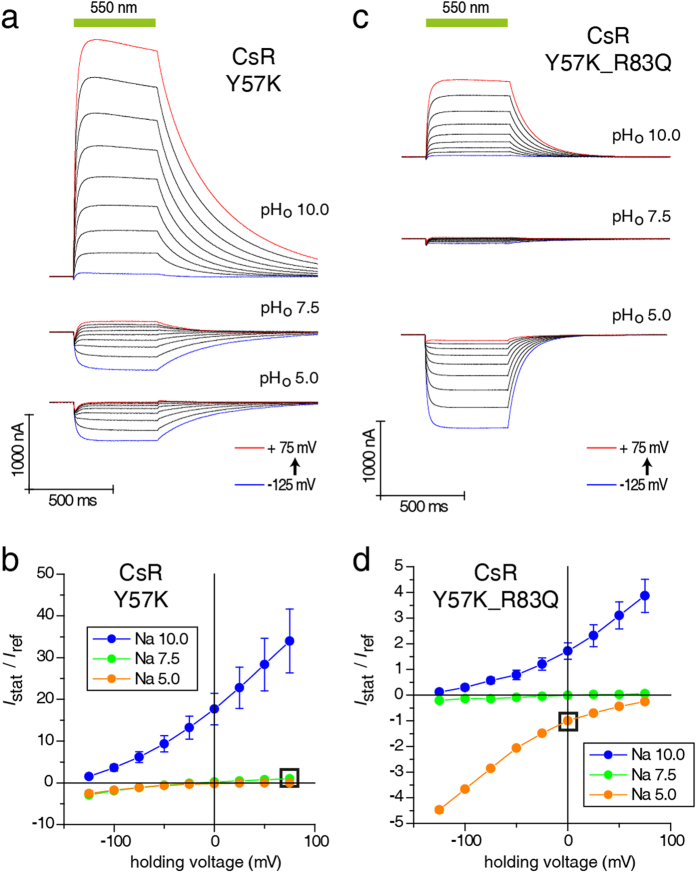

	Figure 4. Current traces and IStat(E) of CsR- Y57K and CsR-Y57K-R83Q at different extracellular pH values.(a) Photocurrents of CsR-Y57K are characterized by strong outward-directed photocurrents at high pHo (550 ± 25 nm). (b) IStat(E) of stationary photocurrents of CsR-Y57K (550 ± 25 nm, normalized to pH 7.5 and +75 mV, pH 10 [n = 6], pH 7.5 [n = 9], pH 5 [n = 4]). (c) Photocurrents of CsR-Y57K-R83Q exhibit the properties of both single mutations but without huge amplitudes at high electrochemical loads (550 ± 25 nm). (d) IStat(E) of stationary photocurrents of CsR-Y57K (550 ± 25 nm, normalized to pH 5 and 0 mV, pH 10 [n = 9)], pH 7.5 [n = 9], pH 5 [n = 9]). Data were measured in oocytes and represent the mean ± SE.

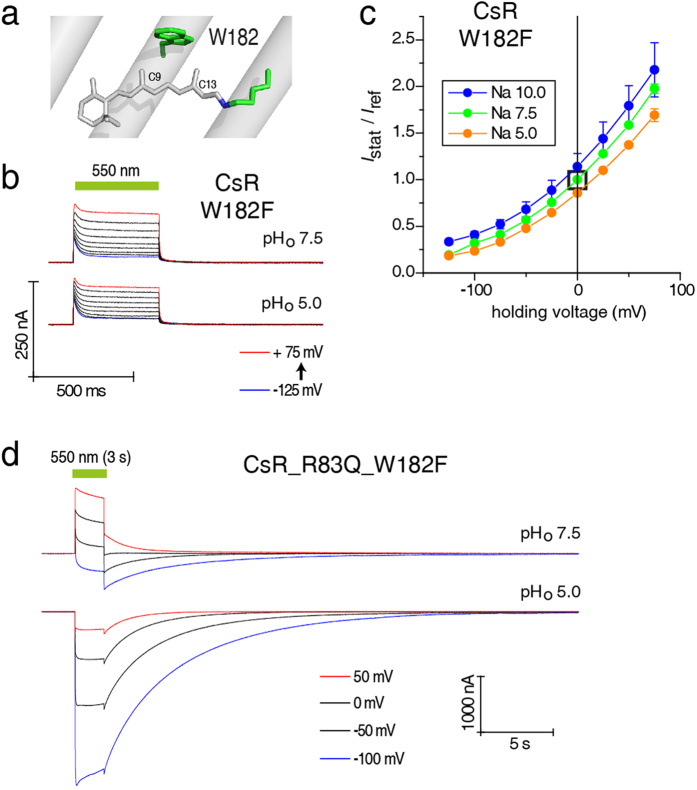

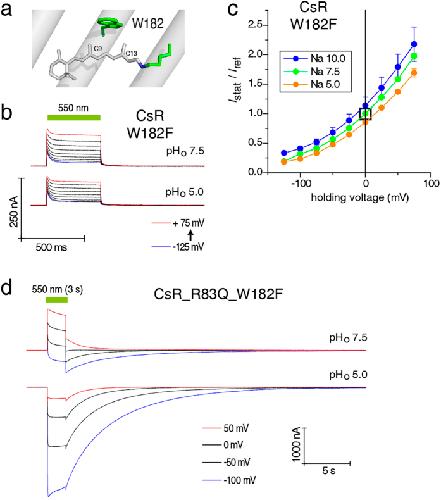

	Figure 5. Inward-directed photocurrents produced by CsR-R83Q are channel-like.(a) Position W182 is highly conserved in microbial rhodopsins and is located close to the methyl groups of the retinal. (b) Photocurrents of CsR-W182F are characterized by a large transient outward peak compared to the stationary currents. (c) IStat(E) of stationary photocurrents of CsR-W182F are always directed outward but curved compared to CsR-WT (550 ± 25 nm, normalized to pH 7.5 and 0 mV, pH 10 [n = 4], pH 7.5 [n = 6], pH 5 [n = 5]). (d) Similar to CsR-R83Q, photocurrents of CsR-R83Q-W182F are inward-directed, especially at low pHo. Additionally, the currents show drastically increased decay times. Data were measured in oocytes and represent the mean ± SE.

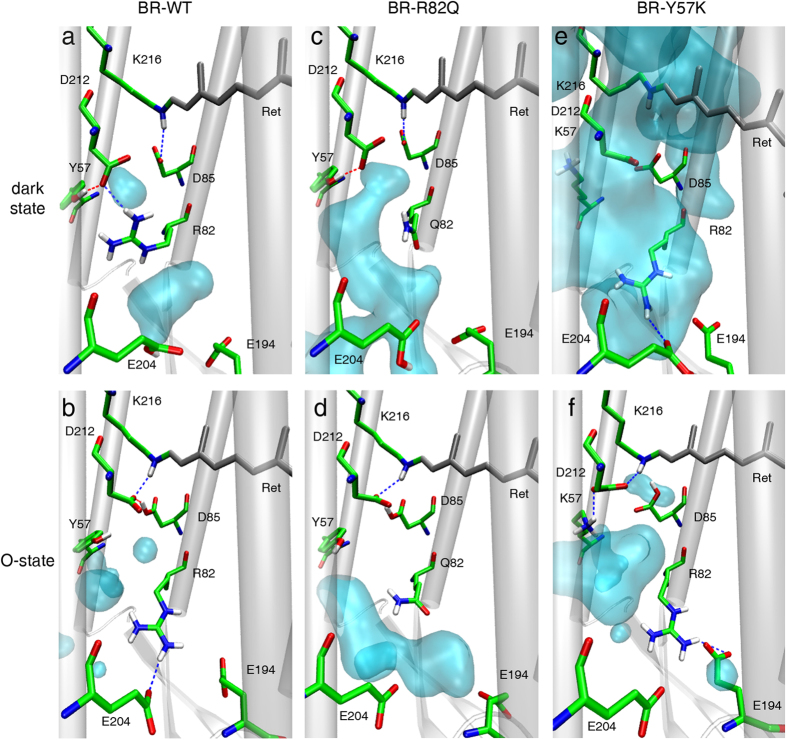

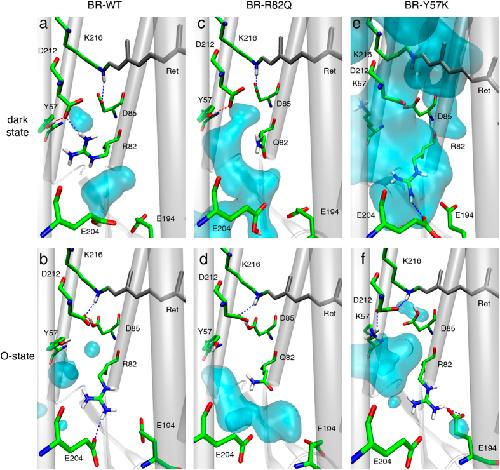

	Figure 6. Molecular dynamics simulation and prediction of water molecule distribution of dark states and O-intermediates of BR.(a) The dark state of BR-WT with separated areas of mobile water. (b) In the O-state of BR-WT, the downward (extracellular side) movement of the guanidine side chain of R82 is depicted. The hydrogen bond connecting the guanidine group with Y57 and D212 was interrupted due to this downward movement. (c) Mutation of R82 by the smaller and neutral Q82 induced a large space with an extended water cluster. (d) Extended water cluster was still present in the O-state of R82Q, but direct accessibility to the primary proton donor D85 was interrupted. (e) Mutation of Y57 by the positively charged K57 promoted a salt bridge between D212 and K57. The dark state of K57Y was also characterized by an increased water cluster. (f) The O-state of Y57K lacks an interaction between R82 and E204. The huge cavity of mobile water molecules between K57, R82, D85, and D212 caused accessibility to the Schiff Base. Downward movement of the guanidine side chain of R82 was also observed.

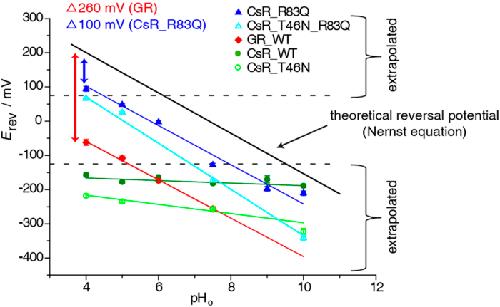

	Figure 7. Reversal voltages of Δp- and ΔΨ-type light-driven proton pumps.Reversal voltage (Erev) of Gloeobacter rhodopsin (GR), CsR-WT, CsR-T46N, CsR-R83Q, and CsR-R83Q-T46N are plotted against the extracellular pHo. The black line represents the theoretical expected Erev of free proton flow calculated by the Nernst equation based on an intracellular pHi of 7.4. Reversal potentials below this line indicate proton pump activity. Values from −125 mV up to +75 mV were determined directly. Other values are determined by extrapolation. CsR-WT (550 ± 25 nm, pH 10 [n = 8], pH 9 [n = 3], pH 7.5 [n = 26], pH 6 [n = 5], pH 5 [n = 8], pH 4 [n = 6]) exhibited high resistance against low pHo whereas GR (400–600 nm, pH 7.5 [n = 23], pH 6 [n = 6], pH 5 [n = 9], pH 4 [n = 10]) was shifted −260 mV in parallel to the calculated potentials. Mutation of CsR-R83 (550 ± 25 nm, pH 10 [n = 7], pH 9 [n = 4], pH 7.5 [n = 11], pH 6 [n = 4], pH 5 [n = 6], pH 4 [n = 4]) into Glu converts Coccomyxa rhodopsin into a Gloeobacter-like proton pump in relation to the Erev. CsR-T46N (550 ± 25 nm, pH 10 [n = 4], pH 7.5 [n = 8], pH 5 [n = 4], pH 4 [n = 4]). CsR-T46N-R83Q (550 ± 25 nm, pH 10 [n = 4], pH 7.5 [n = 5], pH 5 [n = 5], pH 4 [n = 2]). Data were measured in oocytes and represent the mean ± SE.

Azuma, Changes of egg retinoids during the development of Xenopus laevis. 1990, Pubmed, Xenbase

Azuma, Changes of egg retinoids during the development of Xenopus laevis. 1990, Pubmed , Xenbase
Blanc, The genome of the polar eukaryotic microalga Coccomyxa subellipsoidea reveals traits of cold adaptation. 2012, Pubmed
Bondar, Mechanism of primary proton transfer in bacteriorhodopsin. 2004, Pubmed
Braiman, Vibrational spectroscopy of bacteriorhodopsin mutants: light-driven proton transport involves protonation changes of aspartic acid residues 85, 96, and 212. 1988, Pubmed
Bridges, The visual pigment and vitamin A of Xenopus laevis embryos, larvae and adults. 1977, Pubmed , Xenbase
Brown, Eubacterial rhodopsins - unique photosensors and diverse ion pumps. 2014, Pubmed
Brown, Estimated acid dissociation constants of the Schiff base, Asp-85, and Arg-82 during the bacteriorhodopsin photocycle. 1993, Pubmed
Brown, Glutamic acid 204 is the terminal proton release group at the extracellular surface of bacteriorhodopsin. 1995, Pubmed
Butt, Aspartic acids 96 and 85 play a central role in the function of bacteriorhodopsin as a proton pump. 1989, Pubmed
Chow, High-performance genetically targetable optical neural silencing by light-driven proton pumps. 2010, Pubmed
Clemens, Role of Arg82 in the early steps of the bacteriorhodopsin proton-pumping cycle. 2011, Pubmed
Dioumaev, Existence of a proton transfer chain in bacteriorhodopsin: participation of Glu-194 in the release of protons to the extracellular surface. 1998, Pubmed
Engelhard, Light-driven protonation changes of internal aspartic acids of bacteriorhodopsin: an investigation by static and time-resolved infrared difference spectroscopy using [4-13C]aspartic acid labeled purple membrane. 1985, Pubmed
Ernst, Microbial and animal rhodopsins: structures, functions, and molecular mechanisms. 2014, Pubmed
Feig, MMTSB Tool Set: enhanced sampling and multiscale modeling methods for applications in structural biology. 2004, Pubmed
Freier, Proton transfer via a transient linear water-molecule chain in a membrane protein. 2011, Pubmed
Furutani, Hydrogen-bonding changes of internal water molecules upon the actions of microbial rhodopsins studied by FTIR spectroscopy. 2014, Pubmed
Geibel, The voltage-dependent proton pumping in bacteriorhodopsin is characterized by optoelectric behavior. 2001, Pubmed , Xenbase
Geibel, Voltage dependence of proton pumping by bacteriorhodopsin mutants with altered lifetime of the M intermediate. 2013, Pubmed , Xenbase
Gerwert, The role of protein-bound water molecules in microbial rhodopsins. 2014, Pubmed
Gerwert, Role of aspartate-96 in proton translocation by bacteriorhodopsin. 1989, Pubmed
Gong, Enhanced Archaerhodopsin Fluorescent Protein Voltage Indicators. 2013, Pubmed
Heberle, Bacteriorhodopsin: the functional details of a molecular machine are being resolved. 2000, Pubmed
Hess, GROMACS 4:  Algorithms for Highly Efficient, Load-Balanced, and Scalable Molecular Simulation. 2008, Pubmed
Huang, CHARMM36 all-atom additive protein force field: validation based on comparison to NMR data. 2013, Pubmed
Iwasa, Tryptophan 171 in Pharaonis phoborhodopsin (sensory rhodopsin II) interacts with the chromophore retinal and its substitution with alanine or threonine slowed down the decay of M- and O-intermediate. 2007, Pubmed
Kataoka, Energy coupling in an ion pump. The reprotonation switch of bacteriorhodopsin. 1994, Pubmed
Kato, Crystal structure of the channelrhodopsin light-gated cation channel. 2012, Pubmed
Lazarova, Fourier transform infrared evidence for early deprotonation of Asp(85) at alkaline pH in the photocycle of bacteriorhodopsin mutants containing E194Q. 2000, Pubmed
Lörinczi, Voltage- and pH-dependent changes in vectoriality of photocurrents mediated by wild-type and mutant proteorhodopsins upon expression in Xenopus oocytes. 2009, Pubmed , Xenbase
Lozier, Bacteriorhodopsin: a light-driven proton pump in Halobacterium Halobium. 1975, Pubmed
Luecke, Structure of bacteriorhodopsin at 1.55 A resolution. 1999, Pubmed
Luecke, Coupling photoisomerization of retinal to directional transport in bacteriorhodopsin. 2000, Pubmed
Maclaurin, Mechanism of voltage-sensitive fluorescence in a microbial rhodopsin. 2013, Pubmed
Mogi, Structure-function studies on bacteriorhodopsin. IX. Substitutions of tryptophan residues affect protein-retinal interactions in bacteriorhodopsin. 1989, Pubmed
Nagel, Voltage dependence of proton pumping by bacteriorhodopsin is regulated by the voltage-sensitive ratio of M1 to M2. 1998, Pubmed , Xenbase
Nagel, Functional expression of bacteriorhodopsin in oocytes allows direct measurement of voltage dependence of light induced H+ pumping. 1995, Pubmed , Xenbase
Otto, Aspartic acid-96 is the internal proton donor in the reprotonation of the Schiff base of bacteriorhodopsin. 1989, Pubmed
Patzelt, The structures of the active center in dark-adapted bacteriorhodopsin by solution-state NMR spectroscopy. 2002, Pubmed
Penzkofer, Bistable retinal schiff base photodynamics of histidine kinase rhodopsin HKR1 from Chlamydomonas reinhardtii. 2014, Pubmed
Phatak, Long-distance proton transfer with a break in the bacteriorhodopsin active site. 2009, Pubmed
Raunest, dxTuber: detecting protein cavities, tunnels and clefts based on protein and solvent dynamics. 2011, Pubmed
Richter, A linkage of the pKa's of asp-85 and glu-204 forms part of the reprotonation switch of bacteriorhodopsin. 1996, Pubmed
Ritter, Light-dark adaptation of channelrhodopsin C128T mutant. 2013, Pubmed
Rouhani, Crystal structure of the D85S mutant of bacteriorhodopsin: model of an O-like photocycle intermediate. 2001, Pubmed
Sagui, Molecular dynamics simulations of biomolecules: long-range electrostatic effects. 1999, Pubmed
Seki, Heterologous expression of Pharaonis halorhodopsin in Xenopus laevis oocytes and electrophysiological characterization of its light-driven Cl- pump activity. 2007, Pubmed , Xenbase
Száraz, pH-induced structural changes in bacteriorhodopsin studied by Fourier transform infrared spectroscopy. 1994, Pubmed
Tittor, Inversion of proton translocation in bacteriorhodopsin mutants D85N, D85T, and D85,96N. 1994, Pubmed
Tittor, Bacteriorhodopsin mutants D85N, D85T and D85,96N as proton pumps. 1995, Pubmed
Tsunoda, H+ -pumping rhodopsin from the marine alga Acetabularia. 2006, Pubmed , Xenbase
Vogt, Gloeobacter rhodopsin, limitation of proton pumping at high electrochemical load. 2013, Pubmed , Xenbase
Watanabe, Towards an understanding of channelrhodopsin function: simulations lead to novel insights of the channel mechanism. 2013, Pubmed
Weidlich, Steric interaction between the 9-methyl group of the retinal and tryptophan 182 controls 13-cis to all-trans reisomerization and proton uptake in the bacteriorhodopsin photocycle. 1996, Pubmed
Wolf, Directional proton transfer in membrane proteins achieved through protonated protein-bound water molecules: a proton diode. 2010, Pubmed
Xiao, Role of arginine-82 in fast proton release during the bacteriorhodopsin photocycle: a time-resolved FT-IR study of purple membranes containing 15N-labeled arginine. 2004, Pubmed
Yamazaki, Interaction of tryptophan-182 with the retinal 9-methyl group in the L intermediate of bacteriorhodopsin. 1995, Pubmed
Zimányi, Pathways of proton release in the bacteriorhodopsin photocycle. 1992, Pubmed
Zscherp, Time-resolved FT-IR spectroscopic investigation of the pH-dependent proton transfer reactions in the E194Q mutant of bacteriorhodopsin. 2001, Pubmed
