Das S , Gilchrist J , Bosmans F , Van Petegem F .

1R01NS091352 NINDS NIH HHS , F31 NS084646 NINDS NIH HHS , MOP-119404 Canadian Institutes of Health Research , R01 NS091352 NINDS NIH HHS

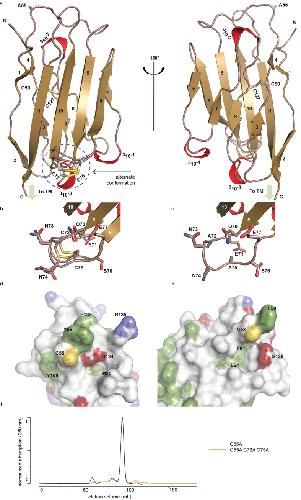

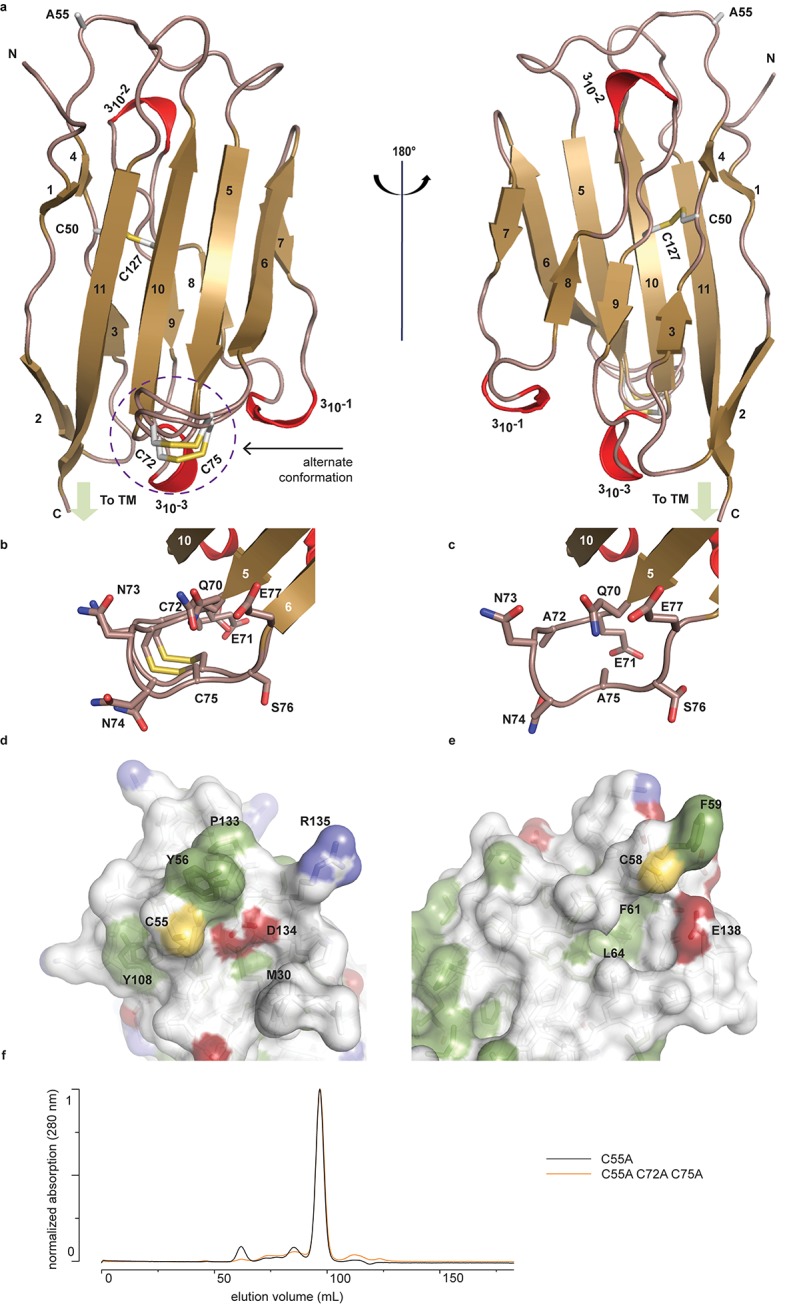

	Figure 1. Crystal structure of hβ2.(a) Cartoon representation of the hβ2 (C55A) extracellular domain crystal structure, showing β strands in gold and 310 helices in red. Cysteine side chains, as well as the 55Ala residue, are shown in stick representation. Positions of N-terminus (N) and C-terminus (C) are indicated. The loop containing the 72Cys- 75Cys disulfide bond is modeled in a dual conformation. (b) Detail of the dual conformation of the loop, showing all side chains in stick conformation. (c) Detail of the same loop in the C72A/C75A (C55A) mutant, shown from the same viewpoint as in panel (b). (d,e) Comparison of the surfaces of hβ2 (d) and hβ4 (e) surrounding the reactive cysteines (55Cys and 58Cys, respectively). Side chains of hydrophobic residues are shown in green, negatively charged carboxyl groups in red, and positively charged amino and guanidinium groups in blue. The position of the cysteine (which has been mutated to alanine to allow crystallization) is shown in yellow. (f) Size exclusion chromatograms (Preparative Superdex200) for hβ2 C55A and hβ2 C55/72/75A, which both elute as monomeric species.DOI: http://dx.doi.org/10.7554/eLife.10960.00310.7554/eLife.10960.004Figure 1—source data 1. X-ray data collection and refinement statistics.DOI: http://dx.doi.org/10.7554/eLife.10960.004

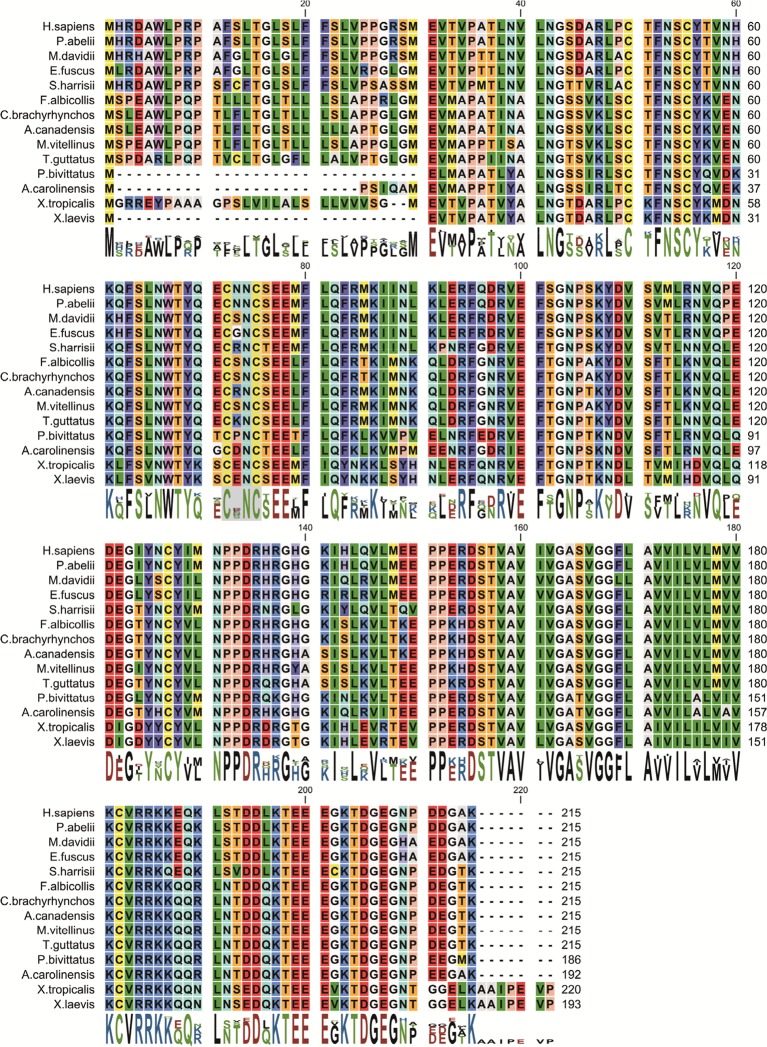

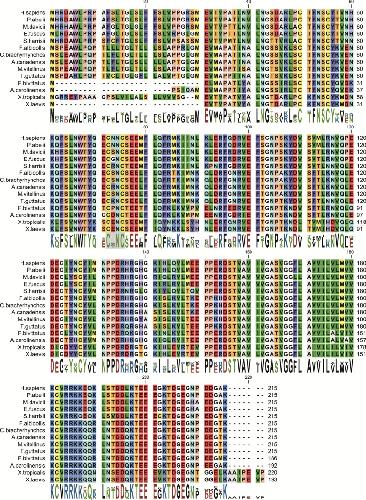

	Figure 2. Structural comparison of hβ2 to hβ3 and hβ4.(a) Superposition of the crystal structures of hβ2 C55A (gold) and hβ4 C58A (blue) in cartoon representation. Cysteines or their equivalent residues (A55 and A58, respectively) are shown in sticks. The major differences are highlighted in the figure. (b) Superposition of crystal structures of hβ2 C55A (gold) and hβ3 (red). (c) Root-mean-square-deviation (RMSD) plots showing the RMSD values per residue for hβ4 C58A (left, blue plot) and hβ3 (right, red plot) relative to hβ2 after a superposition. The residue numbers below correspond to the hβ2 numbers. Sections for which there are no corresponding residues at indicated with dotted lines. (d,e) Shown are sequence alignments of the extracellular domains of (d) hβ2 versus hβ4 and (e) hβ2 versus hβ3. Conserved residues are highlighted in grey, and cysteines in yellow. Observed disulfide bonds are also labeled (S-S). Secondary structure elements found in the corresponding crystal structures are also shown.DOI: http://dx.doi.org/10.7554/eLife.10960.005Figure 2—figure supplement 1. Amino acid sequence alignment of the β2 protein found in various organisms.Conserved cysteines 72Cys and 75Cys in hβ2 are indicated with a grey background. Residue numbers in hβ2 above sequences are shown as a reference. Protein accession numbers for sequences used are: H. sapiens (NP_004579.1), P. abelii (XP_002822587.1), M. davidii (XP_006761624.1), E. fuscus (XP_008148335.1), S. harrisii (XP_003764204.1), T. guttatus (XP_010214560.1), C. brachyrhynchos (XP_008635161.1), F. albicollis (XP_005058672.1), A. canadensis (XP_011600162.1), M. vitellinus (XP_008927155.1), A. carolinensis (XP_003229016.2), P. bivittatus (XP_007424304.1), X. tropicalis (NP_001116903.2), X. laevis (NP_001088105.2).DOI: http://dx.doi.org/10.7554/eLife.10960.006
	Figure 3. Effect of hβ2 on hNav1.2 toxin pharmacology.(a) Co-expression of hNav1.2 with hβ2 decreases the degree of inhibition by 100 nM ProTx-II. Left trace shows ProTx-II strongly inhibiting WT hNav1.2 whereas right trace displays attenuated inhibition in the presence of hβ2. Black trace is control condition without toxin, red is in the presence of ProTx-II. Traces depict a 50 ms depolarization to -15 mV from -90 mV. Scale bar is 10 ms on horizontal axis and given nA vertically. (b) Normalized conductance-voltage (G-V, filled circles) and steady-state inactivation (I-V, open circles) relationships for hNav1.2 with and without hβ2. Pre-toxin values are shown in black and post-toxin in red. Fit values can be found in Figure 3—source data 1. (c) Dot plot comparing hβ2 mutations by ability to prevent ProTx-II inhibition of hNav1.2. Black circles represent individual oocytes; vertical axis shows percent of inhibition by ProTx-II at peak conductance. Blue lines represent a 95% confidence interval. hβ2 mutations are presented underneath the horizontal axis and label the lanes below in (d). Statistical significance (p<0.01) is indicated by an asterisk. (d) Western blot against the C-terminal myc-tag of hβ2. No signal is seen in the negative control but is observed for the WT hβ2 and all mutants, both in whole cell (filled circle) and surface (open circle) fractions.DOI: http://dx.doi.org/10.7554/eLife.10960.00710.7554/eLife.10960.008Figure 3—source data 1. Table providing values for fits of the data presented in Figure 3 and Figure 3—figure supplement 2.G-V and SSI relationship data were fitted by a Boltzmann curve. V1/2 provides the midpoint voltage of the calculated curve (in mV) and Vc the unit-less slope, with standard error of the mean (SEM). Right column shows peak conductance after toxin treatment as a fraction of untreated peak conductance with the upper and lower bounds of the 95% confidence interval in parentheses, reflecting the data displayed in the dot plots.DOI: http://dx.doi.org/10.7554/eLife.10960.008Figure 3—figure supplement 1. ProTx-II does not bind directly to β4.Isothermal calorimetry (ITC) experiments showing titration of 400 μM WT hβ4 extracellular domain into 40 μM ProTx-II (left) and into buffer (right). No significant heat differences are detected.DOI: http://dx.doi.org/10.7554/eLife.10960.009

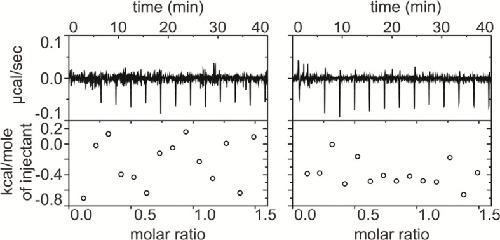

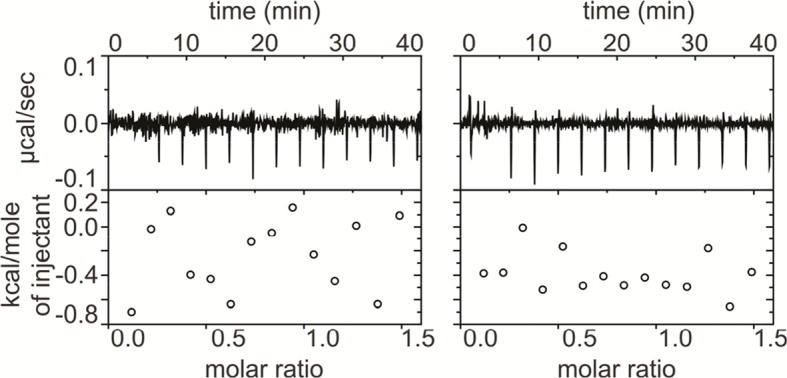

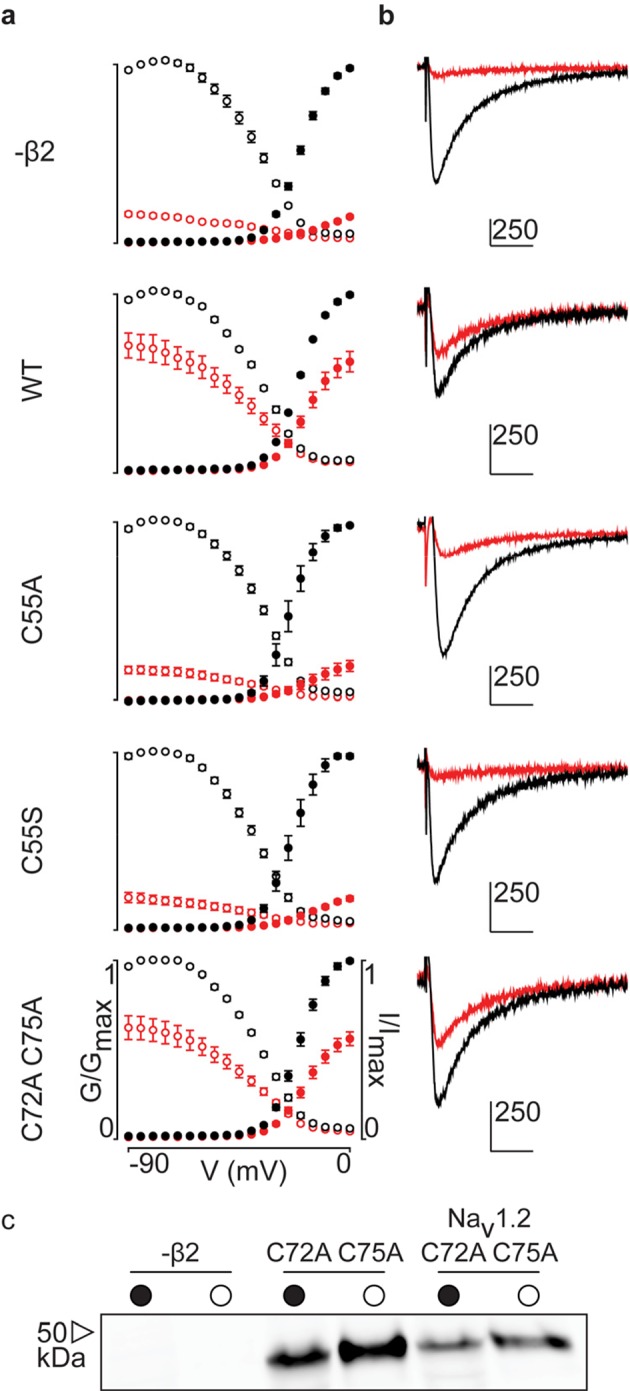

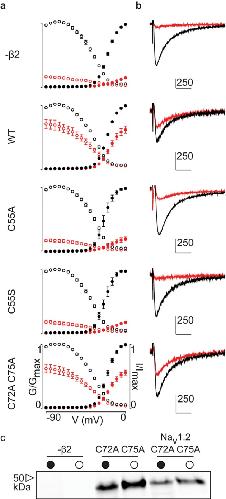

	Figure 3—figure supplement 2. G-V and SSI relationships for hβ2 mutants.(a) Conductance-voltage (G-V, filled circles) and steady-state inactivation (SSI, open circles) relationships before 10nM ProTx-II addition are indicated in black and red in the presence of toxin. (b) Representative traces at -15 mV (holding potential of -90 mV) for the corresponding graphs seen in (a). Scale bar is 10 ms along horizontal axis and displayed nA along the vertical axis. (c) Western blot showing that the C72A C75A hβ2 mutant is expressed in whole cell (filled circle) and surface (open circle) fractions either alone (middle column) or with hNav1.2 (right column). The hβ2 subunit was detected using an antibody against a C-terminal myc-tag.DOI: http://dx.doi.org/10.7554/eLife.10960.010
	Figure 4. hβ2 forms a disulfide bond with 910Cys in hNav1.2.(a) Dot plot showing degree of hNav1.2 mutant inhibition by 100 nM ProTx-II, with and without hβ2. Black circles represent single oocytes expressing the indicated constructs and currents were measured at peak conductance. Blue bars indicate 95% confidence interval, and the red bars are 95% confidence intervals for both populations in the C912S mutant co-expressed with hβ2. Statistical significance with p.01 is shown by an asterisk. (b) Western blot against a myc-tag reveals the presence of hβ2 in whole cell fraction of oocytes co-injected with hβ2 mRNA. (c) Schematic depiction of the proposed disulfide arrangement in hNav1.2 mutants with hβ2. hNav1.2 cysteines are displayed on the top arc with α (pore-forming subunit), while 55Cys of hβ2 is on the bottom arc with β. Black lines represent putative disulfide bonds and dashed lines indicate alternate possibilities. Red X symbolizes a Cys to Ser mutation and an asterisk denotes mutants protected against 100 nM ProTx-II.DOI: http://dx.doi.org/10.7554/eLife.10960.01110.7554/eLife.10960.012Figure 4—source data 1. Table providing values for fits of the data presented in Figure 4 and Figure 4—figure supplement 1.G-V and SSI relationship data were fitted by a Boltzmann curve. V1/2 provides the midpoint voltage of the calculated curve (in mV) and Vc the unit-less slope, with standard error of the mean (SEM). Right column shows peak conductance after toxin treatment as a fraction of untreated peak conductance with the upper and lower bounds of the 95% confidence interval in parentheses, reflecting the data displayed in the dot plots.DOI: http://dx.doi.org/10.7554/eLife.10960.012Figure 4—source data 2. Table providing values for fits of the data presented in Figure 4—figure supplement 2.G-V and SSI relationship data were fitted by a Boltzmann curve. 1/2 provides the midpoint voltage of the calculated curve (in mV) and Vc the unit-less slope, with standard error of the mean (SEM). Right column shows peak conductance after toxin treatment as a fraction of untreated peak conductance with the upper and lower bounds of the 95% confidence interval in parentheses, reflecting the data displayed in the dot plots.DOI: http://dx.doi.org/10.7554/eLife.10960.013Figure 4—figure supplement 1. G-V and SSI relationships for hNav1.2 mutants.a) G-V (filled circles) and SSI (open circles) curves are plotted for each of the hNav1.2 Cys to Ser mutants with and without hβ2. Black indicates values before the addition of 100 nM ProTx-II,red shows values after toxin treatment. In the presence of hβ2, the WT hNav1.2, the C918S mutant, and the C912S C918S all show a diminished susceptibility to ProTx-II whereas the C912S mutant shows a mixed phenotype. b) Sample traces illustrating the effect of 100 nM ProTx-II on hNav1.2 with and without hβ2 after depolarization to -15 mV from -90 mV. Degree of inhibition reflects the G-V and SSI data shown in a). Horizontal arm of scale bar is 10 ms and the vertical arm is in nA.DOI: http://dx.doi.org/10.7554/eLife.10960.014

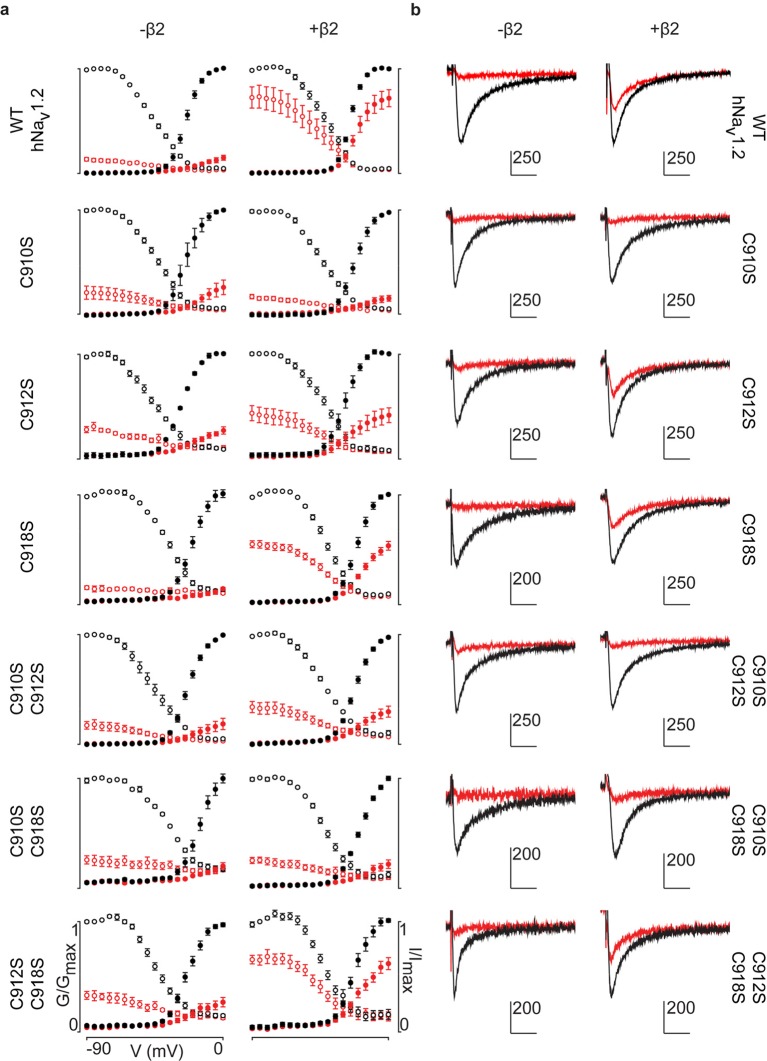

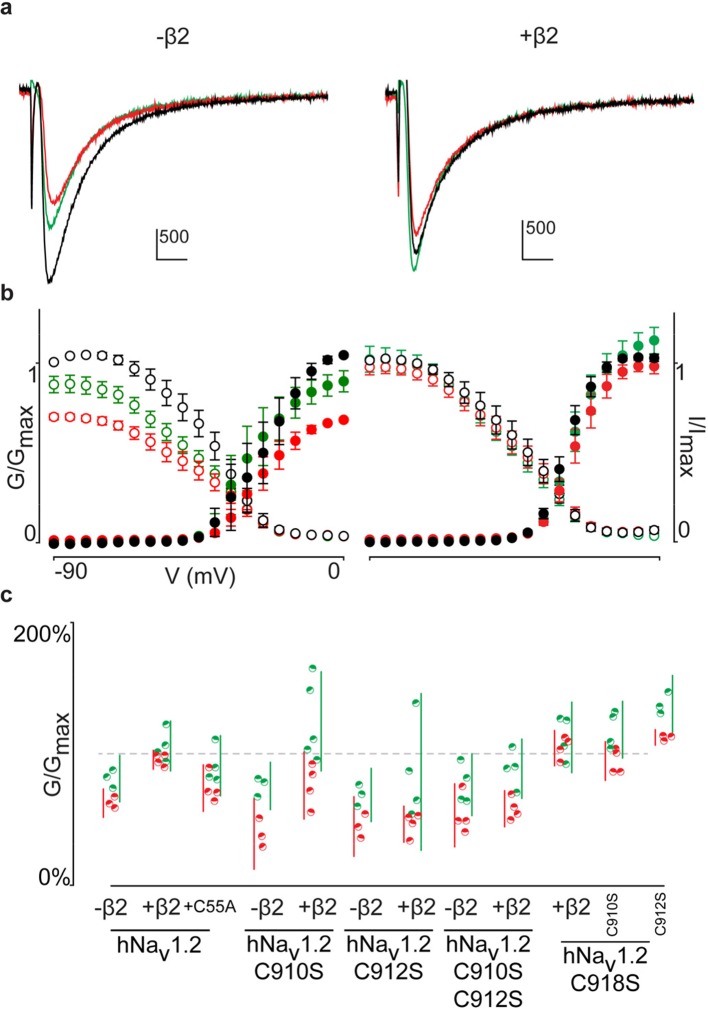

	Figure 4—figure supplement 2. Activity of the μO§-conotoxin GVIIJ is affected by hβ2.(a) Representative traces of 5 μM GVIIJ affecting hNav1.2-mediated currents with and without hβ2 in Xenopus oocytes. Control traces are shown in black, red after treatment with 5 μM GVIIJ, and green after a 5-min washout with recording solution. Horizontal bar is 10 ms and vertical bar measures current in nA. The data illustrate that 5 M GVIIJ can partially block hNav1.2 only when hβ2 is not present. (b) G-V (filled circles) and SSI (open circles) relationships detailing the effect of 5 M GVIIJ on hNav1.2 with and without hβ2 across a wide voltage range. Color coding is the same as in (a). (c) Dot plot showing the effect of GVIIJ on hNav1.2 Cys to Ser mutants. Red circles indicate fraction of peak control conductance after addition of 5 μM GVIIJ while green circles represent the same after a 5-min washout. Vertical bars show 95% confidence intervals for color-matched circles. The data clearly illustrate a reduced sensitivity to GVIIJ in the presence of hβ2; however, the results are variable as discussed in the text and led us to pursue ensuing experiments with ProTx-II.DOI: http://dx.doi.org/10.7554/eLife.10960.015

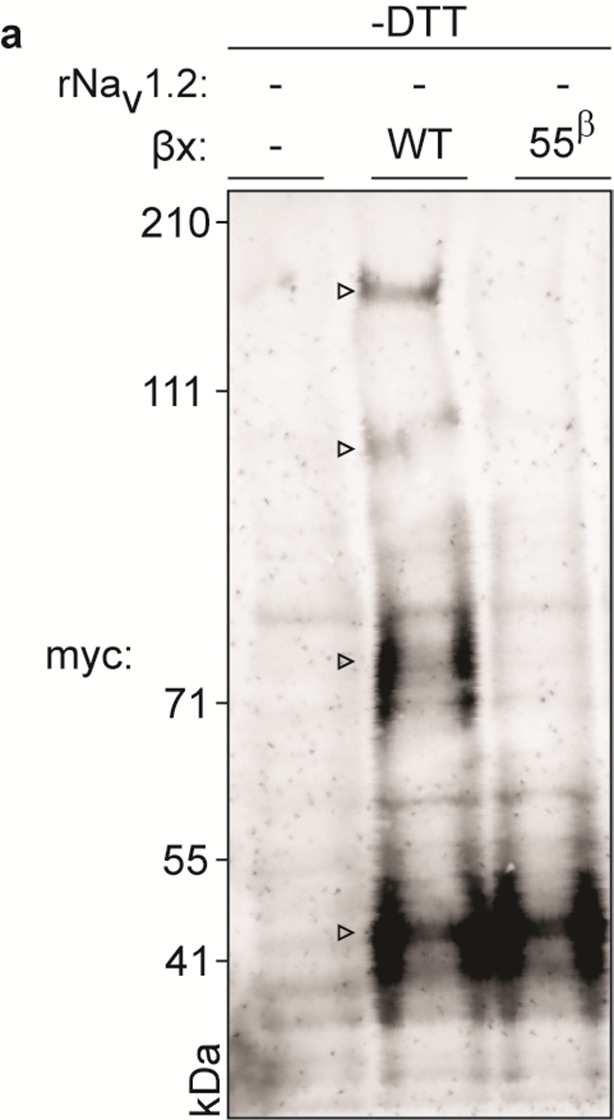

	Figure 5. Biochemical verification of the β2 and β4 disulfide bond with 910Cys in Nav1.2.Top rows indicate particular Nav channel and β-subunit constructs with which oocytes were injected. WT proteins are indicated as such whereas mutants are noted with a residue number; a superscript letter symbolizes in which partner of the complex pair the mutation is found. rβ2 was loaded in each case except in the two rightmost lanes, where rβ4 was used. Labels on left column indicate which antibody was used to immunoblot the associated slice. (a) Western blot run under non-reducing conditions reveals a fraction of rβ2 migrating with WT rNav1.2a but not after selective cysteine substitution. Crude lysate from injected oocytes was run on a protein gel and probed for both the channel and the myc-tag of the β-subunit. The top PanNav slice and bottom myc slice show the expression of the respective proteins in lysates from oocytes injected with the indicated constructs. Even though equal quantities of protein was loaded in each lane (10 μg), the C910S channel mutant expresses less bountifully than the WT channel and as a result shows a weaker signal. The WT β-subunit can form redox-sensitive multimers that migrate at an apparent mass similar to that of the Nav channel. Mutation of 55Cys prevents multimer formation and disappearance of the high molecular weight band. Open arrows identify bands representing Nav channel-bound β-subunit and aid in distinguishing them from the multimeric β-subunit. Substituting 910Cys within rNav1.2a with Ser causes a loss of the channel-bound β-subunit band. rβ4 also binds to WT rNav1.2a, as evidenced by a second band, and no longer interacts with the C910S mutant. (b) Addition of DTT prevents both binding of rβ2 to the channel and formation of β-subunit multimers. The absence of myc signal at the same apparent weight as rNav1.2a indicates that binding to the channel is sensitive to reduction. In all cases, α-tubulin was used as a loading control. (c) WT rNav1.2a co-immunoprecipitates with rβ2 and rβ4. The β-subunit was pulled down with an antibody directed against a C-terminal myc-tag and treated with DTT before loading onto the gel. The channel is present only when the WT channel is co-expressed with the WT β-subunit.DOI: http://dx.doi.org/10.7554/eLife.10960.016Figure 5—figure supplement 1. Biochemical assessment of rβ2 oligomer formation.Figure represents extended data found in Figure 5. WT myc-tagged rβ2 can form higher-order oligomers under non-reducing conditions (indicated with an open arrow in the middle lane). These oligomers disappear upon removal of 55Cys (right lane), further highlighting the reactivity of this residue. Left lane represents lysate from an uninjected oocyte.DOI: http://dx.doi.org/10.7554/eLife.10960.017

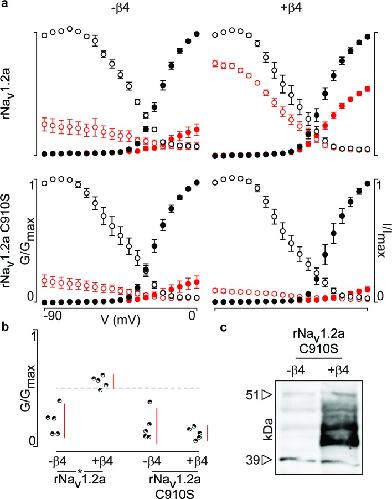

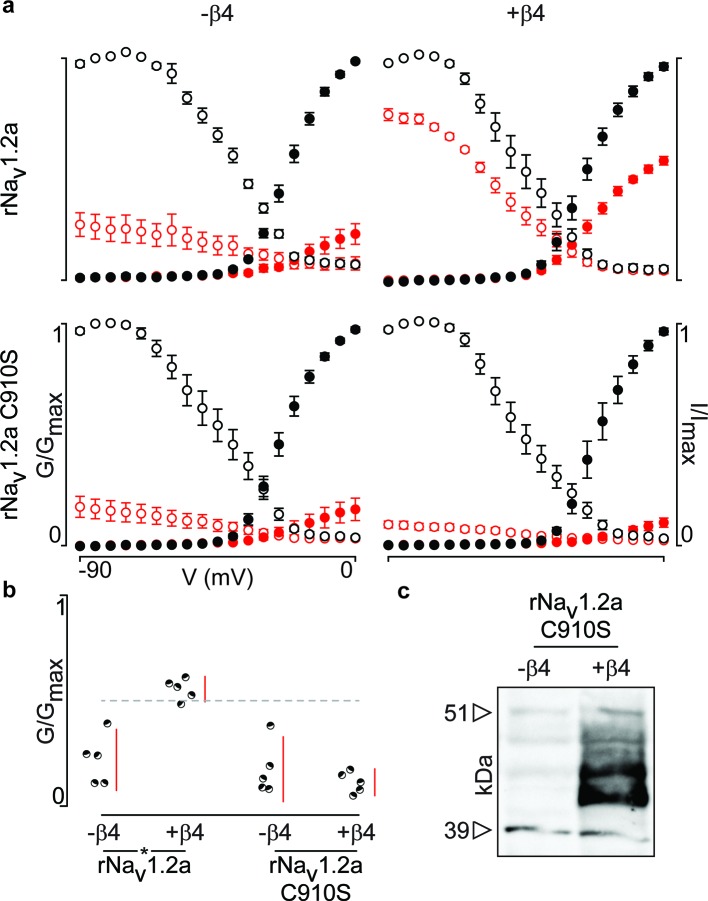

	Figure 6. Mutation of 910Cys in rNav1.2a disrupts rβ4 influence on ProTx-II effect.(a) Replacement of 910Cys with Ser in rNav1.2a impairs the ability of rβ4 to protect against 100 nM ProTx-II inhibition in a manner similar to that of hβ2. Co-expression of the rNav1.2a isoform with rβ4 minimizes ProTx-II inhibition compared to the channel expressed alone. Graphs compare G-V and SSI relationships, in filled and open circles, respectively. Black color is used for values before the addition of 100 nM ProTx-II and red after. (b) Dot plot comparing the degree of inhibition by 100 nM ProTx-II as a fraction of the pre-toxin peak current. rβ4 confers a high level of a protection against ProTx-II inhibition which is absent in the C910S mutant. (c) Western blot directed against the C-terminal myc-tag of rβ4 demonstrating its presence in the oocytes measured.DOI: http://dx.doi.org/10.7554/eLife.10960.01810.7554/eLife.10960.019Figure 6—source data 1. Table providing values for fits of the data presented in Figure 6.G-V and SSI relationship data were fitted by a Boltzmann curve. V1/2 provides the midpoint voltage of the calculated curve (in mV) and Vc the unit-less slope, with standard error of the mean (SEM). Right column shows peak conductance after toxin treatment as a fraction of untreated peak conductance with the upper and lower bounds of the 95% confidence interval in parentheses, reflecting the data displayed in the dot plots.DOI: http://dx.doi.org/10.7554/eLife.10960.019

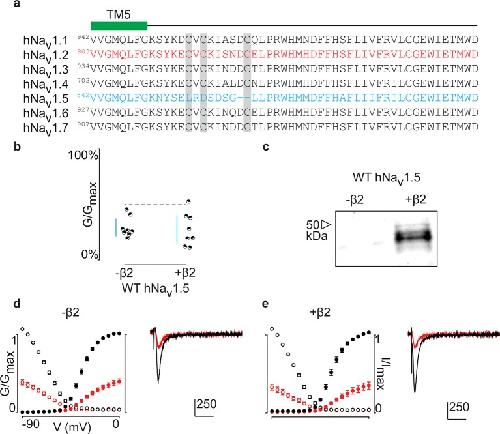

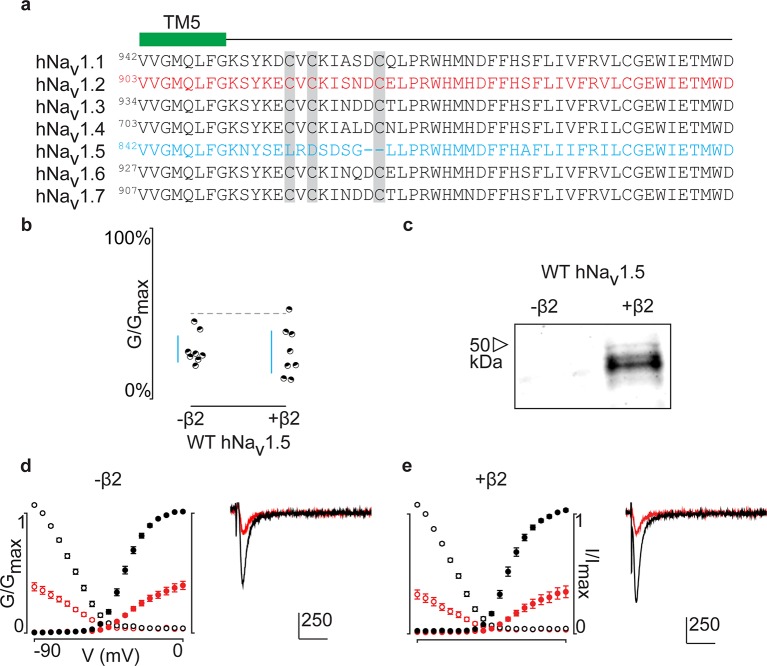

	Figure 7. ProTx-II inhibits hNav1.5 in the presence of hβ2.(a) Sequence alignment comparing TTX-sensitive hNav channels in the beginning of the S5-S6 (SS1) loop. Green bar indicates the C-terminal portion of the DII transmembrane segment 5 (TM5), and gray background highlights the conserved cysteine triad. The hNav1.2 amino acid sequence is shown in red and hNav1.5 in blue. Residue number of the N-terminal Val for each channel is superscripted. (b) Dot plot showing that hNav1.5 is not protected against inhibition by 100 nM ProTx-II upon co-expressing hβ2. Black circles are individual oocytes of which sodium currents were measured at peak conductance and blue bars show 95% confidence interval. (c) Western blot probing for the C-terminal myc-tag of hβ2 reveals its presence in whole cell oocyte fractions. hNav1.5 sees no change in 100 nM ProTx-II effect in the presence of hβ2. (d, e) G-V (filled circles) and SSI (open circles) relationships for hNav1.5 with and without hβ2. Black is used for values before ProTx-II addition and red after toxin application. Also shown are representative traces illustrating the lack of effect of hβ2 on hNav1.5 susceptibility to 100 ProTx-II. Horizontal bar indicates 10 ms; vertical bar represents current in nA, with the provided magnitude.DOI: http://dx.doi.org/10.7554/eLife.10960.02010.7554/eLife.10960.021Figure 7—source data 1. Table providing values for fits of the data presented in Figure 7.G-V and SSI relationship data were fitted by a Boltzmann curve. V1/2 provides the midpoint voltage of the calculated curve (in mV) and Vc the unit-less slope, with standard error of the mean (SEM). Right column shows peak conductance after toxin treatment as a fraction of untreated peak conductance with the upper and lower bounds of the 95% confidence interval in parentheses, reflecting the data displayed in the dot plots.DOI: http://dx.doi.org/10.7554/eLife.10960.021

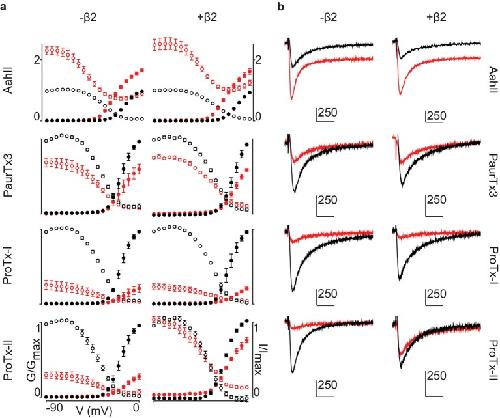

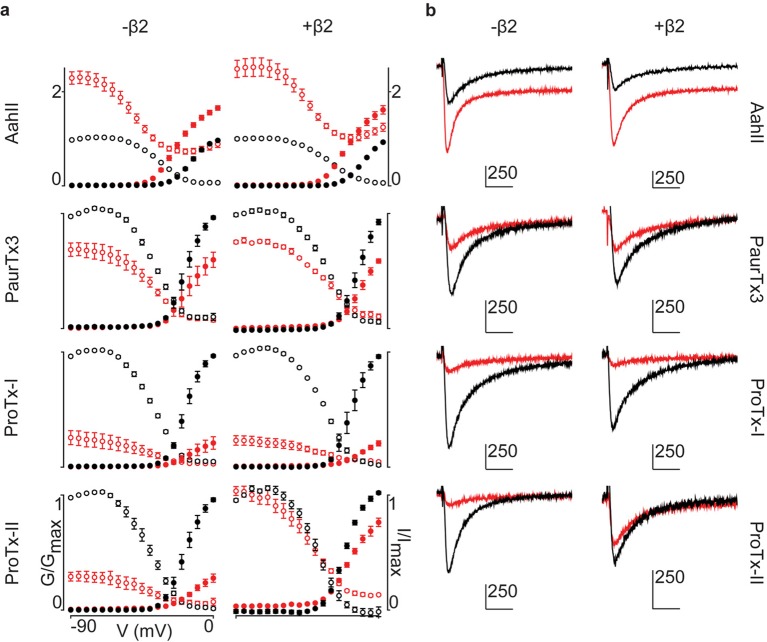

	Figure 8. hβ2 influences hNav1.2 VSDI toxin pharmacology.(a) Cartoon illustrating the binding site of AaHII, PaurTx3, ProTx-I, and ProTx-II within the VSDs of Nav1.2. Binding to a particular VSD is indicated by coloration. (b) Dot plot showing percent of change in peak conductance for hNav1.2 after treatment by each toxin without or in the presence of hβ2. Blue bars represent 95% confidence interval and statistical significance (p<0.01) is noted by an asterisk. c) Western blot probing for the C-terminal myc-tag of hβ2, showing its presence in each experimental condition except the negative control. (d) Shown is a Nav channel illustration consisting of the four VSDs I-IV (S1-S4) and the corresponding pore-forming regions (S5-S6) in grey (DI, III, and IV) or orange (DII) in a clockwise orientation which fits with the data reported here. Such an orientation places a S1-S4 voltage sensor of one domain adjacent to the S5-S6 region of the next. A/B (shades of blue) depicts a putative location of hβ2 in the complex where the subunit can interact with the S5-S6 pore region of DII as well as occlude the ProTx-II binding site on VSDI. In contrast, hβ1 (green) may position itself between VSDIV and VSDIII where it can interact with the S5-S6 region of DI and influence VSDIV movement to alter channel fast inactivation.DOI: http://dx.doi.org/10.7554/eLife.10960.02210.7554/eLife.10960.023Figure 8—source data 1. Table providing values for fits of the data presented in Figure 8 and Figure 8—figure supplement 1.G-V and SSI relationship data were fitted by a Boltzmann curve. V1/2 provides the midpoint voltage of the calculated curve (in mV) and Vc the unit-less slope, with standard error of the mean (SEM). Right column shows peak conductance after toxin treatment as a fraction of untreated peak conductance with the upper and lower bounds of the 95% confidence interval in parentheses, reflecting the data displayed in the dot plots.DOI: http://dx.doi.org/10.7554/eLife.10960.023Figure 8—figure supplement 1. Activity of spider and scorpion toxins on hNav1.2.G-V and SSI relationships for hNav1.2, with or without hβ2, treated with toxins (100 nM) with known binding sites. (a) G-V and SSI curves are provided for each of the four toxins tested. Black indicates control values and red illustrates toxin effect. Filled circles are used for G-V curves and open circles for SSI. (b) Representative traces after depolarization to -15 mV from -90 mV for each toxin tested on hNav1.2 with black indicating pre-toxin currents and red showing currents after toxin application. Horizontal scale bar indicates 10 ms whereas vertical bar shows current magnitude in nA, with scale given by the attached number.DOI: http://dx.doi.org/10.7554/eLife.10960.024

Adams, PHENIX: a comprehensive Python-based system for macromolecular structure solution. 2010, Pubmed

Adams, PHENIX: a comprehensive Python-based system for macromolecular structure solution. 2010, Pubmed
Baum, Case-control association study of polymorphisms in the voltage-gated sodium channel genes SCN1A, SCN2A, SCN3A, SCN1B, and SCN2B and epilepsy. 2014, Pubmed
Bosmans, Deconstructing voltage sensor function and pharmacology in sodium channels. 2008, Pubmed , Xenbase
Brackenbury, An emerging role for voltage-gated Na+ channels in cellular migration: regulation of central nervous system development and potentiation of invasive cancers. 2008, Pubmed
Brünger, Crystallography & NMR system: A new software suite for macromolecular structure determination. 1998, Pubmed
Calhoun, The role of non-pore-forming β subunits in physiology and pathophysiology of voltage-gated sodium channels. 2014, Pubmed
Capes, Domain IV voltage-sensor movement is both sufficient and rate limiting for fast inactivation in sodium channels. 2013, Pubmed , Xenbase
Catterall, Voltage-gated sodium channels at 60: structure, function and pathophysiology. 2012, Pubmed
Chanda, Tracking voltage-dependent conformational changes in skeletal muscle sodium channel during activation. 2002, Pubmed , Xenbase
Chen, Identification of the cysteine residue responsible for disulfide linkage of Na+ channel α and β2 subunits. 2012, Pubmed
Chen, Modulation of Na+ channel inactivation by the beta 1 subunit: a deletion analysis. 1995, Pubmed , Xenbase
Claes, The SCN1A variant database: a novel research and diagnostic tool. 2009, Pubmed
Copits, Dancing partners at the synapse: auxiliary subunits that shape kainate receptor function. 2012, Pubmed
Deschênes, Post-transcriptional gene silencing of KChIP2 and Navbeta1 in neonatal rat cardiac myocytes reveals a functional association between Na and Ito currents. 2008, Pubmed
Dhar Malhotra, Characterization of sodium channel alpha- and beta-subunits in rat and mouse cardiac myocytes. 2001, Pubmed
Doeser, The effects of eslicarbazepine on persistent Na⁺ current and the role of the Na⁺ channel β subunits. 2014, Pubmed
Dolphin, Calcium channel auxiliary α2δ and β subunits: trafficking and one step beyond. 2012, Pubmed
Emsley, Features and development of Coot. 2010, Pubmed
Gajewiak, A disulfide tether stabilizes the block of sodium channels by the conotoxin μO§-GVIIJ. 2014, Pubmed
Gee, The novel anticonvulsant drug, gabapentin (Neurontin), binds to the alpha2delta subunit of a calcium channel. 1996, Pubmed
Gersbacher, Identification of BACE1 cleavage sites in human voltage-gated sodium channel beta 2 subunit. 2010, Pubmed
Gilchrist, Crystallographic insights into sodium-channel modulation by the β4 subunit. 2013, Pubmed , Xenbase
Gilchrist, Animal toxins influence voltage-gated sodium channel function. 2014, Pubmed
Horn, Immobilizing the moving parts of voltage-gated ion channels. 2000, Pubmed
Isom, Primary structure and functional expression of the beta 1 subunit of the rat brain sodium channel. 1992, Pubmed , Xenbase
Isom, Functional co-expression of the beta 1 and type IIA alpha subunits of sodium channels in a mammalian cell line. 1995, Pubmed , Xenbase
Isom, Structure and function of the beta 2 subunit of brain sodium channels, a transmembrane glycoprotein with a CAM motif. 1995, Pubmed , Xenbase
Jiang, X-ray structure of a voltage-dependent K+ channel. 2003, Pubmed
Johnson, Isoform-specific effects of the beta2 subunit on voltage-gated sodium channel gating. 2006, Pubmed
Kabsch, XDS. 2010, Pubmed
Kim, Presenilin/gamma-secretase-mediated cleavage of the voltage-gated sodium channel beta2-subunit regulates cell adhesion and migration. 2005, Pubmed
Langer, Automated macromolecular model building for X-ray crystallography using ARP/wARP version 7. 2008, Pubmed
Li, Mutations of the SCN4B-encoded sodium channel β4 subunit in familial atrial fibrillation. 2013, Pubmed
Long, Atomic structure of a voltage-dependent K+ channel in a lipid membrane-like environment. 2007, Pubmed
Lopez-Santiago, Sodium channel beta2 subunits regulate tetrodotoxin-sensitive sodium channels in small dorsal root ganglion neurons and modulate the response to pain. 2006, Pubmed
Maier, Distinct subcellular localization of different sodium channel alpha and beta subunits in single ventricular myocytes from mouse heart. 2004, Pubmed
Makita, Molecular determinants of beta 1 subunit-induced gating modulation in voltage-dependent Na+ channels. 1996, Pubmed , Xenbase
Marionneau, The sodium channel accessory subunit Navβ1 regulates neuronal excitability through modulation of repolarizing voltage-gated K⁺ channels. 2012, Pubmed
Martin, Use of high performance liquid chromatography to demonstrate quantitative variation in components of venom from the scorpion Androctonus australis Hector. 1987, Pubmed
McCormick, Molecular determinants of Na+ channel function in the extracellular domain of the beta1 subunit. 1998, Pubmed , Xenbase
McCoy, Phaser crystallographic software. 2007, Pubmed
Medeiros-Domingo, SCN4B-encoded sodium channel beta4 subunit in congenital long-QT syndrome. 2007, Pubmed
Middleton, Two tarantula peptides inhibit activation of multiple sodium channels. 2002, Pubmed
Milstein, Regulation of AMPA receptor gating and pharmacology by TARP auxiliary subunits. 2008, Pubmed
Minor, HKL-3000: the integration of data reduction and structure solution--from diffraction images to an initial model in minutes. 2006, Pubmed
Morgan, beta 3: an additional auxiliary subunit of the voltage-sensitive sodium channel that modulates channel gating with distinct kinetics. 2000, Pubmed , Xenbase
Namadurai, A new look at sodium channel β subunits. 2015, Pubmed
Namadurai, Crystal structure and molecular imaging of the Nav channel β3 subunit indicates a trimeric assembly. 2014, Pubmed
Nguyen, Modulation of voltage-gated K+ channels by the sodium channel β1 subunit. 2012, Pubmed , Xenbase
O'Malley, Loss of Na+ channel beta2 subunits is neuroprotective in a mouse model of multiple sclerosis. 2009, Pubmed
Patino, Voltage-gated Na+ channel β1B: a secreted cell adhesion molecule involved in human epilepsy. 2011, Pubmed
Payandeh, Crystal structure of a voltage-gated sodium channel in two potentially inactivated states. 2012, Pubmed
Payandeh, The crystal structure of a voltage-gated sodium channel. 2011, Pubmed
Qu, Functional roles of the extracellular segments of the sodium channel alpha subunit in voltage-dependent gating and modulation by beta1 subunits. 1999, Pubmed , Xenbase
Shaya, Structure of a prokaryotic sodium channel pore reveals essential gating elements and an outer ion binding site common to eukaryotic channels. 2014, Pubmed
Sheets, The Na channel voltage sensor associated with inactivation is localized to the external charged residues of domain IV, S4. 1999, Pubmed
Tan, Sudden infant death syndrome-associated mutations in the sodium channel beta subunits. 2010, Pubmed
Van Petegem, Structure of a complex between a voltage-gated calcium channel beta-subunit and an alpha-subunit domain. 2004, Pubmed
Watanabe, Mutations in sodium channel β1- and β2-subunits associated with atrial fibrillation. 2009, Pubmed
Wilson, Α- and β-subunit composition of voltage-gated sodium channels investigated with μ-conotoxins and the recently discovered μO§-conotoxin GVIIJ. 2015, Pubmed , Xenbase
Wilson, Navβ subunits modulate the inhibition of Nav1.8 by the analgesic gating modifier μO-conotoxin MrVIB. 2011, Pubmed , Xenbase
Yu, Sodium channel beta4, a new disulfide-linked auxiliary subunit with similarity to beta2. 2003, Pubmed
Yu, Molecular mechanism of the assembly of an acid-sensing receptor ion channel complex. 2012, Pubmed , Xenbase
Zhang, Probing the Redox States of Sodium Channel Cysteines at the Binding Site of μO§-Conotoxin GVIIJ. 2015, Pubmed , Xenbase
Zhang, Co-expression of Na(V)β subunits alters the kinetics of inhibition of voltage-gated sodium channels by pore-blocking μ-conotoxins. 2013, Pubmed , Xenbase
Zhang, Crystal structure of an orthologue of the NaChBac voltage-gated sodium channel. 2012, Pubmed
Zimmer, The human heart and rat brain IIA Na+ channels interact with different molecular regions of the beta1 subunit. 2002, Pubmed , Xenbase
Zimmer, The beta1 subunit but not the beta2 subunit colocalizes with the human heart Na+ channel (hH1) already within the endoplasmic reticulum. 2002, Pubmed
Zimmer, The intracellular domain of the beta 2 subunit modulates the gating of cardiac Na v 1.5 channels. 2007, Pubmed , Xenbase
