Biomech Model Mechanobiol
2016 Dec 01;156:1733-1746. doi: 10.1007/s10237-016-0794-1.
Show Gene links
Show Anatomy links
Mechanical roles of apical constriction, cell elongation, and cell migration during neural tube formation in Xenopus.
Inoue Y
,
Suzuki M
,
Watanabe T
,
Yasue N
,
Tateo I
,
Adachi T
,
Ueno N
.
???displayArticle.abstract??? Neural tube closure is an important and necessary process during the development of the central nervous system. The formation of the neural tube structure from a flat sheet of neural epithelium requires several cell morphogenetic events and tissue dynamics to account for the mechanics of tissue deformation. Cell elongation changes cuboidal cells into columnar cells, and apical constriction then causes them to adopt apically narrow, wedge-like shapes. In addition, the neural plate in Xenopus is stratified, and the non-neural cells in the deep layer (deep cells) pull the overlying superficial cells, eventually bringing the two layers of cells to the midline. Thus, neural tube closure appears to be a complex event in which these three physical events are considered to play key mechanical roles. To test whether these three physical events are mechanically sufficient to drive neural tube formation, we employed a three-dimensional vertex model and used it to simulate the process of neural tube closure. The results suggest that apical constriction cued the bending of the neural plate by pursing the circumference of the apical surface of the neural cells. Neural cell elongation in concert with apical constriction further narrowed the apical surface of the cells and drove the rapid folding of the neural plate, but was insufficient for complete neural tube closure. Migration of the deep cells provided the additional tissue deformation necessary for closure. To validate the model, apical constriction and cell elongation were inhibited in Xenopus laevis embryos. The resulting cell and tissue shapes resembled the corresponding simulation results.

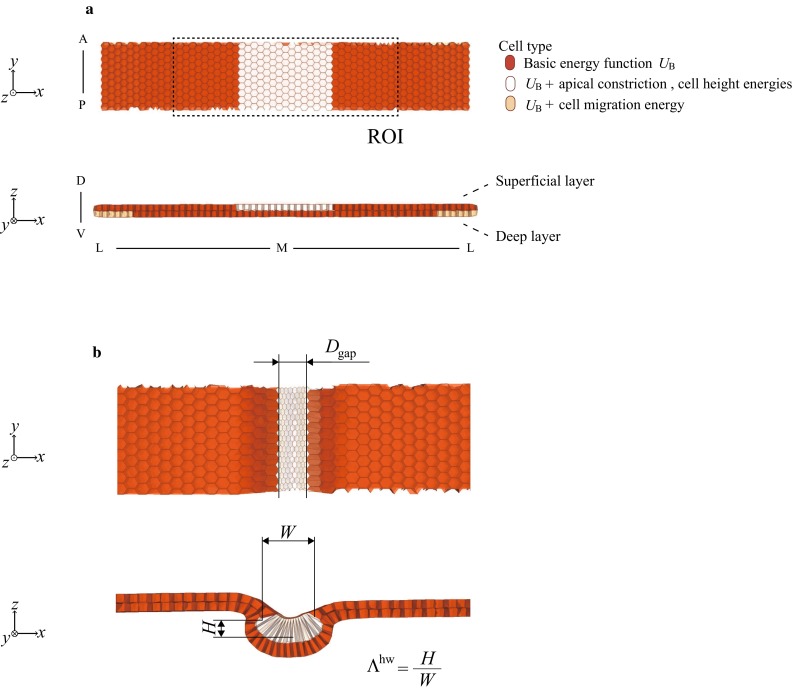

Fig. 1.
a Initial shape of the double-layered ectoderm for simulations. The neural and non-neural cells are hexagonally packed in superficial and deep layers, with the superficial neural cells displayed in white. The basic energy function Λhw=H/W

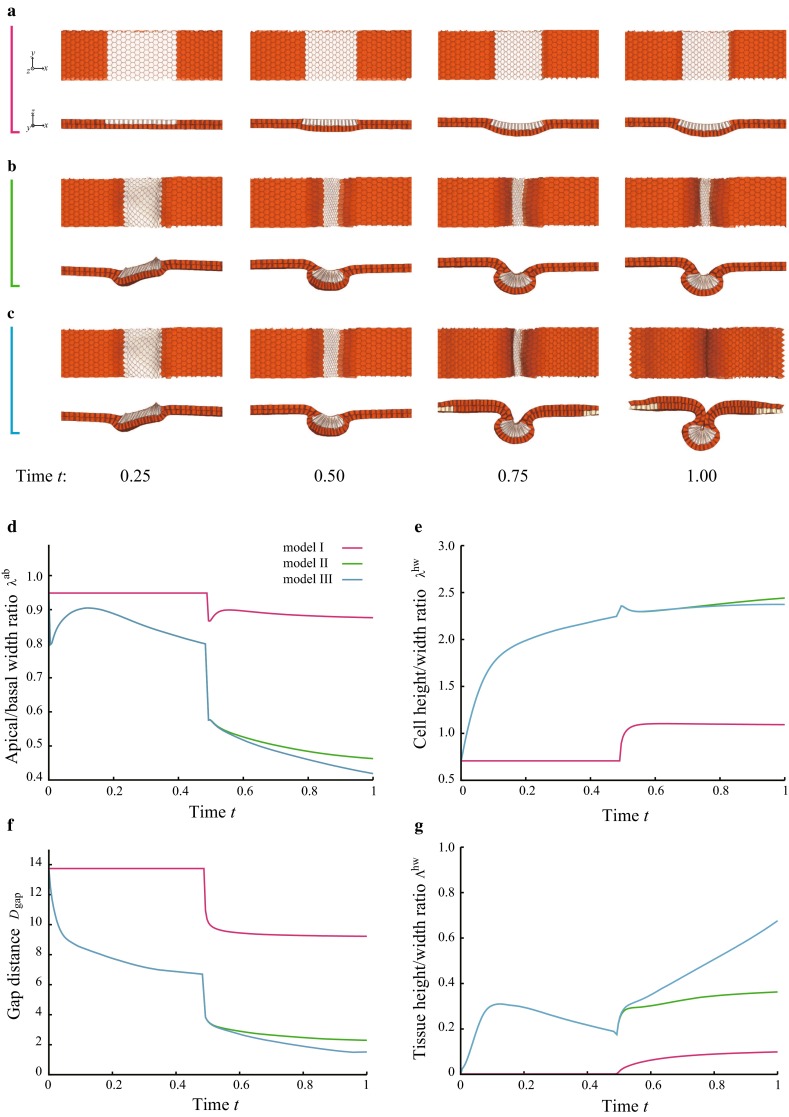

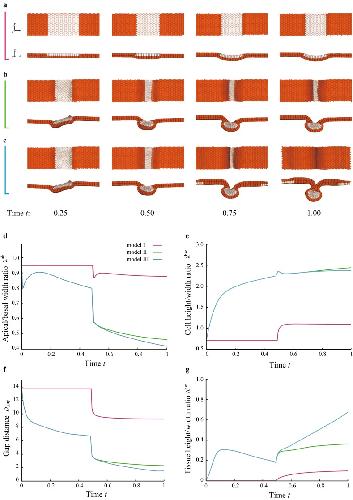

Fig. 2. Different combinations of the physical events during neural tube closure examined using a model I, b model II, and c model III are shown as snapshots over time. The migrating cells are outside of the visualized area except Λhw, as a function of time t

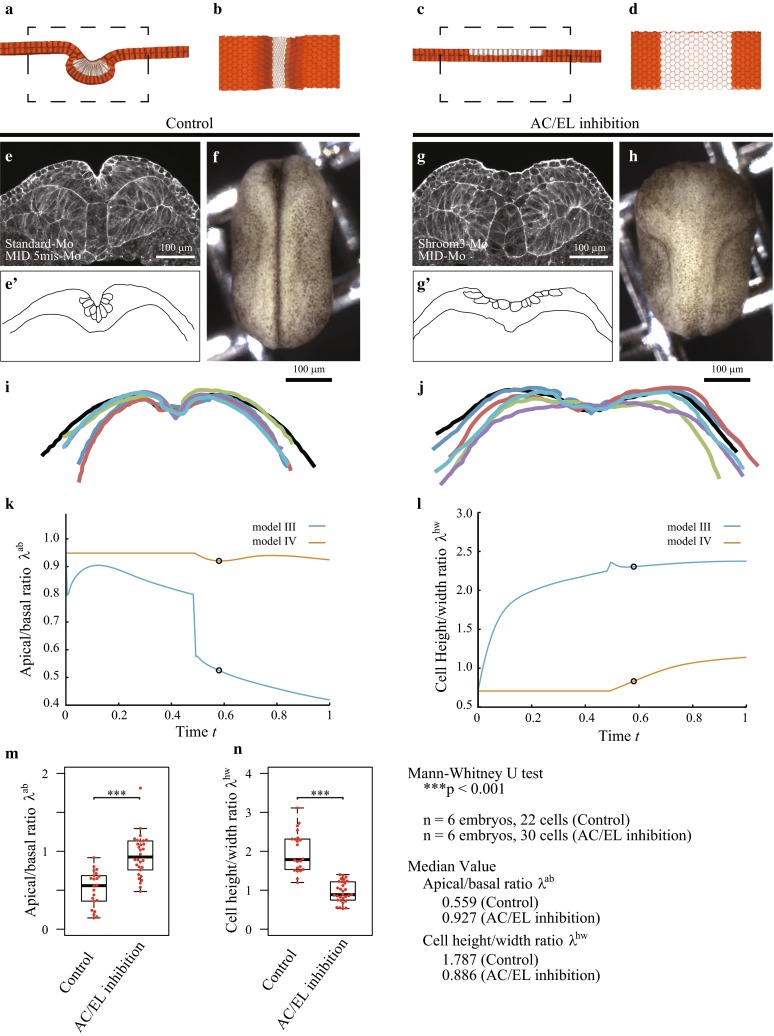

Fig. 3. Shapes of control, and MID1/2 and Shroom3 inhibited (AC/EL inhibition) embryos observed in silico and in vivo. Mediolateral cross-sectional views of the neural tissue shape at time t=0.58, which are compared with the experimental values. m, n The experimental values of those ratios at stage 16

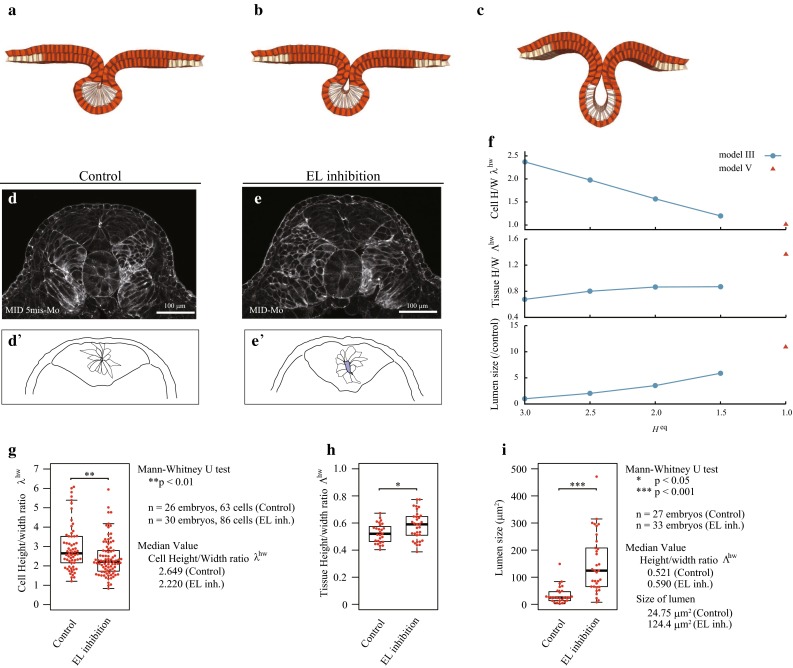

Fig. 4. Shapes of control, and MID1/2 inhibited (EL inhibition) embryos observed in silico and in vivo. The neural tube closure in the simulations using a model III with Λhw, and i the lumen size in experiments

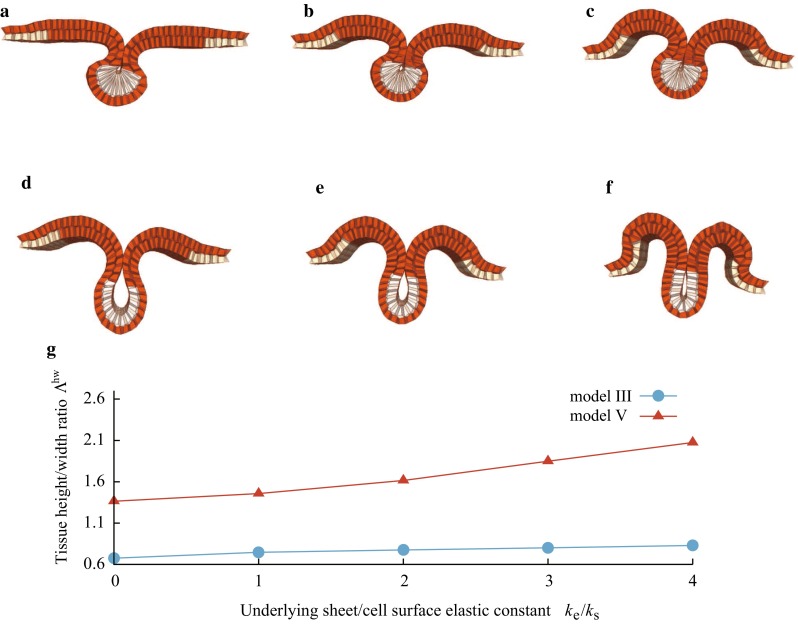

Fig. 5. Effect of the elastic sheet underneath the deep layer on neural tube shapes were examined with and without cell elongation. Simulation results using model III (control) for a
ke/ks

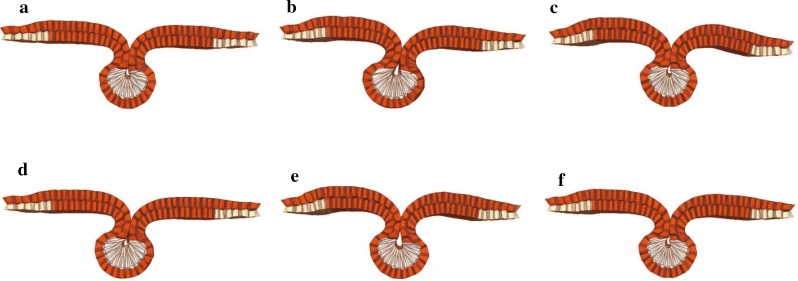

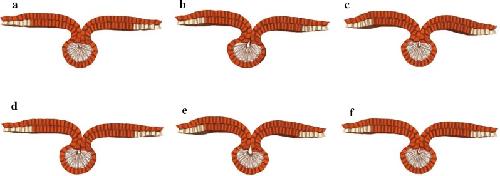

Fig. 6. Effect of permutation of onset time of the apical constriction (AC), cell elongation (EL), and cell migration (CM) on the neural tube shape. The order of three events is a AC t= 0.00, 0.25, and 0.49, respectively
