???displayArticle.abstract???
CRISPR/Cas9 genome editing is revolutionizing genetic loss-of-function analysis but technical limitations remain that slow progress when creating mutant lines. First, in conventional genetic breeding schemes, mosaic founder animals carrying mutant alleles are outcrossed to produce F1 heterozygotes. Phenotypic analysis occurs in the F2 generation following F1 intercrosses. Thus, mutant analyses will require multi-generational studies. Second, when targeting essential genes, efficient mutagenesis of founders is often lethal, preventing the acquisition of mature animals. Reducing mutagenesis levels may improve founder survival, but results in lower, more variable rates of germline transmission. Therefore, an efficient approach to study lethal mutations would be useful. To overcome these shortfalls, we introduce 'leapfrogging', a method combining efficient CRISPR mutagenesis with transplantation of mutated primordial germ cells into a wild-type host. Tested using Xenopus tropicalis, we show that founders containing transplants transmit mutant alleles with high efficiency. F1 offspring from intercrosses between F0 animals that carry embryonic lethal alleles recapitulate loss-of-function phenotypes, circumventing an entire generation of breeding. We anticipate that leapfrogging will be transferable to other species.

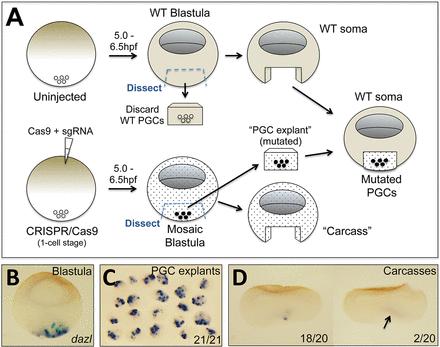

Fig. 1. Transplantation of PGCs. (A) Scheme for transplanting PGCs from CRISPR/Cas9-mutagenized blastula stage embryos (bottom) into a wild-type soma (top) that has had its PGCs removed. (B) Wild-type blastula showing vegetal localization of PGCs as detected by dazl in situ hybridization. (C) PGC explants show many foci of dazl expression. (D) Carcasses from blastula embryos show vastly reduced dazl expression foci, suggesting effective removal of PGCs.

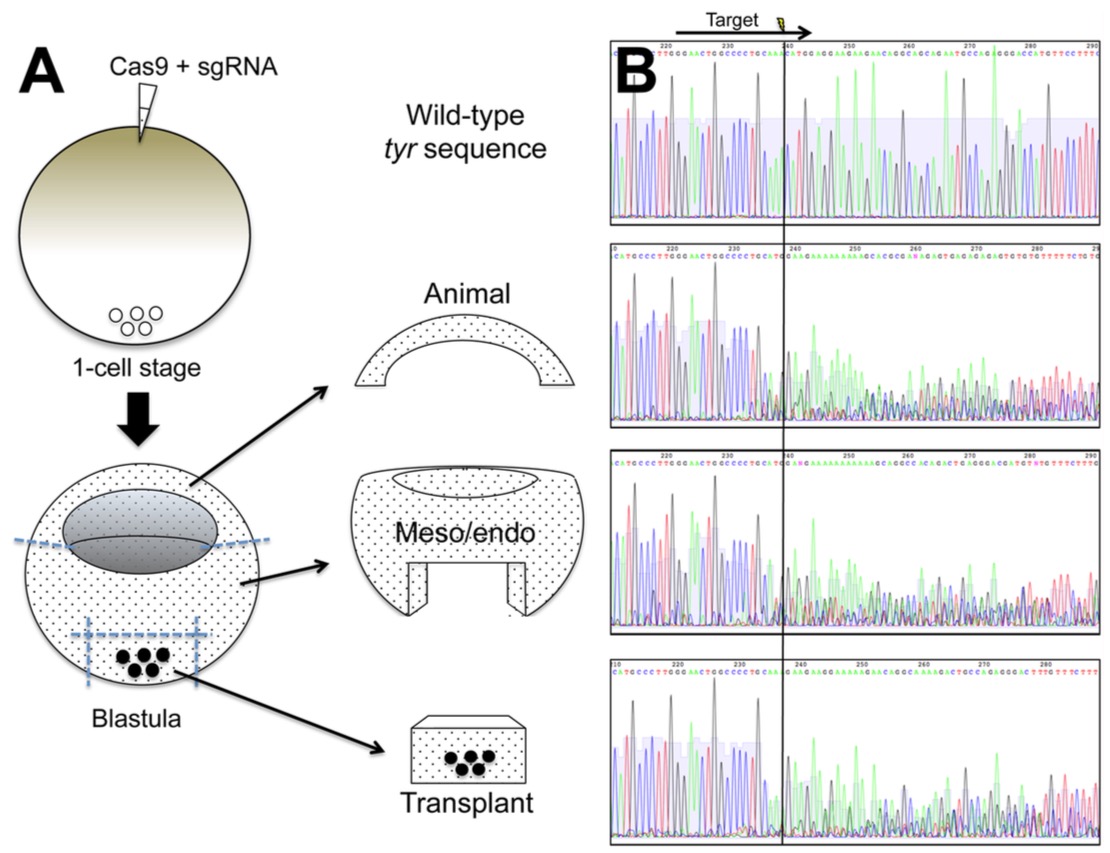

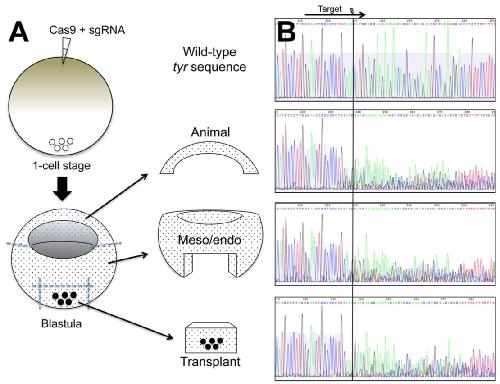

Fig. S1. Assessment of mutagenesis on vegetal PGC-containing explants relative to the rest of the embryo.
(A) Dissection scheme. Embryos were injected animally at the 1-cell stage with tyr sgRNA-complexed Cas9 protein. At blastula stage 9 they were dissected into animal cap and vegetal PGC transplant regions, and the embryo remainder composed of vegetal and marginal zone tissues (mesoderm and endoderm; Meso/endo). Individual embryo fragments were lysed and the tyr target region was PCR amplified. The amplicon population was subjected to direct sequencing (DSP; Nakayama et al., 2014). (B) DSP assay results are shown for each region from a single embryo. The position of the predicted Cas9 cleavage site is shown as a vertical line. One can see that, in comparison to the sequence profile of an uninjected embryo at top, all three regions from one injected embryo show similar profiles of “mixed†peaks beginning just upstream of the cleavage site and extending downstream to it. These results suggest that the PGC explant has been successfully mutagenized and that the remainder of the embryo (carcass) can be used as a proxy for the PGCs to determine which embryos carrying leapfrog transplants likely have successfully CRISPR/Cas9 mutated PGCs.
Fig 2. Test crosses between animals carrying tyr-mutated leapfrog transplants and albinos demonstrate germline transmission of mutant alleles. (A) Leapfrog transplant-bearing male (pigmented) is shown amplexed with an albino tyr−/− female. (B) Leapfrog transplant-bearing female (pigmented) is shown amplexed with an albino tyr−/− male. (C) Examples of F1 progeny from the cross in A grown to tadpole stage. These tadpoles are albino because they inherited tyr mutant alleles from both F0 parents. Therefore the leapfrog-generated frog carries gametes derived from CRISPR-mutated PGCs. The inset in C shows an unrelated pigmented tadpole at roughly the same stage for comparison.
dazl (deleted in azoospermia-like) gene expression in bissected Xenopus tropicalis embryo, assayed via in situ hybridization, NF stage 9, dorsal right.
Ayadi,
Mouse large-scale phenotyping initiatives: overview of the European Mouse Disease Clinic (EUMODIC) and of the Wellcome Trust Sanger Institute Mouse Genetics Project.
2012, Pubmed
Ayadi,
Mouse large-scale phenotyping initiatives: overview of the European Mouse Disease Clinic (EUMODIC) and of the Wellcome Trust Sanger Institute Mouse Genetics Project.
2012,
Pubmed
Bhattacharya,
CRISPR/Cas9: An inexpensive, efficient loss of function tool to screen human disease genes in Xenopus.
2015,
Pubmed
,
Xenbase
BLACKLER,
Transfer of primordial germ-cells between two subspecies of Xenopus laevis.
1962,
Pubmed
,
Xenbase
BLACKLER,
Transfer of germ-cells in Xenopus laevis.
1960,
Pubmed
,
Xenbase
Blitz,
Anterior neurectoderm is progressively induced during gastrulation: the role of the Xenopus homeobox gene orthodenticle.
1995,
Pubmed
,
Xenbase
Blitz,
Biallelic genome modification in F(0) Xenopus tropicalis embryos using the CRISPR/Cas system.
2013,
Pubmed
,
Xenbase
Blumberg,
Organizer-specific homeobox genes in Xenopus laevis embryos.
1991,
Pubmed
,
Xenbase
Buehr,
Sterility and partial sterility in the South African clawed toad following the pricking of the egg.
1970,
Pubmed
Chapman,
Targeted Germline Modifications in Rats Using CRISPR/Cas9 and Spermatogonial Stem Cells.
2015,
Pubmed
Chatfield,
Stochastic specification of primordial germ cells from mesoderm precursors in axolotl embryos.
2014,
Pubmed
,
Xenbase
Cho,
Molecular nature of Spemann's organizer: the role of the Xenopus homeobox gene goosecoid.
1991,
Pubmed
,
Xenbase
Ciruna,
Production of maternal-zygotic mutant zebrafish by germ-line replacement.
2002,
Pubmed
Dimitrov,
Germline Gene Editing in Chickens by Efficient CRISPR-Mediated Homologous Recombination in Primordial Germ Cells.
2016,
Pubmed
Driever,
A genetic screen for mutations affecting embryogenesis in zebrafish.
1996,
Pubmed
Fanslow,
Genome editing in mouse spermatogonial stem/progenitor cells using engineered nucleases.
2014,
Pubmed
Filosa,
Goosecoid and HNF-3beta genetically interact to regulate neural tube patterning during mouse embryogenesis.
1997,
Pubmed
Godsave,
Expression patterns of Hoxb genes in the Xenopus embryo suggest roles in anteroposterior specification of the hindbrain and in dorsoventral patterning of the mesoderm.
1994,
Pubmed
,
Xenbase
Guo,
Efficient RNA/Cas9-mediated genome editing in Xenopus tropicalis.
2014,
Pubmed
,
Xenbase
Haffter,
The identification of genes with unique and essential functions in the development of the zebrafish, Danio rerio.
1996,
Pubmed
Harland,
In situ hybridization: an improved whole-mount method for Xenopus embryos.
1991,
Pubmed
,
Xenbase
Heasman,
Fertilization of cultured Xenopus oocytes and use in studies of maternally inherited molecules.
1991,
Pubmed
,
Xenbase
Herpin,
Specification of primordial germ cells in medaka (Oryzias latipes).
2007,
Pubmed
Horvay,
Xenopus Dead end mRNA is a localized maternal determinant that serves a conserved function in germ cell development.
2006,
Pubmed
,
Xenbase
Houston,
A critical role for Xdazl, a germ plasm-localized RNA, in the differentiation of primordial germ cells in Xenopus.
2000,
Pubmed
,
Xenbase
Houston,
A Xenopus DAZ-like gene encodes an RNA component of germ plasm and is a functional homologue of Drosophila boule.
1998,
Pubmed
,
Xenbase
Houston,
Germ plasm and molecular determinants of germ cell fate.
2000,
Pubmed
,
Xenbase
Ishibashi,
Highly efficient bi-allelic mutation rates using TALENs in Xenopus tropicalis.
2012,
Pubmed
,
Xenbase
Karpinka,
Xenbase, the Xenopus model organism database; new virtualized system, data types and genomes.
2015,
Pubmed
,
Xenbase
Kawakami,
Generation of germ-line chimera zebrafish using primordial germ cells isolated from cultured blastomeres and cryopreserved embryoids.
2010,
Pubmed
Koebernick,
Elr-type proteins protect Xenopus Dead end mRNA from miR-18-mediated clearance in the soma.
2010,
Pubmed
,
Xenbase
Lai,
Xenopus Nanos1 is required to prevent endoderm gene expression and apoptosis in primordial germ cells.
2012,
Pubmed
,
Xenbase
Lamb,
Neural induction by the secreted polypeptide noggin.
1993,
Pubmed
,
Xenbase
Lei,
Efficient targeted gene disruption in Xenopus embryos using engineered transcription activator-like effector nucleases (TALENs).
2012,
Pubmed
,
Xenbase
Mayor,
Induction of the prospective neural crest of Xenopus.
1995,
Pubmed
,
Xenbase
Miyake,
Cloning and pattern of expression of the shiro-uo vasa gene during embryogenesis and its roles in PGC development.
2006,
Pubmed
Moreno-Mateos,
CRISPRscan: designing highly efficient sgRNAs for CRISPR-Cas9 targeting in vivo.
2015,
Pubmed
,
Xenbase
Nakajima,
Development of a new approach for targeted gene editing in primordial germ cells using TALENs in Xenopus.
2015,
Pubmed
,
Xenbase
Nakajima,
Highly efficient gene knockout by injection of TALEN mRNAs into oocytes and host transfer in Xenopus laevis.
2015,
Pubmed
,
Xenbase
Nakamura,
Development, differentiation and manipulation of chicken germ cells.
2013,
Pubmed
Nakayama,
Cas9-based genome editing in Xenopus tropicalis.
2014,
Pubmed
,
Xenbase
Nakayama,
Simple and efficient CRISPR/Cas9-mediated targeted mutagenesis in Xenopus tropicalis.
2013,
Pubmed
,
Xenbase
Oishi,
Targeted mutagenesis in chicken using CRISPR/Cas9 system.
2016,
Pubmed
Olson,
Maternal mRNA knock-down studies: antisense experiments using the host-transfer technique in Xenopus laevis and Xenopus tropicalis.
2012,
Pubmed
,
Xenbase
Owens,
Measuring Absolute RNA Copy Numbers at High Temporal Resolution Reveals Transcriptome Kinetics in Development.
2016,
Pubmed
,
Xenbase
Pannese,
The Xenopus homologue of Otx2 is a maternal homeobox gene that demarcates and specifies anterior body regions.
1995,
Pubmed
,
Xenbase
Papalopulu,
Retinoic acid causes abnormal development and segmental patterning of the anterior hindbrain in Xenopus embryos.
1991,
Pubmed
,
Xenbase
Park,
Targeted gene knockout in chickens mediated by TALENs.
2014,
Pubmed
Peshkin,
On the Relationship of Protein and mRNA Dynamics in Vertebrate Embryonic Development.
2015,
Pubmed
,
Xenbase
Rivera-Pérez,
Goosecoid is not an essential component of the mouse gastrula organizer but is required for craniofacial and rib development.
1995,
Pubmed
,
Xenbase
Saito,
The origin and migration of primordial germ cells in sturgeons.
2014,
Pubmed
Sander,
The opposing homeobox genes Goosecoid and Vent1/2 self-regulate Xenopus patterning.
2007,
Pubmed
,
Xenbase
Sato,
Genome Editing in Mouse Spermatogonial Stem Cell Lines Using TALEN and Double-Nicking CRISPR/Cas9.
2015,
Pubmed
Sekizaki,
Tracing of Xenopus tropicalis germ plasm and presumptive primordial germ cells with the Xenopus tropicalis DAZ-like gene.
2004,
Pubmed
,
Xenbase
Shi,
Discovery of cancer drug targets by CRISPR-Cas9 screening of protein domains.
2015,
Pubmed
SMITH,
A TEST OF THE CAPACITY OF PRESUMPTIVE SOMATIC CELLS TO TRANSFORM INTO PRIMORDIAL GERM CELLS IN THE MEXICAN AXOLOTL.
1964,
Pubmed
Takahashi,
GONAD: Genome-editing via Oviductal Nucleic Acids Delivery system: a novel microinjection independent genome engineering method in mice.
2015,
Pubmed
van de Lavoir,
Germline transmission of genetically modified primordial germ cells.
2006,
Pubmed
Varshney,
High-throughput gene targeting and phenotyping in zebrafish using CRISPR/Cas9.
2015,
Pubmed
Véron,
CRISPR mediated somatic cell genome engineering in the chicken.
2015,
Pubmed
Wang,
Targeted gene disruption in Xenopus laevis using CRISPR/Cas9.
2015,
Pubmed
,
Xenbase
Wu,
Correction of a genetic disease by CRISPR-Cas9-mediated gene editing in mouse spermatogonial stem cells.
2015,
Pubmed
Yamada,
Targeted mutation of the murine goosecoid gene results in craniofacial defects and neonatal death.
1995,
Pubmed
Yamaguchi,
DEADSouth protein localizes to germ plasm and is required for the development of primordial germ cells in Xenopus laevis.
2013,
Pubmed
,
Xenbase
Yang,
The Xenopus Maternal-to-Zygotic Transition from the Perspective of the Germline.
2015,
Pubmed
,
Xenbase
Yoon,
Zebrafish vasa homologue RNA is localized to the cleavage planes of 2- and 4-cell-stage embryos and is expressed in the primordial germ cells.
1997,
Pubmed
Young,
Efficient targeted gene disruption in the soma and germ line of the frog Xenopus tropicalis using engineered zinc-finger nucleases.
2011,
Pubmed
,
Xenbase
