Braun DA , Sadowski CE , Kohl S , Lovric S , Astrinidis SA , Pabst WL , Gee HY , Ashraf S , Lawson JA , Shril S , Airik M , Tan W , Schapiro D , Rao J , Choi WI , Hermle T , Kemper MJ , Pohl M , Ozaltin F , Konrad M , Bogdanovic R , Büscher R , Helmchen U , Serdaroglu E , Lifton RP , Antonin W , Hildebrandt F .

DK076683 NIDDK NIH HHS , P30 DK079310 NIDDK NIH HHS , R01 DK068306 NIDDK NIH HHS , R01 DK076683 NIDDK NIH HHS , UM1 HG006504 NHGRI NIH HHS , Howard Hughes Medical Institute , T32 DK007726 NIDDK NIH HHS

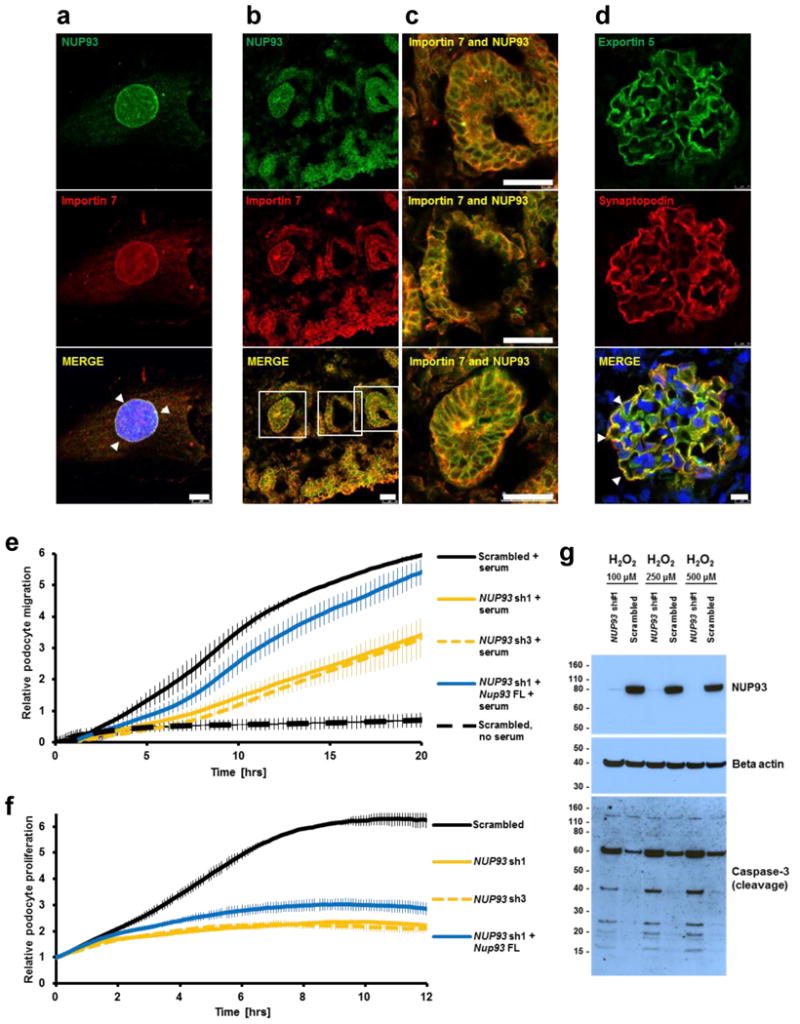

	Figure 2. Subcellular localization of NUP93 in podocytes and NUP93 knockdown resulting in reduced podocyte migration, proliferation, and impaired resistance to oxidative stress(a) In BMP7 treated human podocytes the nucleoporin NUP93 (green) and the nuclear transport factor importin7 (red) colocalize to a nuclear rim (arrow heads). (b–c) Neonatal rat kidney sections were stained with antibodies against NUP93 (green) and importin7 (red). Both proteins colocalize in podocyte precursor cells in different stages of glomerular development and other structures of the developing kidney. (c) Magnifications of the capillary loop and renal vesicle stage. (d) In adult rat glomerulus the nuclear exportin XPO5 partially colocalizes with the glomerular slit membrane marker synaptopodin (arrow heads). DAPI (blue) stains DNA. Scale bars are 10 μm in a, d and 25 μm in b, c. (e) Knockdown of NUP93 in human podocytes using two different shRNAs impairs podocyte migration (yellow curve vs. black curve). The decrease in podocyte migration was partially rescued by transfection of mouse Nup93 cDNA (blue curve). (f) Upon knockdown of NUP93 using two different shRNAs, the proliferation rate of human podocytes is severely impaired (yellow curve vs. black curve). Transfection of mouse Nup93 cDNA partially reversed the effect (blue curve). Experiments in e, f were performed in triplicates. Data points represent mean and standard deviation. (g) Addition of sub-lethal concentrations of H2O2 (100 μM, 250 μM, and 500 μM) to human podocyte culture does not induce apoptosis in control cells. In contrast, upon knockdown of NUP93 H2O2 induces apoptotic cell death as shown by increased cleavage of caspase-3.

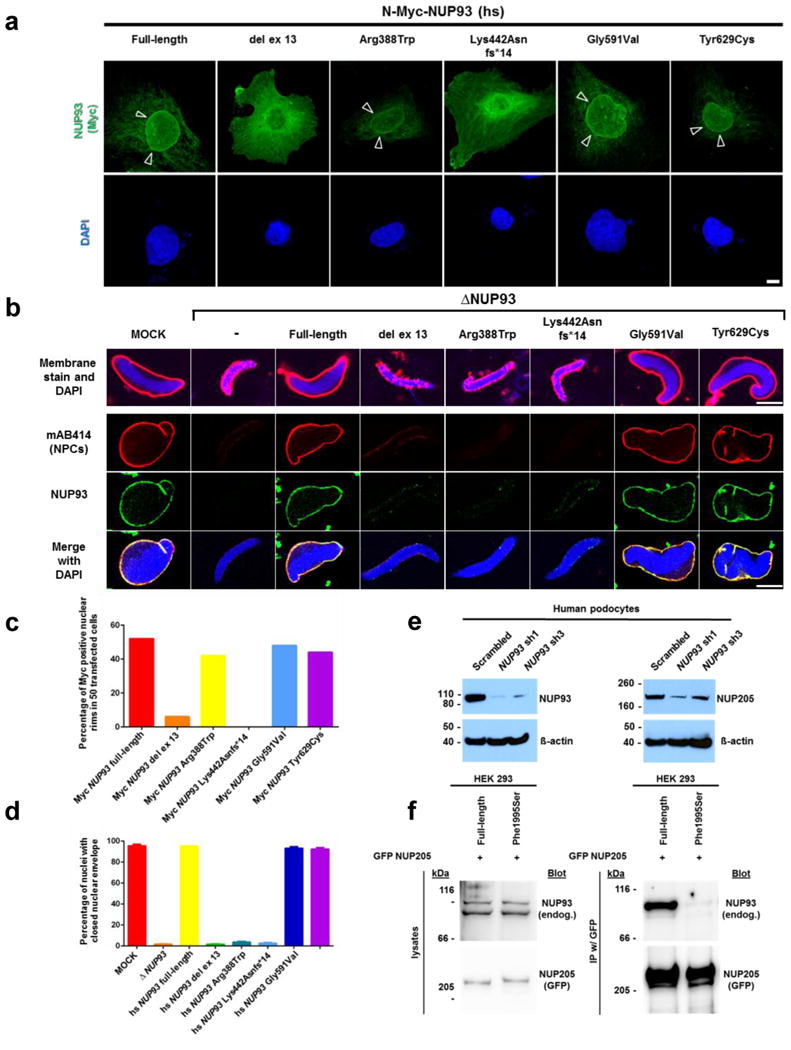

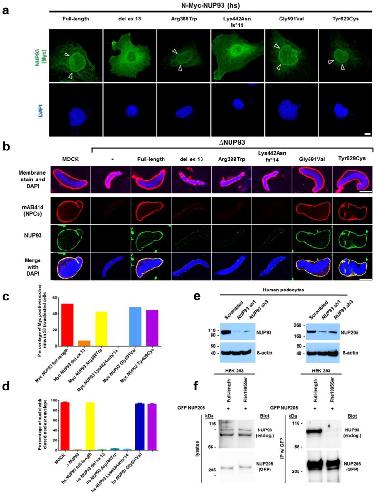

	Figure 3. NUP93 mutations interfere with nuclear pore complex (NPC) assembly, and a NUP205 mutation affects NUP93-NUP205 interaction(a) Upon overexpression in human podocytes, Myc tagged NUP93 but not the splice site mutation del ex13 or the truncating mutation Lys442Asnfs*14, localize to the nuclear envelope (arrow heads). Scale bar 10 μm, see also c. (b) Mutations identified in individuals with SRNS fail to assemble an intact NPC in a depletion-addback assay in X. laevis egg extracts. Upon depletion of NUP93 nuclei fail to assemble properly. Addback of full-length or the mutant constructs Gly591Val or Tyr629Cys restore nuclear envelope and NPC assembly. The constructs of the in-frame deletion of exon 13 (del ex13), the missense mutation Arg388Trp, and the frameshift mutation Lys442Asnfs*14 lack this ability. Nuclear membranes are stained with DiIC18 (red, upper row), DNA with DAPI (blue), NPCs with mAB414 (second row, red), and α-Nup93 antibody (third row, green). Scale bar 10 μm, see also d. (c) Quantitation of nuclear localization data from (a) resulting from 50 transfected cells for each condition. (d) Quantitation of depletion-addback assay data from (b) presented as mean and standard deviation resulting from 100 nuclei each from three independent experiments. (e) Upon shRNA knockdown of NUP93 (left panel) immortalized human podocytes show a reduced expression level of NUP205 (right panel). (f) GFP tagged NUP205 precipitates endogenous NUP93 upon overexpression in HEK293 cells. A mutant allele of NUP205 identified in SRNS family A1733 (Phe1995Ser) lacks this interaction.

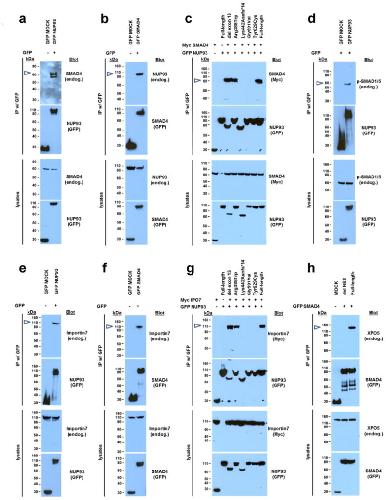

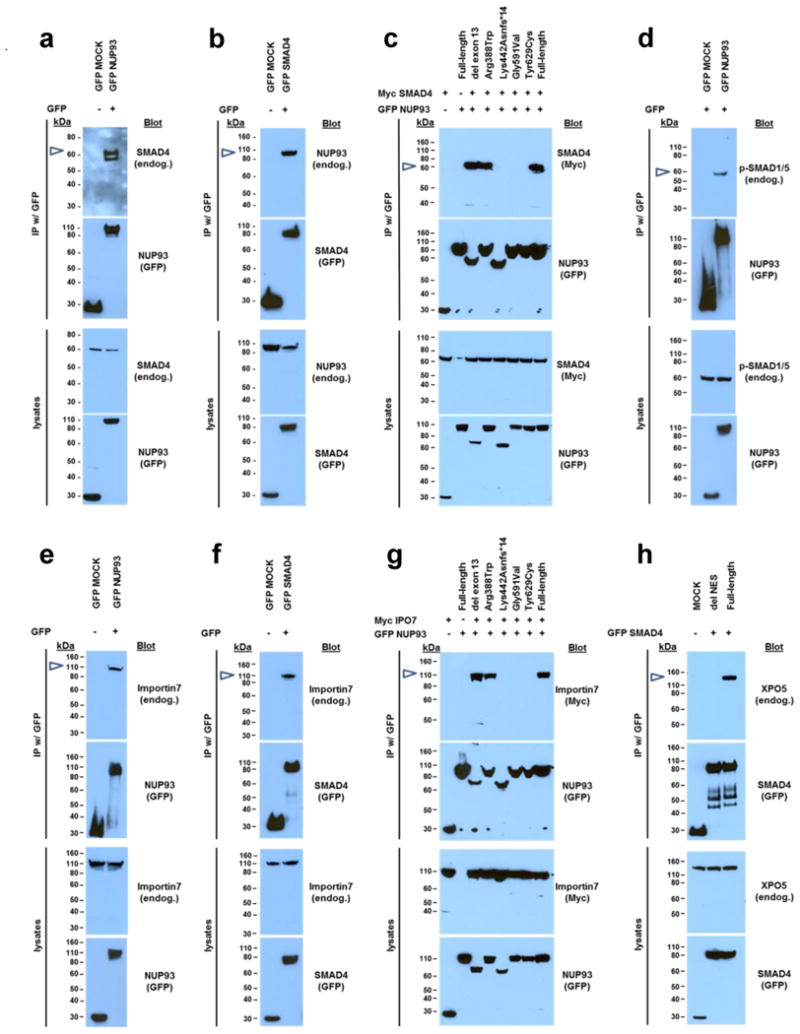

	Figure 4. NUP93, importin7, and exportin5 (XPO5) interact with SMAD proteins, and NUP93 mutations from individuals with SRNS abrogate the interaction with SMAD4 and importin7 upon coIP in HEK293 cells(a) C-terminally GFP tagged NUP93 precipitates endogenous SMAD4. (b) C-terminally GFP tagged SMAD4 precipitates endogenous NUP93. (c) Upon cooverexpression, GFP tagged NUP93 interacts with Myc tagged SMAD4. Mutations (Lys442Asnfs*14, Gly591Val, Tyr629Cys) identified in individuals with SRNS abrogate SMAD4 interaction. (d) Upon BMP7 stimulation C-terminally GFP-tagged NUP93 interacts with phosphorylated/activated SMAD1/5. (e) C-terminally GFP tagged NUP93 precipitates endogenous importin7. (f) C-terminally GFP tagged SMAD4 precipitates endogenous importin7. (g) Upon cooverexpression, GFP tagged NUP93 interacts with Myc tagged importin7. Mutations (Lys442Asnfs*14, Gly591Val, Tyr629Cys) identified in individuals with SRNS abrogate importin7 interaction. (h) GFP tagged SMAD4 precipitates endogenous XPO5. Deletion of the SMAD4 nuclear export signal (NES) (aa142-aa149) abrogates the interaction with XPO5. Coimmunoprecipitation experiments shown in a, b, d, e, and f were confirmed using N-terminally GFP-tagged fusion proteins.

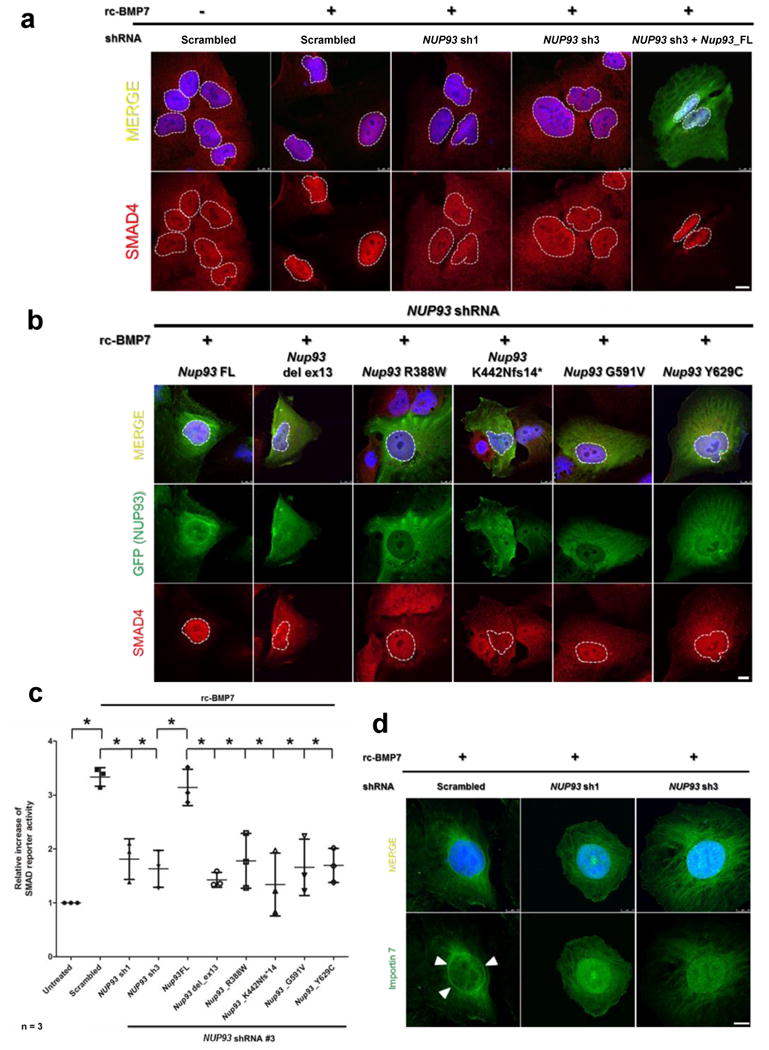

	Figure 5. Knockdown of NUP93 interferes with BMP7-induced activation of SMAD signaling(a) Stimulation of human podocytes with recombinant BMP7 (rc-BMP7) (100 ng/μl) induces nuclear accumulation of SMAD4 in control cells (columns 1 vs. 2). Upon knockdown of NUP93 using two different shRNAs (sh1 and sh3) BMP7 fails to induce efficient nuclear translocation of SMAD4 (columns 3, 4). Transfection of full-length wildtype mouse Nup93 cDNA restores this effect (column 5). White dotted lines mark the borders of the nuclear area. Endogenous SMAD4 is stained in red. (b) Transfection of full-length Nup93 restores BMP7-induced nuclear accumulation of SMAD4 in NUP93 knockdown podocytes (column 1). In contrast, cells transfected with clones reflecting all 5 SRNS mutantions do not show efficient nuclear translocation of SMAD4 (columns 2-6). (c) In a luciferase reporter assay, treatment of HEK293 cells with BMP7 increases SMAD reporter activity. Knockdown of NUP93 with two different shRNAs (sh1 and sh3) reduces SMAD reporter activity in response to BMP7 stimulation. Transfection of mouse full-length Nup93 restores a cellular response that is compatible to control cells. In contrast, clones reflecting all 5 SRNS mutations fail to rescue the defects in BMP7-SMAD4 signaling. Data result from three independent experiments each, and are presented as mean and standard deviation. * Indicates statistical significance (p<0.05). (d) Upon stimulation of human podocytes with BMP7, endogenous importin7 (green) accumulates in a nuclear rim pattern (arrow heads). Knockdown of NUP93 by two shRNAs (sh1 and sh3) inhibits this rim formation. Scale bars are 10 μm. Nuclei are stained with DAPI (blue).

Allende, Insertional mutagenesis in zebrafish identifies two novel genes, pescadillo and dead eye, essential for embryonic development. 1996, Pubmed, Xenbase

Allende, Insertional mutagenesis in zebrafish identifies two novel genes, pescadillo and dead eye, essential for embryonic development. 1996, Pubmed , Xenbase
Amlacher, Insight into structure and assembly of the nuclear pore complex by utilizing the genome of a eukaryotic thermophile. 2011, Pubmed
Ashraf, ADCK4 mutations promote steroid-resistant nephrotic syndrome through CoQ10 biosynthesis disruption. 2013, Pubmed
Basel-Vanagaite, Mutated nup62 causes autosomal recessive infantile bilateral striatal necrosis. 2006, Pubmed
Bohnsack, Exp5 exports eEF1A via tRNA from nuclei and synergizes with other transport pathways to confine translation to the cytoplasm. 2002, Pubmed
Boyden, Mutations in kelch-like 3 and cullin 3 cause hypertension and electrolyte abnormalities. 2012, Pubmed
Brownawell, Exportin-5, a novel karyopherin, mediates nuclear export of double-stranded RNA binding proteins. 2002, Pubmed
Chen, Specific nucleoporin requirement for Smad nuclear translocation. 2010, Pubmed
Dudley, A requirement for bone morphogenetic protein-7 during development of the mammalian kidney and eye. 1995, Pubmed
Ebarasi, Defects of CRB2 cause steroid-resistant nephrotic syndrome. 2015, Pubmed
Edwards, Genetics: New link between nuclear pore genes and SRNS. 2016, Pubmed
Eisenhardt, Xenopus in vitro assays to analyze the function of transmembrane nucleoporins and targeting of inner nuclear membrane proteins. 2014, Pubmed , Xenbase
Franz, MEL-28/ELYS is required for the recruitment of nucleoporins to chromatin and postmitotic nuclear pore complex assembly. 2007, Pubmed , Xenbase
Gant, Nuclear assembly. 1997, Pubmed
Gee, Mutations in EMP2 cause childhood-onset nephrotic syndrome. 2014, Pubmed
Gee, KANK deficiency leads to podocyte dysfunction and nephrotic syndrome. 2015, Pubmed
Gee, ARHGDIA mutations cause nephrotic syndrome via defective RHO GTPase signaling. 2013, Pubmed
Grandi, Purification of NSP1 reveals complex formation with 'GLFG' nucleoporins and a novel nuclear pore protein NIC96. 1993, Pubmed
Grandi, Nup93, a vertebrate homologue of yeast Nic96p, forms a complex with a novel 205-kDa protein and is required for correct nuclear pore assembly. 1997, Pubmed , Xenbase
Grossman, Functional architecture of the nuclear pore complex. 2012, Pubmed
Gudbjartsson, Allegro, a new computer program for multipoint linkage analysis. 2000, Pubmed
Halbritter, High-throughput mutation analysis in patients with a nephronophthisis-associated ciliopathy applying multiplexed barcoded array-based PCR amplification and next-generation sequencing. 2012, Pubmed
Halbritter, Identification of 99 novel mutations in a worldwide cohort of 1,056 patients with a nephronophthisis-related ciliopathy. 2013, Pubmed
Hildebrandt, Specific podocin mutations determine age of onset of nephrotic syndrome all the way into adult life. 2009, Pubmed
Hildebrandt, A systematic approach to mapping recessive disease genes in individuals from outbred populations. 2009, Pubmed
Klaassen, Response to cyclosporine in steroid-resistant nephrotic syndrome: discontinuation is possible. 2015, Pubmed
Kruglyak, Parametric and nonparametric linkage analysis: a unified multipoint approach. 1996, Pubmed
Leeuwis, Direct visualization of Smad1/5/8-mediated transcriptional activity identifies podocytes and collecting ducts as major targets of BMP signalling in healthy and diseased kidneys. 2011, Pubmed
Lund, Nuclear export of microRNA precursors. 2004, Pubmed , Xenbase
Machuca, Genetics of nephrotic syndrome: connecting molecular genetics to podocyte physiology. 2009, Pubmed
Meng, Disruption of Smad4 impairs TGF-β/Smad3 and Smad7 transcriptional regulation during renal inflammation and fibrosis in vivo and in vitro. 2012, Pubmed
Mitu, BMP7 is a podocyte survival factor and rescues podocytes from diabetic injury. 2007, Pubmed
Nakamura, Bmp modulators in kidney disease. 2012, Pubmed
Otto, Candidate exome capture identifies mutation of SDCCAG8 as the cause of a retinal-renal ciliopathy. 2010, Pubmed
Ruf, Patients with mutations in NPHS2 (podocin) do not respond to standard steroid treatment of nephrotic syndrome. 2004, Pubmed
Sachdev, The C-terminal domain of Nup93 is essential for assembly of the structural backbone of nuclear pore complexes. 2012, Pubmed , Xenbase
Sadowski, A single-gene cause in 29.5% of cases of steroid-resistant nephrotic syndrome. 2015, Pubmed
Saleem, A conditionally immortalized human podocyte cell line demonstrating nephrin and podocin expression. 2002, Pubmed
Sayer, The centrosomal protein nephrocystin-6 is mutated in Joubert syndrome and activates transcription factor ATF4. 2006, Pubmed
Smith, Contributions of the Transplant Registry: The 2006 Annual Report of the North American Pediatric Renal Trials and Collaborative Studies (NAPRTCS). 2007, Pubmed
Strauch, Parametric and nonparametric multipoint linkage analysis with imprinting and two-locus-trait models: application to mite sensitization. 2000, Pubmed
Theerthagiri, The nucleoporin Nup188 controls passage of membrane proteins across the nuclear pore complex. 2010, Pubmed , Xenbase
Tullio-Pelet, Mutant WD-repeat protein in triple-A syndrome. 2000, Pubmed
Vollmer, The diverse roles of the Nup93/Nic96 complex proteins - structural scaffolds of the nuclear pore complex with additional cellular functions. 2014, Pubmed
Watanabe, Regulation of intracellular dynamics of Smad4 by its leucine-rich nuclear export signal. 2000, Pubmed
Wente, The nuclear pore complex and nuclear transport. 2010, Pubmed
Wiggins, The spectrum of podocytopathies: a unifying view of glomerular diseases. 2007, Pubmed
Yao, Preferential utilization of Imp7/8 in nuclear import of Smads. 2008, Pubmed
Zariwala, ZMYND10 is mutated in primary ciliary dyskinesia and interacts with LRRC6. 2013, Pubmed , Xenbase
Zhang, Mutation in nuclear pore component NUP155 leads to atrial fibrillation and early sudden cardiac death. 2008, Pubmed
