PLoS One
2017 Jan 03;121:e0170572. doi: 10.1371/journal.pone.0170572.
Show Gene links
Show Anatomy links
Low Expression in Xenopus Oocytes and Unusual Functional Properties of α1β2γ2 GABAA Receptors with Non-Conventional Subunit Arrangement.
Baur R
,
Sigel E
.
???displayArticle.abstract???
The major subunit isoform of GABAA receptors is α1β2γ2. The subunits are thought to surround an ion pore with the counterclockwise arrangement α1γ2β2α1β2 as seen from the outside of the neuron. These receptors have two agonist sites and one high affinity drug binding site specific for benzodiazepines. Recently, this receptor was postulated to assume alternative subunit stoichiometries and arrangements resulting in only one agonist site and one or even two sites for benzodiazepines. In order to force a defined subunit arrangement we expressed a combination of triple and dual concatenated subunits. Here we report that these unconventional receptors express only small current amplitudes in Xenopus oocytes. We determined agonist properties and modulation by diazepam of two of these receptors that resulted in currents large enough for a characterization, that is, β2-α1-γ2/α1-γ2 and β2-α1-γ2/β2-γ2. The first pentamer predicted to have two benzodiazepine binding sites shows similar response to diazepam as the standard receptor. As expected for both receptors with a single predicted agonist site the concentration response curves for GABA were characterized by a Hill coefficient < 1. β2-α1-γ2/β2-γ2 displayed a mM apparent GABA affinity for channel opening instead of the expected μM affinity. Based on their subunit and binding site stoichiometry, that contradicts all previous observations, their unusual functional properties and their very low expression levels in oocytes, we consider it unlikely that these unconventional receptors are expressed in neurons to an appreciable extent.
???displayArticle.pubmedLink???
28114407
???displayArticle.pmcLink???PMC5256883 ???displayArticle.link???PLoS One

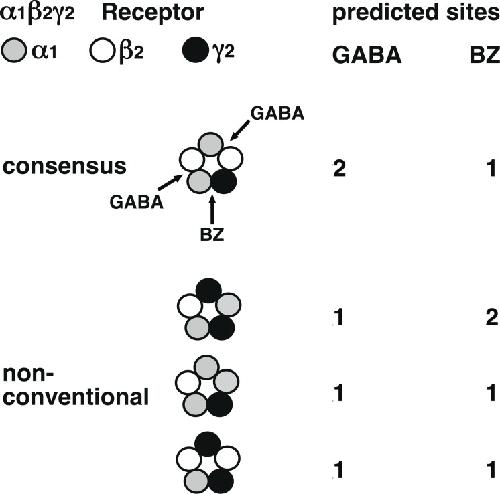

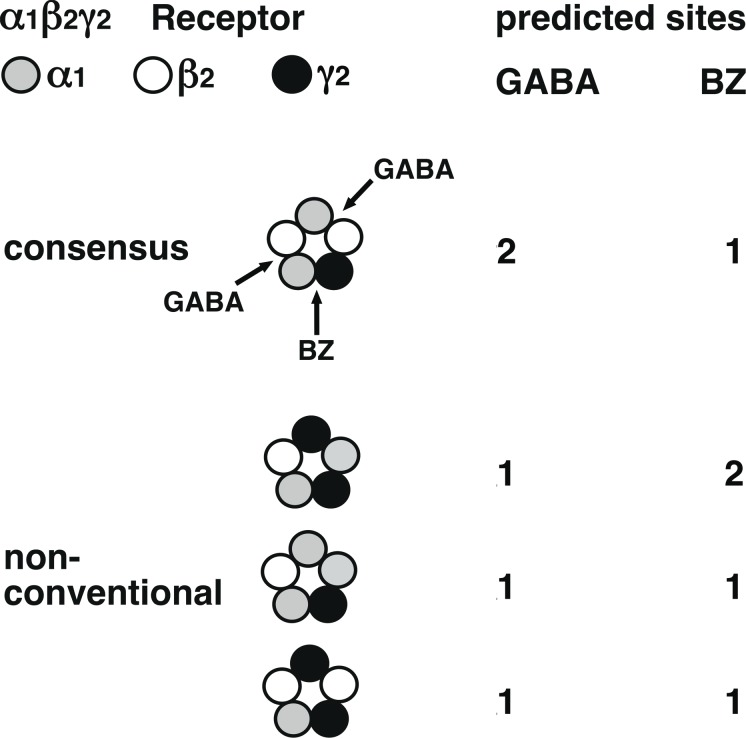

Fig 1. Consensus subunit arrangement of α1β2γ2 GABAA receptors and three newly proposed receptors with unconventional subunit arrangement.Number of predicted agonist sites for GABA and modulatory sites for benzodiazepines (BZ) is shown for each receptor form. On the top left is the color code for the subunits.

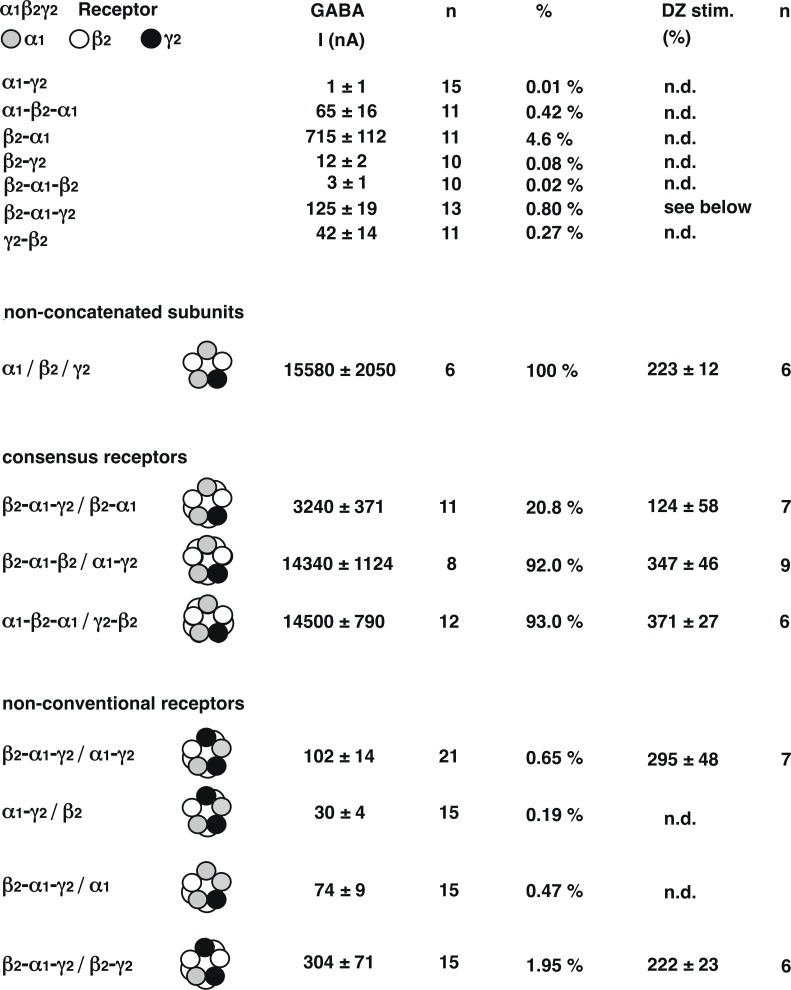

Fig 2. Dual and triple concatenated constructs used for the construction of pentameric receptors were expressed in Xenopus oocytes.Currents were standardized to the amplitude elicited in oocytes expressing non-concatenated α1, β2 and γ2 subunits (non-concatenated receptors). The same parameters are shown for receptors with consensus subunit arrangement (consensus receptors) that were built in three different ways and for three receptors with non-consensus subunit arrangement (non-consensus receptors), one of them built in two different ways. For some receptors, stimulation by 1 μM diazepam is also shown.

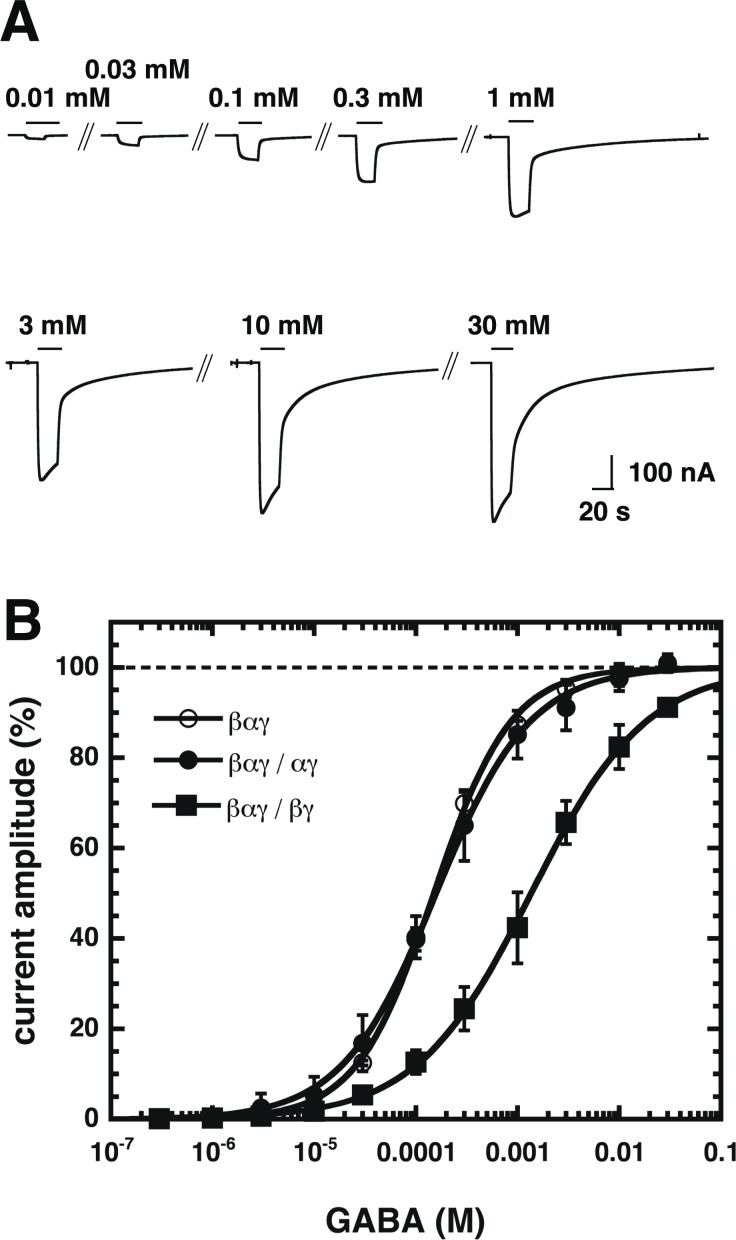

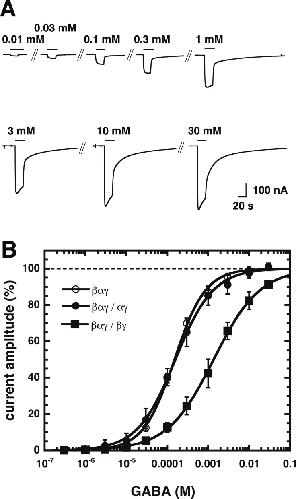

Fig 3. Concentration-response curves for β2-α1-γ2, β2-α1-γ2/α1-γ2 and β2-α1-γ2/β2-γ2 receptors.Receptors were exposed to subsequently higher concentrations of GABA and the elicited current amplitude was determined. Individual curves were first normalized to the fitted maximal current amplitude and subsequently averaged. Data are expressed as mean ± S.D., n = 3â5 from two batches of oocytes. A) Original current traces recorded in an oocyte expressing β2-α1-γ2/β2-γ2. B) Averaged Concentration-response curves for β2-α1-γ2, β2-α1-γ2/α1-γ2 and β2-α1-γ2/β2-γ2.

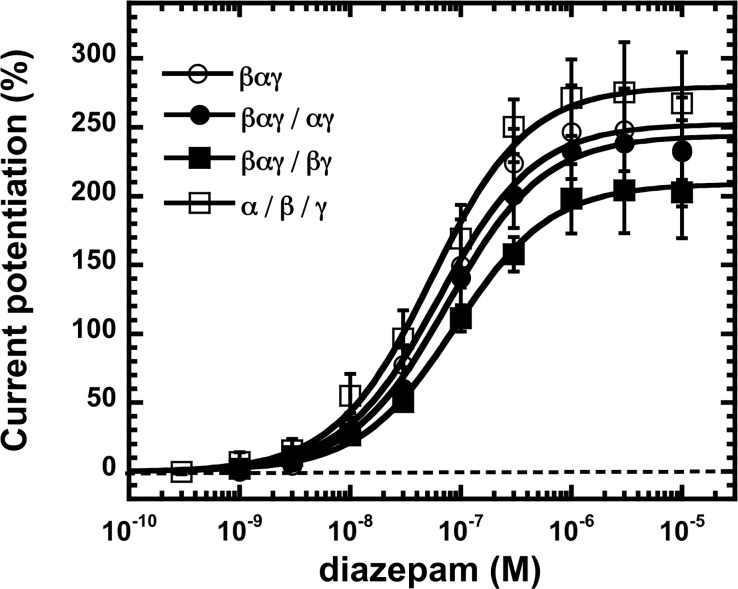

Fig 4. Stimulation of β2-α1-γ2, β2-α1-γ2/α1-γ2, β2-α1-γ2/β2-γ2 and α1/β2/γ2 receptors by diazepam.Receptors were exposed to subsequently higher concentrations of diazepam in combination with an EC2 GABA concentration and the elicited current amplitude was determined. Individual curves were first normalized to the fitted maximal current amplitude and subsequently averaged. Data are expressed as mean ± S.D., n = 3 from two batches of oocytes.
Baumann,
Subunit arrangement of gamma-aminobutyric acid type A receptors.
2001, Pubmed,
Xenbase
Baumann,
Subunit arrangement of gamma-aminobutyric acid type A receptors.
2001,
Pubmed
,
Xenbase
Baumann,
Forced subunit assembly in alpha1beta2gamma2 GABAA receptors. Insight into the absolute arrangement.
2002,
Pubmed
,
Xenbase
Baur,
A GABA(A) receptor of defined subunit composition and positioning: concatenation of five subunits.
2006,
Pubmed
,
Xenbase
Baur,
Structure of alpha6 beta3 delta GABA(A) receptors and their lack of ethanol sensitivity.
2009,
Pubmed
,
Xenbase
Baur,
Diversity of structure and function of alpha1alpha6beta3delta GABAA receptors: comparison with alpha1beta3delta and alpha6beta3delta receptors.
2010,
Pubmed
,
Xenbase
Bollan,
The promiscuous role of the epsilon subunit in GABAA receptor biogenesis.
2008,
Pubmed
,
Xenbase
Botzolakis,
Comparison of γ-Aminobutyric Acid, Type A (GABAA), Receptor αβγ and αβδ Expression Using Flow Cytometry and Electrophysiology: EVIDENCE FOR ALTERNATIVE SUBUNIT STOICHIOMETRIES AND ARRANGEMENTS.
2016,
Pubmed
Chang,
Stoichiometry of a recombinant GABAA receptor.
1996,
Pubmed
,
Xenbase
Farrar,
Stoichiometry of a ligand-gated ion channel determined by fluorescence energy transfer.
1999,
Pubmed
Kaur,
Unanticipated structural and functional properties of delta-subunit-containing GABAA receptors.
2009,
Pubmed
,
Xenbase
Macdonald,
GABAA receptor channels.
1994,
Pubmed
Minier,
Positioning of the alpha-subunit isoforms confers a functional signature to gamma-aminobutyric acid type A receptors.
2004,
Pubmed
,
Xenbase
Olsen,
International Union of Pharmacology. LXX. Subtypes of gamma-aminobutyric acid(A) receptors: classification on the basis of subunit composition, pharmacology, and function. Update.
2008,
Pubmed
Sigel,
The Xenopus oocyte: system for the study of functional expression and modulation of proteins.
2005,
Pubmed
,
Xenbase
Sigel,
Structure, function, and modulation of GABA(A) receptors.
2012,
Pubmed
Sigel,
A gamma-aminobutyric acid/benzodiazepine receptor complex from bovine cerebral cortex. Improved purification with preservation of regulatory sites and their interactions.
1984,
Pubmed
Teissére,
A (beta)-strand in the (gamma)2 subunit lines the benzodiazepine binding site of the GABA A receptor: structural rearrangements detected during channel gating.
2001,
Pubmed
,
Xenbase
Tretter,
Stoichiometry and assembly of a recombinant GABAA receptor subtype.
1997,
Pubmed
Wongsamitkul,
Toward Understanding Functional Properties and Subunit Arrangement of α4β2δ γ-Aminobutyric Acid, Type A (GABAA) Receptors.
2016,
Pubmed
,
Xenbase
