Perniss A , Preiss K , Nier M , Althaus M .

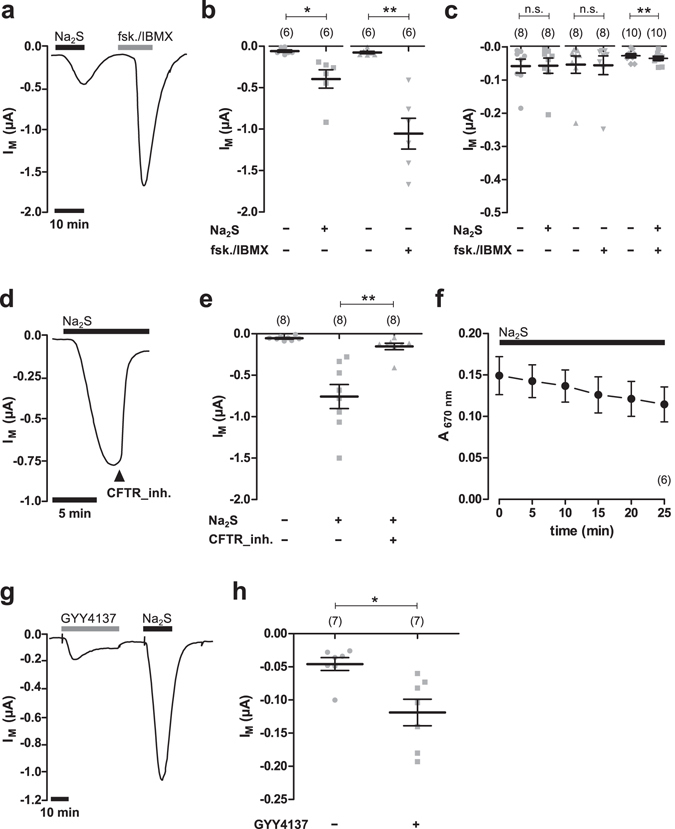

	Figure 1. Hydrogen sulfide stimulates CFTR in Xenopus oocytes. (a) A representative current trace of a TEVC recording of a CFTR-expressing oocyte. The application of Na2S (50 µM, black bar) as well as forskolin (fsk.; 5 µM) and IBMX (100 µM; grey bars) led to an increase in transmembrane current signals (IM). (b) Statistical analysis of data obtained from experiments as shown in panel a. Depicted are values of IM (before drug application or peak values after drug application) from individual experiments (grey symbols) as well as means ± SEM (*P ≤ 0.05, Wilcoxon signed rank test; **P ≤ 0.01, Student’s paired t-test). (c) Summarised data from experiments as similar to those shown in panels a and b, using native, non-CFTR-expressing oocytes. Values of IM were taken at time point were CFTR-expressing oocytes of the same donor had the maximal response to the drugs. Depicted are means ± SEM (**P ≤ 0.01, Student’s paired t-test). (d) A representative current trace of a TEVC recording of a CFTR-expressing oocyte. After application of Na2S (50 µM, black bar), the CFTR inhibitor CFTR_inh172 (CFTR_inh.; 25 µM) was additionally applied. This readily inhibited values of IM. (e) Statistical analysis of data obtained from experiments as shown in panel d. Depicted are values of IM (before drug application or peak values after drug application) from individual experiments (grey symbols) as well as means ± SEM (**P ≤ 0.01, Wilcoxon signed rank test). (f) Evaporative loss of H2S was measured by monitoring the concentration of H2S in the employed buffers solutions by the formation of methylene blue. Depicted are values for methylene blue absorbance at 670 nm over time. Na2S (50 µM) exposure is indicated by the black bar. (g) A representative current trace of a TEVC recording of a CFTR-expressing oocyte. Both, GYY4137 (500 µM, grey bar) as well as Na2S (50 µM, black bar) stimulated IM. (h) Statistical analysis of data obtained from experiments as shown in panel d. Depicted are values of IM (peak values after drug application) from individual experiments (grey symbols) as well as means ± SEM (*P ≤ 0.05, Wilcoxon signed rank test). Numbers of experiments (n) are indicated in parentheses.

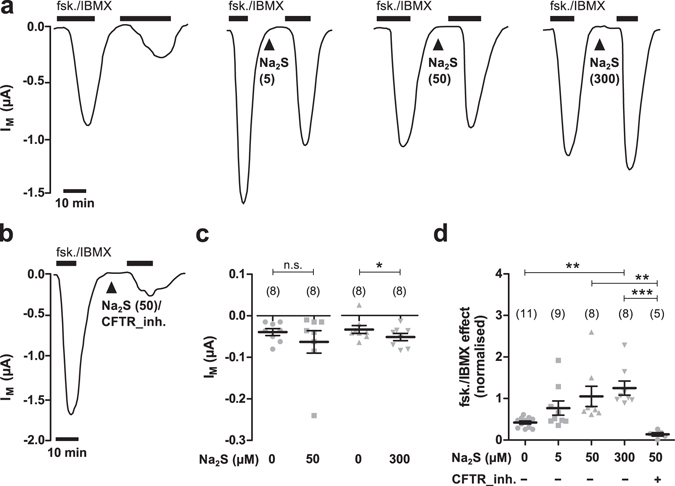

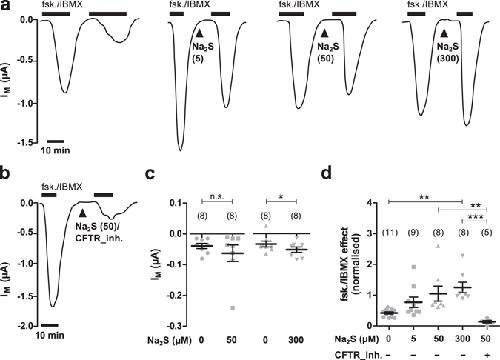

	Figure 2. H2S potentiates the effect of forskolin and IBMX. (a) Representative current traces of TEVC recordings of CFTR-expressing oocytes. Transmembrane currents (IM) were recorded and oocytes were exposed twice to forskolin (fsk., 5 µM) and IBMX (100 µM, black bars) without or with application of Na2S (arrowheads; concentration in µM is indicated by numbers in parentheses) between the first and second stimulation with forskolin/IBMX. (b) Representative current trace of a TEVC recording of a CFTR-expressing oocyte. Similar to experiments shown in panel a, oocytes were stimulated twice with forskolin/IBMX and Na2S (50 µM) together with the CFTR inhibitor CFTR_inh172 (CFTR_inh., 25 µM) between the first and second application of forskolin/IBMX. (c) Statistical analysis of data obtained from experiments as shown in panel a. Depicted are values of IM (peak values after drug application) from individual experiments (grey symbols) as well as means ± SEM, before and after application of Na2S (*P ≤ 0.05, Student’s paired t-test). (d) Statistical analysis of data obtained from experiments as shown in panels a and b. Depicted are normalised values from individual experiments (grey symbols) as well as means ± SEM of forskolin (fsk.)/IBMX effects. This represents the ratio of the first and second current stimulated by forskolin/IBMX (**P ≤ 0.01, ***P ≤ 0.001, Kruskall-Wallis test followed by Dunn’s Multiple Comparison Test). Numbers of experiments (n) are indicated in parentheses.

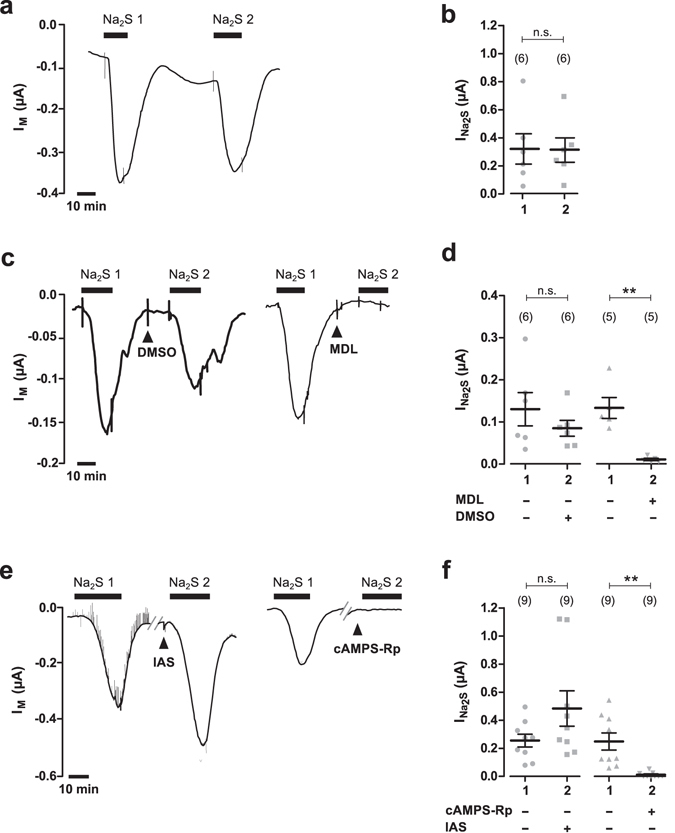

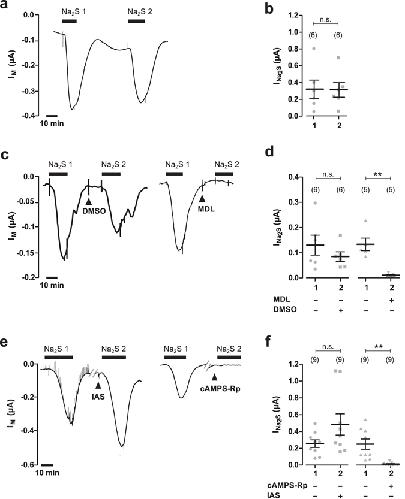

	Figure 3. H2S stimulates CFTR via cAMP- and PKA-mediated signalling. (a) Representative current trace of a TEVC recordings of a CFTR-expressing oocyte. Transmembrane currents (IM) were recorded and the oocyte was exposed twice to Na2S (50 µM, black bar). (b) Statistical analysis of data obtained from experiments as shown in panel a. Depicted are values of the first (1) and second (2) Na2S-induced current (INa2S) from individual experiments (grey symbols) as well as means ± SEM (n.s. = not significant, Student’s paired t-test). INa2S was calculated by subtracting the current before application of Na2S from the peak value after application of Na2S, resulting in positive values for INA2S. (c) Representative current traces of TEVC recordings of CFTR-expressing oocytes. Transmembrane currents (IM) were recorded and oocytes were exposed twice to Na2S (50 µM, black bar) DMSO (0.1%; left trace) or the AC inhibitor MDL 12330 A (MDL, 20 µM; right trace) were applied between the first and second stimulation with Na2S (black arrowheads). (d) Statistical analysis of data obtained from experiments as shown in panel a. Depicted are values of the first (1) and second (2) Na2S-induced current (INa2S) from individual experiments (grey symbols) as well as means ± SEM (**P ≤ 0.01, Student’s paired t-test). INa2S was calculated by subtracting the current before application of Na2S from the peak value after application of Na2S, resulting in positive values for INA2S. (e) Representative current traces of TEVC recordings of CFTR-expressing oocytes. Transmembrane currents (IM) were recorded and oocytes were exposed twice to Na2S (50 µM, black bar). The perfusion recording was stopped briefly between the first and second stimulation with Na2S (grey lines). Then, an intracellular-analogous solution (IAS) or IAS containing the PK-antagonist cAMPS-Rp (87 µM) were injected into the oocytes before the second stimulation with Na2S (black arrowheads). (f) Statistical analysis of data obtained from experiments as shown in panel a. Depicted are values of the first (1) and second (2) Na2S-induced current (INa2S) from individual experiments (grey symbols) as well as means ± SEM (**P ≤ 0.01, Wilcoxon signed rank test). Numbers of experiments (n) are indicated in parentheses.

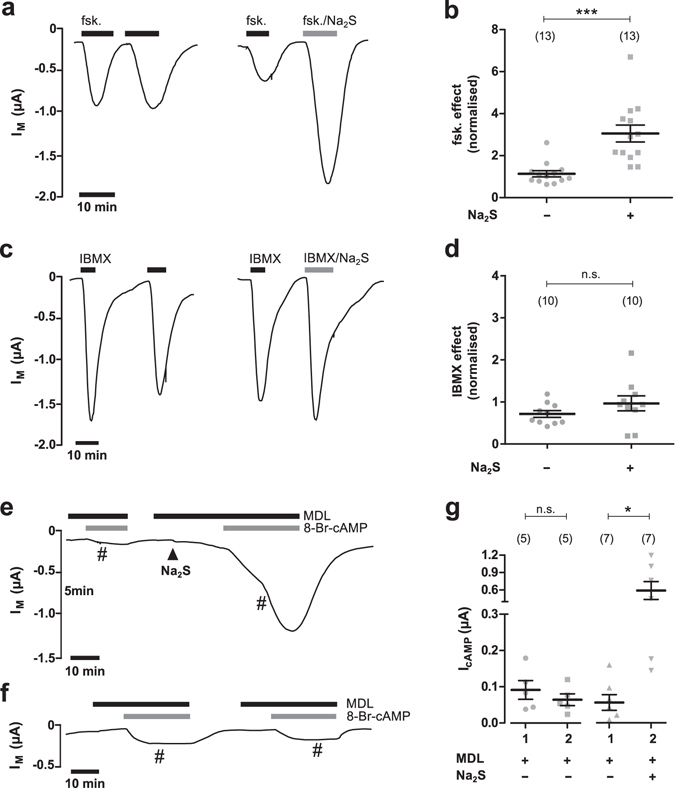

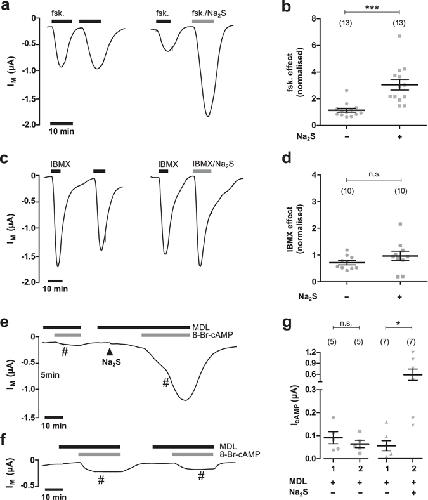

	Figure 4. H2S targets phosphodiesterase rather than adenylyl cyclase. (a) Representative current traces of TEVC recordings of CFTR-expressing oocytes. Transmembrane currents (IM) were recorded and oocytes were either exposed twice to forskolin (fsk., 5 µM; black bars; left trace) or first to forskolin and then to a combination of forskolin and 50 µM Na2S (grey bar; right trace). (b) Statistical analysis of data obtained from experiments as shown in panel a. Depicted are normalised values from individual experiments (grey symbols) as well as means ± SEM of forskolin (fsk.) effects. This represents the ratio of the first and second current stimulated by forskolin (***P ≤ 0.001, Mann-Whitney test). (c) Representative current traces of TEVC recordings of CFTR-expressing oocytes. Oocytes were either exposed twice to IBMX (1 mM; black bars; left trace) or first to IBMX and then to a combination of IBMX and 50 µM Na2S (grey bar; right trace). (d) Statistical analysis of data obtained from experiments as shown in panel c. Depicted are normalised values from individual experiments (grey symbols) as well as means ± SEM of IBMX effects. This represents the ratio of the first and second current stimulated by IBMX Student’s unpaired t-test with Welch’s correction). (e, f) Representative current traces of TEVC recordings of CFTR-expressing oocytes. (f) Oocytes were exposed twice to membrane-permeable 8Br-cAMP (100 µM, grey bars) in the presence of the AC-inhibitor MDL 12330 A (MDL, 20 µM; black bars). The perfusion was stopped (indicated by the number symbol’) when 8-Br-cAMP was in the perfusion chambers in order to avoid massive consumption of this compound. Perfusion was started again at the time of drug removal. (e) The same protocol was employed, with the exception that Na2S (50 µM, black arrowhead) was applied before the second exposure to 8Br-cAMP. (g) Statistical analysis of data obtained from experiments as shown in panels e and f. Depicted are values of the first (1) and second (2) 8-Br-cAMP-induced current (IcAMP) from individual experiments (grey symbols) as well as means ± SEM (**P ≤ 0.01, Student’s paired t-test). Numbers of experiments (n) are indicated in parentheses.

Agné, Hydrogen sulfide decreases β-adrenergic agonist-stimulated lung liquid clearance by inhibiting ENaC-mediated transepithelial sodium absorption. 2015, Pubmed, Xenbase

Agné, Hydrogen sulfide decreases β-adrenergic agonist-stimulated lung liquid clearance by inhibiting ENaC-mediated transepithelial sodium absorption. 2015, Pubmed , Xenbase
Althaus, The gasotransmitter hydrogen sulphide decreases Na⁺ transport across pulmonary epithelial cells. 2012, Pubmed , Xenbase
Bailey, Understanding hydrogen sulfide storage: probing conditions for sulfide release from hydrodisulfides. 2014, Pubmed
Baines, Kinases as targets for ENaC regulation. 2013, Pubmed
Berger, Normal gating of CFTR requires ATP binding to both nucleotide-binding domains and hydrolysis at the second nucleotide-binding domain. 2005, Pubmed
Blachier, Luminal sulfide and large intestine mucosa: friend or foe? 2010, Pubmed
Boucher, New concepts of the pathogenesis of cystic fibrosis lung disease. 2004, Pubmed
Bucci, Hydrogen sulfide is an endogenous inhibitor of phosphodiesterase activity. 2010, Pubmed
Coletta, Hydrogen sulfide and nitric oxide are mutually dependent in the regulation of angiogenesis and endothelium-dependent vasorelaxation. 2012, Pubmed
DeLeon, Passive loss of hydrogen sulfide in biological experiments. 2012, Pubmed
Duckworth, G2 arrest in Xenopus oocytes depends on phosphorylation of cdc25 by protein kinase A. 2002, Pubmed , Xenbase
Erb, Actions of hydrogen sulfide on sodium transport processes across native distal lung epithelia (Xenopus laevis). 2014, Pubmed , Xenbase
Farinha, Regulatory Crosstalk by Protein Kinases on CFTR Trafficking and Activity. 2016, Pubmed
Filipovic, Persulfidation (S-sulfhydration) and H2S. 2015, Pubmed
Hennig, Actions of hydrogen sulphide on ion transport across rat distal colon. 2009, Pubmed
Kimura, Hydrogen sulfide protects HT22 neuronal cells from oxidative stress. 2006, Pubmed
Kimura, Hydrogen sulfide induces cyclic AMP and modulates the NMDA receptor. 2000, Pubmed , Xenbase
Kimura, Hydrogen sulfide and polysulfides as biological mediators. 2014, Pubmed
Kimura, Metabolic turnover of hydrogen sulfide. 2012, Pubmed
Kobayashi, Functional characterization of an endogenous Xenopus oocyte adenosine receptor. 2002, Pubmed , Xenbase
Kokkonen, Nanodomain Regulation of Cardiac Cyclic Nucleotide Signaling by Phosphodiesterases. 2017, Pubmed
Kunzelmann, CFTR: a hub for kinases and crosstalk of cAMP and Ca2+. 2013, Pubmed
Lee, The slow-releasing hydrogen sulfide donor, GYY4137, exhibits novel anti-cancer effects in vitro and in vivo. 2011, Pubmed
Lim, Vasoconstrictive effect of hydrogen sulfide involves downregulation of cAMP in vascular smooth muscle cells. 2008, Pubmed
Lu, Hydrogen sulfide regulates cAMP homeostasis and renin degranulation in As4.1 and rat renin-rich kidney cells. 2012, Pubmed
Macfarlane, Comparison of fermentation reactions in different regions of the human colon. 1992, Pubmed
Mathai, No facilitator required for membrane transport of hydrogen sulfide. 2009, Pubmed
Módis, Hydrogen sulfide-mediated stimulation of mitochondrial electron transport involves inhibition of the mitochondrial phosphodiesterase 2A, elevation of cAMP and activation of protein kinase A. 2013, Pubmed
Moran, On the measurement of the functional properties of the CFTR. 2008, Pubmed
Muzaffar, H2S-donating sildenafil (ACS6) inhibits superoxide formation and gp91phox expression in arterial endothelial cells: role of protein kinases A and G. 2008, Pubmed
Nader, Release from Xenopus oocyte prophase I meiotic arrest is independent of a decrease in cAMP levels or PKA activity. 2016, Pubmed , Xenbase
Nagpure, Hydrogen sulfide inhibits A2A adenosine receptor agonist induced β-amyloid production in SH-SY5Y neuroblastoma cells via a cAMP dependent pathway. 2014, Pubmed
Olson, Hydrogen sulfide as an oxygen sensor. 2013, Pubmed
Ostedgaard, The ΔF508 mutation causes CFTR misprocessing and cystic fibrosis-like disease in pigs. 2011, Pubmed
Perniss, Publisher Correction: Hydrogen sulfide stimulates CFTR in Xenopus oocytes by activation of the cAMP/PKA signalling axis. 2018, Pubmed
Perniss, Evans Blue is not a suitable inhibitor of the epithelial sodium channel δ-subunit. 2015, Pubmed , Xenbase
Pouokam, Regulation of colonic ion transport by gasotransmitters. 2011, Pubmed
Pouokam, Mechanisms of actions of hydrogen sulphide on rat distal colonic epithelium. 2011, Pubmed
Pouokam, Epithelial Electrolyte Transport Physiology and the Gasotransmitter Hydrogen Sulfide. 2016, Pubmed
Ratjen, Cystic fibrosis. 2015, Pubmed
Sadler, In vivo regulation of cyclic AMP phosphodiesterase in Xenopus oocytes. Stimulation by insulin and insulin-like growth factor 1. 1987, Pubmed , Xenbase
Schicho, Hydrogen sulfide is a novel prosecretory neuromodulator in the Guinea-pig and human colon. 2006, Pubmed
Shamsuddin, Surface fluid absorption and secretion in small airways. 2012, Pubmed
Sheppard, Structure and function of the CFTR chloride channel. 1999, Pubmed
Sullivan, Identification and partial characterization of a domain in CFTR that may bind cyclic nucleotides directly. 1995, Pubmed , Xenbase
Sun, Hydrogen Sulfide Facilitates Vaginal Lubrication by Activation of Epithelial ATP-Sensitive K(+) Channels and Cystic Fibrosis Transmembrane Conductance Regulator. 2016, Pubmed
Vitzthum, Mechanosensitive activation of CFTR by increased cell volume and hydrostatic pressure but not shear stress. 2015, Pubmed , Xenbase
Voronina, The regulation of oocyte maturation. 2003, Pubmed
Wallace, Hydrogen sulfide-based therapeutics: exploiting a unique but ubiquitous gasotransmitter. 2015, Pubmed
Walters, Dibutyryl cAMP induces a gestation-dependent absorption of fetal lung liquid. 1990, Pubmed
Wang, Physiological implications of hydrogen sulfide: a whiff exploration that blossomed. 2012, Pubmed
Weber, Capacitance measurements reveal different pathways for the activation of CFTR. 1999, Pubmed , Xenbase
Widdicombe, Airway Gland Structure and Function. 2015, Pubmed
Yan, Two cytoplasmic domains of mammalian adenylyl cyclase form a Gs alpha- and forskolin-activated enzyme in vitro. 1996, Pubmed
Yang, Hydrogen sulfide attenuates opioid dependence by suppression of adenylate cyclase/cAMP pathway. 2014, Pubmed
Yong, Negative regulation of beta-adrenergic function by hydrogen sulphide in the rat hearts. 2008, Pubmed
