Abbott GW .

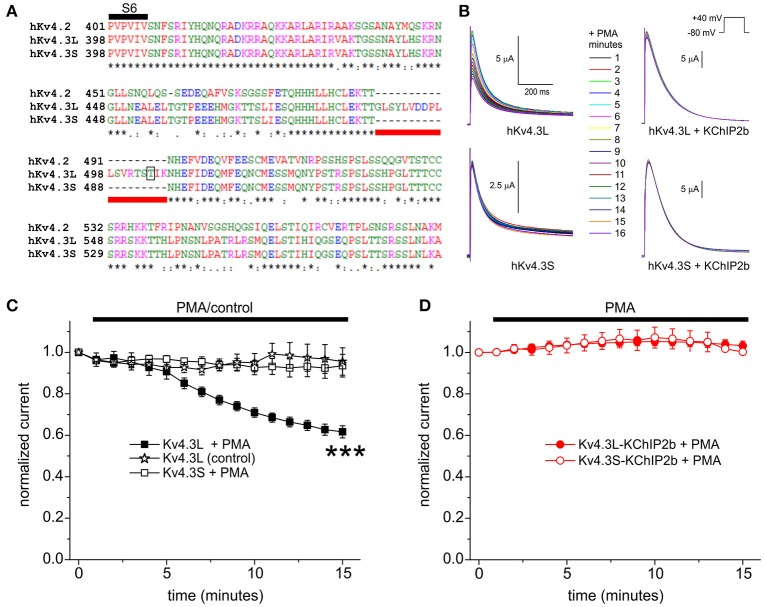

	Figure 1. KChIP2b protects Kv4.3L from inhibition by PKC phosphorylation. (A) Sequence alignment (Clustal TCoffee) of the C-terminal end of human Kv4.2, Kv4.3L and Kv4.3S protein sequences, including the segment missing in Kv4.3S (underlined red) and the T504 PKC phosphorylation site (open box). *Conserved in all three sequences. Adapted from Abbott (2017). (B) Exemplar current traces recorded during +40 mV pulses (1 per minute) in the presence of 50 nM PMA, from Xenopus oocytes 36–56 h after injection of 1.5 ng cRNA encoding Kv4.3L or Kv4.3S, with (n = 7–12) or without (n = 6–7) 5 ng KChIP2b. Insets: center, color-coded key to traces; upper right, voltage clamp protocol. (C) Mean ± SEM normalized peak current magnitude at +40 mV during incubation in 50 nM PMA or normal bath solution (control) for Kv4.3 currents recorded in the absence of KChIP2b as in (B) (n = 6–7). ***P < 0.001 vs. other groups at 15 min. (D) Mean ± SEM normalized peak current magnitude at +40 mV during incubation in 50 nM PMA (unless indicated) for Kv4.3-KChIP2b currents recorded as in (B) (n = 7–12).

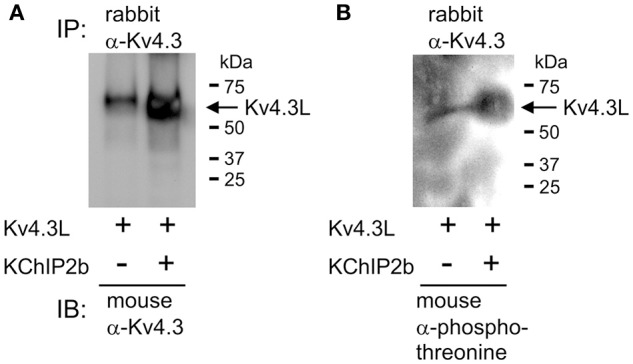

	Figure 2. KChIP2b does not prevent Kv4.3L threonine phosphorylation. (A) Western blot result showing hKv4.3L protein immunoblot (IB) with mouse monoclonal anti-Kv4.3 antibody, following immunoprecipitation (IP) with rabbit polyclonal anti-Kv4.3 antibody, 3 days after Kv4.3 cRNA injection in Xenopus oocytes, with or without co-injected KChIP2b cRNA. Oocytes were incubated for 30 min in 50 nM PMA prior to lysis. Representative of two independent experiments. (B) Western blot on similar samples as in (A) but using mouse monoclonal anti-phosphothreonine antibody for IB. Representative of two independent experiments.

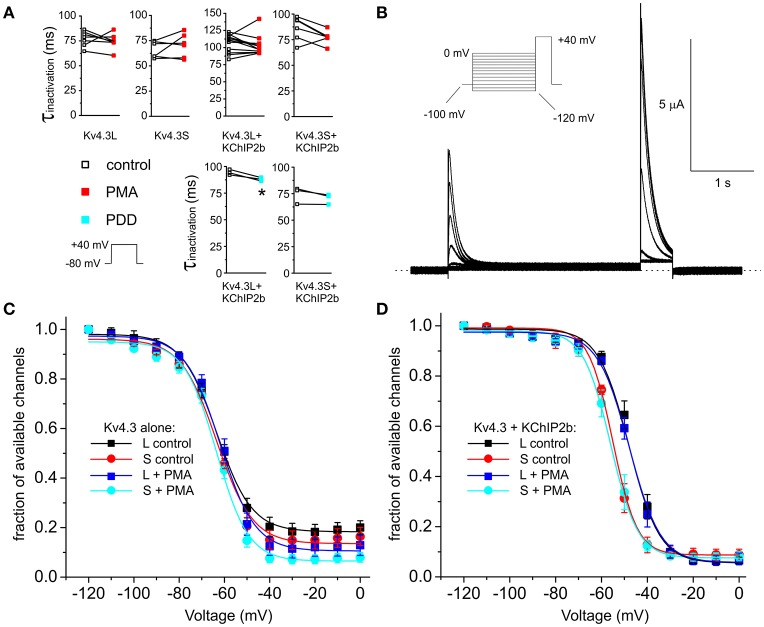

	Figure 3. PKC stimulation has no effects on Kv4.3 and Kv4.3-KChIP2b inactivation rate and voltage dependence. (A) Inactivation rates at +40 mV (τ of single exponential fit) for oocytes expressing Kv4.3L and Kv4.3S alone or with KChIP2b, before and after 15 min incubation with 50 nM PMA (n = 6–12) or PDD (n = 3). Upper inset: voltage protocol. *P < 0.05. (B) Exemplar current trace recorded from a Xenopus oocyte expressing Kv4.3L-KChIP2b using the steady-state inactivation protocol (upper left inset). Zero current level indicated by dashed line. (C) Mean ± SEM fraction of available channels/voltage relationship for Kv4.3L vs. Kv4.3S, with/without 15 min pre-incubation in 50 nM PMA; currents recorded as in (B); n = 6–8. (D) Mean ± SEM fraction of available channels/voltage relationship for Kv4.3L-KChIP2b (n = 12–13) vs. Kv4.3S-KChIP2b (n = 5–9), with/without 15 min pre-incubation in 50 nM PMA; currents recorded as in (B).

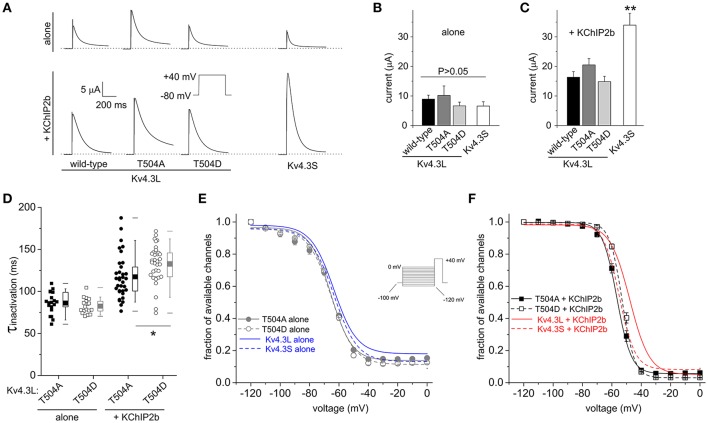

	Figure 4. Kv4.3L T504 mutations alter inactivation rate and voltage dependence only with KChIP2b co-expression. (A) Exemplar current traces recorded at +40 mV from Xenopus oocytes expressing Kv4.3L (wild-type, T504A or T504D) or Kv4.3S, alone or with KChIP2b (voltage protocol inset). Zero current level indicated by dashed line. (B) Mean ± SEM peak currents at +40 mV for oocytes expressing Kv4.3 variants as in (A), in the absence of KChIP2b (n = 8–15). (C) Mean ± SEM peak currents at +40 mV for oocytes expressing Kv4.3 variants as in (A), with KChIP2b (n = 21–25). **P < 0.01 vs. other +KChIP2b groups. (D) Box plots showing individual and mean ± SEM values for τ of inactivation at +40 mV of T504A and T504D Kv4.3L, with (n = 34) vs. without (n = 17–21) KChIP2b, recorded as in (A). *P < 0.05. (E) Mean ± SEM fraction of available channels/voltage relationship for T504A and T504D Kv4.3L vs. Kv4.3S in the absence of KChIP2b (n = 10–13), using the steady-state inactivation protocol (inset). Curves for wild-type Kv4.3 subunits without KChIP2b (from Figure 3) included for comparison (blue lines as indicated). (F) Mean ± SEM fraction of available channels/voltage relationship for T504A and T504D Kv4.3L vs. Kv4.3S, with KChIP2b (n = 26–31), using the steady-state inactivation protocol as in (E). Curves for wild-type Kv4.3 subunits with KChIP2b (from Figure 3) included for comparison (red lines as indicated).

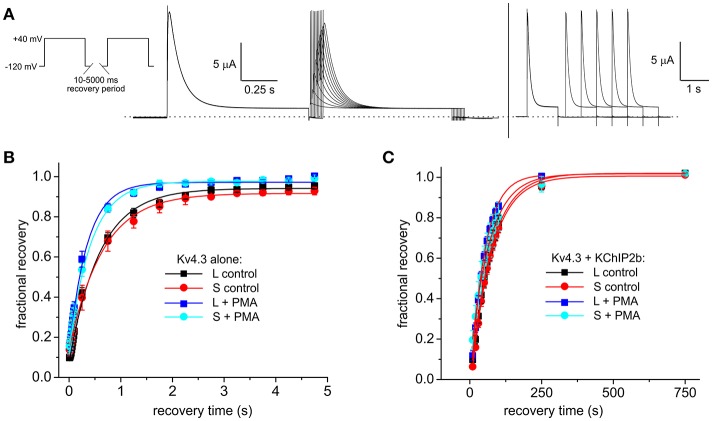

	Figure 5. KChIP2b regulates the effects of PKC stimulation on Kv4.3 inactivation recovery. (A) Exemplar current traces recorded using short (left) and long (right) inactivation recovery protocols (left inset), from a Xenopus oocyte expressing Kv4.3L and KChIP2b. (B) Mean ± SEM fractional current recovery plotted from traces recorded as in (A) for homomeric Kv4.3L or Kv4.3S in normal bath solution (control) or after 15 min in bath solution containing 50 nM PMA; n = 4–5. (C) Mean ± SEM fractional current recovery plotted from traces recorded as in (A) for Kv4.3L (n = 11–12) or Kv4.3S (n = 5–10) with KChIP2b in normal bath solution (control) or after 15 min in bath solution containing 50 nM PMA.

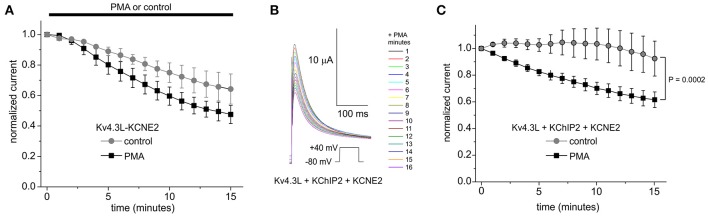

	Figure 6. KCNE2 restores the PKC sensitivity of Kv4.3L-KChIP2b activity. (A) Mean ± SEM normalized peak current magnitude at +40 mV (1 pulse per minute) during incubation in 50 nM PMA (n = 11–12) or normal bath solution (control; n = 5) for Kv4.3L with KCNE2. (B) Exemplar current traces recorded during +40 mV pulses (1 per minute) in the presence of 50 nM PMA, from Xenopus oocytes expressing encoding Kv4.3L with KCNE2 and KChIP2b. Insets: center, color-coded key to traces; lower left, voltage clamp protocol. (C) Mean ± SEM normalized peak current magnitude at +40 mV during incubation in 50 nM PMA (n = 8) or normal bath solution (control; n = 5) for cells as in (B).

Abbott, β Subunits Functionally Differentiate Human Kv4.3 Potassium Channel Splice Variants. 2017, Pubmed, Xenbase

Abbott, β Subunits Functionally Differentiate Human Kv4.3 Potassium Channel Splice Variants. 2017, Pubmed , Xenbase
Abbott, MiRP1 forms IKr potassium channels with HERG and is associated with cardiac arrhythmia. 1999, Pubmed , Xenbase
Abbott, Novel exon 1 protein-coding regions N-terminally extend human KCNE3 and KCNE4. 2016, Pubmed , Xenbase
Abbott, The KCNE2 K⁺ channel regulatory subunit: Ubiquitous influence, complex pathobiology. 2015, Pubmed
Abbott, KCNE1 and KCNE3: The yin and yang of voltage-gated K(+) channel regulation. 2016, Pubmed
Abbott, KCNE4 and KCNE5: K(+) channel regulation and cardiac arrhythmogenesis. 2016, Pubmed
Abbott, Regulation of human cardiac potassium channels by full-length KCNE3 and KCNE4. 2016, Pubmed , Xenbase
Abbott, Potassium channel subunits encoded by the KCNE gene family: physiology and pathophysiology of the MinK-related peptides (MiRPs). 2001, Pubmed
Amadi, Regulation of Kv4.3 closed state inactivation and recovery by extracellular potassium and intracellular KChIP2b. 2007, Pubmed , Xenbase
An, Modulation of A-type potassium channels by a family of calcium sensors. 2000, Pubmed , Xenbase
Apkon, Alpha 1-adrenergic agonists selectively suppress voltage-dependent K+ current in rat ventricular myocytes. 1988, Pubmed
Bähring, Conserved Kv4 N-terminal domain critical for effects of Kv channel-interacting protein 2.2 on channel expression and gating. 2001, Pubmed
Bett, KChIP2b modulates the affinity and use-dependent block of Kv4.3 by nifedipine. 2006, Pubmed , Xenbase
Braun, Intracellular mechanisms for alpha 1-adrenergic regulation of the transient outward current in rabbit atrial myocytes. 1990, Pubmed
Callsen, Contribution of N- and C-terminal Kv4.2 channel domains to KChIP interaction [corrected]. 2005, Pubmed
Delpón, Functional effects of KCNE3 mutation and its role in the development of Brugada syndrome. 2008, Pubmed
Deschênes, Modulation of Kv4.3 current by accessory subunits. 2002, Pubmed
Dixon, Role of the Kv4.3 K+ channel in ventricular muscle. A molecular correlate for the transient outward current. 1996, Pubmed
Fedida, Alpha-adrenergic modulation of the transient outward current in rabbit atrial myocytes. 1990, Pubmed
Giudicessi, Transient outward current (I(to)) gain-of-function mutations in the KCND3-encoded Kv4.3 potassium channel and Brugada syndrome. 2011, Pubmed
Han, C-terminal domain of Kv4.2 and associated KChIP2 interactions regulate functional expression and gating of Kv4.2. 2006, Pubmed
Hu, Kcne2 deletion creates a multisystem syndrome predisposing to sudden cardiac death. 2014, Pubmed
Hu, Kcne2 deletion attenuates acute post-ischaemia/reperfusion myocardial infarction. 2016, Pubmed
Jensen, Alpha-1-adrenergic receptors in heart failure: the adaptive arm of the cardiac response to chronic catecholamine stimulation. 2014, Pubmed
Johns, Suppression of neuronal and cardiac transient outward currents by viral gene transfer of dominant-negative Kv4.2 constructs. 1997, Pubmed
Kong, Isolation and characterization of the human gene encoding Ito: further diversity by alternative mRNA splicing. 1998, Pubmed
Kuo, A defect in the Kv channel-interacting protein 2 (KChIP2) gene leads to a complete loss of I(to) and confers susceptibility to ventricular tachycardia. 2001, Pubmed
Levy, The membrane protein MiRP3 regulates Kv4.2 channels in a KChIP-dependent manner. 2010, Pubmed
Li, KChIP2 modulates the cell surface expression of Kv 1.5-encoded K(+) channels. 2005, Pubmed
Liu, Co-expression of KCNE2 and KChIP2c modulates the electrophysiological properties of Kv4.2 current in COS-7 cells. 2008, Pubmed
McCrossan, Regulation of the Kv2.1 potassium channel by MinK and MiRP1. 2009, Pubmed
Nakamura, Modulation of Kv4 channels, key components of rat ventricular transient outward K+ current, by PKC. 1997, Pubmed , Xenbase
Ohno, KCNE5 (KCNE1L) variants are novel modulators of Brugada syndrome and idiopathic ventricular fibrillation. 2011, Pubmed
Ohya, Molecular cloning and tissue distribution of an alternatively spliced variant of an A-type K+ channel alpha-subunit, Kv4.3 in the rat. 1997, Pubmed
Patel, Elucidating KChIP effects on Kv4.3 inactivation and recovery kinetics with a minimal KChIP2 isoform. 2002, Pubmed , Xenbase
Patel, Regulation of Kv4.3 voltage-dependent gating kinetics by KChIP2 isoforms. 2004, Pubmed , Xenbase
Po, Mechanism of alpha-adrenergic regulation of expressed hKv4.3 currents. 2001, Pubmed
Radicke, Functional modulation of the transient outward current Ito by KCNE beta-subunits and regional distribution in human non-failing and failing hearts. 2006, Pubmed
Radicke, Expression and function of dipeptidyl-aminopeptidase-like protein 6 as a putative beta-subunit of human cardiac transient outward current encoded by Kv4.3. 2005, Pubmed
Roepke, Targeted deletion of kcne2 impairs ventricular repolarization via disruption of I(K,slow1) and I(to,f). 2008, Pubmed
Scholz, Central role of PKCα in isoenzyme-selective regulation of cardiac transient outward current Ito and Kv4.3 channels. 2011, Pubmed , Xenbase
Takimoto, Palmitoylation of KChIP splicing variants is required for efficient cell surface expression of Kv4.3 channels. 2002, Pubmed
van der Heyden, Molecular aspects of adrenergic modulation of the transient outward current. 2006, Pubmed
Wang, Modulation by clamping: Kv4 and KChIP interactions. 2008, Pubmed
Wang, Kinetic properties of Kv4.3 and their modulation by KChIP2b. 2002, Pubmed , Xenbase
Xie, Closed-state inactivation in Kv4.3 isoforms is differentially modulated by protein kinase C. 2009, Pubmed , Xenbase
