Nucleosome breathing and remodeling constrain CRISPR-Cas9 function.

Isaac RS , Jiang F , Doudna JA , Lim WA , Narlikar GJ , Almeida R .

???displayArticle.abstract???
The CRISPR-Cas9 bacterial surveillance system has become a versatile tool for genome editing and gene regulation in eukaryotic cells, yet how CRISPR-Cas9 contends with the barriers presented by eukaryotic chromatin is poorly understood. Here we investigate how the smallest unit of chromatin, a nucleosome, constrains the activity of the CRISPR-Cas9 system. We find that nucleosomes assembled on native DNA sequences are permissive to Cas9 action. However, the accessibility of nucleosomal DNA to Cas9 is variable over several orders of magnitude depending on dynamic properties of the DNA sequence and the distance of the PAM site from the nucleosome dyad. We further find that chromatin remodeling enzymes stimulate Cas9 activity on nucleosomal templates. Our findings imply that the spontaneous breathing of nucleosomal DNA together with the action of chromatin remodelers allow Cas9 to effectively act on chromatin in vivo.

???displayArticle.pubmedLink??? 27130520
???displayArticle.pmcLink??? PMC4880442
???displayArticle.link??? Elife
???displayArticle.grants??? [+]

Species referenced: Xenopus
Genes referenced: pam

???attribute.lit??? ???displayArticles.show???

	Figure 1. Cas9 DNA nuclease activity is hindered by nucleosomes.(A) Schematic of sgRNAs designed against the assembled 601 80/80 nucleosome substrates targeting the flanking regions, entry/exit sites, and near the nucleosomal dyad. (B) Cleavage assay comparing Cas9 cleavage on 80/80 DNA and 80/80 nucleosomes when loaded with sgRNA #3. (C) Kinetics of cleavage with sgRNA #3. (D) Comparison of the relative rates of cleavage on nucleosomes to DNA at various positions along the 80/80 nucleosome construct. The position reported is the site of cleavage by Cas9. Represented values are mean Â± SEM from three replicates.DOI: http://dx.doi.org/10.7554/eLife.13450.00310.7554/eLife.13450.004Figure 1âsource data 1. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNAs #2 and #6.DOI: http://dx.doi.org/10.7554/eLife.13450.004Figure 1âsource data 2. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNAs #2 and #6.DOI: http://dx.doi.org/10.7554/eLife.13450.005Figure 1âsource data 3. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNAs #2 and #6.DOI: http://dx.doi.org/10.7554/eLife.13450.006Figure 1âsource data 4. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNA #5.DOI: http://dx.doi.org/10.7554/eLife.13450.007Figure 1âsource data 5. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNA #5.DOI: http://dx.doi.org/10.7554/eLife.13450.008Figure 1âsource data 6. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNA #1.DOI: http://dx.doi.org/10.7554/eLife.13450.009Figure 1âsource data 7. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNA #1.DOI: http://dx.doi.org/10.7554/eLife.13450.010Figure 1âsource data 8. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNA #3.DOI: http://dx.doi.org/10.7554/eLife.13450.011Figure 1âsource data 9. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNA #3.DOI: http://dx.doi.org/10.7554/eLife.13450.012Figure 1âsource data 10. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNA #4.DOI: http://dx.doi.org/10.7554/eLife.13450.013Figure 1âsource data 11. Replicate gels of Cas9 cleavage of 80/80 601 DNA and nucleosomes with sgRNA #4.DOI: http://dx.doi.org/10.7554/eLife.13450.014Figure 1âsource data 12. Quantification of Figure 1 Cas9 cleavage gels.DOI: http://dx.doi.org/10.7554/eLife.13450.015Figure 1âfigure supplement 1. Nucleosome positioning blocks Cas9 from binding PAM sites on DNA.(A) Schematic illustrating the stepwise mechanism of Cas9 binding to DNA targets and subsequent nucleolytic cleavage. (B) Gel shift assay comparing dCas9 binding to 0/0 DNA and nucleosomes while loaded with sgRNA #3 targeting the nucleosome dyad. Band shift pattern appears as discrete lower band (dCas9 bound to sgRNA-specified target, arrowhead) and higher, super shift bands (additional dCas9 PAM-only binding events). (C) Quantification of (B). Represented values are mean Â± SEM from three replicates.DOI: http://dx.doi.org/10.7554/eLife.13450.01610.7554/eLife.13450.017Figure 1âfigure supplement 1âsource data 1. -3Replicate gels of dCas9 binding to 0/0 601 DNA and nucleosomes with sgRNA #3.DOI: http://dx.doi.org/10.7554/eLife.13450.017ââFigure 1âfigure supplement 1âsource data 2. -3Replicate gels of dCas9 binding to 0/0 601 DNA and nucleosomes with sgRNA #3.DOI: http://dx.doi.org/10.7554/eLife.13450.018Figure 1âfigure supplement 1âsource data 3. -3Replicate gels of dCas9 binding to 0/0 601 DNA and nucleosomes with sgRNA #3.DOI: http://dx.doi.org/10.7554/eLife.13450.019Figure 1âfigure supplement 1âsource data 4. Quantification of Figure 1âfigure supplement 1 gel shifts.DOI: http://dx.doi.org/10.7554/eLife.13450.020

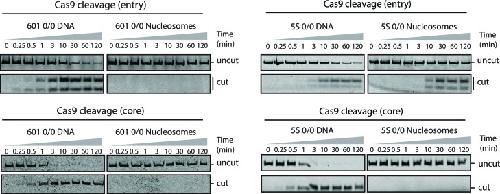

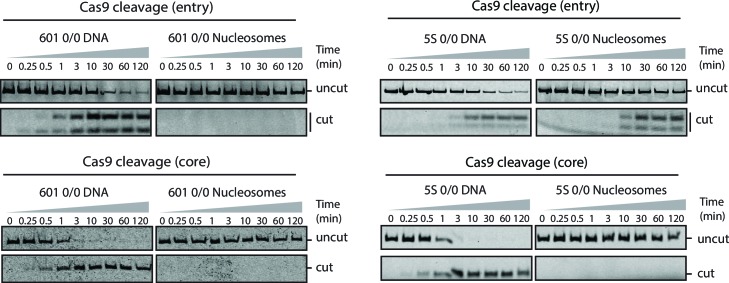

	Figure 2. Higher nucleosomal breathing dynamics enhance Cas9 cleavage.(A) Schematic illustrating nucleosome breathing and how it can enable Cas9 binding to a target in the nucleosome. (B) Cleavage assay comparing Cas9 cleavage of 601 and 5S 0/0 nucleosomes when loaded with sgRNAs targeting comparable positions at core and entry sites. (C) Quantification of (B). (D) Cas9 cleavage rates on 601 and 5S nucleosomes when targeted to core and entry sites. Values were normalized against naked DNA control rates. Represented values are mean Â± SEM from three replicates. Additional gel panels shown in Figure 2âfigure supplement 1.DOI: http://dx.doi.org/10.7554/eLife.13450.02110.7554/eLife.13450.022Figure 2âsource data 1. Replicate gels of cleavage of 0/0 5S DNA and nucleosomes with sgRNA core.DOI: http://dx.doi.org/10.7554/eLife.13450.022Figure 2âsource data 2. Replicate gels of cleavage of 0/0 5S DNA and nucleosomes with sgRNA core.DOI: http://dx.doi.org/10.7554/eLife.13450.023Figure 2âsource data 3. Replicate gels of cleavage of 0/0 5S DNA and nucleosomes with sgRNA entry.DOI: http://dx.doi.org/10.7554/eLife.13450.024Figure 2âsource data 4. Replicate gels of cleavage of 0/0 5S DNA and nucleosomes with sgRNA entry.DOI: http://dx.doi.org/10.7554/eLife.13450.025Figure 2âsource data 5. Replicate gels of cleavage of 0/0 601 DNA and nucleosomes with sgRNA entry.DOI: http://dx.doi.org/10.7554/eLife.13450.026Figure 2âsource data 6. Replicate gels of cleavage of 0/0 601 DNA and nucleosomes with sgRNA entry.DOI: http://dx.doi.org/10.7554/eLife.13450.027Figure 2âsource data 7. Quantification of Figure 2 Cas9 cleavage gels.DOI: http://dx.doi.org/10.7554/eLife.13450.028Figure 2âsource data 8. Quantification of Figure 2 Cas9 cleavage gels.DOI: http://dx.doi.org/10.7554/eLife.13450.029Figure 2âfigure supplement 1. Cas9 cleavage assay with 601 and 5S 0/0 nucleosomes.Representative gel images of Cas9 cleavage experiments with 601 (left) and 5S (right) 0/0 particles using sgRNAs targeting entry (top) or core (bottom) sites, including DNA control experiments. Samples were resolved on 12% (entry) or 8% (core) polyacrylamide gels. Cleavage with sgRNAs targeting the entry site on both 5S and 601 substrates generates a short cleavage product (13 bp) which partially denatures and runs as two bands (single and double stranded) on 12% polyacrylamide gels.DOI: http://dx.doi.org/10.7554/eLife.13450.030

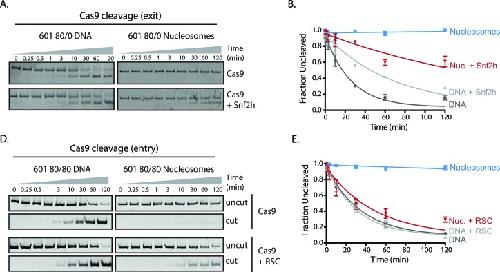

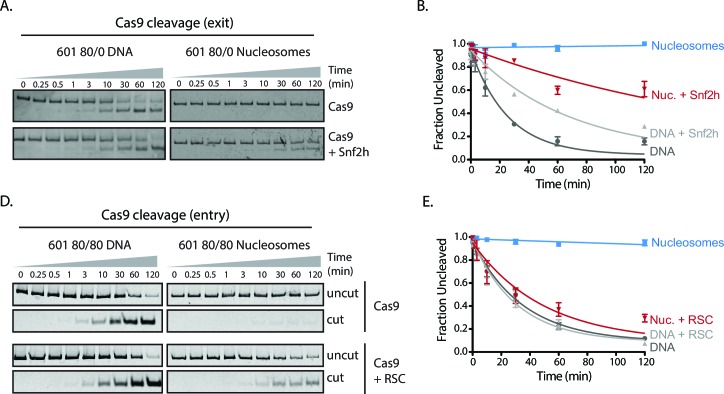

	Figure 3. Chromatin remodeling improves Cas9 cleavage of nucleosomal substrates.(A) Schematic of Cas9 cleavage assay with remodeling. Cas9 is presented with 601 nucleosomes either untreated or previously remodeled with SNF2h or RSC remodelers. (B) Assay comparing cleavage on untreated and remodeled 80/0 nucleosomes when Cas9 is targeted to exit site (depicted in green). These asymmetric nucleosomes are recentered by SNF2h, exposing the exit target site to Cas9 (C) Quantification of (B). (D) Cleavage rates of 80/0 nucleosomes by Cas9 relative to naked DNA, in the presence or absence of SNF2h. SNF2h improves Cas9 cleavage to ~35% of the naked DNA cleavage rate. (E) Assay comparing Cas9-mediated cleavage at entry site of 80/80 symmetric 601 nucleosomes, either untreated or previously treated with RSC remodeler. RSC can destabilize nucleosome structure and reposition nucleosomes towards the DNA ends. (F) Quantification of (E) (G) Comparison of the rates of cleavage of nucleosomes normalized to DNA control with and without the action of RSC chromatin remodeler. Mean enhancement rates of Cas9 activity by chromatin remodeling are shown. (H) Cleavage rates of 80/80 nucleosomes by Cas9 relative to naked DNA, in the presence or absence of RSC. Cas9 cleavage is substantially enhanced by RSC, attaining ~63% of the naked DNA cleavage rate. Represented values are mean Â± SEM from three replicates. Additional gel panels shown in Figure 3âfigure supplement 1. (I) Model of Cas9 activity in vivo in eukaryotes. Left, stable and strongly positioned nucleosomes impede Cas9 activity (downward arrows). However, nucleosomes in vivo are generally more dynamic (breathing), allowing Cas9 opportunities to target underlying DNA (center). Cas9 accessibility to nucleosomal DNA can be further enhanced by the activity of chromatin remodelers that destabilize and/or reposition nucleosomes (right).DOI: http://dx.doi.org/10.7554/eLife.13450.03110.7554/eLife.13450.032Figure 3âsource data 1. Replicate gels of cleavage of 80/0 DNA and nucleosomes using sgRNA #4 with or without prior remodeling by Snf2h.DOI: http://dx.doi.org/10.7554/eLife.13450.032Figure 3âsource Data 2. Replicate gels of cleavage of 80/0 DNA and nucleosomes using sgRNA #4 with or without prior remodeling by Snf2h.DOI: http://dx.doi.org/10.7554/eLife.13450.033Figure 3âsource data 3. Replicate gels of cleavage of 80/0 DNA and nucleosomes using sgRNA #4 with or without prior remodeling by Snf2h.DOI: http://dx.doi.org/10.7554/eLife.13450.034Figure 3âsource data 4. Quantification of Cas9 cleavage gels from Figure 3âsource data 1â3.DOI: http://dx.doi.org/10.7554/eLife.13450.035Figure 3âsource data 5. Replicate gels of cleavage of 80/80 DNA and nucleosomes using sgRNA 601_2 with or without prior remodeling by RSC.DOI: http://dx.doi.org/10.7554/eLife.13450.036Figure 3âsource data 6. Replicate gels of cleavage of 80/80 DNA and nucleosomes using sgRNA 601_2 with or without prior remodeling by RSC.DOI: http://dx.doi.org/10.7554/eLife.13450.037Figure 3âsource data 7. Replicate gels of cleavage of 80/80 DNA and nucleosomes using sgRNA 601_2 with or without prior remodeling by RSC.DOI: http://dx.doi.org/10.7554/eLife.13450.038Figure 3âsource data 8. Quantification of Cas9 cleavage gels from Figure 3âsource data 5â7.DOI: http://dx.doi.org/10.7554/eLife.13450.039Figure 3âfigure supplement 1. Cas9 cleavage assays with SNF2h and RSC chromatin remodelers.(A) Representative gel images of Cas9 cleavage experiments with 601 80/0 asymmetric particles and SNF2h chromatin remodeler, including DNA control experiments. Cas9 was loaded with sgRNA targeting the exit site of the nucleosome. SNF2h re-centers asymmetric nucleosomes such as 80/0 (Figure 3âfigure supplement 3), exposing the Cas9 target site. (B) Quantification of (A). (C) Representative gel images of Cas9 cleavage experiments with 601 80/80 symmetric nucleosomes and RSC chromatin remodeler, including DNA control experiments. Cas9 was targeted to the entry site of the nucleosome. RSC destabilizes nucleosomal structure and repositions nucleosomes to the ends of the DNA molecule. (D) Quantification of (C). Represented values are mean Â± SEM from three replicates.DOI: http://dx.doi.org/10.7554/eLife.13450.040

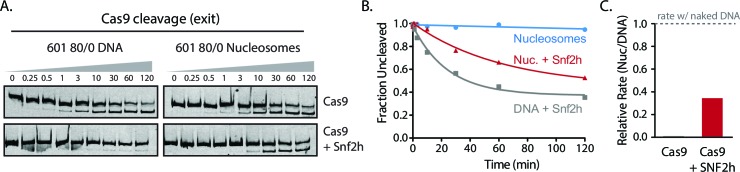

	Figure 3âfigure supplement 2. Simultaneous chromatin remodeling and Cas9 cleavage of nucleosomal substrates.(A) Assay comparing Cas9 cleavage of 601 80/0 nucleosomes simultaneously with chromatin remodeling byr SNF2h. The 601 80/0 asymmetric nucleosomes are recentered by SNF2h, exposing the exit target site to Cas9 (B) Quantification of (A). (C) Cleavage rates of 80/0 nucleosomes by Cas9 relative to naked DNA, in the presence or absence of SNF2h. SNF2h improves Cas9 cleavage to ~40% of the naked DNA cleavage rate, similarly to sequential remodeling and cleavage assays shown in Figure 3AâD. Results shown for single experiment performed.DOI: http://dx.doi.org/10.7554/eLife.13450.04110.7554/eLife.13450.042Figure 3âfigure supplement 2âsource data 1. Gel of cleavage of 80/0 DNA and nucleosomes using sgRNA #4 with or without simultaneous remodeling by Snf2h.DOI: http://dx.doi.org/10.7554/eLife.13450.042

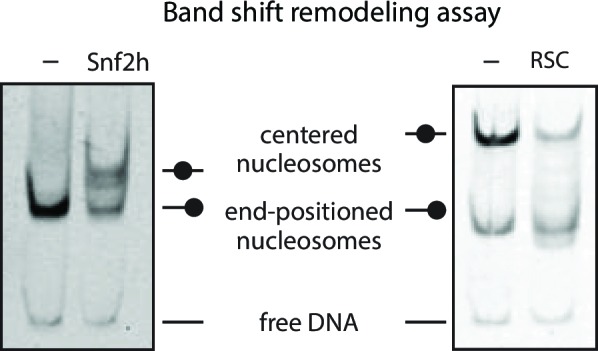

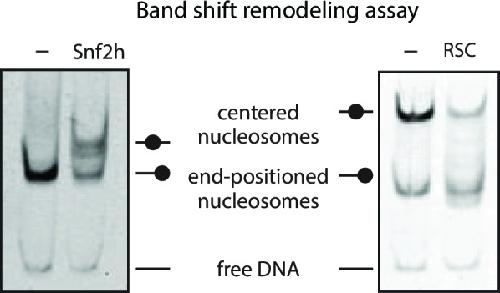

	Figure 3âfigure supplement 3. SNF2h and RSC remodel nucleosomes prior to Cas9 cleavage.Gelâshift nucleosome remodeling assay comparing positioned and SNF2hâremodeled 80/0 nucleosomes (left) or RSC-remodeled 80/80 nucleosomes (right). Migration pattern for all three forms (centered, end-positioned nucleosomes and free DNA) is illustrated (center). Remodeling reactions were carried out 1âhr before being quenched and run on a 5% Acrylamide 0.5x TBE gel. SNF2h remodels 80/0 endâpositioned nucleosomes in a range of nucleosome positions biased towards the center of the DNA molecule, whereas RSC has the opposite bias of repositioned centered nucleosomes towards the ends of the DNA molecule. Images shown for single experiments performed, as previously described (Yang et al., 2006; Rowe and Narlikar, 2010).DOI: http://dx.doi.org/10.7554/eLife.13450.04310.7554/eLife.13450.044Figure 3âfigure supplement 3âsource data 1. Test remodeling gel of 80/0 nucleosomes with Snf2h.DOI: http://dx.doi.org/10.7554/eLife.13450.044Figure 3âfigure supplement 3âsource data 2. Test remodeling gel of 80/80 nucleosomes with RSC.DOI: http://dx.doi.org/10.7554/eLife.13450.045
