Decker F et al. (2018), Autocatalytic microtubule nucleation determines...

XB-ART-54435

Elife 2018 Jan 11;7. doi: 10.7554/eLife.31149.

Show Gene links Show Anatomy links

Autocatalytic microtubule nucleation determines the size and mass of Xenopus laevis egg extract spindles.

Decker F , Oriola D , Dalton B , Brugués J .

???displayArticle.abstract???
Regulation of size and growth is a fundamental problem in biology. A prominent example is the formation of the mitotic spindle, where protein concentration gradients around chromosomes are thought to regulate spindle growth by controlling microtubule nucleation. Previous evidence suggests that microtubules nucleate throughout the spindle structure. However, the mechanisms underlying microtubule nucleation and its spatial regulation are still unclear. Here, we developed an assay based on laser ablation to directly probe microtubule nucleation events in Xenopus laevis egg extracts. Combining this method with theory and quantitative microscopy, we show that the size of a spindle is controlled by autocatalytic growth of microtubules, driven by microtubule-stimulated microtubule nucleation. The autocatalytic activity of this nucleation system is spatially regulated by the limiting amounts of active microtubule nucleators, which decrease with distance from the chromosomes. This mechanism provides an upper limit to spindle size even when resources are not limiting.

???displayArticle.pubmedLink??? 29323637
???displayArticle.pmcLink??? PMC5814149
???displayArticle.link??? Elife
???displayArticle.grants??? [+]

Species referenced: Xenopus laevis
Genes referenced: cox7a2l kif2c mapre1
GO keywords: microtubule nucleation [+]

???attribute.lit??? ???displayArticles.show???

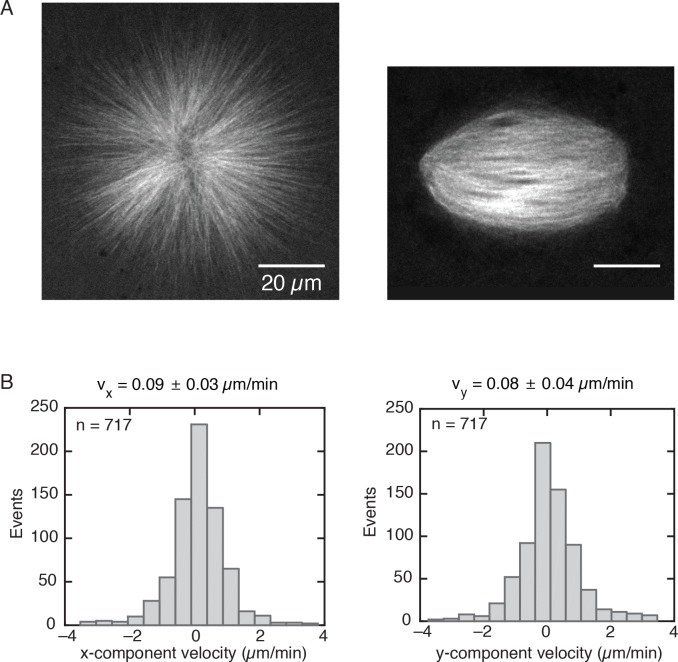

	Figure 1. Microtubule nucleation in monopolar spindles is spatially regulated.(A) Fluorescence image of a monopolar spindle (left), and single-molecule fluorescent tubulin and EB1-GFP (right). (B) Circular laser cut and corresponding differential intensity depolymerization front at different times. (C) Radial sum of differential intensities at different time points (from dark to light blue) of one cut at a radius of 19Â Î¼m from the center. The area under each curve equals the mass of microtubules depolymerized per time interval of 2 s. (D) Nucleation profile of monopolar spindles (NÂ =Â 117 cuts, mean Â± SD).Figure 1âfigure supplement 1. Monopolar spindles have a similar size as regular spindles.(A) Left, monopolar spindle assembled with 200 ÂµM STLC and labeled with 150 nM atto-565 tubulin. Right, regular spindle. (B) Velocity distributions of speckles in a monopole obtained by analyzing three different regions from Video 2 (nÂ =Â 717 speckles total). The velocity distributions correspond to the x and y-components given a cartesian reference frame. The x and y velocity components of a speckle trajectory were computed as the difference between the final and initial position of the speckle along a given component, divided by the total speckle lifetime. The mean speckle velocities along each component are vx = 0.09 Â±Â 0.03 Âµm/min and vy = 0.08 Â±Â 0.04 Âµm/min (mean Â±Â SDM). The average modulus of the speckle velocity is v = 0.12 Â±Â 0.07 Âµm/min.

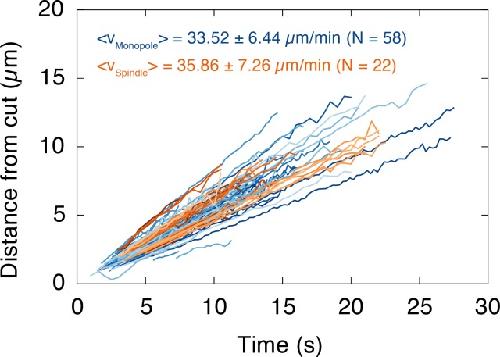

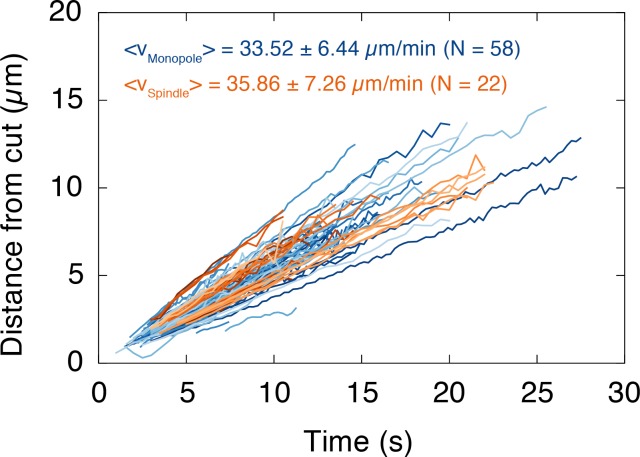

	Figure 1âfigure supplement 2. The depolymerization velocity of microtubules in monopolar spindles is indistinguishable from the one in spindles.We plotted the position of the depolymerization wave after a cut, which was determined by the maximum of the fitted Gaussians, over time. Each line corresponds to one wave (i.e. one cut). Data for monopoles and spindles are shown in blue and orange, respectively. The slope of each dataset corresponds to the depolymerization velocity of the cut microtubules (mean depolymerization velocity Â±Â SD, NmonopoleÂ =Â 58, NspindleÂ =Â 22).

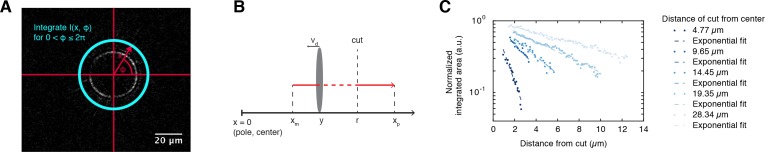

	Figure 1âfigure supplement 3. Depolymerization wave of microtubules cut by laserÂ ablation.(A) Coordinate system for plotting differential intensities. Differential intensities I(x,Ï), whereÂ x is the distance from the center of the monopole and Ï is the angular coordinate, were integrated overÂ Ï(0<Ïâ¤2Ï) for each value of x. The origin of the polar coordinate system was always set to be in the center of the monopolar spindle. Next, we plotted the integrated differential intensities as a function ofÂ x for each time point of the differential intensity movie (see Figure 1C). (B) Definitions of the variables used in the cutting method:Â xm,Â xp are the locations of minus/plus-ends with respect to the center of the monopole,Â rÂ is the radius of the cut, vd is the depolymerization velocity, andÂ y is the position of the depolymerization front with respect to the center of the monopole. (C) The log-linear plot shows the normalized integrated areas of the Gaussian fits (Figure 1C) as a function of the distance that the wave travels away from the cut, given cuts performed at different locations (the lighter the color the further was the cut from the monopole center). Dashed lines represent linear fits to the log-linear data normalized such that the interception with the y-axis equals unity.

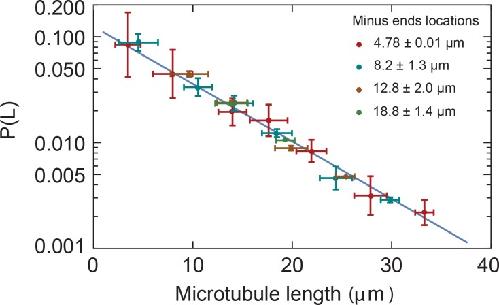

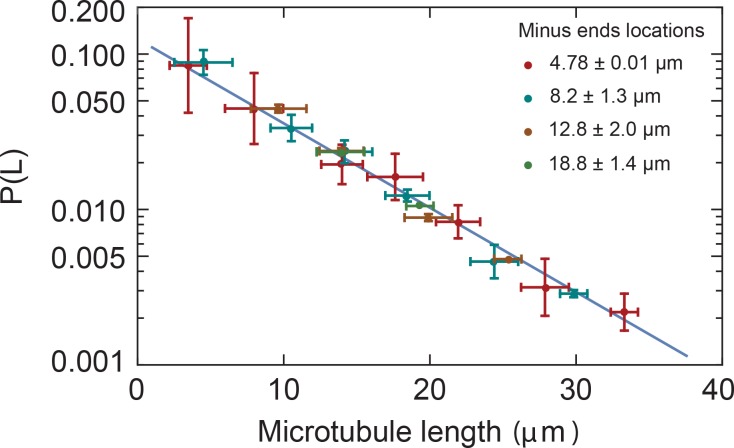

	Figure 2. Microtubule nucleation depends on the stability of microtubules.(A) Inhibition of MCAK leads to larger steady-state monopoles. Scale barÂ =Â 20 Âµm (B) Microtubule length distributions measured from laser ablation and fitted to an exponential (mean Â±Â SD). (C) Normalized histograms of microtubule lifetimes of control (NÂ =Â 5331 speckles, five structures) and MCAK-inhibited monopoles (NÂ =Â 7289 speckles, three structures), and corresponding first-passage time fits (see Methods and materials). (D) Nucleation profile of control (NÂ =Â 117 cuts) and MCAK-inhibited monopoles (NÂ =Â 74 cuts) in arbitrary units that are consistent in both structures (mean Â±Â SD). The inset shows both nucleation profiles multiplied by the circumference length at each radius, which corresponds to the total microtubule nucleation at that distance from the center of the monopole.Figure 2âfigure supplement 1. Microtubule length distributions are independent of the position in monopoles.Microtubule length distributions measured from minus ends at locations 4.78 Â±Â 0.01 Âµm, 8.2 Â±Â 1.3 Âµm, 12.8 Â±Â 2.0 Âµm, and 18.8 Â±Â 1.4 Âµm from the center of the monopole (mean Â± SD). The solid line corresponds to the exponential fit to the monopole data from Figure 2B.

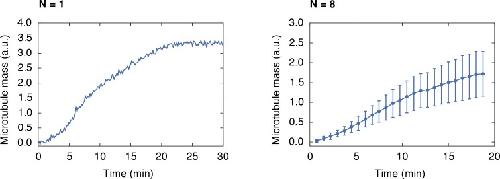

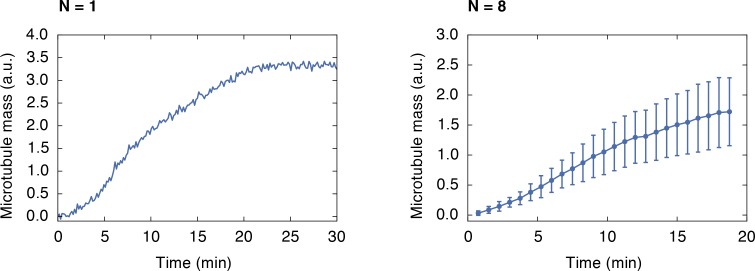

	Figure 3. Microtubule nucleation requires physical proximity to pre-existing microtubules.(A) Inert obstacles (fluorocarbon oil microdroplets or polystyrene beads) immobilized to coverslips selectively block microtubule nucleation. Left: Schematic outcomes depending on whether new microtubules are nucleated in physical proximity from pre-existing microtubules (top) or not (bottom). Middle: Two time points of a microtubule structure with labeled tubulin (red) and EB1-GFP (green) growing around immobilized frog sperm chromosomes. The oil microdroplet is highlighted with a dashed ellipse. Right: Normalized line profiles of shadow regions behind six different obstacles (colored dots). The intensity profiles were normalized to the average intensity outside the obstacles and rescaled to the radius of the obstacle. Gray lines show mean Â±Â SD. (B) Left: Addition of RanQ69L to extract homogeneously activates nucleation and creates mini asters afterÂ â¼20 min (22). Middle: Addition of RanQ69L to monopoles leads to immediate growth of new microtubules from the pre-existing monopoles. Right: Quantification of radial fluorescence intensity profiles at different time points of the growing monopole shown in the middle.Figure 3âfigure supplement 1. Growth of a monopolar spindle.Integrated fluorescence intensity of z-stacks of a microtubule structure labeled with 150 nM Atto565-tubulin growing around frog sperm over time (left). The right side shows the average of 8 structures (mean Â±Â SD).

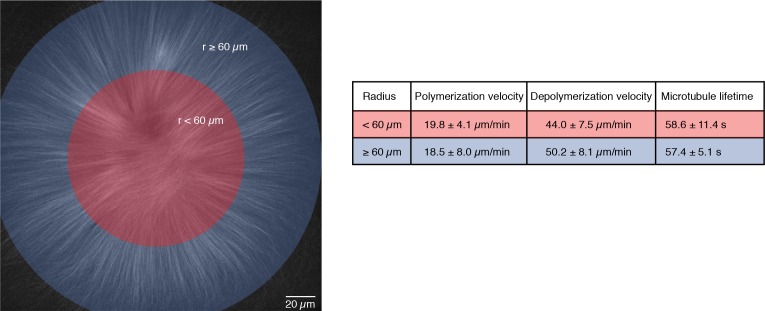

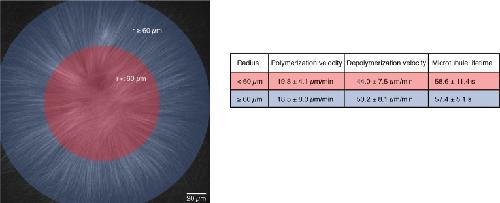

	Figure 3âfigure supplement 2. Microtubule dynamics are the same within the entire MCAK-inhibited monopolar spindle.We compared microtubule dynamics in the inner (radius <Â 60 m) and outer regions (radius â¥Â 60 m) of MCAK-inhibited monopolar spindles. Polymerization velocities were measured by analyzing the speed of EB1-GFP comets in each region (NÂ =Â 14 for each region, in three different structures from different reactions on the same extract day). Depolymerization velocities were calculated from laser ablation experiments on many different days (NÂ =Â 55 cuts for the inner region and NÂ =Â 13 cuts for the outer region). We used single tubulin speckle microscopy to measure the average lifetimes of microtubules (1455 speckles for the inner region and 3418 speckles for the outer region in the same structure). All values are given as mean Â±Â SD.

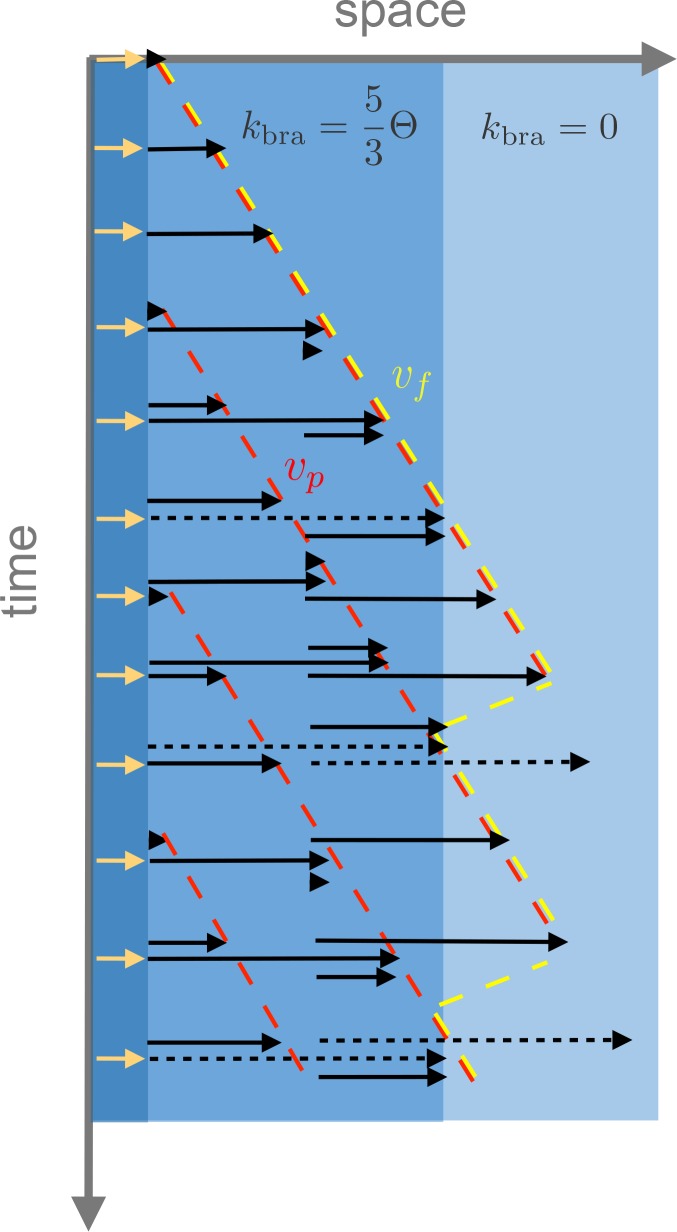

	Figure 4. Model for microtubule-stimulated nucleation.(A) Inactive nucleators (orange circles) are activated around DNA. As active nucleators diffuse (green circles), they can bind and unbind microtubules (red lines). Once bound, they can nucleate a new microtubule with a certain probability. Active nucleators become inactive at a constant rate. (B) Radial microtubule density profiles measured from fluorescent images (mean Â± SD, NmonopolesÂ =Â 40 (blue), Na-MCAKÂ =Â 18 (gray)) and corresponding model fit to the MCAK-inhibited and prediction to control monopoles (see Appendix 1). The ratio of the microtubule densities for control and MCAK-inhibited monopoles was determined using structures from the same extract reaction. (C) Parameter-free rescaling of the microtubule density profiles predicted by the model: ÏC=ÏMâ¢expâ¡[(1/âM-1/âC)â¢x], where ÏC, âC and ÏM, âM are the density and length of microtubules for the control and MCAK-inhibited structures, respectively, and x is the distance from the center of the structure. In the graph, blue corresponds to the density profile of control monopoles and gray to the rescaled density profile of MCAK-inhibited monopoles. (D) Data and predictions (orange) for the nucleation profiles of control (blue) and MCAK-inhibited monopoles (gray) up to a global nucleation amplitude, and flux-corrected regular spindles (green) (mean Â± SD, NcontrolÂ =Â 117 , Na-MCAKÂ =Â 74, NspindleÂ =Â 36 cuts).Figure 4âfigure supplement 1. Example of the spatio-temporal evolution of autocatalytic microtubule nucleation with spatially varying branching nucleation rate kbra, polymerization velocity vp and turnover rate Î.The yellow arrows at the origin denote initial microtubule seeds. In the example, a region has a branching rate of kbra=5â¢Î/3 and another region has vanishing branching rate. Microtubule turnover is shown as a transition from black to dashed black arrows and disappearance. The front velocity vf is denoted in yellow while the plus-end microtubule velocity is denoted in red. As shown in the figure, before the front reaches the boundary where branching is allowed, vp=vf; however, further away vf=0.
