Genome Biol
2018 Oct 05;191:156. doi: 10.1186/s13059-018-1548-4.
Show Gene links
Show Anatomy links
Evolutionary and developmental dynamics of sex-biased gene expression in common frogs with proto-Y chromosomes.
Ma WJ
,
Veltsos P
,
Sermier R
,
Parker DJ
,
Perrin N
.
???displayArticle.abstract???
BACKGROUND: The patterns of gene expression on highly differentiated sex chromosomes differ drastically from those on autosomes, due to sex-specific patterns of selection and inheritance. As a result, X chromosomes are often enriched in female-biased genes (feminization) and Z chromosomes in male-biased genes (masculinization). However, it is not known how quickly sexualization of gene expression and transcriptional degeneration evolve after sex-chromosome formation. Furthermore, little is known about how sex-biased gene expression varies throughout development.
RESULTS: We sample a population of common frogs (Rana temporaria) with limited sex-chromosome differentiation (proto-sex chromosome), leaky genetic sex determination evidenced by the occurrence of XX males, and delayed gonadal development, meaning that XY individuals may first develop ovaries before switching to testes. Using high-throughput RNA sequencing, we investigate the dynamics of gene expression throughout development, spanning from early embryo to froglet stages. Our results show that sex-biased expression affects different genes at different developmental stages and increases during development, reaching highest levels in XX female froglets. Additionally, sex-biased gene expression depends on phenotypic, rather than genotypic sex, with similar expression in XX and XY males; correlates with gene evolutionary rates; and is not localized to the proto-sex chromosome nor near the candidate sex-determining gene Dmrt1.
CONCLUSIONS: The proto-sex chromosome of common frogs does not show evidence of sexualization of gene expression, nor evidence for a faster rate of evolution. This challenges the notion that sexually antagonistic genes play a central role in the initial stages of sex-chromosome evolution.
31003A_166323 Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung, CRSII3_147625 Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (CH)

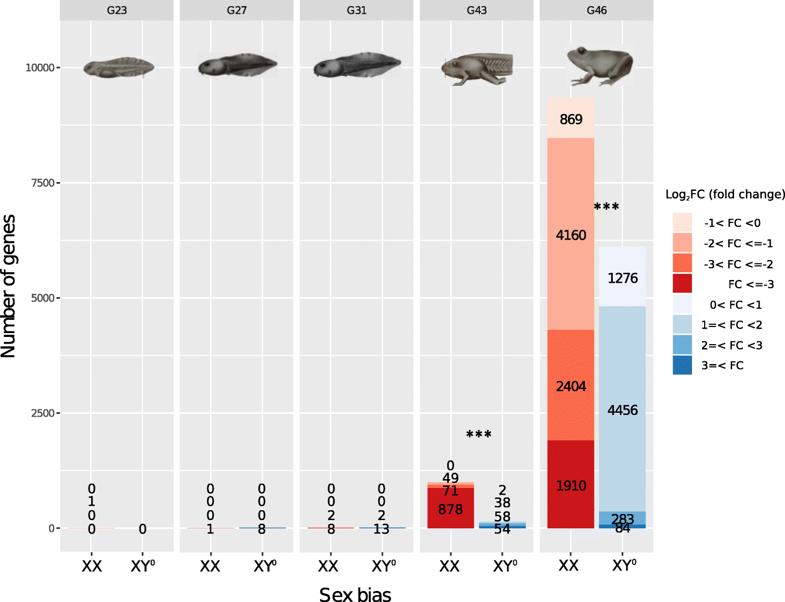

Fig. 1
Sex bias in gene expression across developmental stages in Rana temporaria. The number of genes with significant sex bias (corrected for multiple testing) increases drastically in the late developmental stages (G43 and G46), corresponding to the morphological differentiation of gonads. At these stages, female-biased genes (reddish) significantly outnumber male-biased genes (blueish), mostly for the highly biased categories (|log2FC| â¥â2 and â¥â3). Drawings of frog tadpoles and larvae are reprinted from [80], with permission of the editors

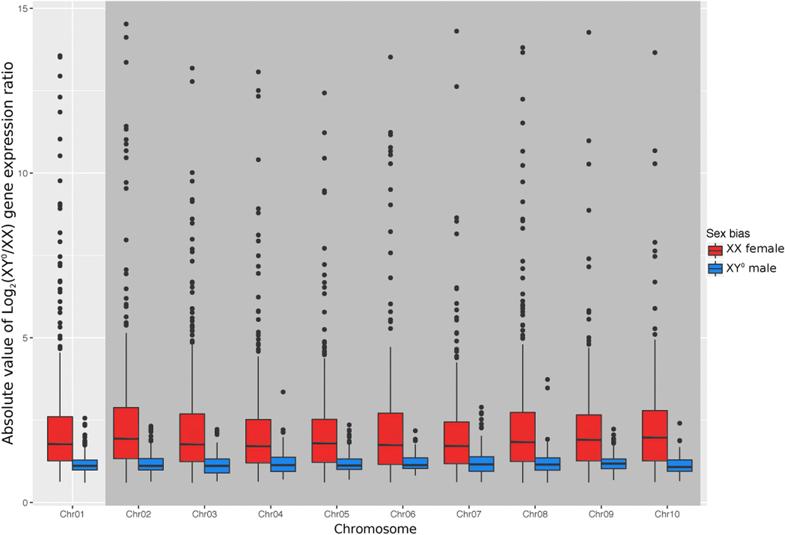

Fig. 2
Female-biased genes (red) and male-biased genes (blue) in froglets (G46) show the same distribution patterns on the sex chromosomes (Chr01, left) as on autosomes (Chr02 to 10, right, shaded area)

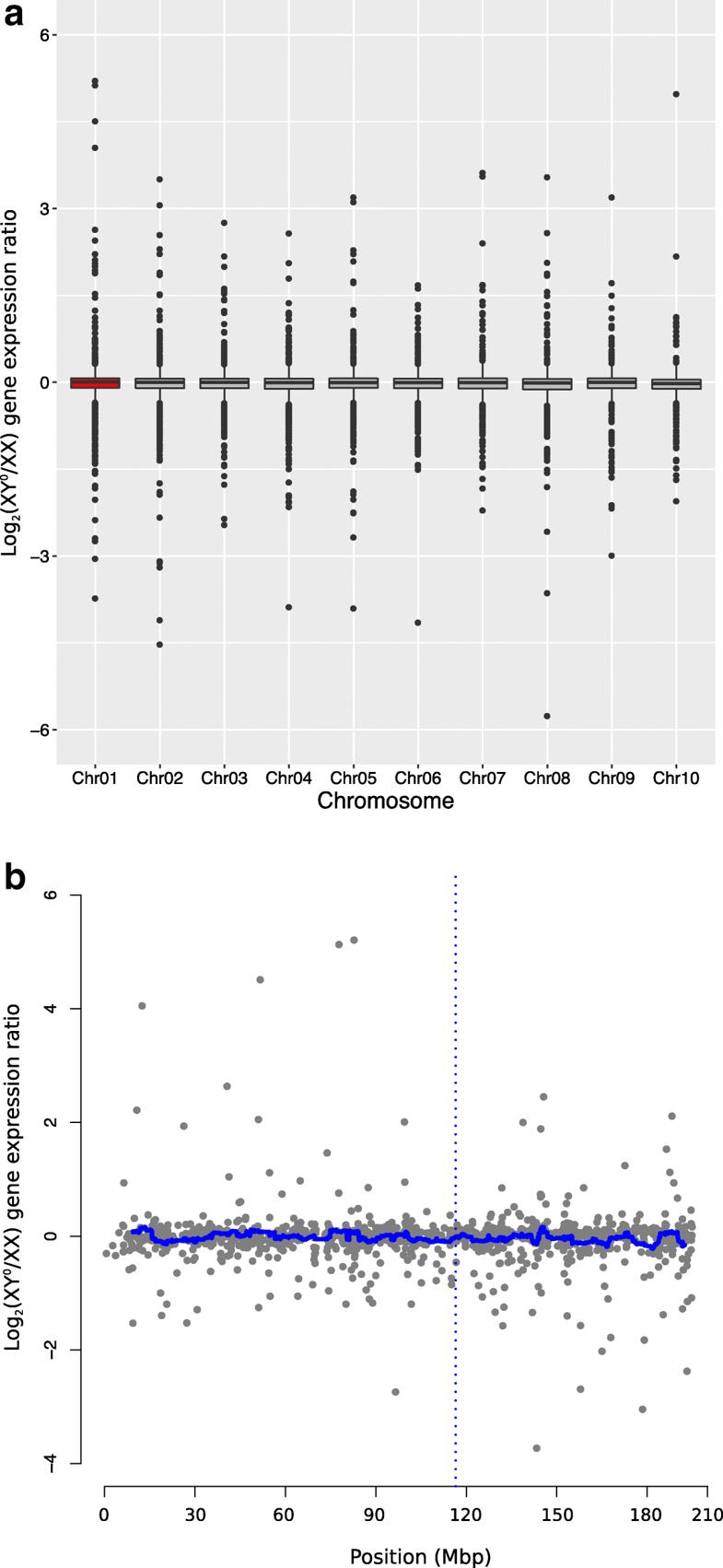

Fig. 3
XX and XY° male froglets (G46) show similar patterns of gene expression, with a no specific signature of sex chromosomes (Chr01, red, left) relative to ausosomes (boxplots of Log2(XY°/XX) gene expression ratio) and b no difference around the sex-determining region (Manhattan plot of log2(XY°/XX) gene expression ratio along the sex chromosome, with a sliding window of 40 genes; Dmrt1 position marked by the blue dotted line)

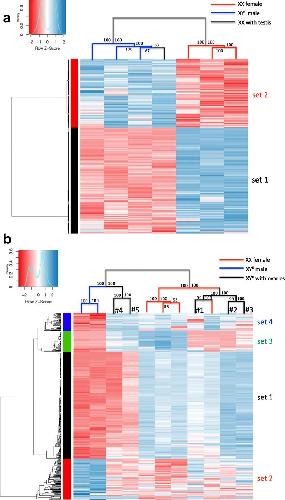

Fig. 4
Heatmaps and hierarchical clustering of differentially expressed genes (FDRâ<â0.05) for XX females, XY° males, XX with testes, and XY° with ovaries at stages G46 (a) and G43 (b). Blue and red colors represent high and low expression, respectively. On each node of the clustering tree, bootstrap support values are shown from 10,000 replicates

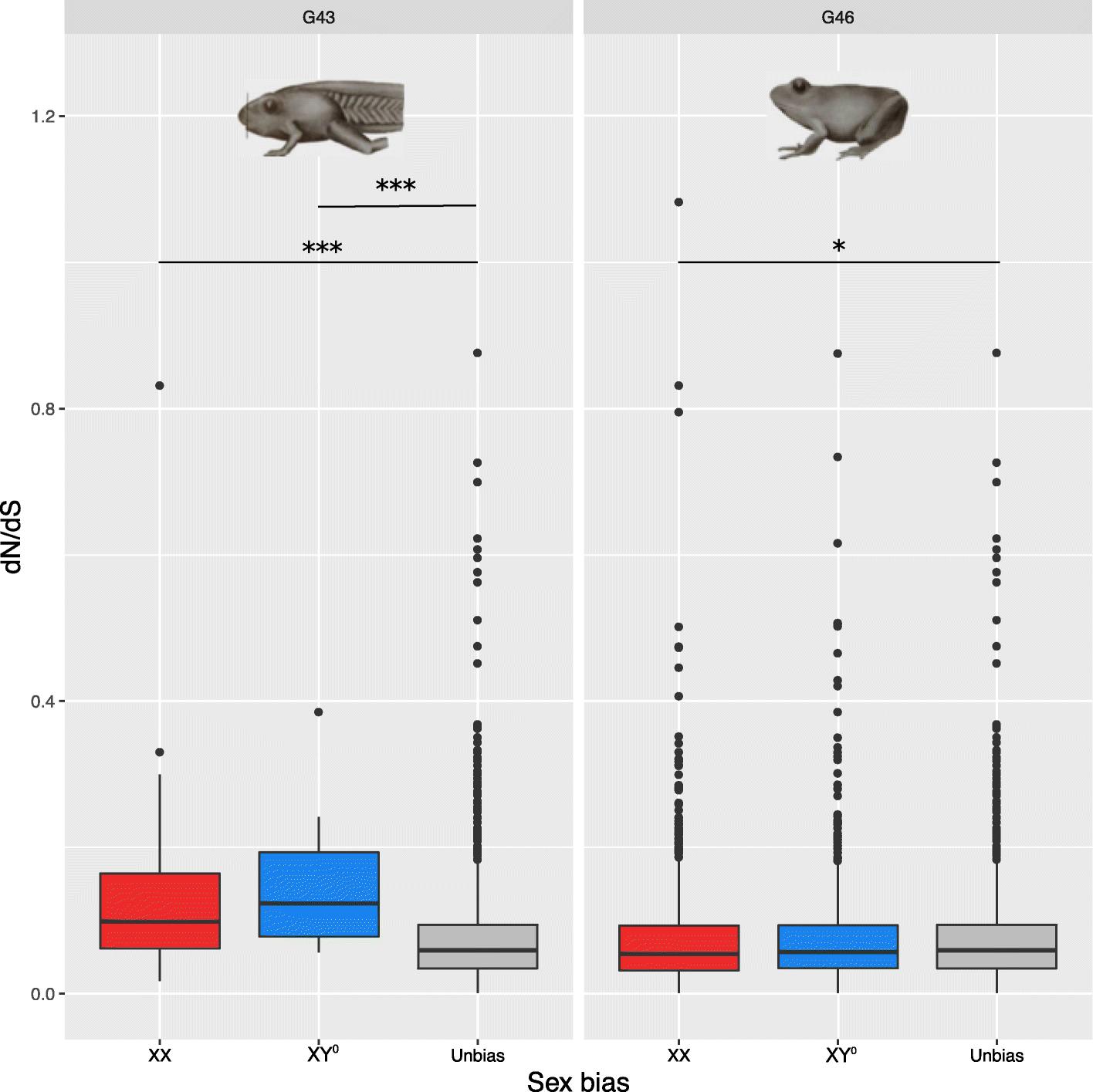

Fig. 5
Boxplots of ratios of non-synonymous to synonymous substitutions (dN/dS) for XX-biased, XY°-biased, and unbiased genes identified at stages G43 and G46. Codes for levels of significance are 0.001 â***â, 0.05 â*â

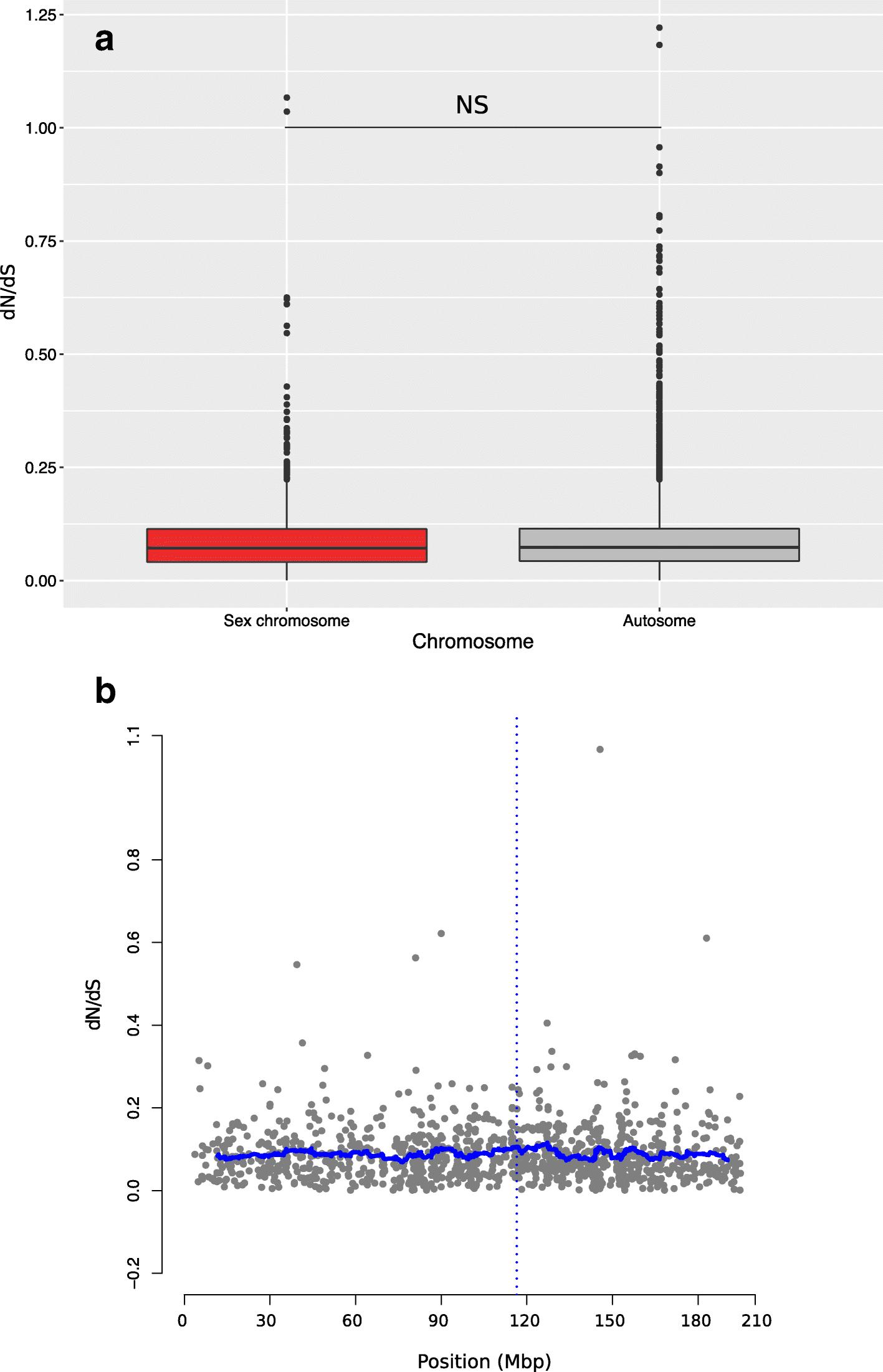

Fig. 6
The ratios of non-synonymous to synonymous substitutions dN/dS a do not differ between sex chromosomes (red) and autosomes and b show no special pattern around the sex-determining region (the horizontal blue line shows the average dN/dS ratio of a sliding window of 40 genes; Dmrt1 position marked by the vertical blue dotted line). Codes for significance level is not significant âNSâ
Axelsson,
Natural selection in avian protein-coding genes expressed in brain.
2008, Pubmed
Axelsson,
Natural selection in avian protein-coding genes expressed in brain.
2008,
Pubmed
Ayroles,
Systems genetics of complex traits in Drosophila melanogaster.
2009,
Pubmed
Bachtrog,
Y-chromosome evolution: emerging insights into processes of Y-chromosome degeneration.
2013,
Pubmed
Bachtrog,
A dynamic view of sex chromosome evolution.
2006,
Pubmed
Blaser,
Sex-chromosome turnovers induced by deleterious mutation load.
2013,
Pubmed
Blaser,
Sex-chromosome turnovers: the hot-potato model.
2014,
Pubmed
Bolger,
Trimmomatic: a flexible trimmer for Illumina sequence data.
2014,
Pubmed
Bray,
Near-optimal probabilistic RNA-seq quantification.
2016,
Pubmed
Brelsford,
Homologous sex chromosomes in three deeply divergent anuran species.
2013,
Pubmed
,
Xenbase
Brelsford,
High-density linkage maps fail to detect any genetic component to sex determination in a Rana temporaria family.
2016,
Pubmed
,
Xenbase
Brelsford,
High-density sex-specific linkage maps of a European tree frog (Hyla arborea) identify the sex chromosome without information on offspring sex.
2016,
Pubmed
,
Xenbase
Charlesworth,
Steps in the evolution of heteromorphic sex chromosomes.
2005,
Pubmed
Charlesworth,
Evolution of recombination rates between sex chromosomes.
2017,
Pubmed
Connallon,
Intergenomic conflict revealed by patterns of sex-biased gene expression.
2005,
Pubmed
Dean,
Positive Selection Underlies Faster-Z Evolution of Gene Expression in Birds.
2015,
Pubmed
Duarte-Guterman,
Developmental expression of sex steroid- and thyroid hormone-related genes and their regulation by triiodothyronine in the gonad-mesonephros of a Neotropical frog, Physalaemus pustulosus.
2012,
Pubmed
El Jamil,
Early aspects of gonadal sex differentiation in Xenopus tropicalis with reference to an antero-posterior gradient.
2008,
Pubmed
,
Xenbase
Ellegren,
The evolution of sex-biased genes and sex-biased gene expression.
2007,
Pubmed
Graves,
Evolution of vertebrate sex chromosomes and dosage compensation.
2016,
Pubmed
Haas,
De novo transcript sequence reconstruction from RNA-seq using the Trinity platform for reference generation and analysis.
2013,
Pubmed
Haczkiewicz,
Gonadal sex differentiation in frogs: how testes become shorter than ovaries.
2013,
Pubmed
Hale,
Differential gene expression in male and female rainbow trout embryos prior to the onset of gross morphological differentiation of the gonads.
2011,
Pubmed
Harrison,
Sexual selection drives evolution and rapid turnover of male gene expression.
2015,
Pubmed
Haselman,
Global gene expression during early differentiation of Xenopus (Silurana) tropicalis gonad tissues.
2015,
Pubmed
,
Xenbase
Hogan,
Hormone cross-regulation in the tadpole brain: developmental expression profiles and effect of T3 exposure on thyroid hormone- and estrogen-responsive genes in Rana pipiens.
2007,
Pubmed
Hothorn,
Simultaneous inference in general parametric models.
2008,
Pubmed
Ingleby,
Sex-biased gene expression and sexual conflict throughout development.
2014,
Pubmed
Iturra,
Characterization of sex chromosomes in rainbow trout and coho salmon using fluorescence in situ hybridization (FISH).
2001,
Pubmed
Jeffries,
A rapid rate of sex-chromosome turnover and non-random transitions in true frogs.
2018,
Pubmed
Lande,
SEXUAL DIMORPHISM, SEXUAL SELECTION, AND ADAPTATION IN POLYGENIC CHARACTERS.
1980,
Pubmed
Langfelder,
Defining clusters from a hierarchical cluster tree: the Dynamic Tree Cut package for R.
2008,
Pubmed
Langmead,
Fast gapped-read alignment with Bowtie 2.
2012,
Pubmed
Löytynoja,
webPRANK: a phylogeny-aware multiple sequence aligner with interactive alignment browser.
2010,
Pubmed
Ma,
Evolutionary and developmental dynamics of sex-biased gene expression in common frogs with proto-Y chromosomes.
2018,
Pubmed
,
Xenbase
Ma,
Dmrt1 polymorphism covaries with sex-determination patterns in Rana temporaria.
2016,
Pubmed
Mank,
The W, X, Y and Z of sex-chromosome dosage compensation.
2009,
Pubmed
Mank,
Polyandry and sex-specific gene expression.
2013,
Pubmed
Mank,
Ontogenetic complexity of sexual dimorphism and sex-specific selection.
2010,
Pubmed
Martins,
Sex-biased gene expression in the brown alga Fucus vesiculosus.
2013,
Pubmed
McCarthy,
Differential expression analysis of multifactor RNA-Seq experiments with respect to biological variation.
2012,
Pubmed
Meisel,
Towards a more nuanced understanding of the relationship between sex-biased gene expression and rates of protein-coding sequence evolution.
2011,
Pubmed
Meisel,
The house fly Y Chromosome is young and minimally differentiated from its ancient X Chromosome partner.
2017,
Pubmed
Miura,
Sex Determination and Sex Chromosomes in Amphibia.
2017,
Pubmed
Montgomery,
Inferring regulatory change from gene expression: the confounding effects of tissue scaling.
2016,
Pubmed
Ogielska,
Pattern and rate of ovary differentiation with reference to somatic development in anuran amphibians.
2004,
Pubmed
,
Xenbase
Parsch,
The evolutionary causes and consequences of sex-biased gene expression.
2013,
Pubmed
Perry,
The ontogeny and evolution of sex-biased gene expression in Drosophila melanogaster.
2014,
Pubmed
Pucholt,
Recent Sex Chromosome Divergence despite Ancient Dioecy in the Willow Salix viminalis.
2017,
Pubmed
Ranz,
Sex-dependent gene expression and evolution of the Drosophila transcriptome.
2003,
Pubmed
Rice,
THE ACCUMULATION OF SEXUALLY ANTAGONISTIC GENES AS A SELECTIVE AGENT PROMOTING THE EVOLUTION OF REDUCED RECOMBINATION BETWEEN PRIMITIVE SEX CHROMOSOMES.
1987,
Pubmed
Rice,
SEX CHROMOSOMES AND THE EVOLUTION OF SEXUAL DIMORPHISM.
1984,
Pubmed
Robinson,
edgeR: a Bioconductor package for differential expression analysis of digital gene expression data.
2010,
Pubmed
Rodrigues,
Dmrt1 polymorphism and sex-chromosome differentiation in Rana temporaria.
2017,
Pubmed
Rodrigues,
Geographic variation in sex-chromosome differentiation in the common frog (Rana temporaria).
2014,
Pubmed
Rodrigues,
Sex-Chromosome Recombination in Common Frogs Brings Water to the Fountain-of-Youth.
2018,
Pubmed
Rodrigues,
Sex-chromosome differentiation and 'sex races' in the common frog (Rana temporaria).
2015,
Pubmed
Rodrigues,
The genetic contribution to sex determination and number of sex chromosomes vary among populations of common frogs (Rana temporaria).
2016,
Pubmed
Simão,
BUSCO: assessing genome assembly and annotation completeness with single-copy orthologs.
2015,
Pubmed
Small,
A microarray analysis of sex- and gonad-biased gene expression in the zebrafish: evidence for masculinization of the transcriptome.
2009,
Pubmed
Sumida,
Sex-linked genes and linkage maps in amphibians.
2000,
Pubmed
Suzuki,
Pvclust: an R package for assessing the uncertainty in hierarchical clustering.
2006,
Pubmed
Verhulst,
Maternal control of haplodiploid sex determination in the wasp Nasonia.
2010,
Pubmed
Vicoso,
Numerous transitions of sex chromosomes in Diptera.
2015,
Pubmed
Wright,
The scope and strength of sex-specific selection in genome evolution.
2013,
Pubmed
Wright,
Independent stratum formation on the avian sex chromosomes reveals inter-chromosomal gene conversion and predominance of purifying selection on the W chromosome.
2014,
Pubmed
Wright,
Convergent recombination suppression suggests role of sexual selection in guppy sex chromosome formation.
2017,
Pubmed
Wright,
How to make a sex chromosome.
2016,
Pubmed
Yang,
PAML 4: phylogenetic analysis by maximum likelihood.
2007,
Pubmed
Yang,
Tissue-specific expression and regulation of sexually dimorphic genes in mice.
2006,
Pubmed
Zhang,
Molecular evolution of sex-biased genes in Drosophila.
2004,
Pubmed
Zhang,
Constraint and turnover in sex-biased gene expression in the genus Drosophila.
2007,
Pubmed
