Wahl SE et al. (2018), Transcriptome analysis of Xenopus orofacial tis...

XB-ART-55440

BMC Genomics 2018 Nov 03;191:795. doi: 10.1186/s12864-018-5186-8.

Show Gene links Show Anatomy links

Transcriptome analysis of Xenopus orofacial tissues deficient in retinoic acid receptor function.

Wahl SE , Wyatt BH , Turner SD , Dickinson AJG .

???displayArticle.abstract???
BACKGROUND: Development of the face and mouth is orchestrated by a large number of transcription factors, signaling pathways and epigenetic regulators. While we know many of these regulators, our understanding of how they interact with each other and implement changes in gene expression during orofacial development is still in its infancy. Therefore, this study focuses on uncovering potential cooperation between transcriptional regulators and one important signaling pathway, retinoic acid, during development of the midface. RESULTS: Transcriptome analyses was performed on facial tissues deficient for retinoic acid receptor function at two time points in development; early (35 hpf) just after the neural crest migrates and facial tissues are specified and later (60 hpf) when the mouth has formed and facial structures begin to differentiate. Functional and network analyses revealed that retinoic acid signaling could cooperate with novel epigenetic factors and calcium-NFAT signaling during early orofacial development. At the later stage, retinoic acid may work with WNT and BMP and regulate homeobox containing transcription factors. Finally, there is an overlap in genes dysregulated in Xenopus embryos with median clefts with human genes associated with similar orofacial defects. CONCLUSIONS: This study uncovers novel signaling pathways required for orofacial development as well as pathways that could interact with retinoic acid signaling during the formation of the face. We show that frog faces are an important tool for studying orofacial development and birth defects.

???displayArticle.pubmedLink??? 30390632
???displayArticle.pmcLink??? PMC6215681
???displayArticle.link??? BMC Genomics
???displayArticle.grants??? [+]

Species referenced: Xenopus laevis
Genes referenced: camk2g chd1 nfatc2 ppp3ca rab40b

???displayArticle.gses??? GSE115148: NCBI

GSE116819: Xenbase, NCBI

???attribute.lit??? ???displayArticles.show???

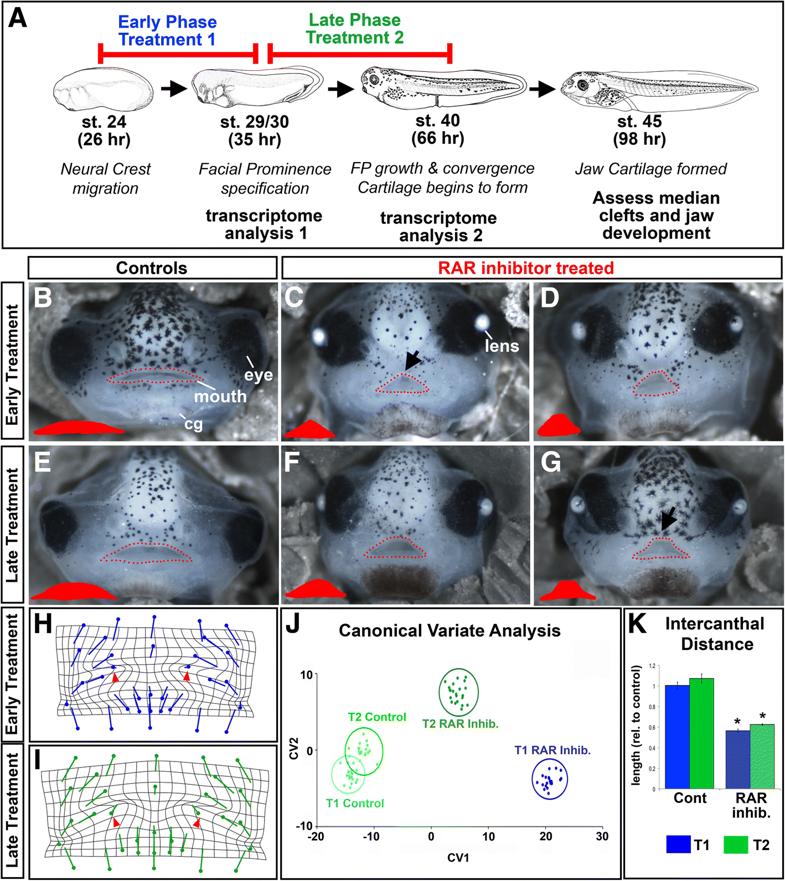

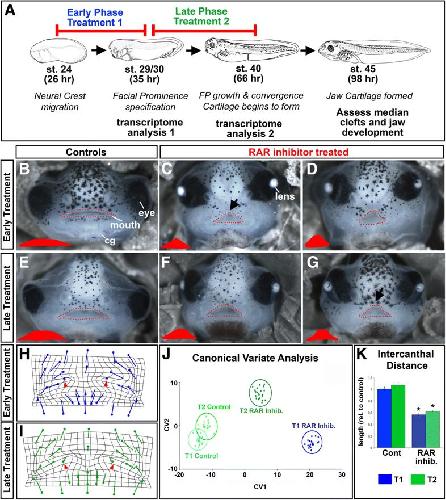

	Fig. 1 RAR Inhibition during early and late orofacial development. a Schematic of the RAR inhibitor treatment paradigm. b-g Representative images of frontal views of stage 43 (87â92 hpf) embryos. The mouths are outlined in red dots and the shape of the mouth is shown in red in the left corners. b) Embryos treated with 1% DMSO from stage 24 to stage 29/30 (26â35 hpf). c,d Two different embryos treated from stage 24 to stage 29/30 (26â35 hpf) with 1 uM RAR Inhibitor. Black arrow indicates a triangular shaped mouth e Embryos treated with 1% DMSO from stage 29/30 to stage 40 (35â66 hpf). f,g Two different embryos treated with 1 uM RAR Inhibitor from stage 29/30 to stage 40 (35â66 hpf). Black arrow indicates a mouth shape with a flat dorsal aspect at the midline h-i Transformation grids exhibiting changes in orofacial landmarks during early (h) and late (i) RAR Inhibition. Flat end of the vector represents average position of control landmark; closed circle represents average position of landmark in treated embryos. j CVA analysis scatter plot. k Intercanthal distance relative to control. For all experiments n =â22/treatment, 2 biological replicates

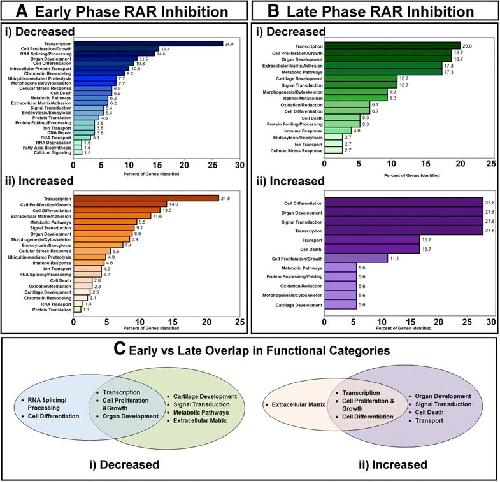

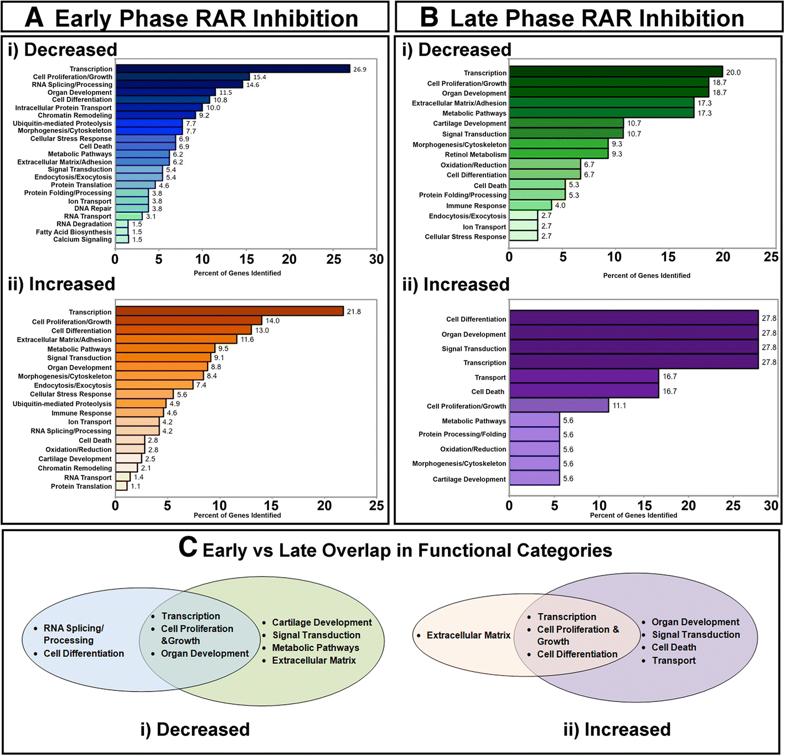

	Fig. 2 Functional classification of altered genes with RAR inhibition. (a). Functional categories of genes decreased (i) or increased (ii) after early RAR inhibition. (b). Functional categories of genes decreased (i) or increased (ii) after late RAR inhibition. For all graphs: numbers represent the percent of genes identified. (ci-ii): Venn diagrams representing the overlap between decreased genes (i) and increased genes (ii) in early and late RAR inhibition. Blue and orange represent functional categories altered with early RAR inhibition; green and purple represent functional categories altered with late RAR inhibition

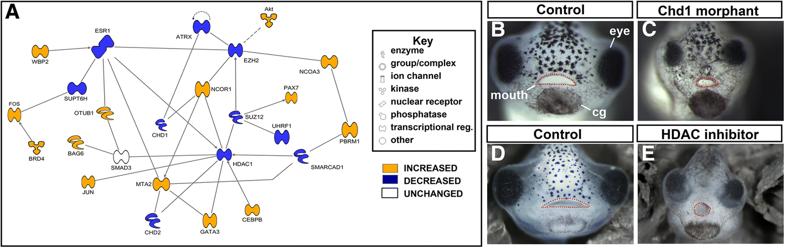

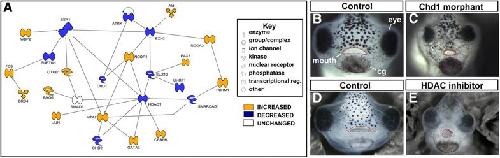

	Fig. 3 Transcription regulation was altered in early RAR inhibition. a Functional network built in IPA software, utilizing DAVID pathway analysis. Blue genes are decreased relative to control; orange genes are increased relative to control. Legend denotes the type of gene product represented in the network. b-c Representative images of Control (b) and CHD1 morphants (c). Facial structures are labeled in b. d-e Representative images of Control (1% DMSO, d) and TSA treated embryos (e). In all representative images the mouth is outlined in red dots

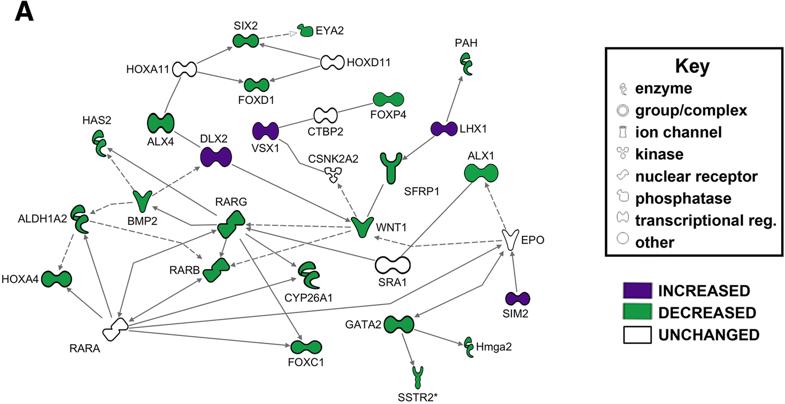

	Fig. 4 Transcription regulation was largely decreased in late RAR inhibition. Functional network build in IPA software, utilizing IPA and DAVID pathway analysis. Green genes are decreased relative to control; purple genes are increased relative to control. Key denotes the type of gene product represented in the network

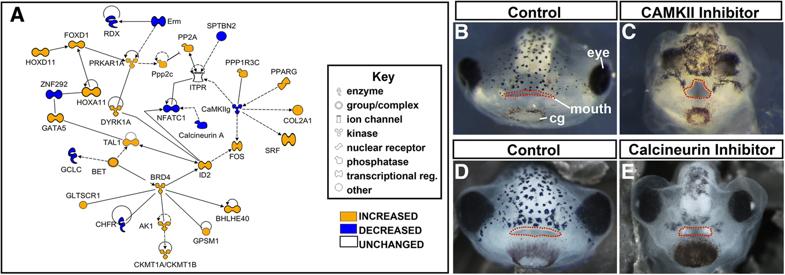

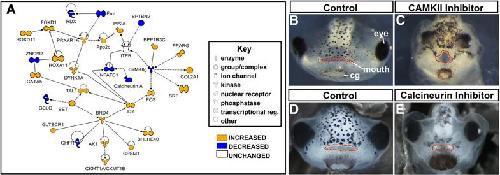

	Fig. 5 Calcium signaling in Organ Development and Differentiation were altered with early RAR inhibition. a Functional network built in IPA software utilizing IPA and DAVID pathway analysis. Blue genes are decreased relative to control; orange genes are increased relative to control. Key denotes type of gene product represented in diagram. b-c Representative images of control (b, 1% DMSO) and CAMKII inhibitor treated embryos (c, 100 Î¼M KN93). d-e Representative images of control (1% DMSO, d) or calcineurin inhibitor treated embryos (e, 100 Î¼M FK506). Mouths are outlined in red dots

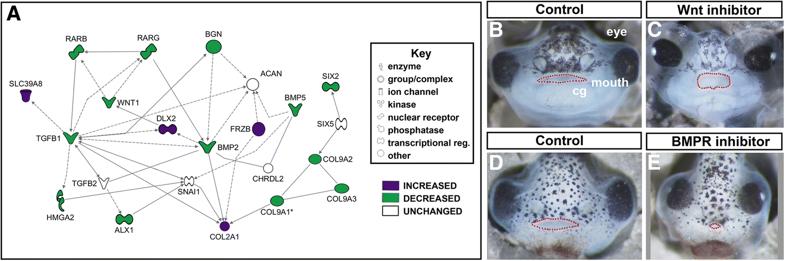

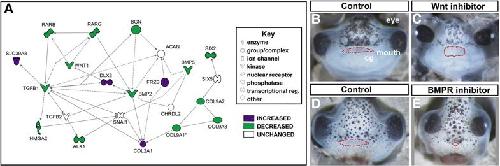

	Fig. 6 Wnt and BMP signaling were altered with late RAR inhibition. a Functional network built in IPA software utilizing IPA and DAVID functional analyses. Green genes are decreased and purple genes are increased relative to control. Key denotes type of gene product represented in diagram. b-c Representative images of control (b, 1% DMSO) and Wnt inhibitor treated embryos (c, IWR-1 10 Î¼M). d-e Representative images of control (d, 1% DMSO) and BMPR Inhibitor (e, LDN193189, 100 Î¼M). Mouths are outlined in red dots

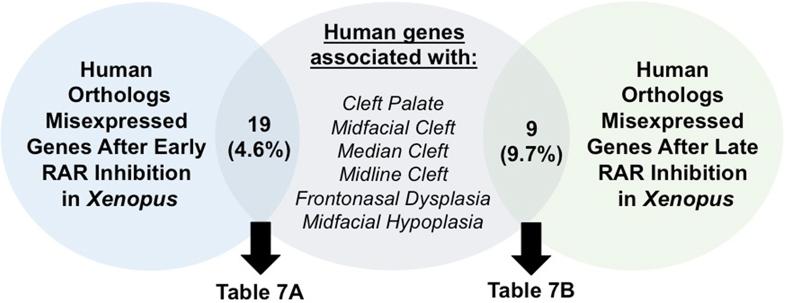

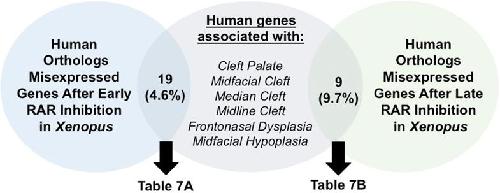

	Fig. 7 Overlap of altered gene expression in RAR deficient face and human orofacial defects. Venn diagram exhibiting the overlap among genes altered in our treatment paradigm in Xenopus and human median orofacial defects. Blue circle: total number of Xenopus genes with human orthologs (415) that were significantly altered with early RAR inhibition. Green circle: total number of Xenopus genes with human orthologs (93) that were significantly altered with late RAR inhibition. Grey circle: Human genes associated with one of the six craniofacial defects listed (325 total). Overlap of circles denotes genes that appeared in both lists
